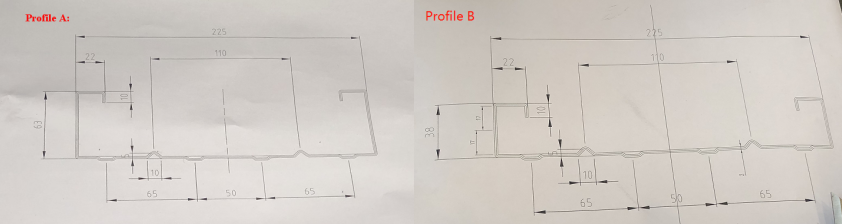

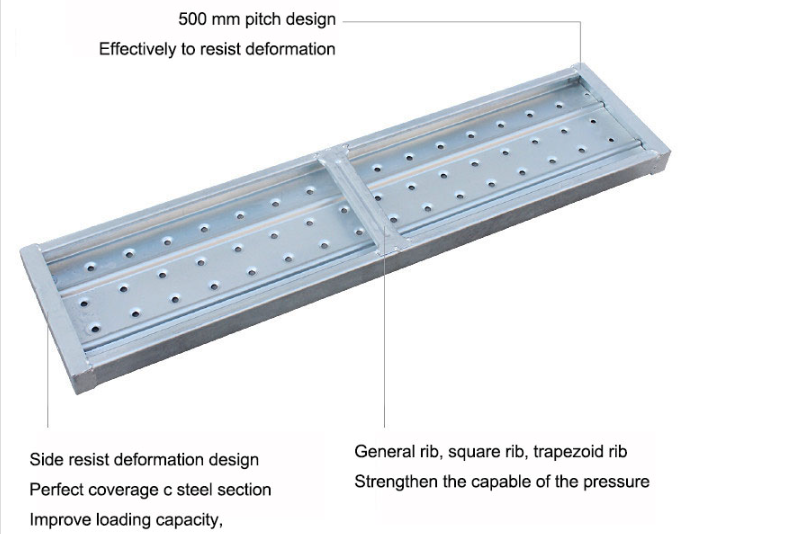

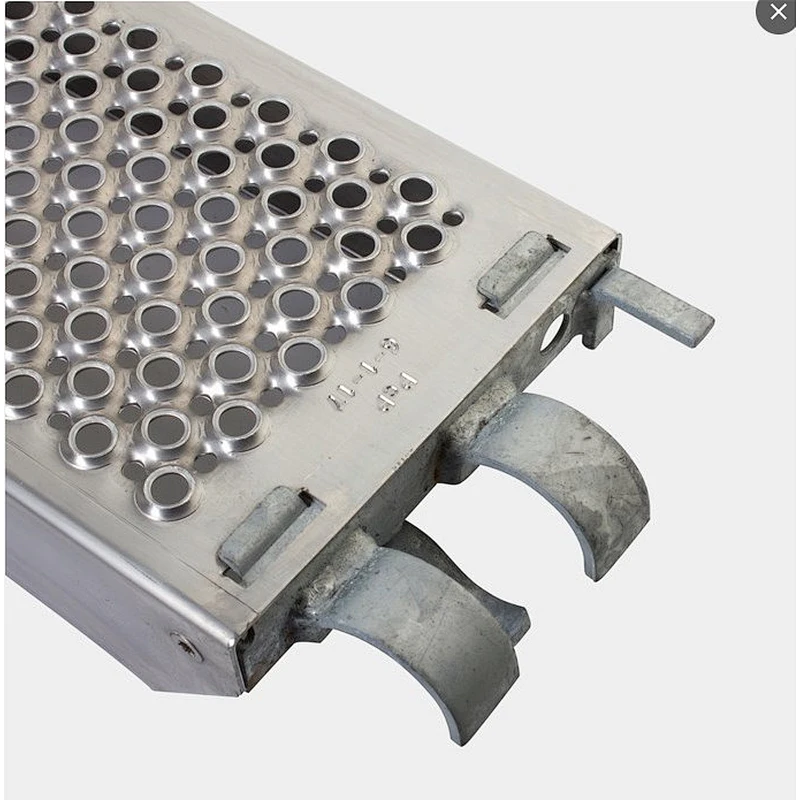

Steel planks metal scaffolding boards roll forming machine is designed to make the steel scaffold boards or steel planks in batch fully automatically. metal scaffolding boards is considered more durable than timber giving it a longer lifespan and is also fire retardant. It is strong and sturdy providing a safe and steady platform to work form being able to withstand heavy load pressure that scaffolding must undergo with workers and equipment working at height. Here we take some drawing profiles for your reference.

Normal speaking the parameters will be like this:

Supported coil width: ≤500 mm     Material thickness: 1.0~2 mm

Supported material: carbon steel   Machine working speed: 6~10 m/min

Steel planks metal scaffolding boards roll forming machine

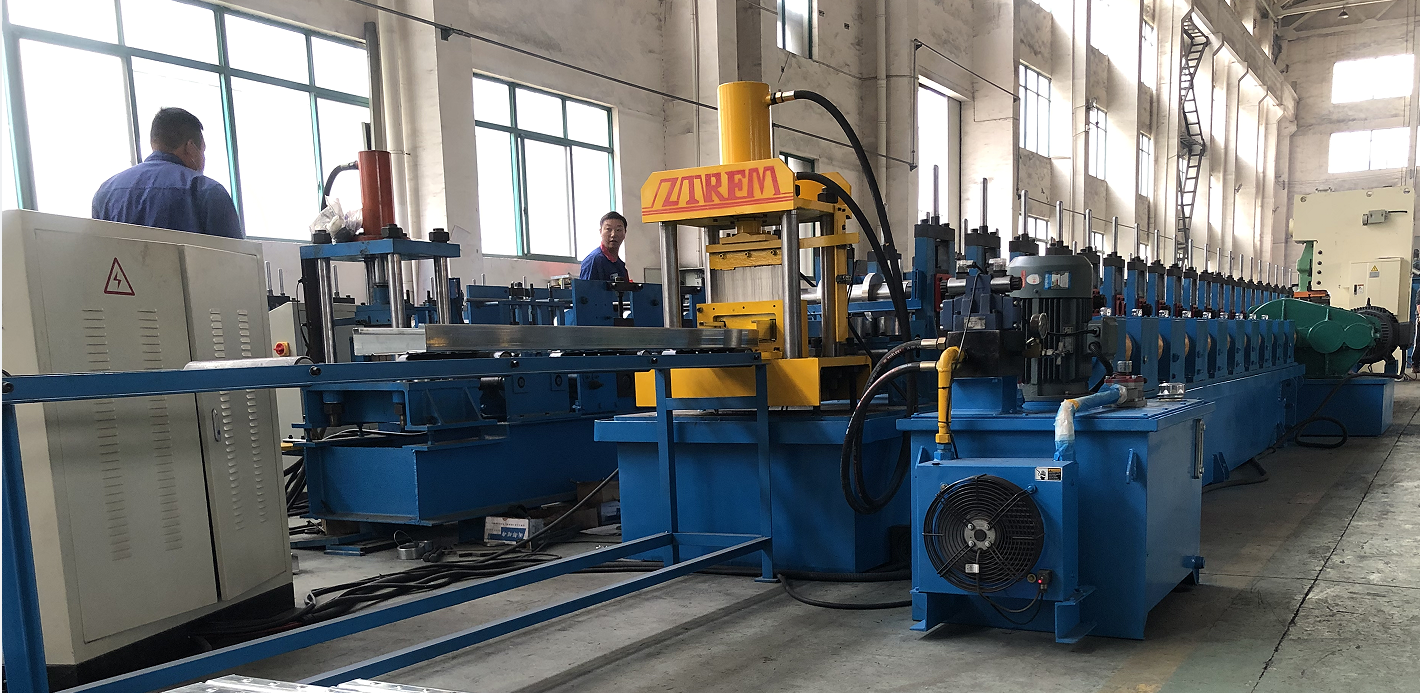

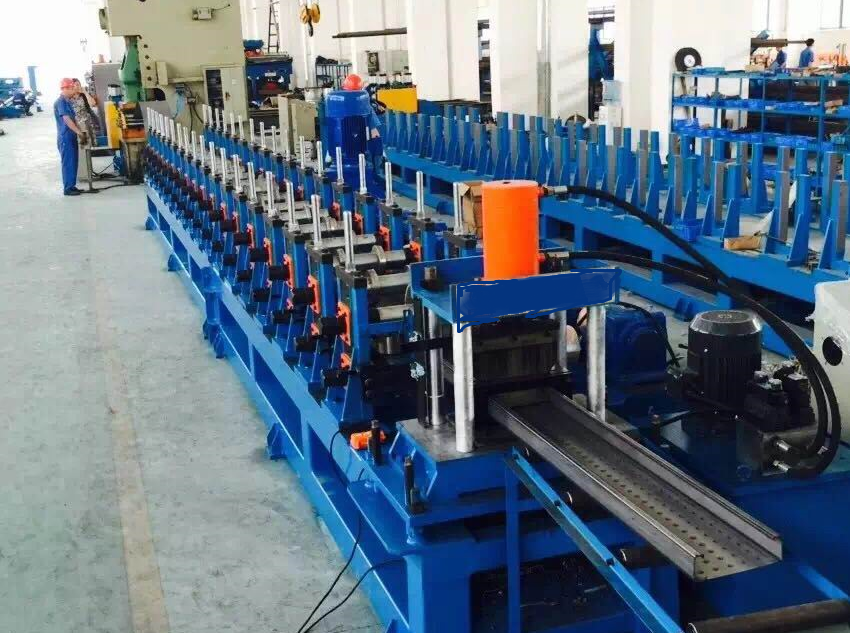

Steel planks metal scaffolding boards roll forming machine is composed by the following elements:

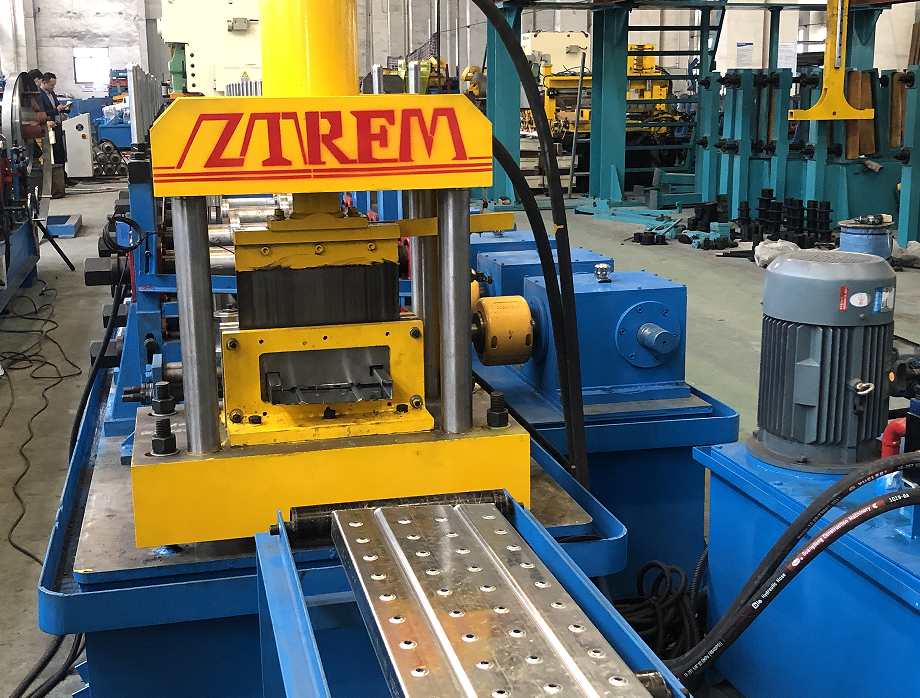

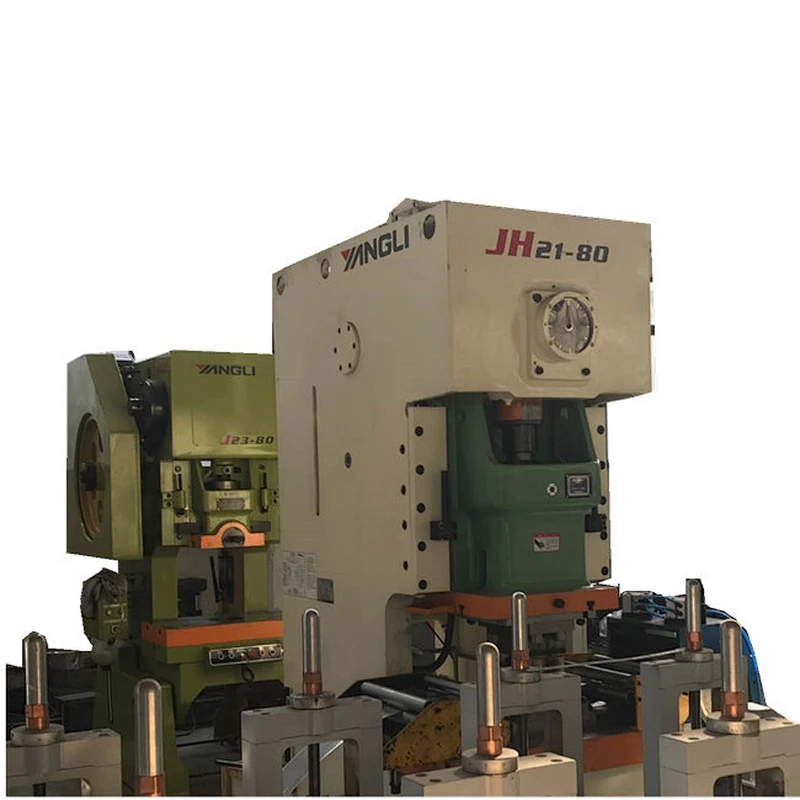

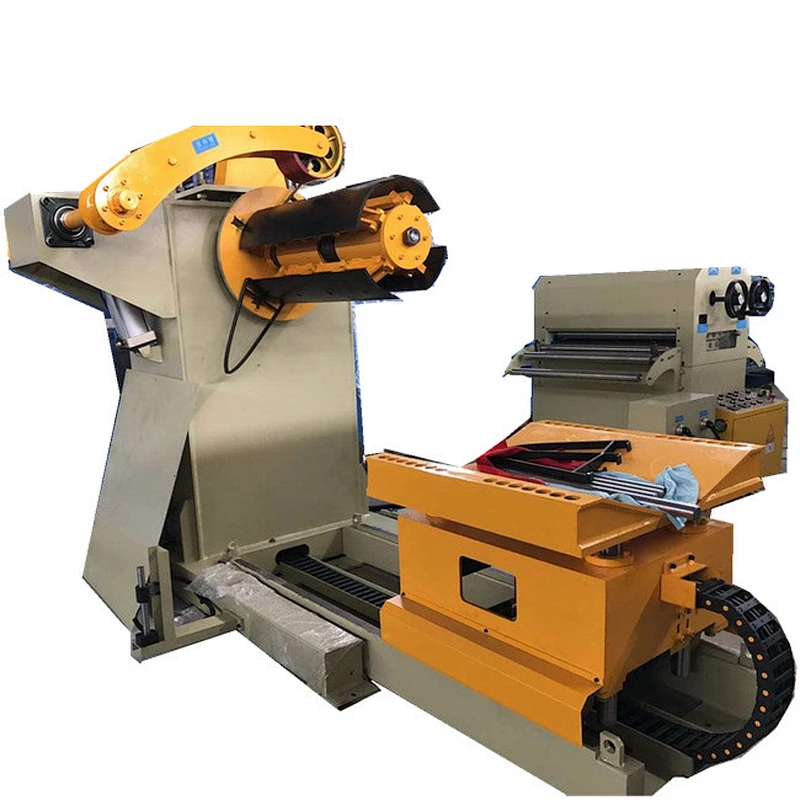

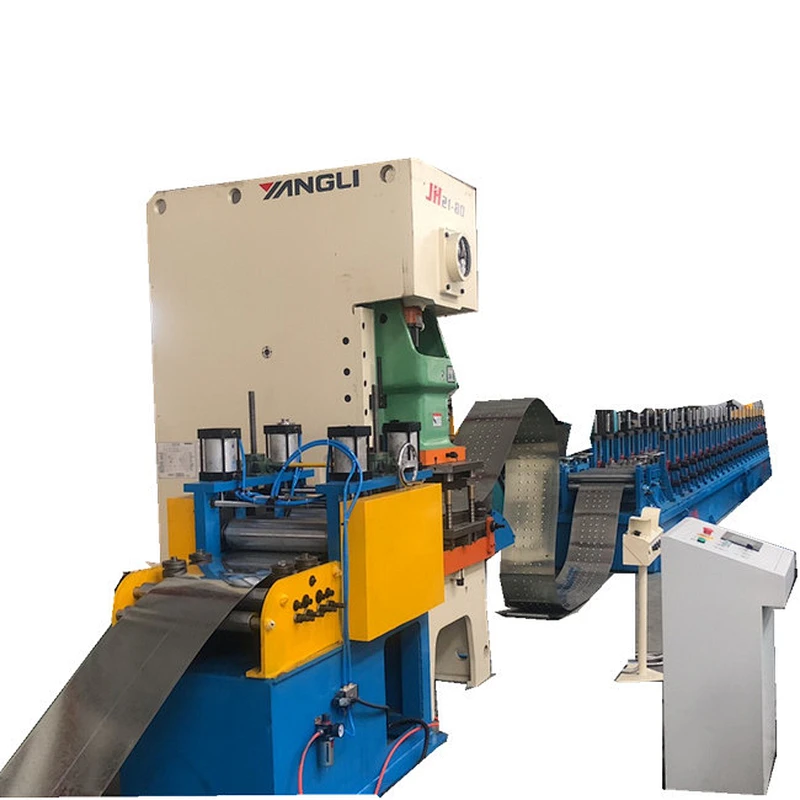

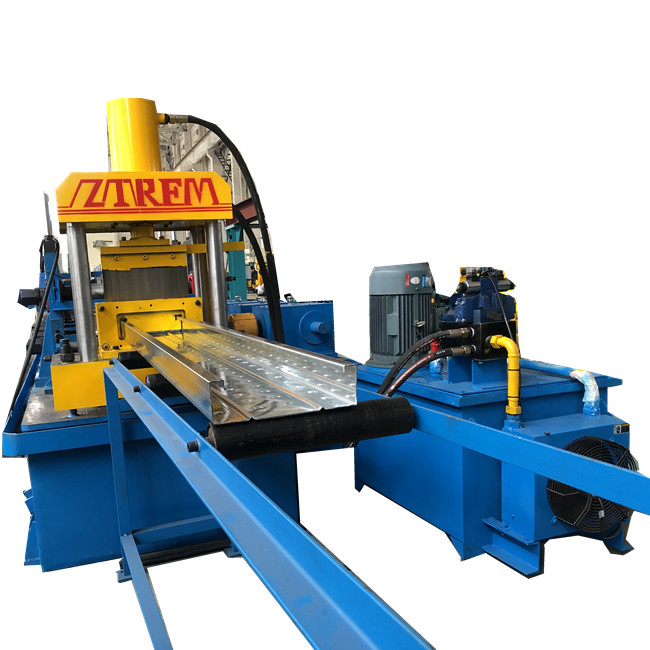

The price is included one hydrualic decoiler 5 Ton, one pressing machine, two sets of punching molds, servo coil feeder, main rolling forming machine, shearing system, hydraulic system, PLC control panel and runou table.

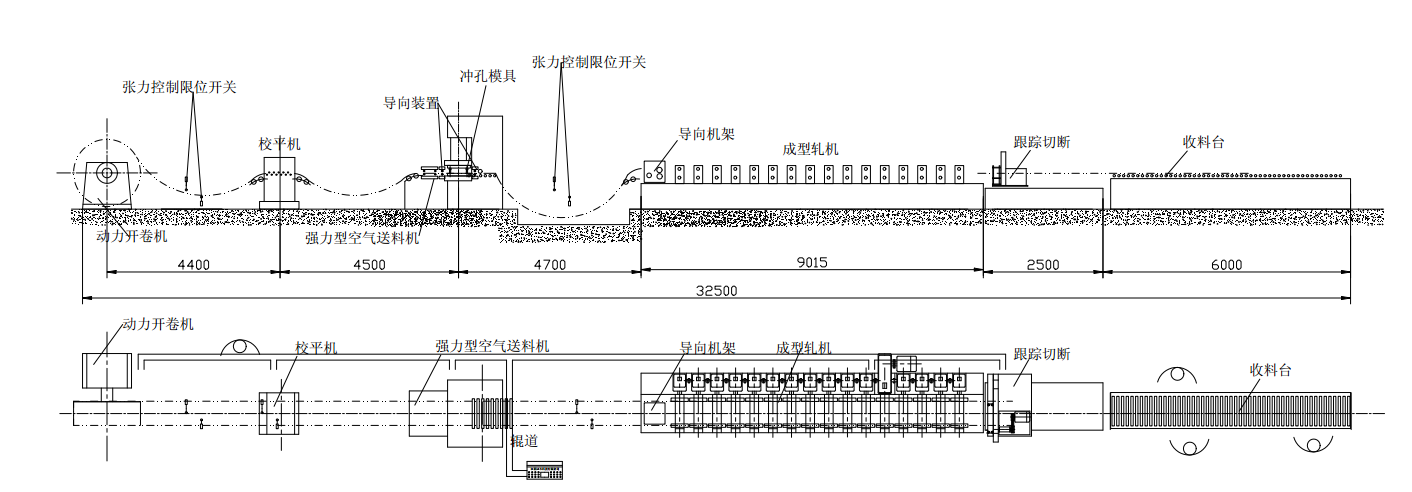

Decoilerà levelingà servo coil feedingà punching systemà roll forming machineà sizing and shearing

Systemà  runout table

As to all the elements, we can customize according to your requirements like decoiler, you can choose manual one or hydraulic one, the punching machine machine, you can choose world famous brand one or normal one. Also for the main rolling forming machine, gearbox type and the chain type, cost will be big difference. So if more clear requirements and then the quotation will be more accurate.

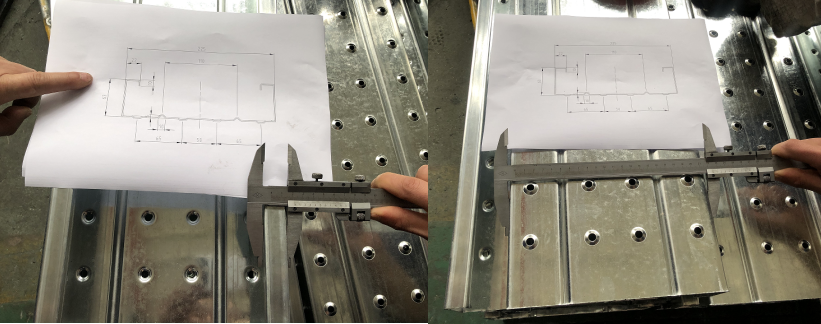

Testing and quality control:

For the all accuracy could be controlled within 0.0.5mm.

If you want to make two sizes or more by one machine, how to adjust rollers.

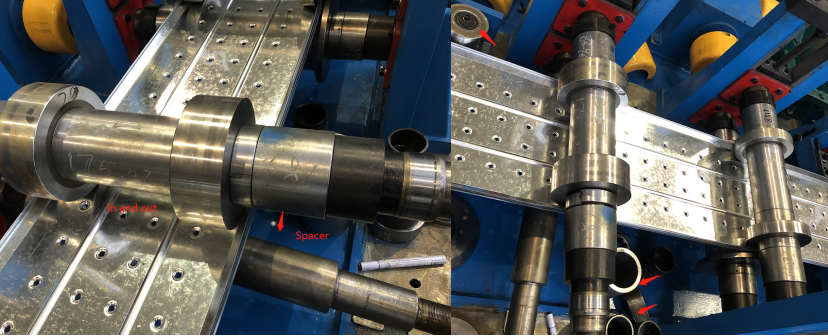

Not all the sizes could be made by one machine, we need to check whether those sizes are adjustable or not. By adjusting the spacers and cutting blades and then you can try to make more than one size by one machine.
