Dovetail Metal Decking roll forming machine is designed to make the metal deck profiles in batch fully automatically.

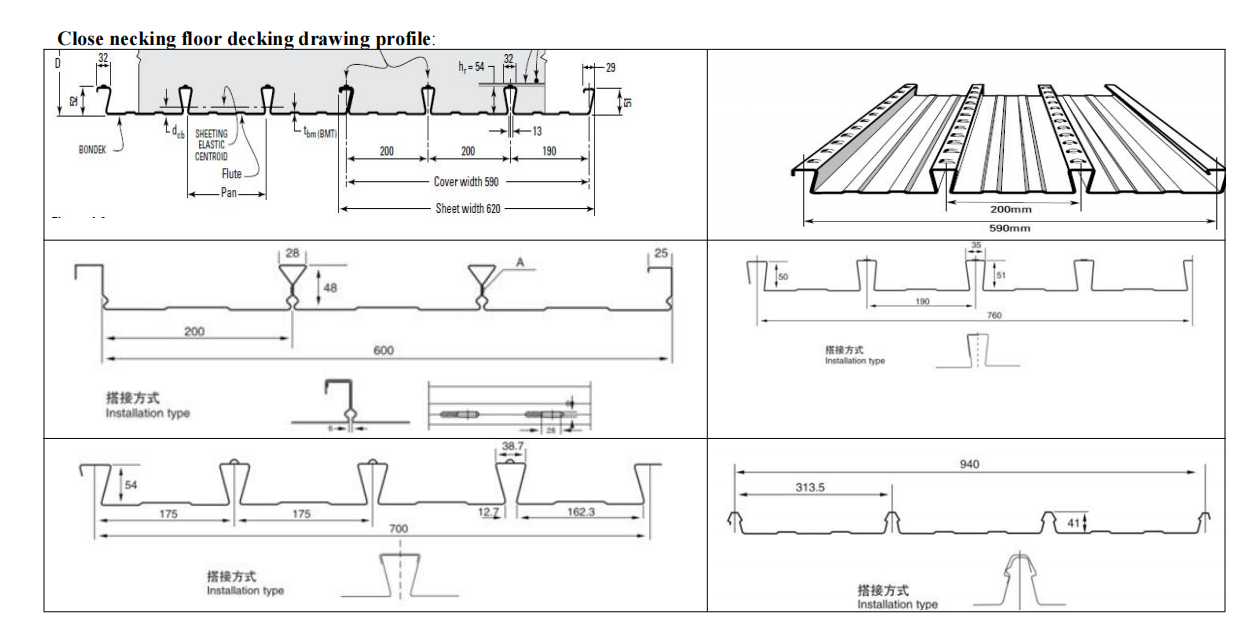

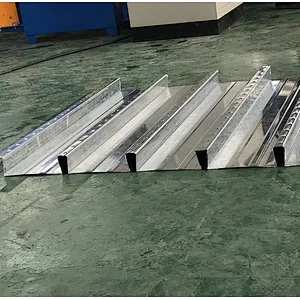

Dovetail Metal Decking Sheet is a more composite floor system component whichadopts the wedge rib section design, it can provide more powerful bearing capacity and shear resistance than other composite floor structures through practical verification. At the same time, because the steel content of its section is largely distributed in the tension zone at the bottom of the plate, it can give full play to the respective characteristics of steel-concrete, and has been successfully applied to the composite floor system without stress reinforcement. Here some drawing profiles of the Dovetail Metal Decking for your reference:

Advantages and characteristics of dovetail metal decking sheets:

1. It can not only serve as the formwork, but also serve as the load-bearing reinforcement required for the floor slab.
2. Under the same plate thickness and load conditions, the dovetail composite floor can provide a larger span.
3. When pouring concrete floor slab, there is no need to set formwork and support, so that the construction has greater flexibility. Constructors can start from any floor of the building, instead of proceeding from bottom to top in the traditional way.
4.  Positive moment reinforcement is not required for concrete floor design;
5. The wedge-shaped concrete block between the ribs of the dovetail steel bearing plate can withstand all kinds of deformation caused by strong earthquakes, which enhances the integrity of the floor;
6. Because 760 dovetail steel bearing plate has complex wedge section resistance moment, it has mechanical performance and more economical span;
7. The dovetail composite floor system saves more concrete than the general concrete floor;
8. The dovetail composite floor system saves more formwork, time and economy than the general concrete floor;
9. The dovetail composite floor system does not need to add additional fireproof layer;
10. The dovetail composite floor system can provide the 760 type - dovetail suspension system for or temporary use. There is no need to pre-embed any embedded parts before the floor slab is poured. Pipelines and equipment can be directly hung between the slab ribs through the dovetail type hanging system, which can save a lot of labor and time.
11. Under the condition of correct use, 760 dovetail steel bearing plate can provide a safe working platform before the floor concrete pouring;

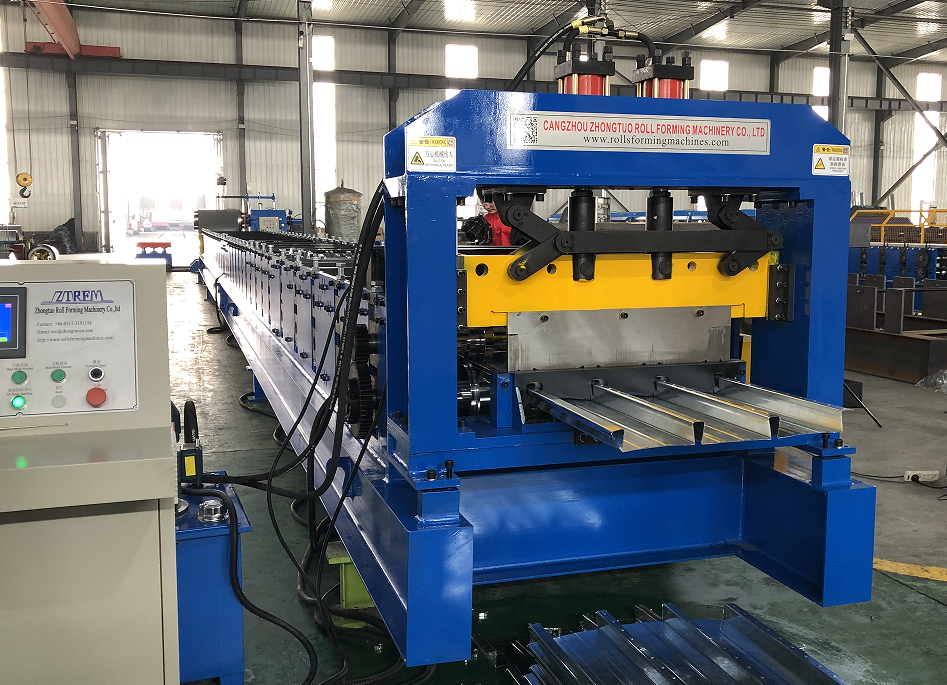

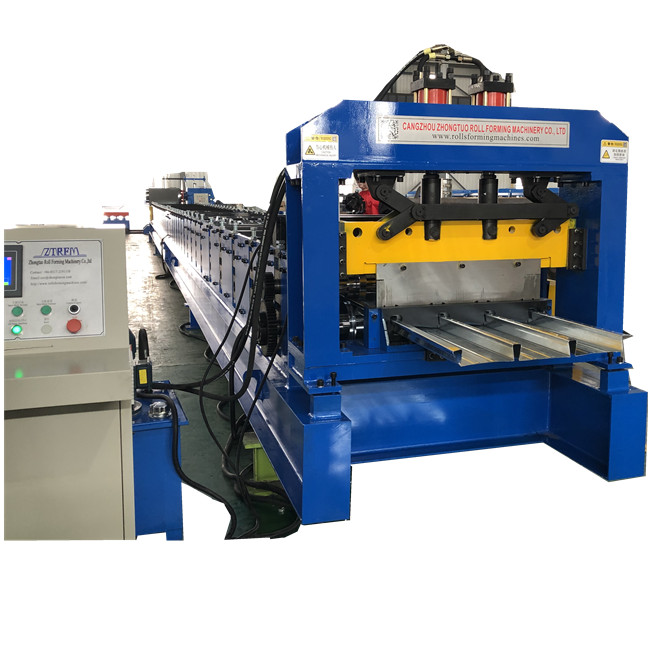

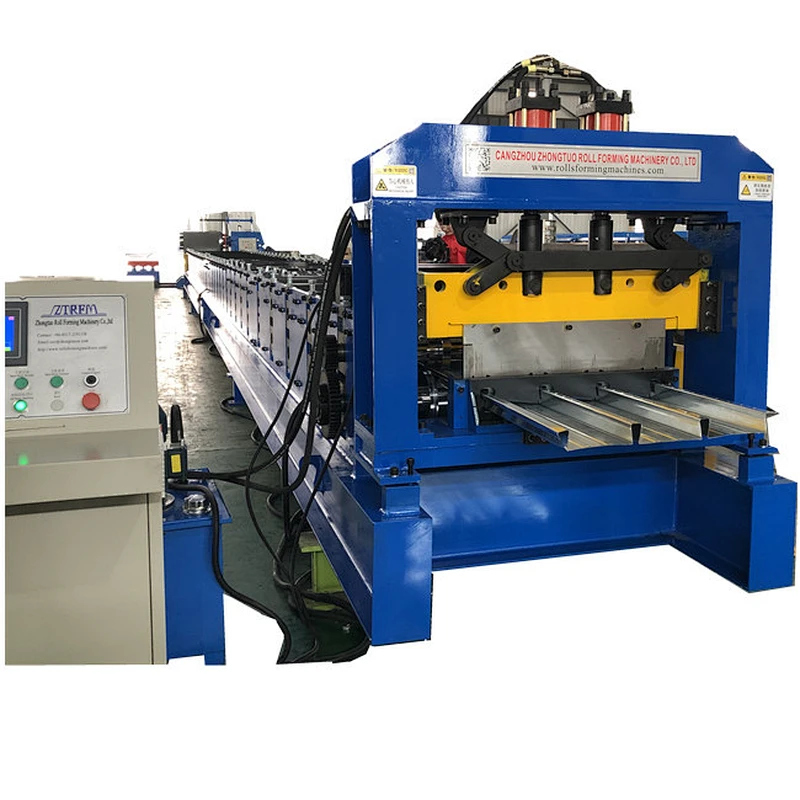

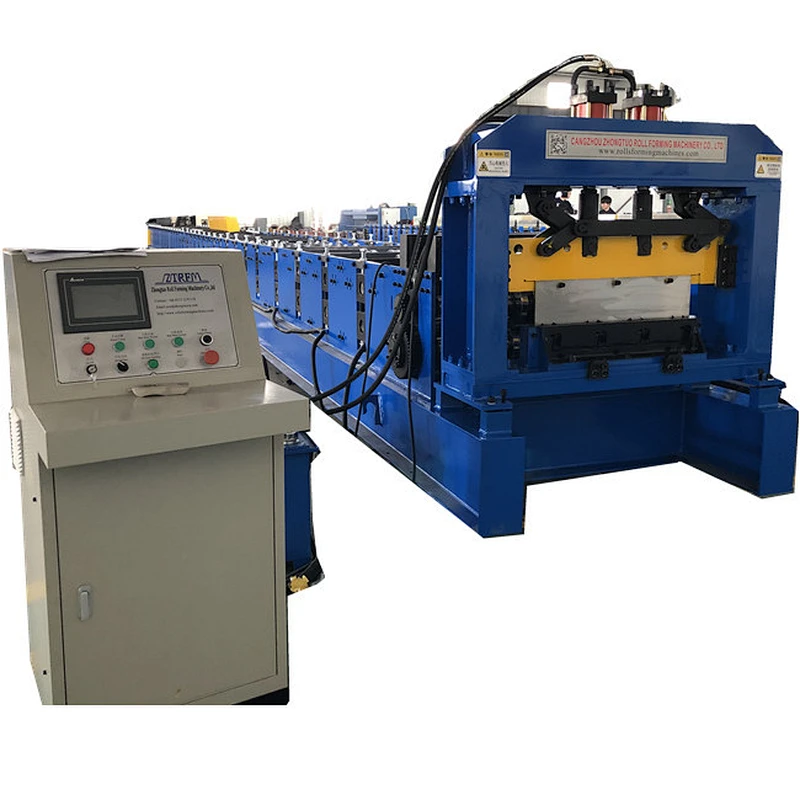

Dovetail Metal Decking roll forming machine:

1. By our machine, you can use it to make Light weight, high strength, heavy bearing,and good shock resistance as you can use SG550 Galvanized sheet. Thickness can reach 0.7-1.0mm.

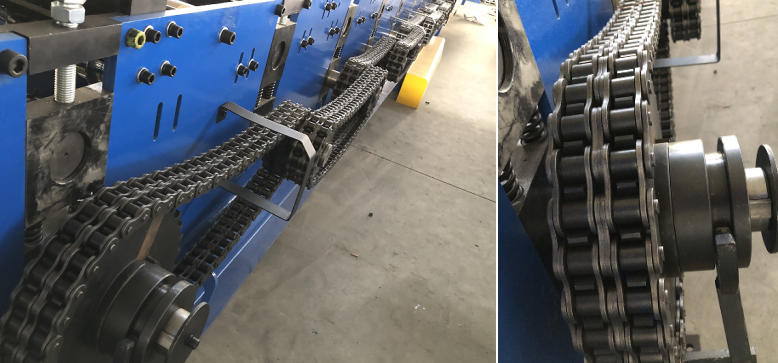

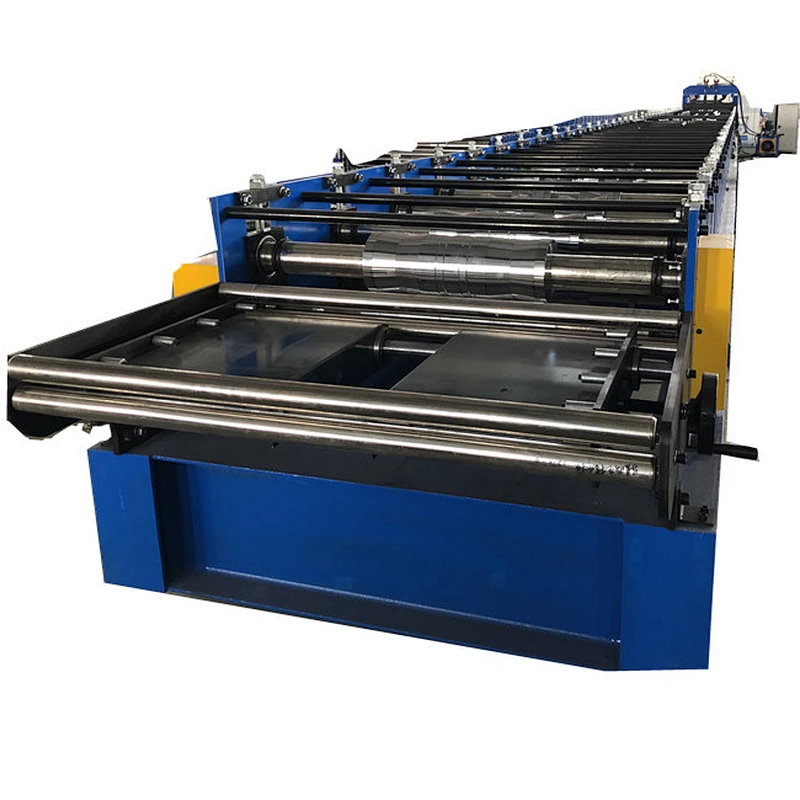

2. At the beginning ,leveling part we use 4 rollers and inside with bearing can avoid won’t scratch the material, then its the main roll forming part. The Shaft diameter is 90mm. Rollers are very thick. Then can make sure the machine is more powerful and usage is no problem.

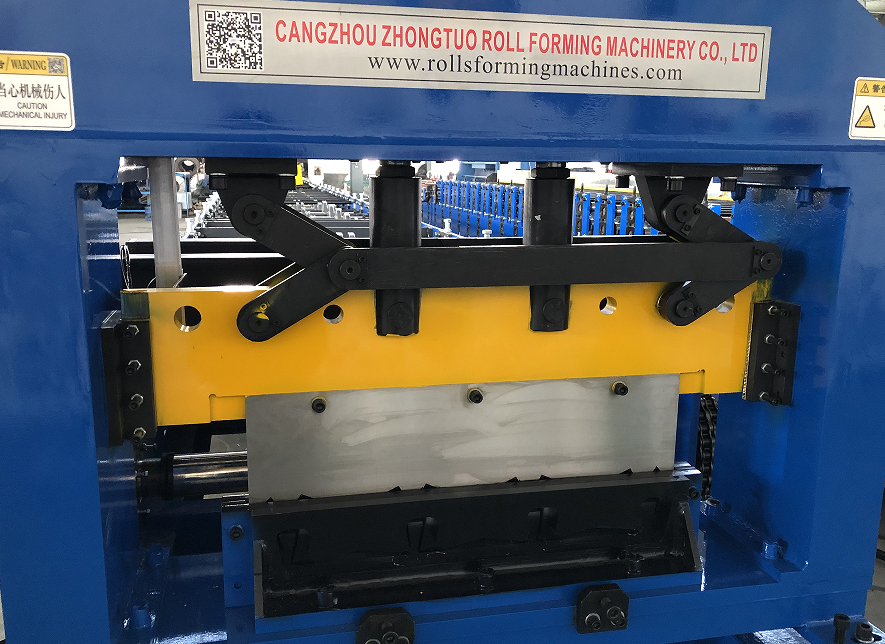

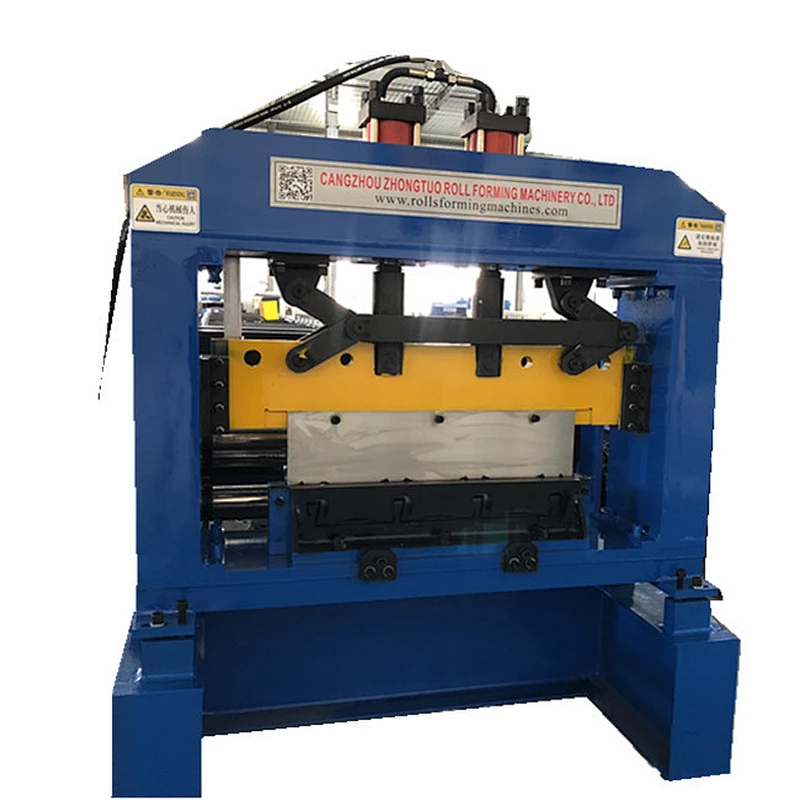

3.The difficulty of forming this device is that it has too many small rollers.For the cutting system it adopt 3 pcs shearing, which can make sure the profile won’t change the shape and more beautiful. And here use dovetail slide frame cutting , more stable , not pillar structure.The ribs can make more tense with the concrete.

4. For details:

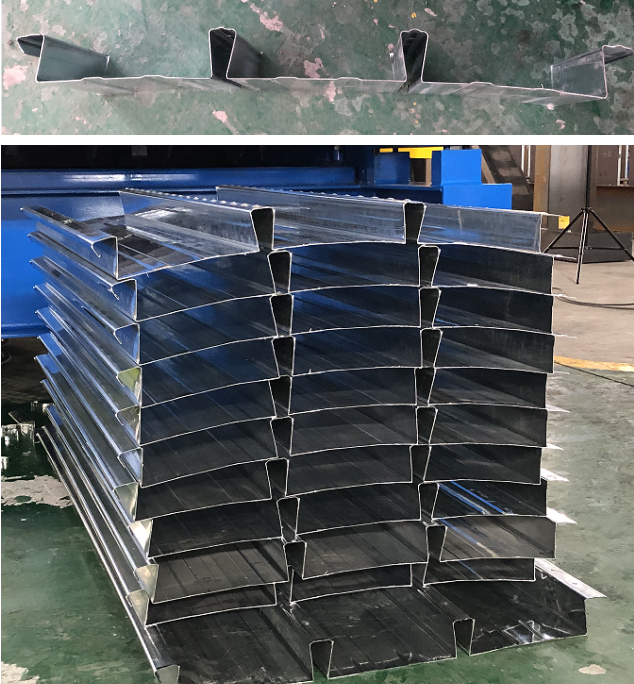

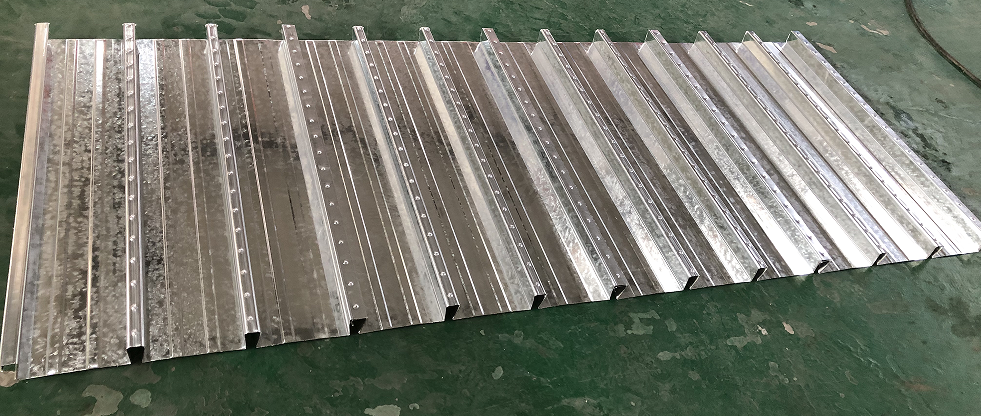

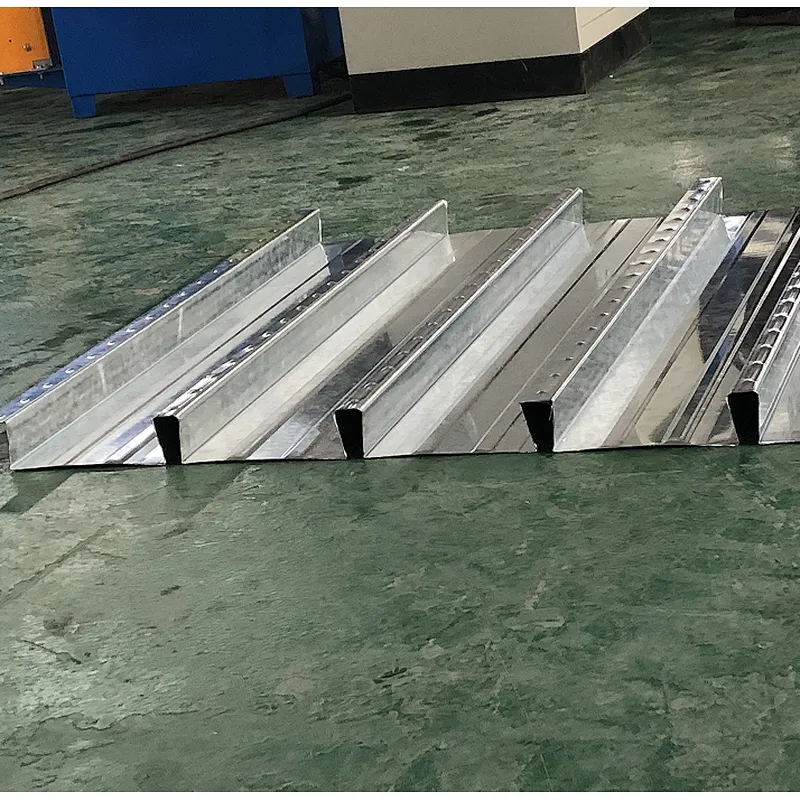

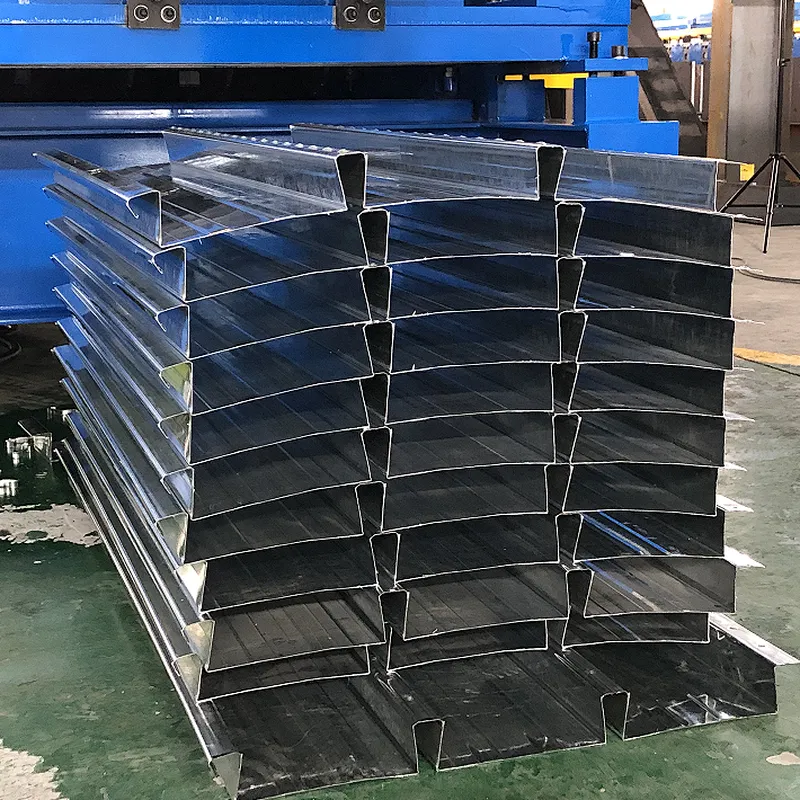

Here are some metal decking sheets made by our machine:
