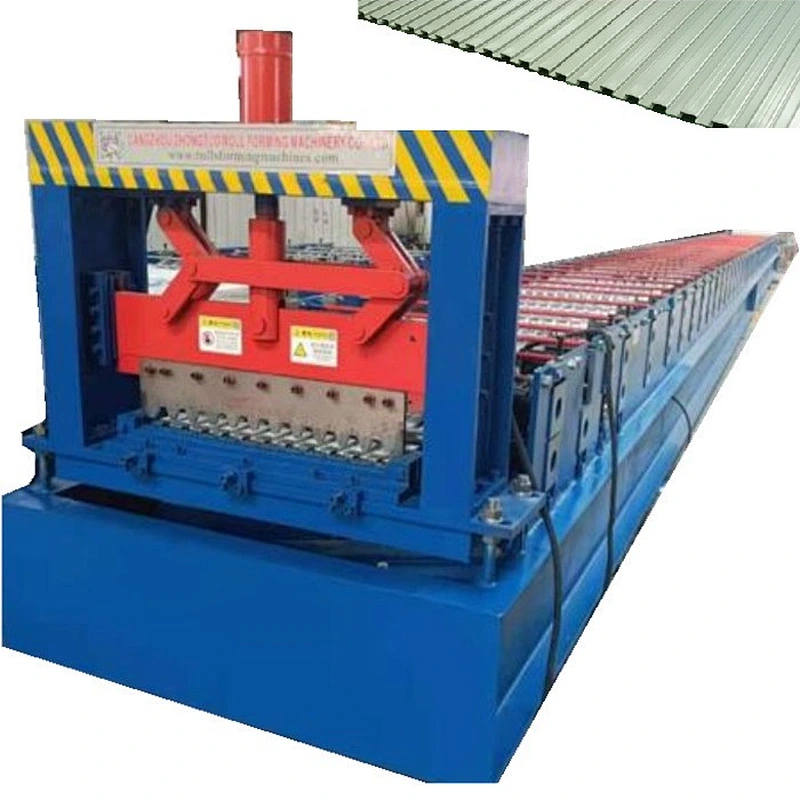

Structural floor decking machine and facade wall cladding panel machine
Structural floor decking machine and facade wall cladding panel machine is designed to make the structural floor decking sheet in batch fully automatically. This floor decking profile with its optimal geometry provides a combined action between the deck and the concrete/screed ensuring an extremely high load bearing capacity. It often is used for the villa house decking. Here is the basic information for your reference:

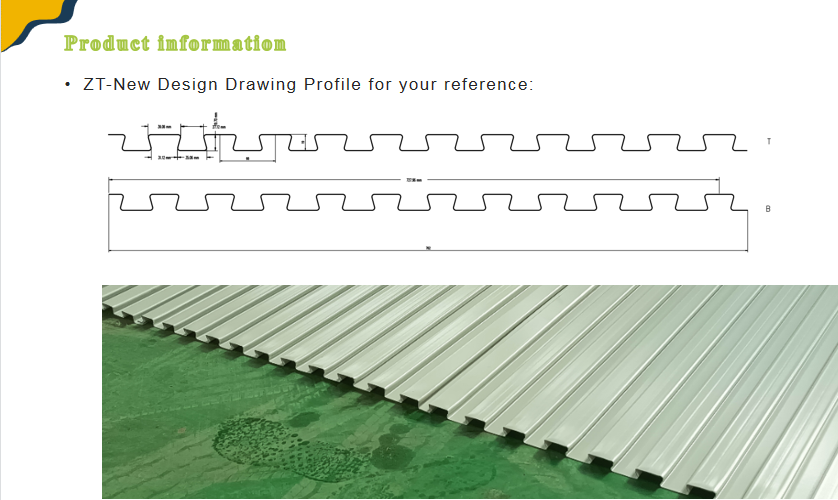

It is a kind of lightweight and high-strength profiled steel sheet formed by rolling and forming of 1250mm wide high-quality cold-rolled hot-dip galvanized steel sheet. It adopts a dovetail necking design with an effective width of 768mm and a wave height of 16mm.
Features of this Structural floor decking:
Low dead weight
Thin Floor thickness (from 50 mm)
High permissible load
Spans (centre to centre) up to 2500 mm
High impact and airborne sound insulation
Fire resistance up to 120 minutes
Structural floor decking machine and facade wall cladding panel machine:
Advantages of Structural floor decking machine:

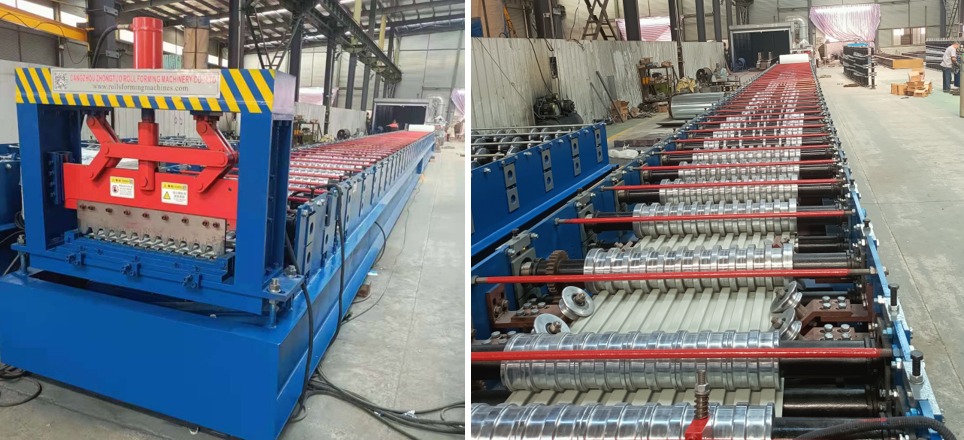

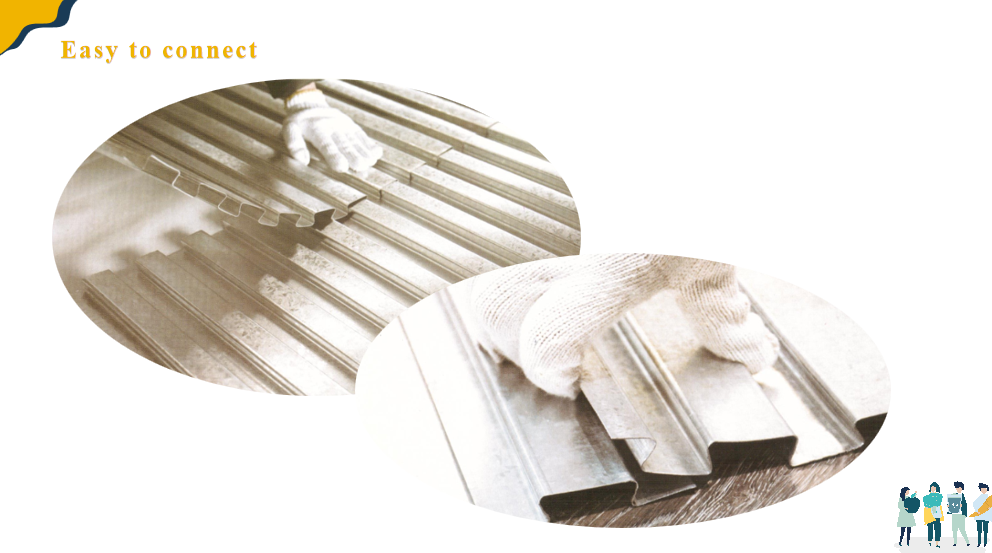

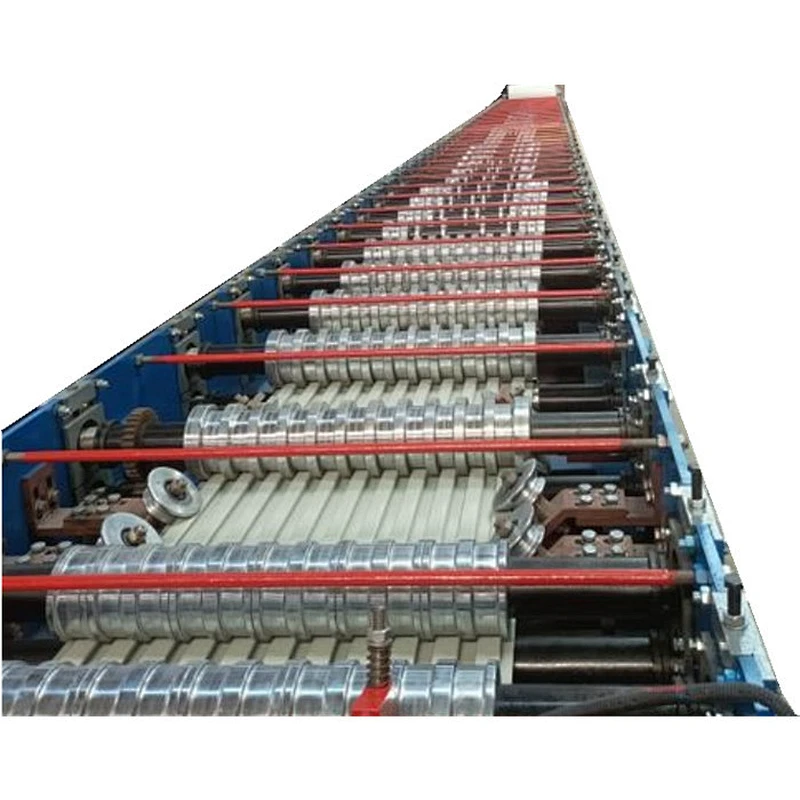

ZT structural floor and facade rolling forming machine can produce the floor decking in the speed of 15 to 20 meter per minute. We can make the perfect shape when overlapping, it can match one and another easily. The machine we design using 43 roller stations to make sure the shape is good and fixed well.
Machine we use 30mm thickness middle plate. Easy for installation, all electrical components we use the Simens Brand

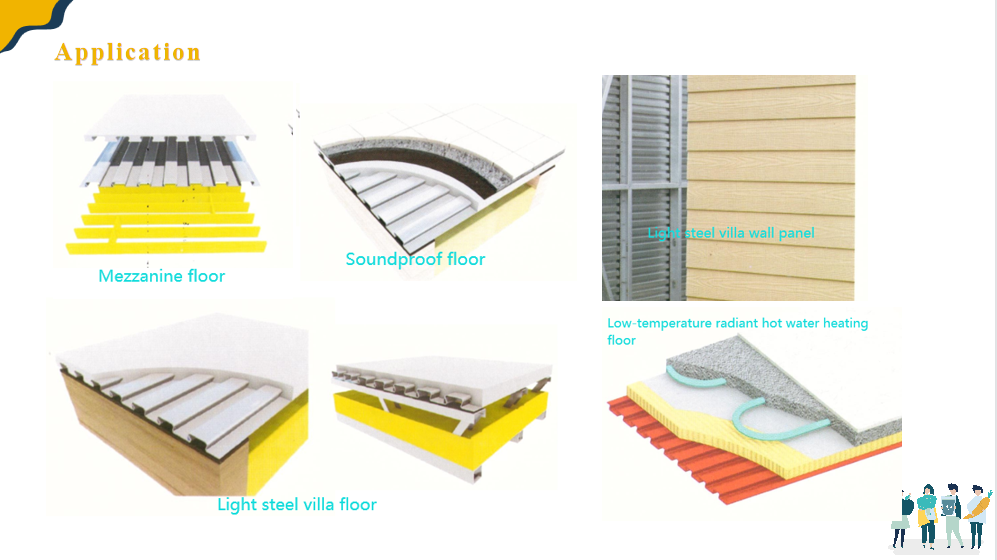

For this profile, it also could be used as wall cladding sheet:
Structural floor decking machine and facade wall cladding panel machine working videos for your reference:

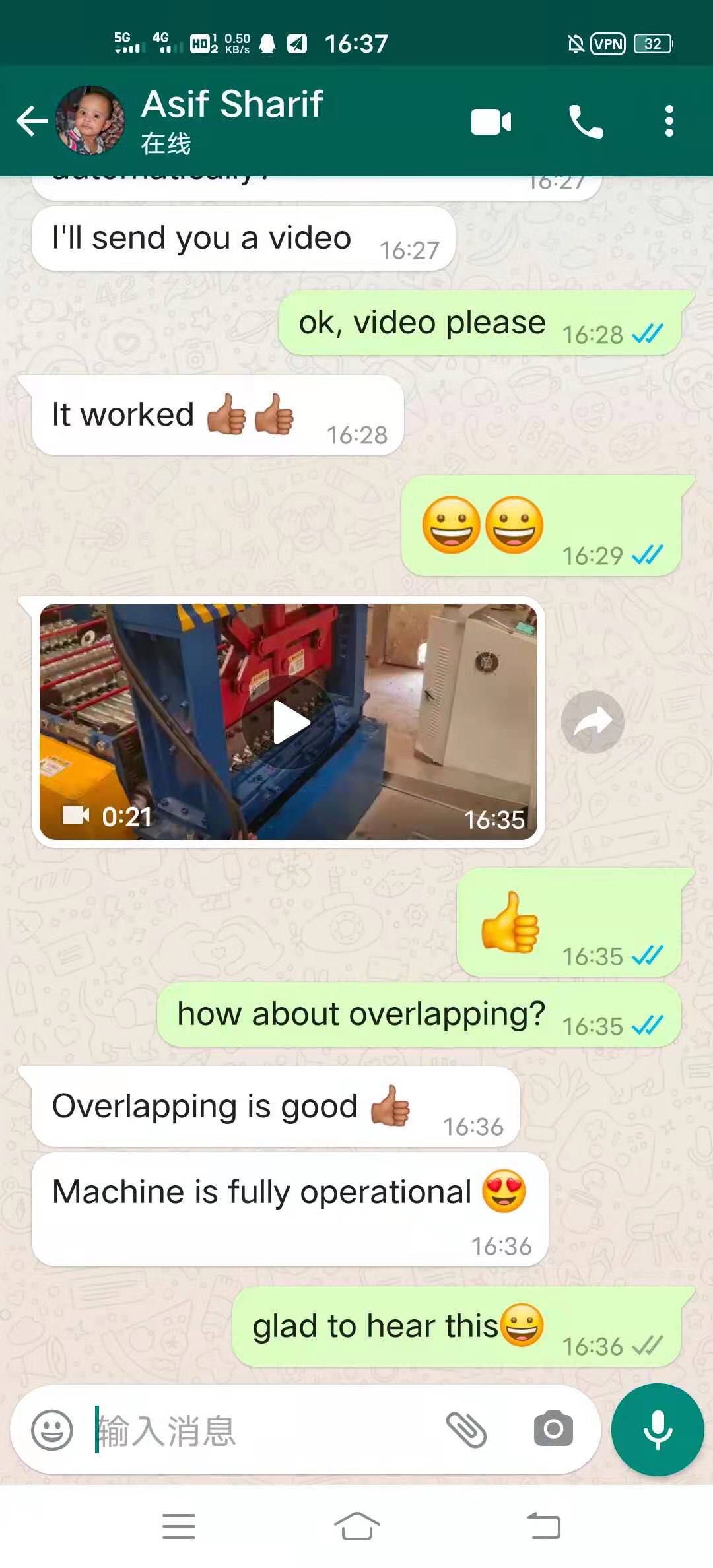

Feedback from our customer
If you want to learn more about Structural floor decking machine, please feel free to contact with us.
