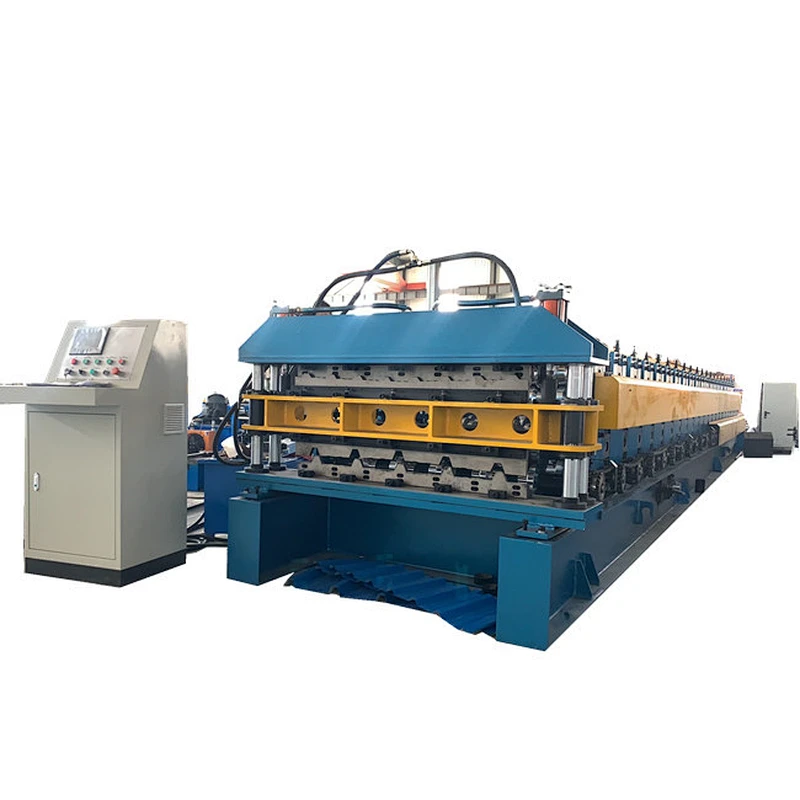

Roofing Sheets Used in House Construction Tr40 Metal Roofing Sheet Machine

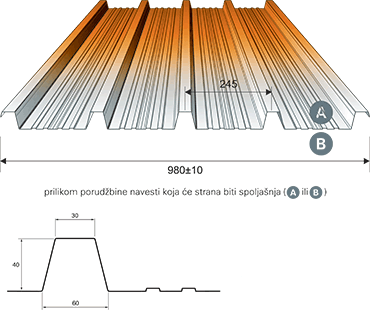

TR40 Metal roofing sheet Machine is designed to make the roofing sheet in batch fully automatically. Profile is intended for covering walls in industrial objects. It is made of galvanized and steel galvanized plasticized sheet metal. According to tolerance EN 10143. Here is one drawing profile for your reference:
If you want to add the felt or filming for better usage, no matter for the coil and the machine, we can make for you.

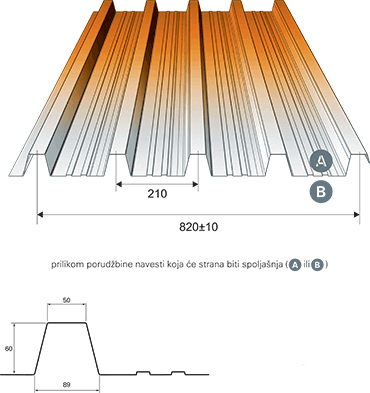

Profiled TR-60 roofing sheet is also quite popular. Compared with TR40 roofing sheet, TR60 has more wave height. Profile intended for roof covering of objects with small slopes above 4°.It is made of galvanized plasticized sheet metal.

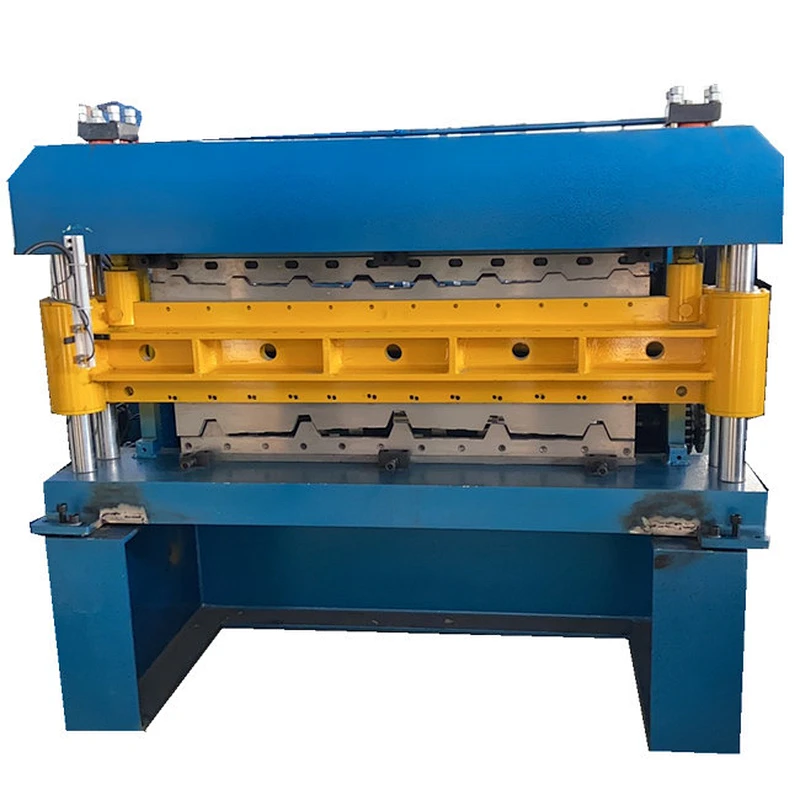

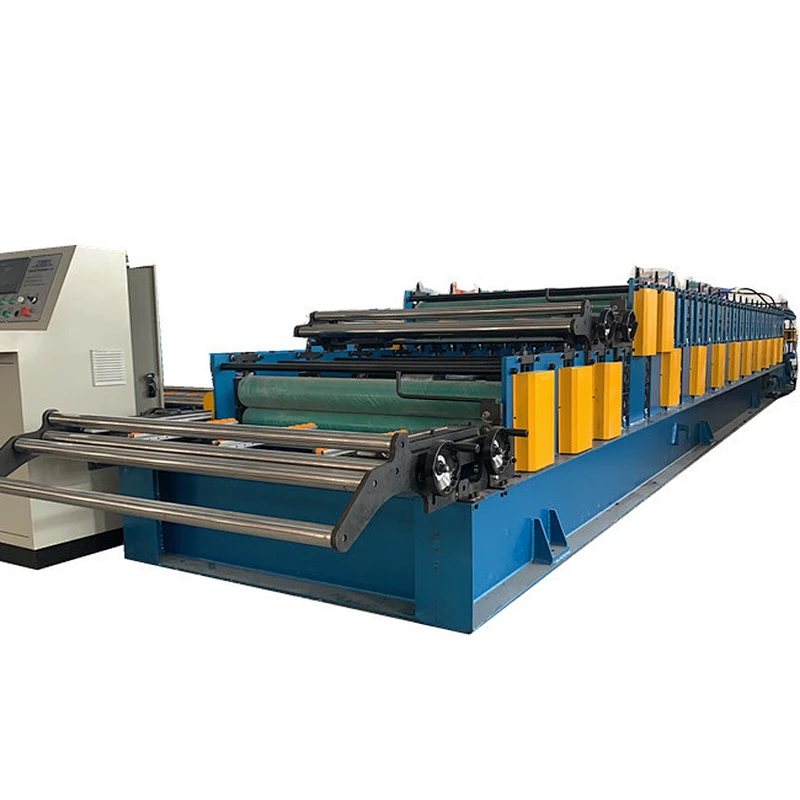

ForTR40 & TR60 metal roofing sheet machine design, we have two options: One you can design them to single layer machine, two you can design them to double layer machines. Here we will take the double layer machine design for your reference:
| The roofing sheet machine is composed by the following elements | |||
| NO. | Item name | Quantity | |
| 1 | 7 Ton hydraulic decoiler | 1 set | |
| 2 | Leveling beach with manual cutting | 1 set | |
| 3 | Main formingmachine of double layer of Simens motor | 1 set | |
| 4 | PLC control system using Mitsubishi | 1 set | |
| 6 | Hydraulic pump station with cooling system | 1 set | |
| 7 | Output table | 1 set | |
| 8 | Working speed | 25min/min | |

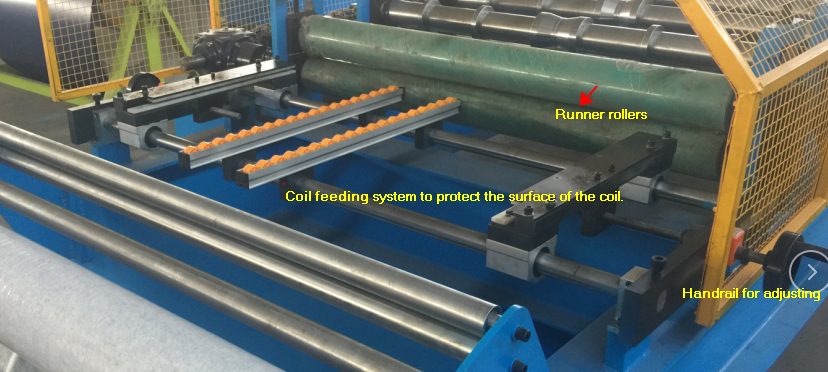

| Entry Beach(Picture 2) | |||
| Usage | Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate board. Meanwhile with two rollers stations of rubber to make sure the coil feeding direction and note go swing. | ||
 | |||

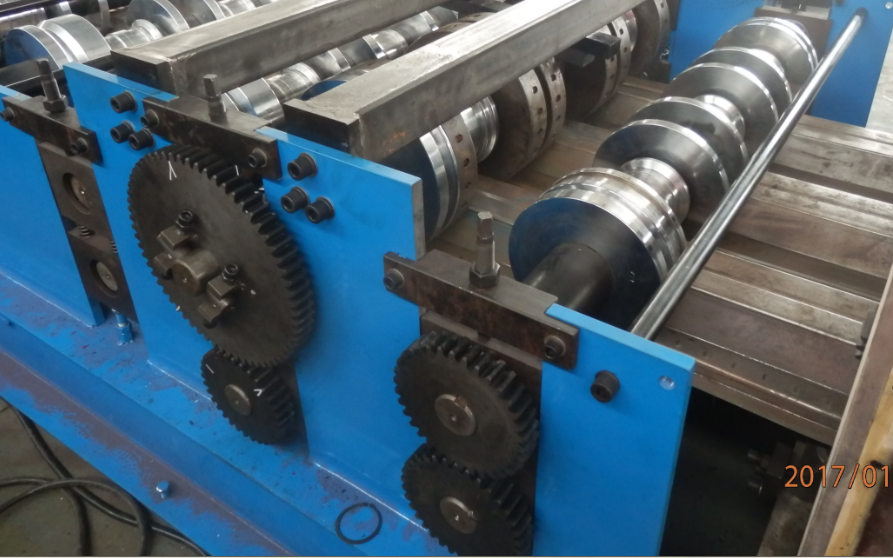

| At the first two roller station, put the gear outside to make sure more powerful coil feeding. | |||
 | |||

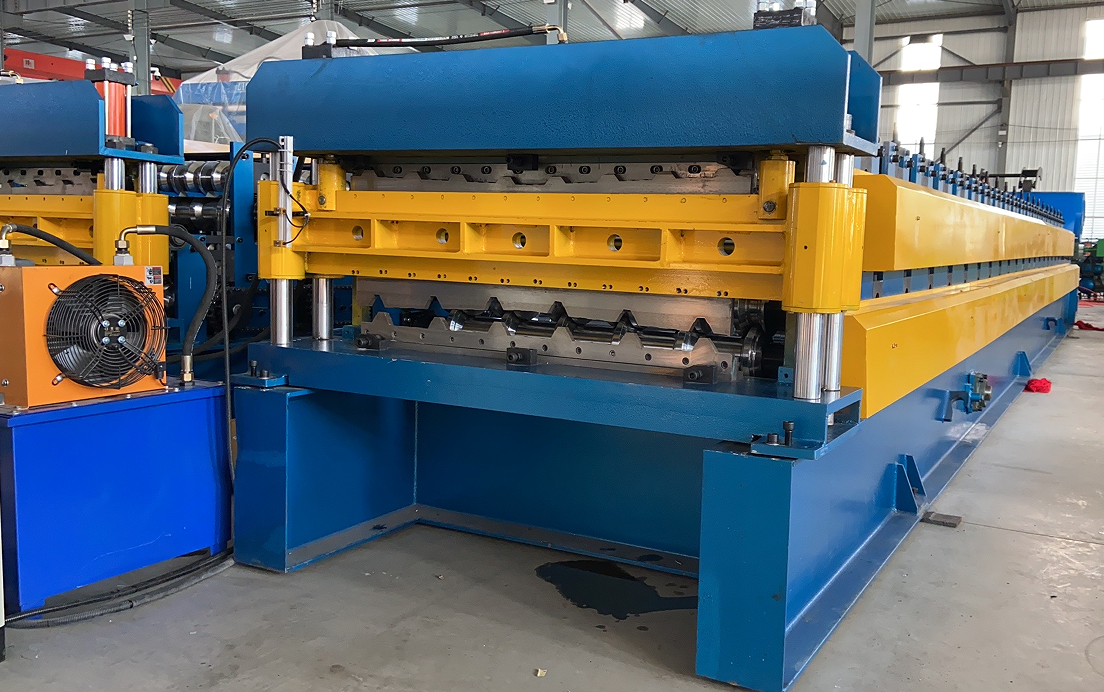

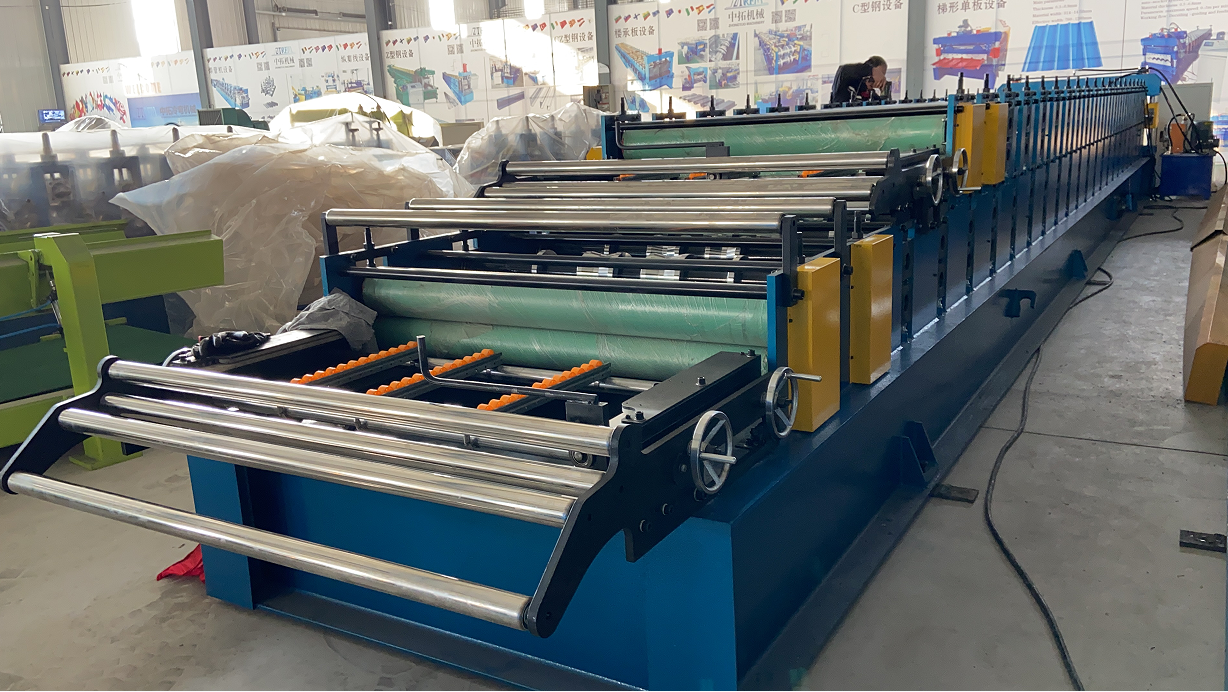

| Main Roll Forming System(picture 3 ) | |||
| Usage | In order to keep the roofing sheet shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. | ||
| MACHINE | About8500х1650х1500mm | ||
| Weight of main part | About 4.5 T | ||
| Voltage | 380V/50HZ3Phase (as customer’s request) | ||
| Roller fixer | Middle plate welded | ||
| Frame | 400 H steel welded | ||
| Frame thickness | 20mm | ||
| Drive mode | Chain 1.25 | ||
| Material of rollers | 45# steel, queening and then surface hard chromium plating. | ||
| Material of shafts | 45# steel | ||
| Diameter of shafts | Φ80mm | ||
| Number of rollers | First layer=20 rollers station Second layer=24r rollerstation | ||
| Note as to the first layer, the height just 18mm no need to add gear. And to the second layer, as the wave height is 35mm, and there are 24 roller station, so there will be 20 roller station with the bearing, and then the Max mold size diameter is around 230mm. | |||
| Main power | 15 kw, the motor brand is Siemens | ||
| Note : TR40 roofing sheet machine design using the separated molding rolling forming and before shearing there are two more roller station to rolling whole mold to make sure the shape beautiful. | |||

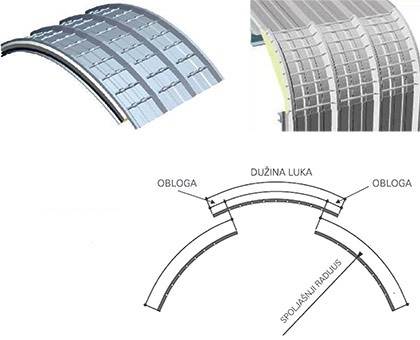

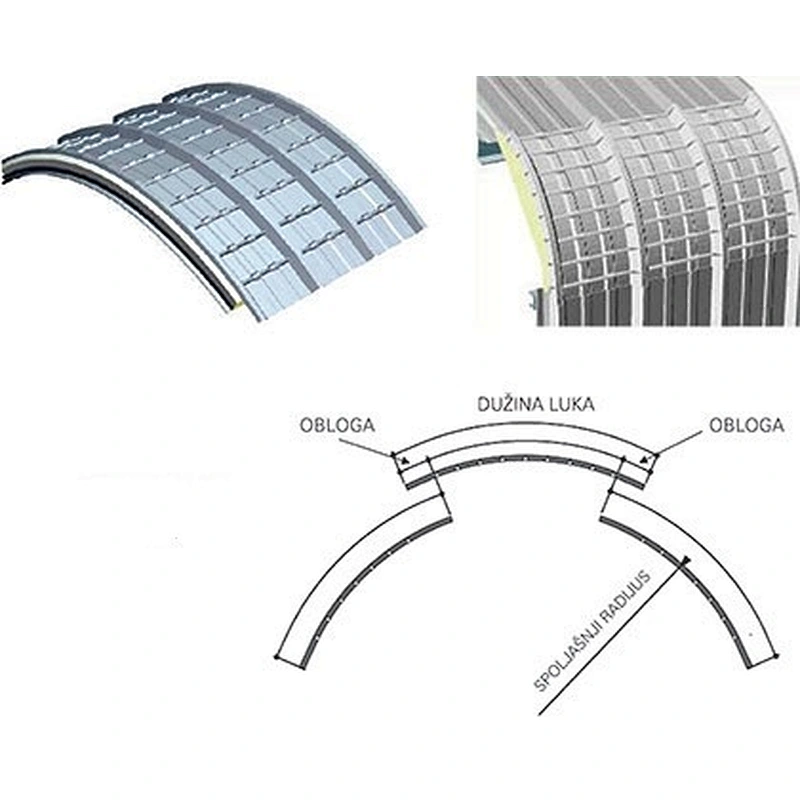

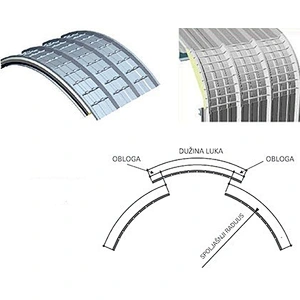

Arched roofing sheet TR-40
Arched bend profiled sheets TR-40 is used for covering arched roofs.
It is designed to improve roof appearance,facade, arches and other detail on objects.
Arch bending of profiled sheet is done at the object according to projected radios.

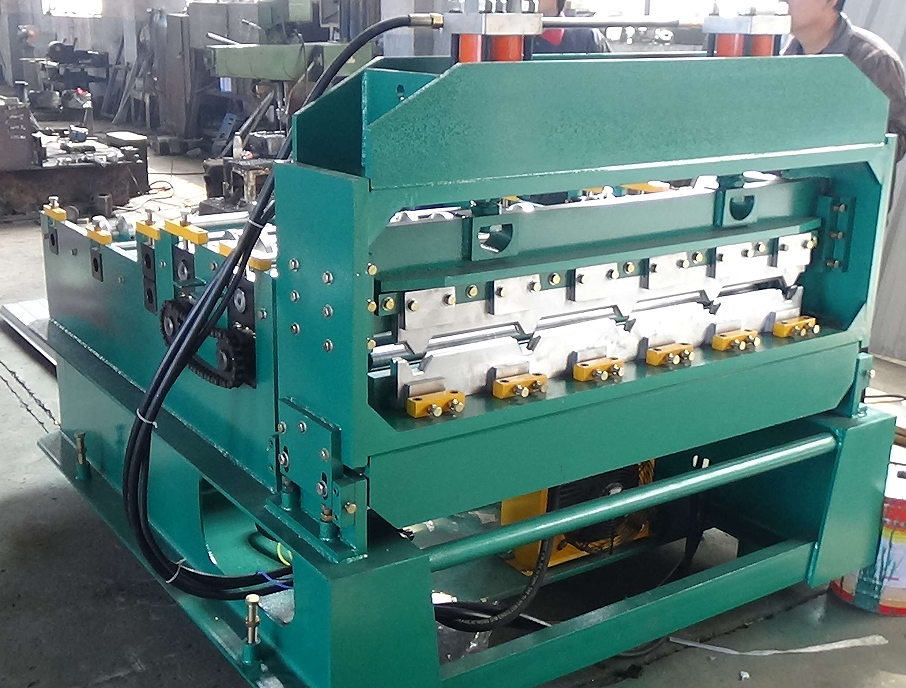

Arched roofing sheet TR-40 hydraulic bending machine could be designed like this:
For roofing sheet machines, if you want to know more information, please contact us at any time.
