Metal sheet punching production line
Metal sheet punching production line is designed to make the metal sheet, Aluminium sheet punching and other material punching either from decoiler to recoiler or from decoiler to cut to length or only sheet punching machine. Meanwhile it also could be worked with the rolling forming machine. For example, some kind of profile needed to be punched and then do the rolling forming. So as to the punching line, it has many types combination. Here I will show you some types by some drawing profile for your reference:

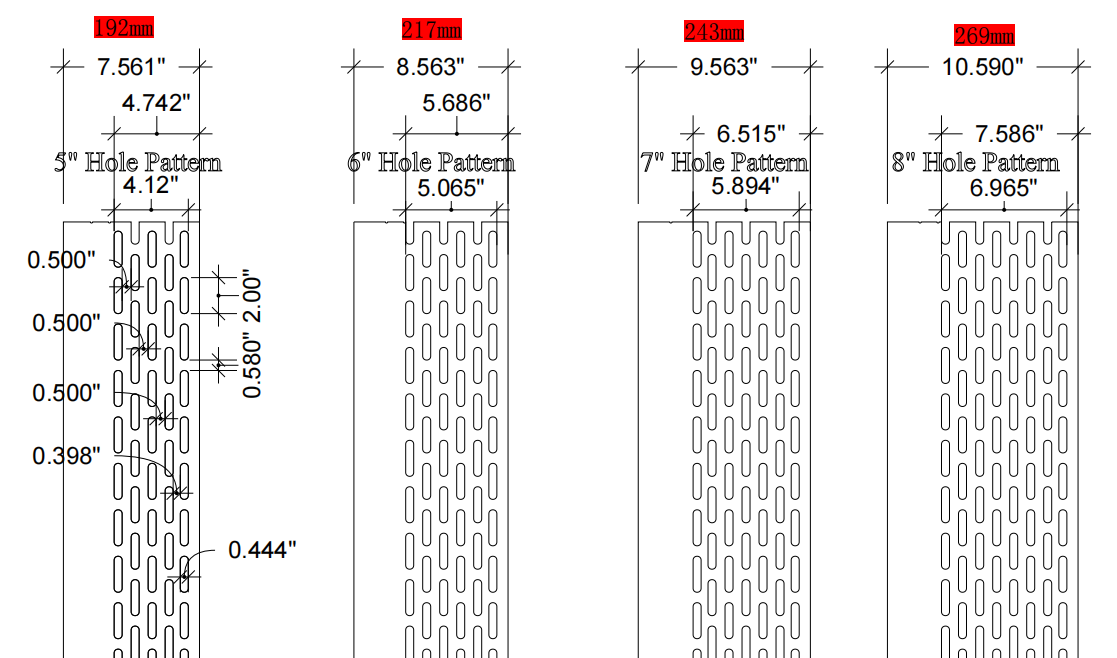

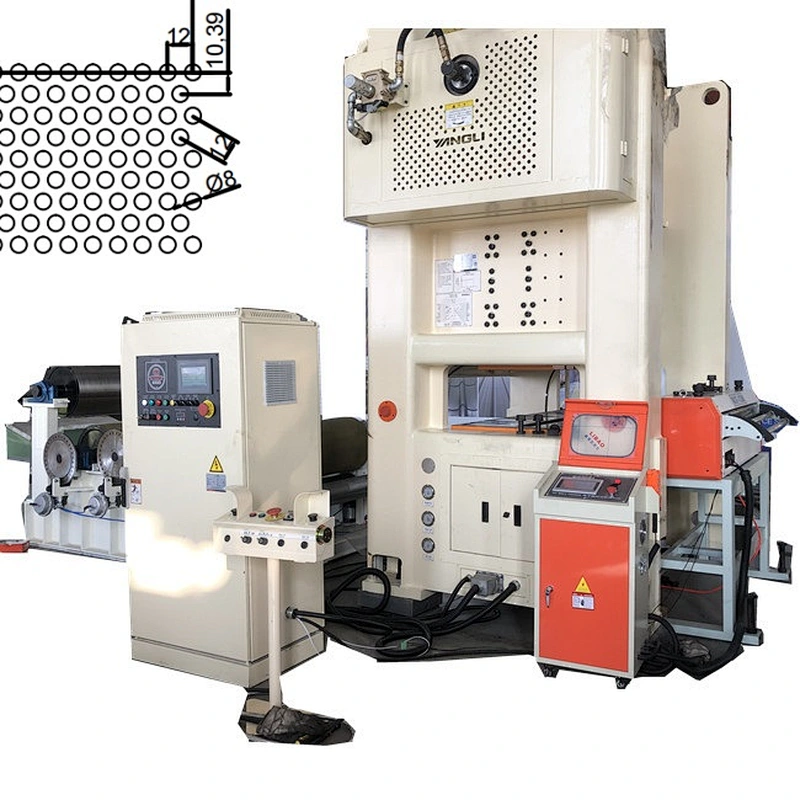

For example, the punching could be like this:

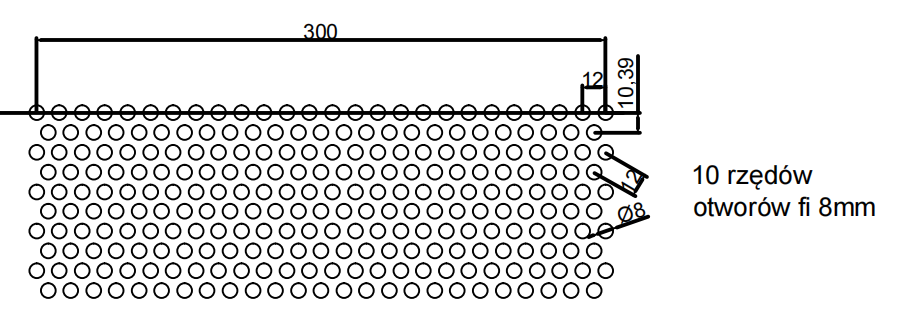

Or punching could be like this:
Metal sheet punching production line working flow:

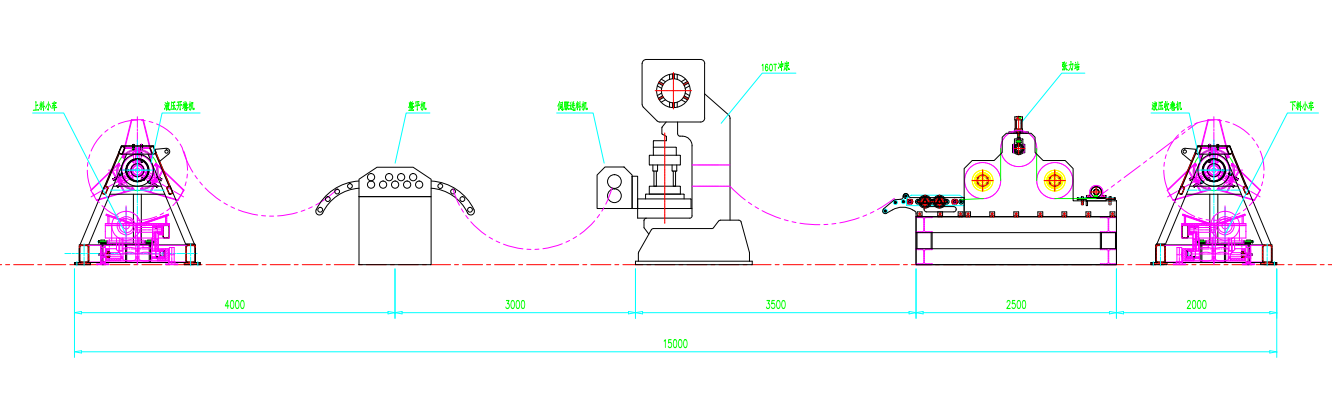

Hydraulicdecoiler -- Servo feeder -- Punching -- Damping device S rollers -- Recoiler (or could be cut to length)--> or main rolling forming machines
Actually all elements are optional, like you can choose manual decoiler or electrical decoiler or hydraulic decoiler. As to the punching machine, you can choose to use the high speed punching or the normal speed punching machine and then the cost will be totally different.
More details of each elements:

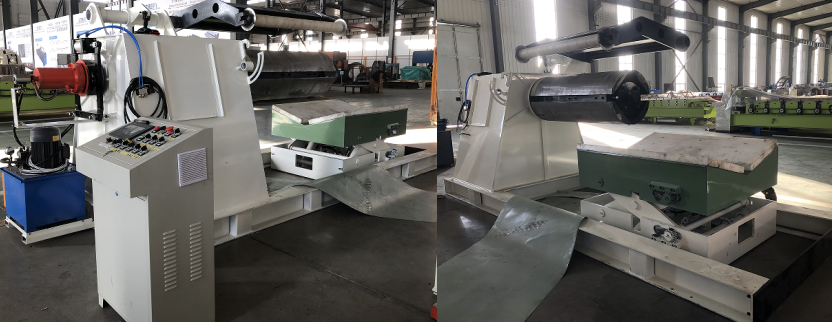

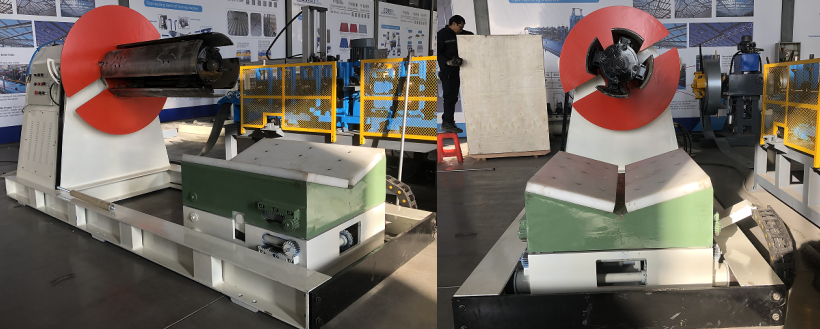

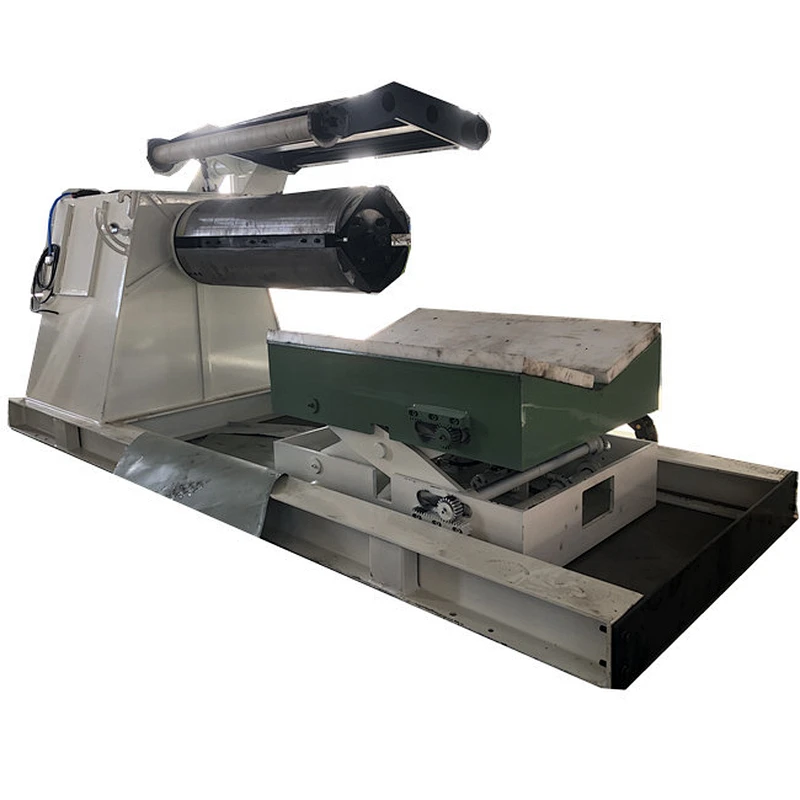

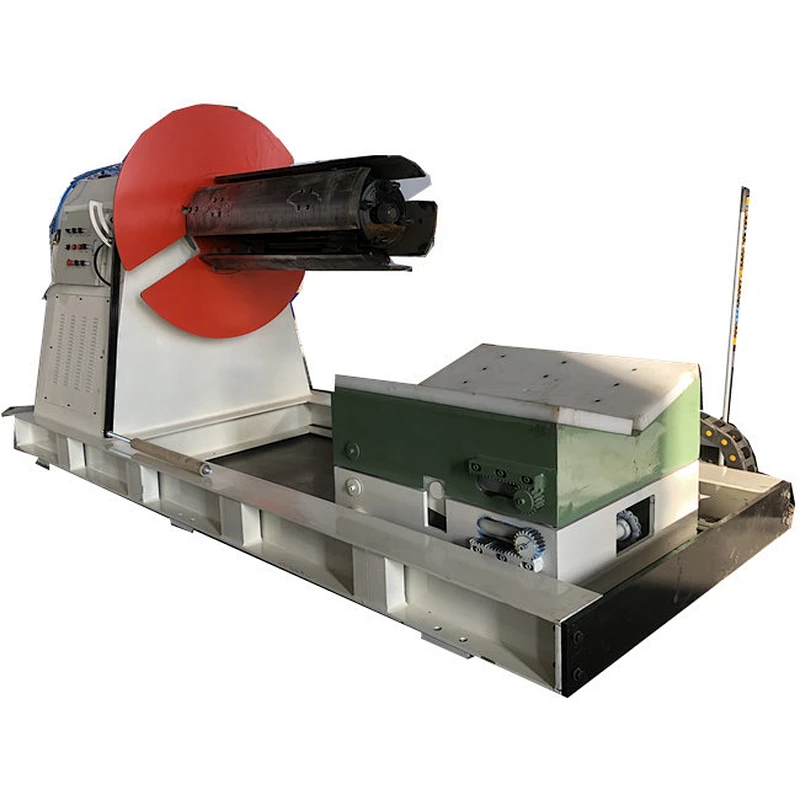

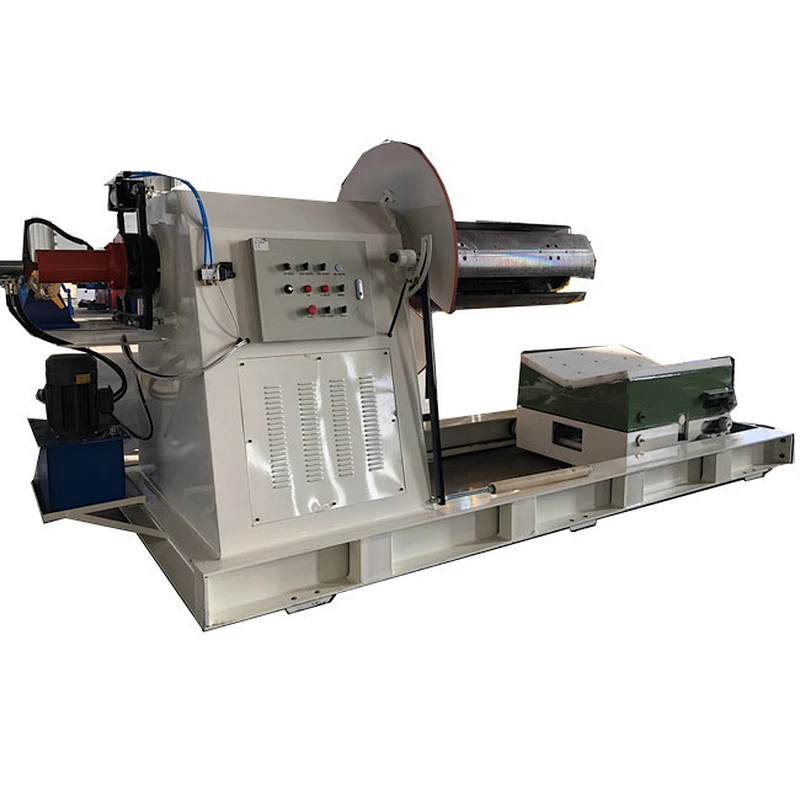

Hydraulic decoiler with loading car
Support the coils and doing uncoiling.
◆The decoiler expands and shrinks by hydraulic and fit to the inner diameter of coils.
◆Motor drives the coils running and can do forward and do the decoiling with tension.
◆The core can ensure the expand range
◆Structure: welding by the steel plates and profiled bar
And loading car can help you load the coils more easily.

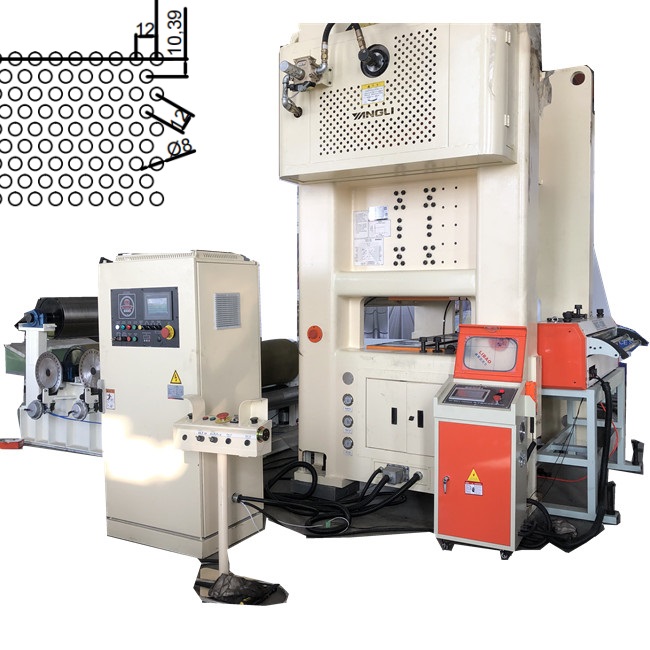

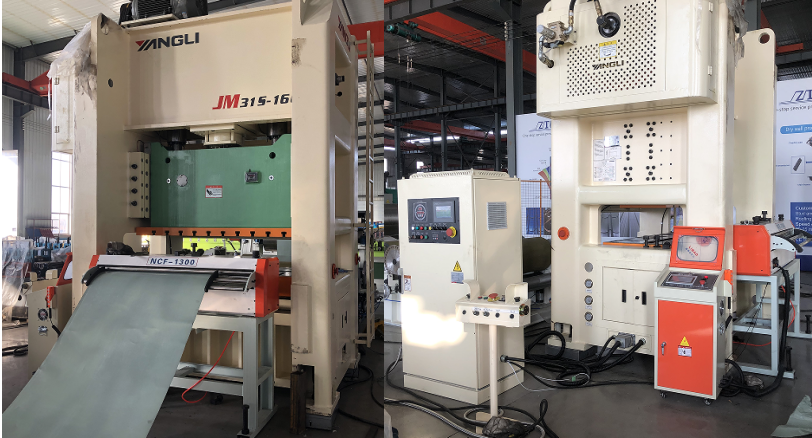

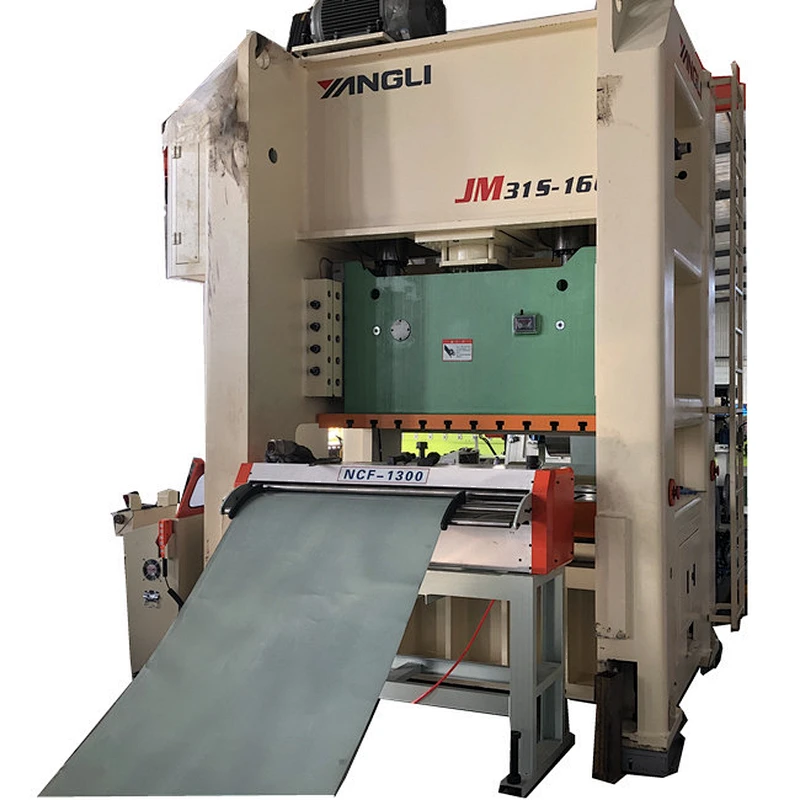

Punching machine with the servo coil feeder:
Punching four rows for higher speed. The punching machine can punch up to 120 times per minute.
All presses are designed, manufactured and tested in accordance with the ISO9001 standards and requirements. According to the customers’ feedback and our service experience, the most important factor to maintain the initial precision of machine is to use it properly and maintain it timely to achieve its best effectiveness
As to cut to length or recoil the punched sheet, it depends on the customer requirements.
The following I showed is the recoiler type:

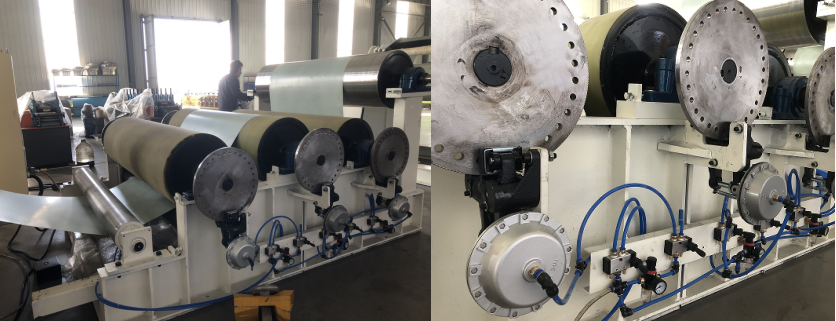

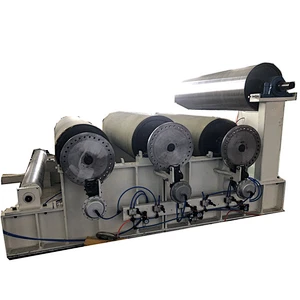

In order to make sure the recoiler tight, neat and clean, we add the S roller tension system like the following.

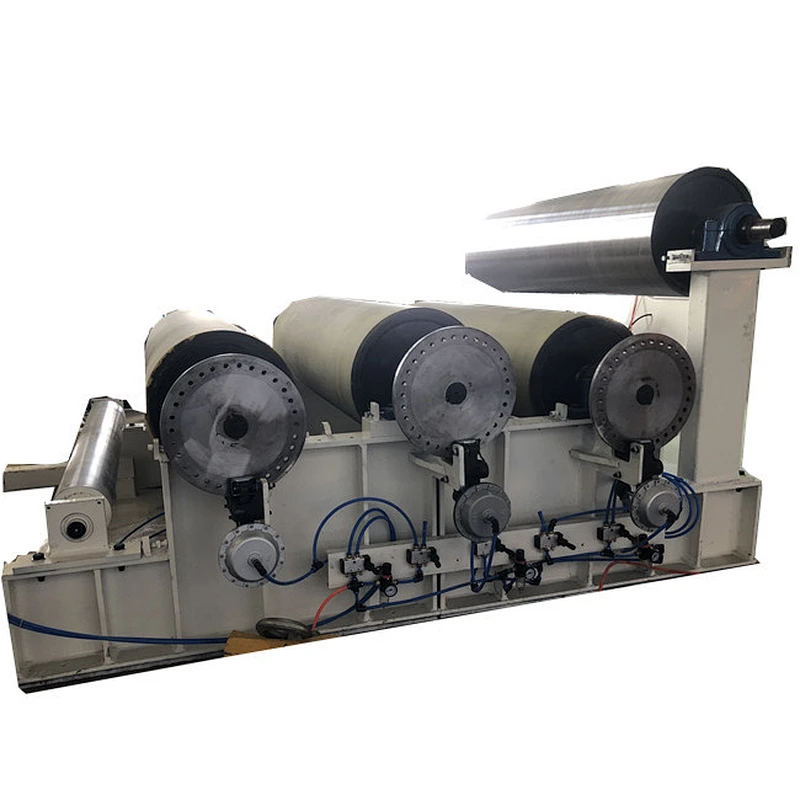

Pneumatic chucks are installed at both ends of each rollers, which can exert certain resistance to the rotation of the rollers by adjusting the pressure of compressed air to ensure the tension of the coil during winding.
