Metal Wall Panel Cladding Roll Forming Machine Box Rib Wall Cladding Type
Metal Wall Panel Cladding Roll Forming Machine is designed to make box ribs types wall cladding sheet in batch fully automatically. Series Box Rib panels are more types in wave quantity, depth and width feature 87-degree rib angles and a variety of rib spacing patterns. The most popular we are making machine for them like box ribs 315, 316 308 wall cladding sheet and others.

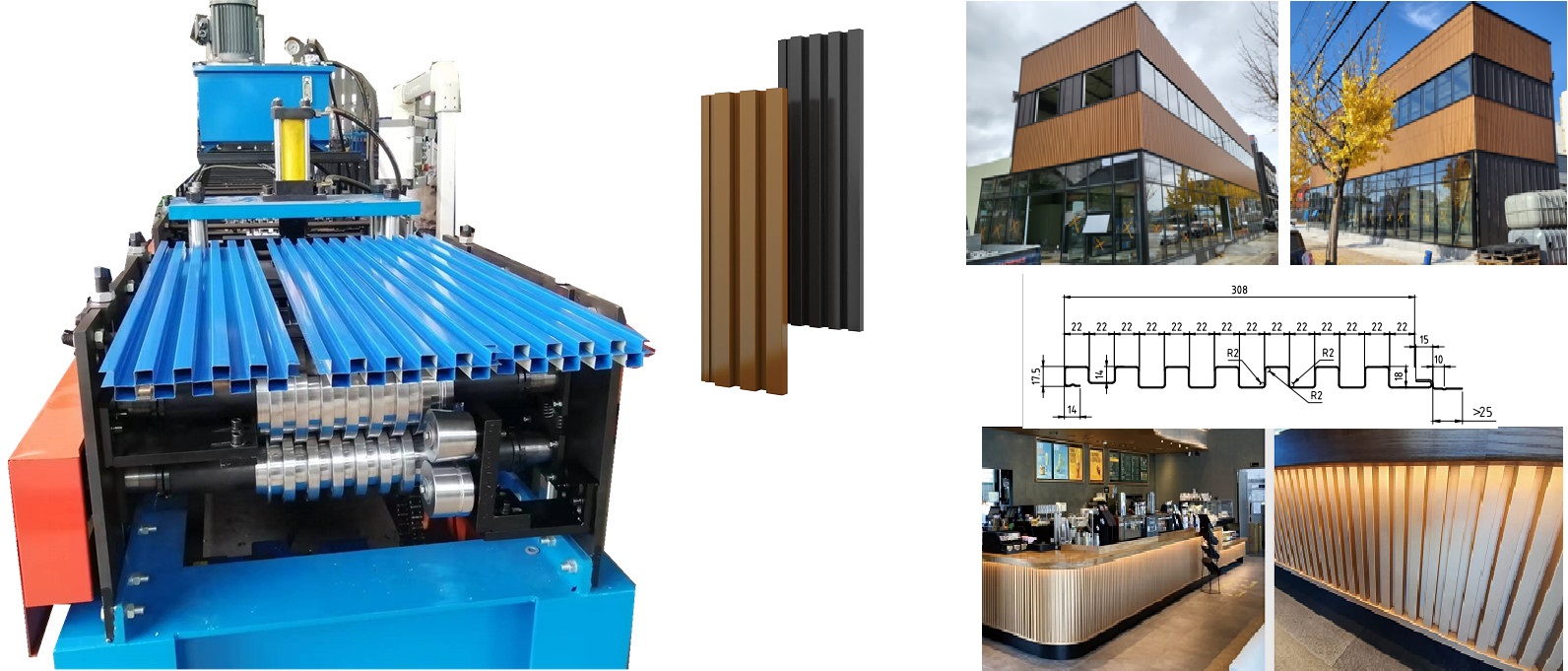

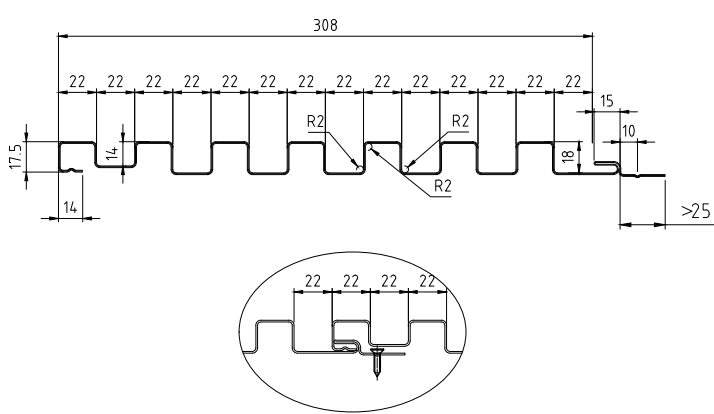

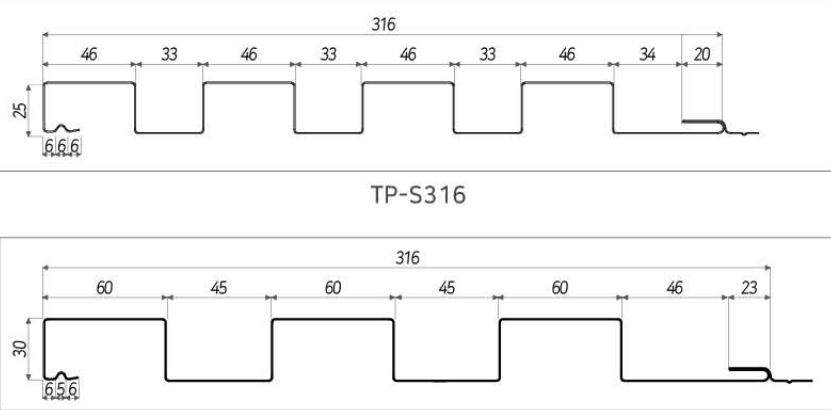

Wall cladding sheet 316 type  | Mini 308 Wall cladding sheet |

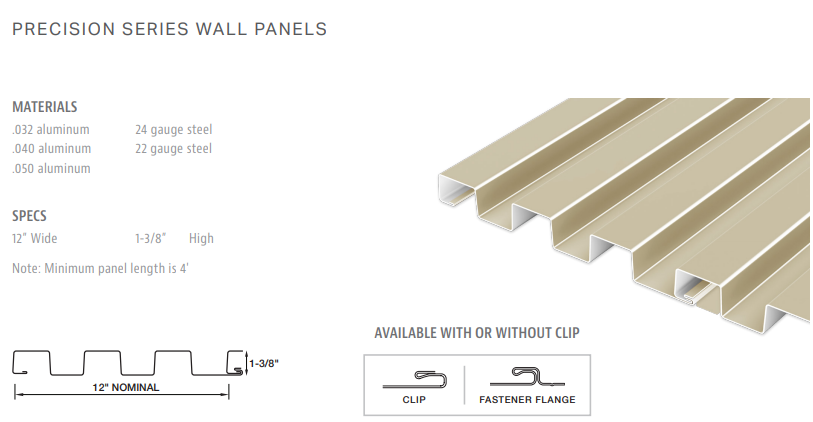

These ribbed wall panels create attractive lines and shadows for the exterior of any building, nonresidential or residential. All twelve of the Precision Series panels can be mixed with each other to create custom patterns. The Precision Series lineup includes the original HWP profile (7/8-in. depth), seven Highline profiles (1 3/8-in depth) and four Box Rib options (1 3/8-in depth).
Box ribs | Box Rib 2 |

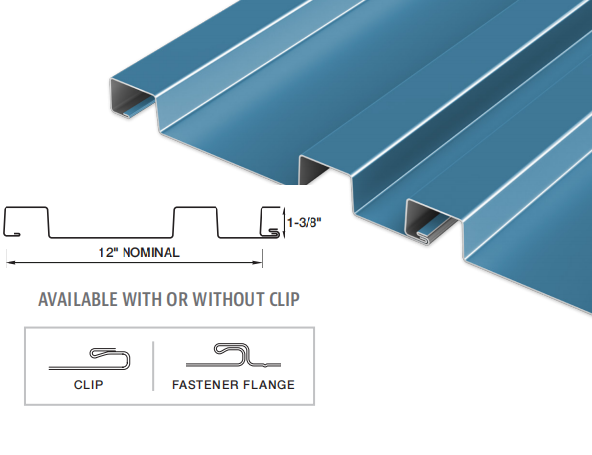

Each profile is offered in a no-clip (fastener flange) option, or a clip-fastened panel to accommodate thermal expansion and contraction. All Precision Series panels can connect to each other if desired. But the installation method are quite different, you can choose the one you like and then we can design the machines for you.

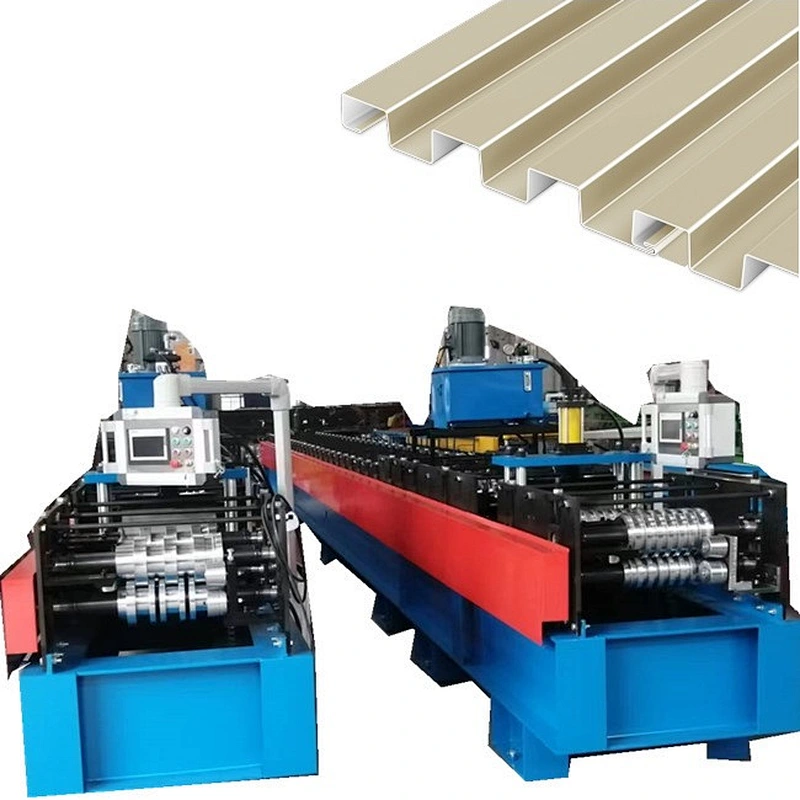

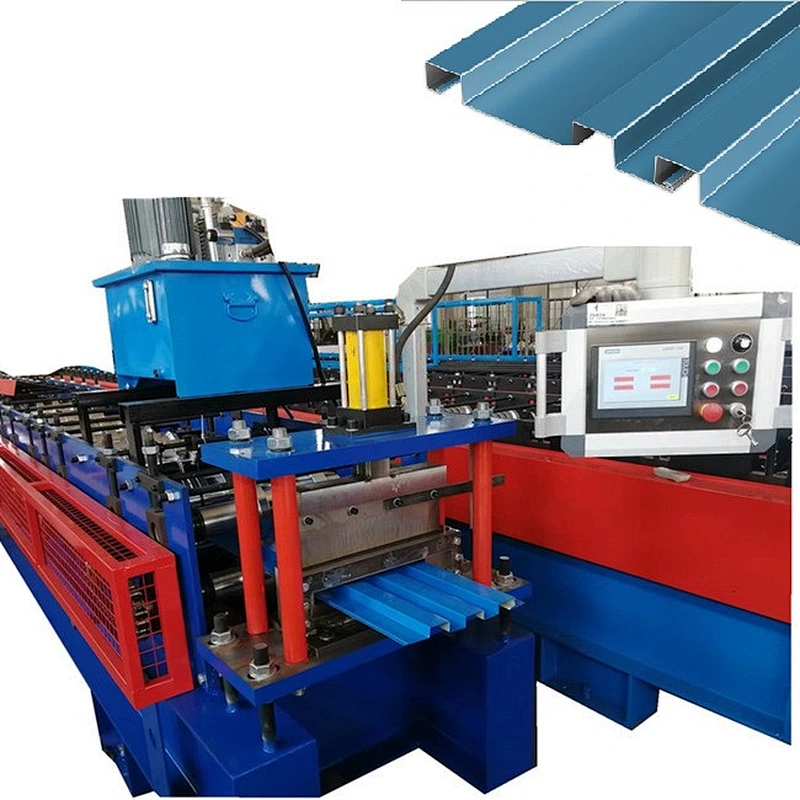

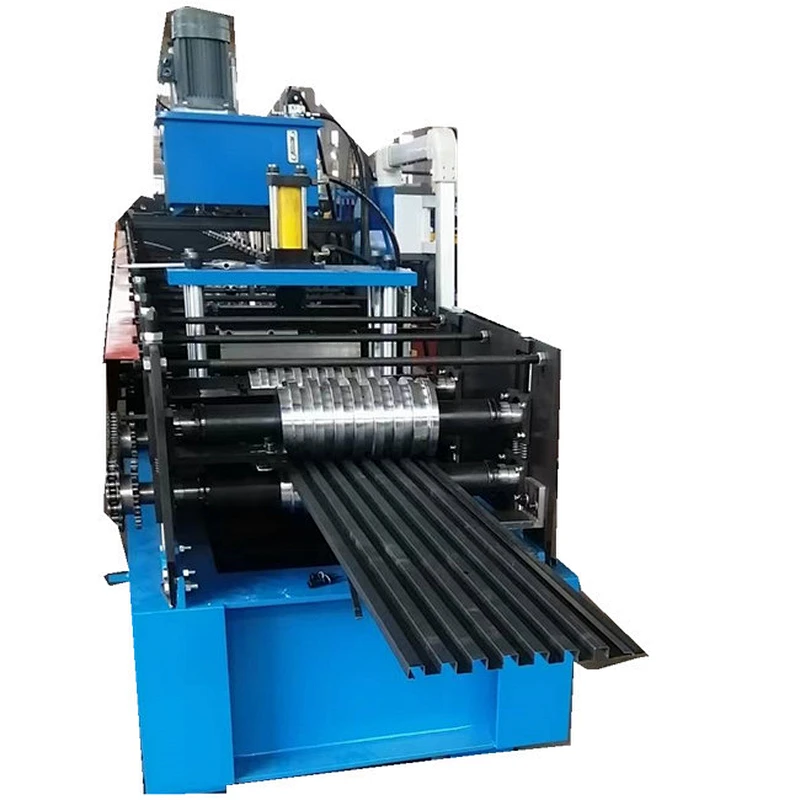

Wall Cladding Roll Forming Machine Box Rib Wall Cladding Type

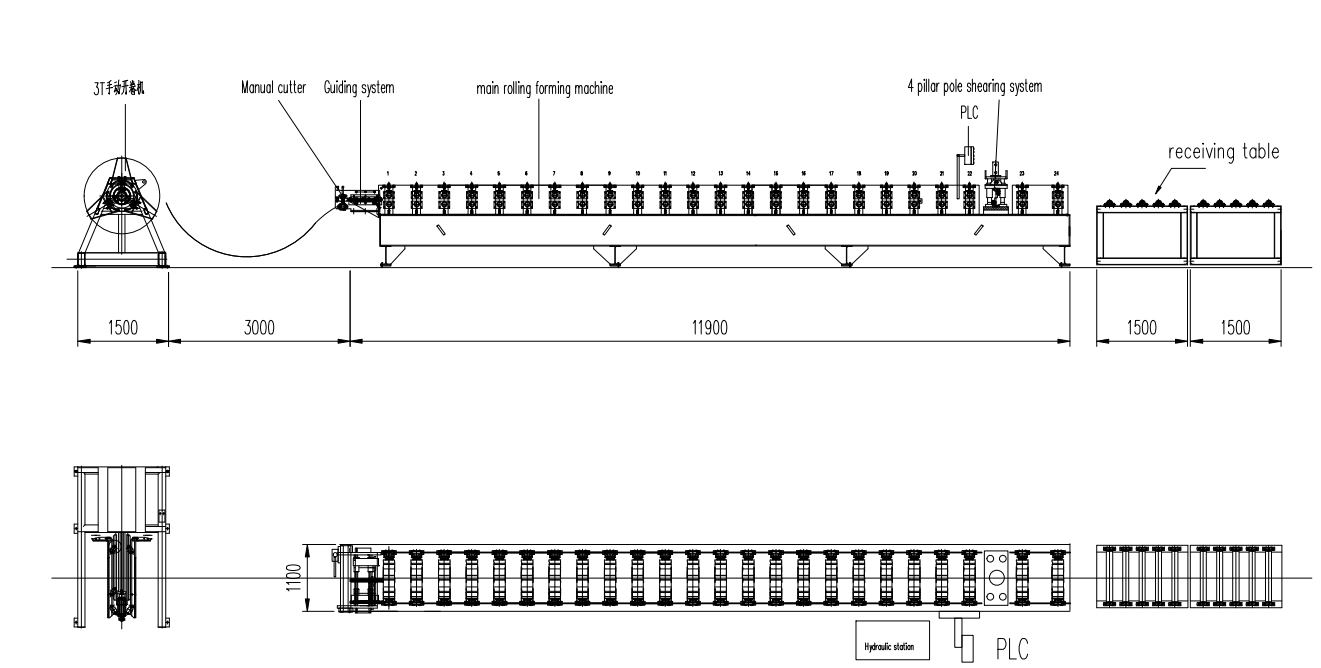

Wall Cladding Roll Forming Machine working flow:
Decoiler--leveling beach with the manual cutter and with the filming system--> main rolling forming machine separated molding rolling--> bearing shearing-->trimming system-->receiving table

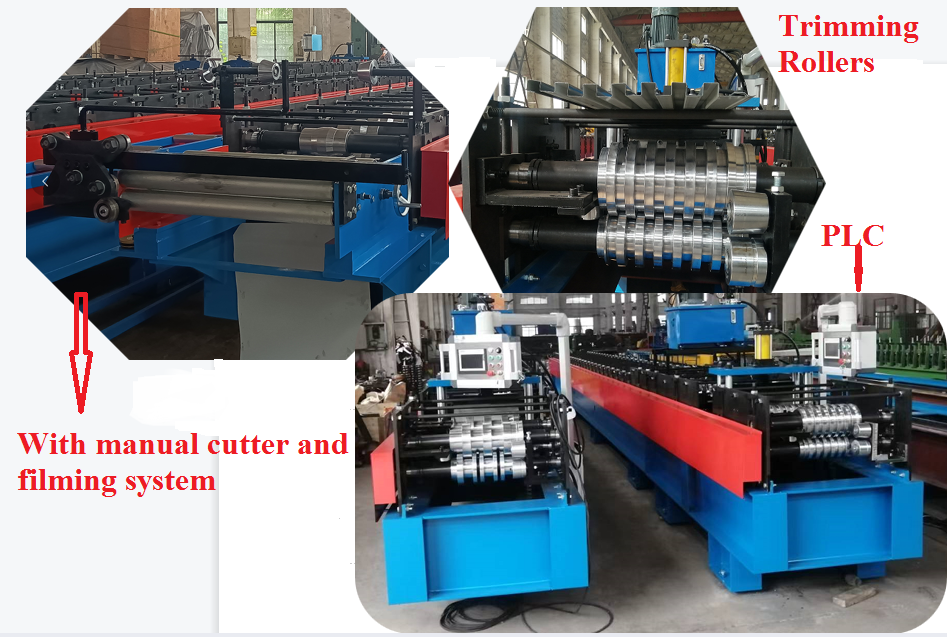

Wall Cladding Roll Forming Machine details design:
Wall Cladding Roll Forming Machine Features:

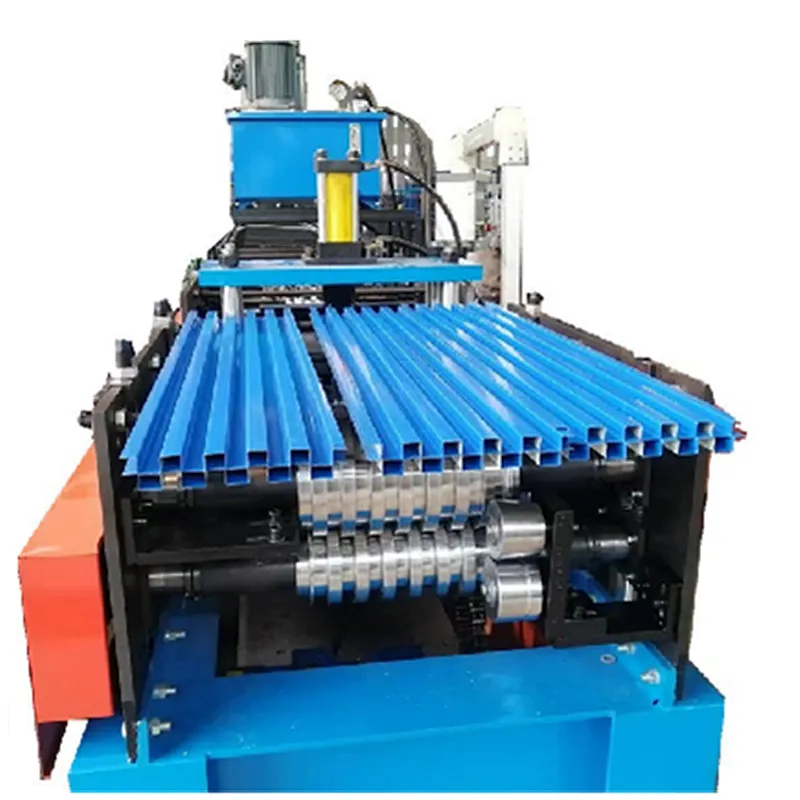

1. The box rib wall cladding sheet could be made with perfect effect. Some clients need flat, some need bending. One machine can make both.
2. With manual cutter then you can shear it at any place to avoid wasting of the coil.
3. With filming system, for the coil you can choose with film or without.
4. Speed is around 15 to 25 meter per minute.
5. We make sure the edge is straight, no round corner.

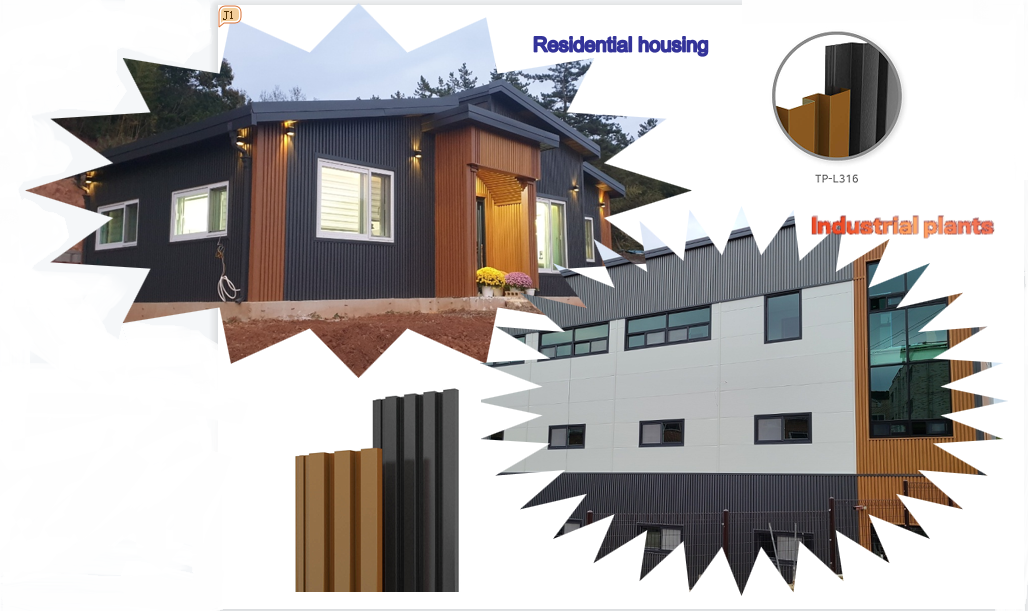

Metal Wall Panel Cladding Box Rib Wall Cladding Type Application:
Wall Cladding Roll Forming Machine Working Video:
