Metal roofing sheet rolling forming machine for Saudi Arabia

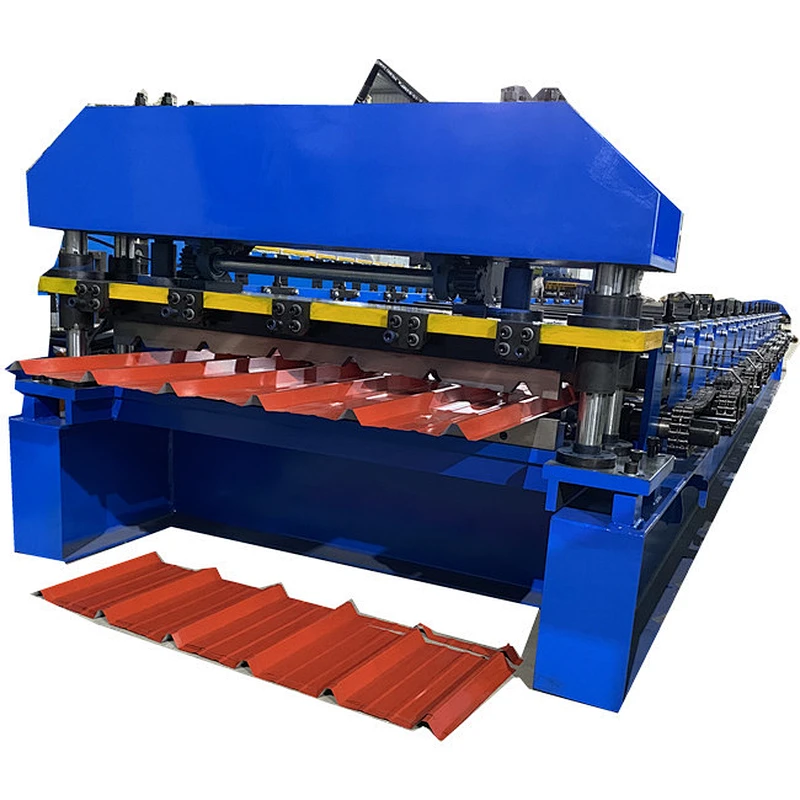

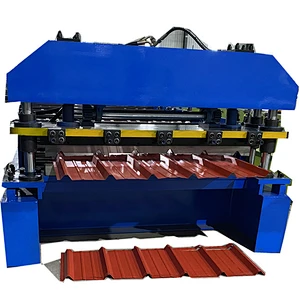

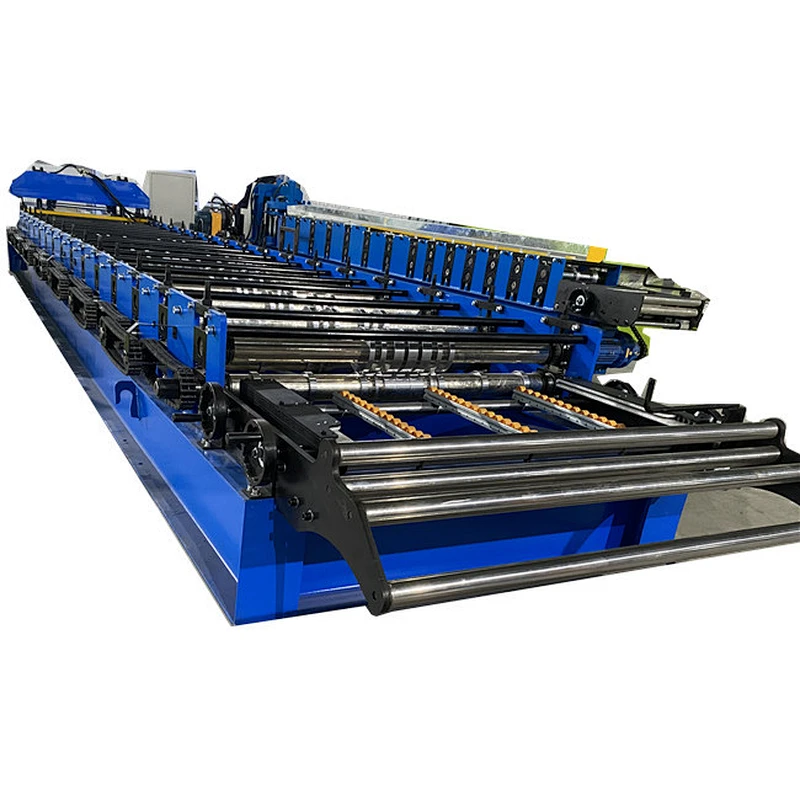

Metal roofing sheet rolling forming machine for Saudi Arabia is designed for making the roofing sheet for Saudi Arabia. This machine we specially design for Saudi Arabia market with the following profile drawing, which is quite popular now.
Note: for this profile, it supports both input coil width: 1220mm and 1000mm, so both two types input coil width could be used by this machine. When using the input coil width 1220, the effective width is 1000mm. When the input coil width is 1000mm, the effective width is 800mm. By this way, simple adjusting the input coil width and then you can make two types roofing sheet.
| Metal roofing sheet rolling forming machine Parameters | |
Feeding device | One set guiding roller |
| Steel plate welded platform to carry the sheet and feed into roll forming system | |
| Feeding width is adjustable with the handle wheels | |
Rolling shaft | Shaft material:45# STEEL |
| Shaft diameter: 75 mm | |
| Tempering treatment to prevent deformed and improve hardness | |
Roller | 45# steel |
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | |
| Rolling station | 19 rollingstations |
| Work speed | 25m/min{4 pieces per minute (6m per piece)} |
| Machine structure | Steel plate welded structure |
| Machinebasic frame | 500# H steel welded |
| Work power | 7.5 kw |
| Rolling spacer | Anti rusty treatment |
| Pull rod | Anti rusty treatment |
| Transmission | By Chains with cover |
| Noted: please fill the lube in case the chains getting dry | |

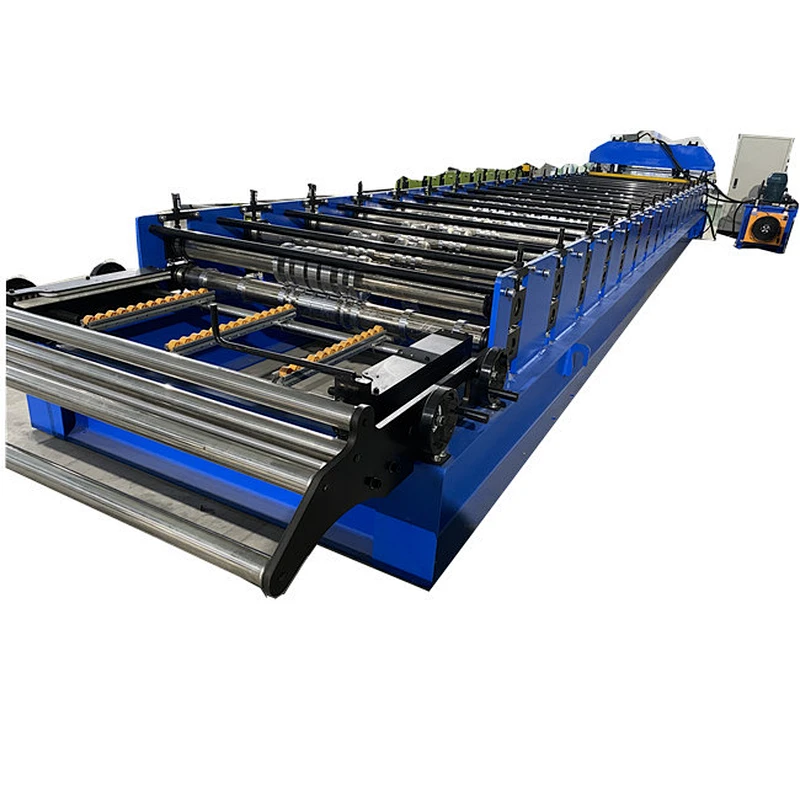

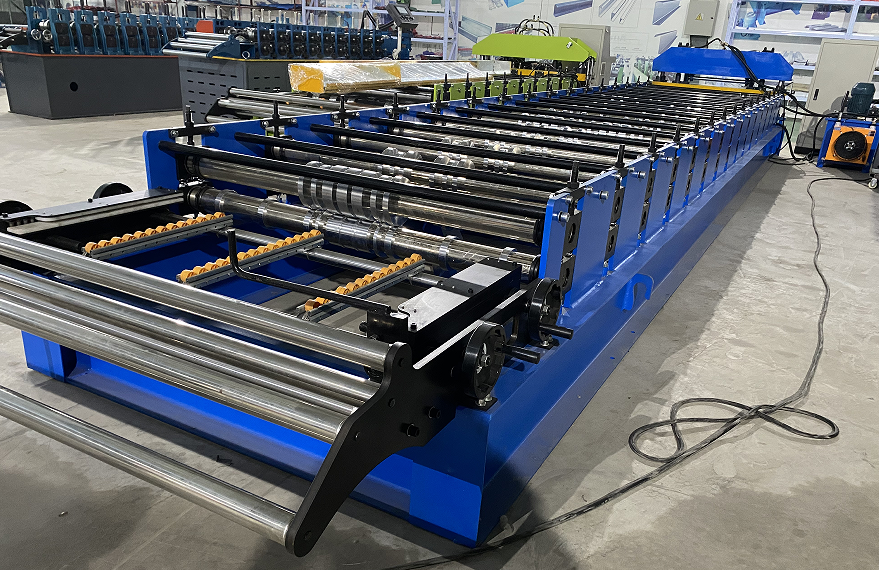

1. The hand wheels on both sides can fine tune the width. Keep the coil straighten by sliding the coil between the slots on both sides when feeding. This mechanism is equip with bearings inside for smooth feeding.

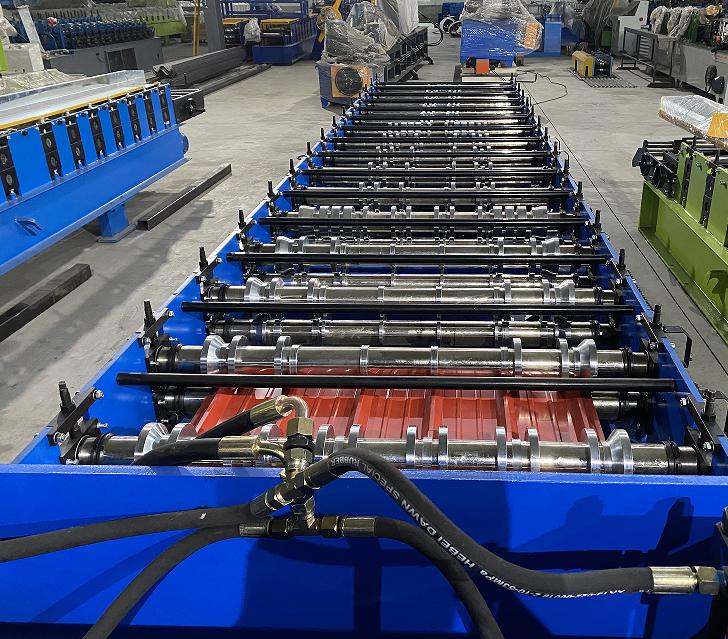

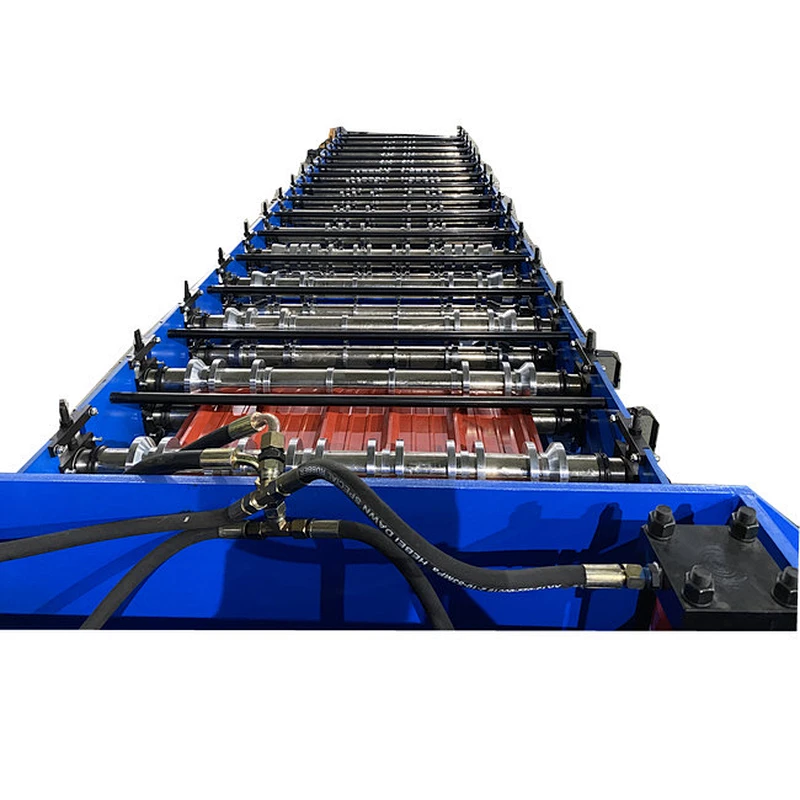

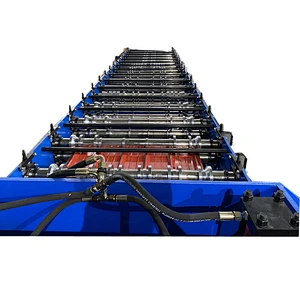

2. Equip with stainless steel solid shaft with bearing on both sides for smooth feeding to the main forming stations. The two roles of orange plastic rollers supports the coil to the machine and this will prevent damaging the coil.3. As to the rolling forming part, we design it using the separated rolling forming that means each roller station only rolling one or two waves and then it will not damage the surface of the coil.

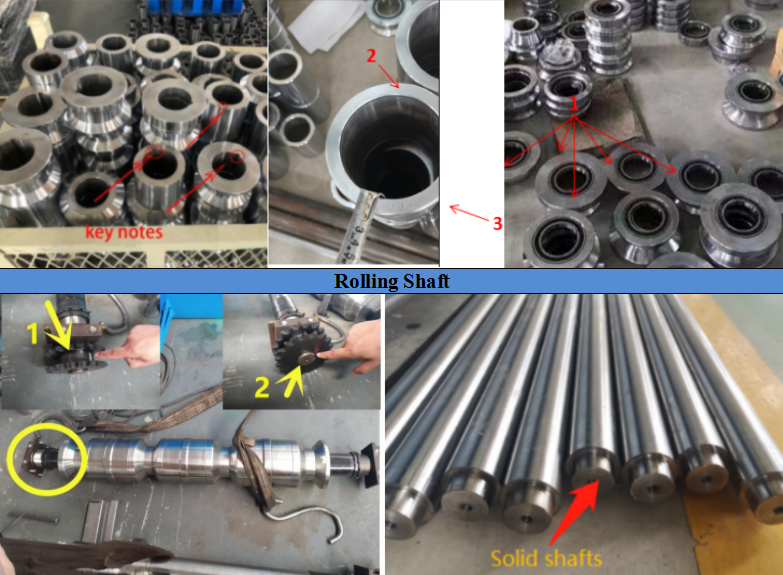

4.We use high quality ballbearings for our rollers and shafts to ensure the machine run smoothly and efficiently. All main forming rollers are chrome plated with 3mm coating to increase hardness, anti-rust and longevity. Rollers, spacers and shafts are mark with numbers for easy maintenance in the future.

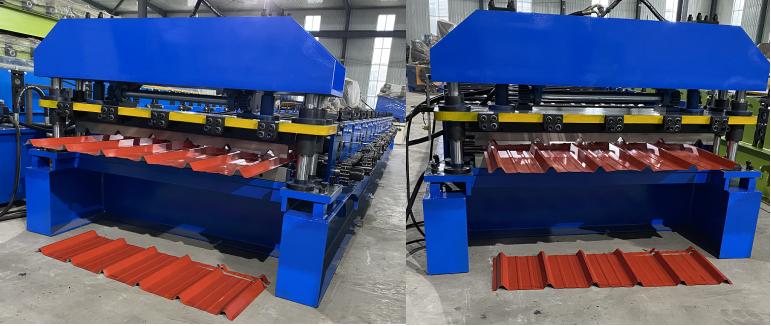

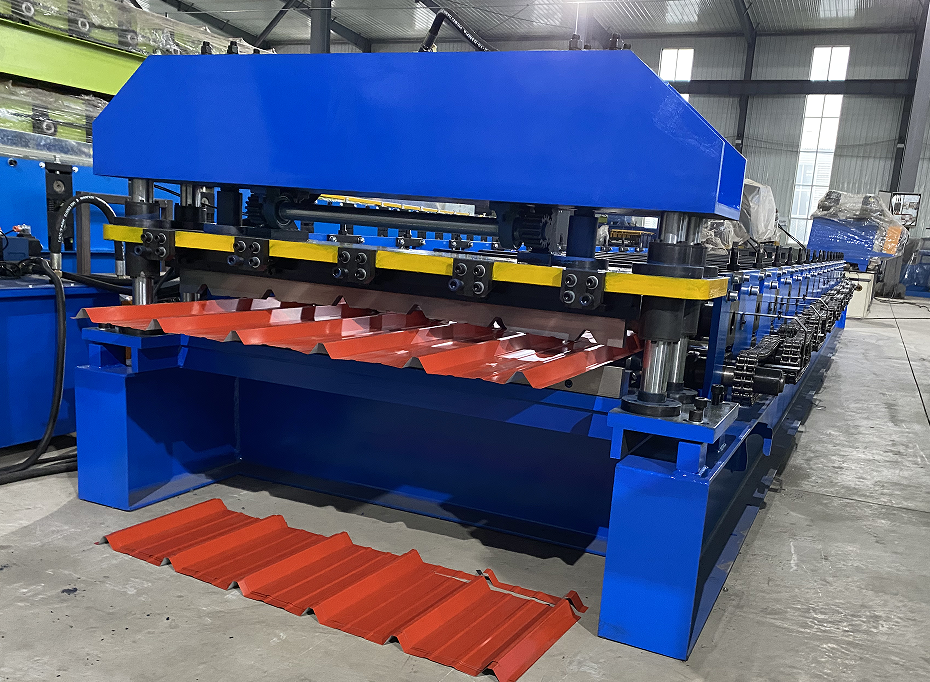

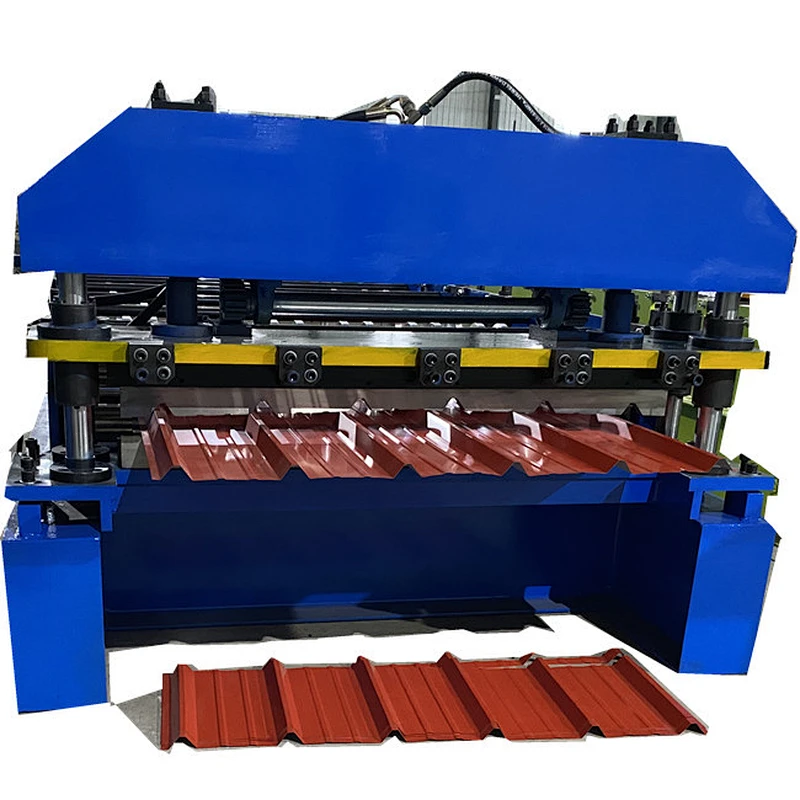

1.This machine equip with hydraulic cutting. It is fully controlled by PLC system.
2.Equip with double pillar design makes the cutting procedure more precise.
3.Cutting blade uses high quality GCr12MoV Chromed and quenched HRC58-60 material for your production demand.
4.Tolerance: 3m ±1mm
Here is the Metal roofing sheet rolling forming machine for Saudi Arabia working video for your reference:
