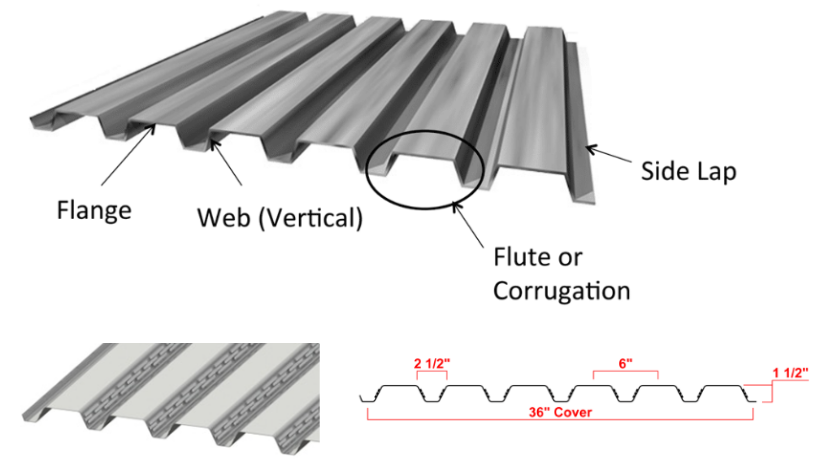

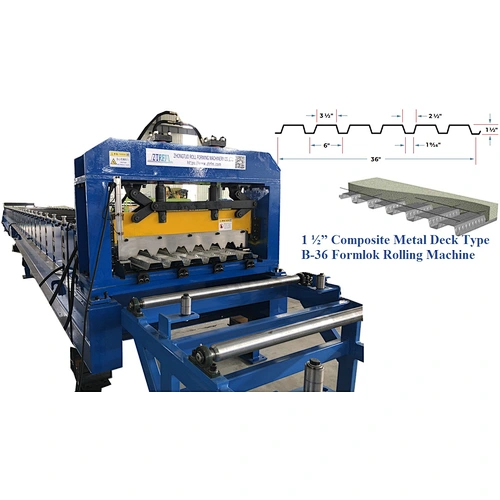

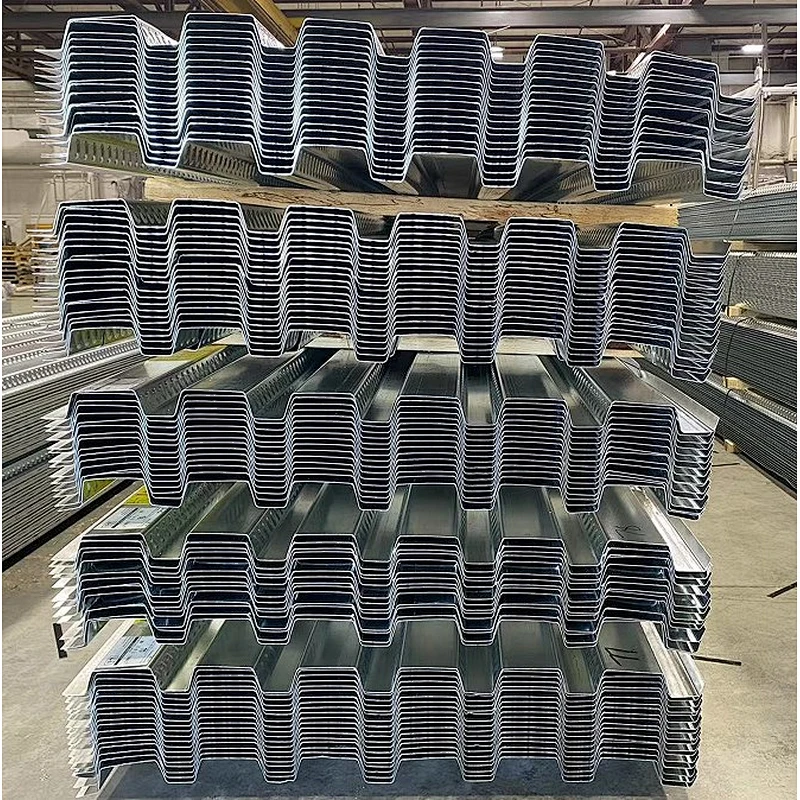

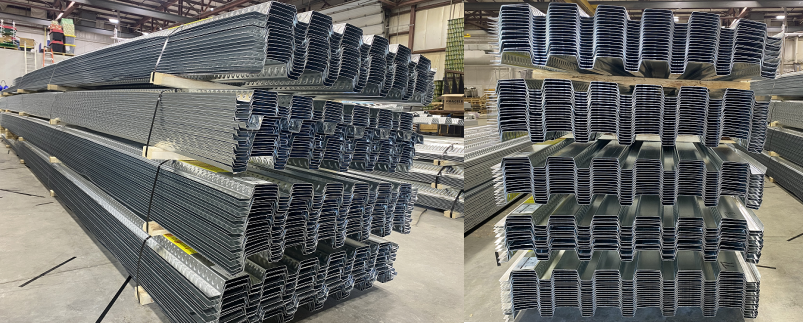

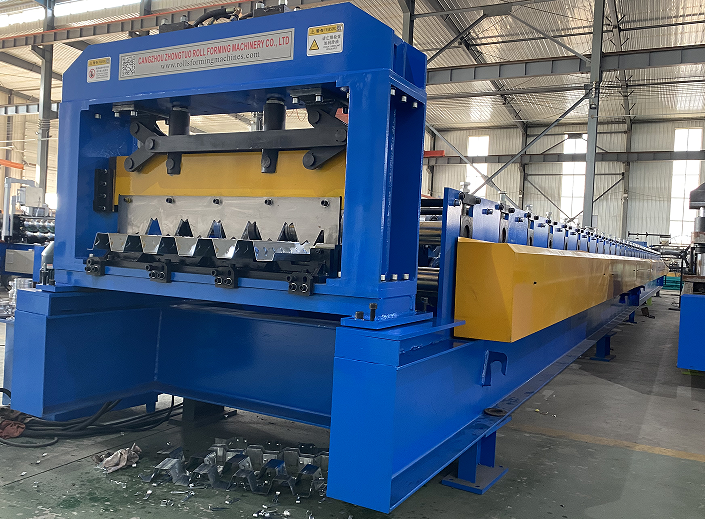

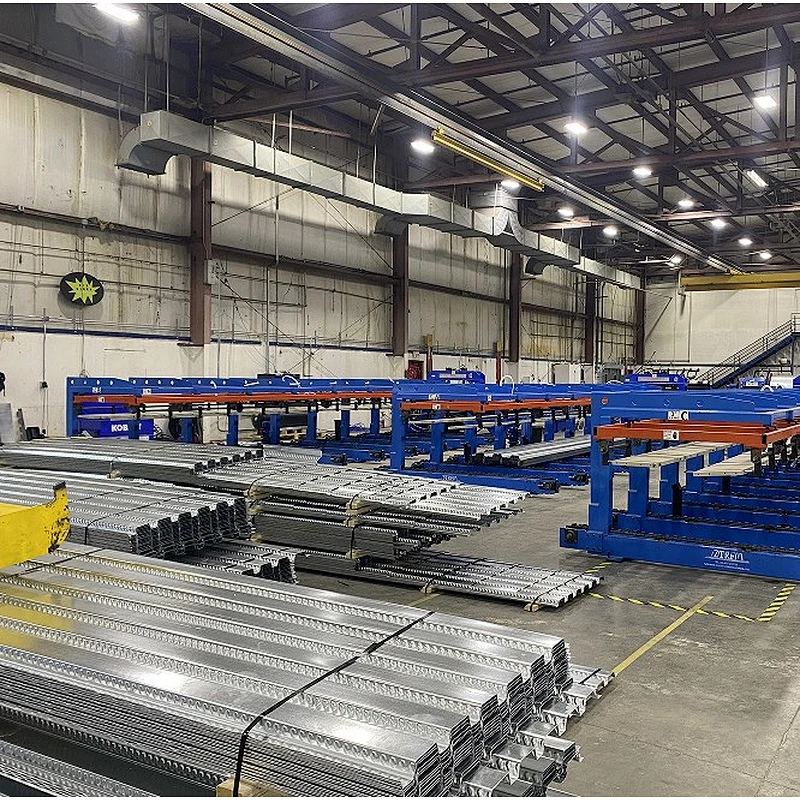

CompositeMetalDeck rolling forming machine for USA is designed to make the compositemetal decks in batch fully automatically. Metal deck is a key structural building component in steel construction typically found in commercial construction.Metal Deck is made by rolling steel coil to corrugated rolled to a specified geometry. Same like other metal deck.  CompositeMetalDeck is also made by cold forming structural grade steel coils into a pattern of flutes and ribs into various shapes. Each unique profile (the shape of the corrugation) and gauge (the thickness of steel used the profile) produces different material properties. As the corrugations of the steel give each profiles it’s unique strength, engineers specify to maximize the steel decks strength to weight ratio for efficient design applications. Or said another way, the strength and stiffness of the steel deck panels are a combination of the shape of the ribs and the material properties of the steel. Take the following drawing profile for example to show you the CompositeMetalDeck.

he metal deck gauge is a unit of measurement that refers to the thickness of the steel.  The higher the gauge number the thinner the steel. The lower the gauge number the thicker or heavier the steel is.

Example 1:16 gauge is thicker, and therefore stronger & heavier than 22 gauge steel

Example 2:22 gauge is thinner, and therefore lighter & weaker than 18 gauge steel

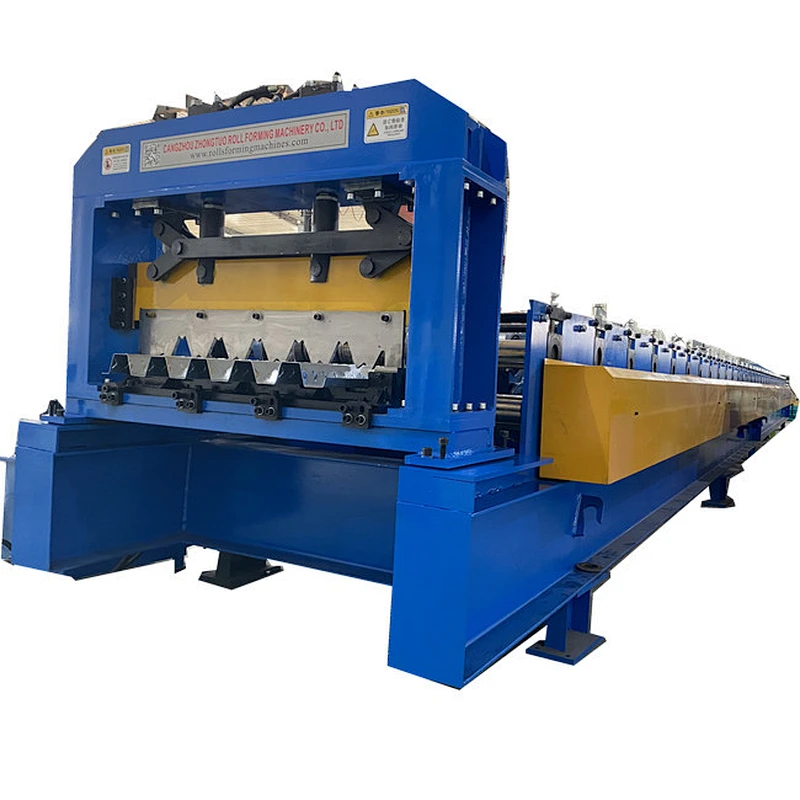

CompositeMetalDeck rolling forming machine for USA:

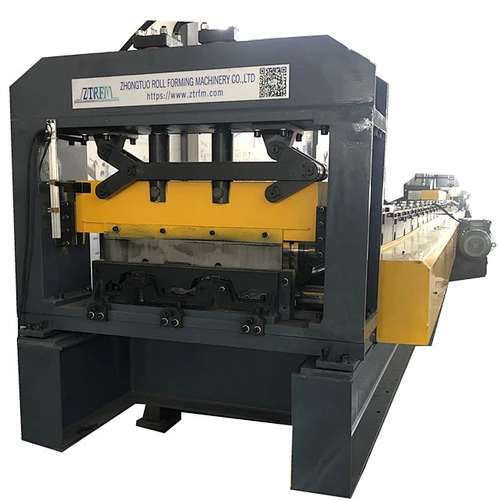

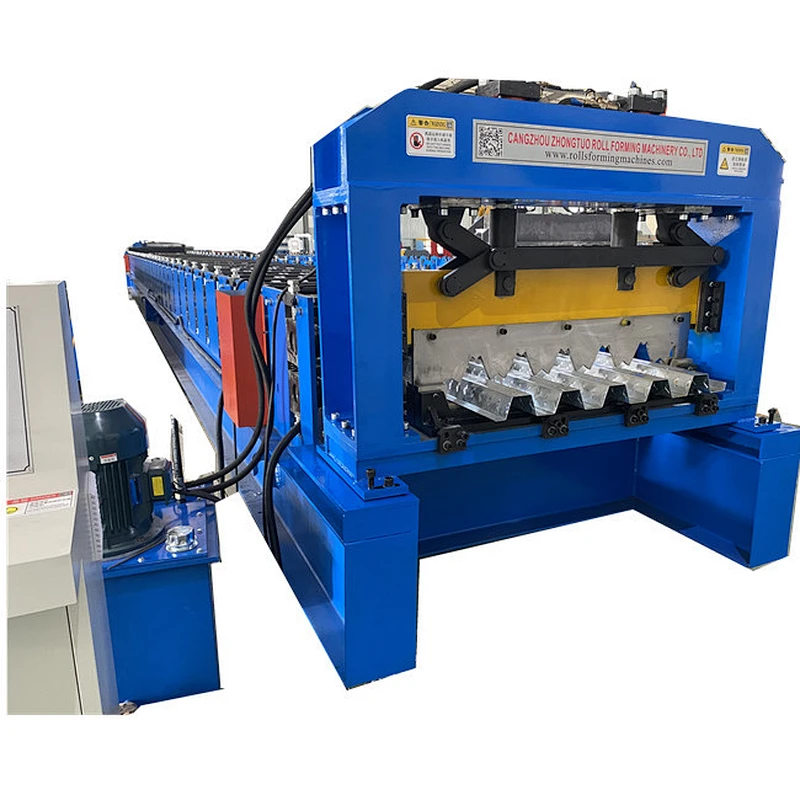

1. The metal decking base frame we use 400 H beam, international standard frame to make sue strong enough.
2. The machine shaft we use 90mm and for the embossing shaft we use 120mm to make sure it can handle SG550 strong and thick material.
3. The motors we use two big motor as 15 kw to make sure the power convey more easily.

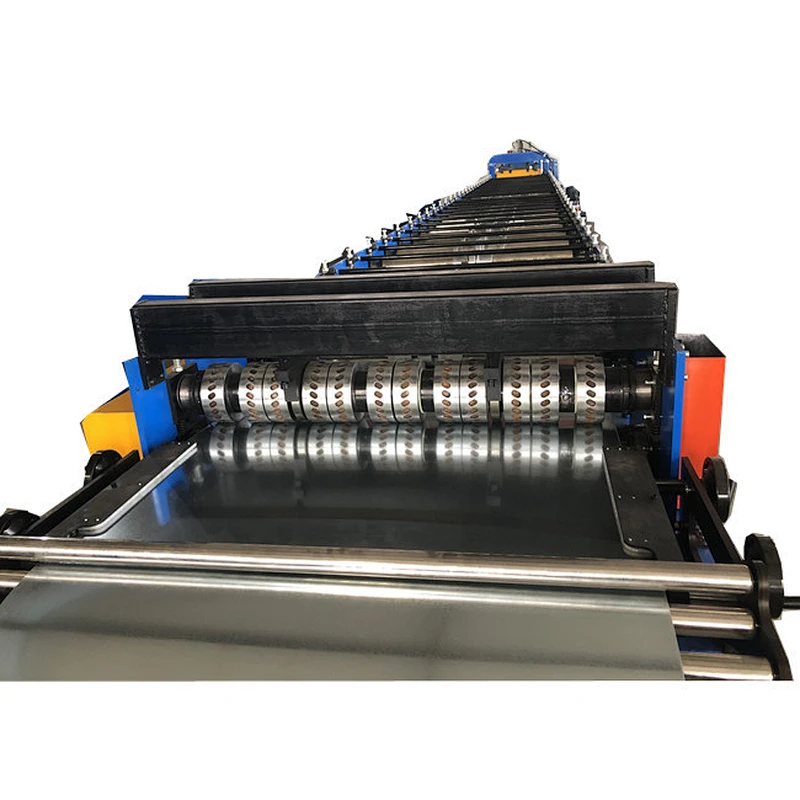

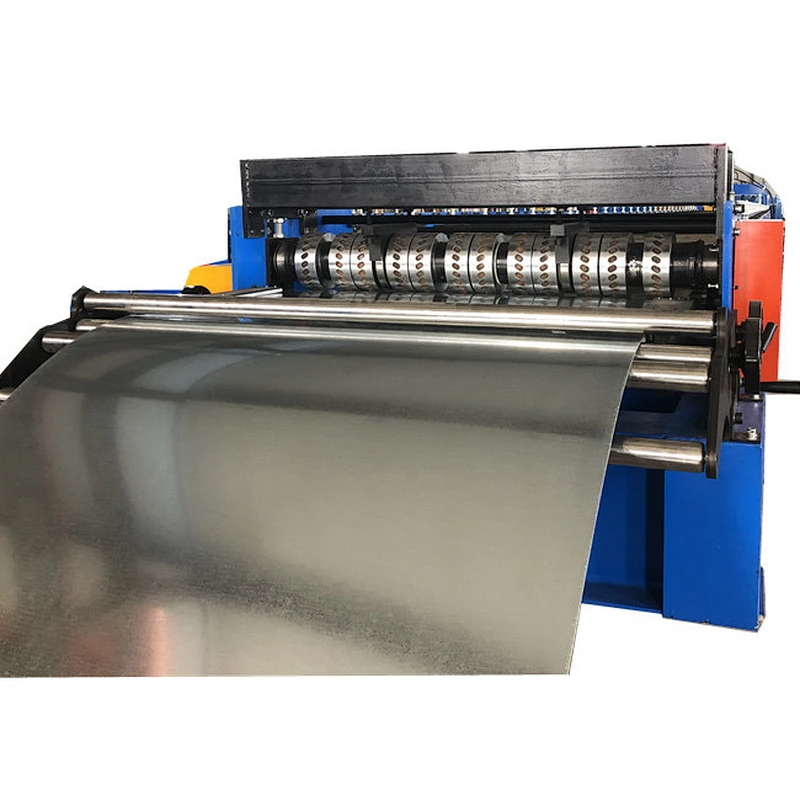

4. Embossing roller design with the break to make sure feeding coil and do the embossing more easily.

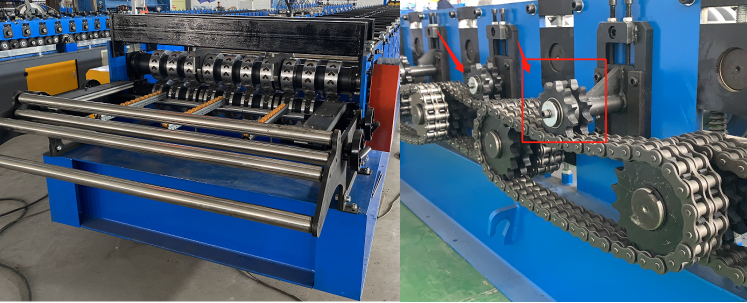

5. Double chain for more durable. Meanwhile with the chain adjuster to make sure all rollers are tight for transmission.

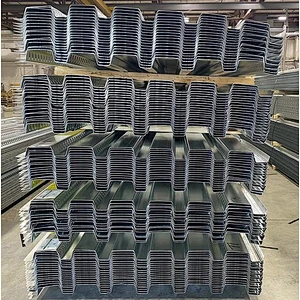

CompositeMetalDeck rolling forming machine Quality checking by the profiles made

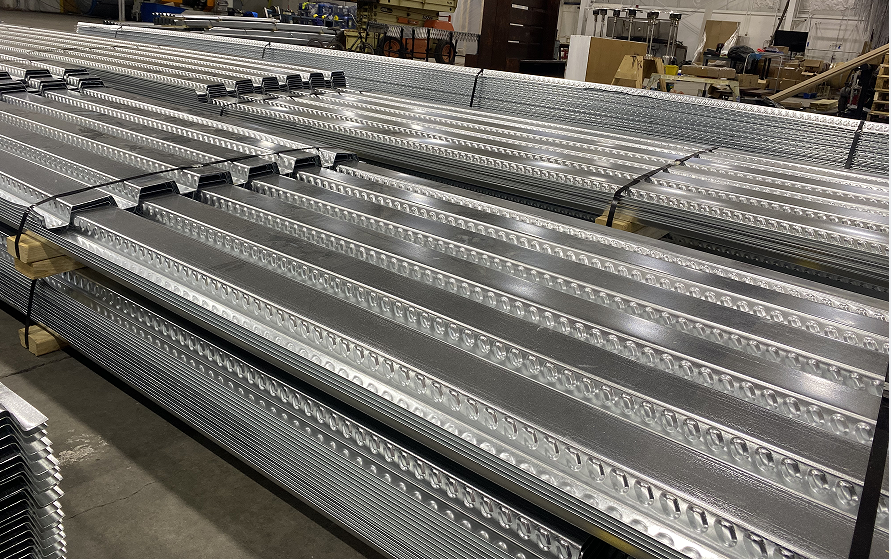

1. Form the profile to see, the length accuracy is 100% good. And profile surface no scratch 100% good.

Composite Deck installation:

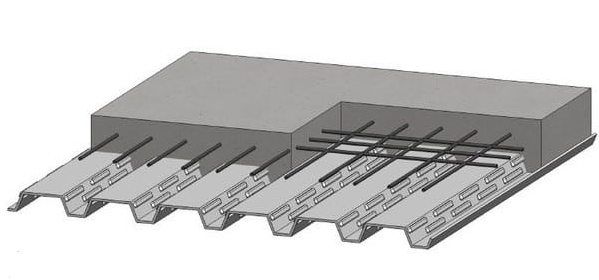

Composite steel floor deck has a ribbed profile with embossment designed to interlock with concrete slabs, creating a reinforced concrete slab that serves the dual purpose of permanent form and positive reinforcement.

CompositeMetalDeck rolling forming machine working video for your reference:
