What is metal steel deck?

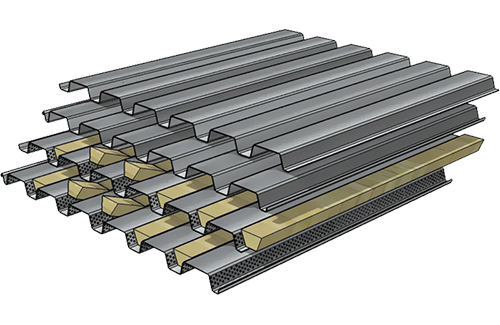

Steel deck is a structural panel element that acts as thesurface of a floor or roof. The deck is roll formed fromstructural quality sheet steel and is engineered to spanover joist or purlins. Variations in the thickness, shapeand depth of the deck can beutilized to meet a varietyof loading conditions and spans. The deck can also befastened to the supporting structure to enable it act as adiaphragm and provide lateral bracing for the structure.

Roof DeckProfile

Steel roof deck is the predominant structural component used in virtually all flat roofs. The deck is a structural panel that spans over roof joist or purlins to provide a flat surface on which to apply the weatherproof roofing. Steel deck is the substrate for most roofing materials such as built-up roofing, membrane roofs or insulated sheet steel roof assemblies. Roof deck has also been used in more unusual configurations that may be sloped or curved.

For the roof deck the popular profile is B deck:

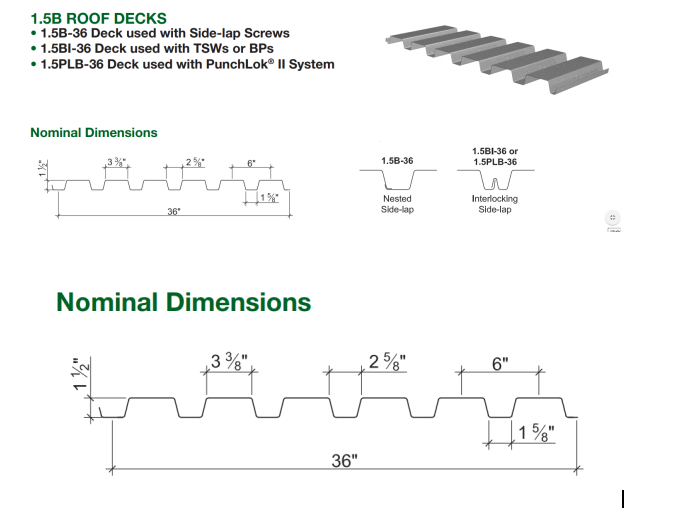

B Deck profiles are 1.5-inch deep structural roof deck that provideboth vertical load and diaphragm shear capacity. The wide ribs makethe profile an ideal structural substrate to uniformly support roofingsystems applied on top of the deck. Type B profiles are typically used for span conditions of 10 feet or less.

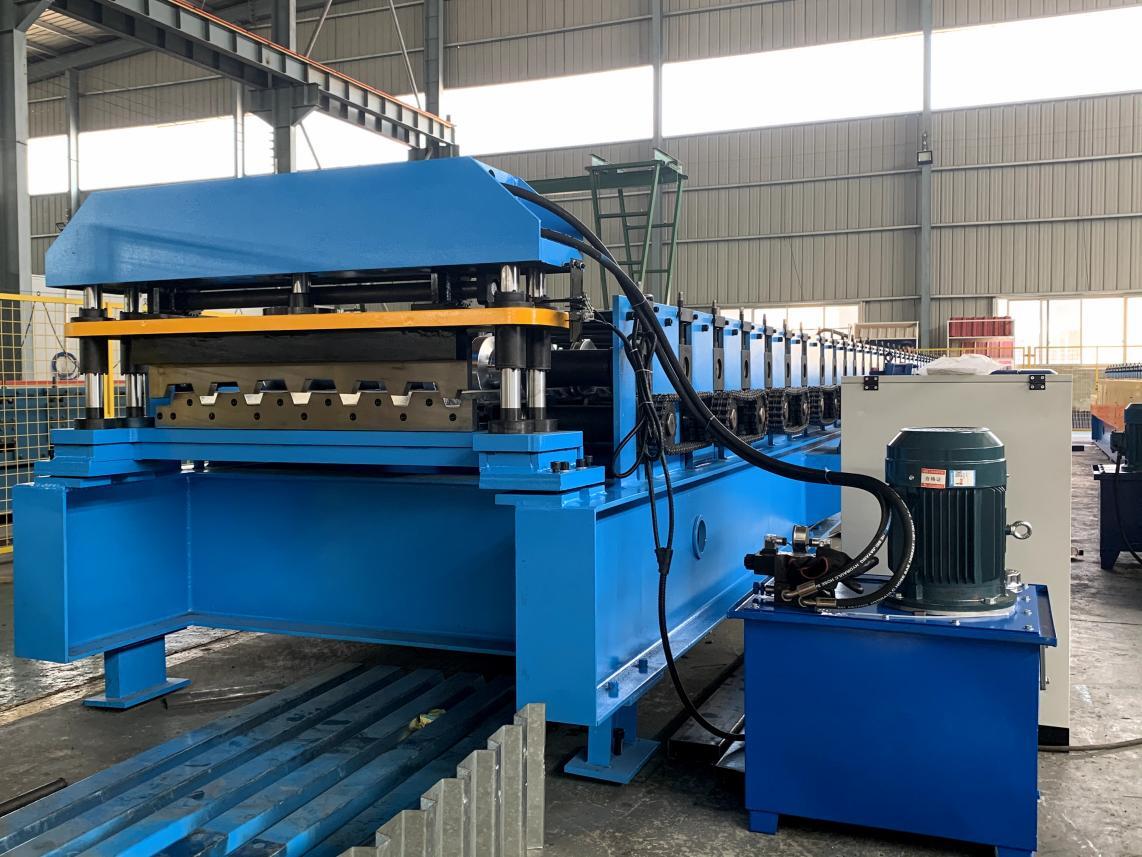

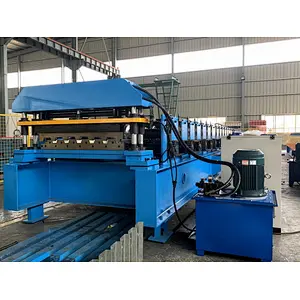

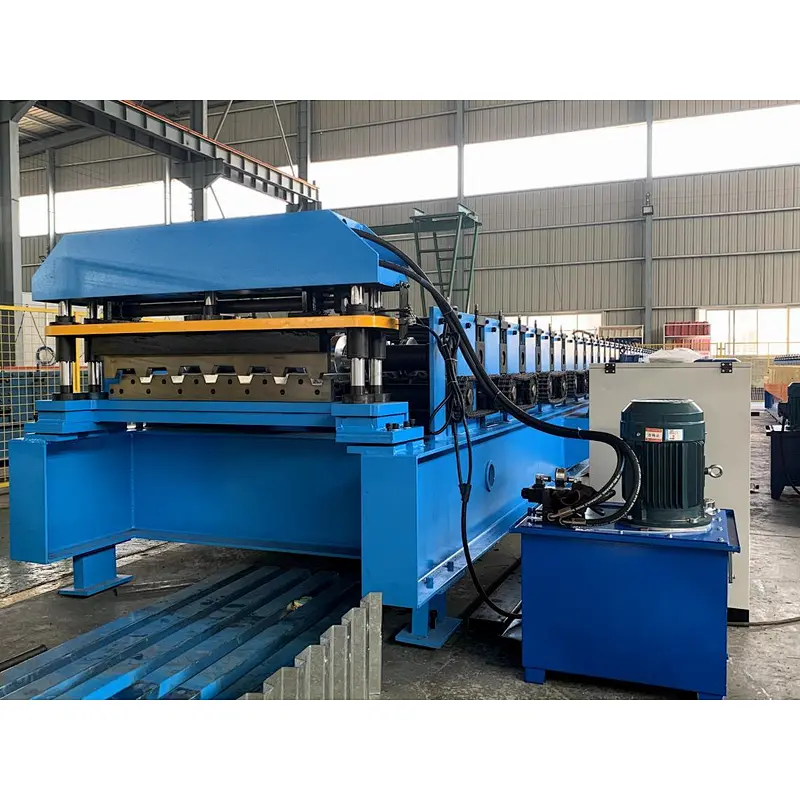

ZhongtuoSteel Roof Deck making machine:

Main technical parametersof  B deck roofing decking rolling forming machines:

1) Structure:500H steel welded with 25mm middle plate

2)Main power:30KW Siemensmotors

3) Forming stations:36stations

4) Way of drive:1.0"double row chain drive

5) Diameter of shaft:80mm

6) Max rolling speed: 12-15m/min

7) Thickness: 0.5-1.5mm galvanized steel or p repaintedsheet,G550Mpa

8) Material width:as request

9) Material of roller:polished and coated with chrome, surface with 0.05mm

10) Material of blade mould:Cr12, quenched 58-62℃

11) Way of cutting:hydraulic mould cutting(stop to cut)

12) Length cutting tolerance:+/-1.0mm

13) Hydraulic pressure :16Mpa

14) Hydraulic power:5.5kw

15) Computer Control system:PLC control from Taiwan

16) Omron encoder measure the length ,made in Japan

17) Electrical requirement:380V,50Hz,3Ph

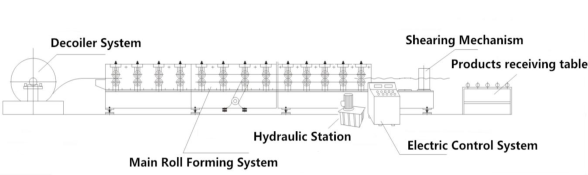

Working process of Galvanized Floor decking forming machine

decoiler---shape---shear---receive final product

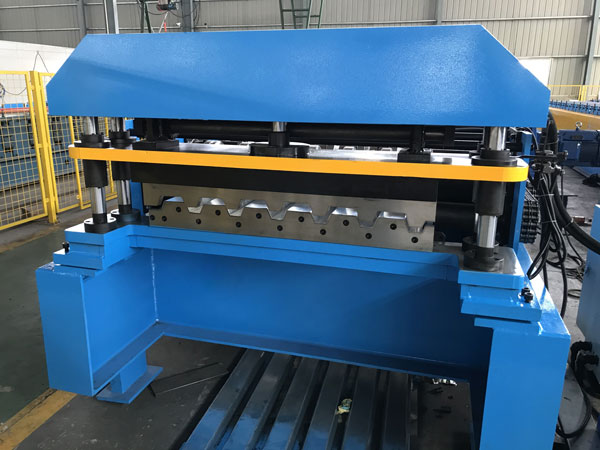

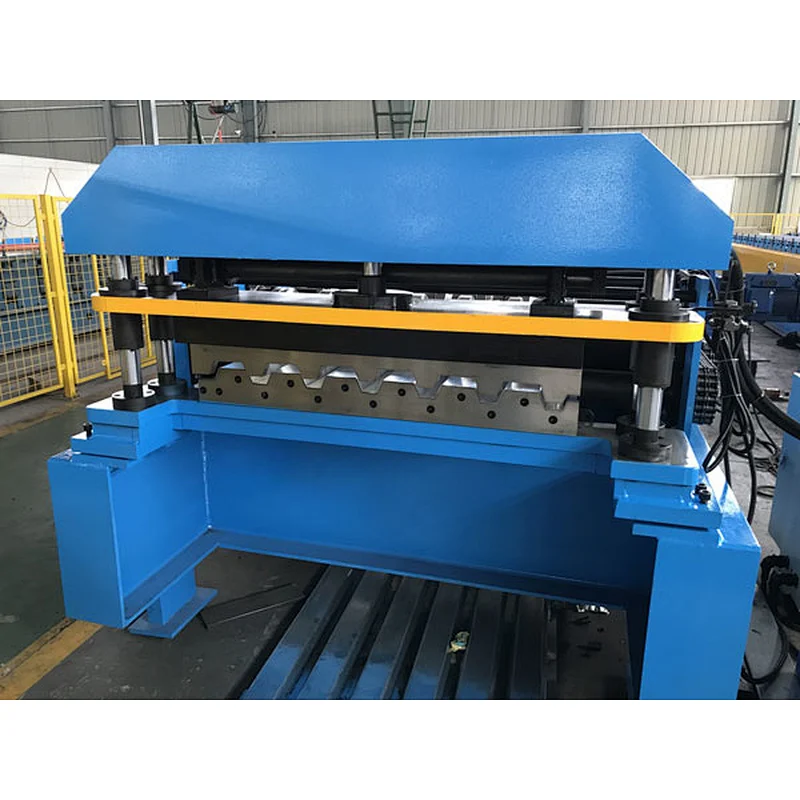

Shearing part of Galvanized Floor decking forming machine

This Galvanized Floor decking forming machine adopts latest technology.

1. you can find in following picture: the blade is supported by four pillars.

Besides,we improve inner side of pillar to minimum friction to prolong its life time 3-5 years.

2. the blade is set against beam instead of being fixed on beam directly.

Normally blade is fixed on beam with screws,so that screw holes bear whole pressure and back power.

In this new Galvanized Floor decking forming machine,Beam will share more pressure and back power.

so it will be more stable and its life time will be prolong about 3-5 years.

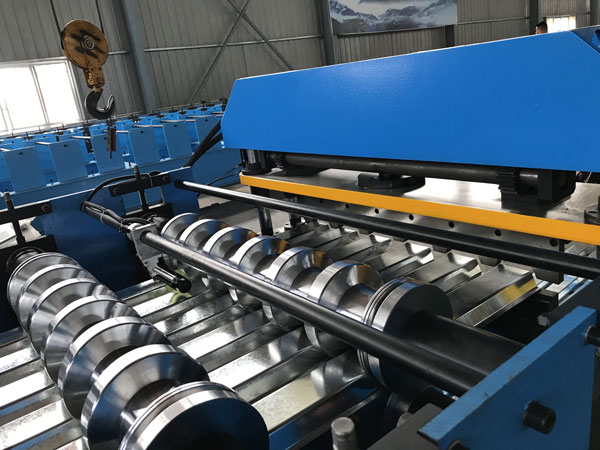

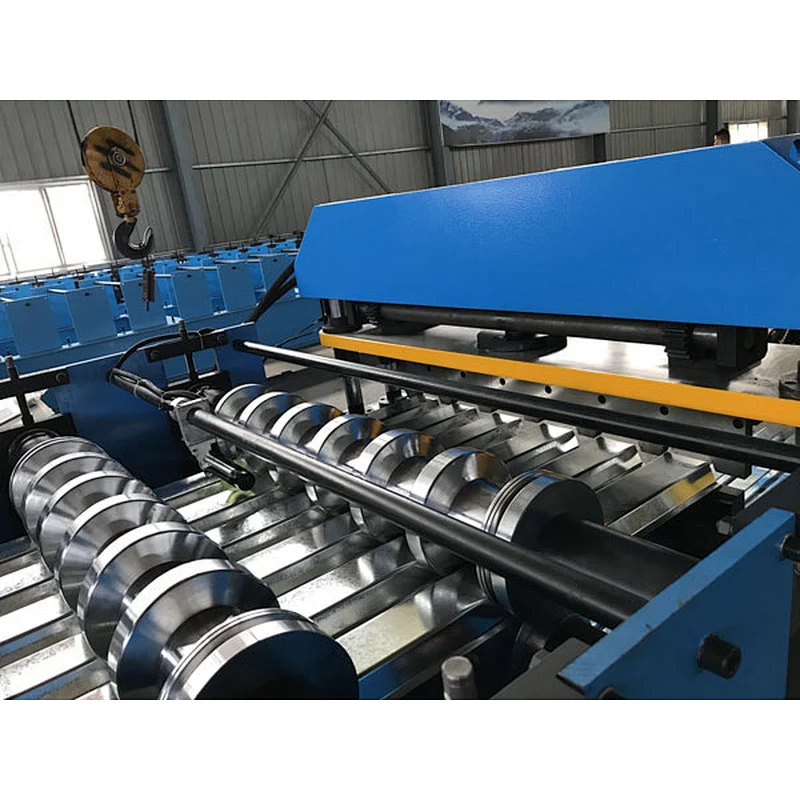

rollers of Galvanized Floor decking forming machine

Compared with normal rollers, this new model roller quench twice times and prolong heat treatment time.More over, it is equatedwith 2-3mm chromed seamless spacers.

So for this type machine, if you want to know more information, please contact us at any time.
