Zhongtuo Dovetail Deck rolling forming machine for USA
What is the Dovetail Deck?
Dovetail Deck System uses the intrinsic strength and aesthetic appeal of the dovetail shape to provide the architectural and structural design communities with a variety of floor and roof deck design solutions.
The FormLok Dovetail Composite Floor Deck is one of our most versatile and practical products. You can achieve long spans with shallower floor depths that enable you to fit more into multi-story buildings.
Along with its aesthetic design, ourdovetail roof deck provides excellent load capability. The acoustical roof decks use proven sound-reducing technology to help lower level of ambient background noise.
According to Zhongtuo cold rolling forming machine experience, here we list some popular design in USA for your reference:

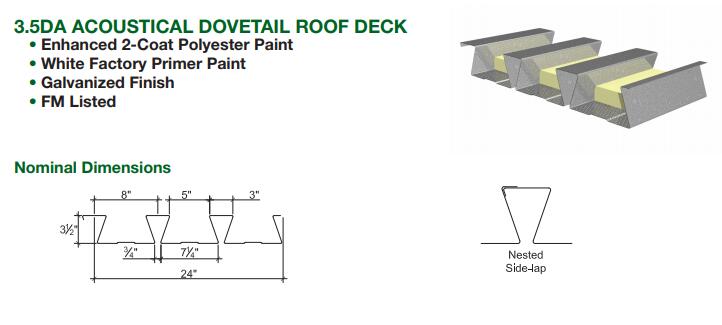

This the ACOUSTICALdesign with the filling, it can remove the sound in some degree.

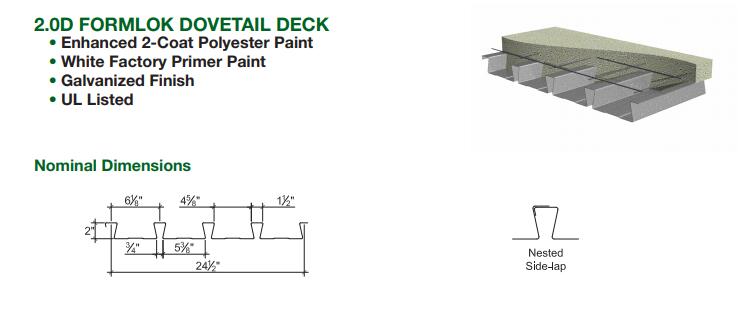

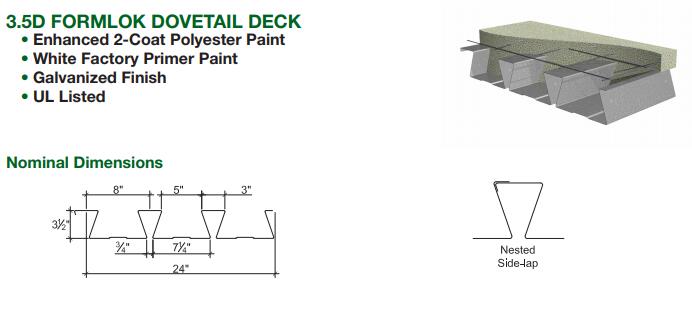

The following is another size formlok drawing profile for your reference:

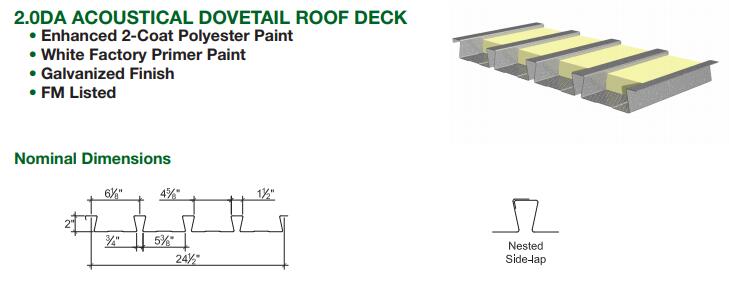

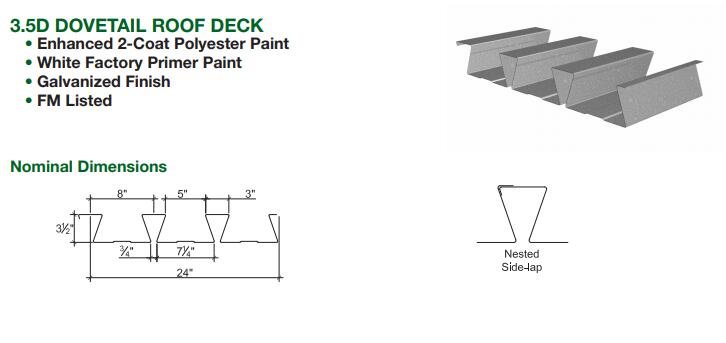

The following type drawing profile is designed to be used as roofing deck:

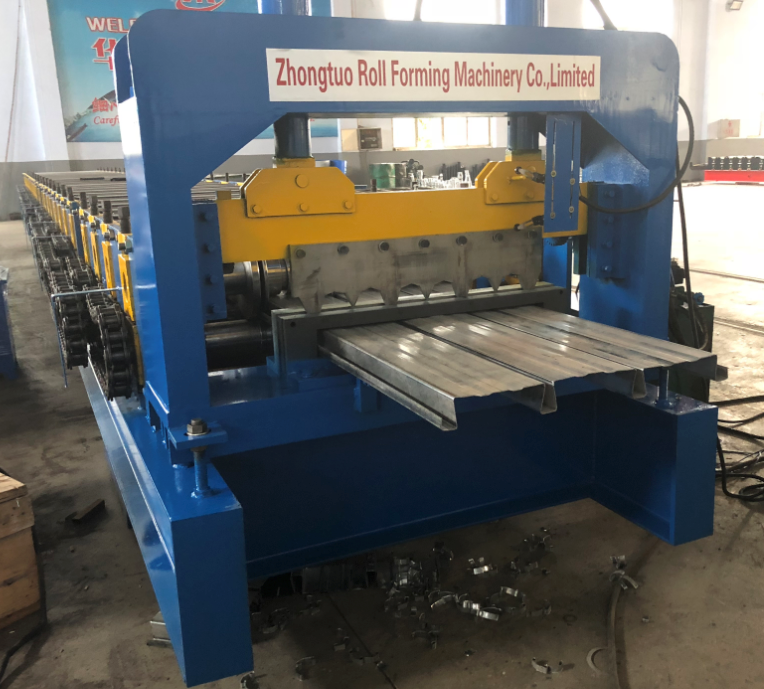

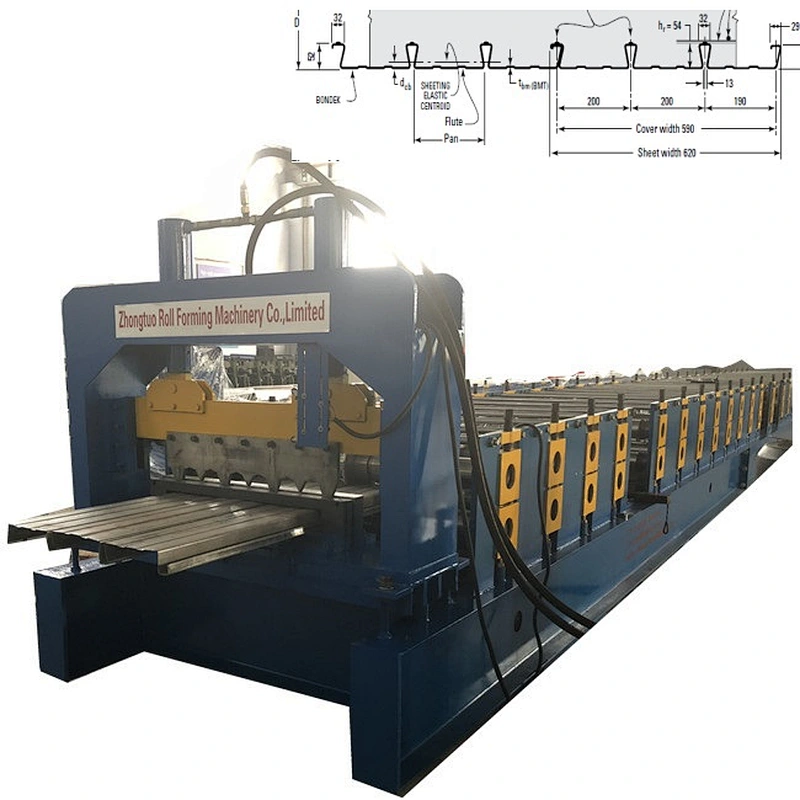

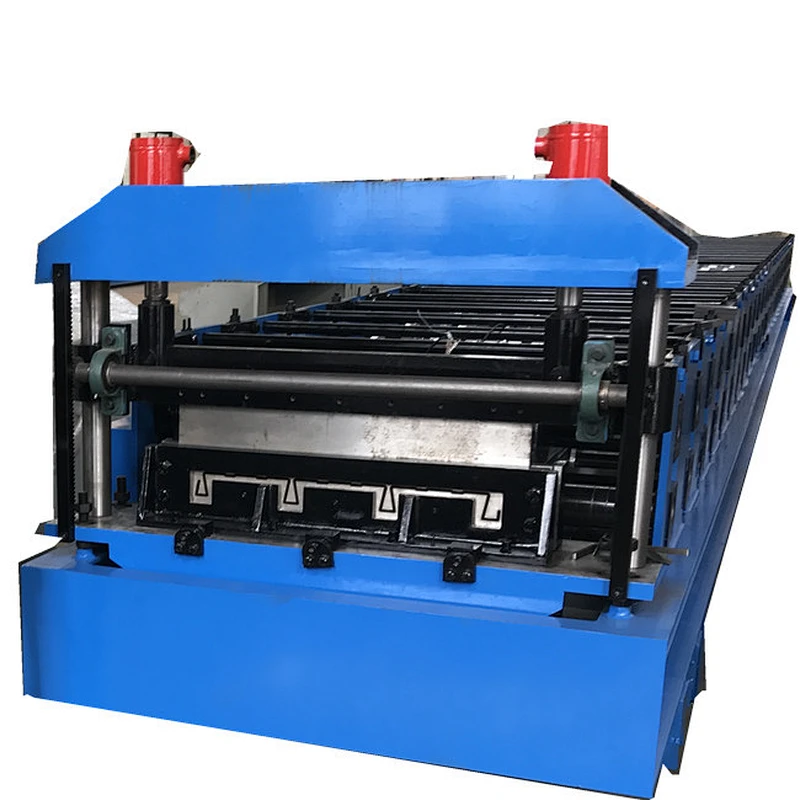

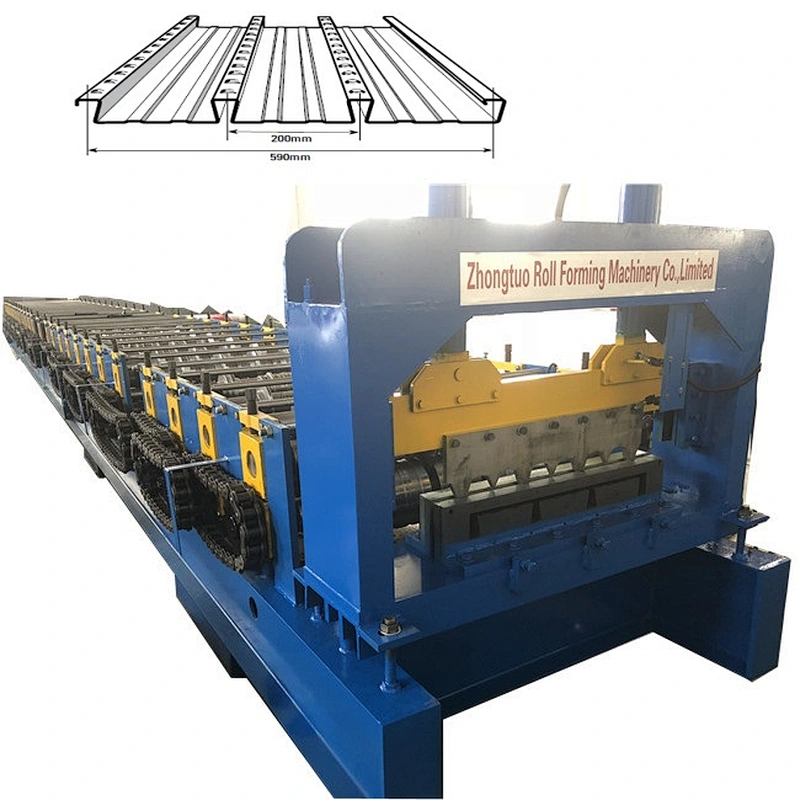

Based on those Dovetail Deck drawing profiles, we have specially designed the Dovetail Deck rolling forming machine for your reference:
The following list shows how many elements is composed of Dovetail Deck rolling forming machine | |||
No | Name | Unit | quantity |
1 | 7 tons manual decoiler | Set | 1 |
2 | Decking roll forming machine with back blade | Set | 1 |
3 | PLC control cabinet | Set | 1 |
4 | Hydraulic station | Set | 1 |
5 | Run-out table | Set | 1 |
6 | Spare parts | Set | 1 |

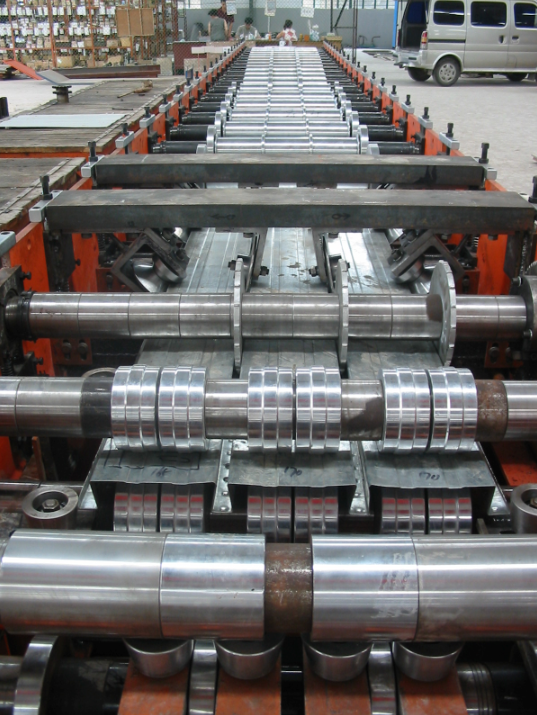

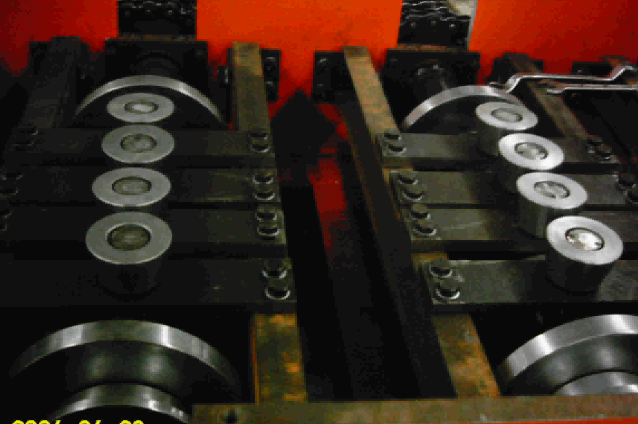

The following are more details ofDovetail Deck rolling forming machinefor your reference:

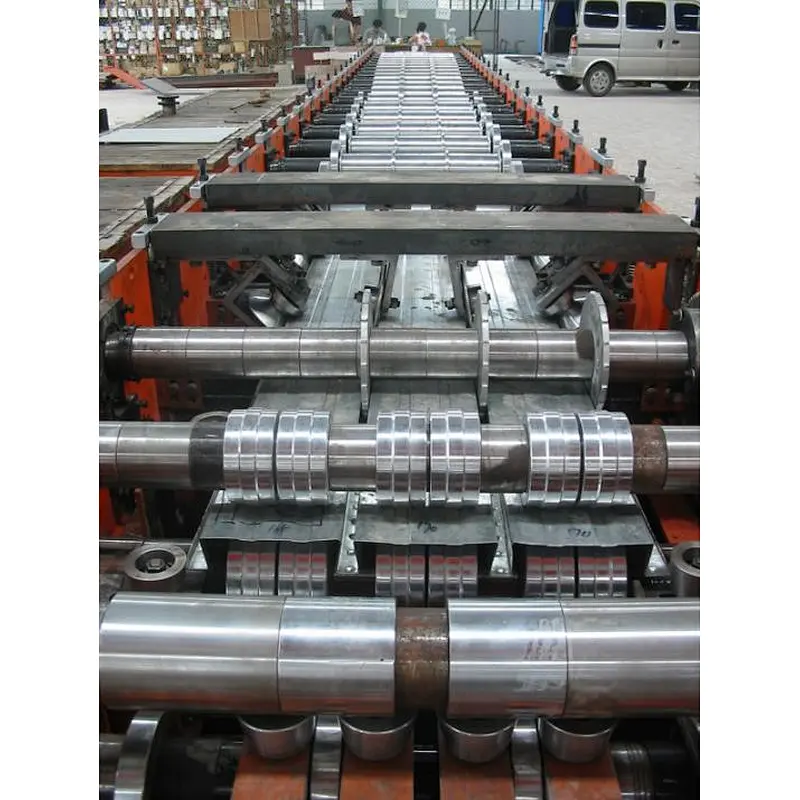

Main rolling forming machine: Two Motors drive: 15 KW * 2 Raw material thickess:0.8-1.5mm Feeding width:1220mm Final width:1020m Raw material: GI Rollers quantity:38 Roller material: Gcr15 with tempering Shaft material:Solid 45# steel with tempering Shaft diameter:90mm Machine frame:350# H steel welded Transmission :By chain Voltage:As request Blade material: Cr12 with tempering Shear power:Hydraulic method Speed:15m/min Roller fixer:20mm Middle plate | |

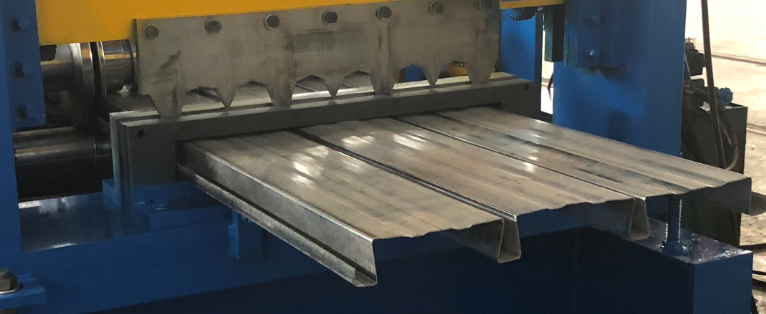

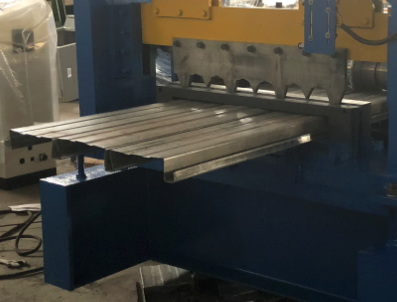

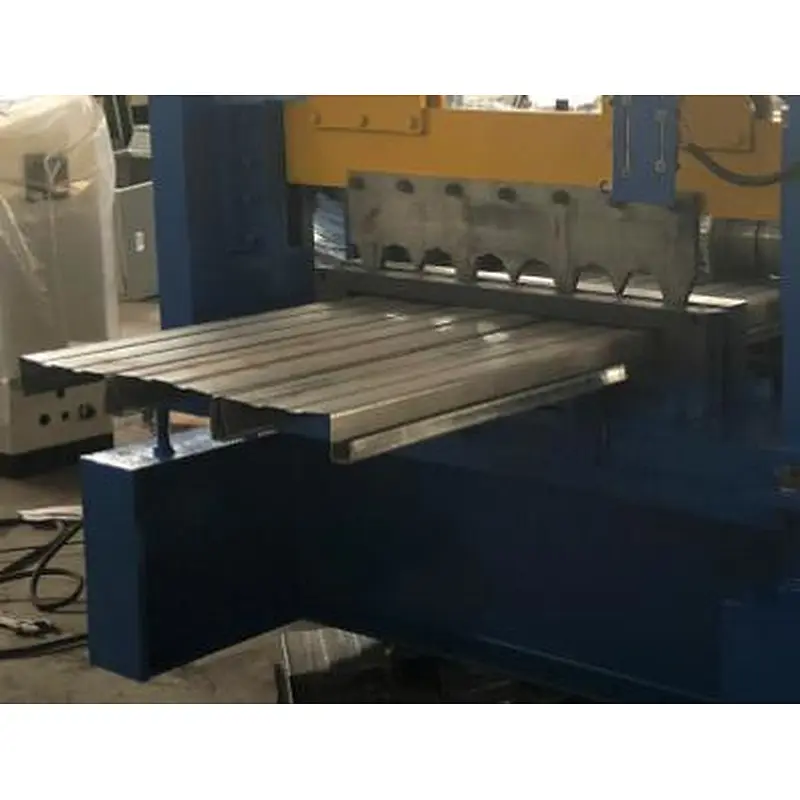

Type of cutting power: HydraulicElements:Two hydraulic jacks for fast shearing speed Cutting tolerance:±1mm |

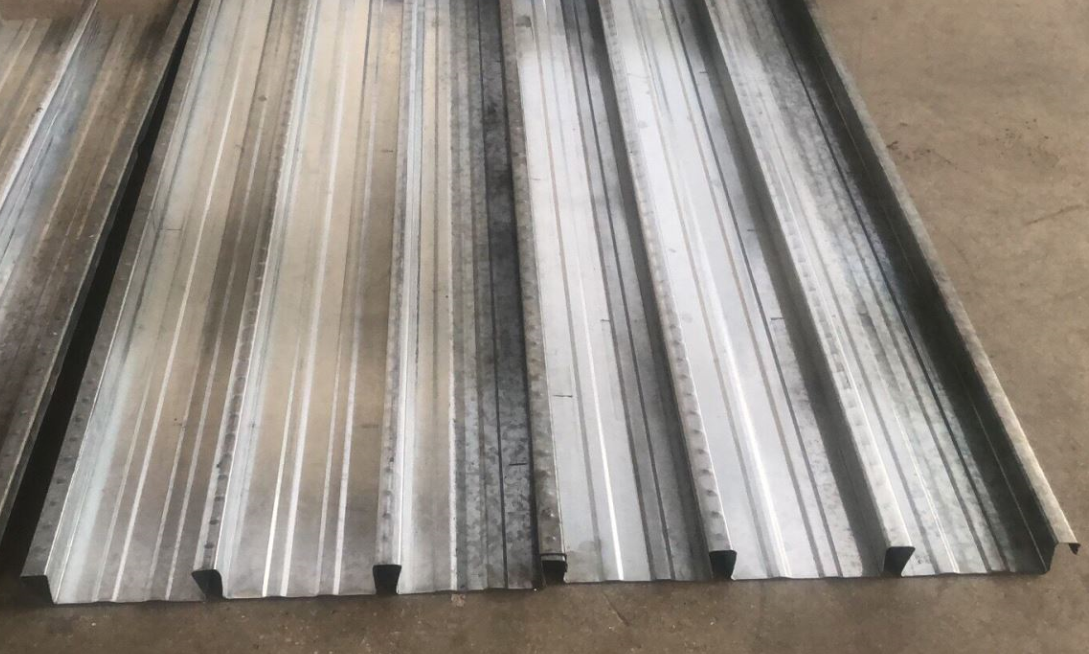

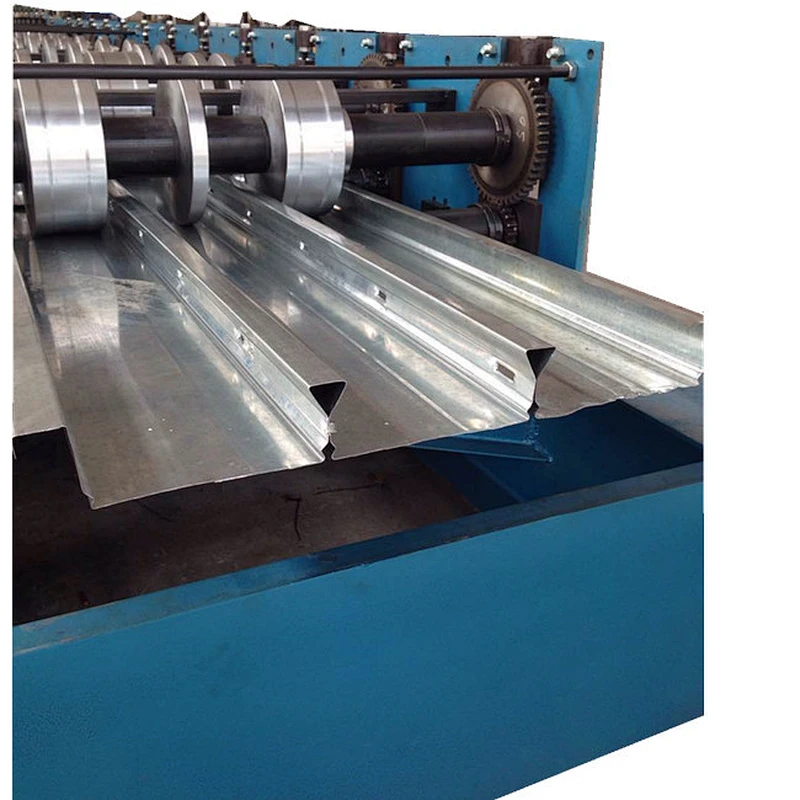

Now let us check the profile overlapping effect:
When do the overlapping, two of profiles could be locked tightly for installation, you can save lots of time.
