Name: Trapezoidal steel decking single wave rolling forming machine for Jordan
Rating: 5 (1 reviews)

Model NO.: ZT-133
Price:: US $ 30000.00-38000.00 / set
Delivery: FOB Tianjin
Minimum order quantity: 1 set
Supply Ability: 5 set / Month
Stock Time: 60 Days

Quantity:

Product Description

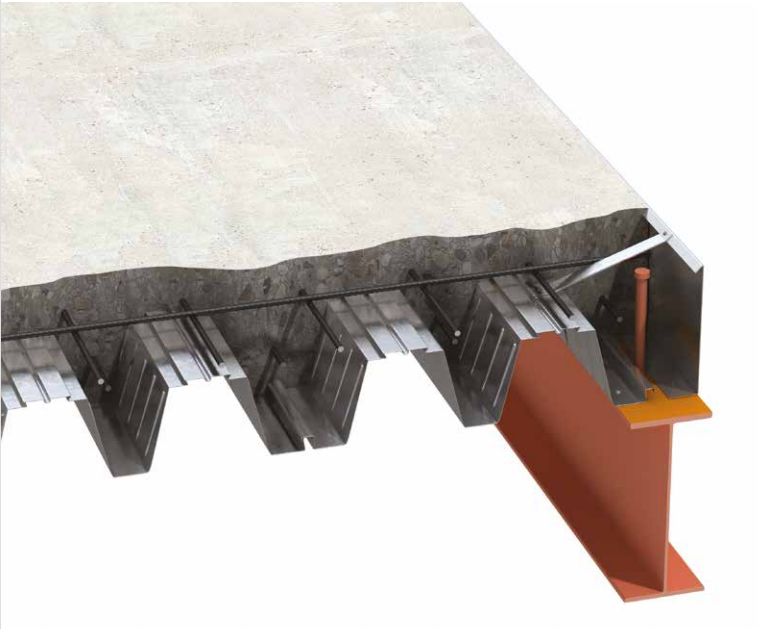

Trapezoidal steel decking single wave rolling forming machine for Jordan is designed for one Jordan customer which can be used for making trapezoidal steel decking single wave in batch fully automatically. MD225 decking is the most advance trapezoidal steel decking product on the market and is a direct alternative to precast concrete planks, delivering unpropped span capabilities of up to 6.0m It is a long spanning metal decking panel installed on the top flange of the steelwork. It also can be designed compositely to two waves types and by lowering down the wave height. Here I will share some drawing profiles for your reference:

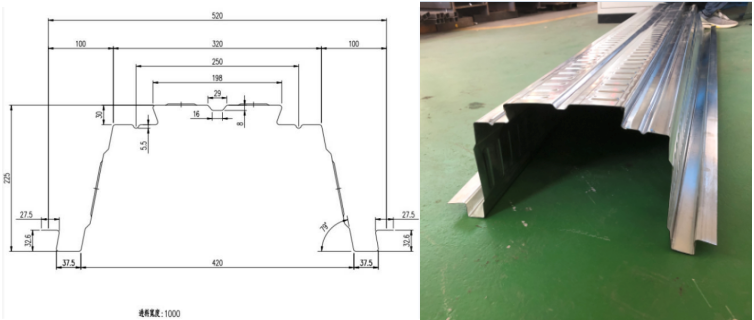

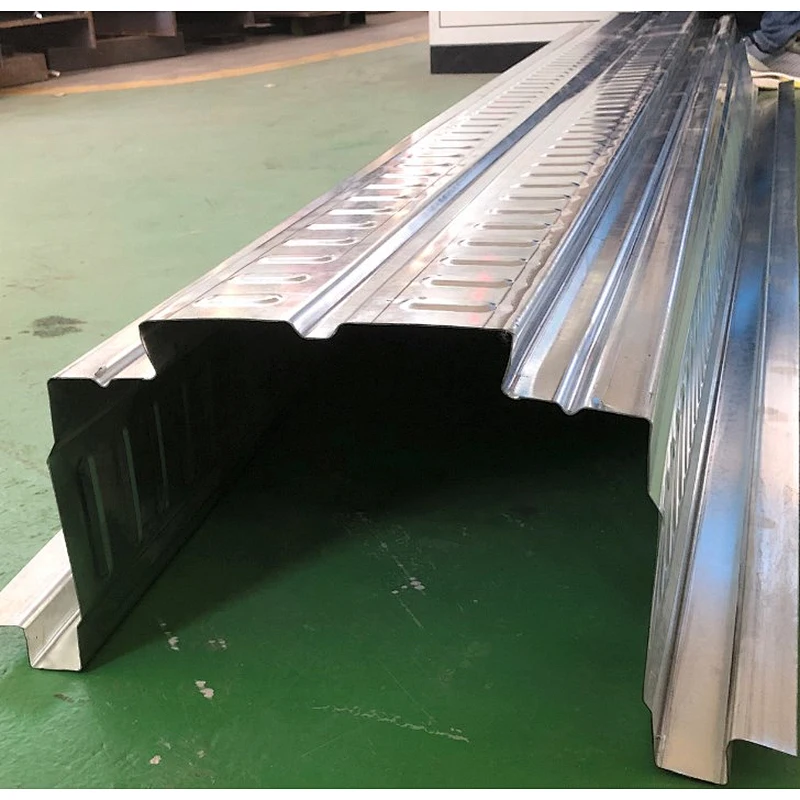

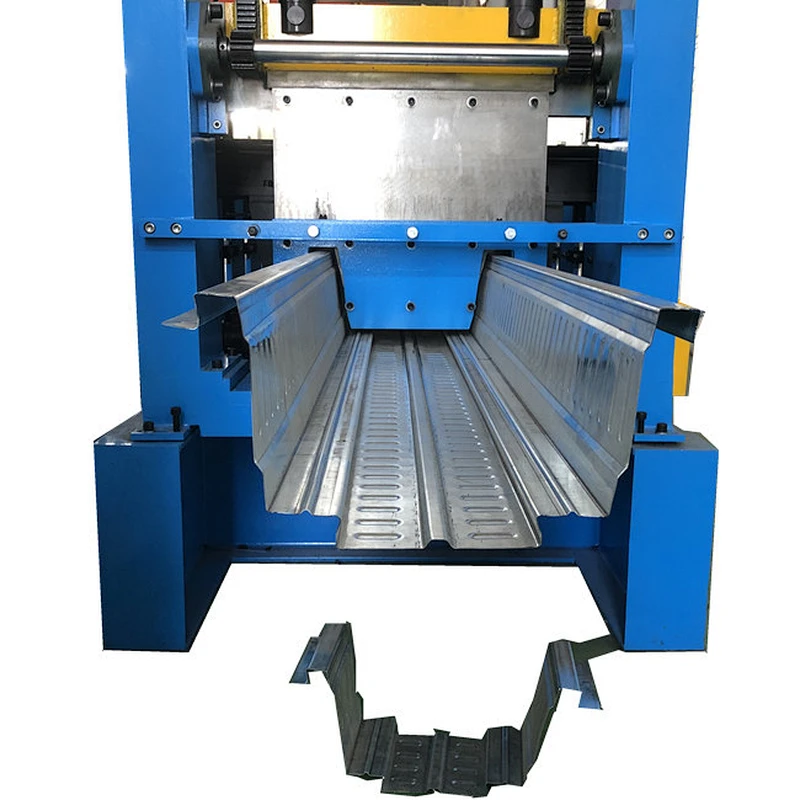

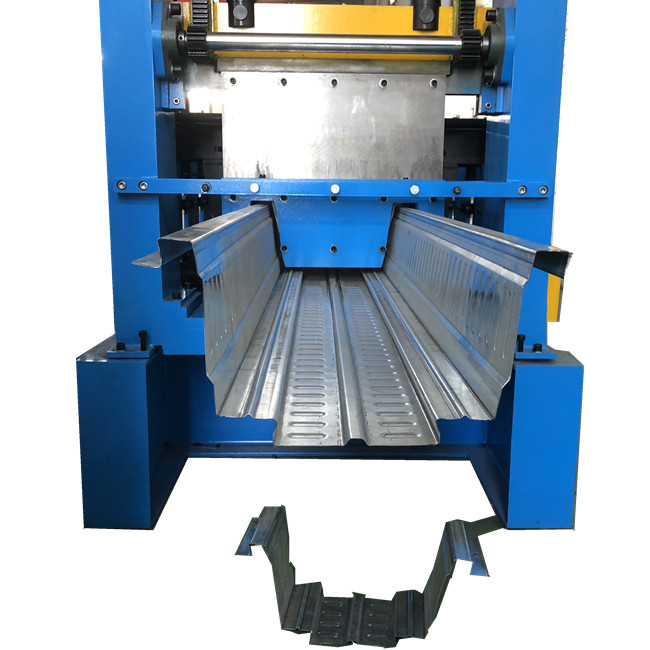

Single wave:

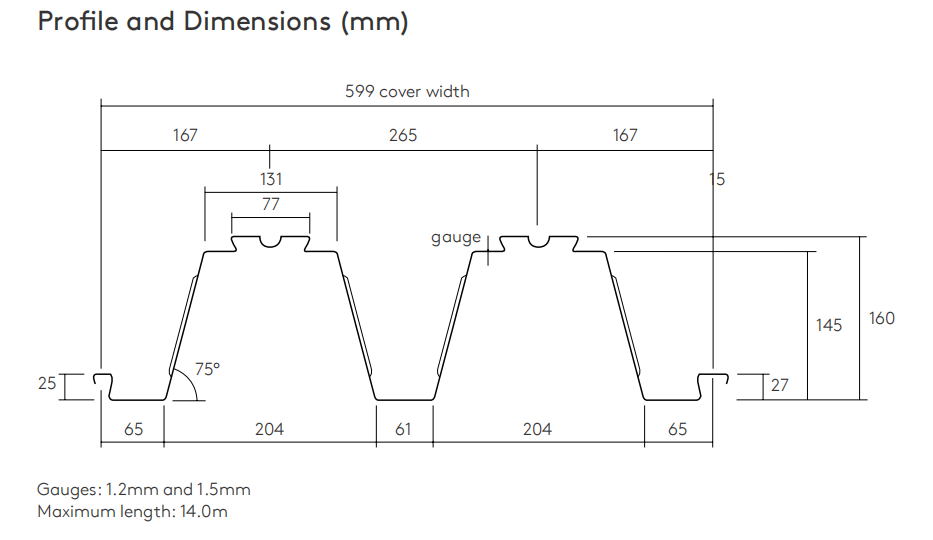

Two wave types:

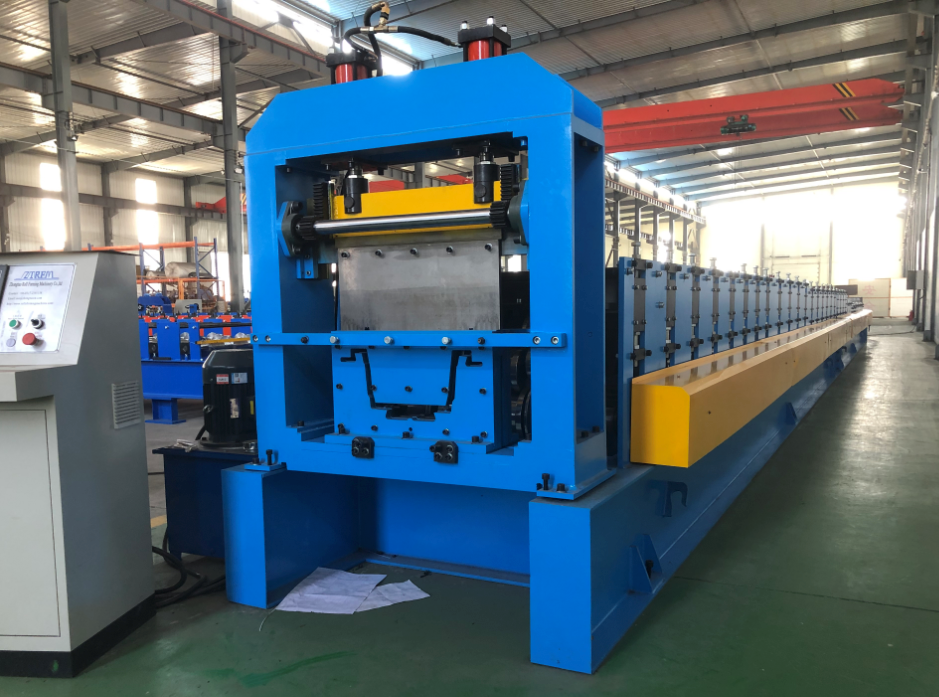

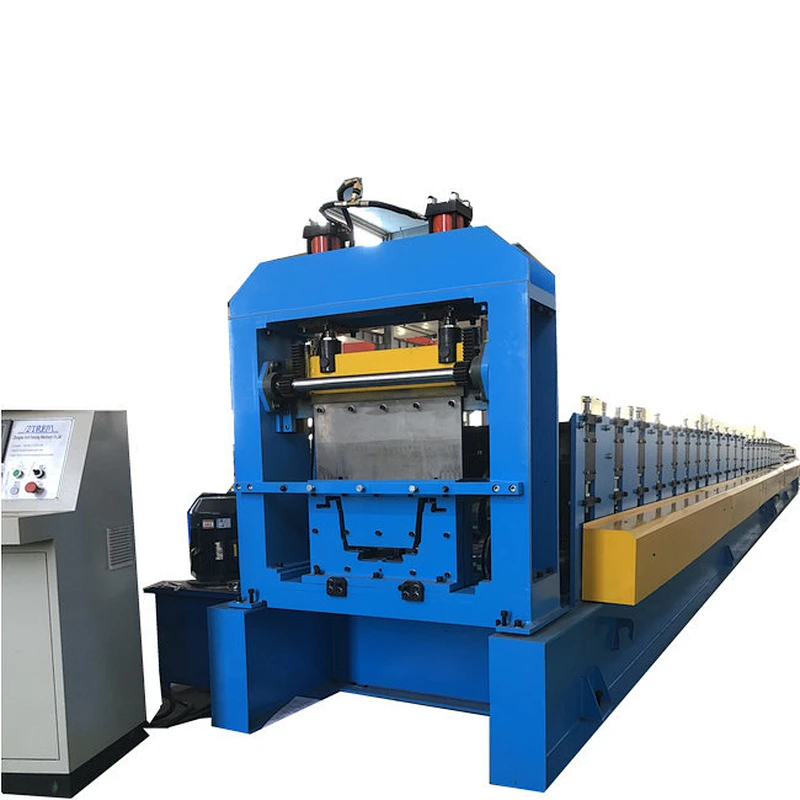

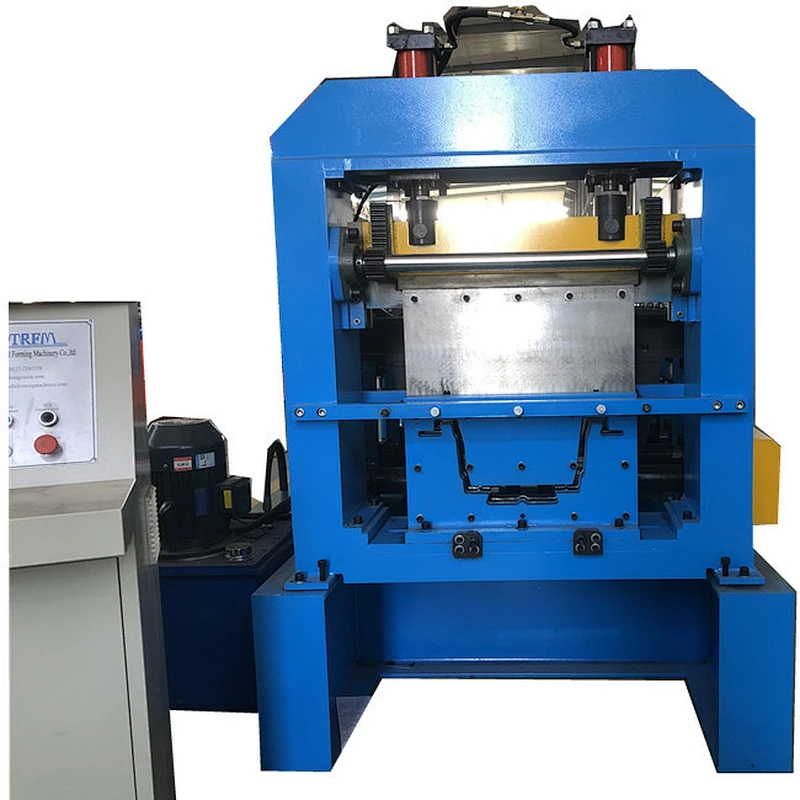

Trapezoidal steel decking single wave rolling forming machine for Jordan design:

Here are some Trapezoidal steel decking single wave rolling forming machine for Jordan parameters for your reference:

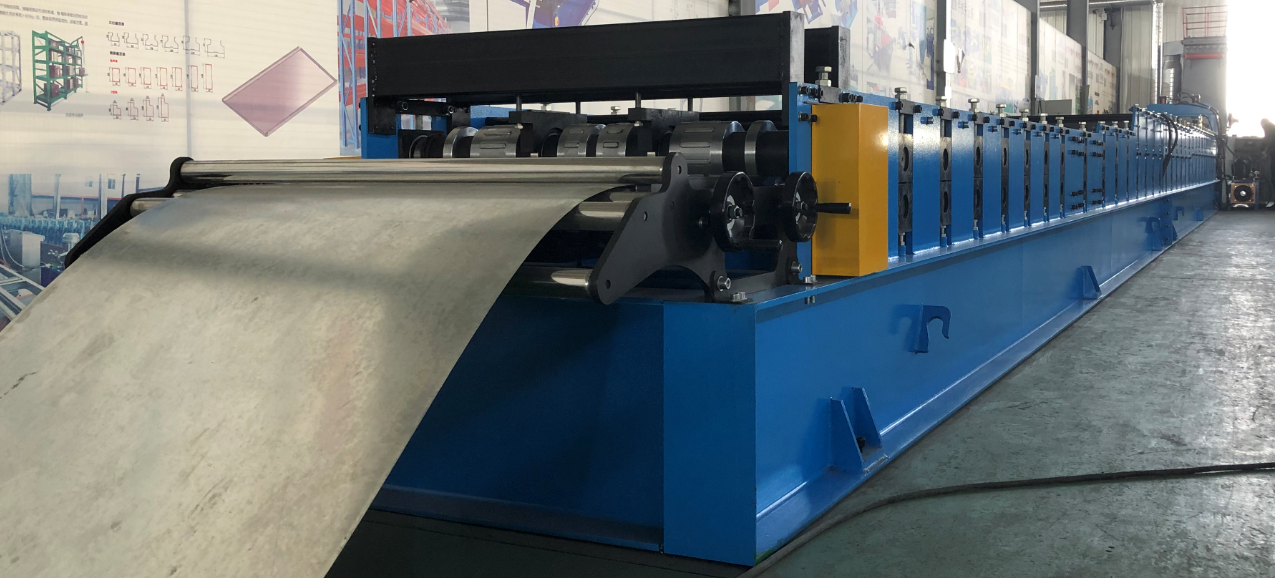

Roll forming machine	Feeding&Guiding device	Leveling part with the hydraulic shearing, automatically PLC control
	Rolling shaft material	45# STEEL
	Shaft diameter	90mm
	Roller material	45# steel
	Rolling station	32 stations
	Work speed	15 to 20 m/min
	Machinestructure	Middle plate welded frame
	Machinebasic frame	500# H steel welded
	Bearing	Roller bearing	Famous brand of Harbin
	Work power	15 kw
	Transmission	ByChains	With cover

Trapezoidal steel decking single wave rolling forming machine for Jordan
1.Zhongtuo metal decking machine can produce a variety of specifications of the floor bearing plate, can also be customized according to the customer's requests, to meet the needs of all customers.
2.Machine working speed can possess the production speed of up to 25 m/min.
3. Modular design and manufacturing. parts universal rate are high, simple maintenance.
4. The enhanced design of the mainframe structure and quality control allows our metal rollingequipment to produce thicker plates for you.
5. AII the processing of the frame is completed at one time, and the advanced machine tools ensure the accuracy of the size and position of each fit so that our molding unit almost does not need repeated debugging, with very little dependence on personnel.
6. The automatic program control technology is adopted. The parameter setting of the metal deck roll forming machine is simple and convenient, and the degree of automation is high. The system's self-learning ability is strong, and the control system uses the high-quality brand. In addition, the man-machine interaction interface is also very user-friendly.

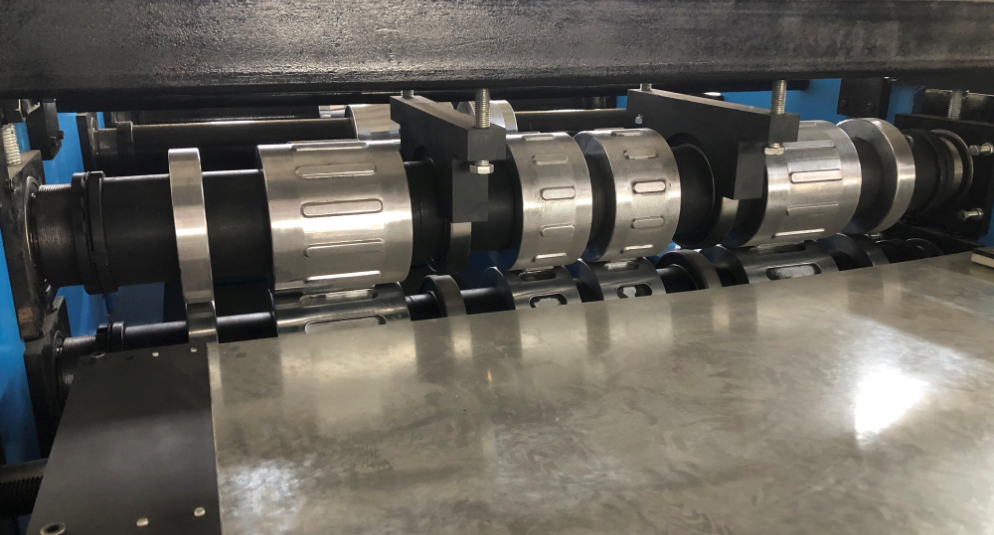

7. For the special design of the shaft and embossing rollers, it can make sure the metal profile has good overlapping effect and good profile shape size.
