ZhongtuoFloor Decking Forming Machine
Zhongtuofloor decking roll forming machine is designed to produced floor decking, which are widely used to produce mainly metal floor deck, and the most popular metal floor deck forming machines in the markets can be found here.

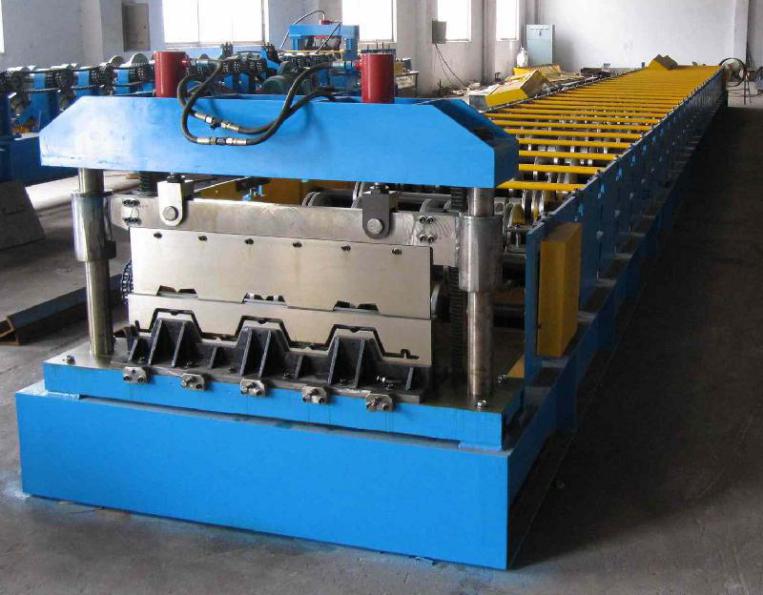

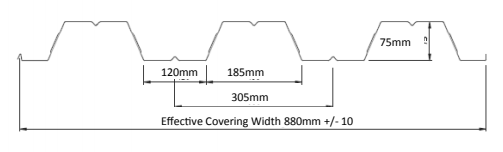

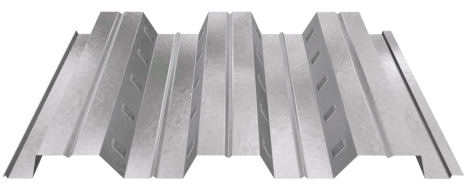

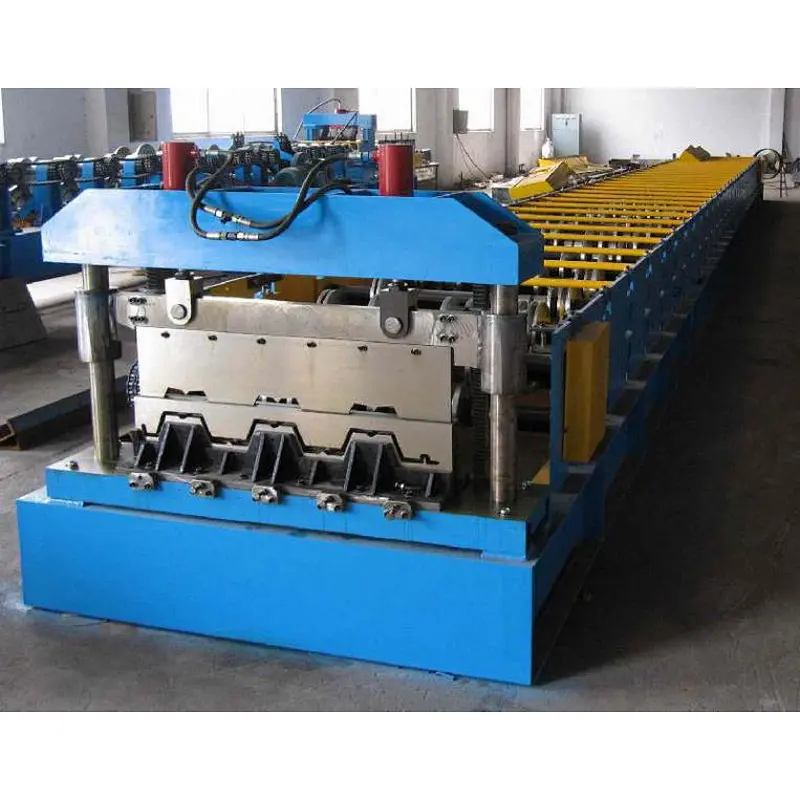

TS 75/300 floor deck profile as below
Zhongtuofloor decking roll forming machine canproduce most steel floor deck in the market.The production line is with fully automatic control system with PLC. The parameters of length, quantity is adjustableaccording to your requirement.

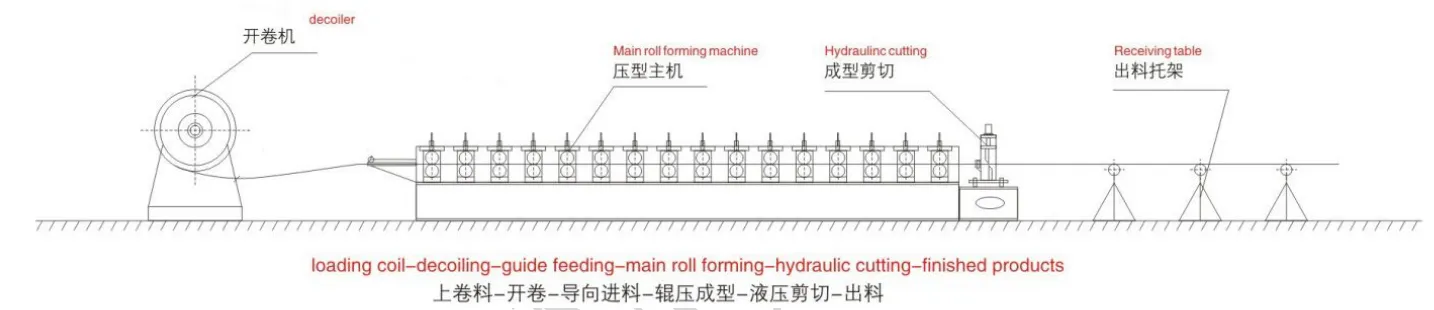

Processing flow diagram of machine
Manual decoiler→ → Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products
configurations | manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table | |
Material | Raw material | galvanizedsteel |
Thickness | 0.5-1.25mm | |

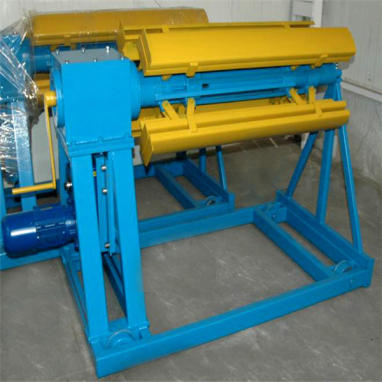

Manual decoiler | Inner Diameter:450-550mm | Expand by manual |
Outer Diameter: max 1500mm | ||
Max Coil width:1250mm | ||
Capacity: 5T |

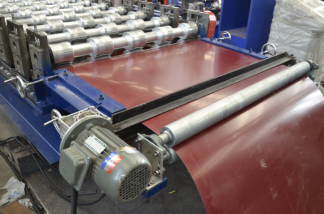

Leveing beach | For making coil neat and clean from decoiler, coil will be a little cruve. Meanwhile for saving coil, we will give motor shearing system to cut coil at any part. |

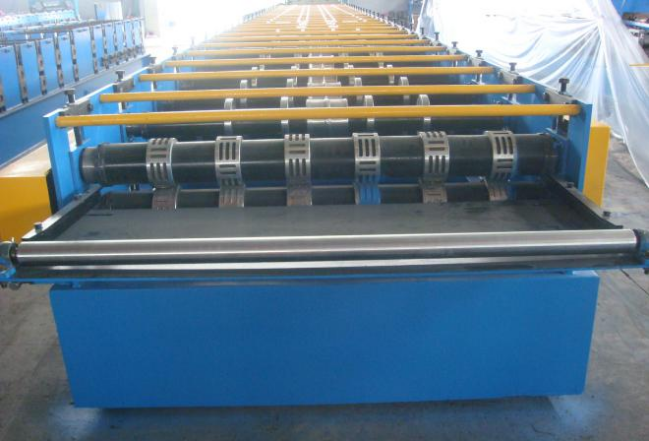

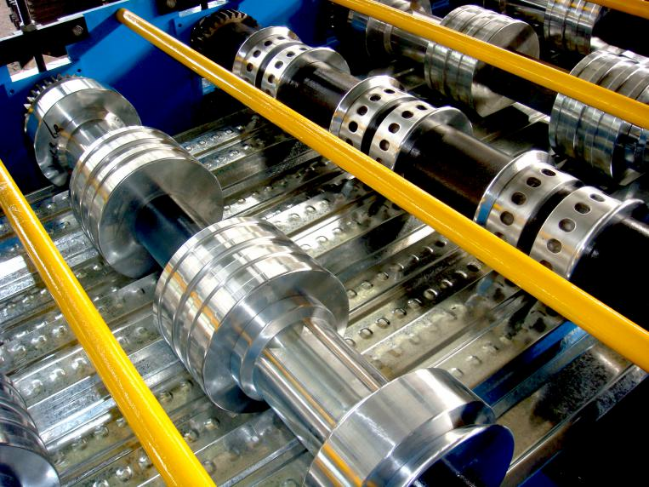

Main Forming machine | Forming steps | 32steps |
Shaft diameter | 90mm | |
Design type | Middle plate welded | |
Machine frame thickness | 20mm | |
Machine frame | 400# H steel welded | |
roller material | 45# steel, surface hard chromium plating. | |
shaft material | 45# steel | |
Work speed including shearing | 8-12m/min | |
Transport | By chains of 1.25mm | |
Power of main machine | 15kw |
Shearing system | Type of cutting power | Hydraulic |
Elements | Two hydraulic jacks for fast shearing speed | |
Frame | Pillar pole type to make sure working steady | |
Cutting balde material | Gcr12, quencing at 58 to 62 degree to make sure hardness and long time to use. | |
Cutting tolerance | ±1mm | |
Cutter blade more pair | We will give one more as spare part | |
Cutter quantity | 2 set | |
Working pressure | 20 MPA | |
Motor Brand | Simens |

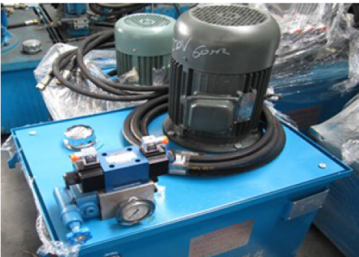

Hydraulic system | Hydraulic oil | 46# |
Hydraulic power | 4kw | |
Cutting length | As required | |
Brand | Japan Youyan series | |
No distorting or wasting. High level safety factor. | ||
Control Device | control | By PLC |
PLC language | English and or others (or as required) | |
Touch screen | 4.7Inch Simens | |
Function | Automatic length and quantity measurement | |
Brand | Simens | |
electrical element | Schneider |
Other Spare part | Weight | About 11.5 ton |
Dimension | 12.5*1.85*1.5m | |
Main body color | Main body color blue or customize | |
Voltage | 380v/50hz/3ph（or as required) | |
Spare cutting blade | One piece for profile | |
Fuse | 2 pieces | |
Relay | 2 pieces | |
Travel switch | 2 pieces | |
Solenoid valve | 1 pieces |
