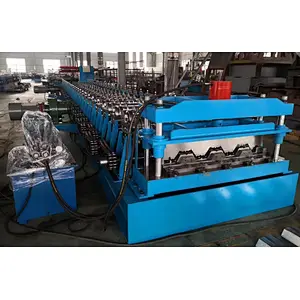

Non-Composite Floor Deck Rolling Forming Machine
What is Non-Composite Floor Deck?

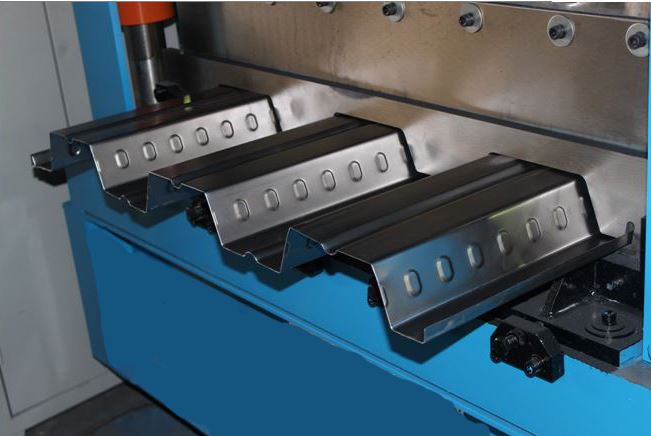

ZTcold rolling forming machines which produces a wide variety of non-composite deck that supports the concrete slab until the slab is cured. These deck help to produce an efficient and economical structural floor solution for elevated floor systems. These decks come in a variety of finish options.
Non-Composite Deck is used as a foundation for floors,stairways, or mezzanines.The deck acts as a permanent base thatsupports the concrete and gives it lateral stability.Each type of formdeck differs in terms of the weight of the concrete that it can support.The uniform load being supported generally is not a factor whenselecting a non-composite deck because it is only being used to formconcrete and not designed to provide positive reinforcement.
The depth of the slab and the support spacing needs to beconsidered when choosing non-composite deck. ZT non-composite deck comes in several depths ranging from 9/16-inches(0.6C) to 3-inches (3.0C) and is available in a variety of finishes.

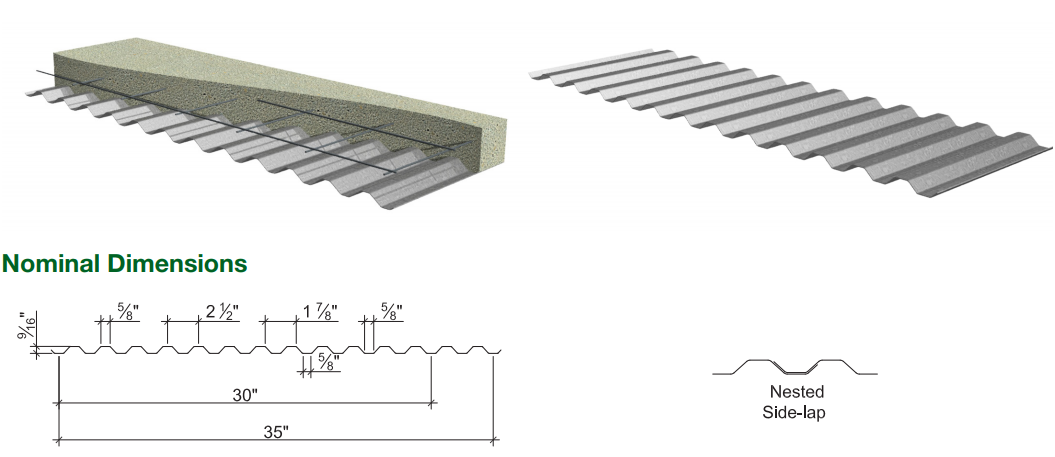

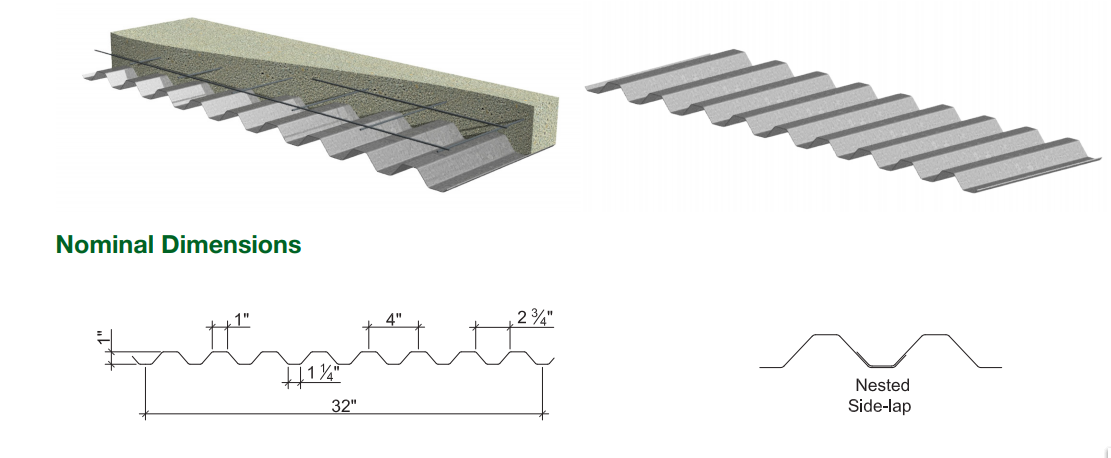

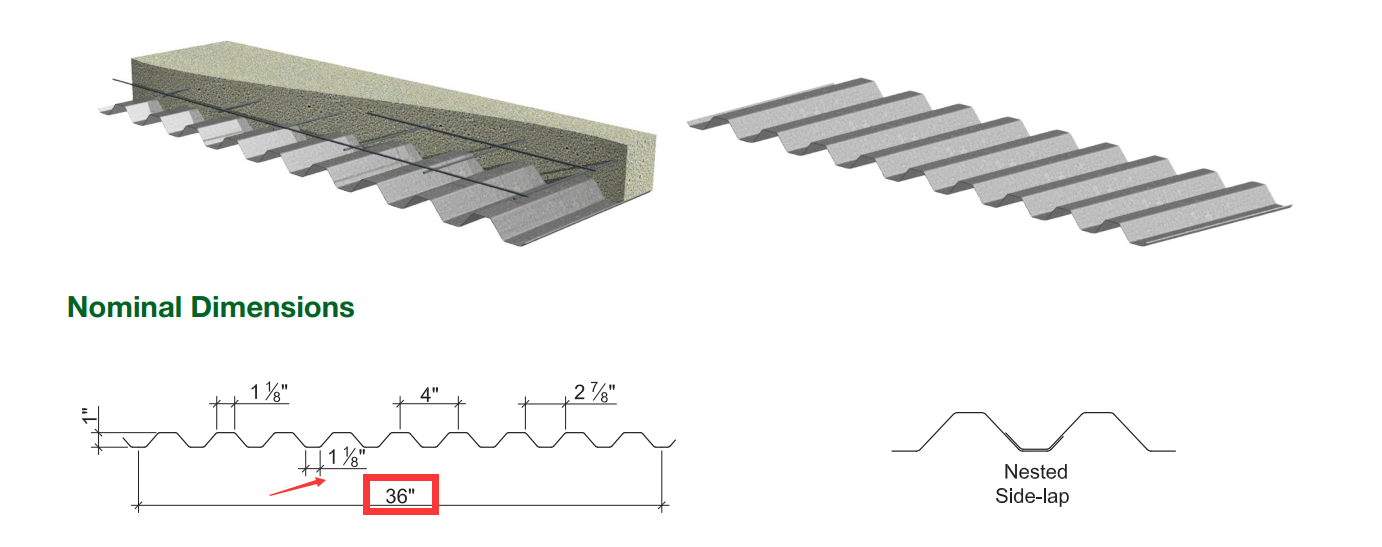

Non-Composite Floor Deck drawing profiles for your reference:
See Non-Composite Deck Design Information below for a quick reference on non-composite floor deck options. For custom design information, we will show you as following.
NON-COMPOSITE & ROOF DECKS GRADE 80 STEEL
1.0C-32 NON-COMPOSITE & ROOF DECK GRADE 80 STEEL
1.0C-36 NON-COMPOSITE & ROOF DECK GRADE 80 STEEL:
Non-Composite Floor Deck Rolling Forming Machine Design:
Non-Composite Floor Deck Rolling Forming Machine Elements | ||
Name | Parameter | Picture |

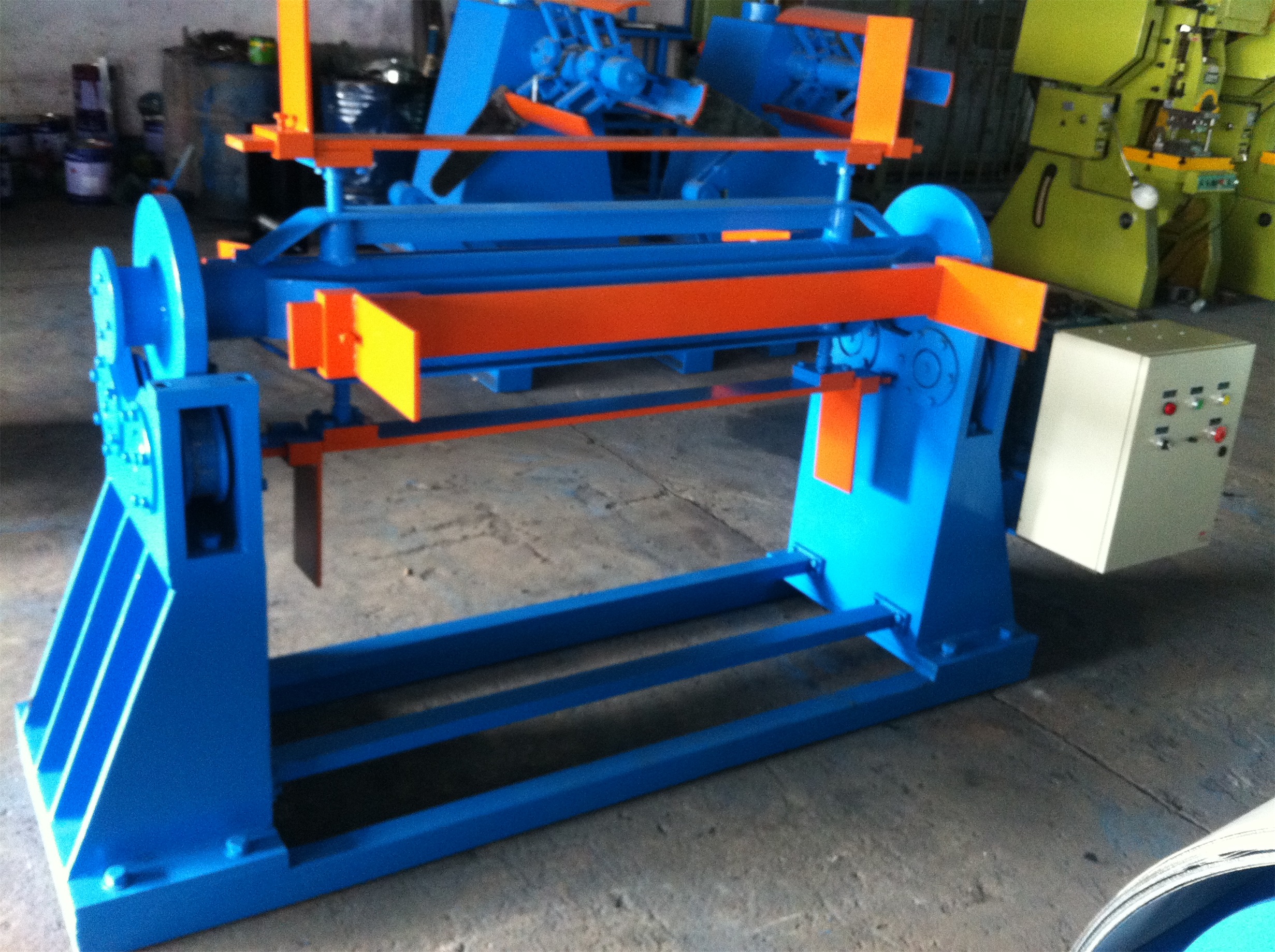

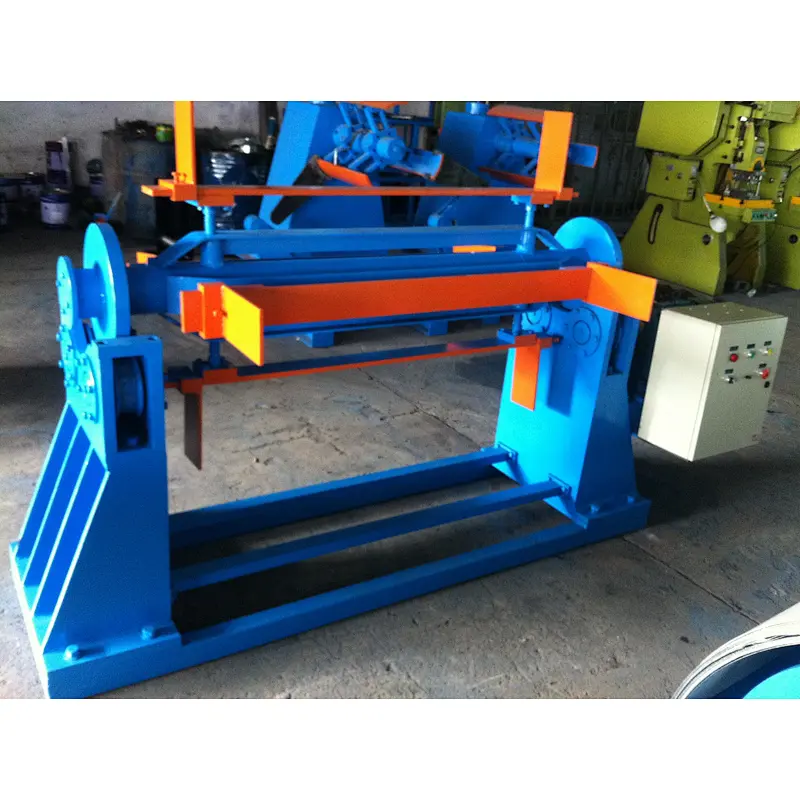

5T decoiler | Loading capacity:5T Uncoiling width:1250mm Inner diameter: 450-550mm Motor:Hydraulicautomatically working. |
|
Entrybeach for leveling | Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. | |

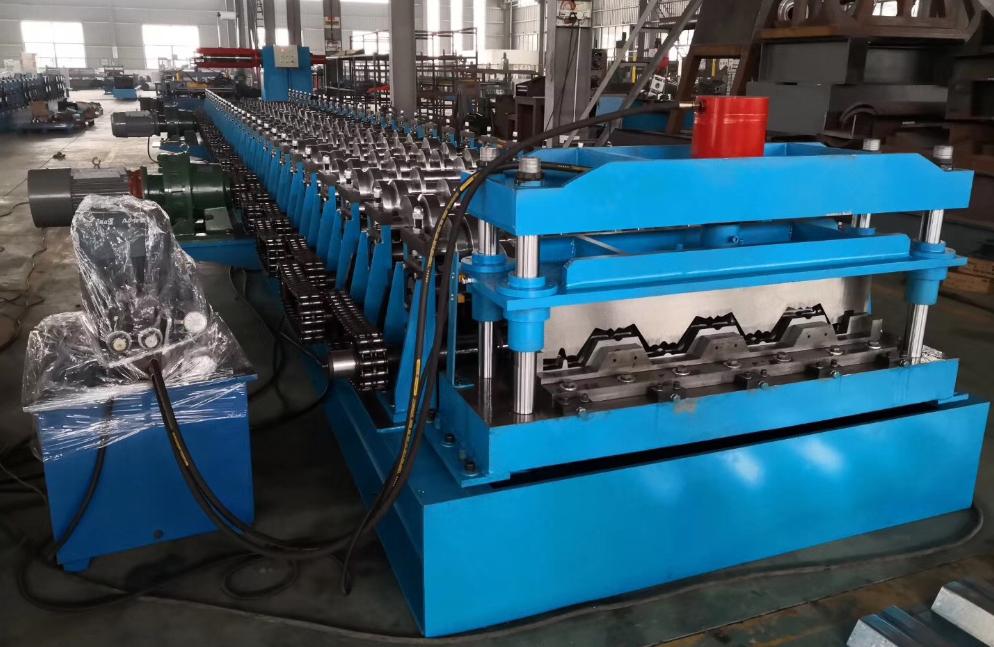

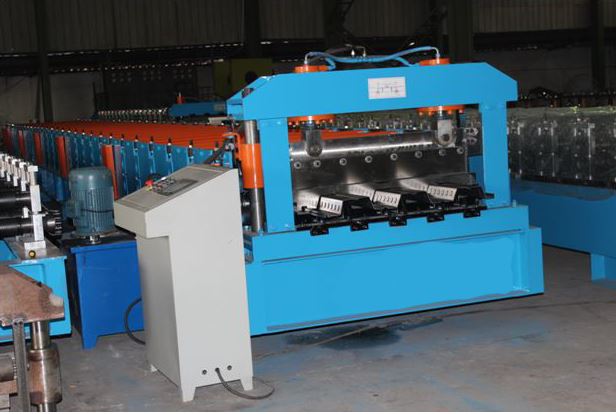

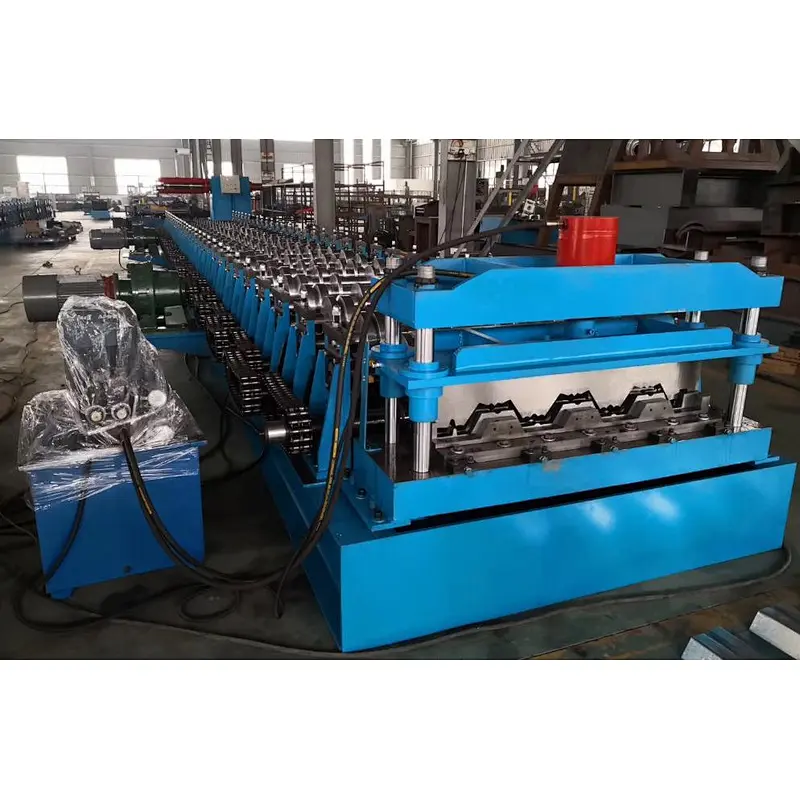

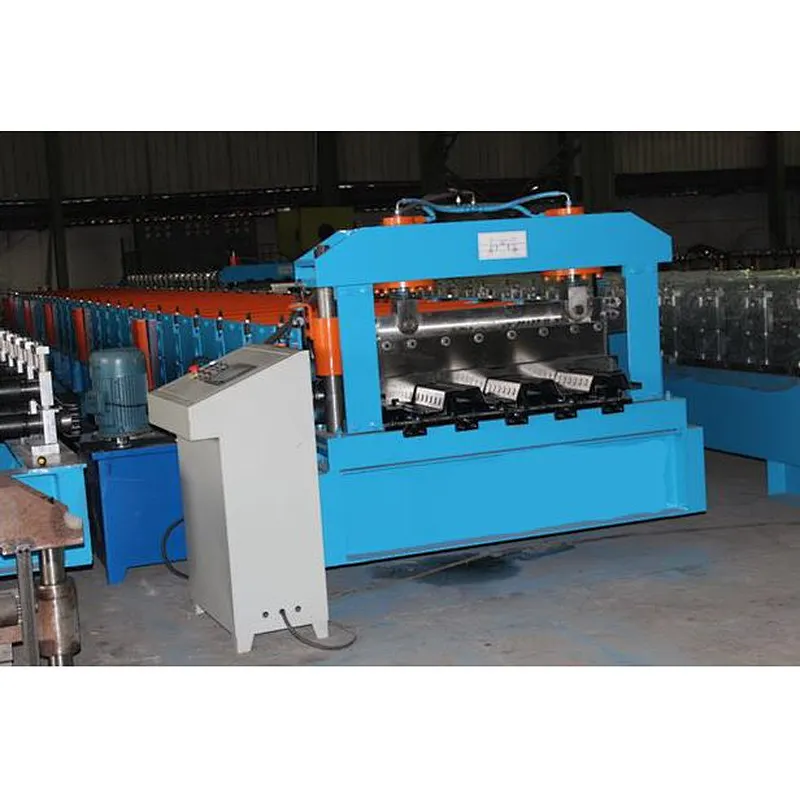

Main roll forming machine | Voltage: 380V/50HZ 3Phase or as your required Frame : 350mmHbeamsteel welded Drivemode: 1.0 inch single row chain Diameter of shafts: φ85mmmaterial is 45# forge steel Number of rollers: 28rollersstation. Main power: 15kw | |
Shearingsystem Function : Automatic cutting controlled by PLC | It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12 quenched Power supply : hydraulic power Components: It contains one set of blade, one hydraulic tank and one cutter machine. | |

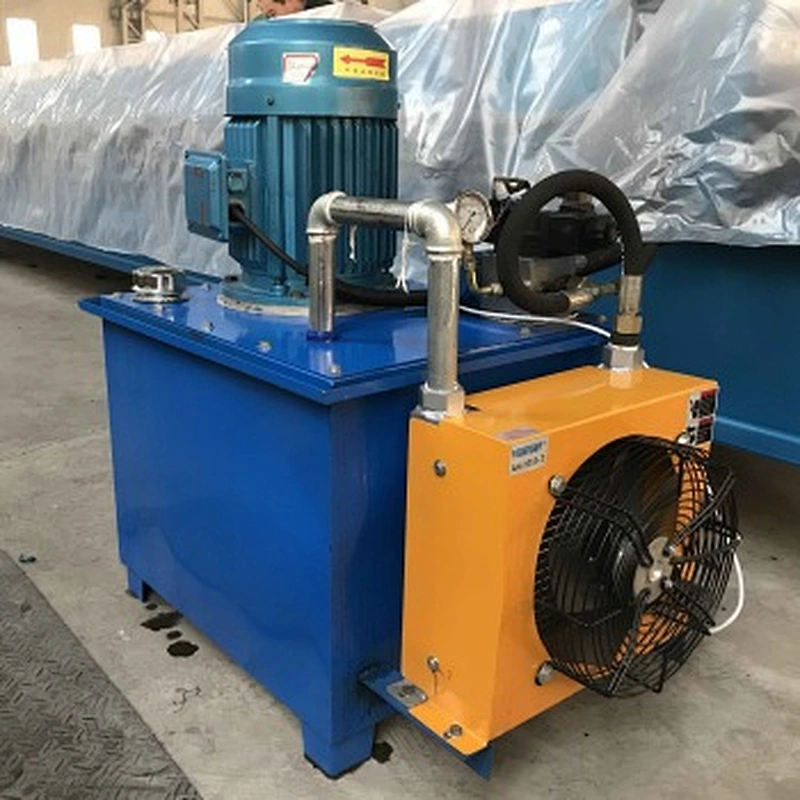

Hydraulicstation: | It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job. Power:4kw12 MPA Hydraulic oil: 46# | |

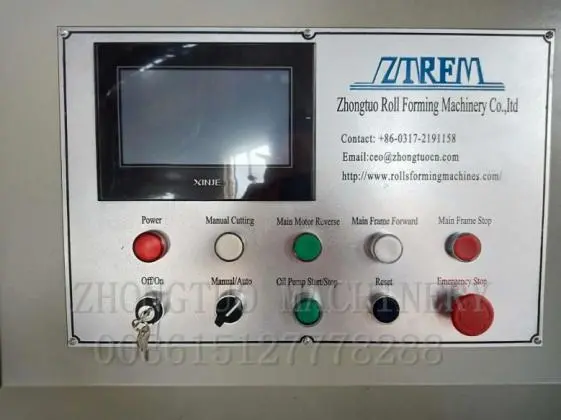

Electric Control System | Feature: 1. Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime. 2. If you need, we can change it other brand or little computer type for touching screen. | |
For this machine, if you need to know more information, please contact us at any time.
