Steel Decking Roll Forming Machine
What is steel deck?
Steel Deck is a cold formed sheet of corrugated steel supported by joists or beams of steel. It is used for supporting a roof’s concrete or insulating membrane. It was developed to provide the roof and floor systems with a structurally efficient product. The design and manufacturing optimize the steel ‘s properties to produce a high strength-to-weight ratio that decreases material handling and erection costs and retains durability.

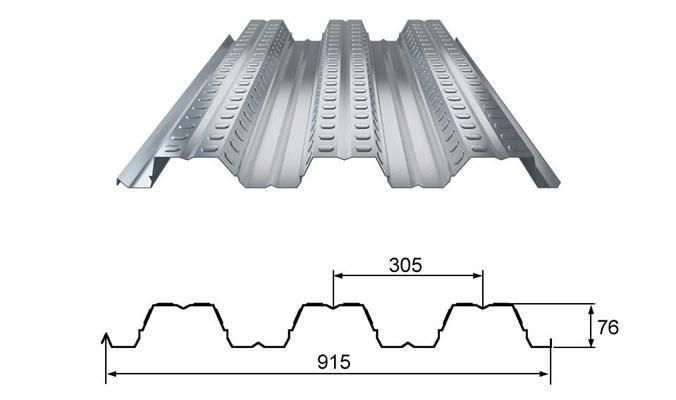

The finished product and its profile

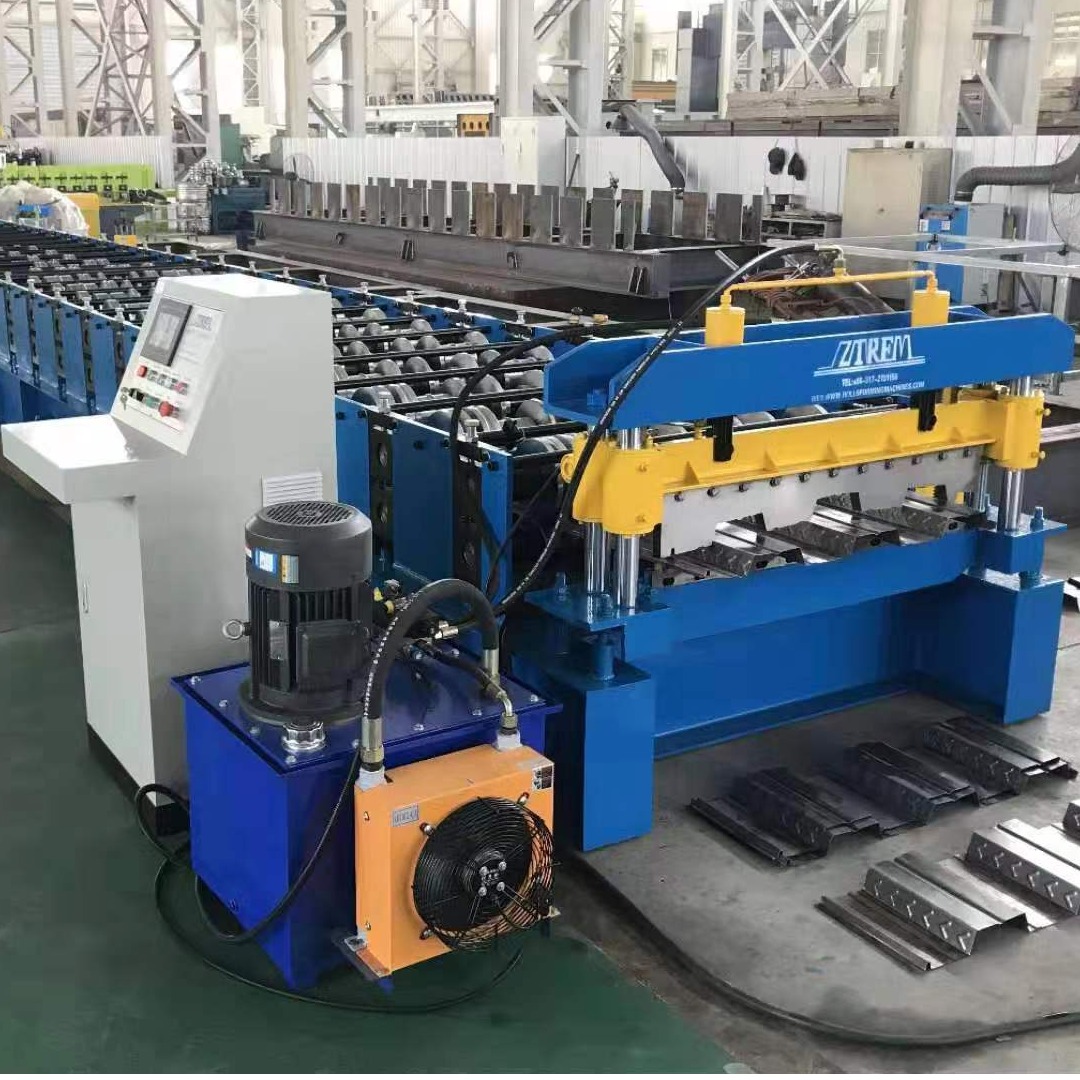

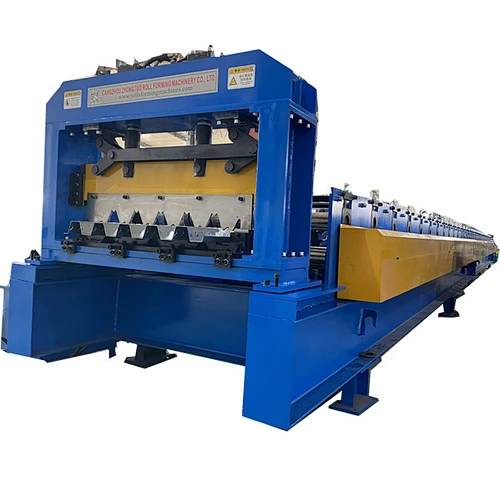

Zhongtuo steel decking roll forming machine is designed to produce steel decks in batch automatically. We can customize the machine according to client's requirement.

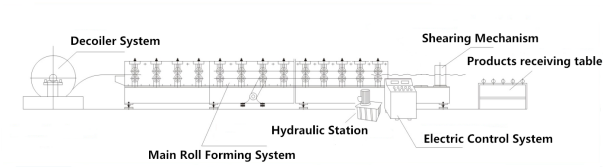

The work flow of stell decking roll forming machine
Technical parameter of steel decking roll forming machine
Decoiler System
Decoiler | Drive model | Passive drive |
Loading capacity | 7tons | |
Max loading width | 1220mm | |
Coil inner diameter | 450-550mm |

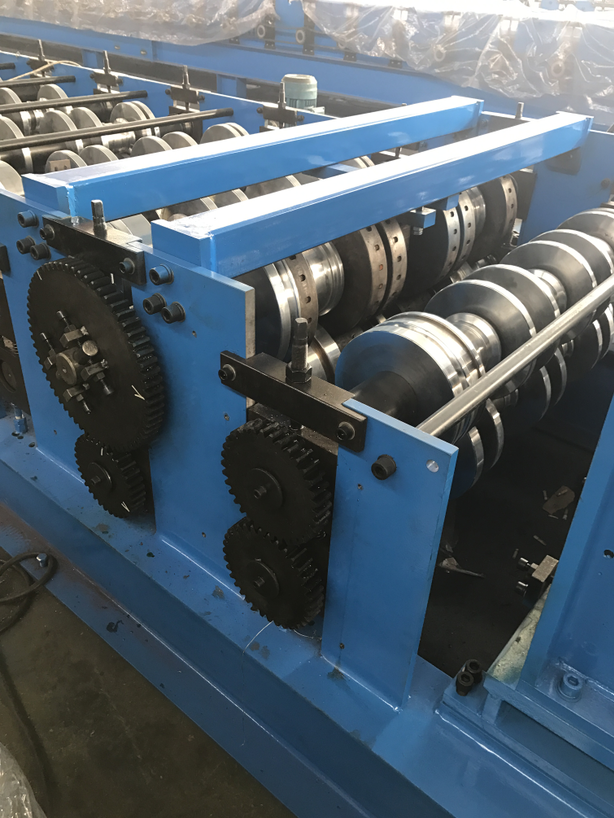

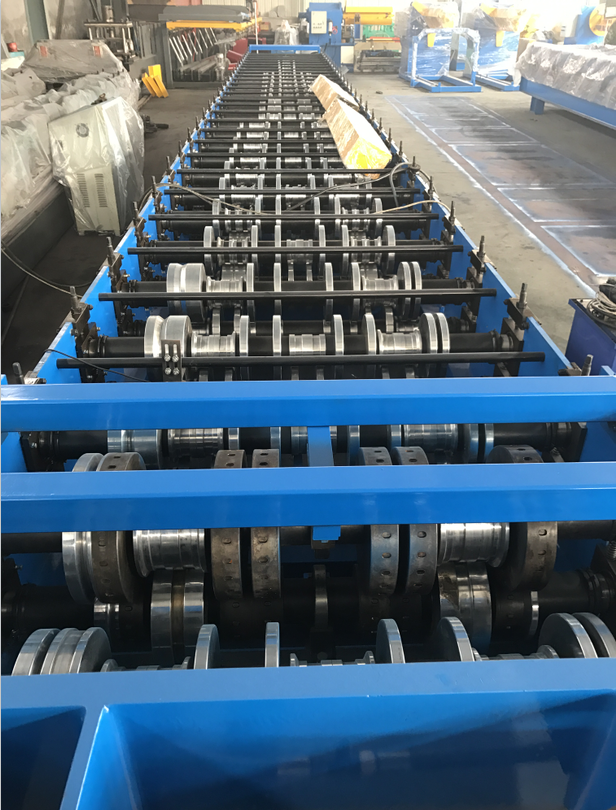

Main Roll Forming System
Decking roll forming machine | Two Motors drive | 15 KW * 2 |
Raw material thickess | 0.8-1.5mm | |
Feeding width | 1220mm | |
Final width | 1020m | |
Raw material | GI | |
Rollers station | 28 | |
Roller material | Gcr15 with tempering | |
Shaft material | Solid 45# steel with tempering | |
Shaft diameter | 90mm | |
Machine frame | 350# H steel welded | |
Transmission | By chain | |
Voltage | 380V 50HZ or as request | |
Blade material | GCr12 with tempering | |
Shear power | Hydraulic method | |
Speed | 15m/min | |
Frame | 20mm Middle plate |

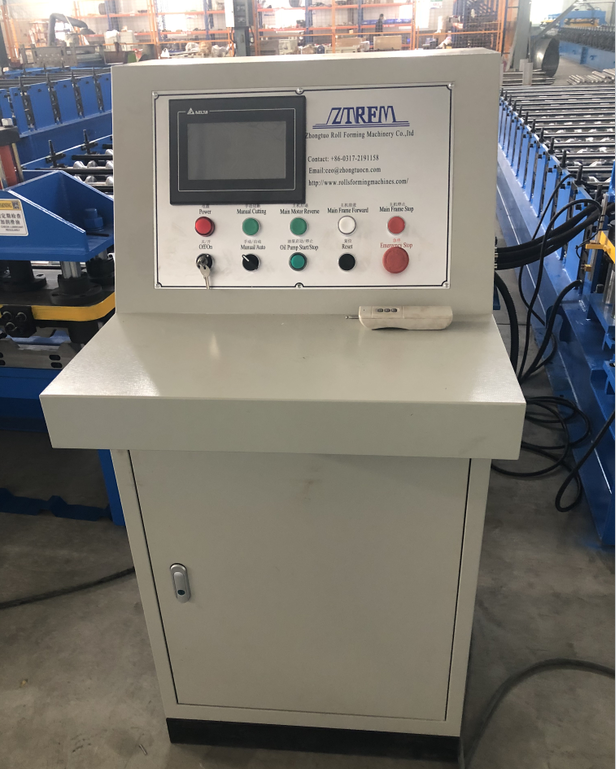

Electric Control System
PLC control cabinet | PLC brand | Delta |
Electrical parts | Schneider | |
System language | Chinese and English (or as request) | |
Counter brand | Omorn | |

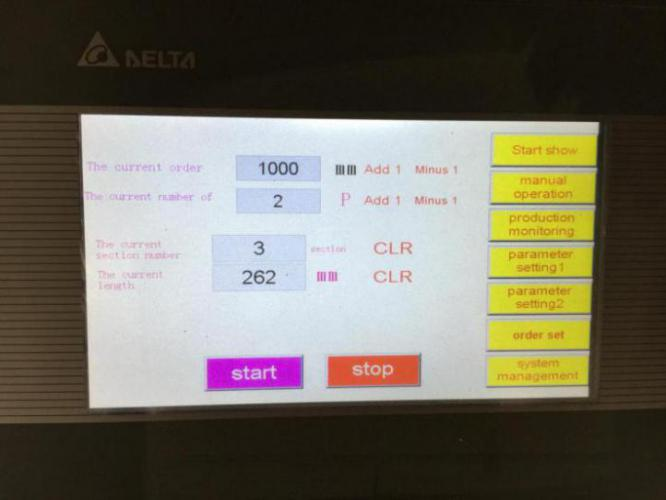

Screen type | Touch screen | |
Function | To control speed, cutting length ,batch quantity |
Hydraulic Station
Hydraulic station | Power | 5.5 kw |
Cool method | Air cooling | |
Cutting length tolerance | ±1mm/3m |

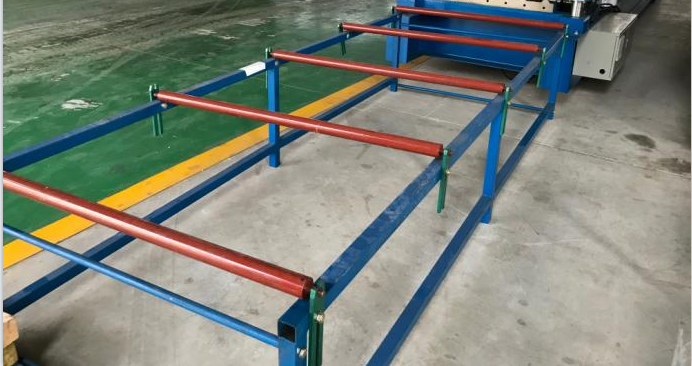

Receiving Table
Length: 3m (or as requested)
Material: Square pipe welded
