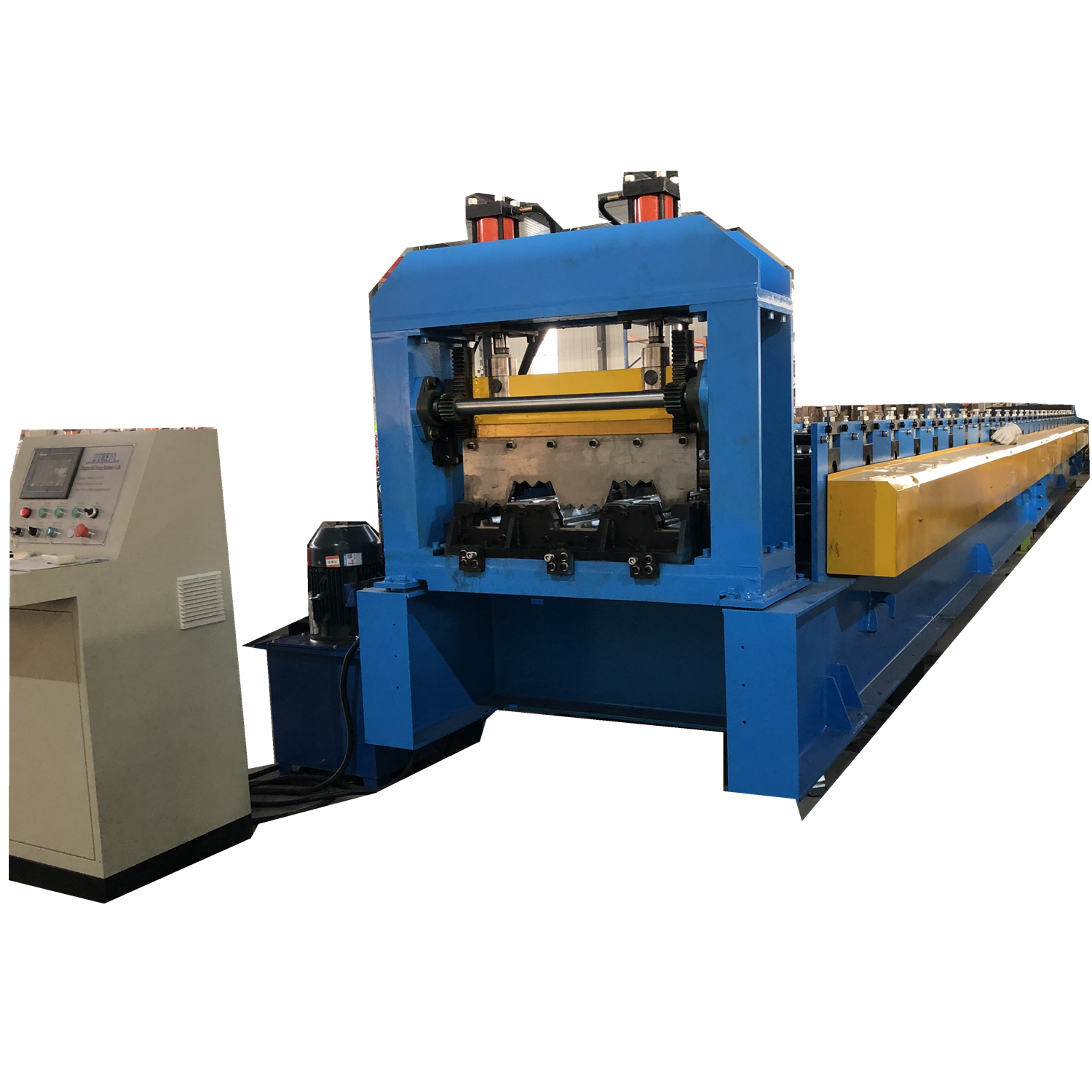

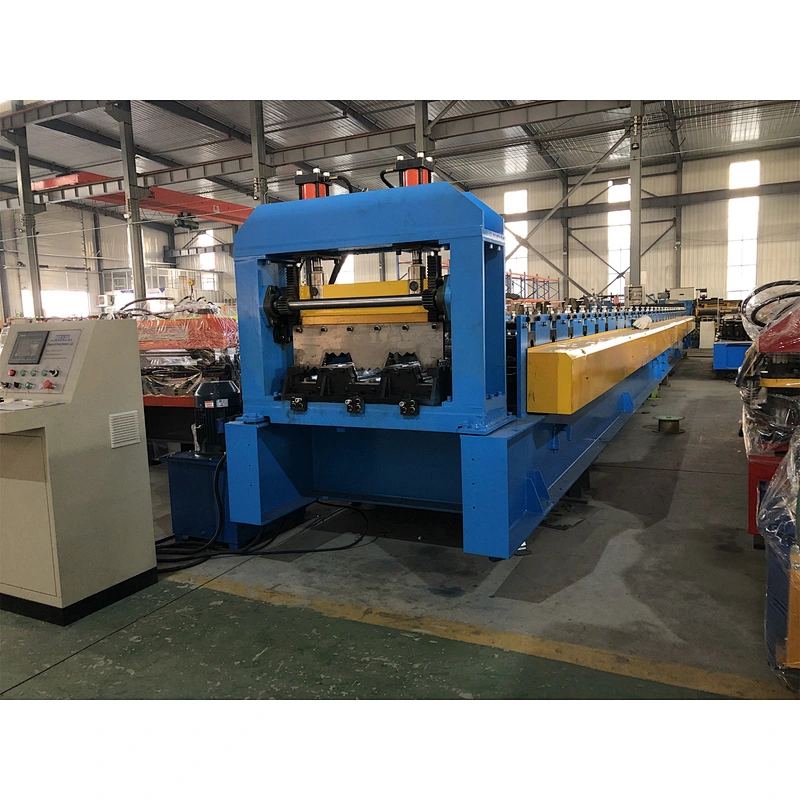

Hot Sale Floor Decking Making Machine Full Automatic Roll Forming Machine

High Quality Steel Plate Deck Floor Tile Making Machine for European Market

Zhongtuo floor decking machine forming machine consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table.

The corrugated profile sheet produced by this machine has high strength with big rib, which adheres well to concrete.

It' s best to be used as the floor of high buildings, and the cost of such floor is low.

Features high solid forming stand guarantees the stable forming and uniform high quality of final products.

Able to secure higher productivity since the management of the line is automated by controlling an electronic system.

Improved cutting method minimizes the tolerandce of cutting length. .

Product Description

What is the appliation of  floor decking machine?

  The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete.

  Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity,

it economized steel and cuts down investment accordingly.  We can also supply the customized machines.

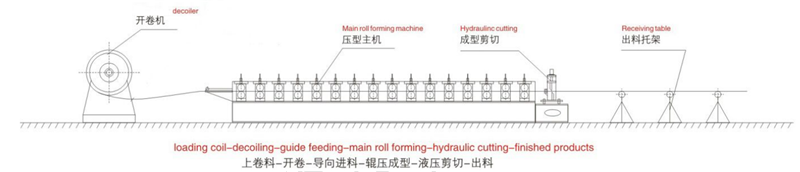

Processing flow diagram of  floor decking machine

   Uncoiling---guide feeding---main roll forming ---hydraulic cutting---finished products

  Where is our floor tile making machine better than other manufacturer?

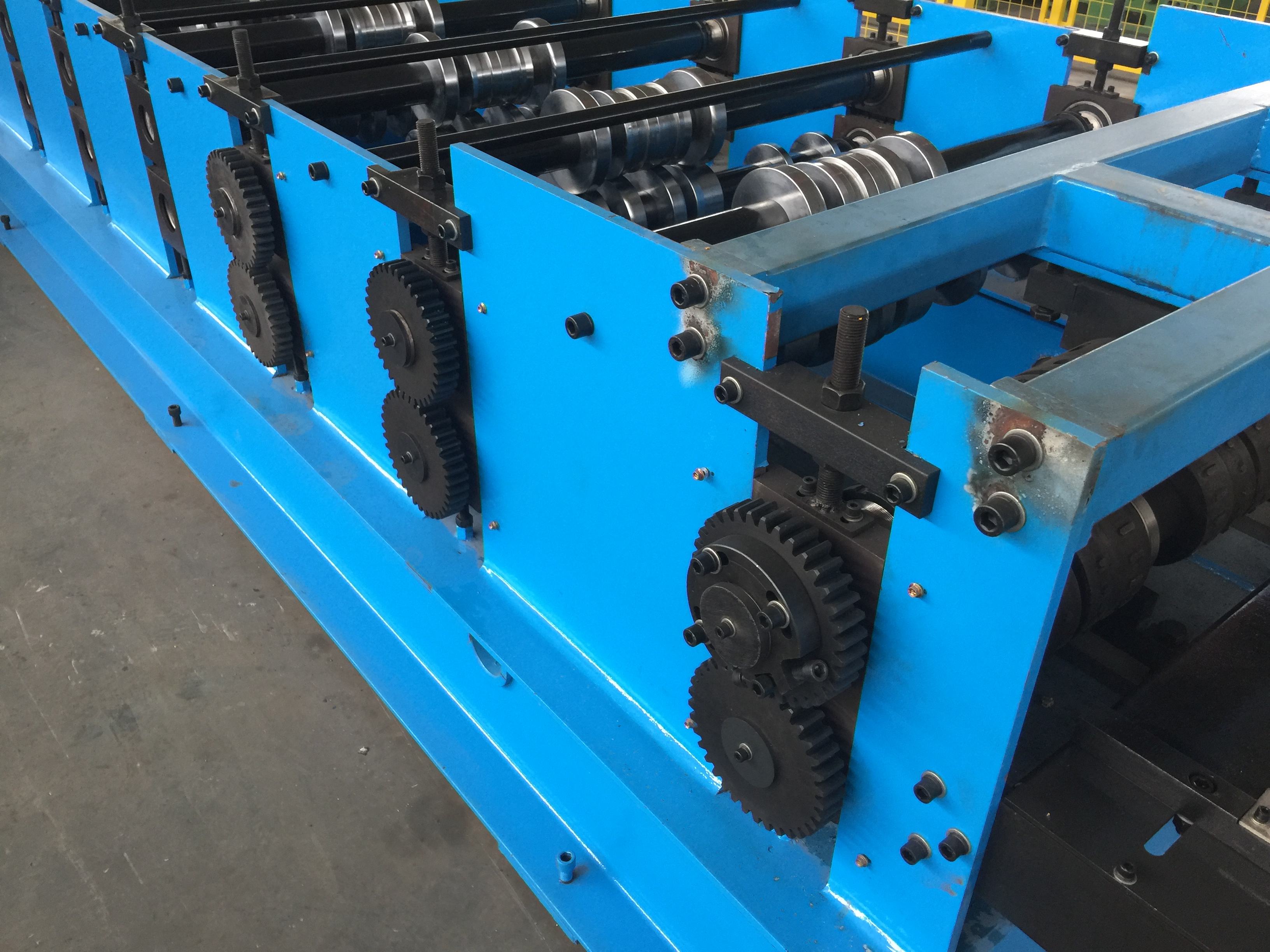

1. Add three pairs of gears in the first three station of rollers

To ensure the rollers keep the same working speed and give the active power to the up rollers and down rollers to help feeding the metal sheet.

2.Embossing rollers add a pairs of bears

Help bracing the shaft to prevent the roller shaft abrasion.

  Technical parameters of  floor deck making machine

Details of  floor deck making machine(middle plate structure)

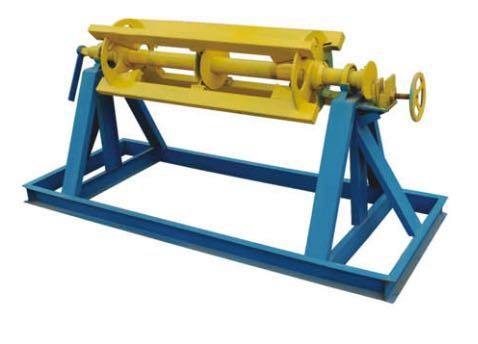

1.manual decoiler

The decoiler can support the raw material and making uncoiling .We can provide 5 tons,

10 tons decoiler for you to choose.And in tearms of motivation, the decoiler can devided into manual decoiler,

electronic decoiler, hydraulic decoiler.

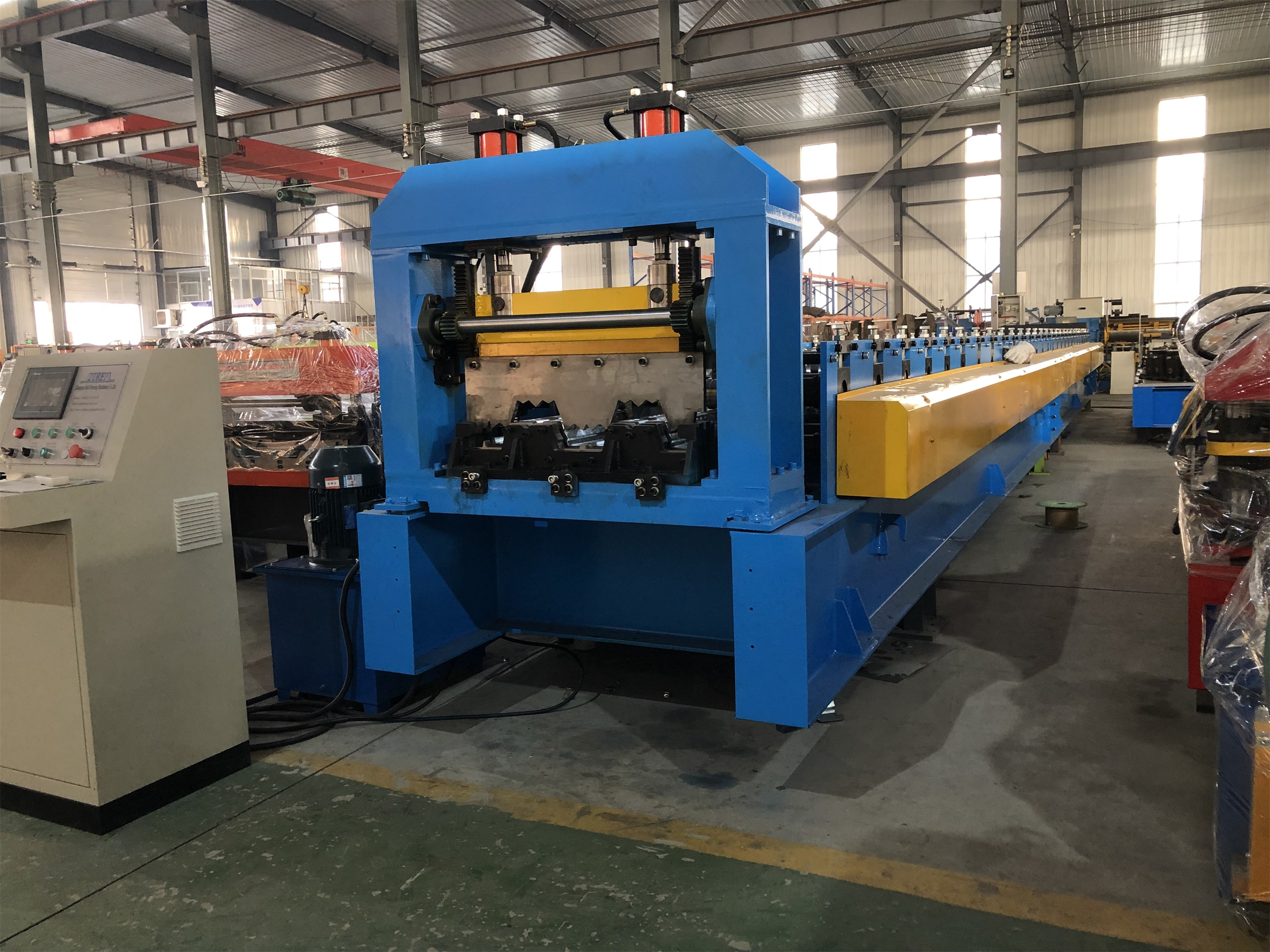

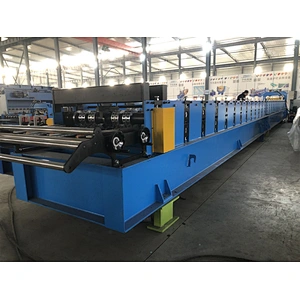

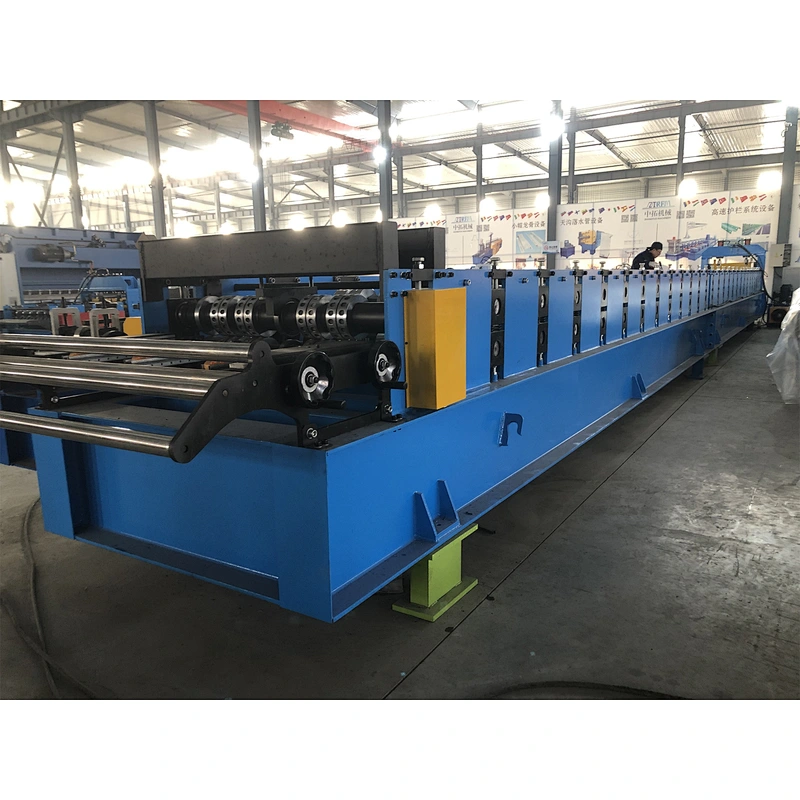

2.main forming machine

  In order to protect the products shape and precision ,we take use of the middle plate welded frame structure.and drive by chains.

(From The first roller station to the last roller station, the up and down use the chains drive transmission.)

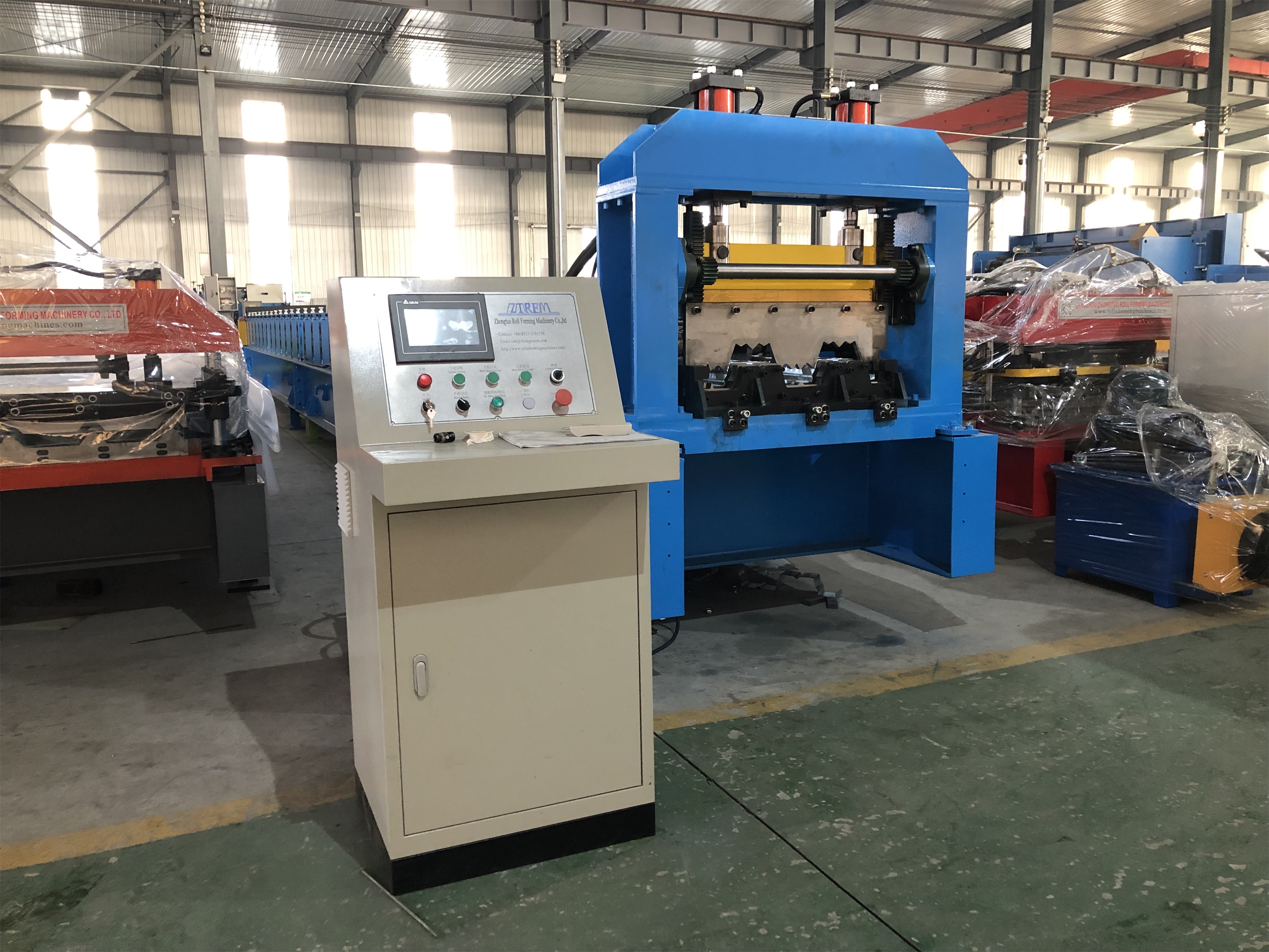

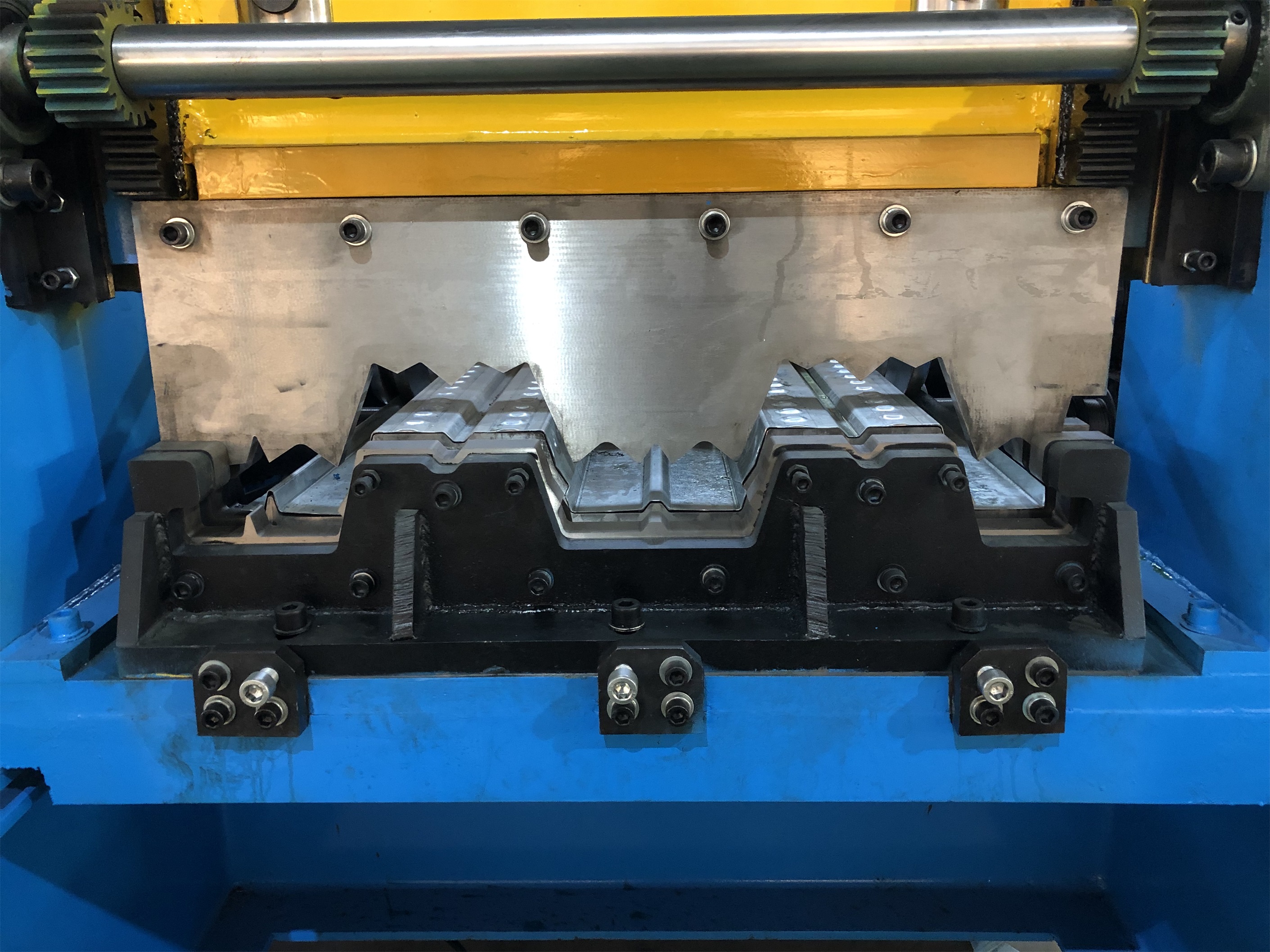

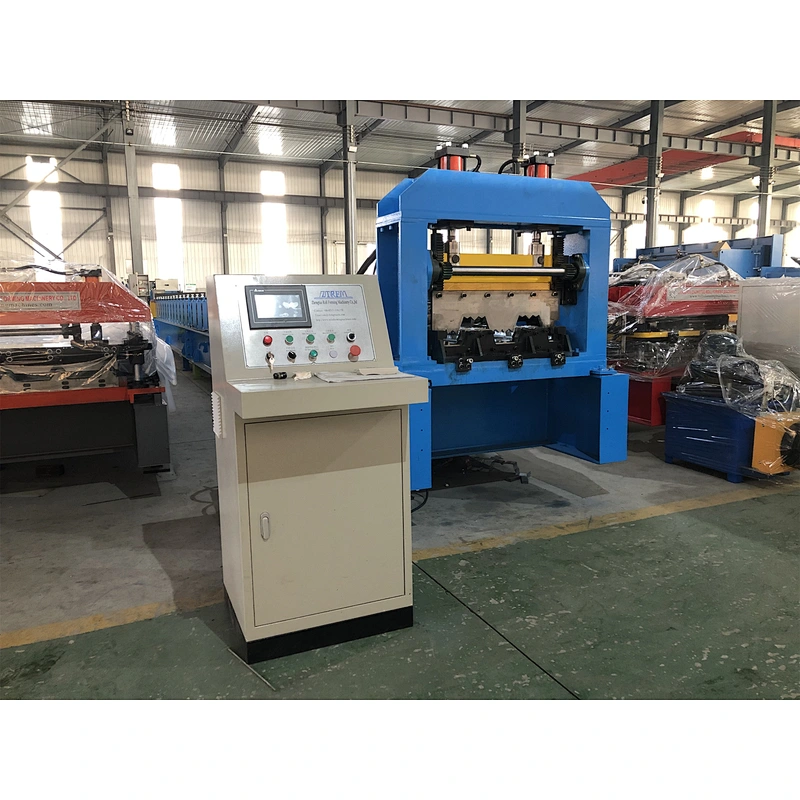

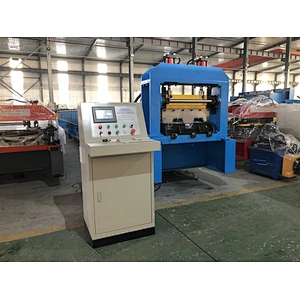

3.hydraulic cutting system:

  Best quality hydraulic driving, the cutter is make as two pieces of blade.

  Hydraulic station is controlled by the oil pump.

  The hydraulic oil into the oil box, and after start the oil pump, the knives will start work and the main forming machine wil stop at the same time.

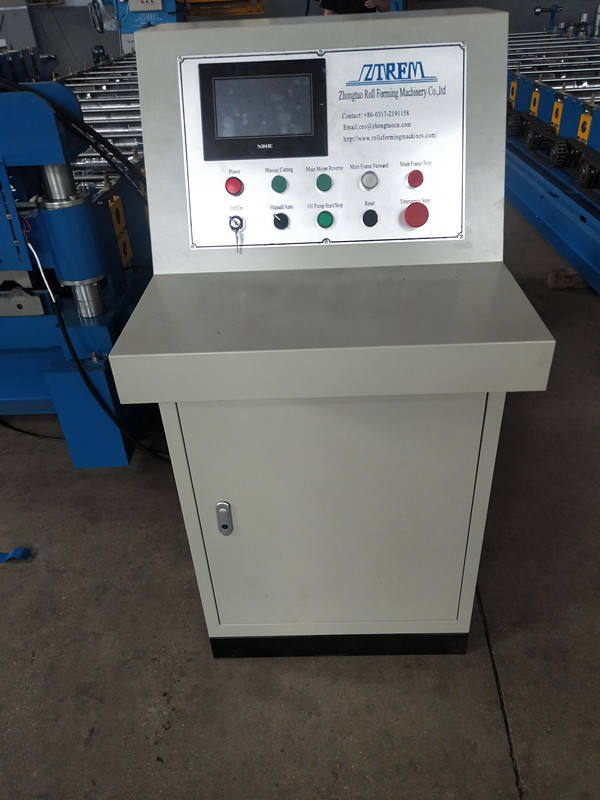

4.PLC control

Computer control length and quantity,Reach the set length automatic cutting machine, when it get the setting quantity, it automatic stops.

5.More details of  floor deck making machine

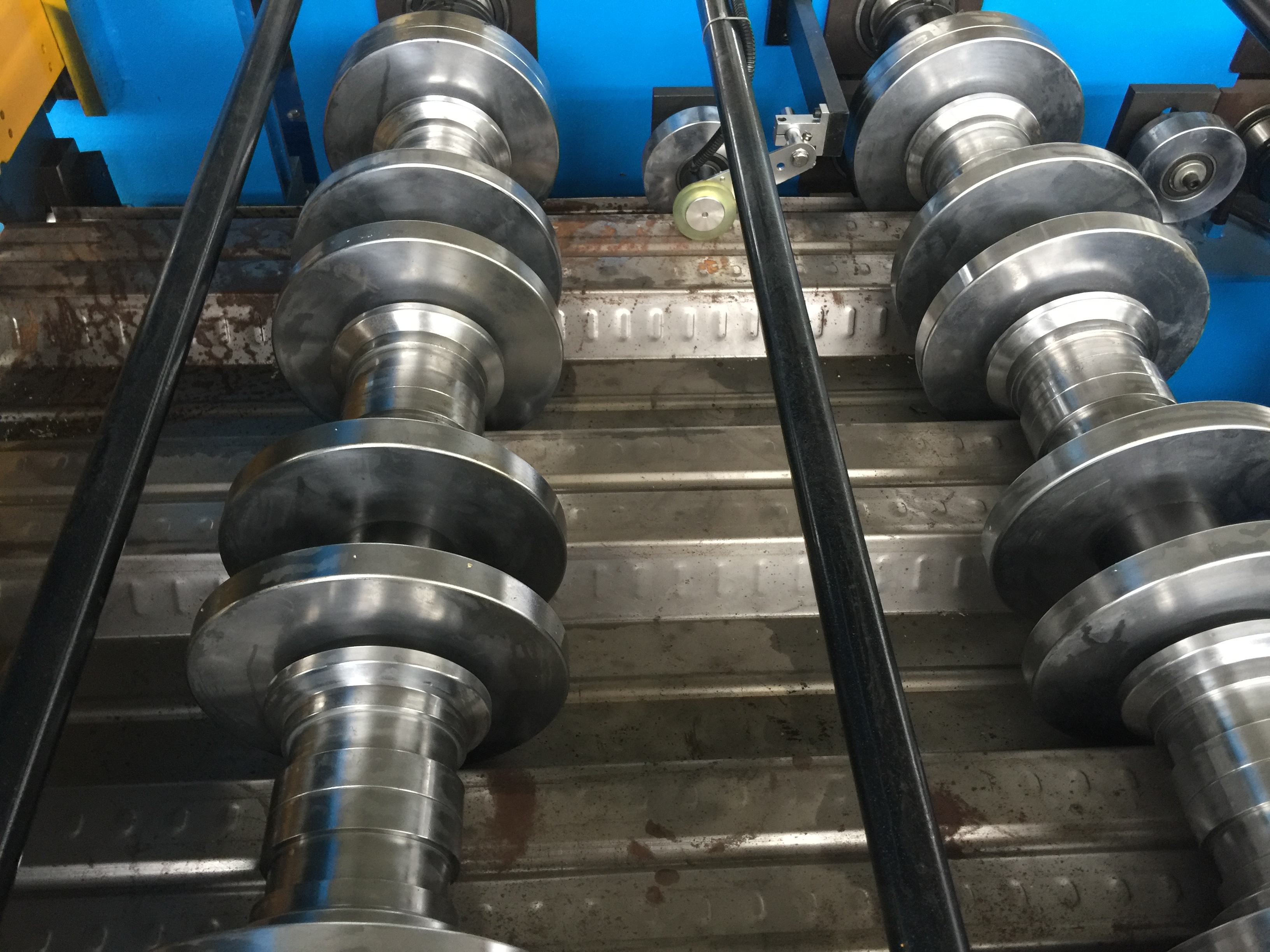

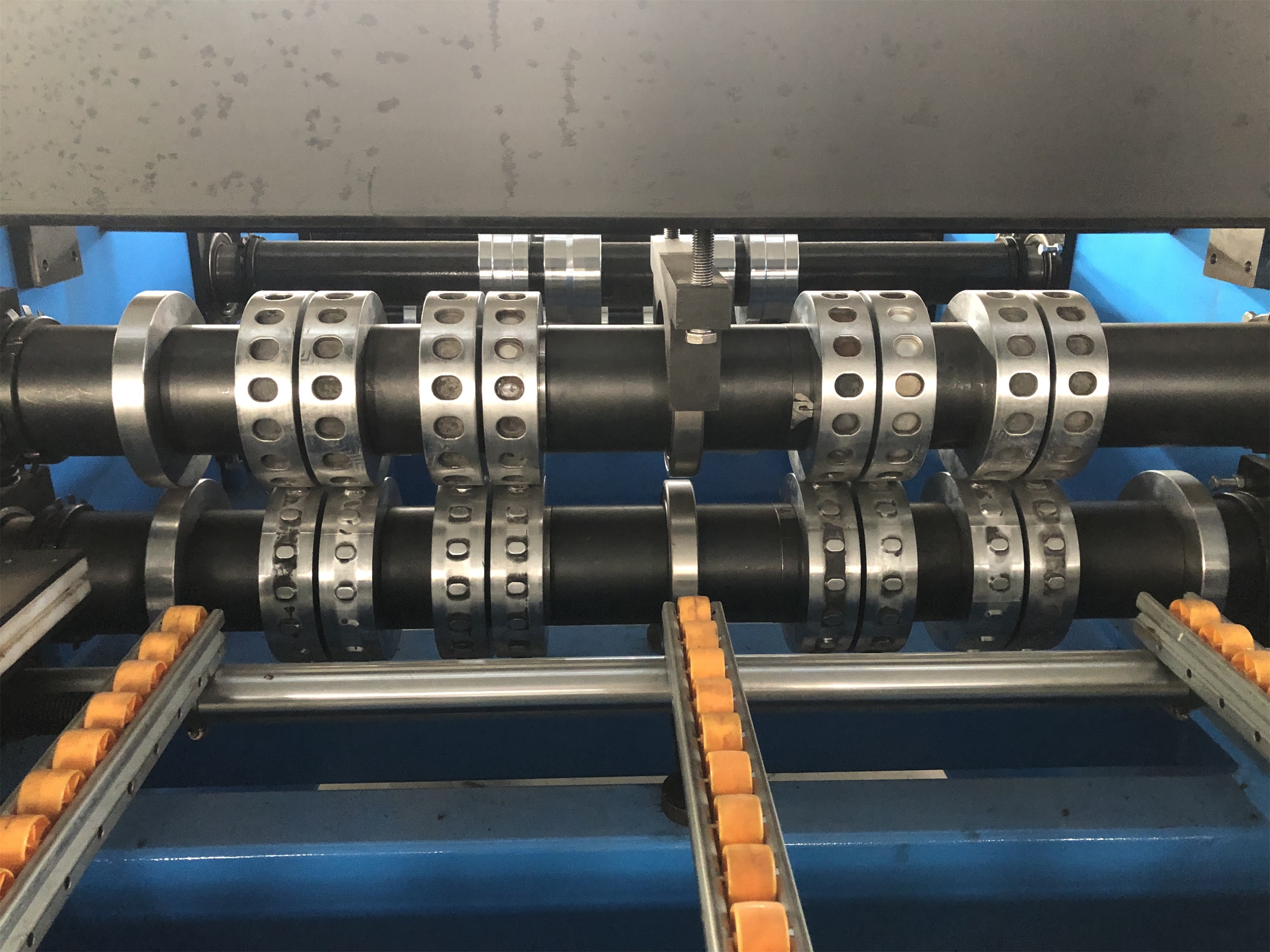

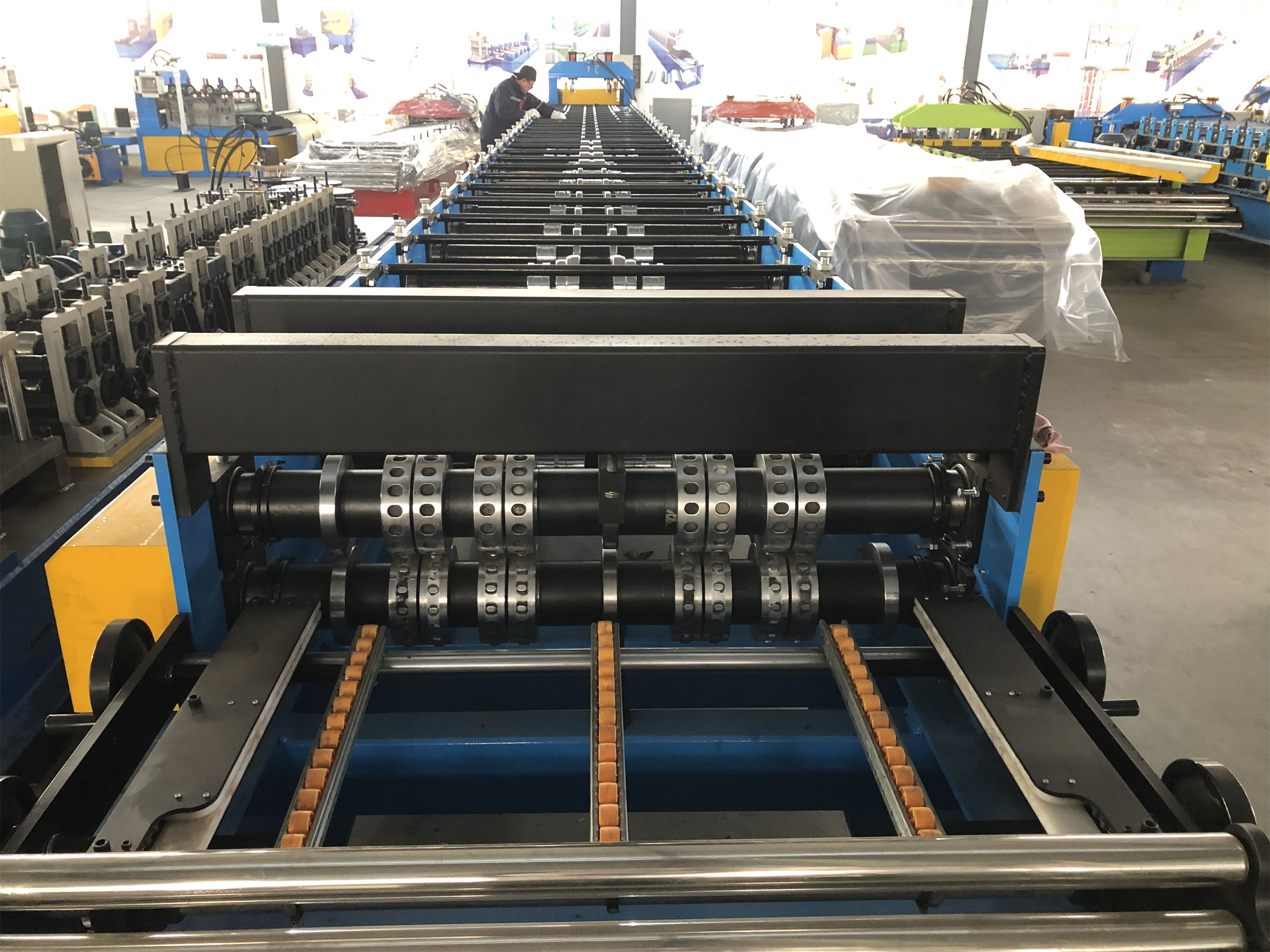

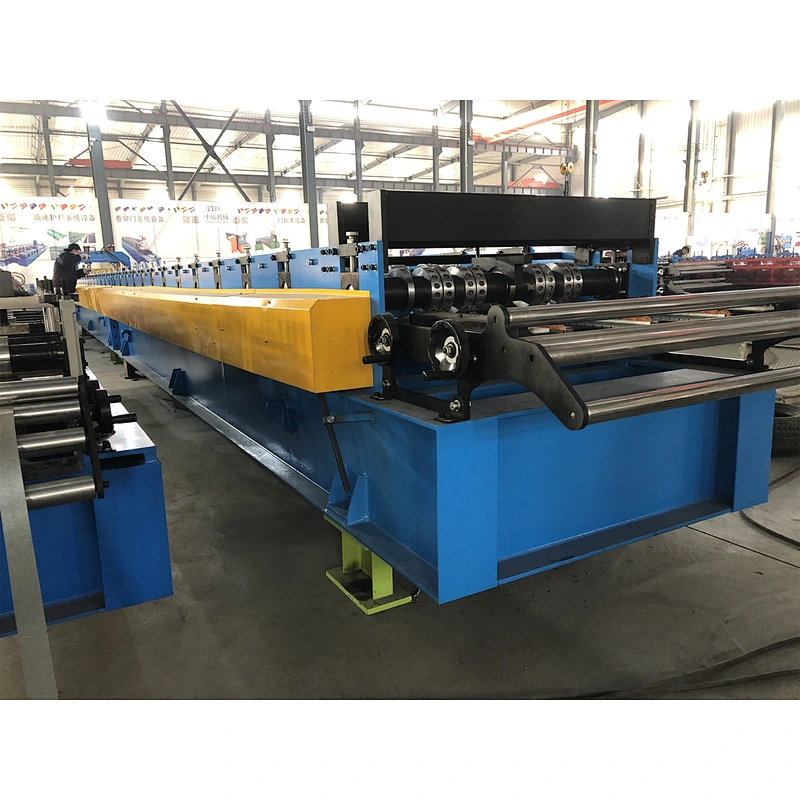

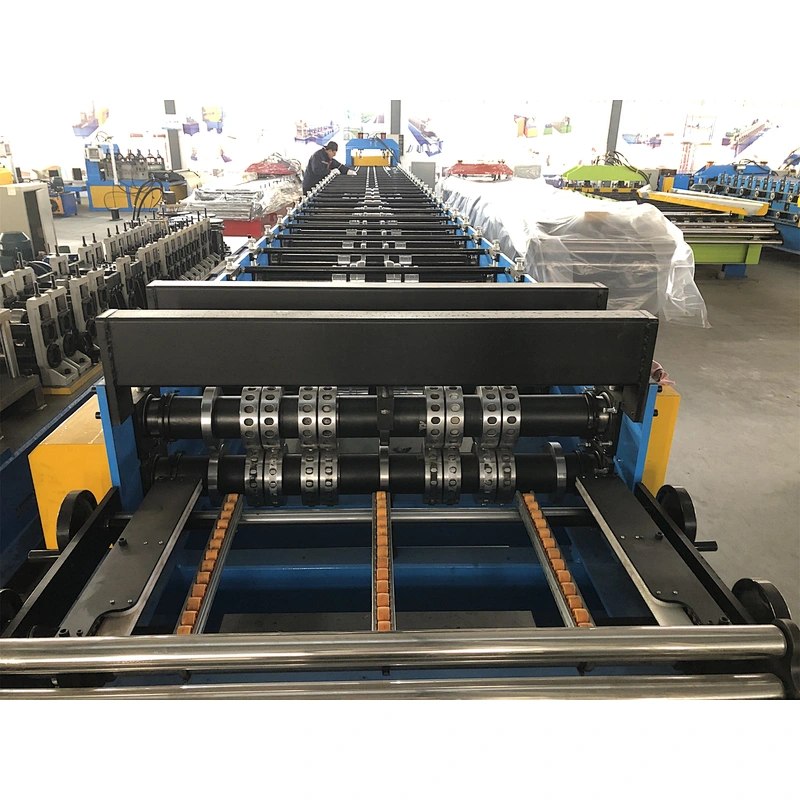

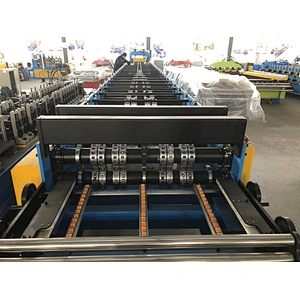

embossing rollers can press out various shapes patterns before roll forming.

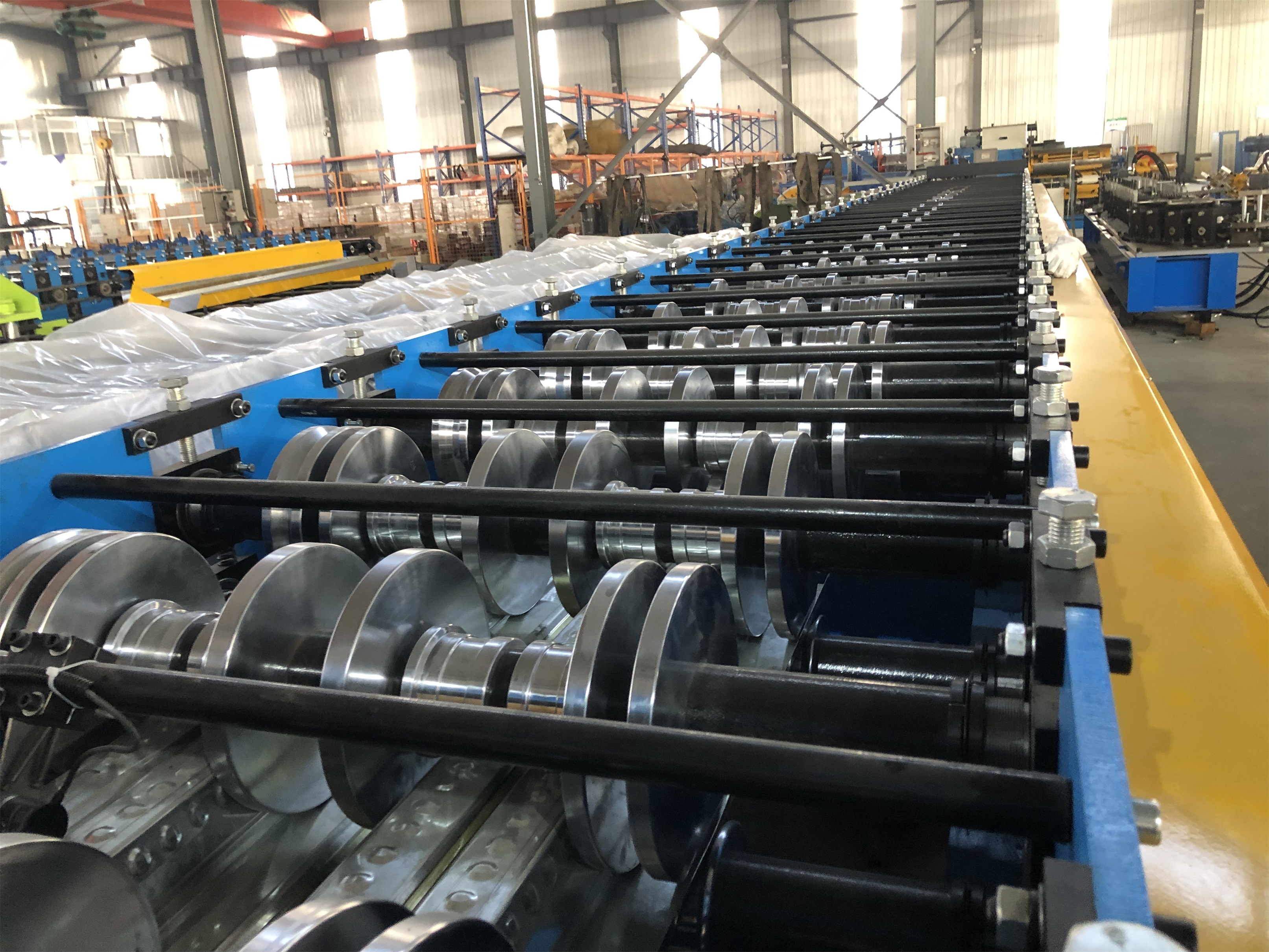

the high presion rollers with chromed treatment,prevent deformed and improve  the hardness

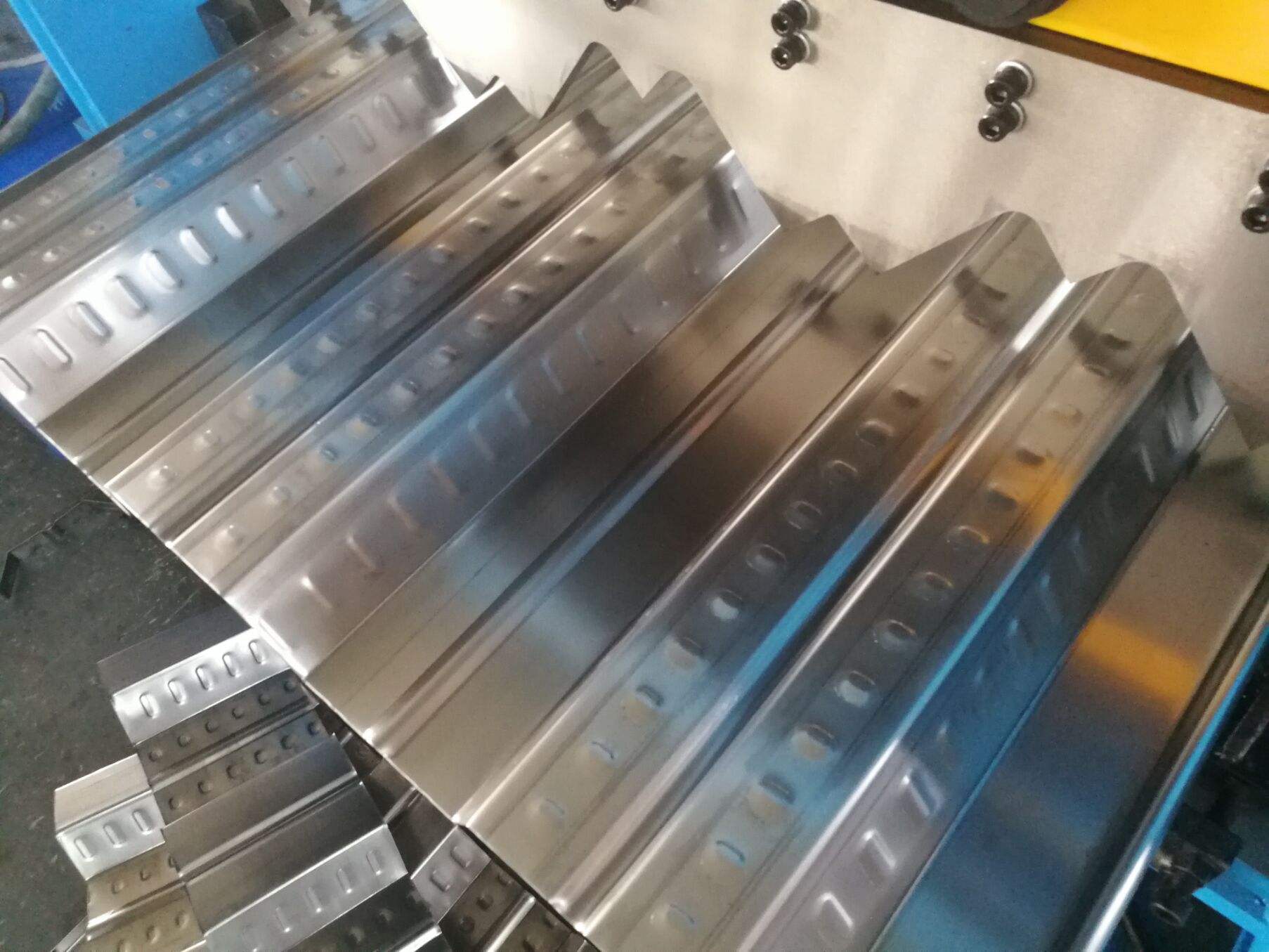

the finished product before cutting
