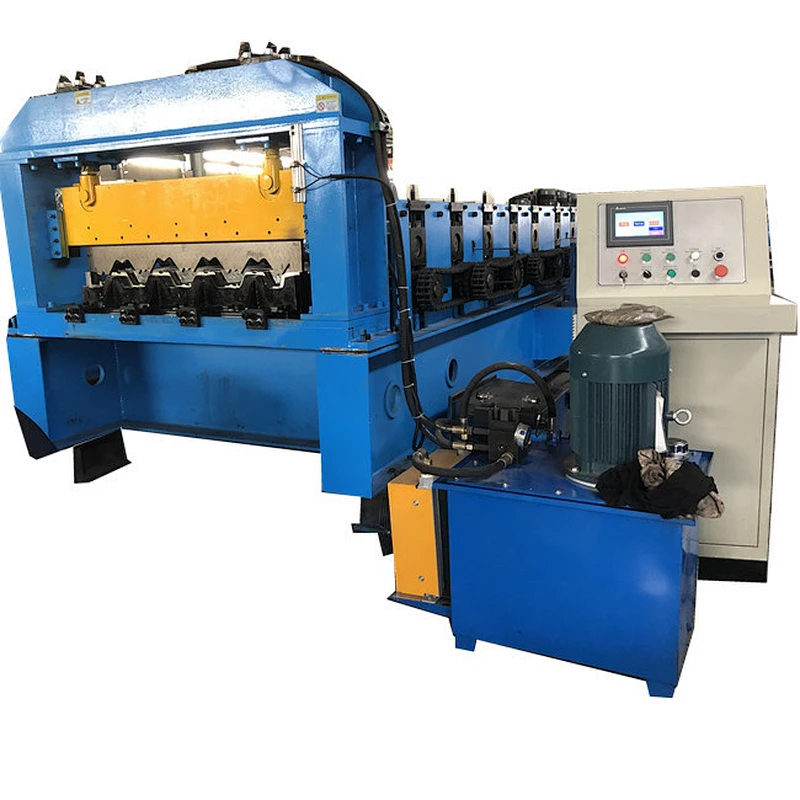

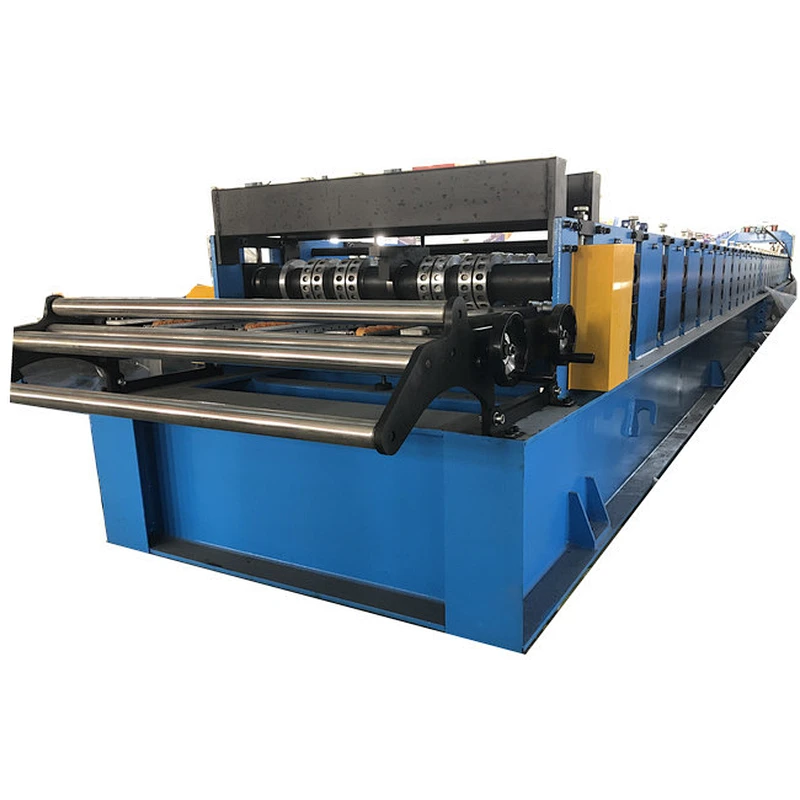

Floor Metal Decking Roll Forming Machine For 915

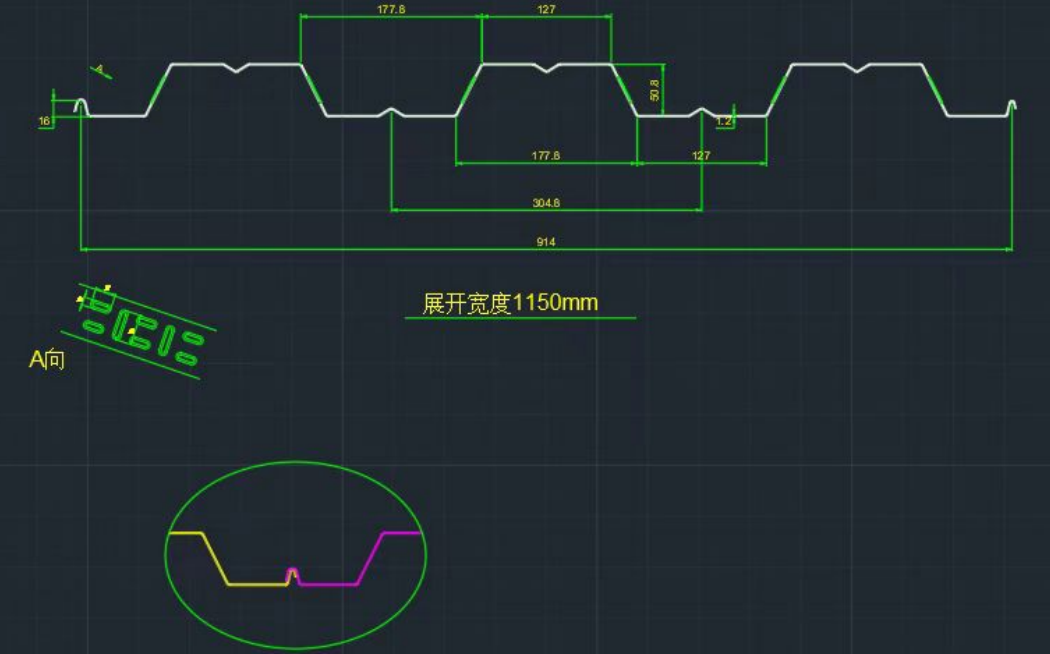

Our Metal Decking Forming Machine For 915 using 1150mm input coil width, here is the drawing profile for your reference:

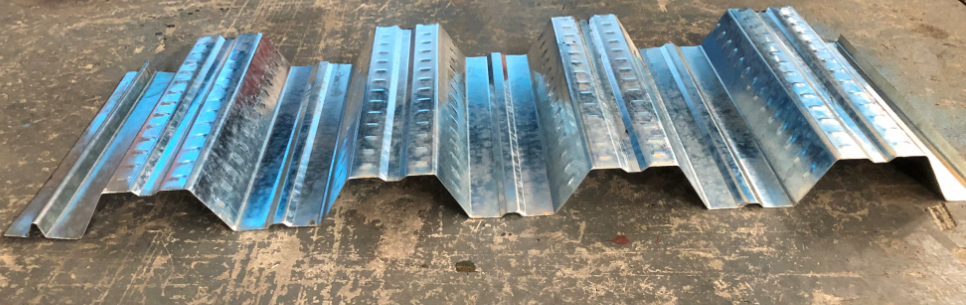

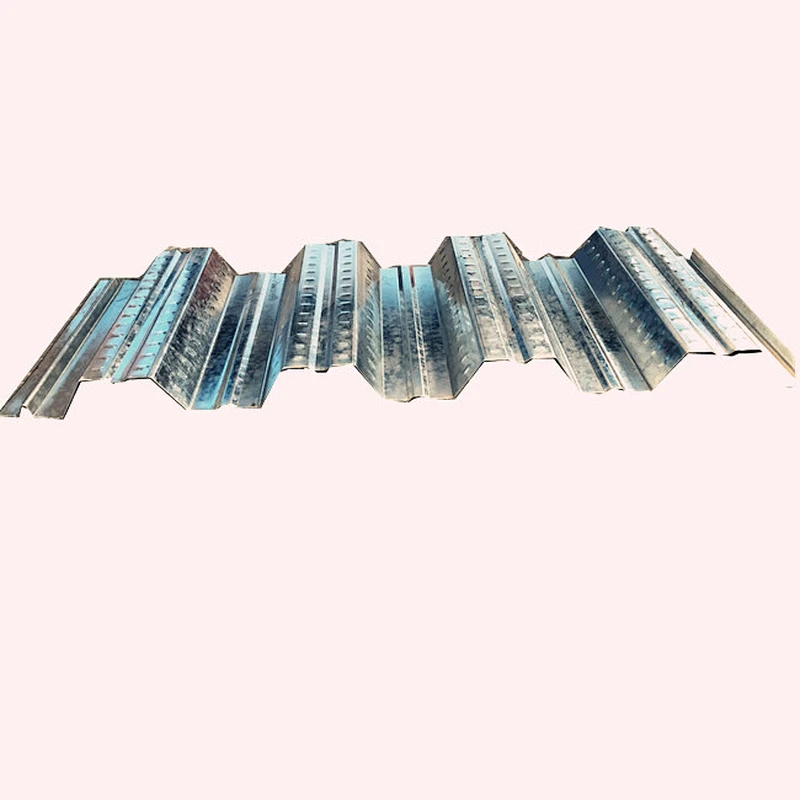

Metal Decking Forming Machine finished products:

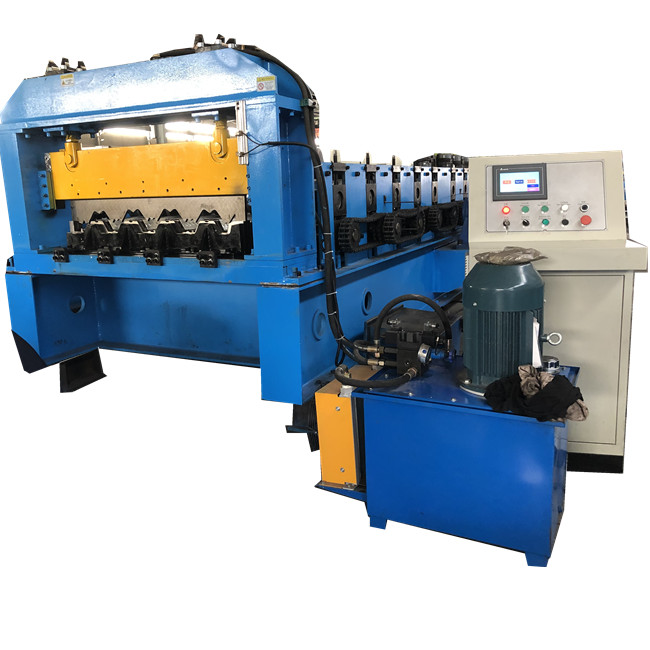

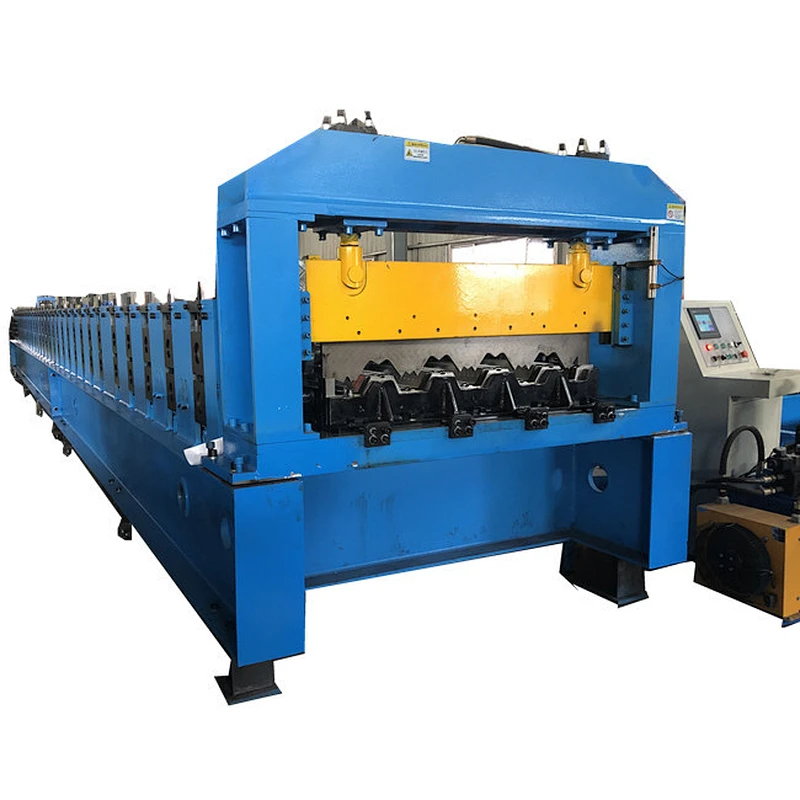

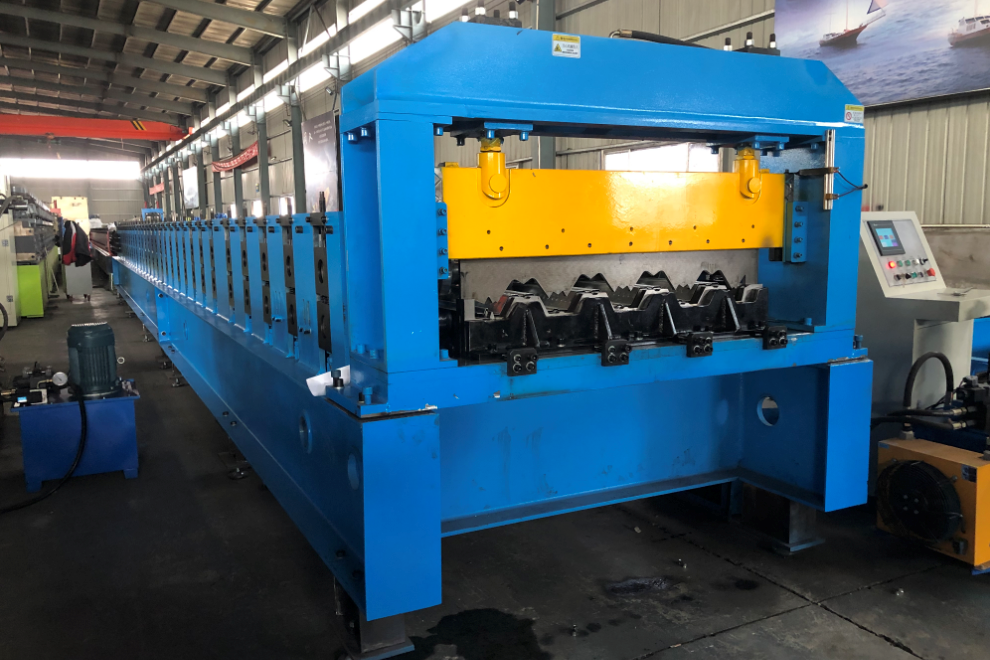

Metal Decking Forming Machine design:
Advantage ofFloor Metal Decking Forming Machine:
- Adopt 85-95mm solid shaft and H-shaped steel as the under frame, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term machine use life; For the metal embossing rollers, we use the 120mm diameter strong shaft, meanwhile with the keynote design.

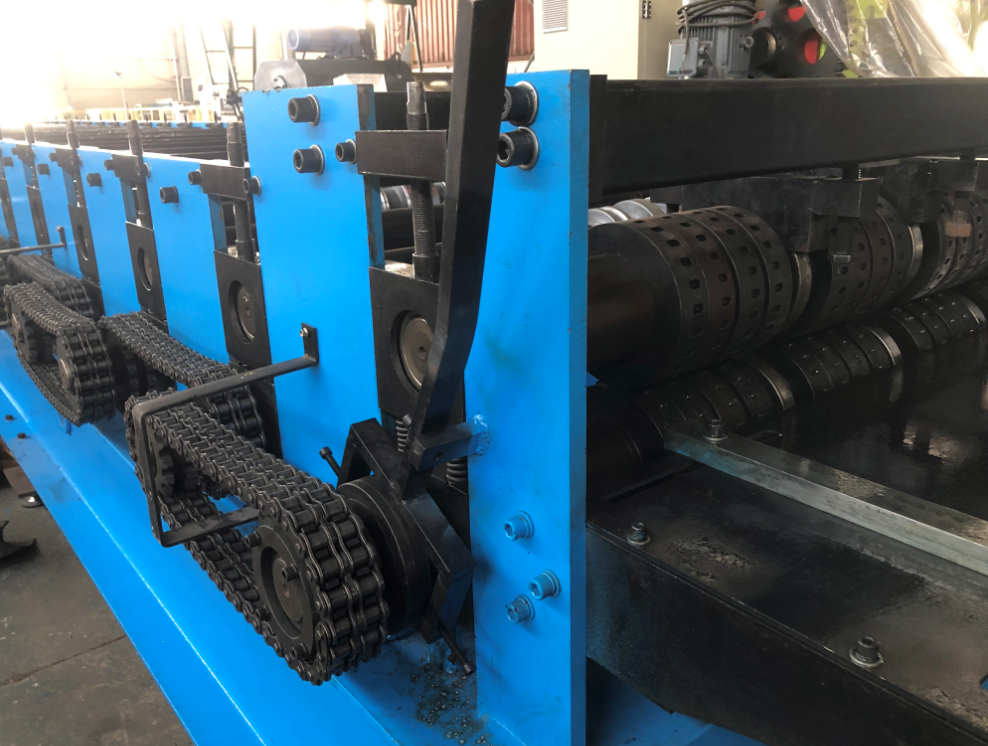

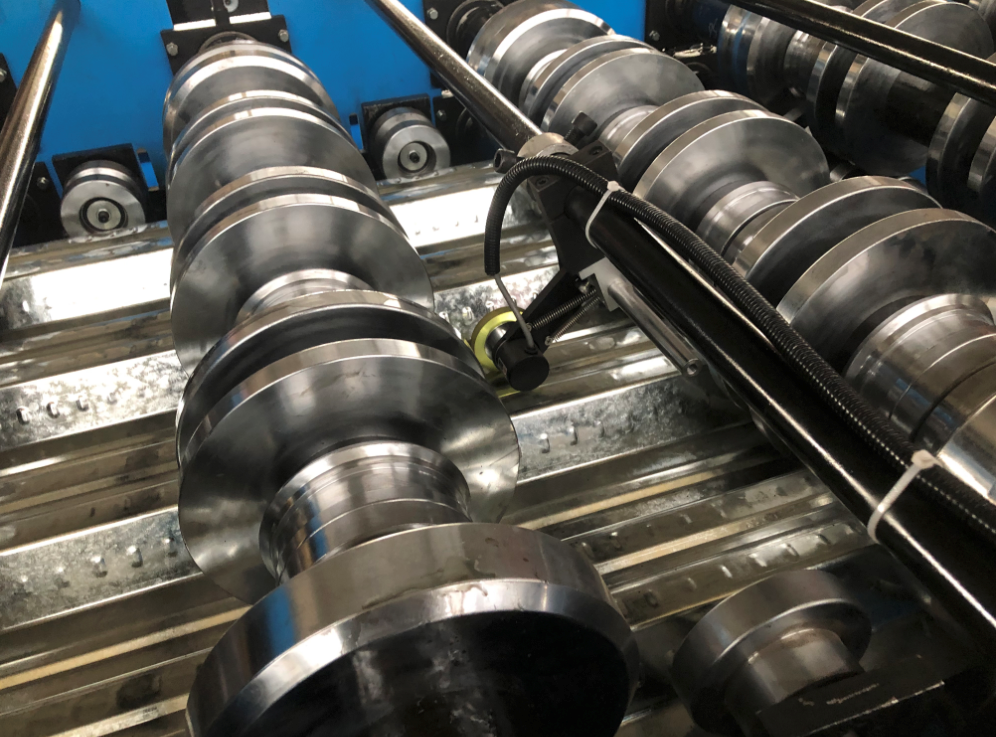

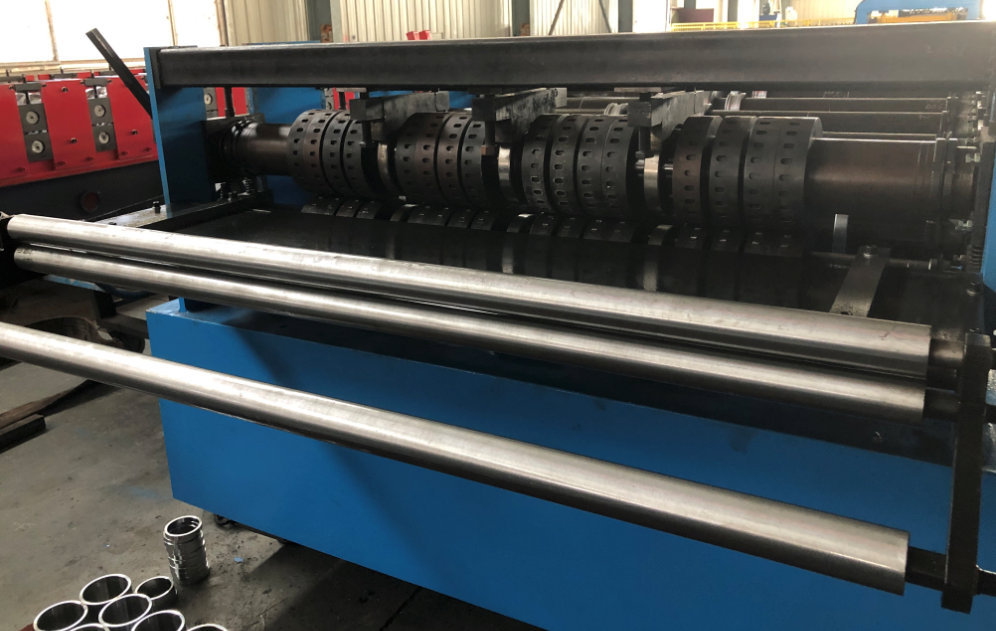

2. The rollers of Metal Decking Forming Machine are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final deck. For the metal embossing roller, we design with the brake system and then you can feed the coil easily and make sure the embossing is nice the accurate.

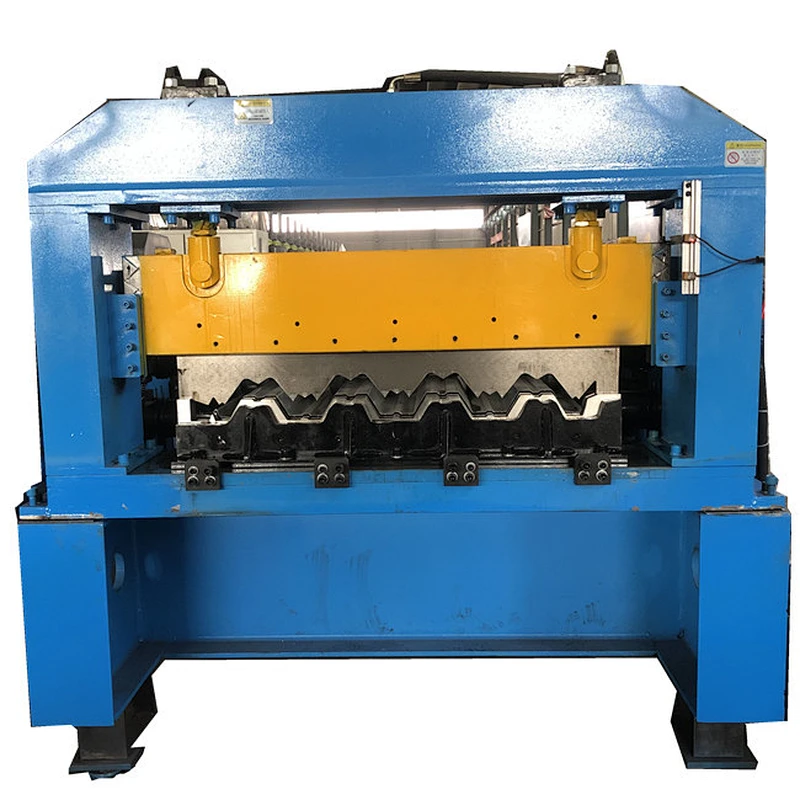

3. The cutting blade frame of Metal Decking Forming Machine is stress-relieved to ensure that it is not deformed during long-term production and makes the final product smooth. Frame shearing system is good for the long time to use.
- The steel decks are flat, high precision within 1mm, and the effective width is controlled within 5mm; When shearing there will be some wasted coil.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the machine, and the cutting length tolerance is within ±2mm
6. Forming speed can reach 8-12 meters per minute.
7. The machine weighs about 15-18 tons.

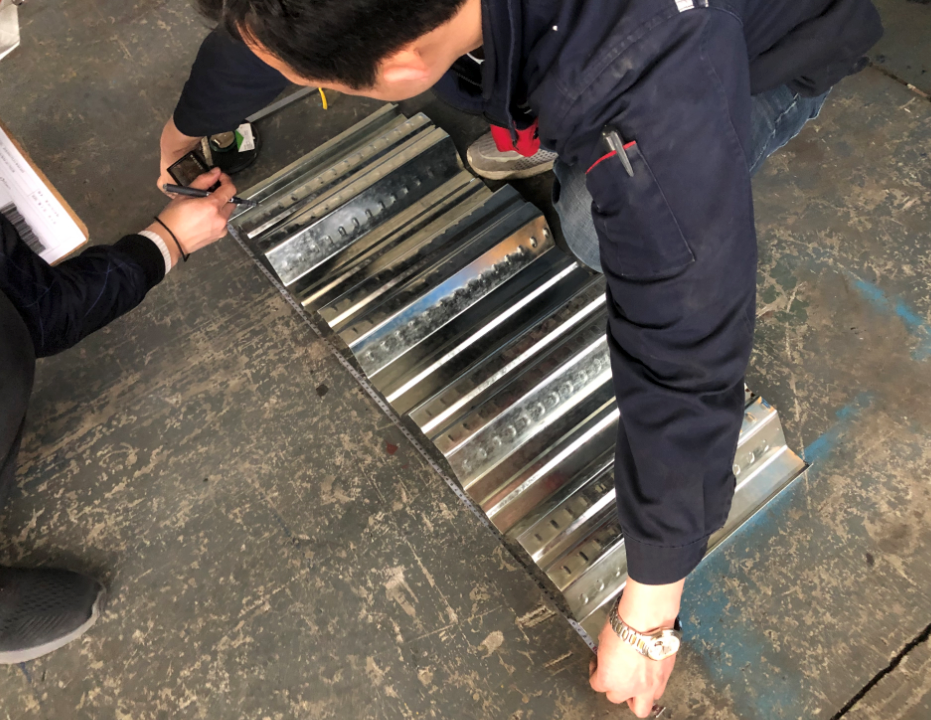

For the testing and quality control we are quite seriously.
