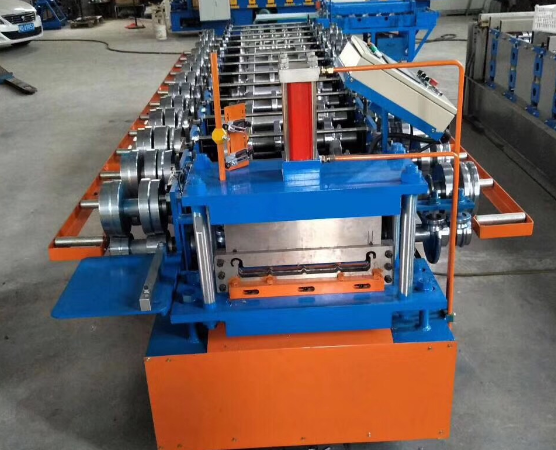

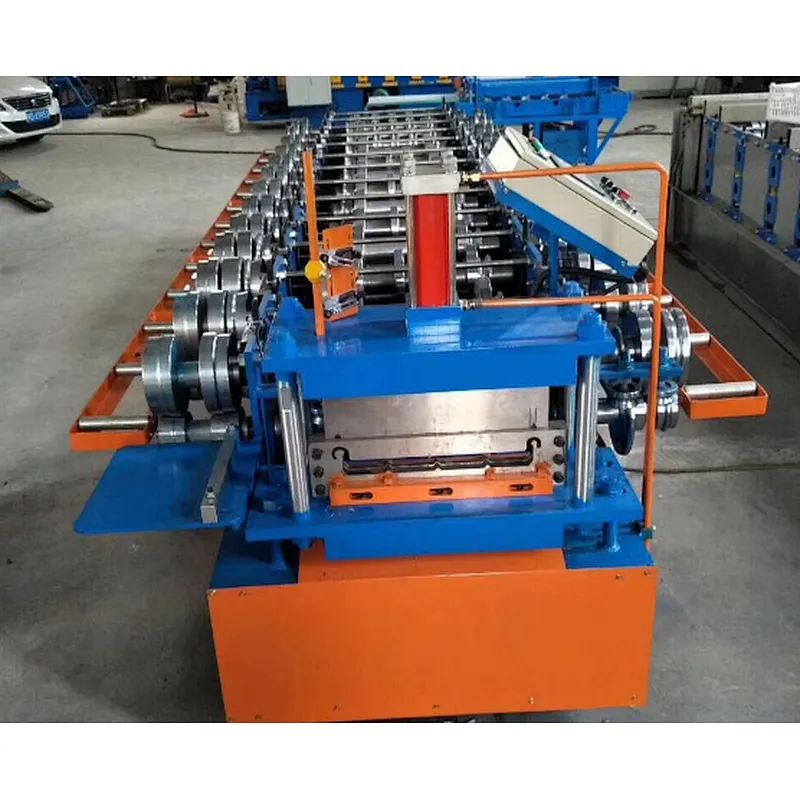

Standing seam wall panel rolling forming machine

Zhongtuo standing seam sheet roll forming machine

Standing seam wall panel rolling forming machine is for produce bemo style like roofing sheet machine in batch and fully automatically with various width and multiple shapes which is also named as Standing Seaming Roll Forming Machine.

What’s Standing seam sheet likes or where to use ?

Standing seam BEMO style, one kind of standing seam Sheets, was developed by BEMO company. And the material of the sheets used as below:

So this type standing seam could be aluminium Alloys, full recyclable, can be formed safely and are resistant to corrosion. Or cold Roll Steel, which is an economical alternative that provides lower liner expansion. For stainless Steel, much more safety in aggressive ambient atmospheres. Copper, long time use and ability to be recycled. and captivating appearance

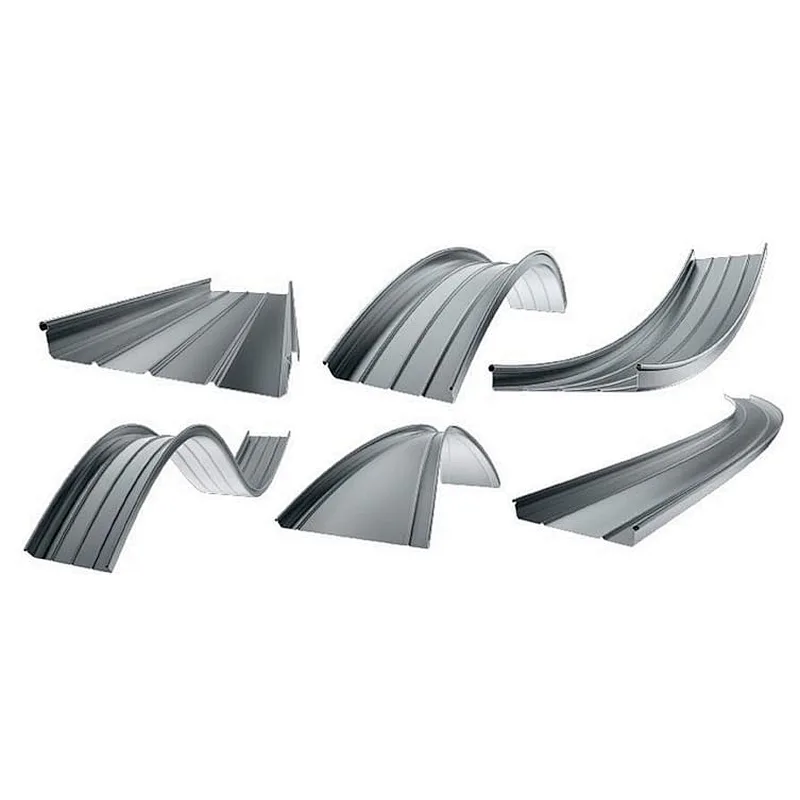

Standing seam profile could bend multiple shapes

Zhongtuo Company have several types of types sheet roll forming machines for different requirements.

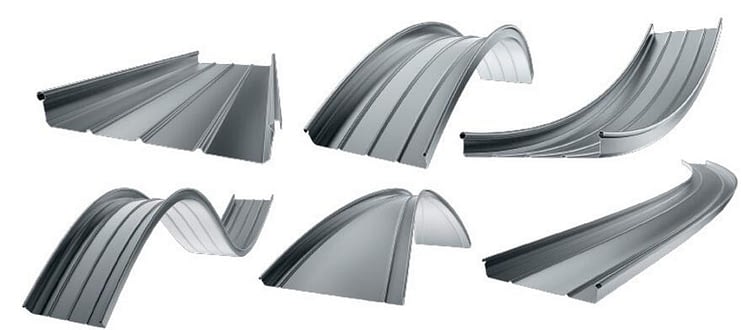

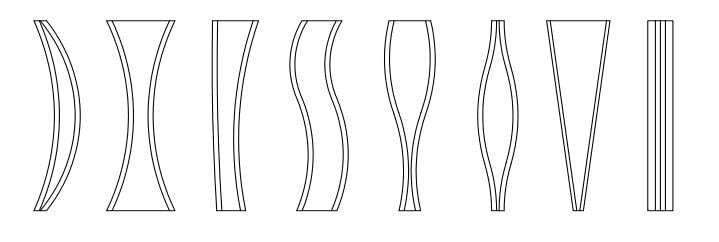

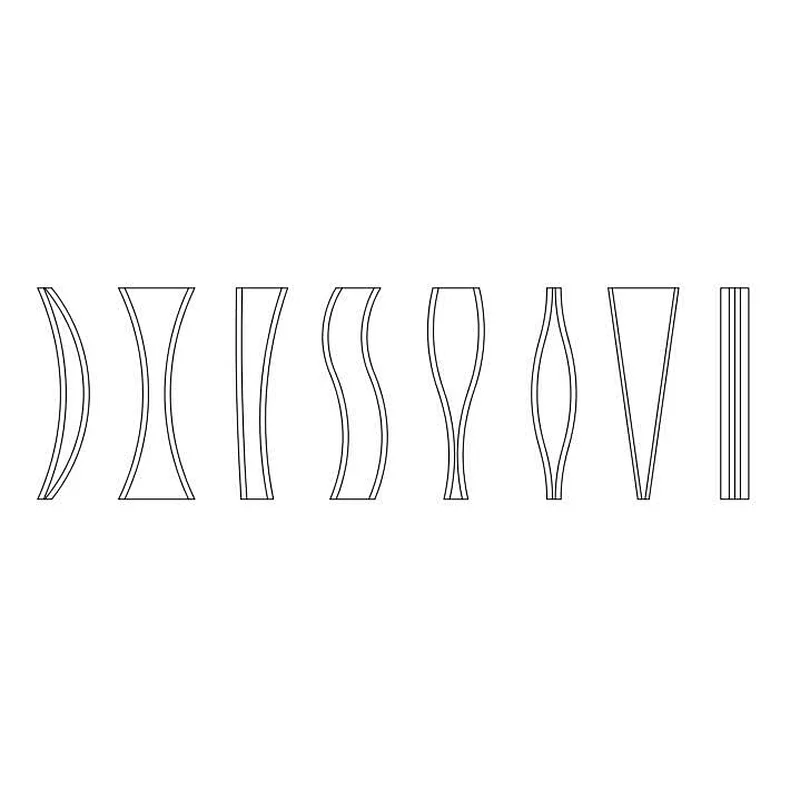

Here are some different shape bending effect for your reference:

Zhongtuo standing seam roll forming machine can produce multiple shapes of different appearance of Sheets. The advantage of this type sheets is that it can bend to any shape according to your requirements.

Input coil width and related material

1.Profile Width: 305 mm, 333 mm, 400 mm, 500 mm, 600 mm

2.Material and Thickness(mm): Aluminium, 0.8-1.2; Steel, 0.6-0.75; Stainless Steel, 0.5-0.7; Copper, 0.8-1.0;

3.The bemo sheet roll former is able to produce different width of bemo sheets with quick changeover time.

Standing seam wall panel rolling forming machine components

1.Uncoiler, 5 Ton Capacity or bigger or smaller, this is optional.

2.Roll Forming Mill, with tapered roll forming mill with Cutoff System, hydraulic System, controlled System and the Curving Machine, Convex, Concave or “S” Curving, automatic or manual seamer.

Detailed Parameters of Standing seam wall panel rolling forming machine

1.    Rolling Speed: 15-20 m/min

2.    Forming Roller Stands: 18-24

3.    Rollers Material: ASTM 1045, quenched and tempered, chromed 0.05mm thickness

4.    Axis Material: ASTM 1045 Carbon Steel, quenched

5.    Spacer Material:ASTM 1045, 15mm thickness, chromed

6.    Motor Power: 7.5KW

7.    Cutoff Blade: CR12, quenched and heat treatment

8.    Panasonic PLC, Yaskawa Inverter, MCGS Touch Screen, Omron Encoder and Limit Switch

9.    Voltage: Customized, and usual 380 V, 50 HZ, 3 Phase

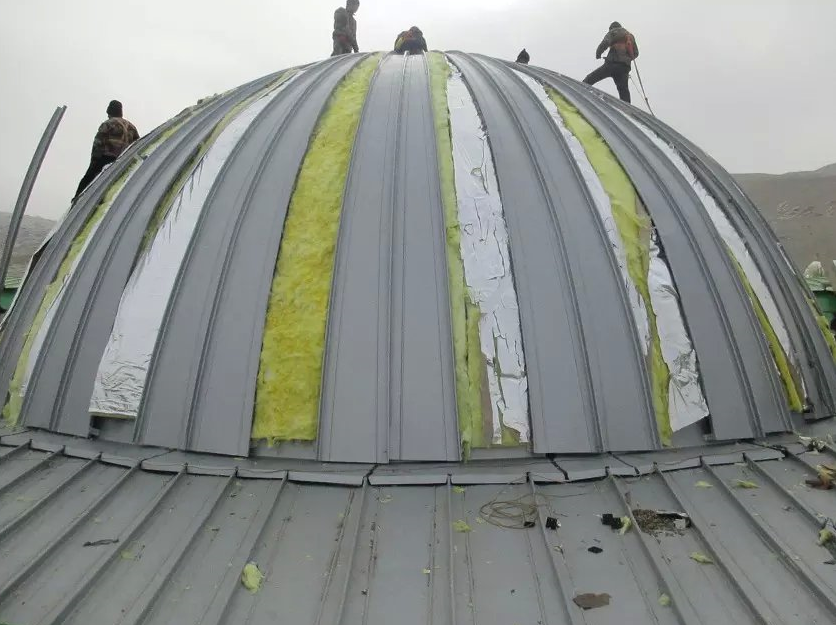

Curved Sheets are for different requirements in building design. full customized and automatically.

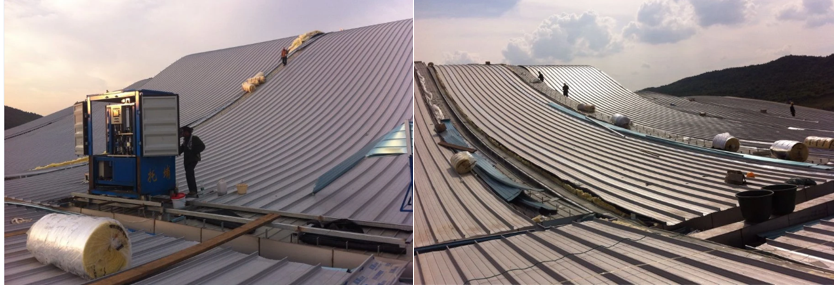

Usage of standing seam roofing sheets:
