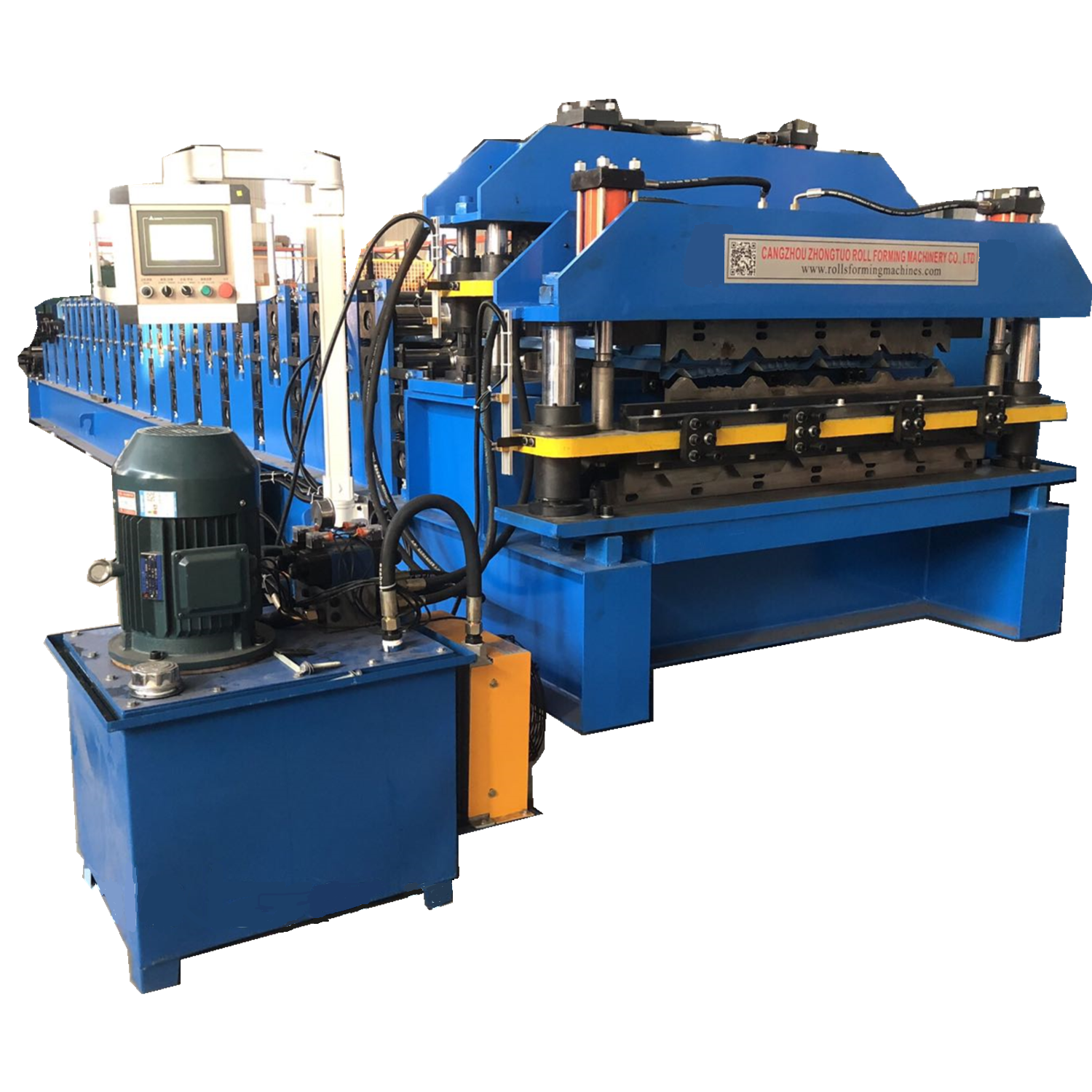

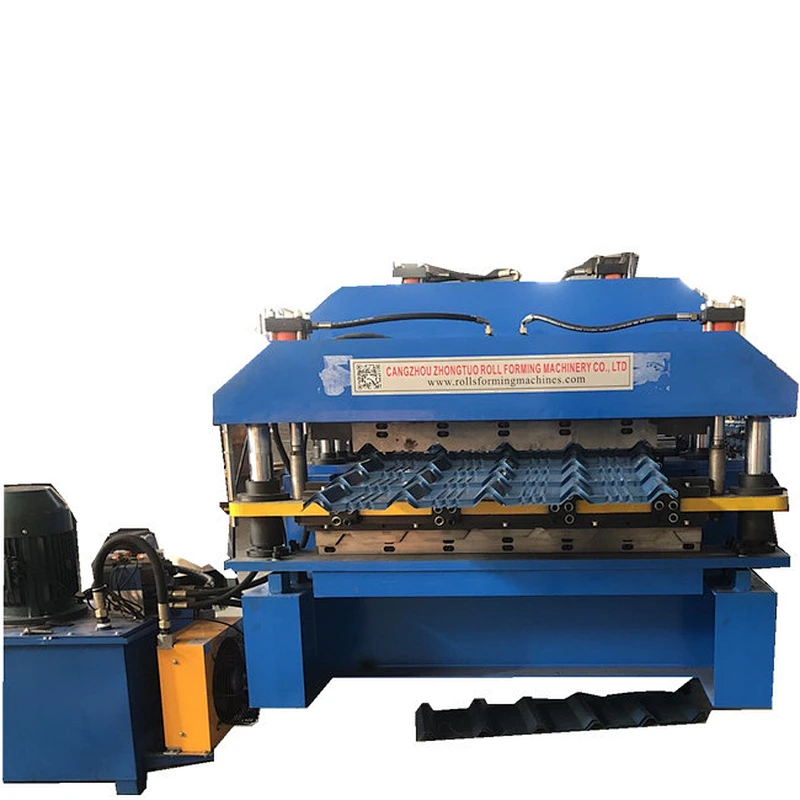

Versatile,Orientile, Zentile, Elegantile Metal Roofing Sheet Rolling Machine to Kenya

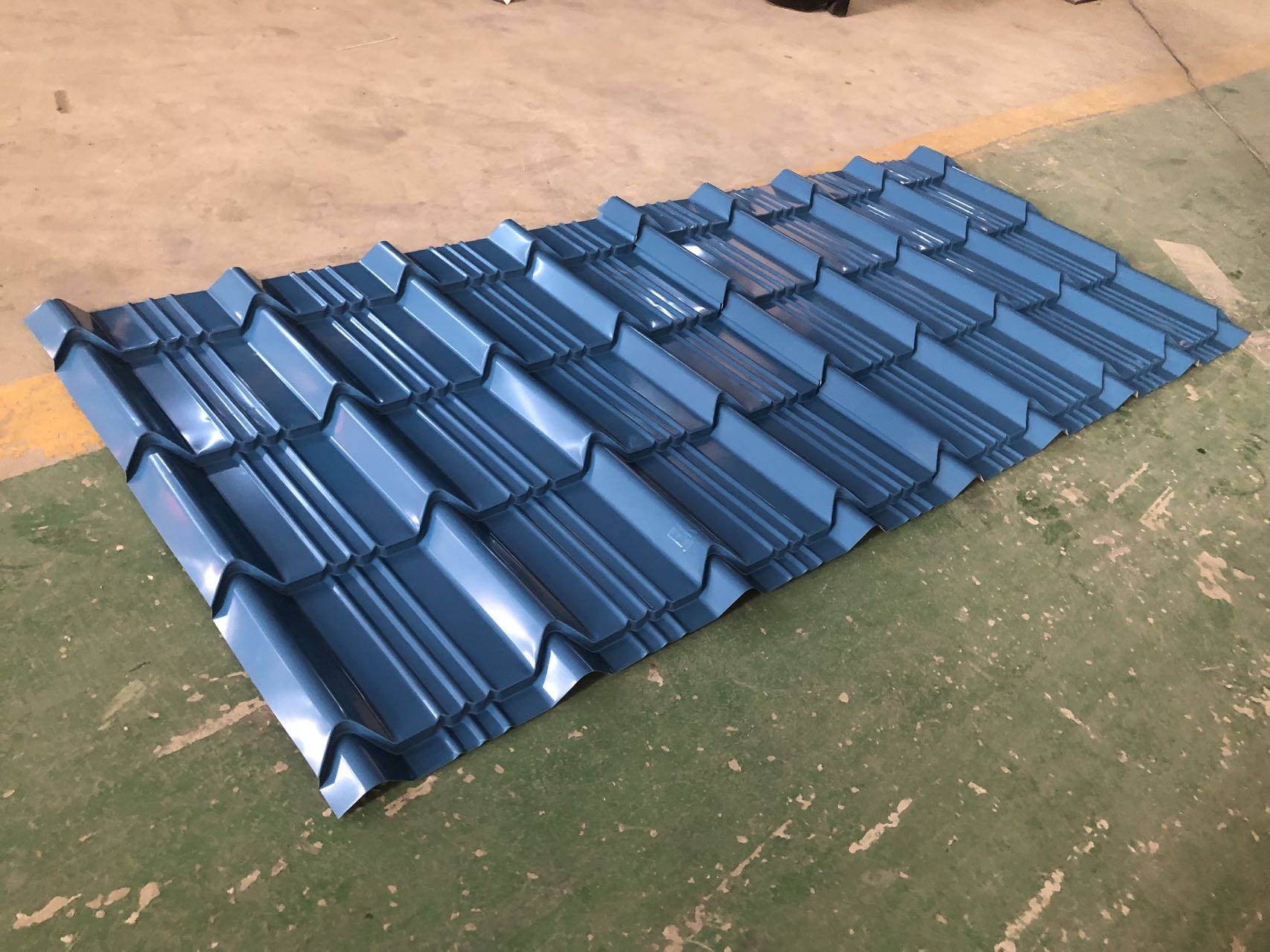

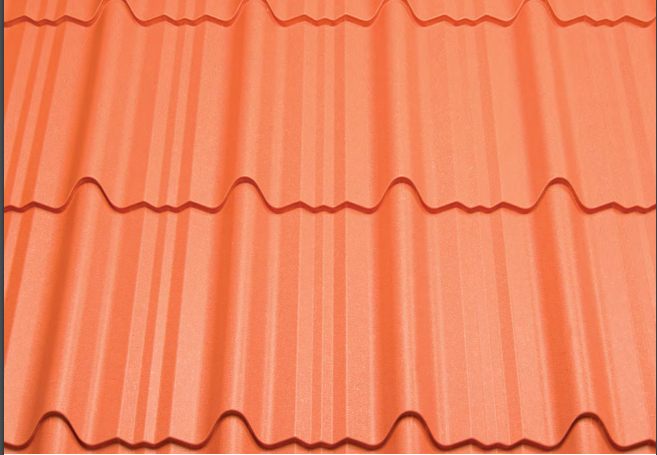

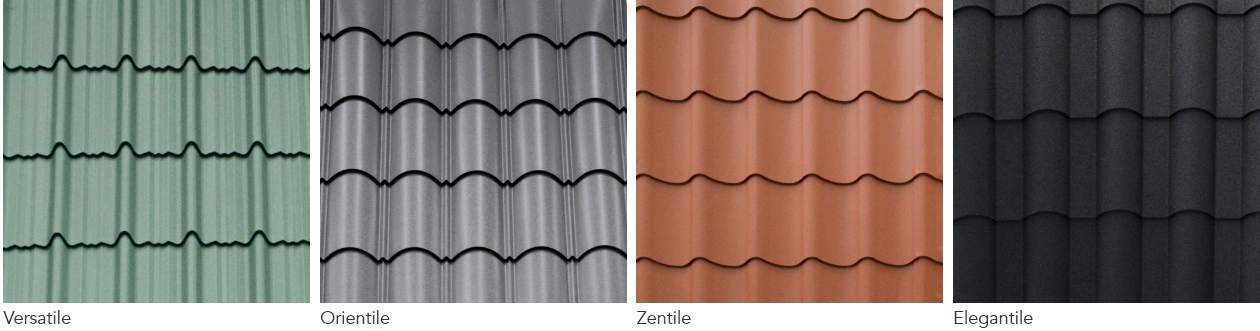

Versatile roofing sheet is a premium steel tile roofing sheet with the look of a classic roof tile but with a much longer life span. It is Kenya’s longest running painted steel tile and has built a legacy of affordable beauty for thousands of product users. Based on the market demand for Kenya, we specially designed the double layer roofing sheet machine to produce this. Count on a Versatile Roof to provide unmatched beauty, durability and cost efficiency. Renowned for beauty and durability, it is the market leader in steel tile roofing sheets among homeowners countrywide. Now let us check more types roofing tile which are quite popular in Kenya.

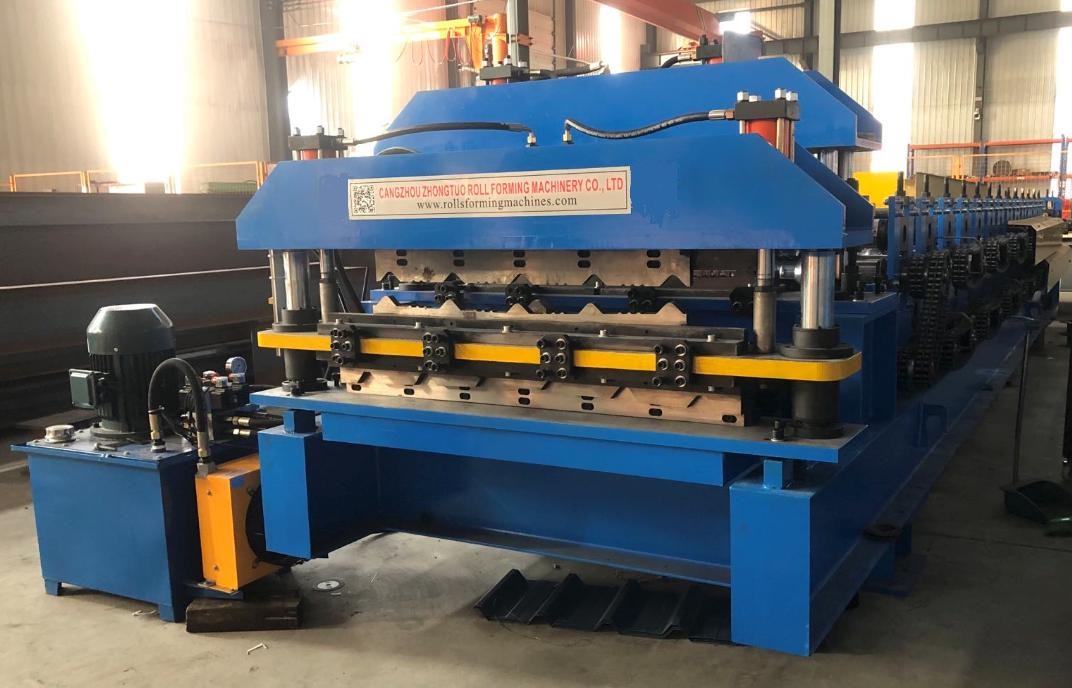

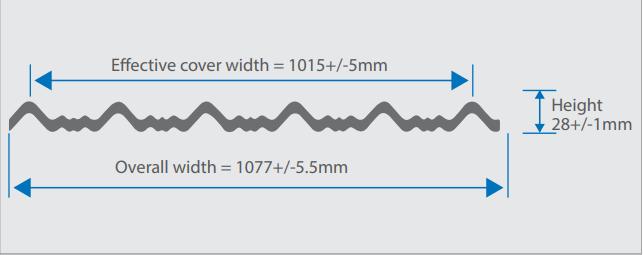

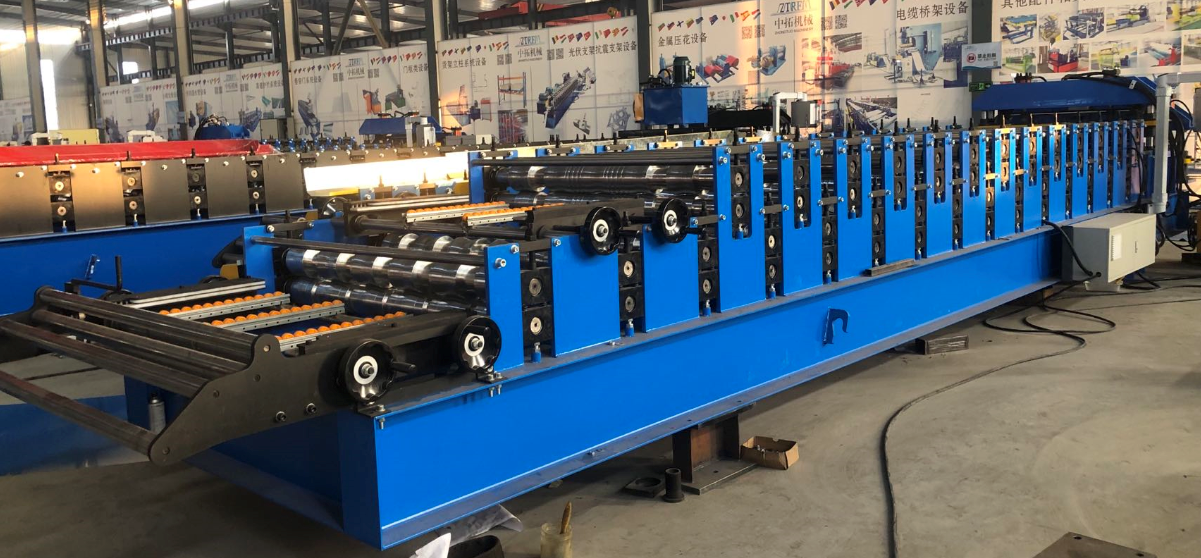

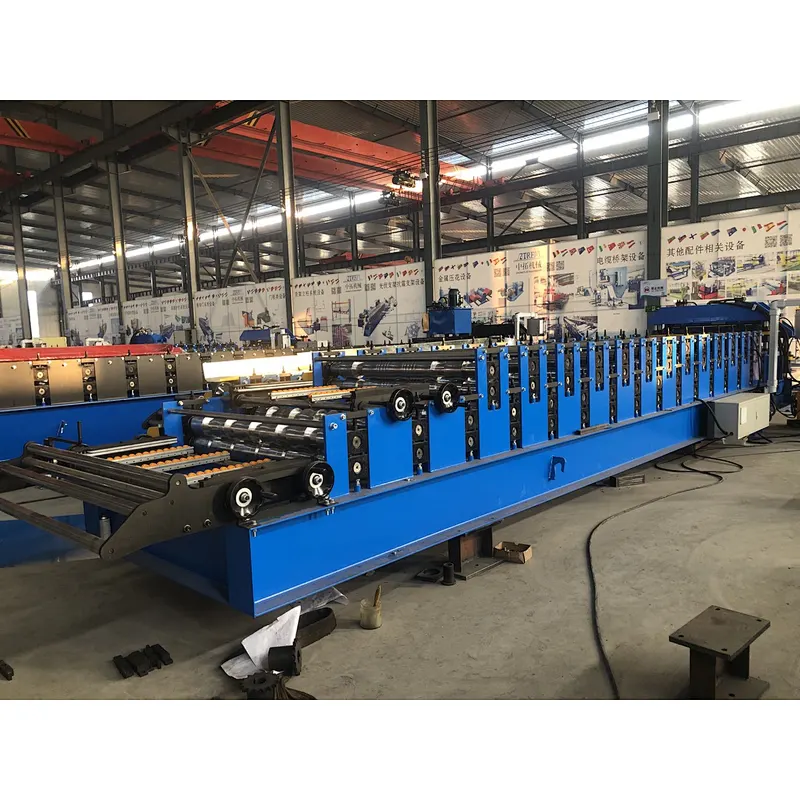

For this profile, you can either design it to the single layer roofing sheet machine or we can design it to the double layer roofing sheet machine. For save the cost for clients, here I will take a random double layer machine for your reference:

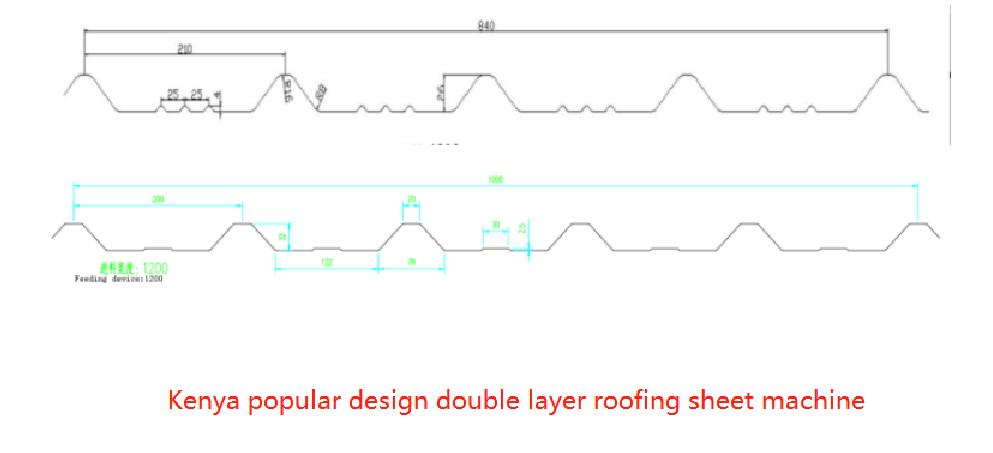

Here is another IBR type drawing profile for your reference:
| Main Roll Former of double layer machine | ||
Roll forming machine | Rolling shaft | Shaft material:45# STEEL |
| Shaft diameter: 70 mm | ||
| Tempering treatment to prevent deformed and improve hardness | ||
Roller | 45# steel | |
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life | ||
| Rolling station | Up layer: 14 rolling stations; Down layer: 16rolling stations | |
| Work speed | 0-20 m/min | |
| Machine structure | Steel plate welded structure | |
| Machine basic frame | 500# H steel welded | |
| Work power | 7.5 kw | |
| Rolling spacer | Anti rusty treatment | |
| Pull rod | Anti rusty treatment | |
| Transmission | By Chains with cover | |
| Noted: please fill the lube in case the chains getting dry | ||
Why our metal roofing sheet rolling machine can benefit you?
- We have lots of experience of Kenya market, we know more about the local situation. We can recommend the right design and parameters of the machine for your reference.

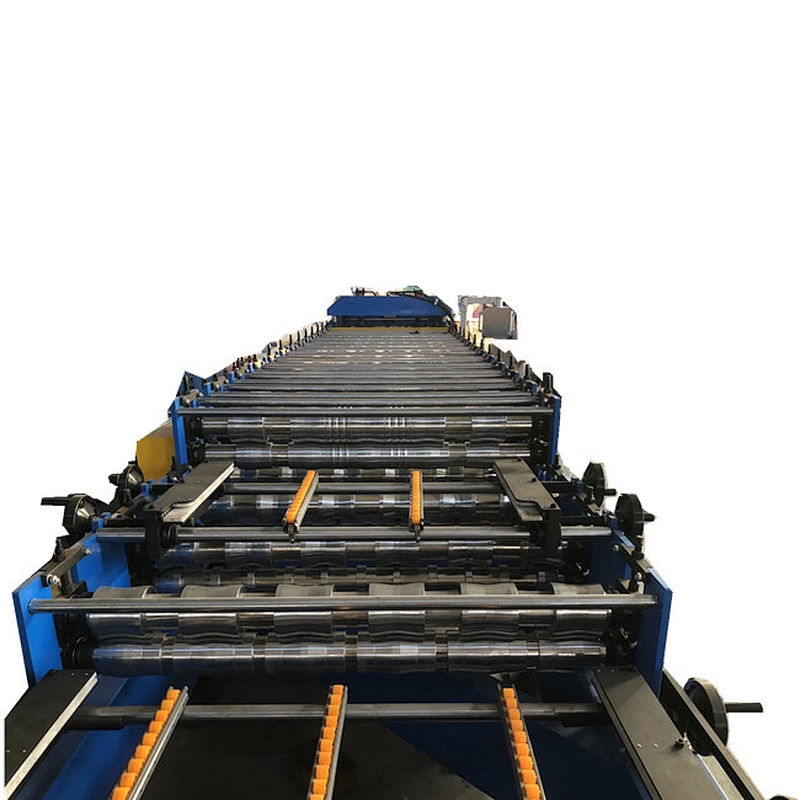

- The machine we design uses the high quality leveling system to make sure the coil neat and clear, there will be no scratch on the surface of the coil.
- We design the machine with handrail, with hooker for easy loading. With portable PLC.

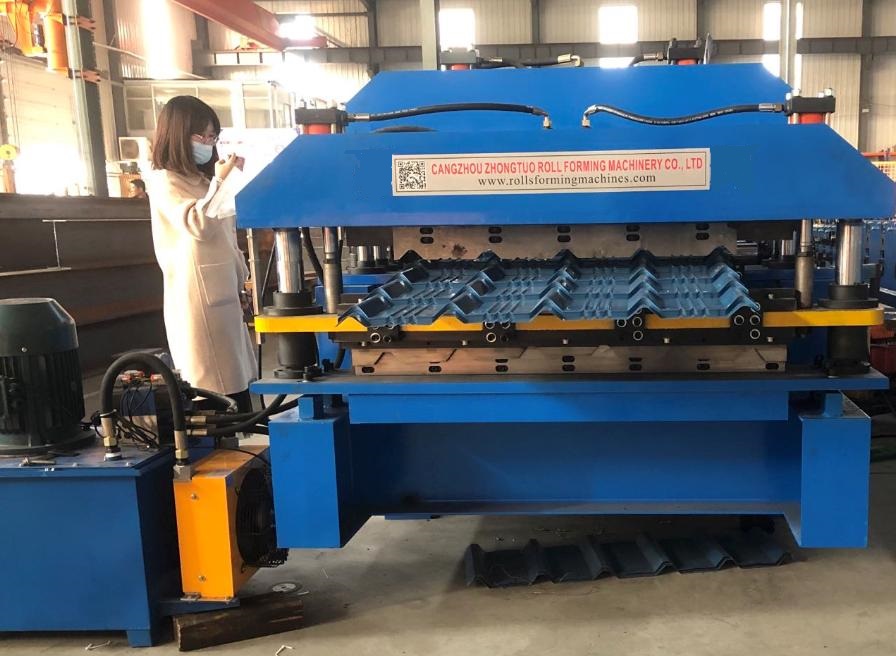

- With hydraulic jacks for more powerful to use.By those special design, we can make sure the machine working smoothly without any problem.

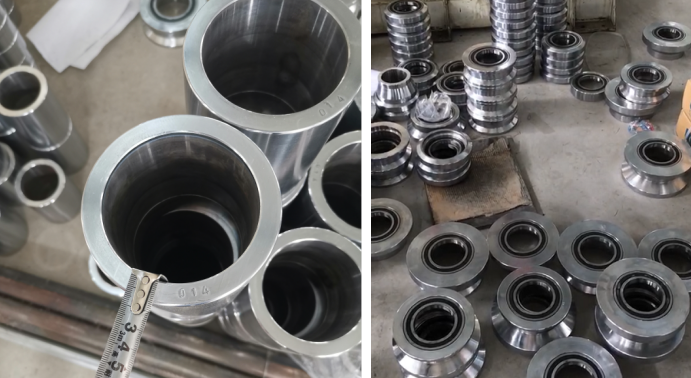

For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future.

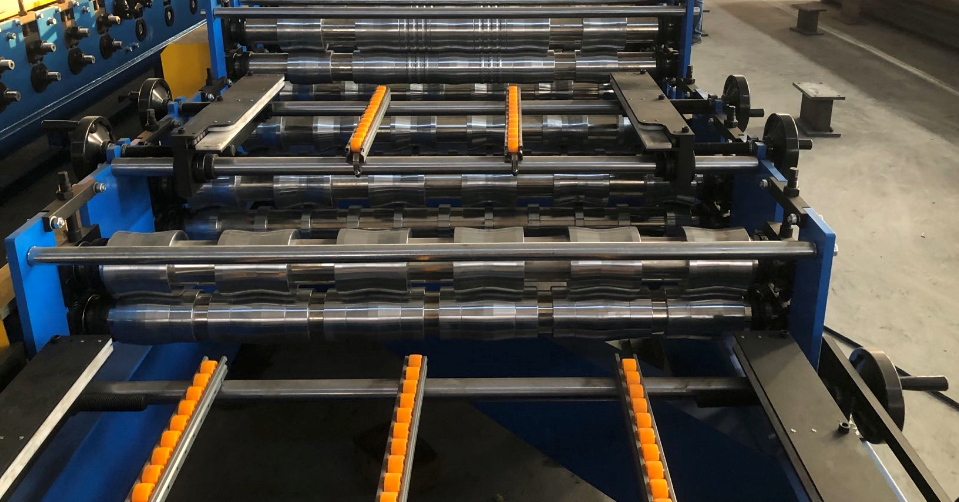

There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run. 3. Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster. 4. All rollers and spacers, we do 3mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 1-2mm chrome coating.
Here are more popular designs for Kenya market for you to choose:
Versatile,Orientile, Zentile, Elegantile metal roofing sheet rolling machine to Kenya machine testing video for your reference:
0"height="415"src="https://www.youtube.com/embed/BJKP-fs7O-k"title="YouTube video player"frameborder="0"allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture"allowfullscreen>
