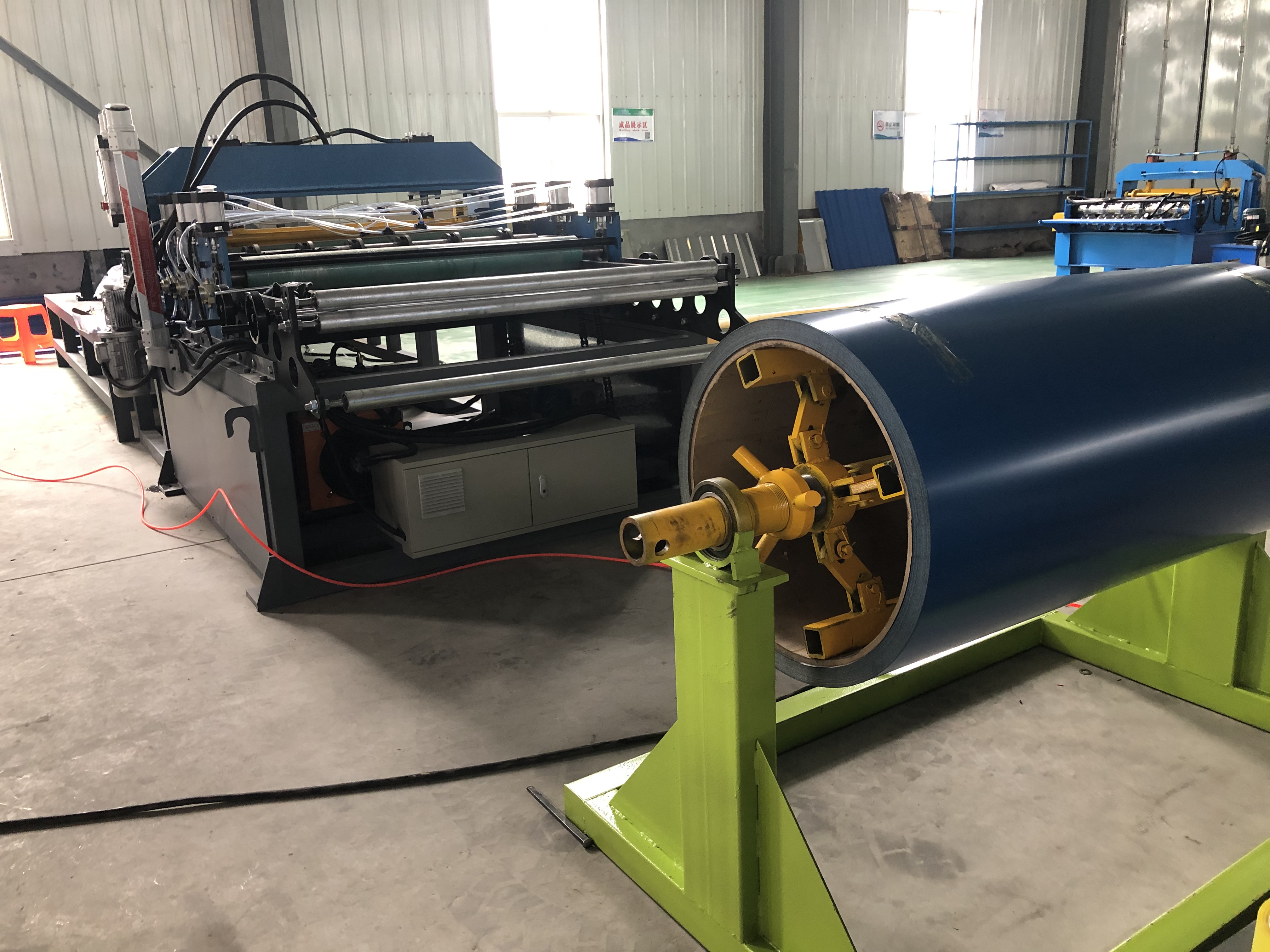

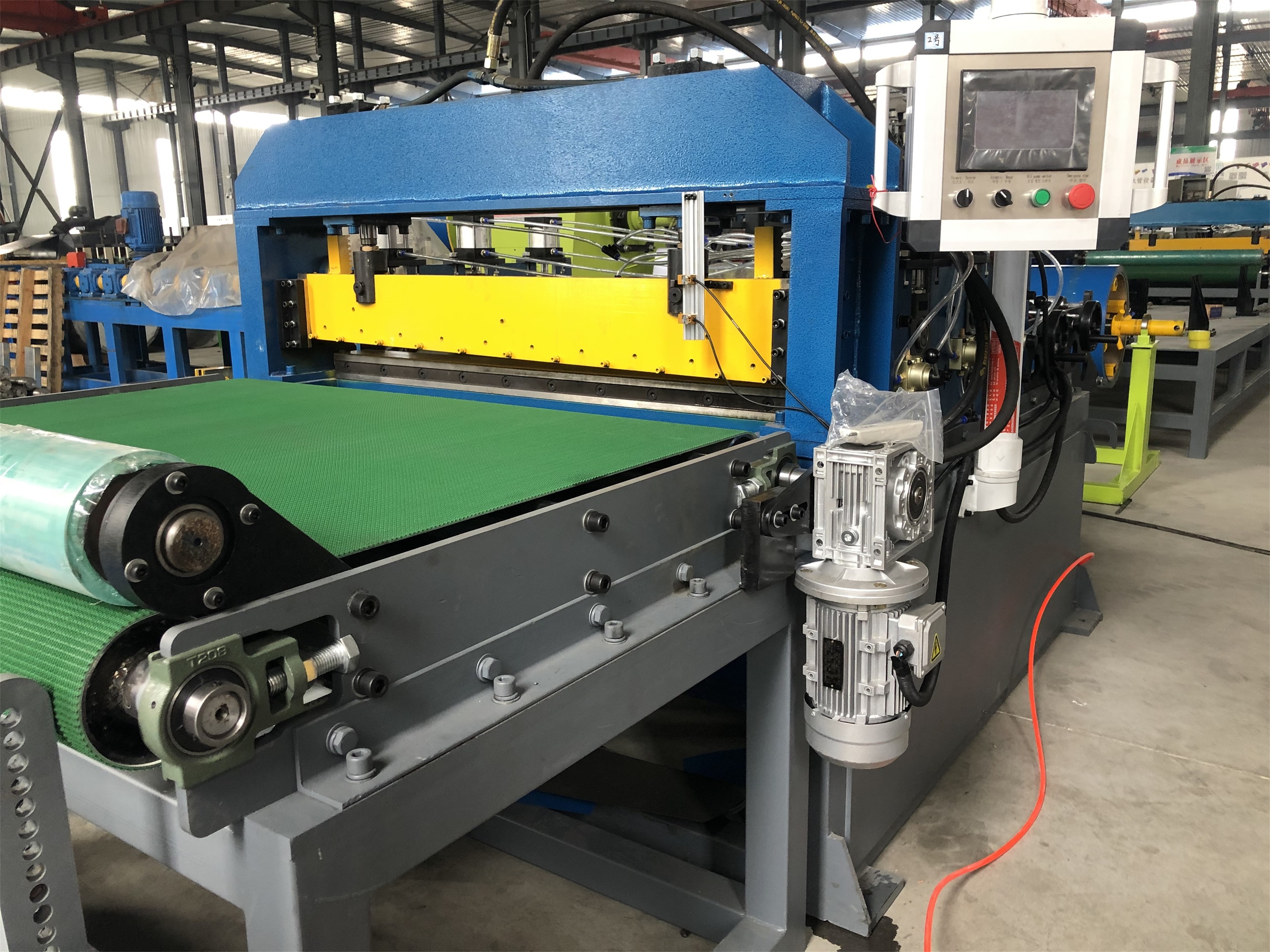

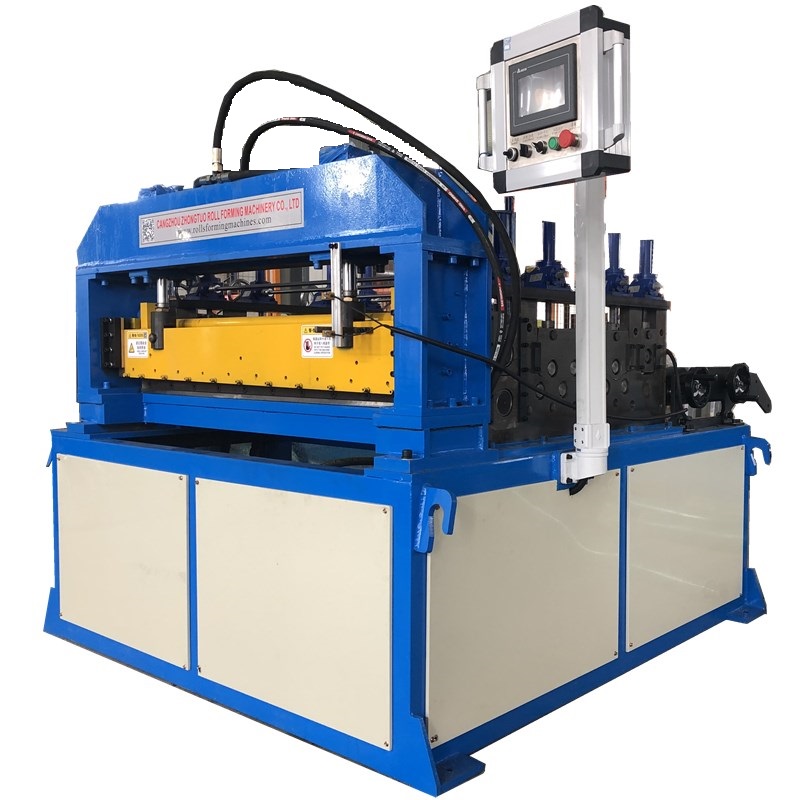

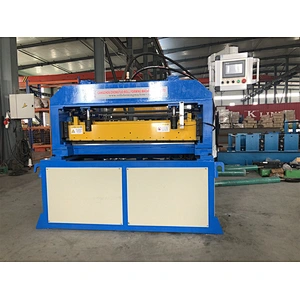

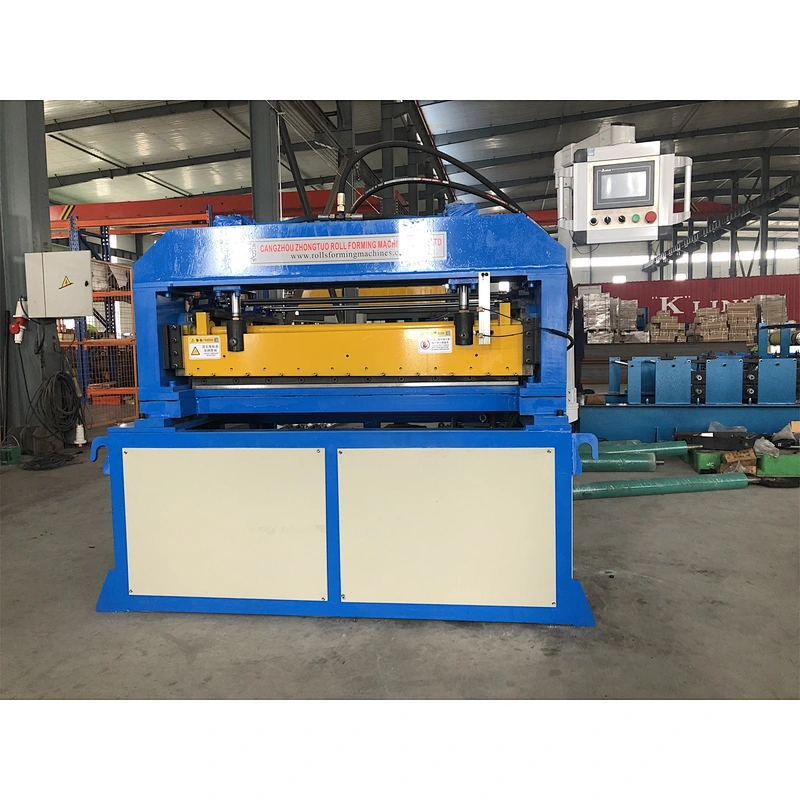

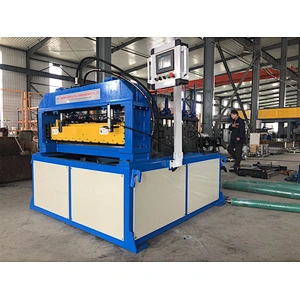

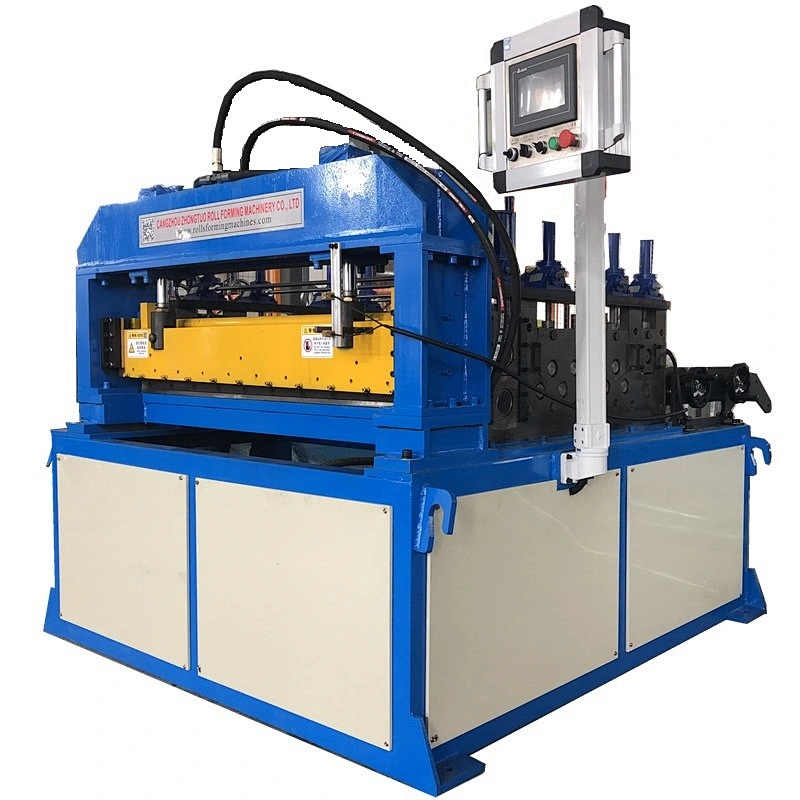

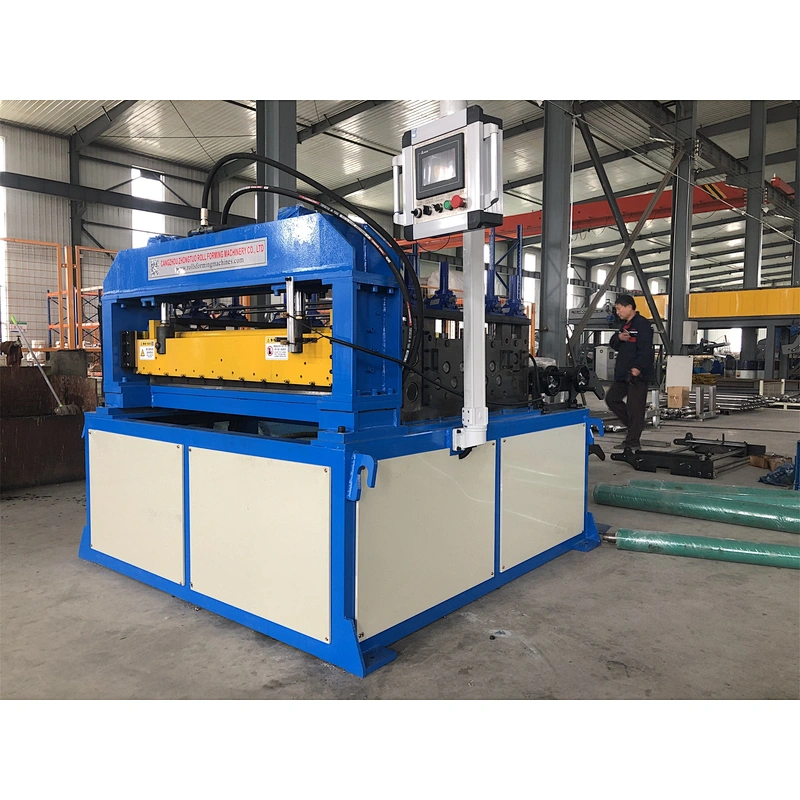

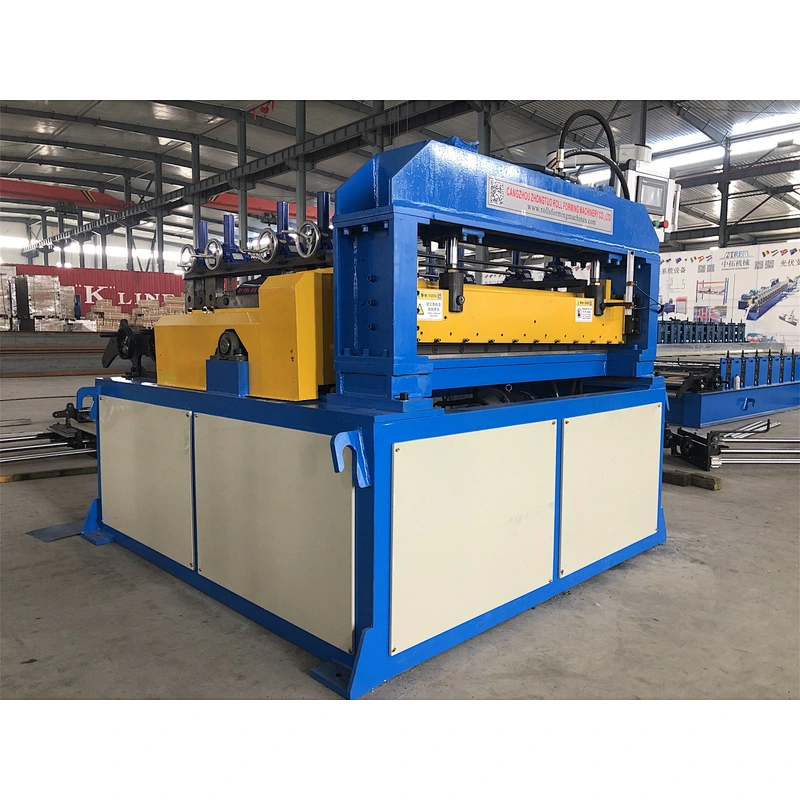

Steel Coil Slitting and Cut to Length Machine

SimThe simple slitting and cut to length machine can automatically process the steel coil into steel plates or steel strips of different widths and leThe simple slitting and cut to length machine can automatically process the steel coil into steel plates or steel strips of different widths and lengths according to your requirements, controlled by PLC control system.ngths according to your requirements, controlled by PLC control system.

Main Components

No	Name	Unit	Quantity
1	Slitting and cutting machine	Set	1
2	PLC control system	Set	1
3	Hydraulic station	Set	1
4	Product table	Set	1

Technical Parameter

Raw material request	Raw material max width	1250 mm
	Raw material thickness	0.3-0.8mm
	Slitting piece	max 5 pieces

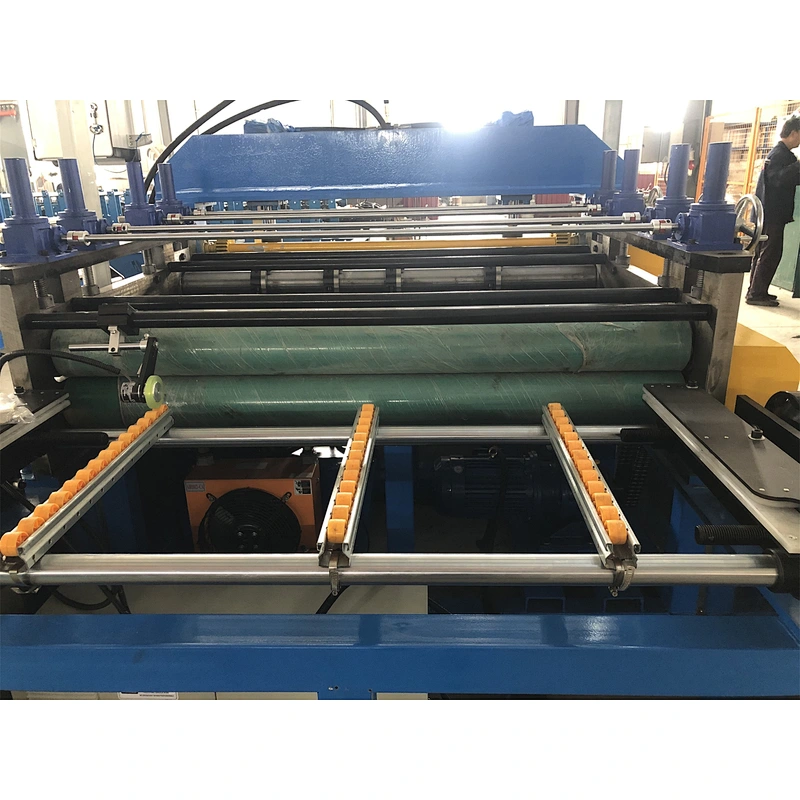

Leveling & feeding device	Rolling shaft material	45# STEEL
	Shaft diameter	70 mm
	Leveling station	Up rollers 4,down rollers 5
	Power	3 kw

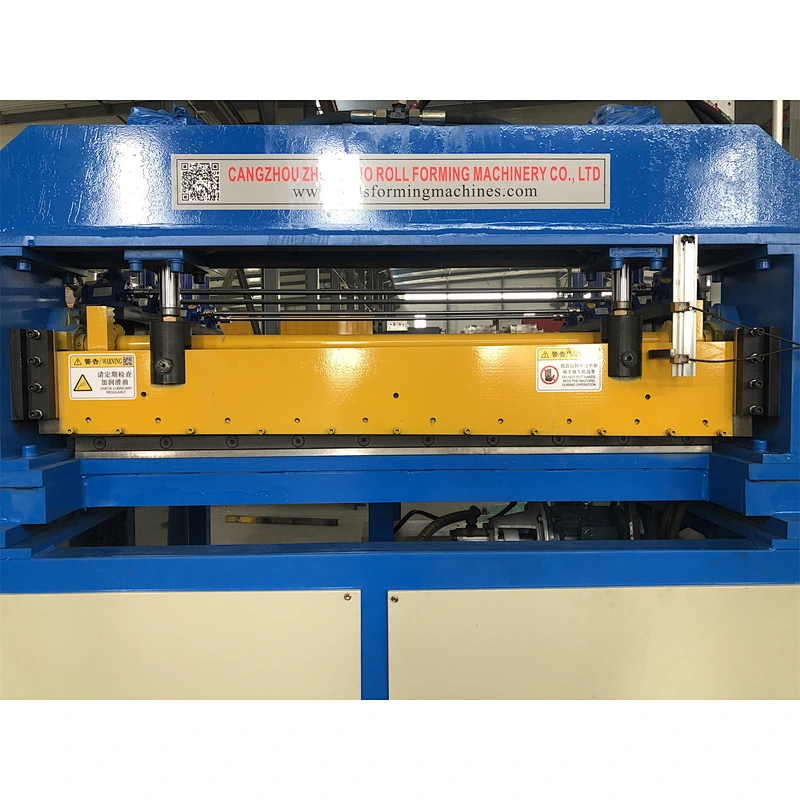

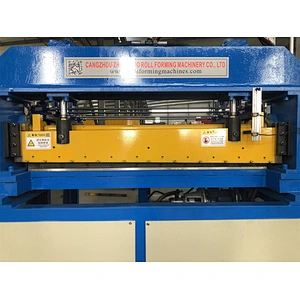

Slitting and cutting device	Slitting blade	4 pcs with rubber shims (You can choose how many blade you want)
	Slitting blade material	Cr12 with quenched treatment
	Cutting blade material	Cr12 with quenched treatment
	Cutting width	Max 1250mm

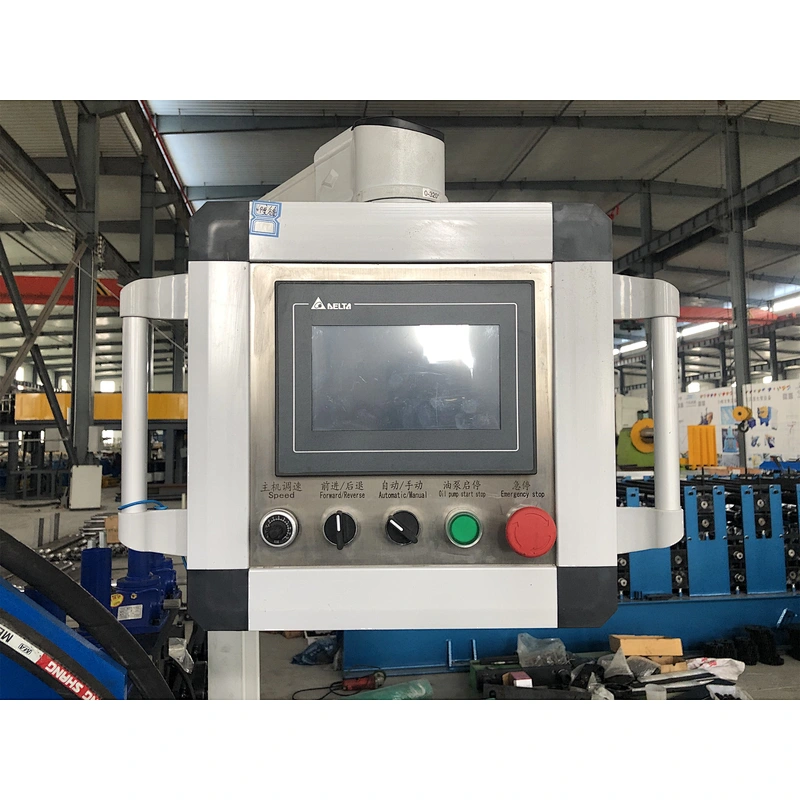

Control station	PLC Brand	Delta
	Language	English
	Screen type	Touch screen
Hydraulic station	Power	3kw
	Cool method	By fans

Optional Components:
1. Manual decoiler or hydraulic decoiler

2. Convery platform and stacker


You can adjust the space of slitting blade for different width strips.
The machine can only slitting or cutting the steel coil, also can both slitting and cutting process, to meet your different requirements.

For more information, please contact with us.
