Snap-Lock Standing Seam Roofing Sheet Rolling Forming Machine

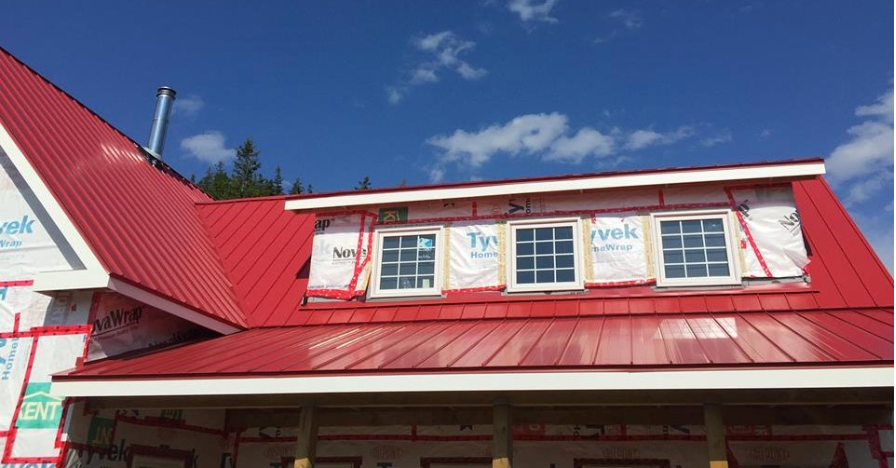

Snap lock standing seam is created by “snapping” on side of a metal roofing panel onto another so that they hook together and are fastened to the roof by a nailing flange then hidden by the next sheet, no special tools needed for installation. As the demand of the market, we have developed the Snap-Lock Standing Seam roofing sheet rolling forming machine.

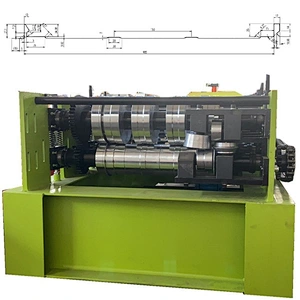

Take the following Snap-Lock Standing Seam roofing sheet drawing profile for examples:

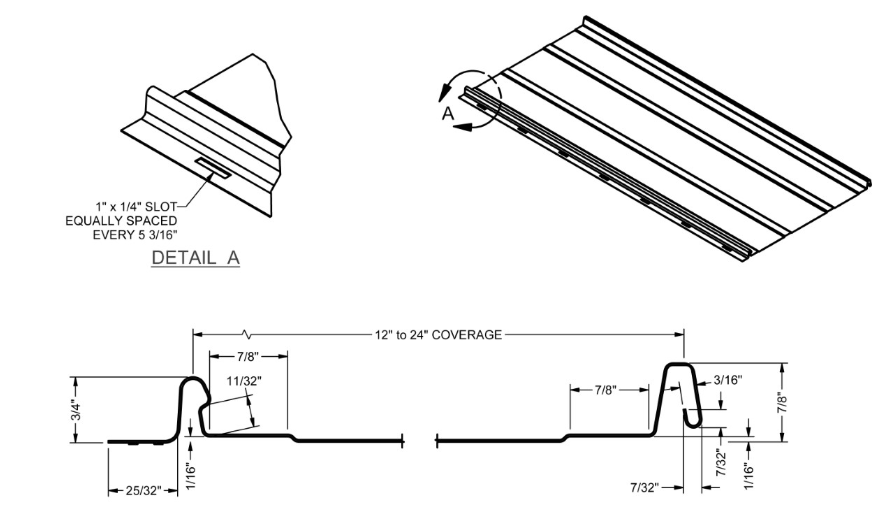

Popular design 1:

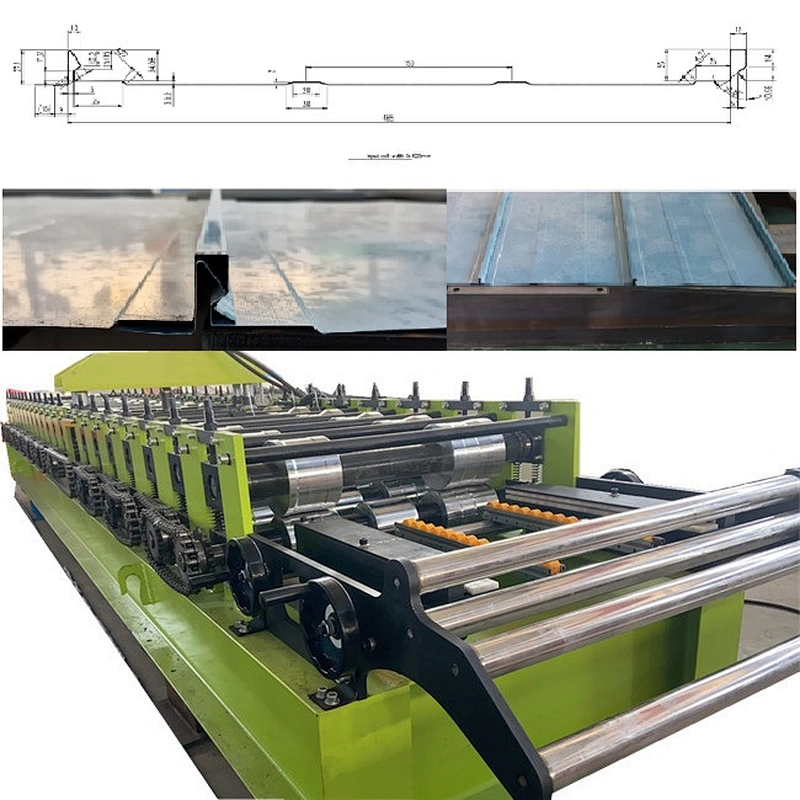

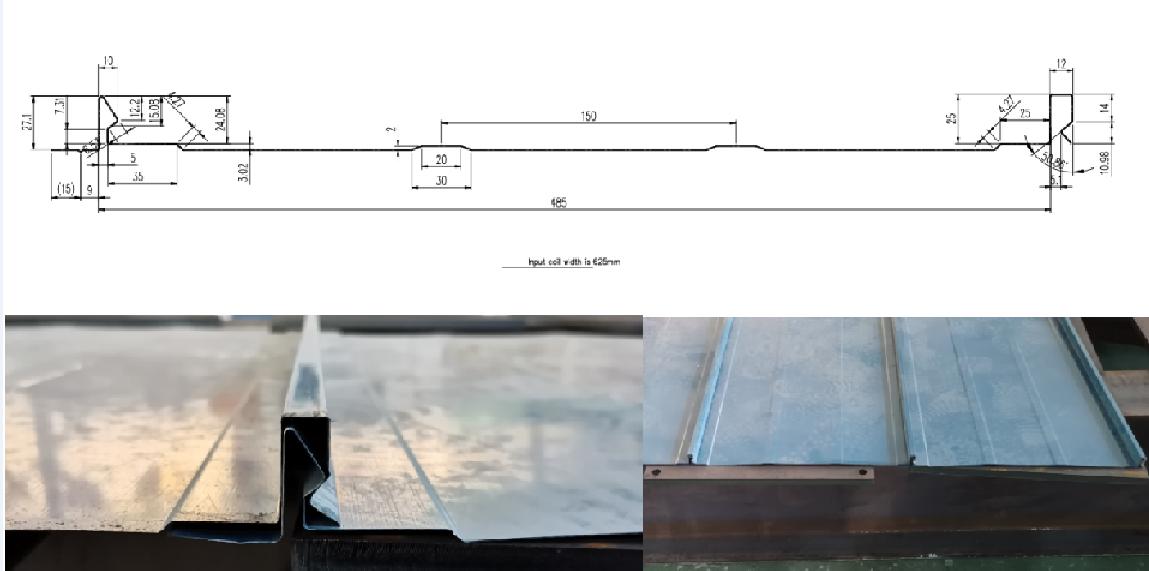

Popular design 2:

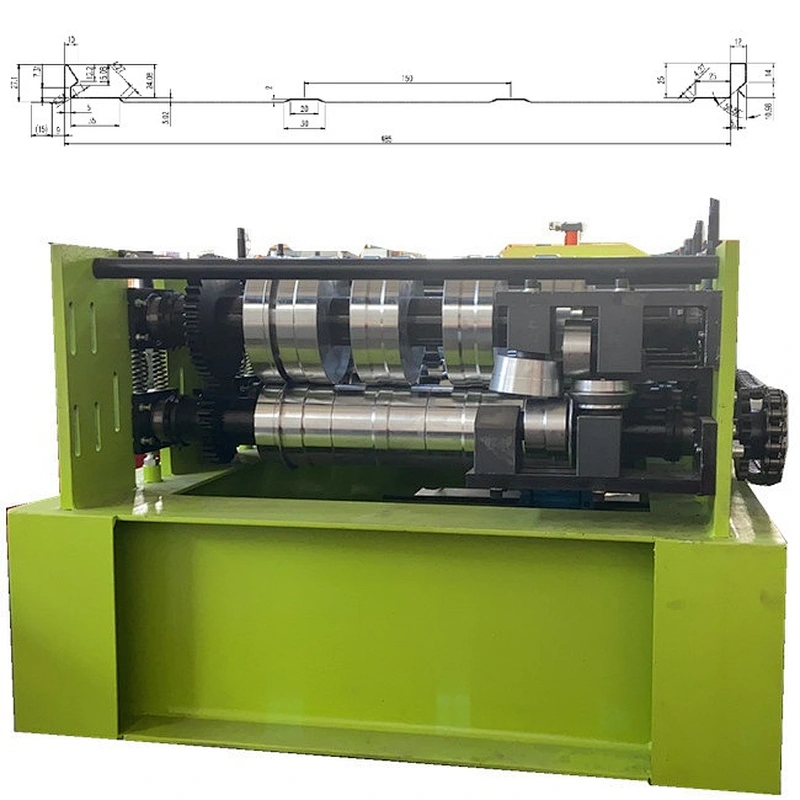

Snap-Lock standing seam roofing roll forming machine design:

Product sheet		Raw material		GI&PPGI&G550
		Material thickness		0.3-0.8 mm
		Feeding width		1220mm
		Effective width		930 mm
		Sheet cutting length		Adjustable
Main roll former

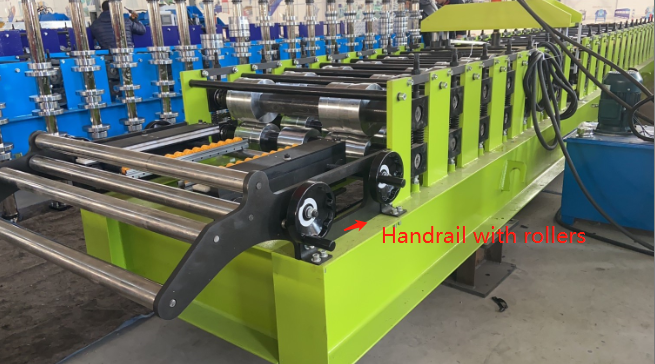

Roll forming machine	Feeding device		One set guiding roller
			Steel plate welded platform to carry the sheet and feed into roll forming system
			Feeding width is adjustable with the handle wheels.

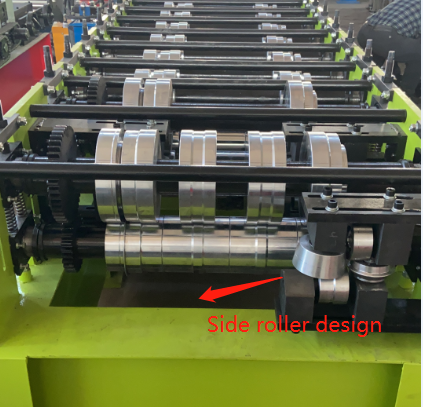

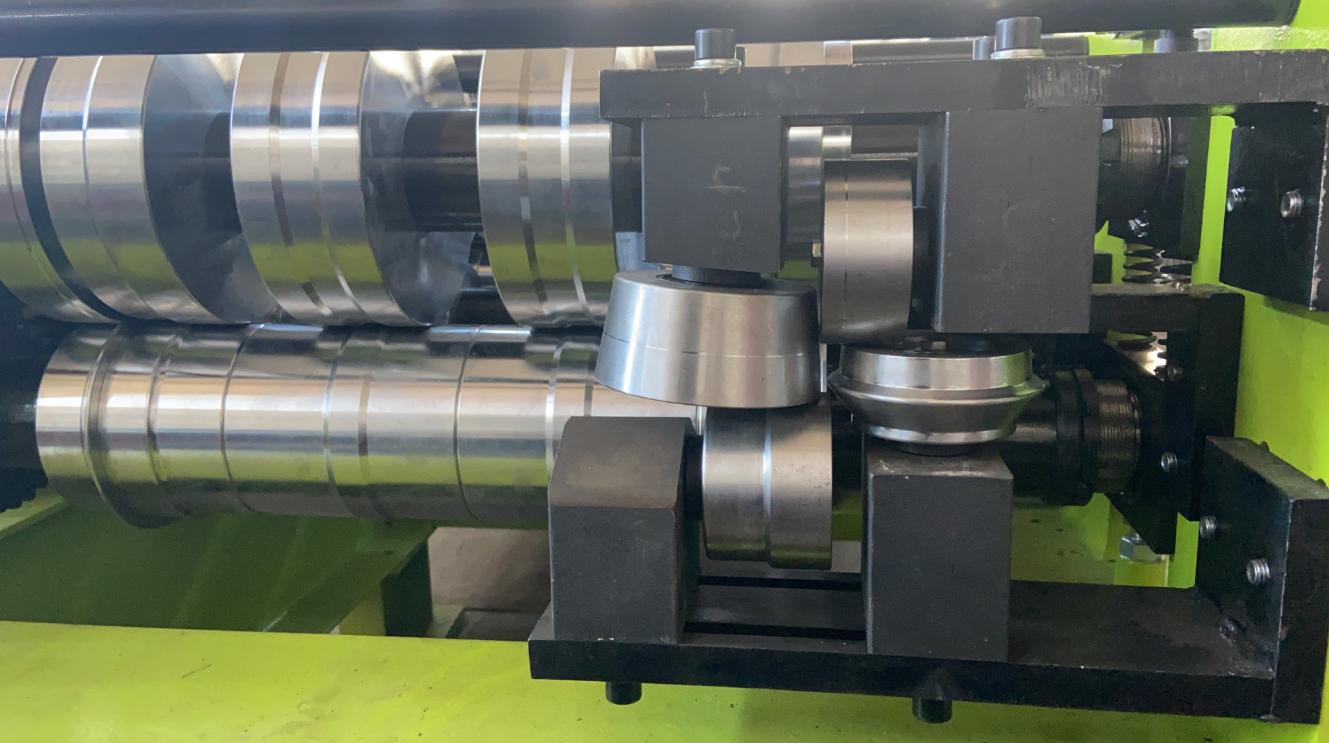

	Rolling shaft Roller		Shaft material:45# STEEL
			Shaft diameter: 75 mm
			Tempering treatment to prevent deformed and improve hardness.
			45# steel 45 # сталь
			Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life

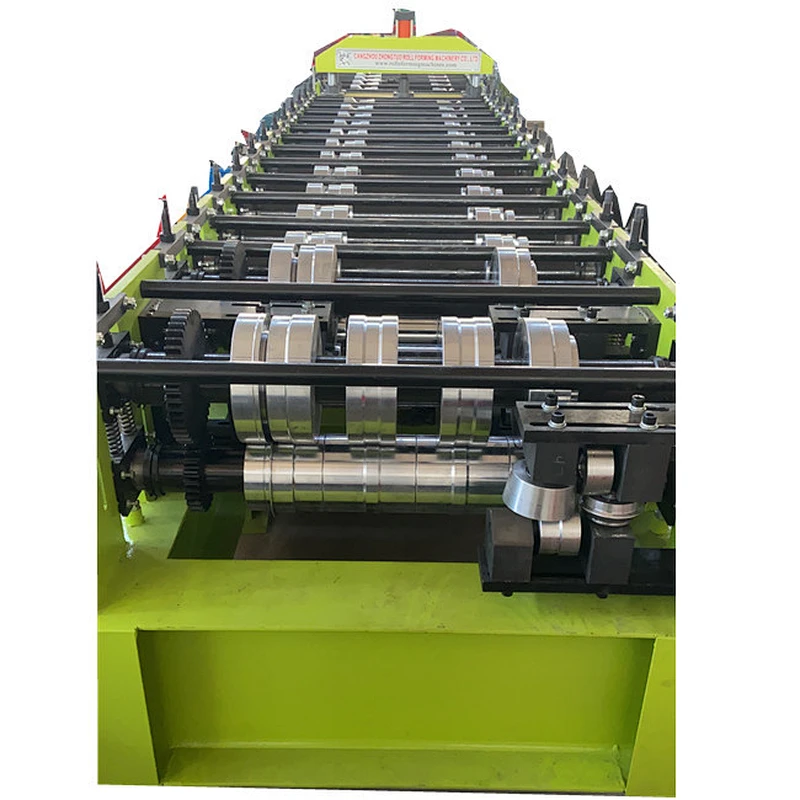

	Rolling station		20 rolling stations
	Work speed		20 m/min
	Machine structure		Steel plate welded structure
	Machine basic frame		350# H steel welded
	Work power		7.5 kw
	Rolling spacer		Anti rusty treatment
	Pull rod		Anti rusty treatment
	Transmission		By Chains with cover
			Noted: please fill the lube in case the chains getting dry.
