Roof Edgings and Trim Profiles F5 Roll Forming Machine
Roof Edgings and Trim Profiles F5 roll forming machine is designed to make roof edging and trim profile like F5 by rolling forming machines. The edging and trim products include drip edge, slag stop, drip cap, W and V valley flashing, ridge roll and brick molding. A variety of colors are available, consult our product catalog for details. The roof edging and trim is made using only the finest copper, aluminum and steel.The trim F profile has the following features & benefits
Protects against water infiltration.
Available in painted aluminum, mill finish aluminum, copper, galvanized steel and painted steel.
Offered in a wide variety of profiles.

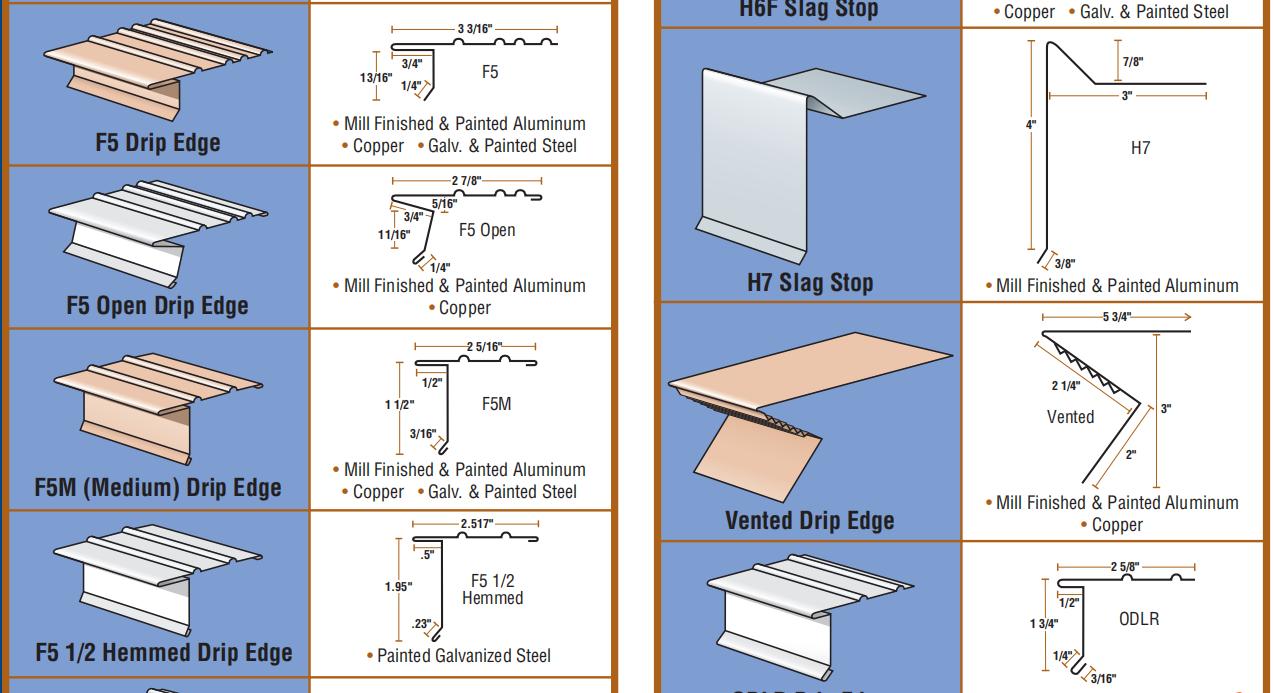

Take the following drawing profile for your reference:

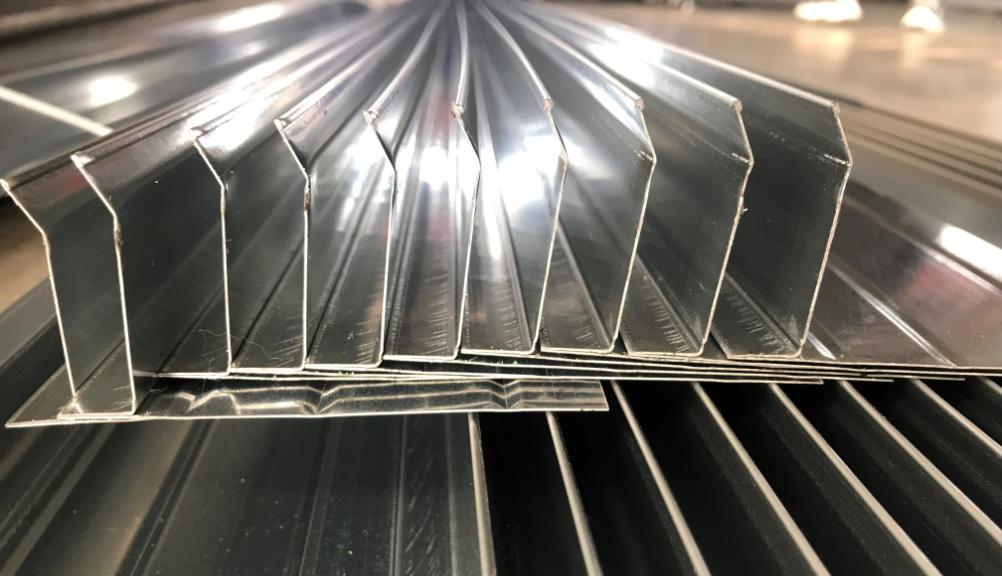

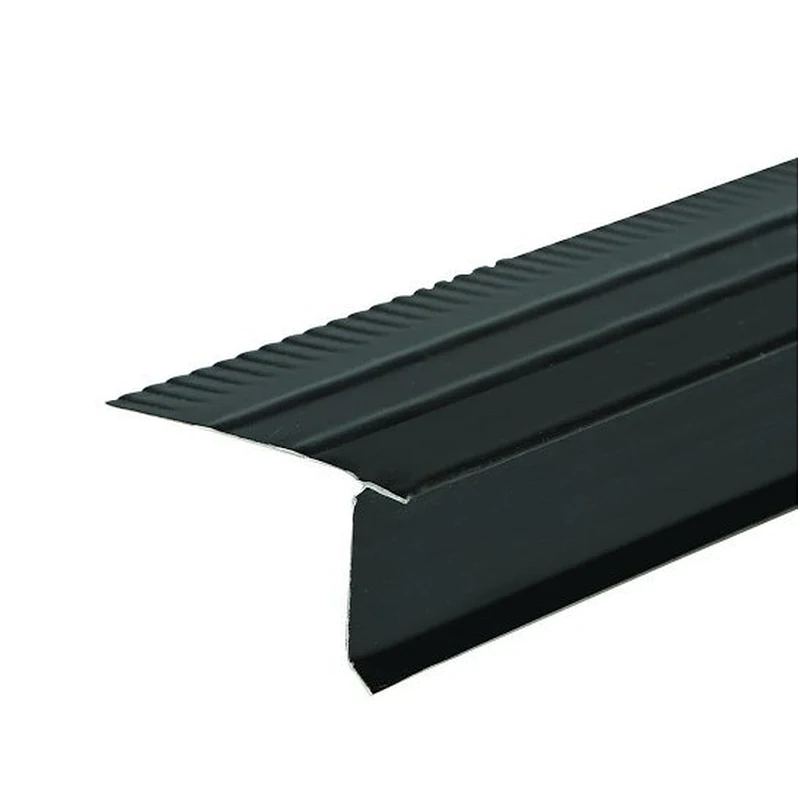

Roof Edgings and Trim Profiles F5:

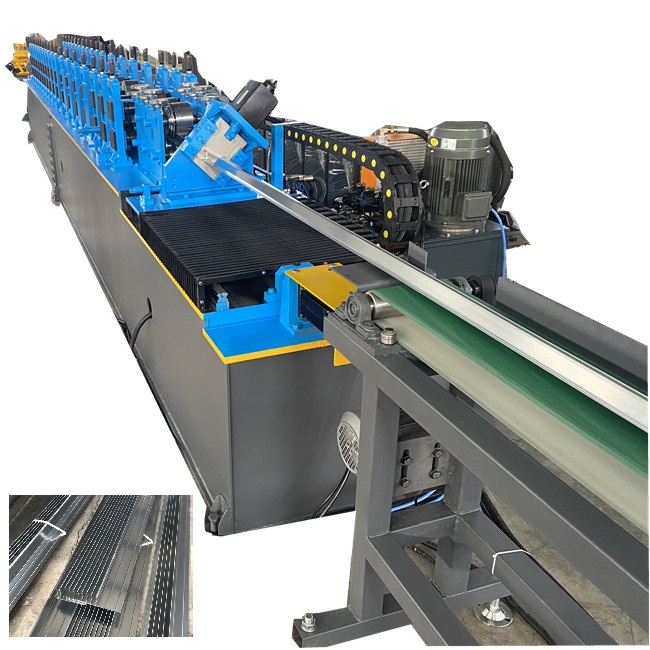

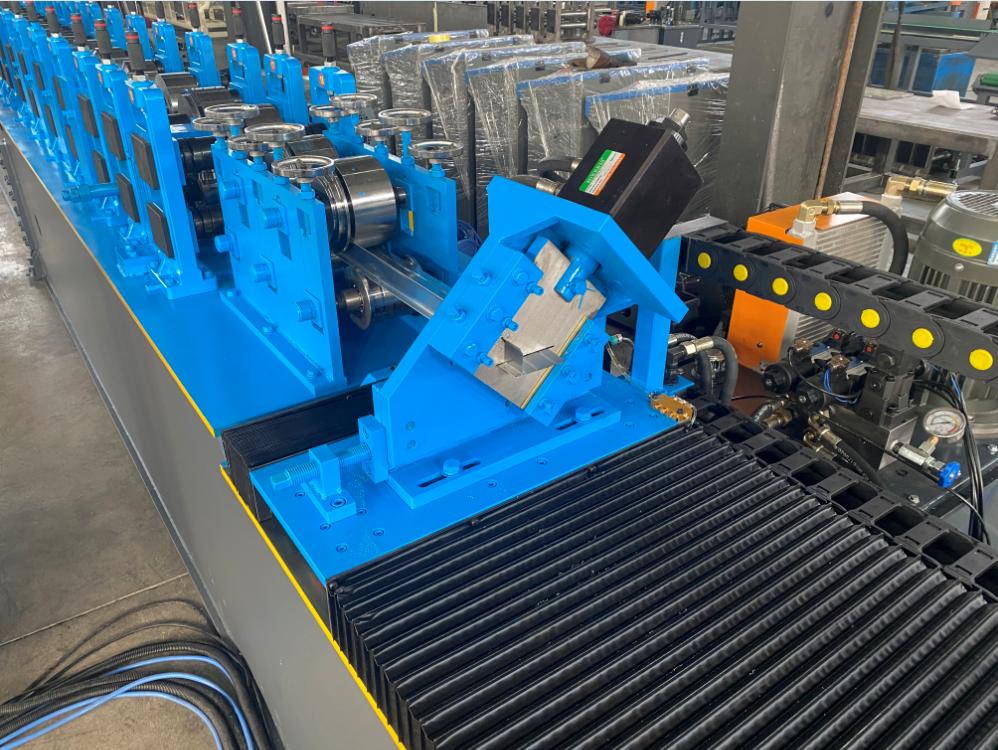

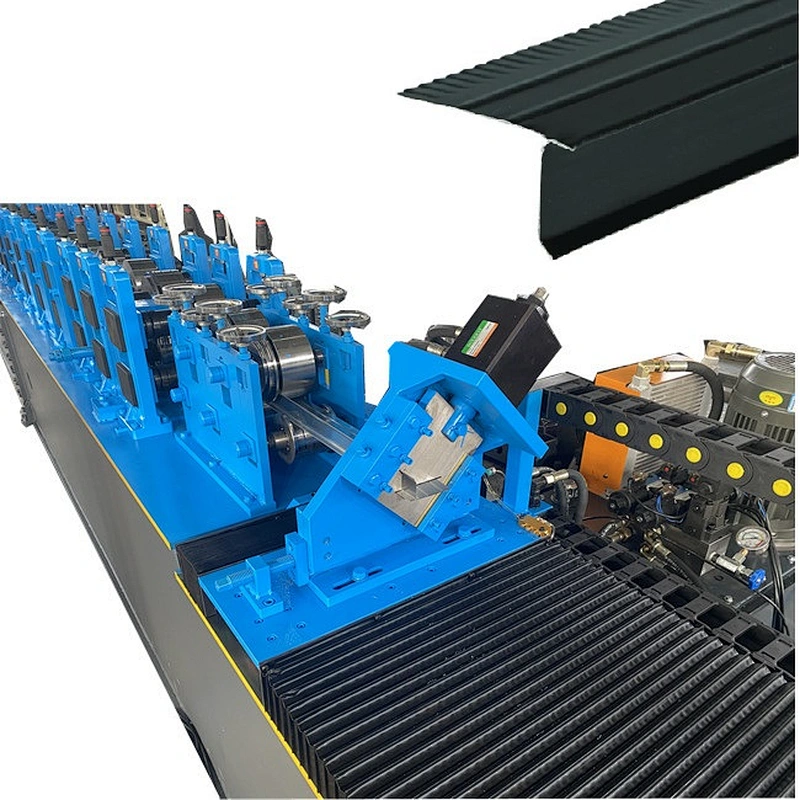

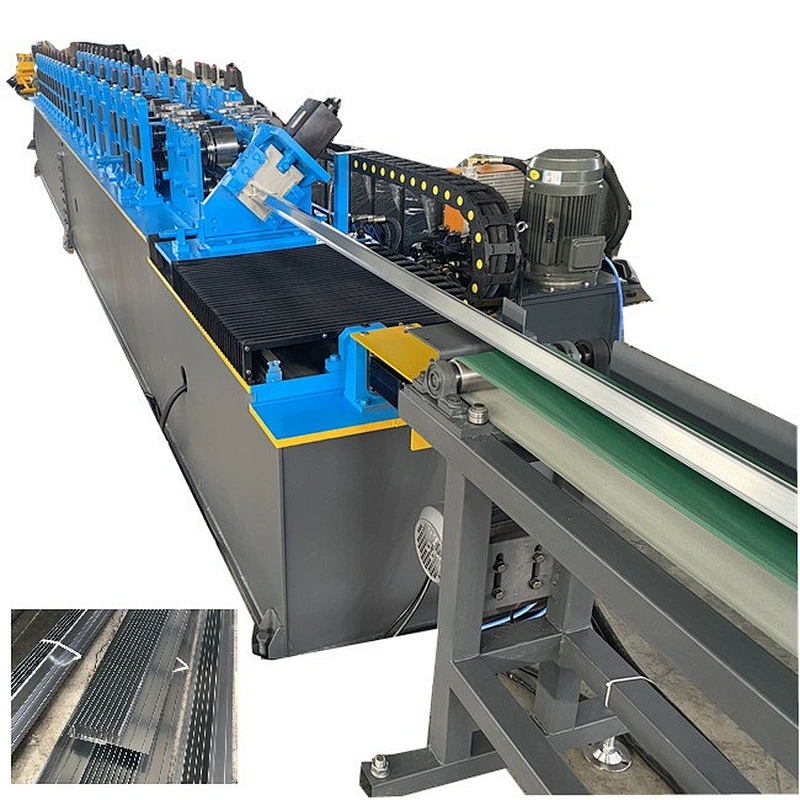

Roof Edgings and Trim Profiles F5 roll forming machine:
Roof Edgings and Trim Profiles F5 roll forming machine some basic parameters for your reference.
| Series | Details | Parameter | Comment | |
| Material | Raw material | Steel | Customer confirmed | |
| Material thickness | 0.4-0.6 mm | |||
| Decoiler | Structure | Manual passive type | The standard one to match the production line | |
| Single head type | ||||
| Loading capacity | 1.5 Tons | |||
| Coil inner diameter | 450-550 mm | |||
Roll forming machine | Guiding device | Placed on the machine by seller | ||
| Rolling shaft material | 45# STEEL | |||
| Shaft diameter | 50 mm | |||
| Roller material | GB-Cr12 | |||
| Rolling station | 16 stations | |||
| Work speed | 15-20m/min | |||
| Machinestructure | Vertical memorial arch frame | |||
| Machinebasic frame | Steel plate welded | |||
| Bearing | Roller bearing | Famous brand of Harbin | ||
| Work power | 5.5kw | |||
| Transmission | Bygear | With cover | ||
| Safety cover | available | |||
Appearance | Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy | We confirm each detail can match the standard, ensure the machine is 100% new! | ||
| Decoiler, we can change to hydraulic one if you need. | ||||
 |  | |||

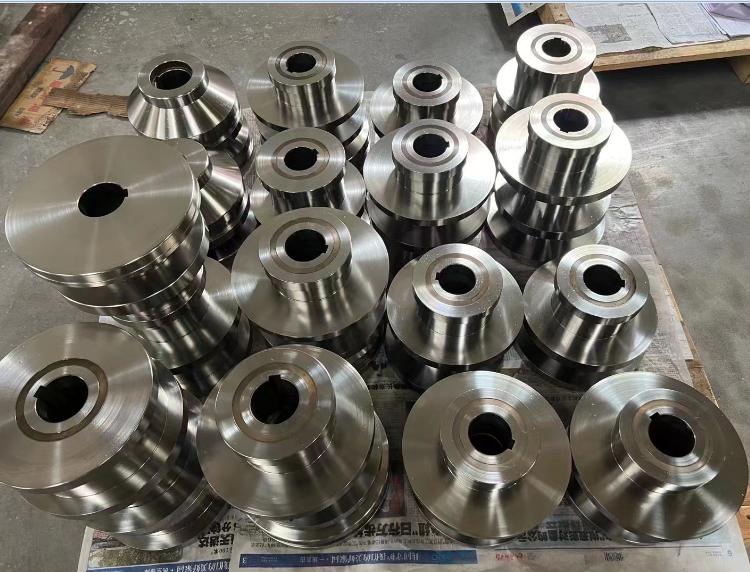

| High quality rollers are the key points to make the good quality machine. | ||||

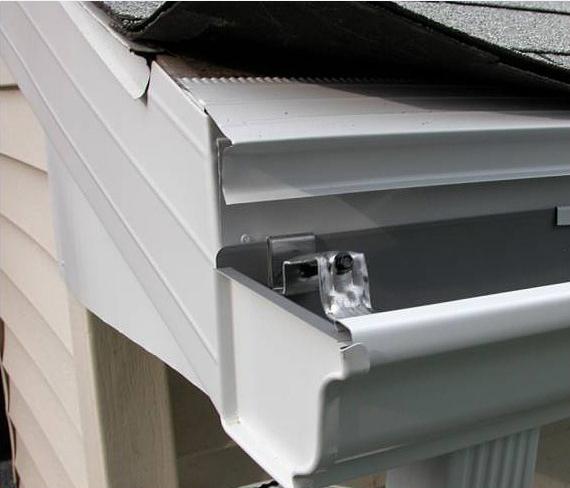

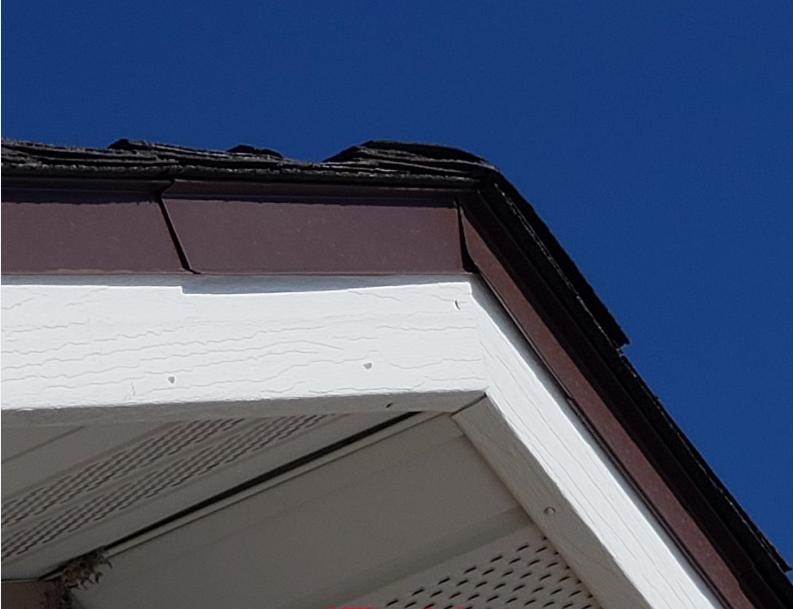

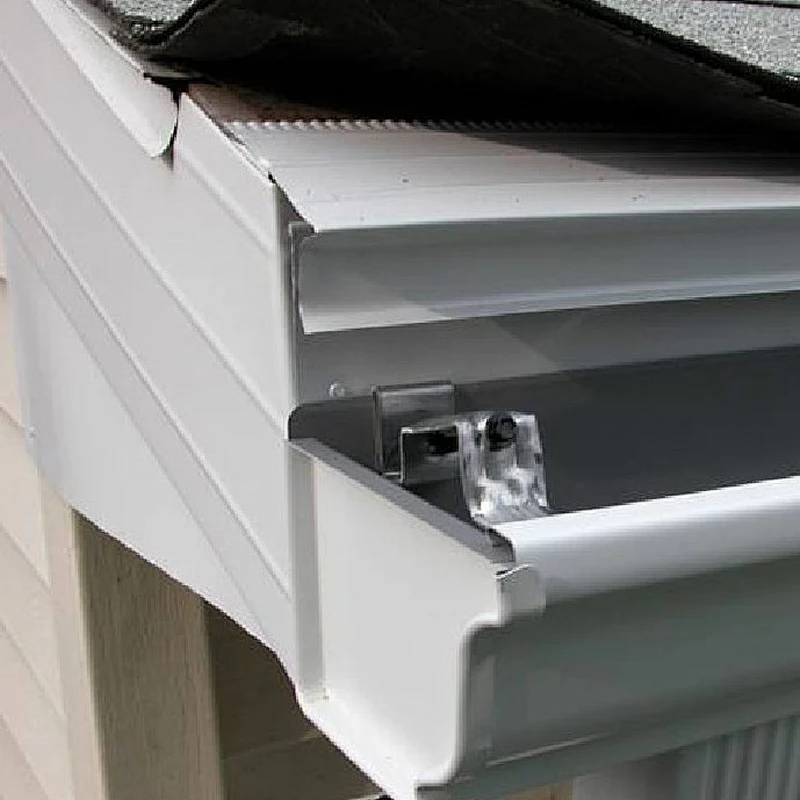

Where to use the Roof Edgings and Trim Profiles F5:
