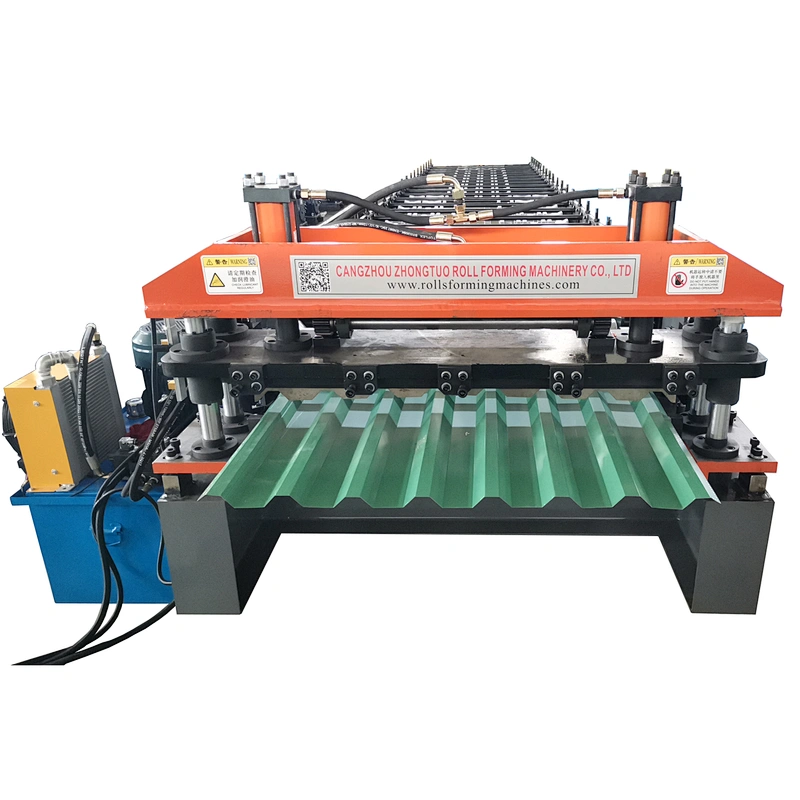

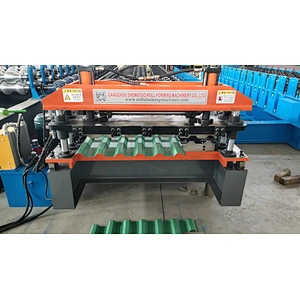

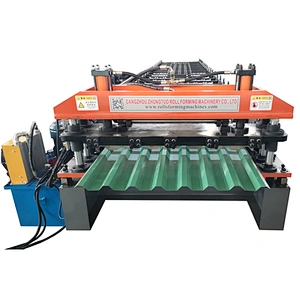

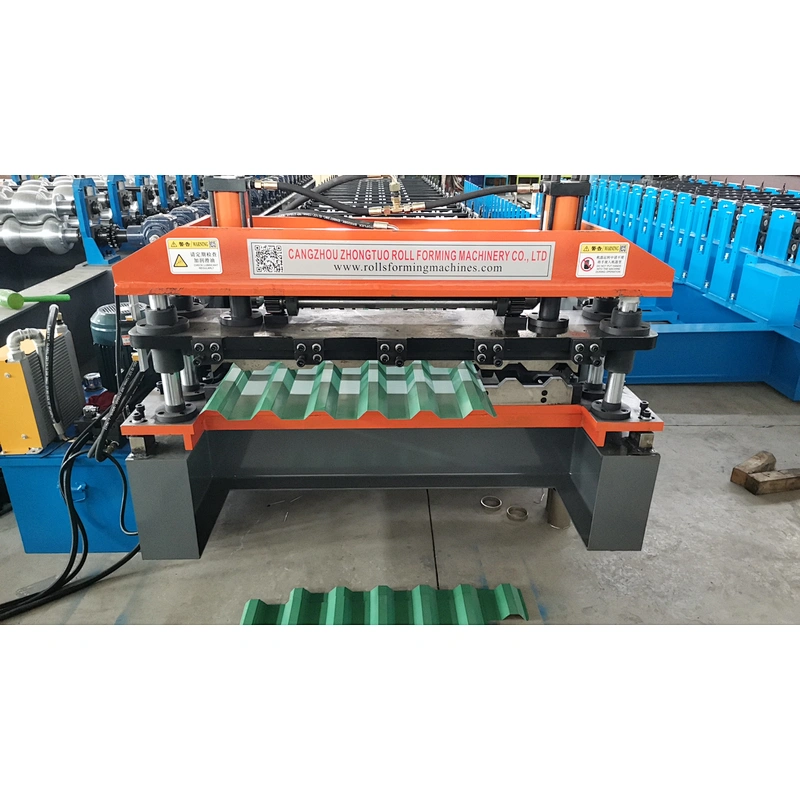

R72 R101 Roof Panel Roll Forming Machine

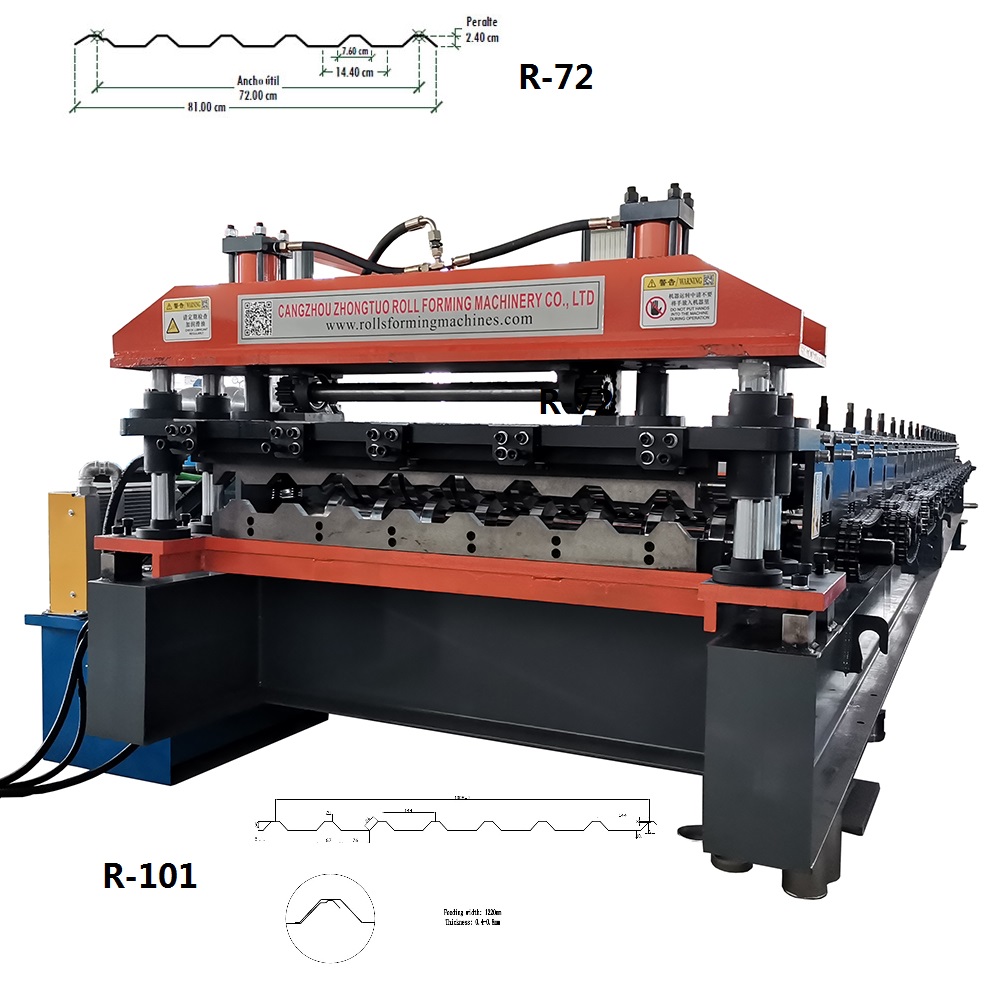

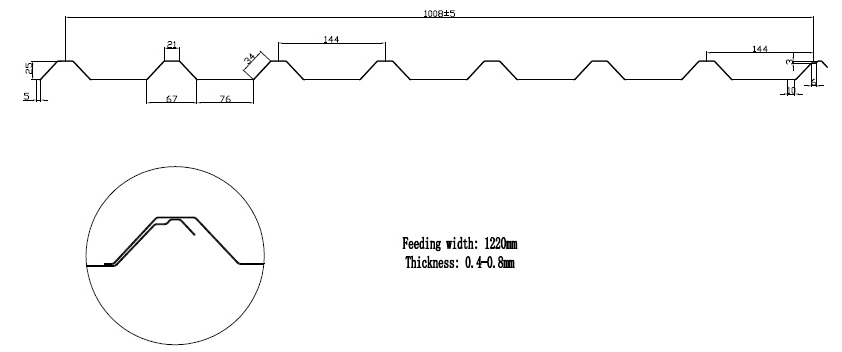

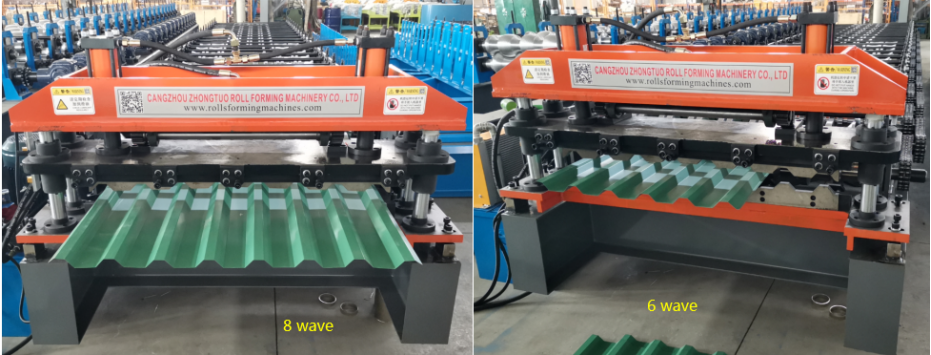

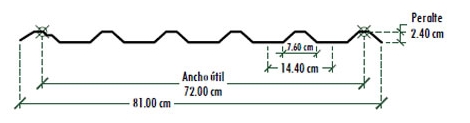

This machine we designed could use two input coil width 914mm and 1220mm, the working speed is around 15 to 20 meter per minute. The following part, let us check the drawing profile. When you use the input the coil width of 914mm, it has 6 waves R-72. When you use the coil width of 1220, it has 8 waves R-101. Simple adjusting the leveling beach and then it can switch from those two different input coil width. This machine is popular in Mexico, Guatemala, Honduras, Costa rica, Colombia… If feeding this roll former raw material 914mm or 36 inch width, machine will make R72. If feeding 1220mm or 48 inch, machine will make R101only feed different width raw material, no need to change machine.
R72 R101 Roof Panel Roll Forming Machine:
The R72 R101 Roof Panel Roll Forming Machine is composed by the following elements:
1. Manual Decoiler

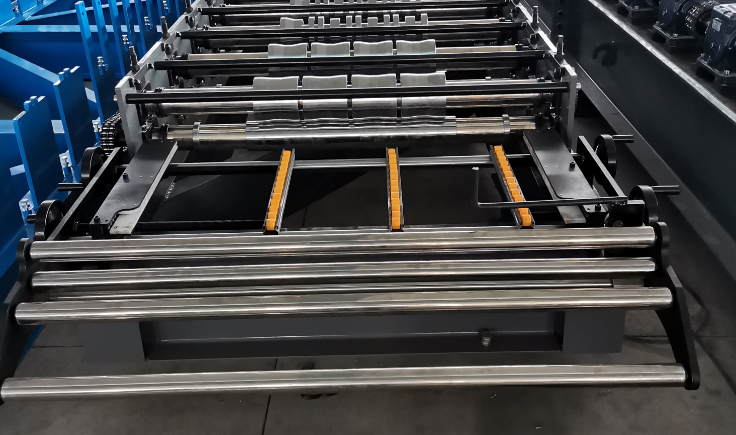

2. Feeding Platform

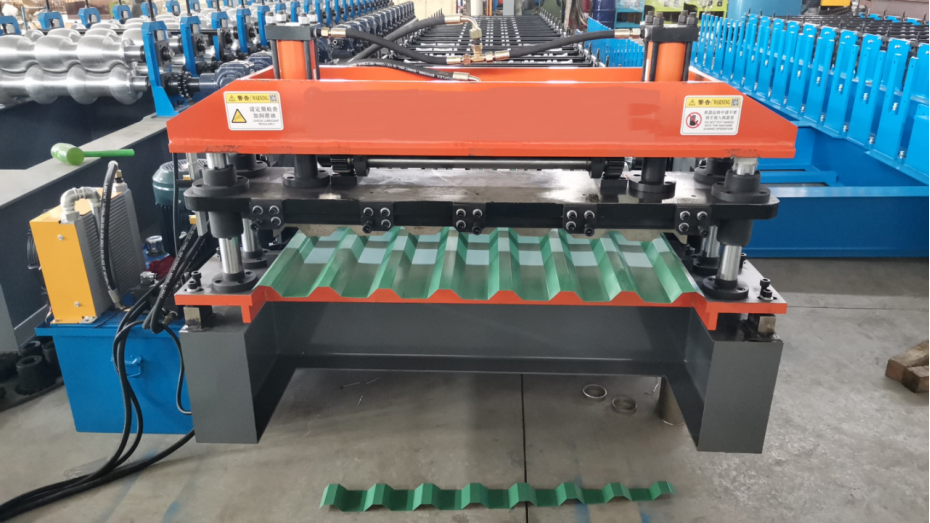

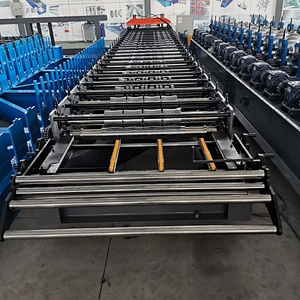

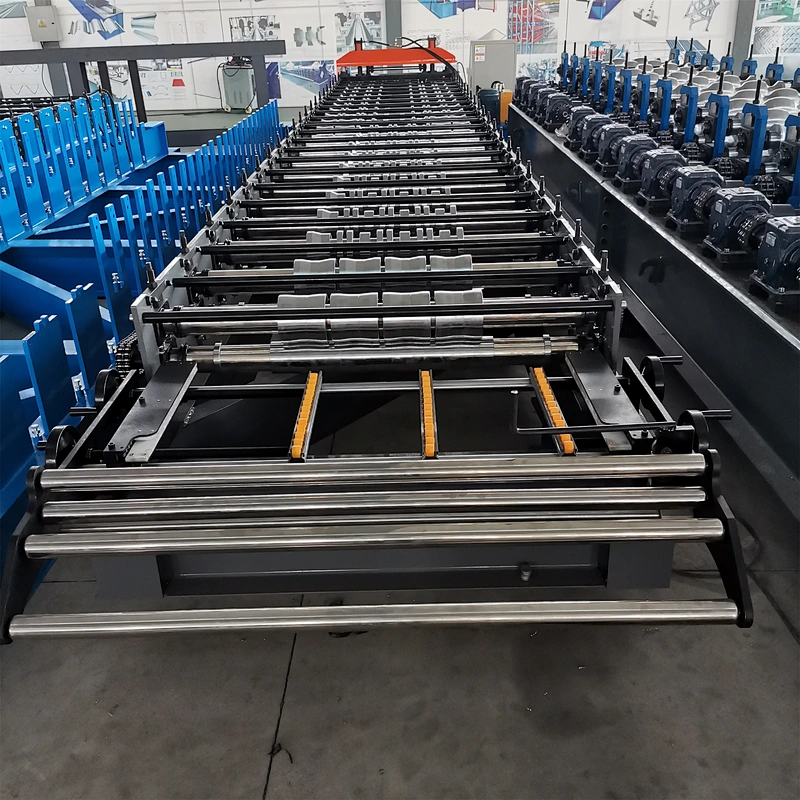

3. Roll Forming Machine
4. Hydraulic Cutting Device
5. Pump Station
6. PLC Control System
7. Receiving Table
R72 R101 roof panel roll forming machine Working Process
The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.
R72 R101 Roof Panel Roll Forming Machine Parameters
| NO | Type | Specification | |
| 1 | Raw material | Type | PPGI/GI |
| Material width | 1220 mm | ||
| Thickness | 0.3-0.8 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
| 3 | Roll Forming Machine | Roller station | 20 steps |
| Diameter of shaft | 80 mm | ||
| Shaft Material | 45# with hard chrome coated | ||
| Roller Material | 45# Forged Steel | ||
| Transmission | By chain | ||
| Bearing Type | 6210 | ||
| Under Frame | H-beam | ||
| Sidewall Frame | 20 mm Steel Plate | ||
| Driving Type | Servo Motor 7.5KW | ||
| Cutting Type | Guide Pillar | ||
| Cutting Blade | Cr12Mov | ||
| Voltage | 380V/50HZ, 3 phase | ||
| Working speed | 20-25 m/min | ||
| 5 | Control box | Electric box | Import Brand PLC control system, inventer |
| PLC brand | Delta/Siemens/Pansonic | ||
| Inverter brand | Delta/Siemens/Sanjing | ||
| Language | Chinese / English or customized | ||
More details of R72 R101 Roof Panel Roll Forming Machine:
- The leveling part, we designed with the plastic rollers to protect the surface of the coil. We also add the manual cutter for cut the untidy part or you can cut the coil at any place.
- The hydraulic shearing system both can cut 6 waves and 8 waves in the perfect way.

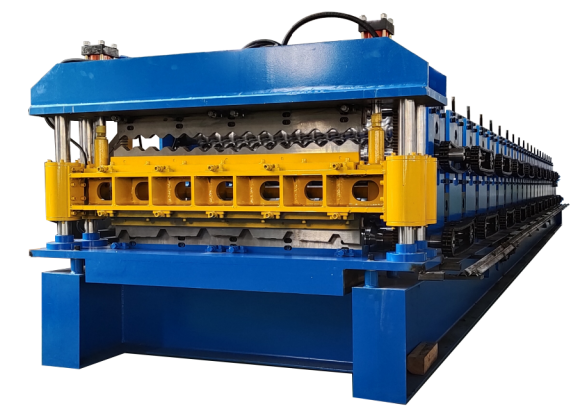

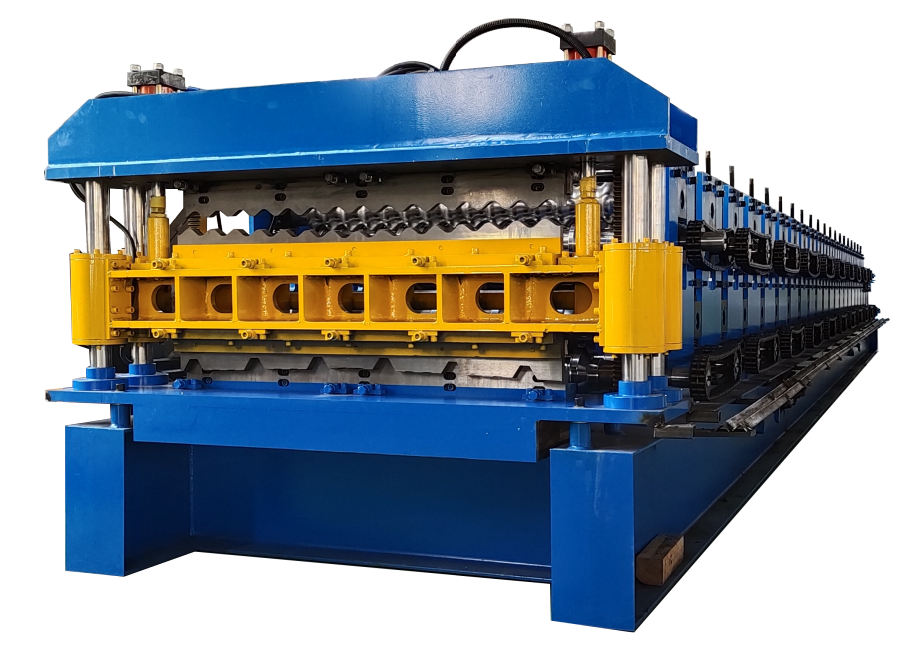

R72 R101 roof panel roll forming machine also could be designed to double layer types, add other profiles then the machine will be like the following pictures:
Advantage of double layer rolling forming machine:
Save space for freight and factory installation.
Disadvantage:
One time only forming one layer, it is suitable for production not big.
If production big, we suggest you buy two individual machines, they can work at same time.
For this machine, if you want to know more information, please contact us at any time.
