R panel & PBR panel roofing sheet machine
R-Panel / PBR Panel Metal Roofing Materials
Metal roofs are both stunning and long lasting. Metal roofing panels come in a variety of materials and styles. Two of the most common panel types are R-Panels & PBR-Panels. As you can see from the profile detail the only difference is the 1/4 overlap on one side of the panel for added strength. These panels are primarily used in commercial and industrial metal roof and siding applications.

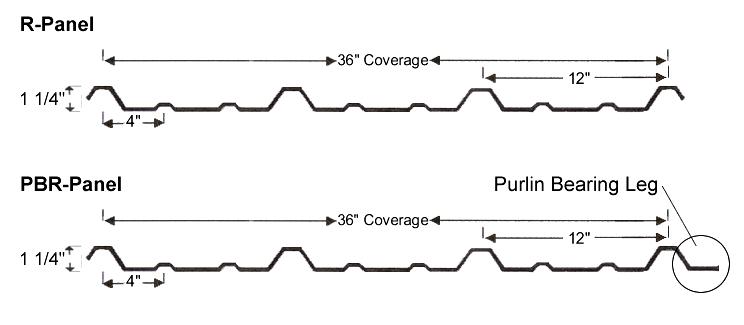

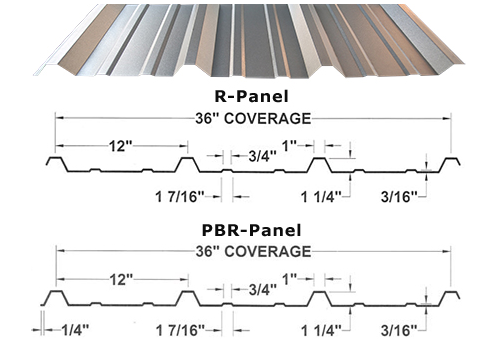

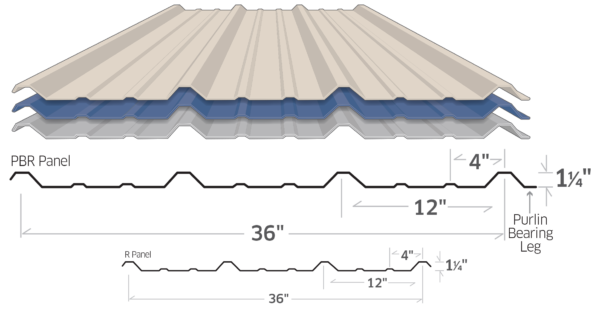

R panel & PBR panel roofing sheet machine is deigned for the U.S.A market. As those two profiles does not have too much difference, only PBR roofing sheet right part with the purlin bearing legs. Here I share those two drawing profiles for example:
We can design those two profiles by the following two options:

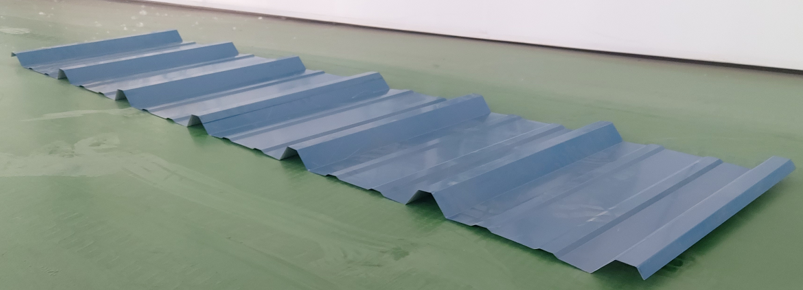

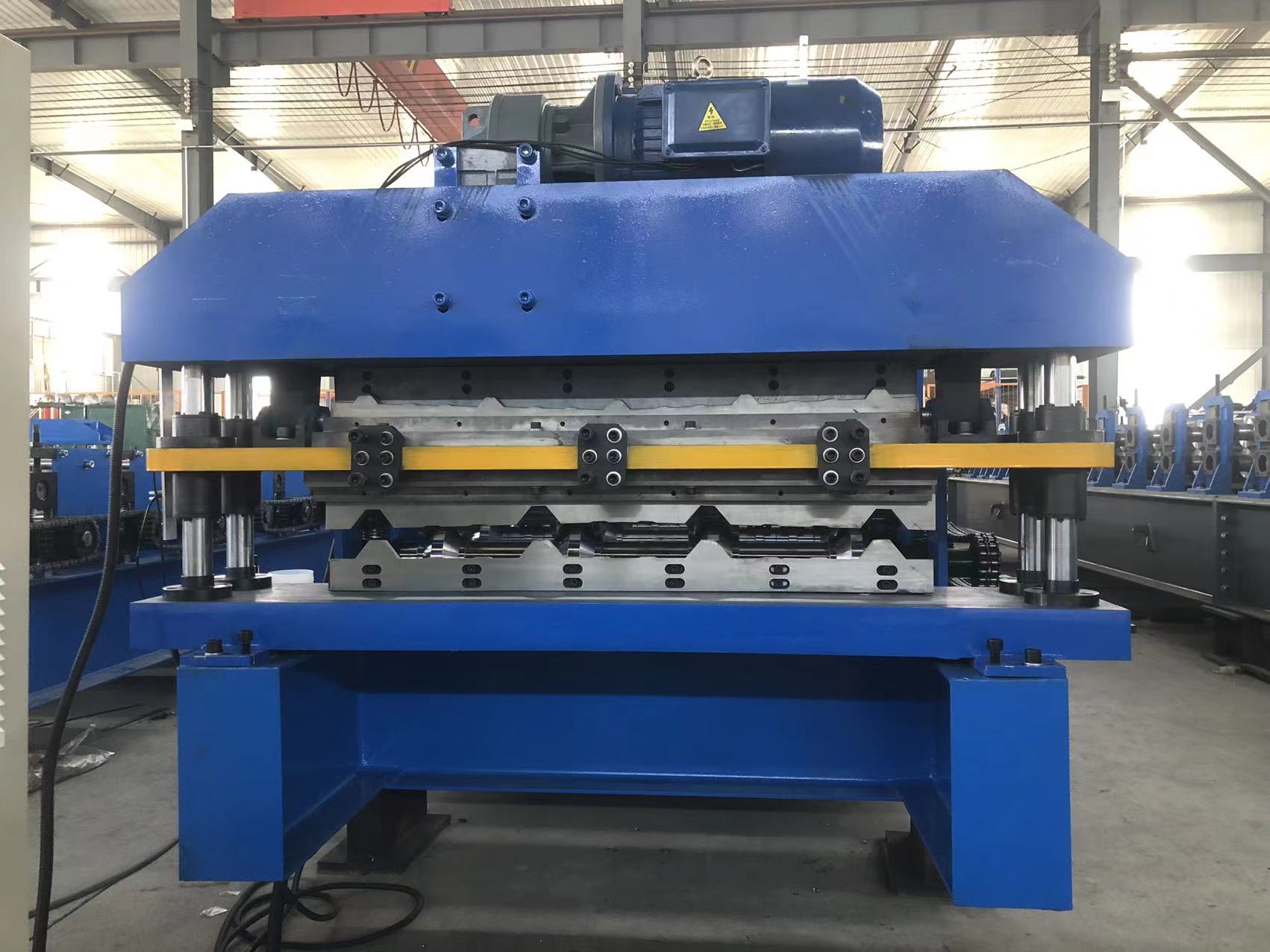

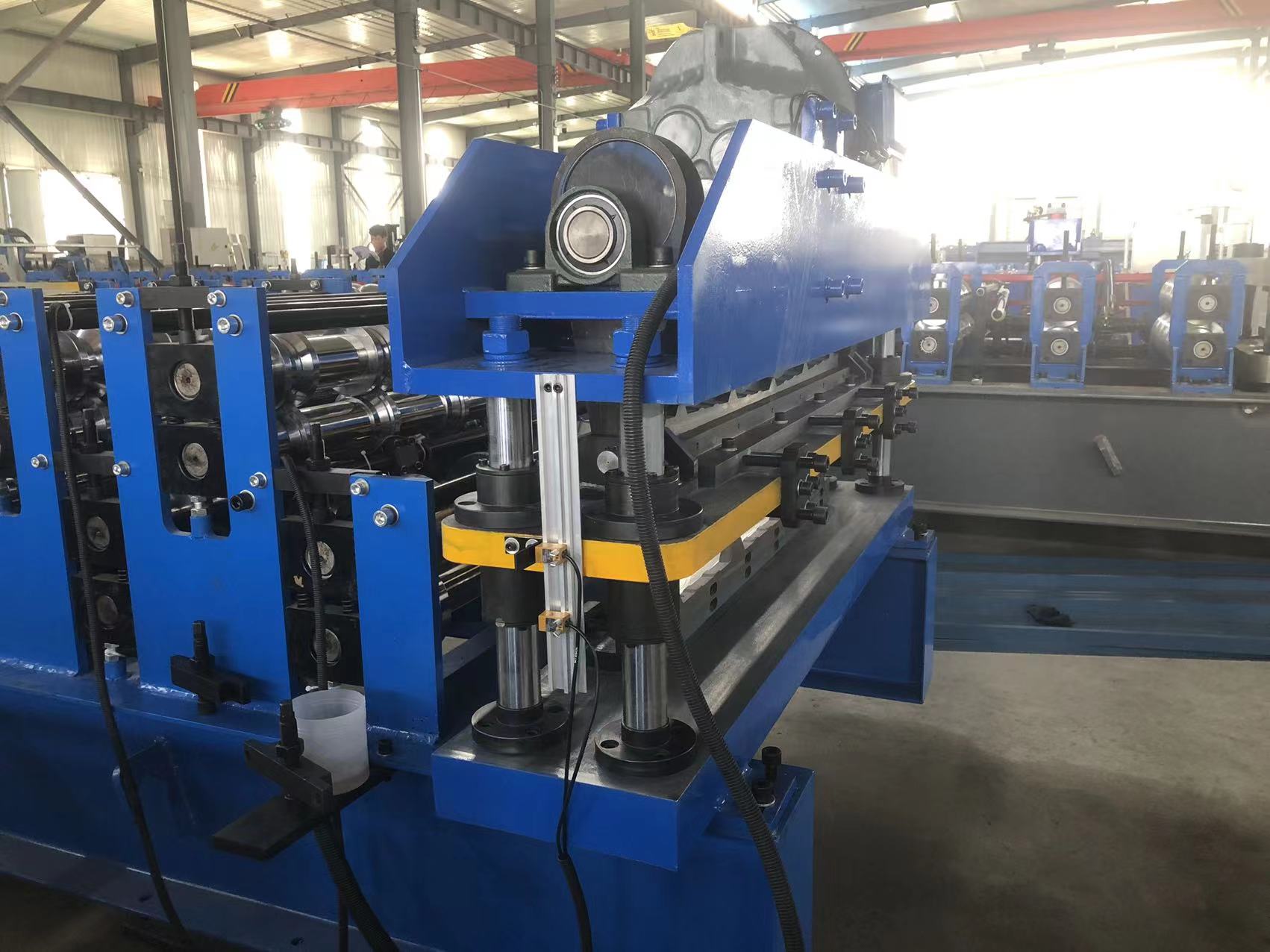

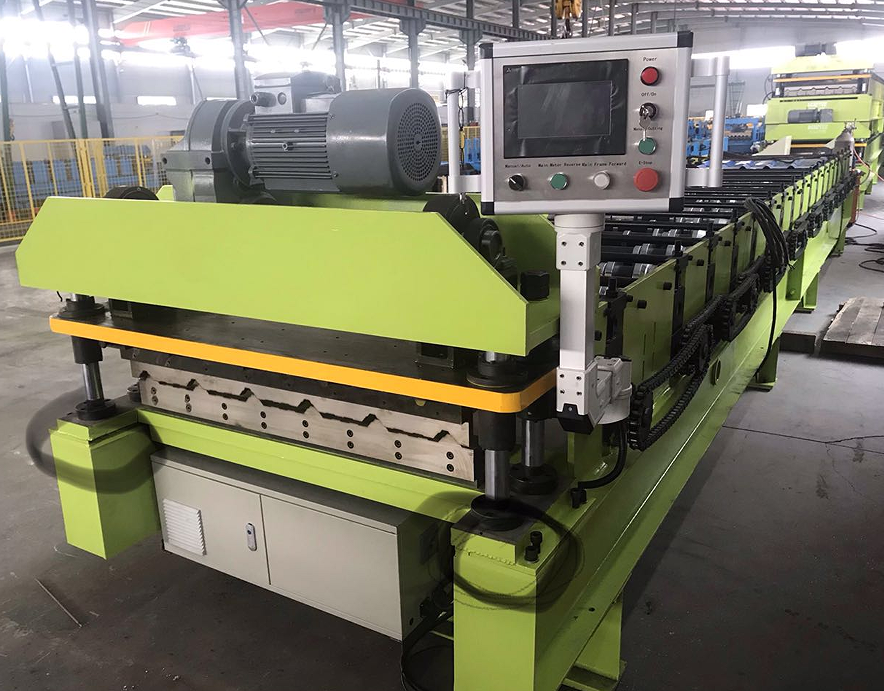

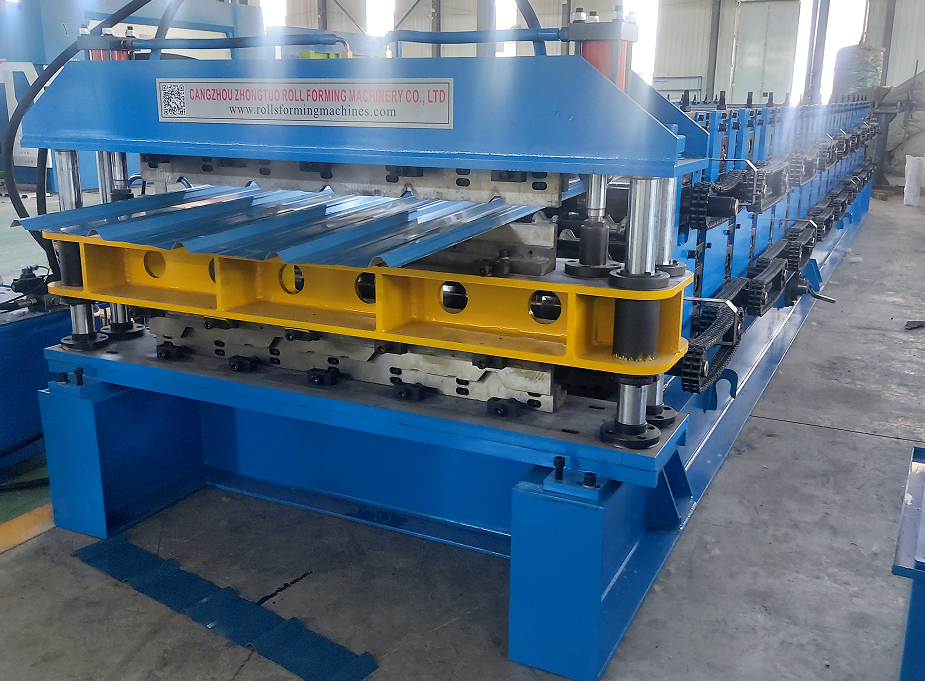

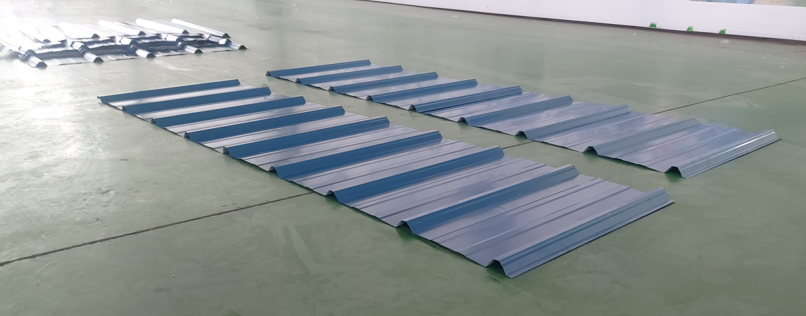

Option A: single layer machine by adjusting the input coil width/ The machine we can design it based on the PBR Panels. When you want to do the production of R-panel, simple use less width coil then okay. Here is the single layer machine pictures for your reference:

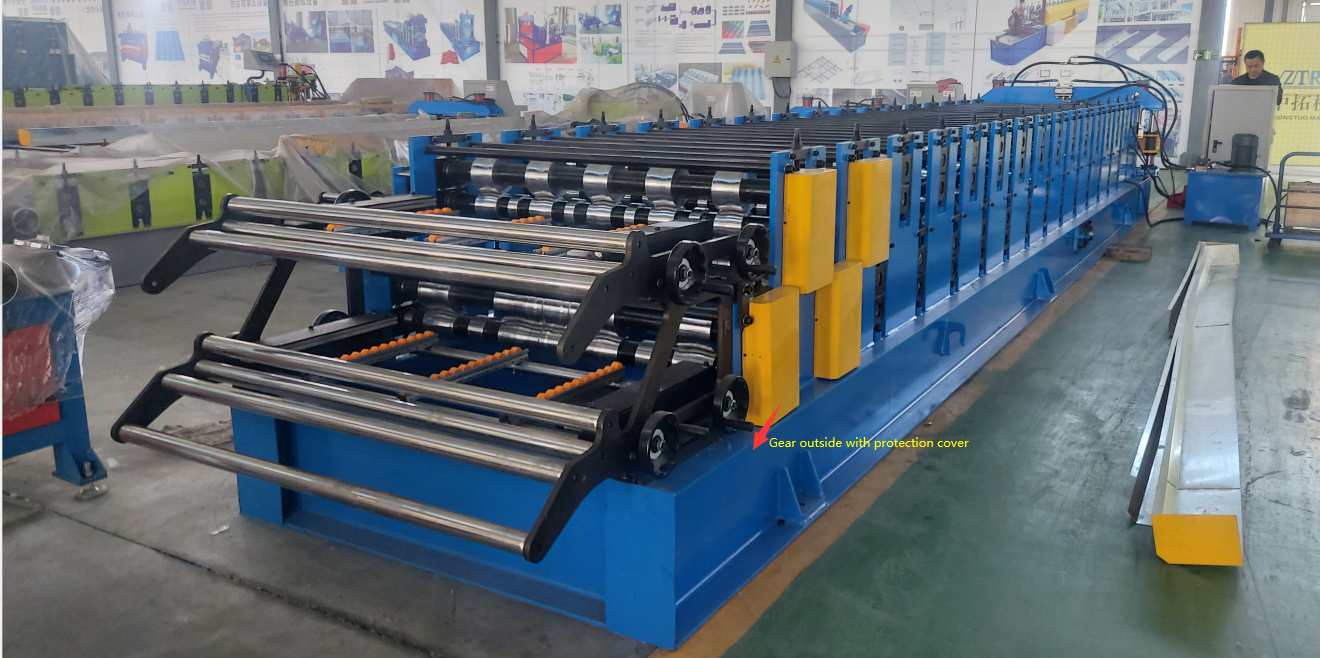

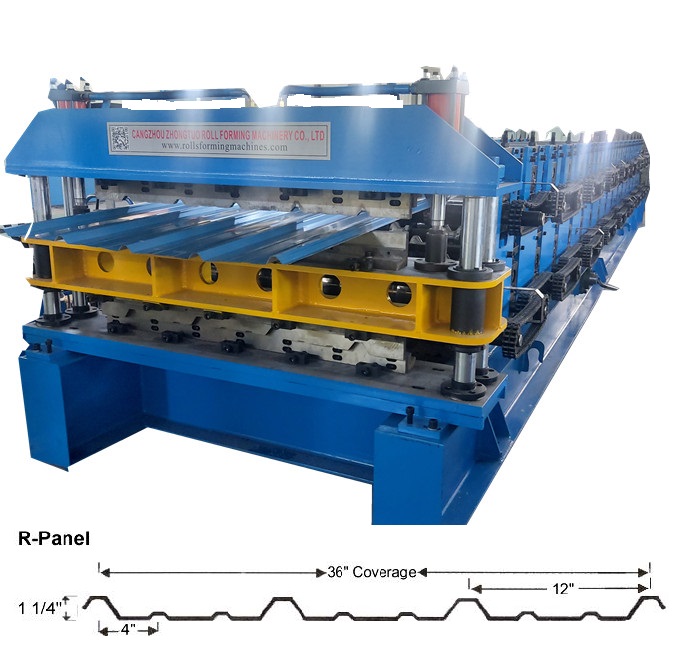

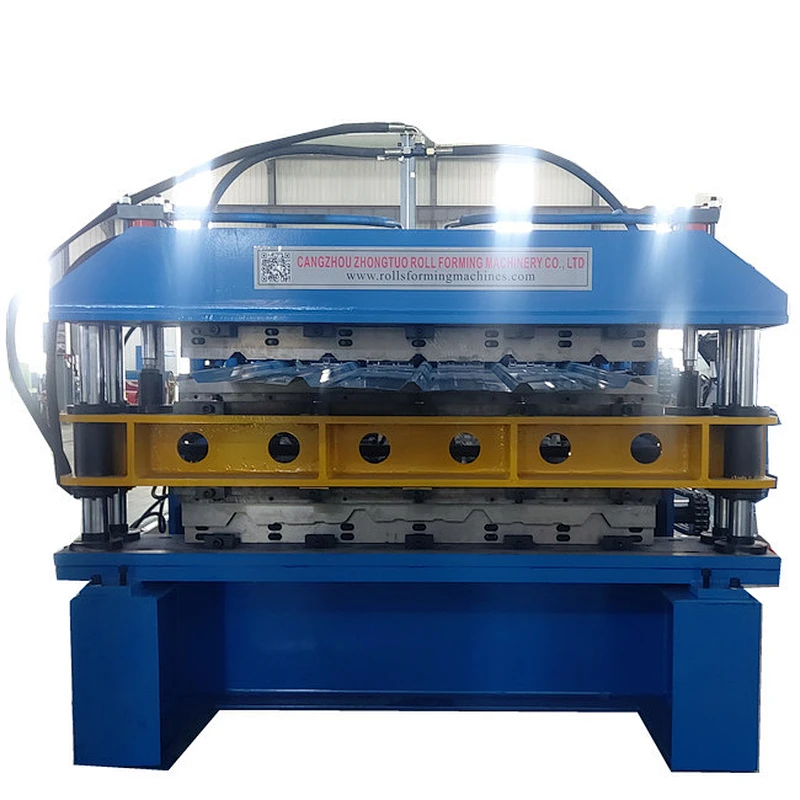

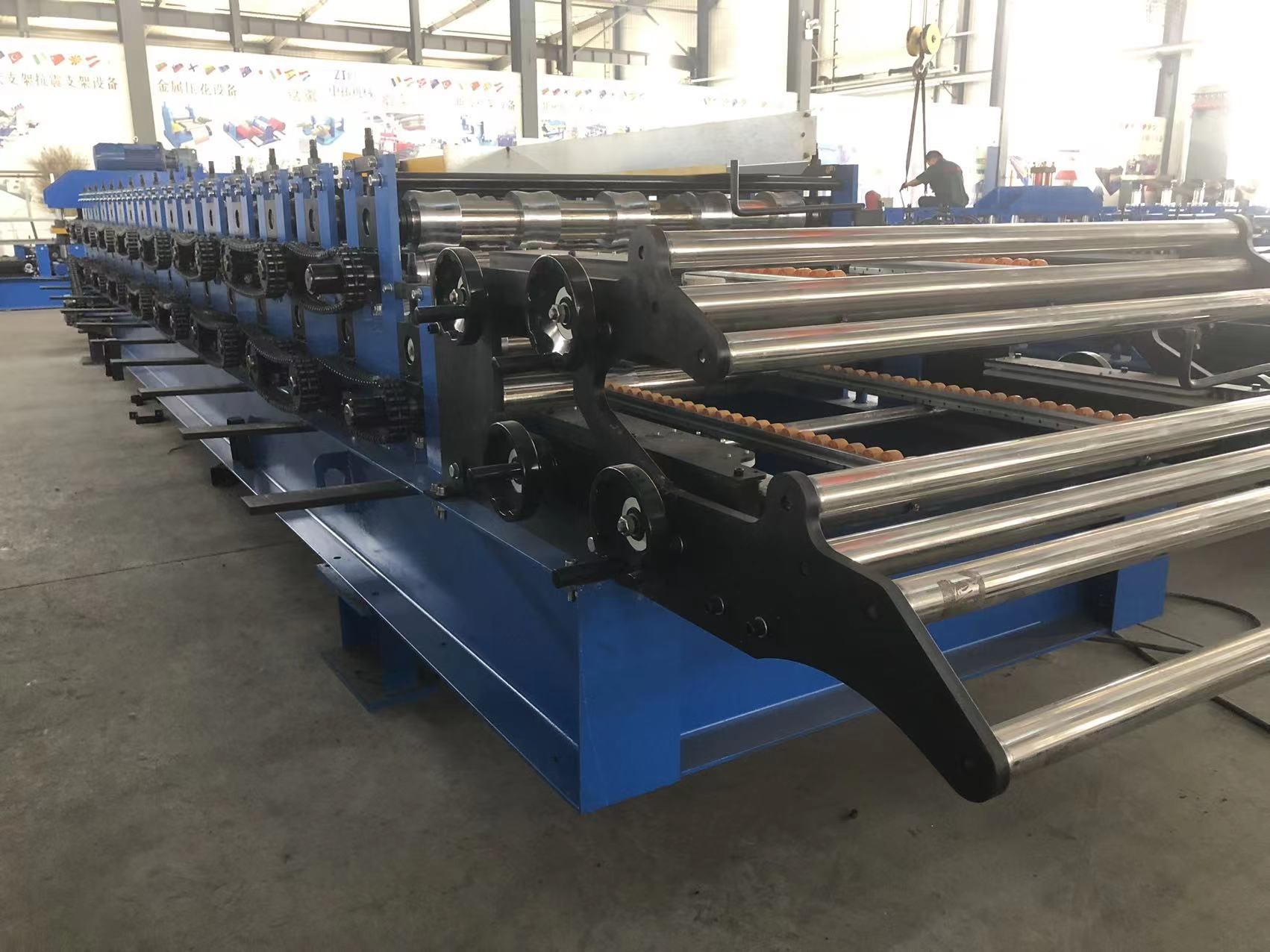

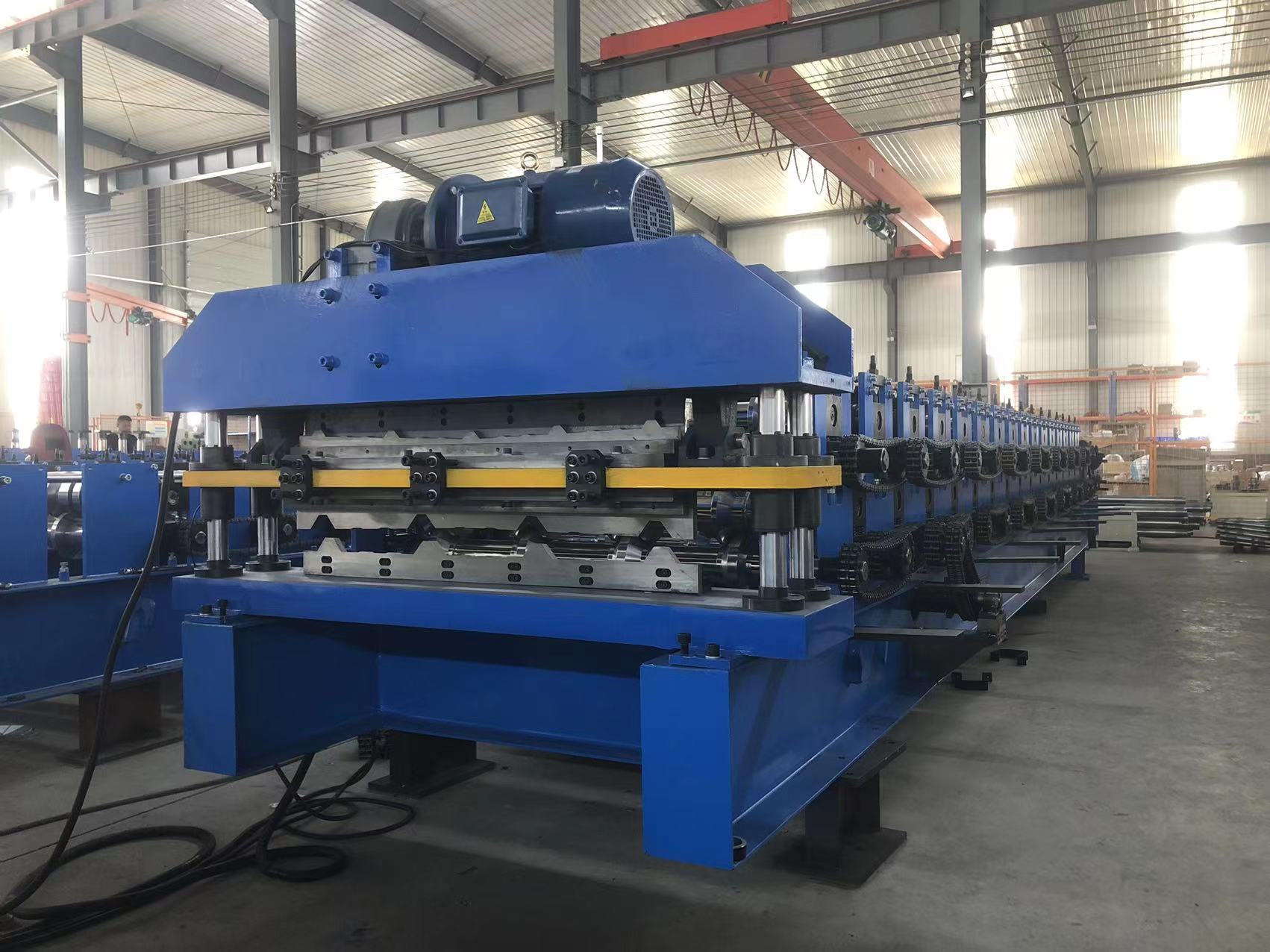

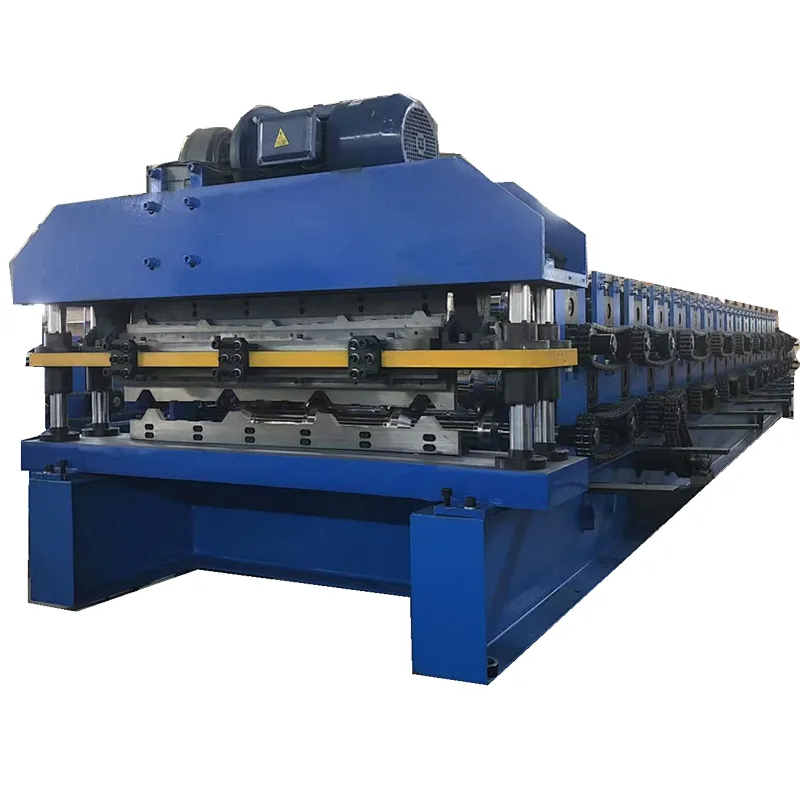

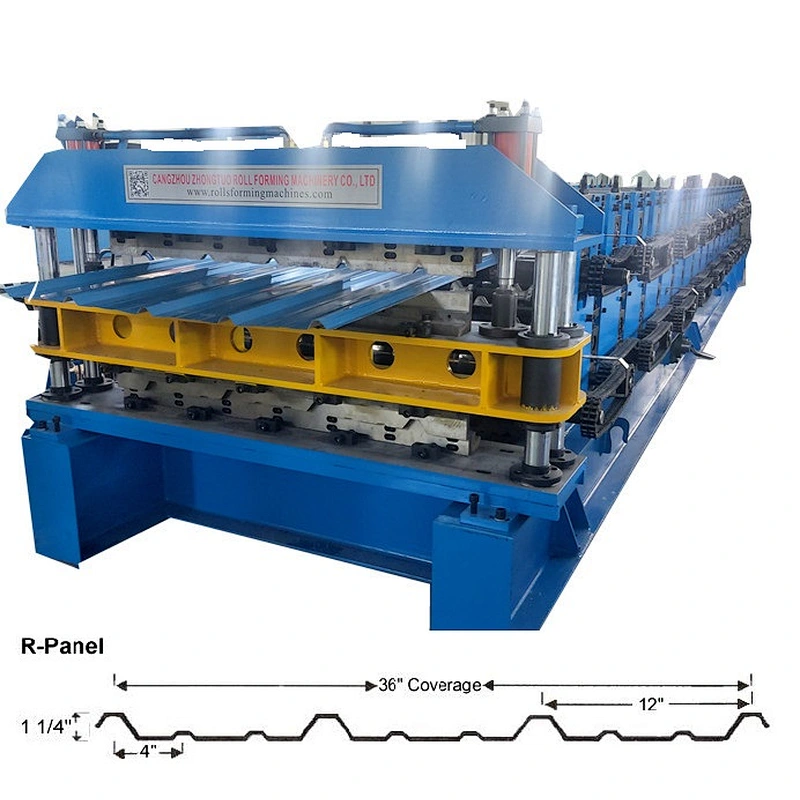

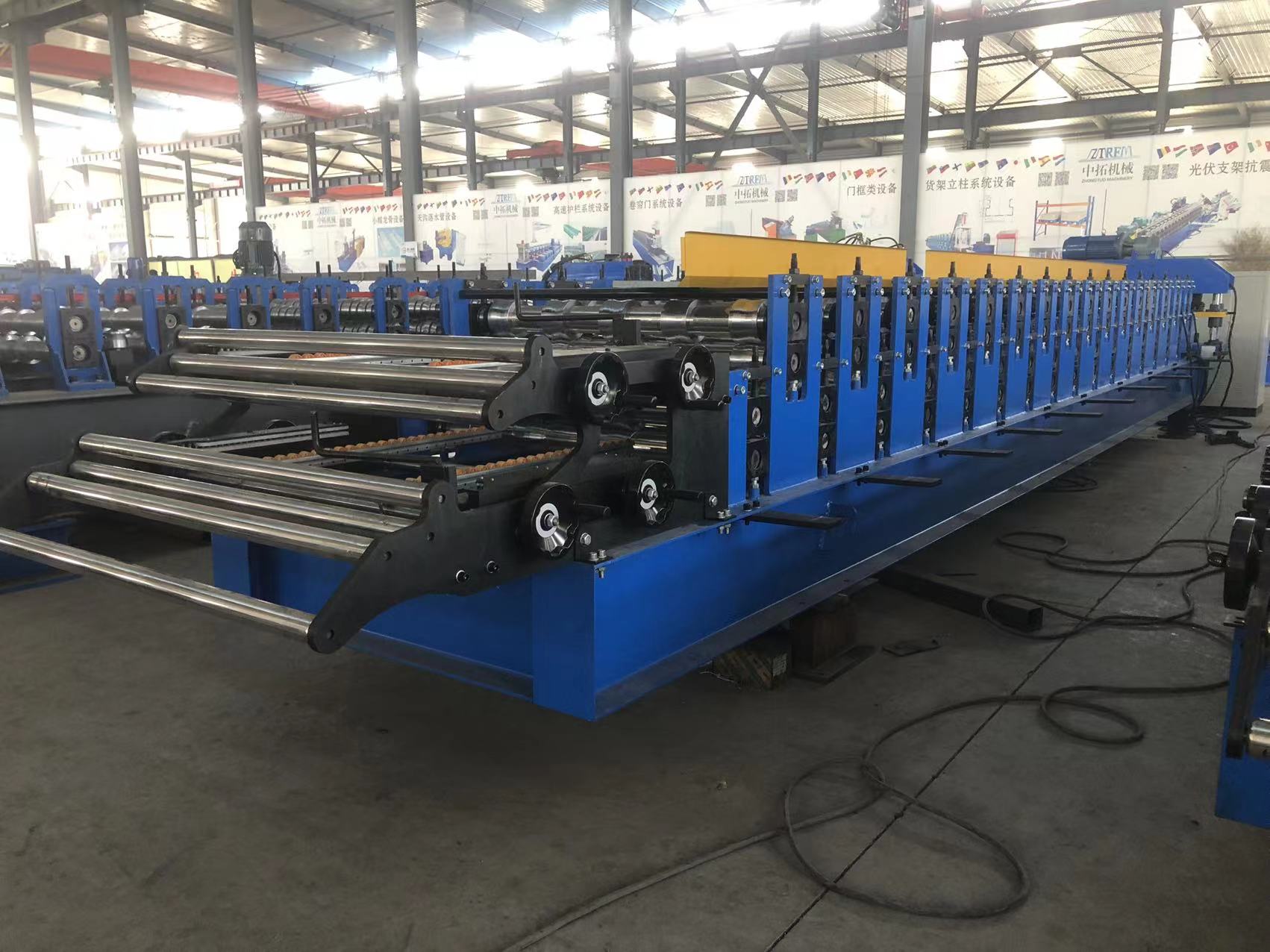

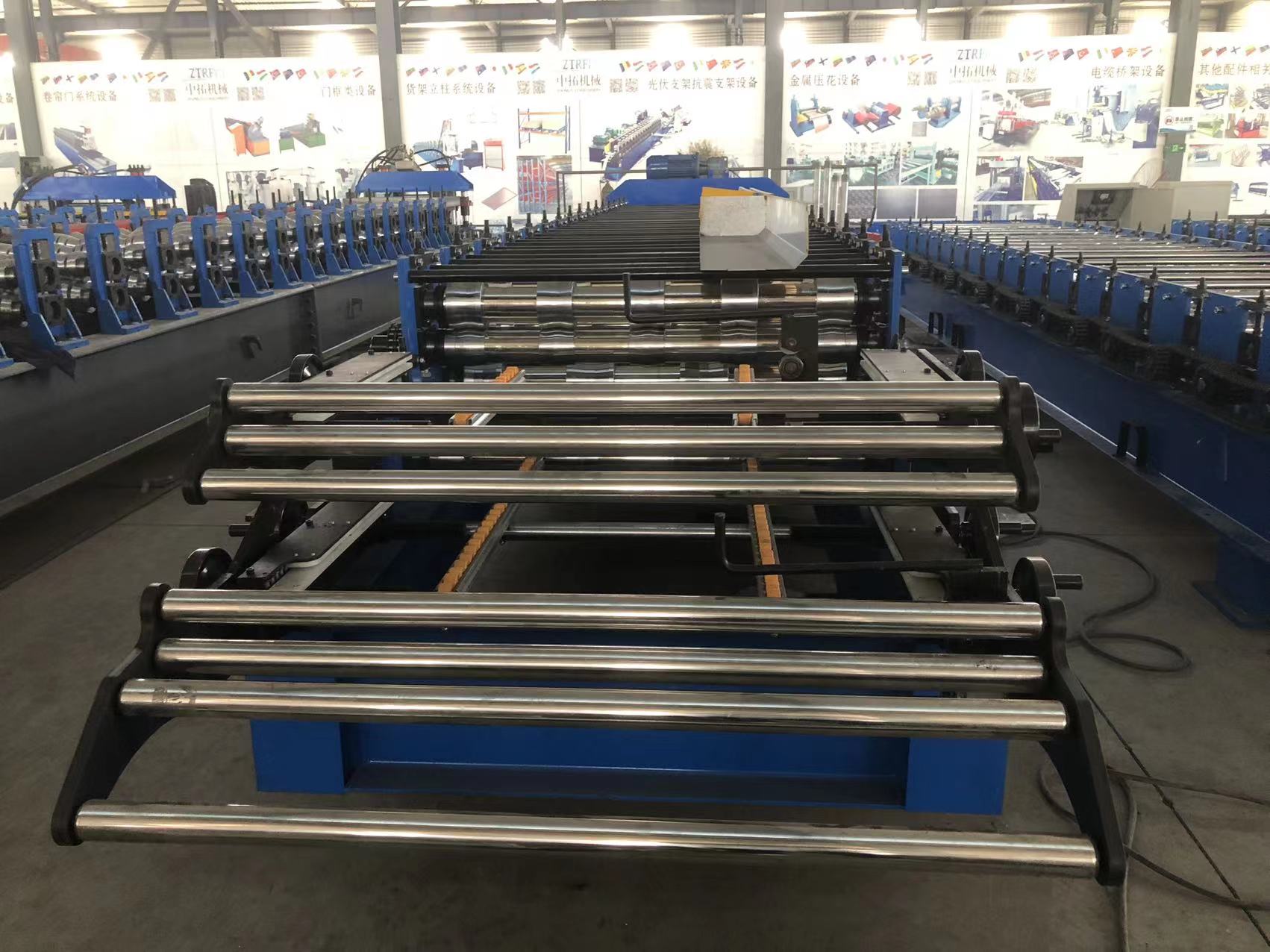

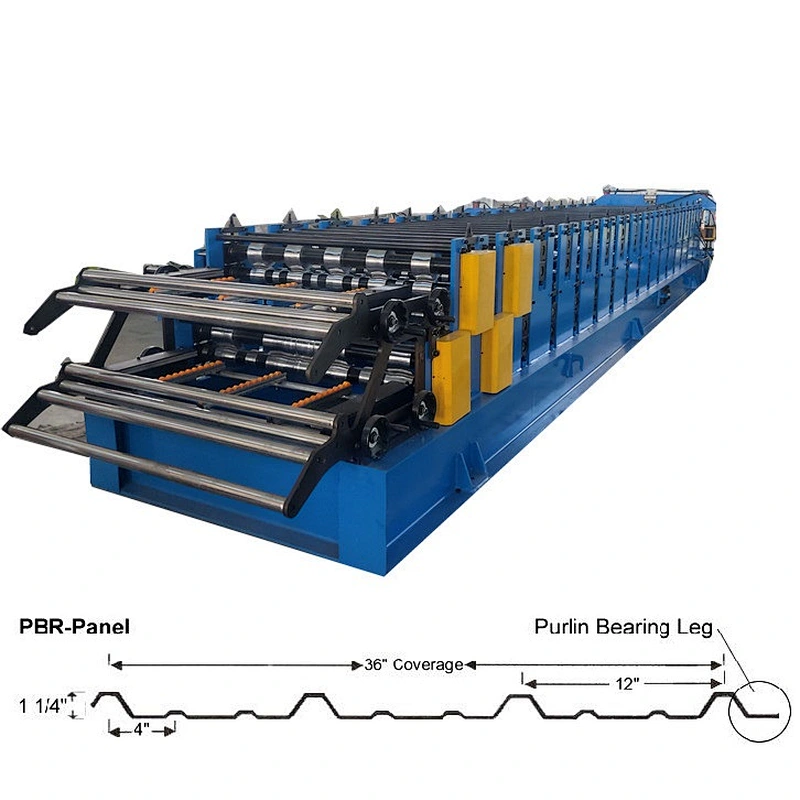

Option B: Double layer machine. If you feel that you do not want to do any adjustments, you can consider the double layer roofing sheet machine. One layer is R- panel roofing sheet and another layer is PBR panel. Here is the roofing sheet machine picture for your reference:
More details:
- Panel metal roofing panels offer outstanding durability and high wind resistance compared to traditional roofing material. Not only are these metal roofing panels long lasting, they are very low maintenance. R-Panels are high-profile, wind & fire resistant, energy efficient, and provide greater life expectancy than most roofing materials. Contractors and developers choose R-panel for many commercial and industrial projects. R-Panels come in a range of designer colors to complement your current home and provide a sleek, attractive appearance.
PBR-Panels offer the same robust, long-lasting metal roofing panels that can be used for many purposes. The exposed fastening system and purlin bearing leg between panels give the PBR metal roofing version its superior strength. These versatile metal roofing panels are suited for both open framing and solid substrate. Used primarily in commercial and industrial projects, PBR panels provide the strength and longevity needed for heavy duty use.
For those two profiles or rolling machines, if you want to know more information, please contact us at any time.
