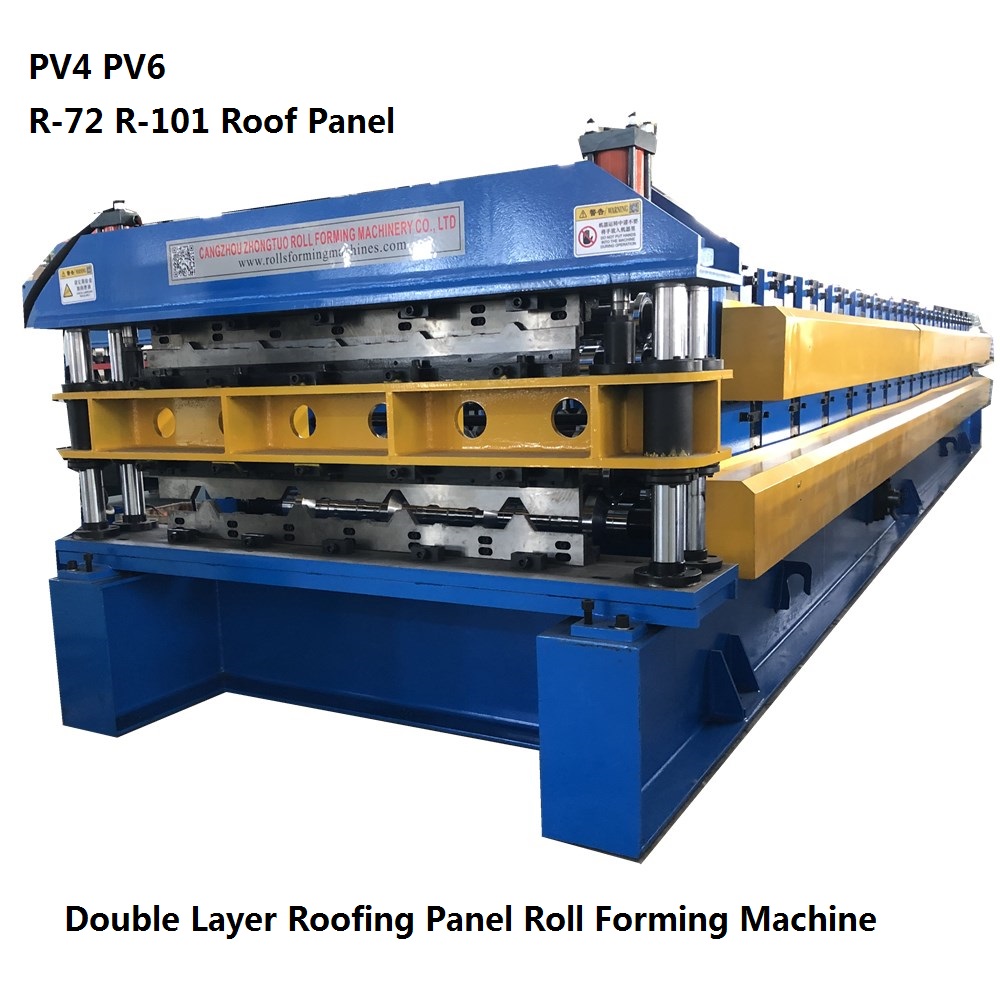

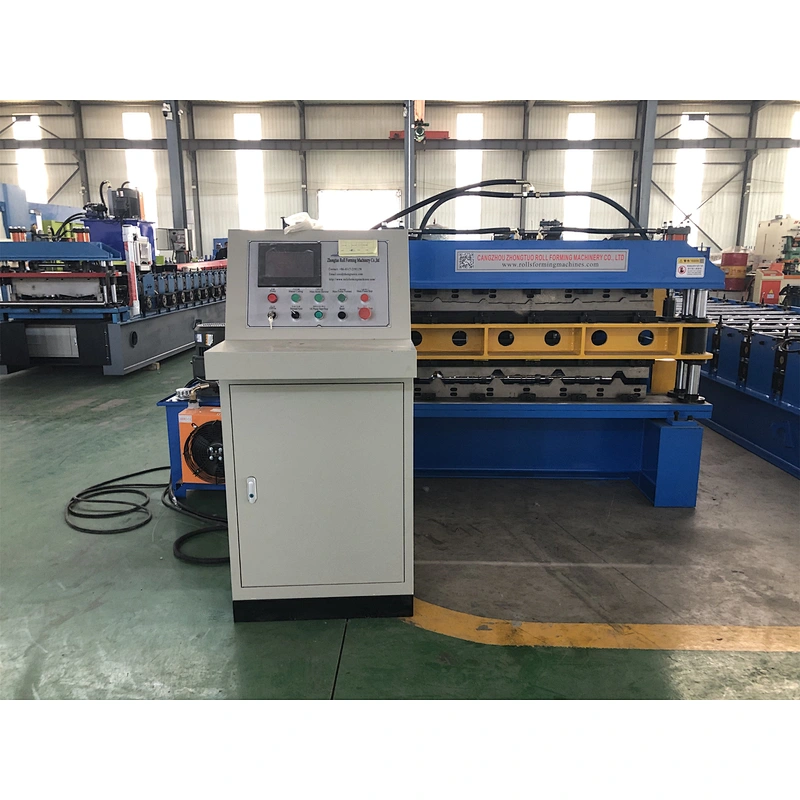

Double Layer Roof Panel Roll Forming Machine for PV4 PV6 R101 and TR4 profile
Main Features:
The machine can be used to produce 2 different profiles of corrugated and trapezoidal steel sheet, e.g. 2 corrugated panel, or 2 trapezoidal, or 1 corrugated and 1 trapezoidal. Customer can choose the type.
1. PLC control system with touch screen, easy to operate, multi-order support
2. Hydraulic shearing system

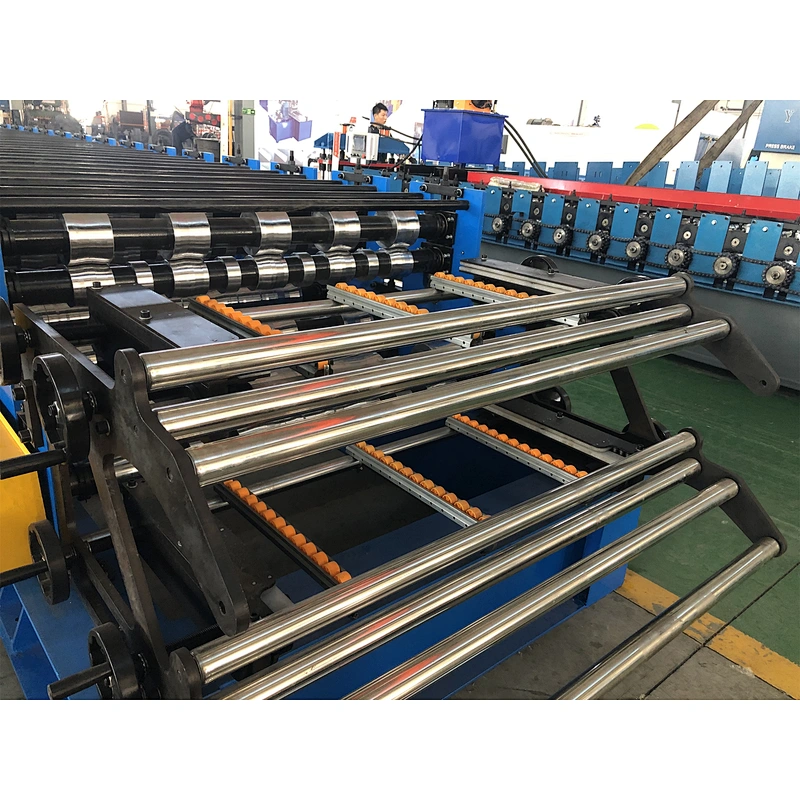

3. Unique feeding guider design, effectively protect the paint surface of coils
In the following part, let us take the following profile drawings for example:

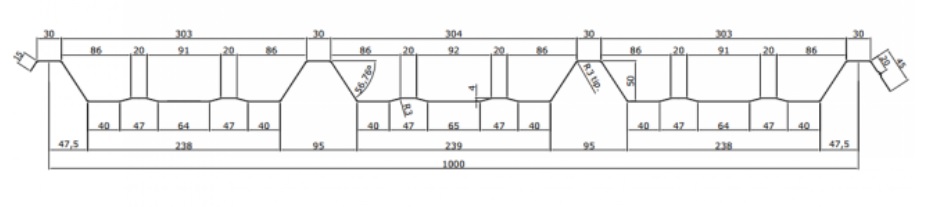

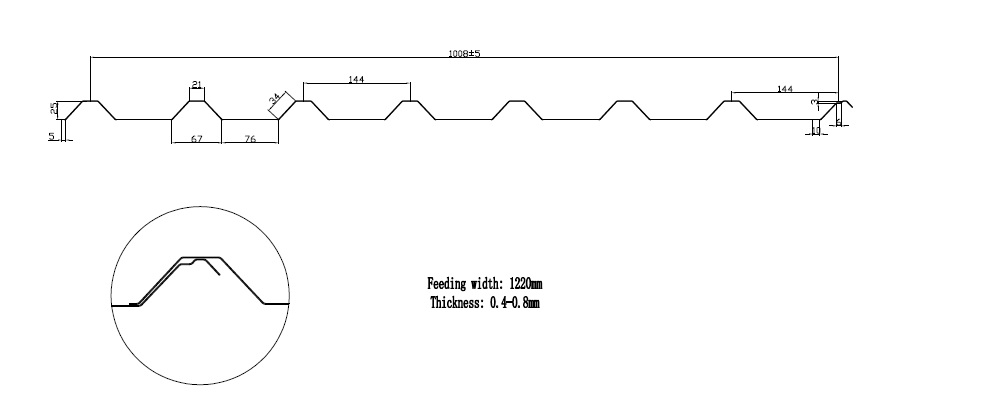

First IBR Layer:

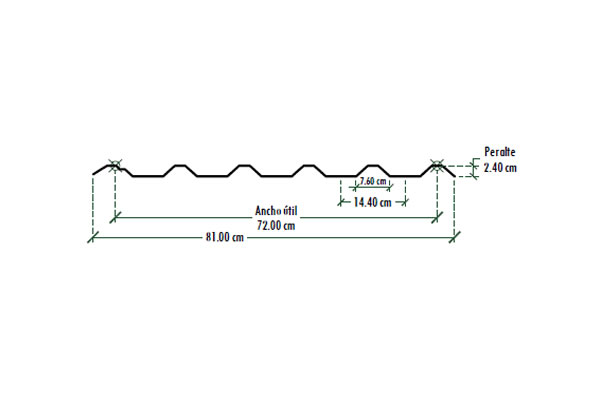

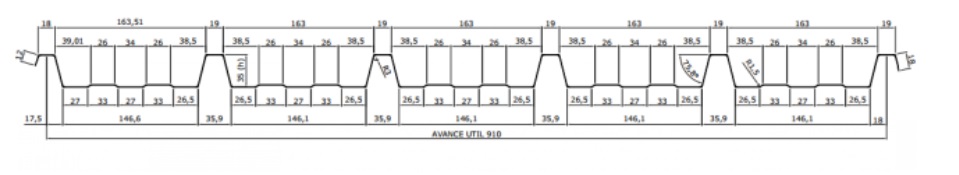

Second layer:
Double Layer Roll Forming Machine we design like this:
Requirements
1. Material:
a) Raw Material:----------------------- PPGI; PPGL; GI; GL (G350Mpa)
b) Feeding Width:---------------------- 1200mm or customized
c) Feeding Thickness:------------------0.3-0.8mm
2. Product:
a) Effective Width:---------------------- 914mm; 1000mm
Description Of Goods: Double Layer Roll Forming Machine
Packing List:
Hydraulic Decoiler or manual decoiler ---------- 1 set;
Main Roll Forming Machine ------------------------ 1 set;
3M Simple Collecting Product Table --------------- 1 set;
Hydraulic Station -------------------------------------- 1 set;
PLC Control Cabinet ---------------------------------- 1 set;

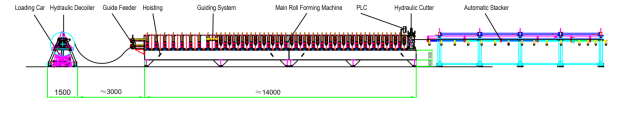

Double Layer Machine Production Line Layout And Process Flow:
| No. | Item | Specification |
| Whole Line | Working Speed | 0-20m/min |
| Total Power | 12KW; 220V-60Hz-3Phase | |
| Equipment Weight | 8.5 Tons | |
| Equipment Dimension | 8500mm*1850mm*1500mm | |
| Container | 1*40”GP | |
| Equipment Color | Blue Or Customizable | |
| Equipment Package | Nude Package | |
| Protective Cover | Optional |

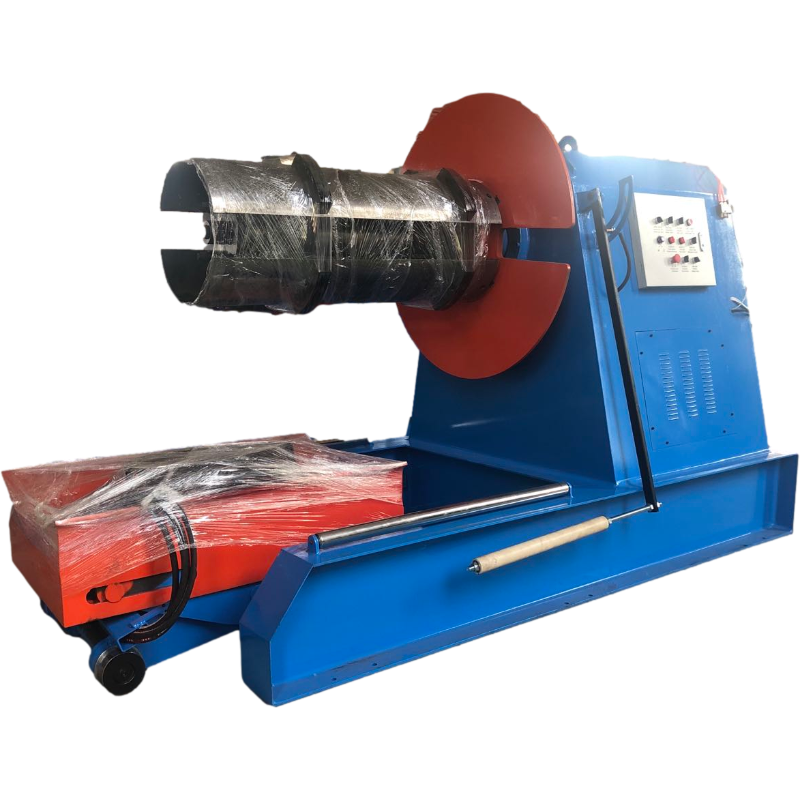

For the hydraulic decoiler 7 ton, 8 ton or 10 Ton decoiler, we make it like the following pictures:
| No. | Item | Specification |
| Hydraulic Decoiler | Decoiling Type | Actively Uncoiling Type |
| Loading Capacity | 5 Tons | |
| Loading Width | Max. 1250mm | |
| Coil Inner Diameter | 450-550mm | |
| Coil Outer Diameter | Max. 1500mm | |
| Motor | 5KW+4KW |

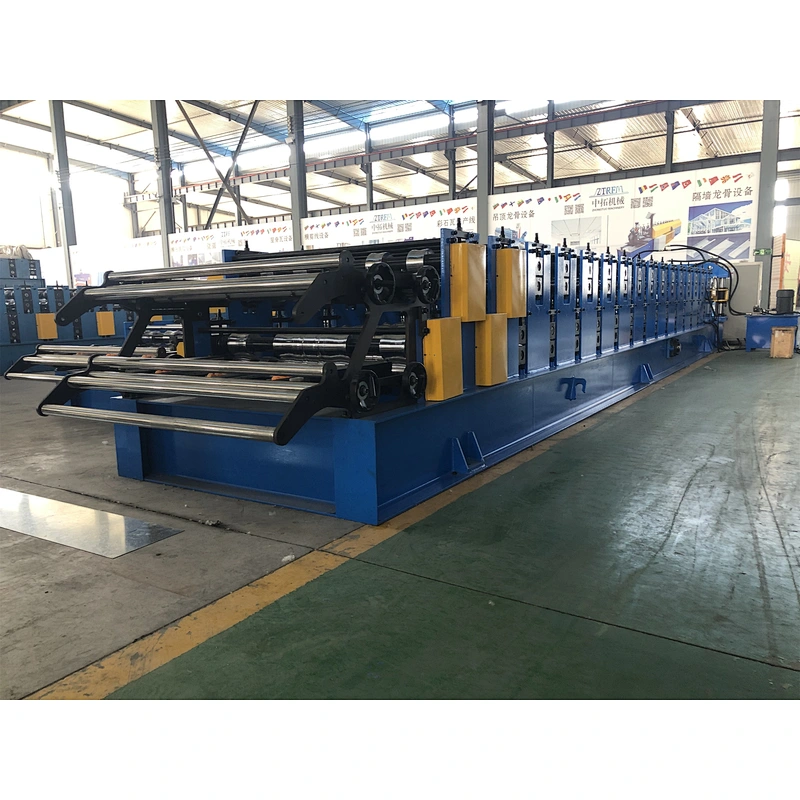

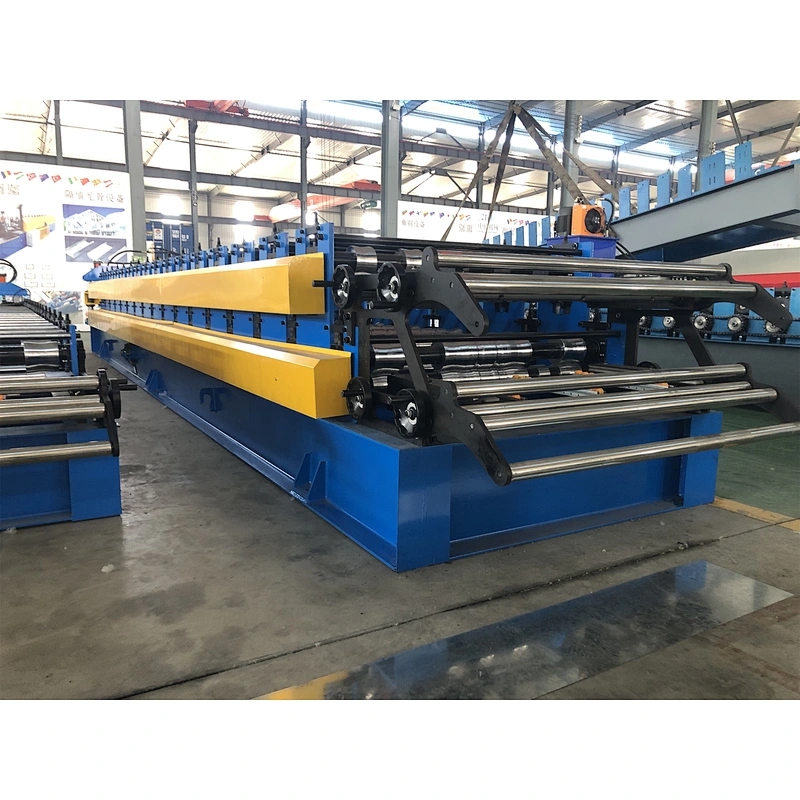

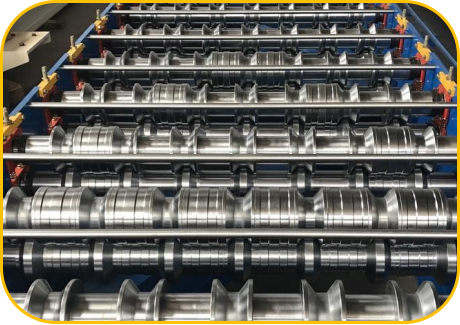

Double layer rolling forming machine Images And Specifications
| No. | Item | Specification |
| Main Roll Forming Machine | Main Forming Power | 7.5 KW; 200V-60Hz-3Phase |
| Speed | 0-20m/min | |
| Drive Type | 1'' Single Chain | |
| Machine Architecture | Midde-plate Construction; 20mm Thick | |
| Roller Station | 18 Stations + 18 stations | |
| Roller Shaft | φ80mm Solid Shafts, with quenched | |

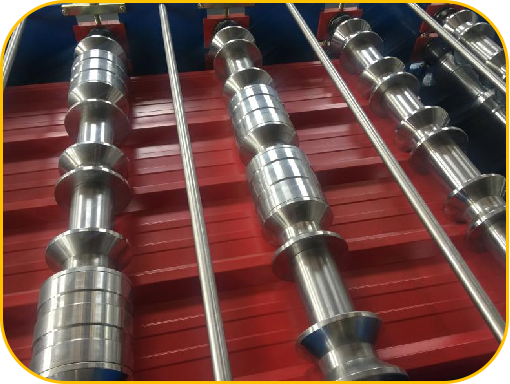

| Roller | 45# Steel HRC58-62°; Surface Hard Chromium Plating | |
| Bearing | Chinese Famous Brand Harbin | |
| Main Frame | 400# H-beam Steel Welded |
For the double layer machine, it could be either two IBR profiles or one IBR with one step tile. For this type machine, if you want to know more information, please contact us at any time.
