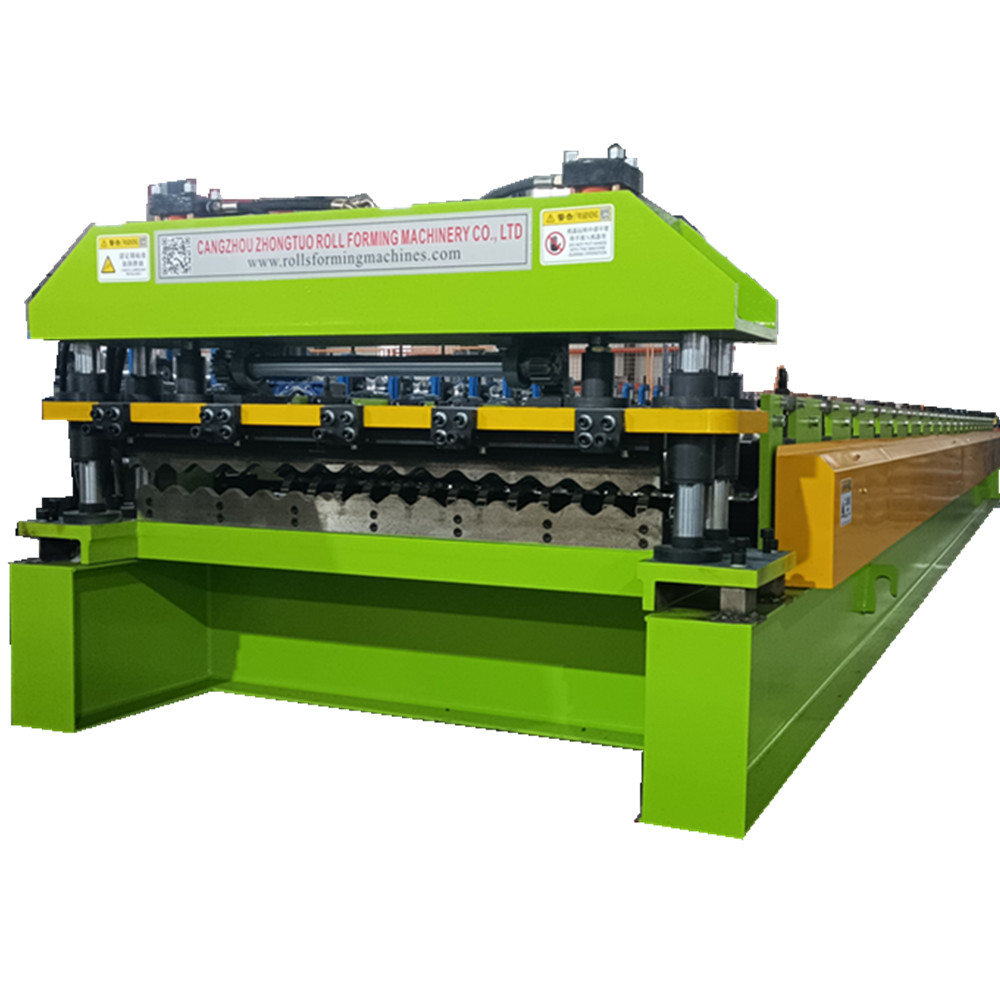

New Material Corrugated Roofing Sheet Machine Corrugated Tile Forming Machine
Drawing provided by customer

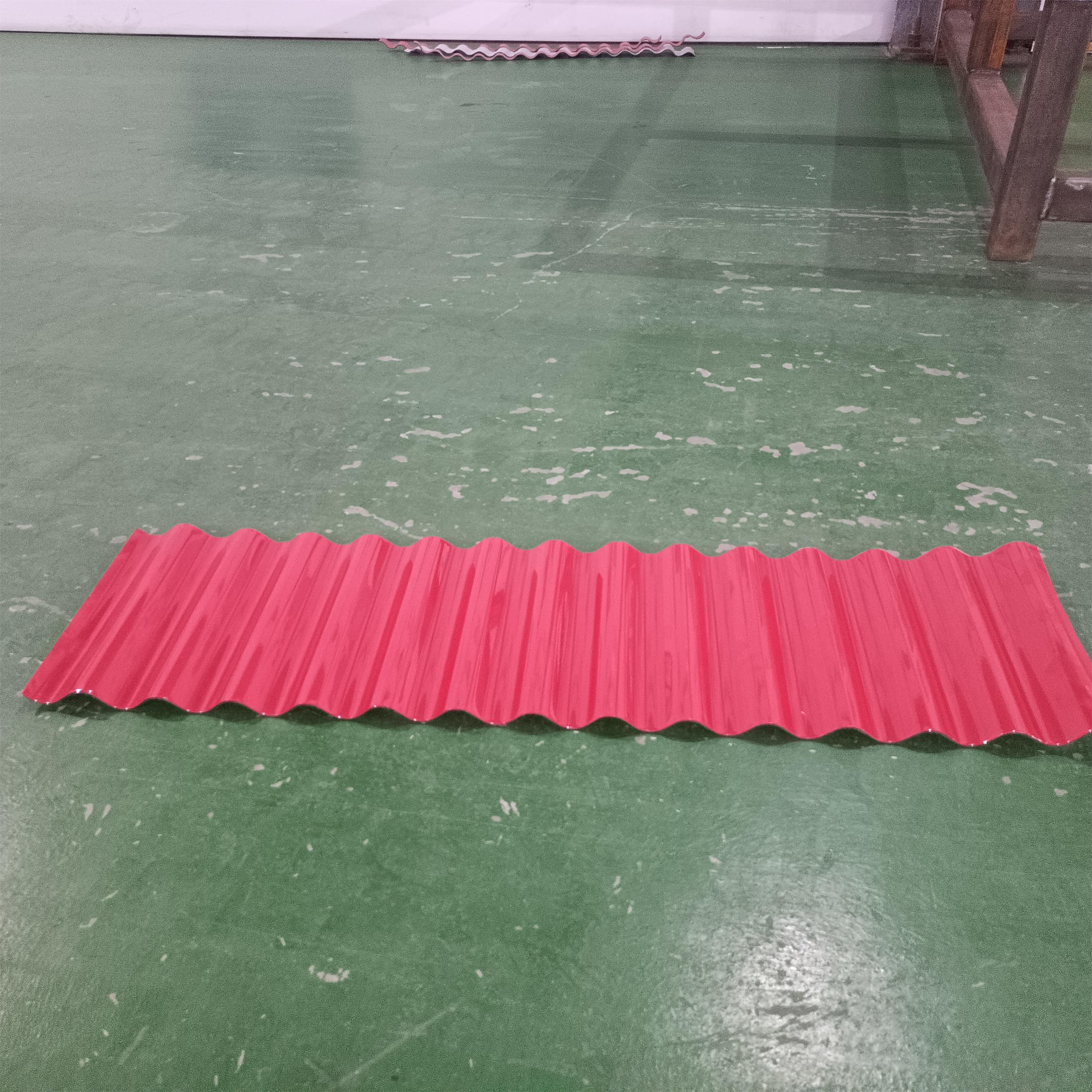

Finished Product
The advantages of new roofing material
- Energy-saving
- Environmental-friendly
- Heat Insulation
- Anti-Corrosion
- Noiseless
- Anti-Condensation
- Easy to install
- The service life is 3-4 times that of ordinary PPGI and GI roofing
- The performance exceeds the sandwich panel The price is lower than the sandwich panel
Series | Details | Parameter |
Product sheet | Raw material | Galvanized sheet or PPGI, multi-layer Polymer film metal plate |
Material thickness | 0.3-0.8 mm | |
Feeding width | 1200 mm | |
Effective width | 988 mm | |
Sheet cutting length | Adjustable |

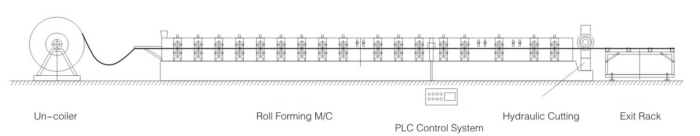

The Work Flow of Corrugated Roofing Sheet Machine

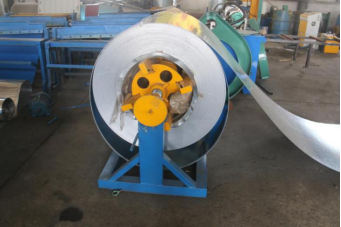

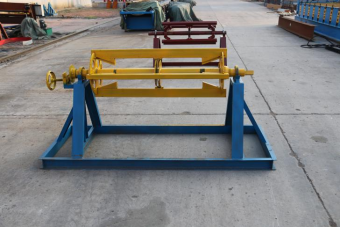

5T Manual Un-coiler
Decoiler | Work type: passive type |
Structure: Steel channel welded for the basic frame | |
usage：To support the coil and make the uncoiling | |
Loading capacity: 5 tons | |
Inner diameter: 450-550mm (manual adjustment) |

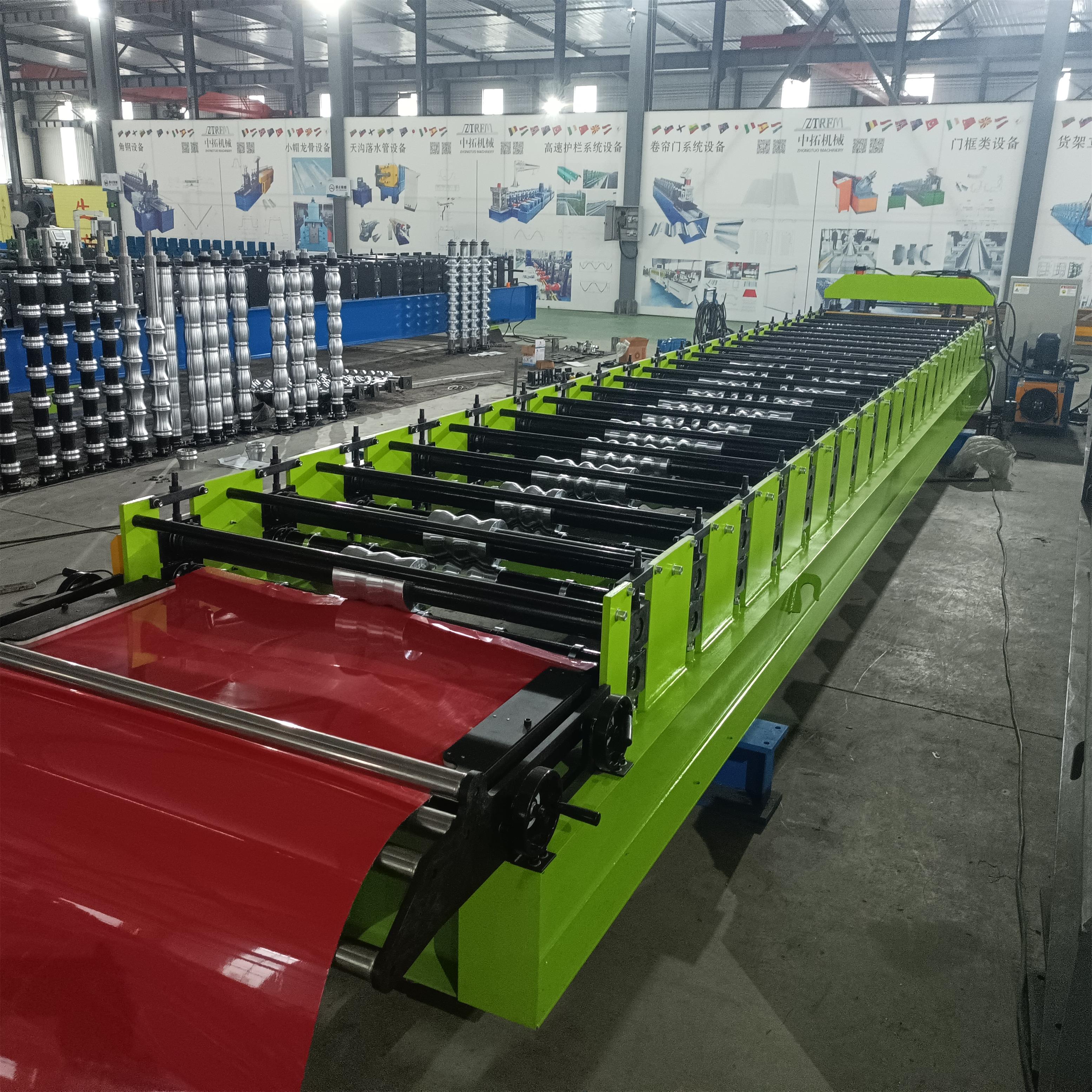

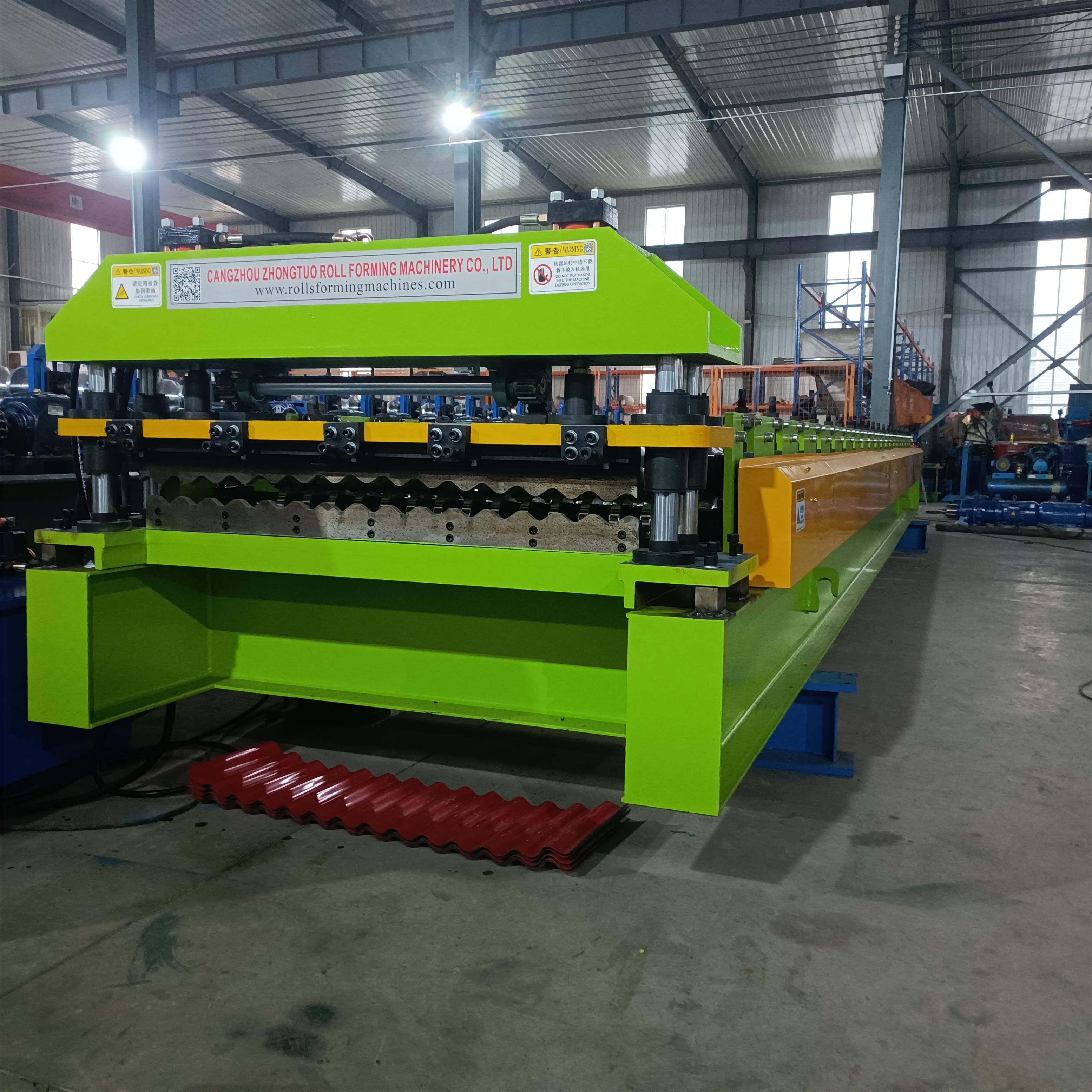

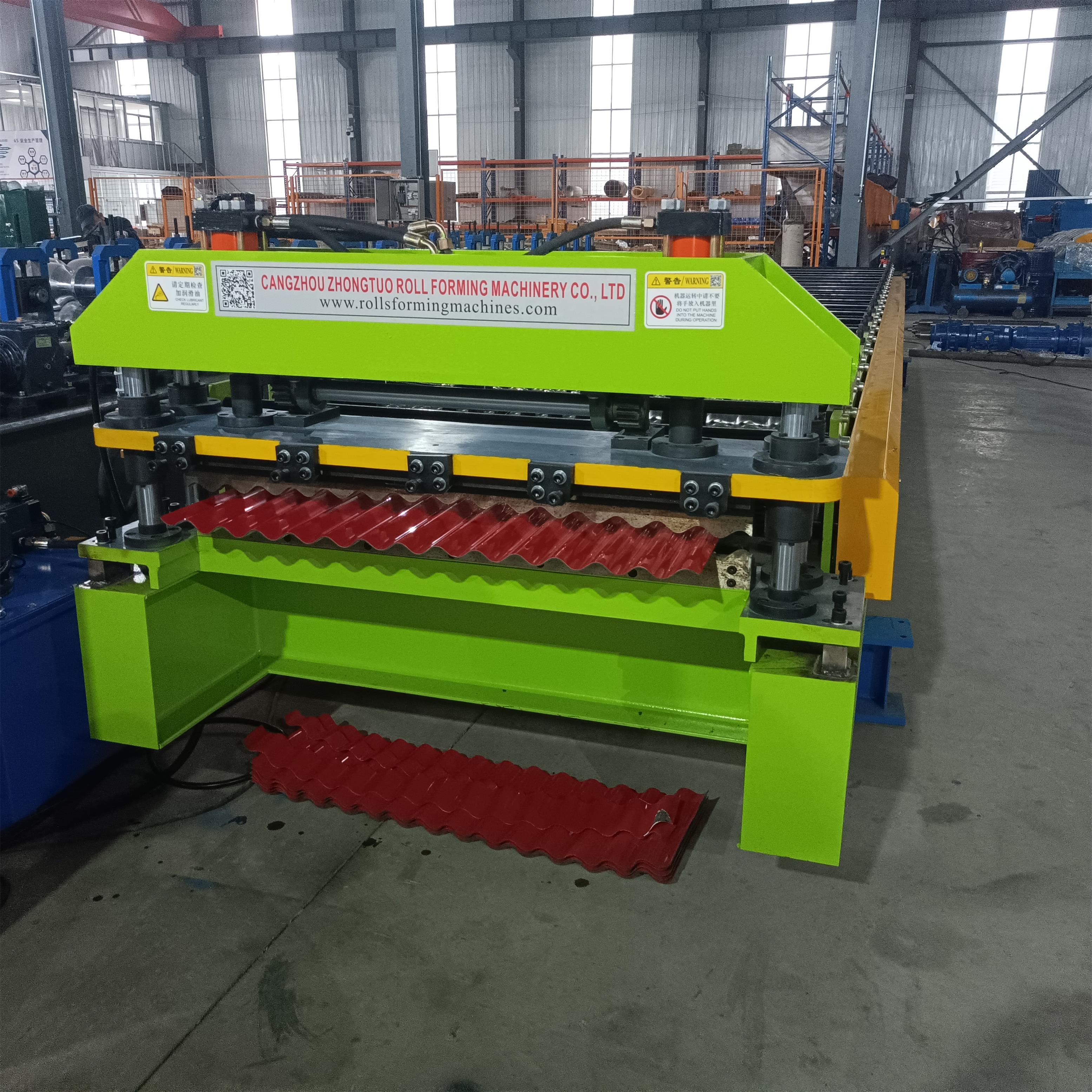

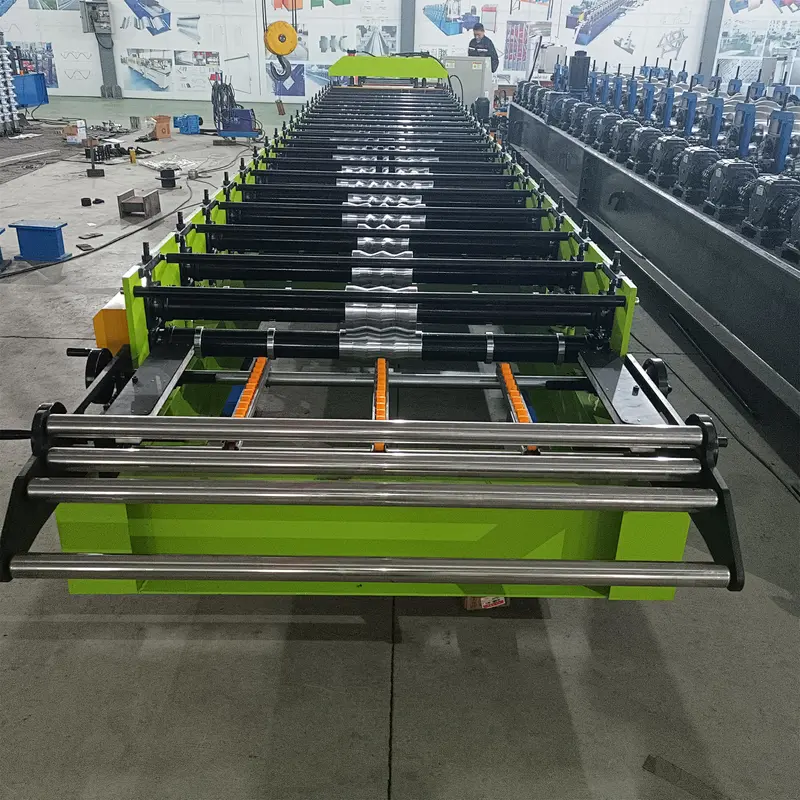

The Main Roll Forming Machine
Roll forming machine | Feedingdevice | One set guiding roller |
Steel plate welded platform to carry the sheet and feed into roll forming system | ||
Feeding width is adjustable with the handle wheels | ||
Rolling shaft | Shaft material:45# STEEL | |
Shaft diameter: 70 mm | ||
Tempering treatment to prevent deformed and improve hardness | ||
Roller | 45# steel | |
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||
Rolling station | 18 rollingstations | |
Work speed | 0-15m/min | |
Machinestructure | Steel plate welded structure | |
Machinebasic frame | 350# H steel welded | |
Work power | 5.5 kw | |
Rolling spacer | Anti rusty treatment | |
Pull rod | Anti rusty treatment | |
Transmission | ByChains with cover | |
Noted: please fill the lube in case the chains getting dry |

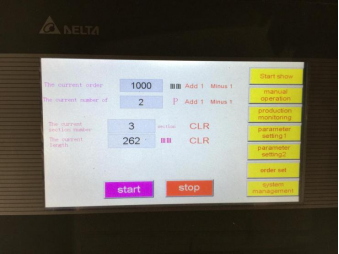

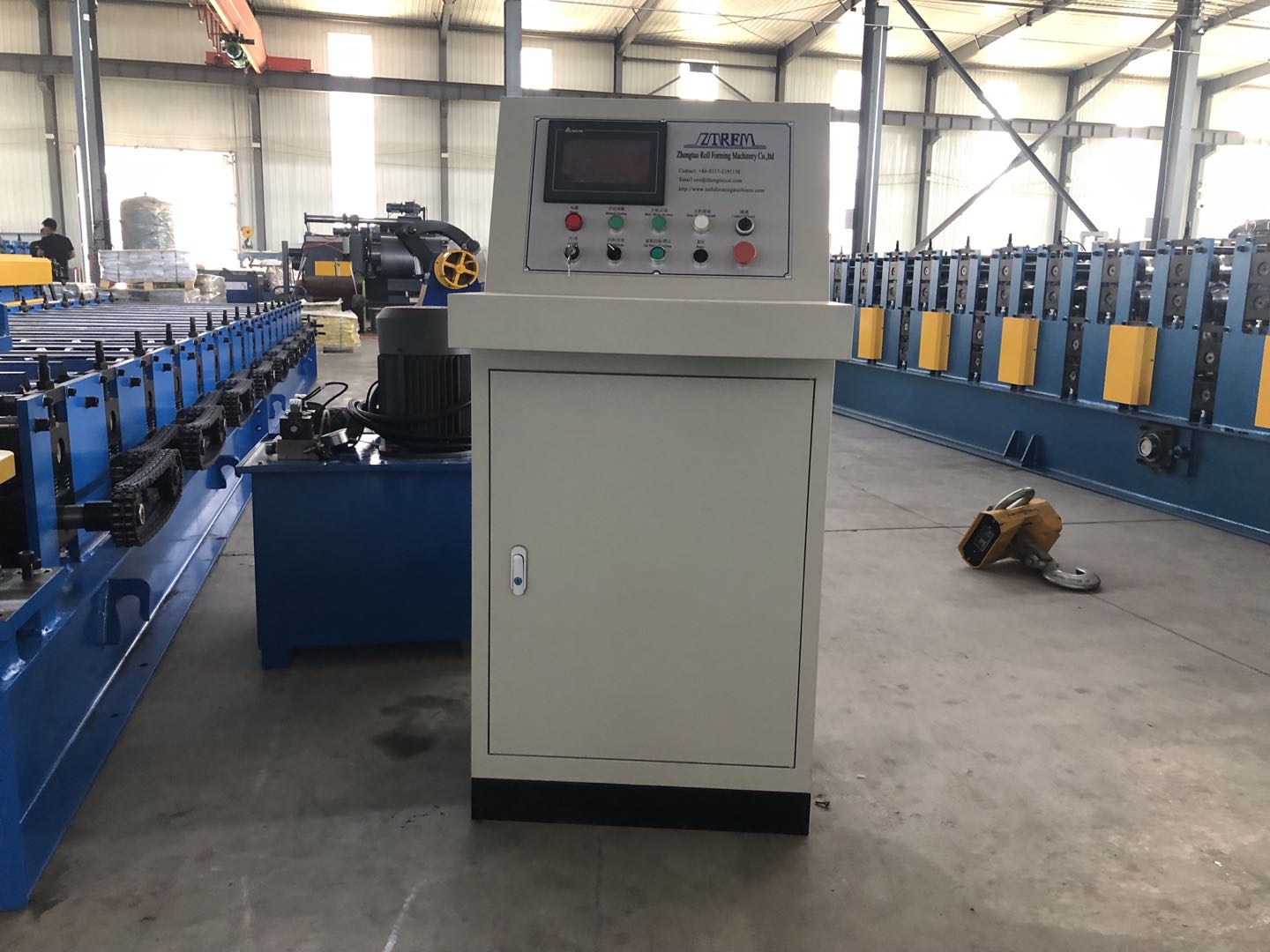

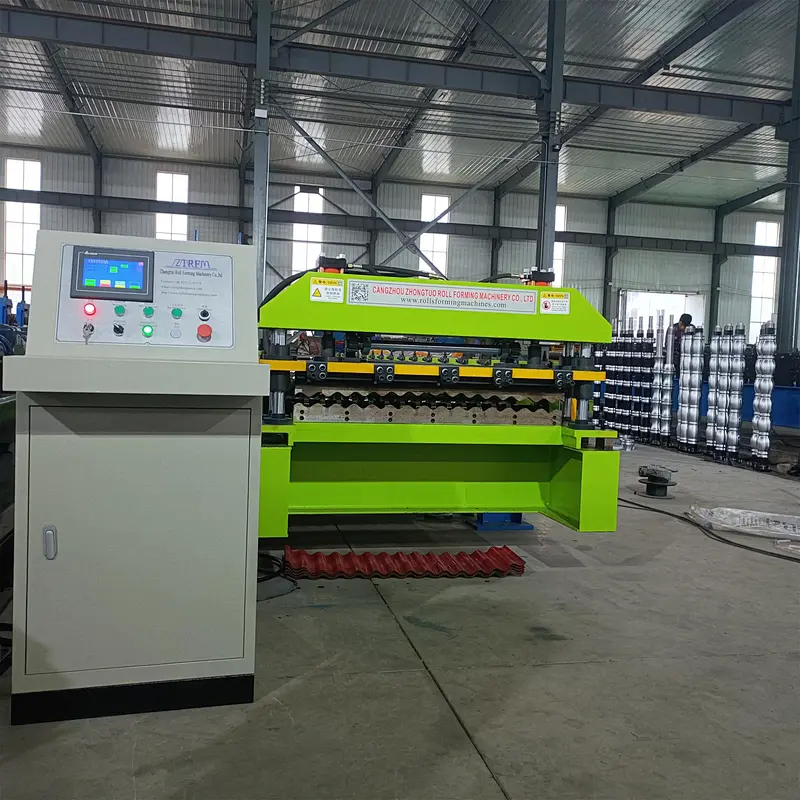

PLC Control System
Control system | Frequency brand | Delta |
PLC brand | Delta | |
Screen type | Touch screen, also have buttons on the panel | |
Screen language | English/Chinese/Spanish | |
Cut command | Yes | |
Profile length set-up | Yes | |
Batch quantity program | Yes | |
Low pressure electric part | Schneider brand | |
Encode | Omron brand | |
Tip | please do the waterproof and damp proof work well if the machine is not used for a long time | |
Please restart the machine and try all the functions each two weeks, to prevent the electrical parts getting aging | ||
Remark | Support multi orders input,ensure the machine can work continuously according to different request without stop | |
All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts. |
Cutting System
Cuttingsystem | Work type | Hydrauliccutting |
Driving method | Bypillar type Cylinder | |
Cutting device structure | Pillar type | |
Noted: please fill the lube before start the machine the first time | ||
Hydraulic motor power | 4.5kw | |
Hydraulic oil | Hydraulic oil number: 46# | |
Quantity: around 100 Litre | ||
Maintain: change the hydraulic oil every 2 years | ||
Cooling method | Equipped with fan on the tank, in case the oil temperature getting hot when the machine working for hours continuously, ensure the hydraulic oil in a constant temperature to have enough power for cutting device | |
Cuttermaterial | GB-Cr12with heat treatment | |
Cutting length tolerance | ±1mm/3m | |
Cutting feature | Steady and safe working condition | |
Oil tube and wires connection | All the tubes and wires will be marked by the numbers or letters, So that it will be very easy to connect for the new. | |
Remark | If the production quantity is large, we suggest the client prepare the one set spare cutter, the spare cutter will cost USD280 one set, the original cutter can be grinding then use again. It’s better that stop the machine for 30minutes every 4-5 hours, if the temperature is high. If the weather is cold, please start the pump first for 5 minutes to heat the hydraulic oil, then do the cutting work. |

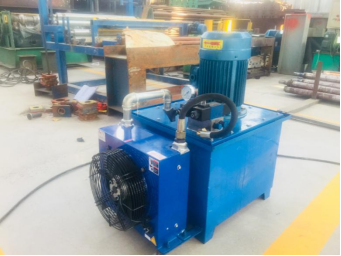

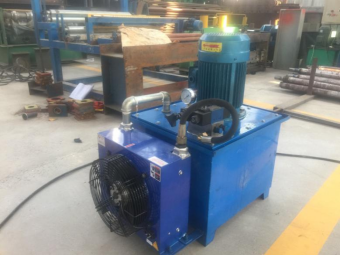

The Hydraulic Station with cooling system

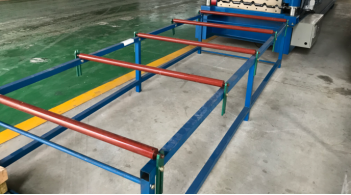

The Product Receiving Table
Product table | Length | 3 meters |
Width | 1.25 meter | |
Material | Square pipe welded | |
The table will be put in front of the machine to receive the sheets. There are 6 passive rollers on the table, to convey the sheets when the sheets come out from machine after cutting Duo to the cutting length of the sheet, we will provide two sets table along with the machine, the customer can place the table in front of machine as production request | ||
The Inspection of Roll Forming Machine
1.The seller should arrange the machine test in sell’s factory before shipmentand invite the buyer come.
2.Theseller will provide the machine running video and photos, if the buyer not come.
Payment and Warranty
1. Paymentterms:
-30% by TT for the advance payment at order
-70% by TT after inspection in China
2. Delivery: Max.45 working days after the advance payment.
3. Validity time: 15days since the quote date.
4. After-sales service
A. Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
B. Trainingand service: the buyer should charge of visa, round-trip ticket, food and accommodationoverseas and USD80/person/day for salary.Also need the buyer arrange some workers to help our technician for installation and commissioning
C. The advantage of my factory: we have a team of skilled engineers and one group for after-sale service.
D. We will provide you the layout for installation in English.
