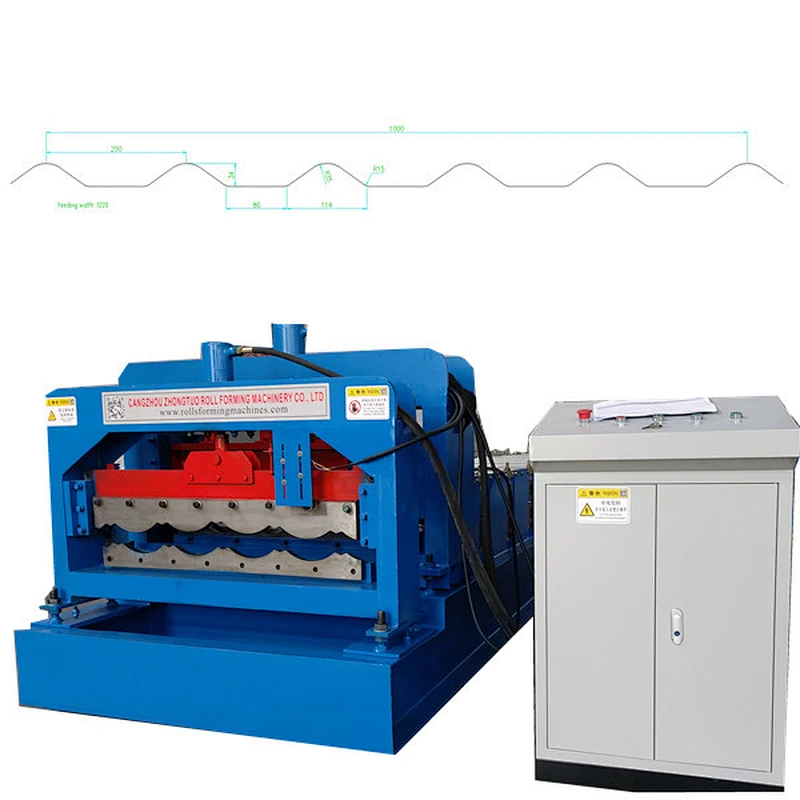

Features of Zhongtuo Metal step tile roll forming machine:
- High Efficiency: 6m per minute.Produce 2880m per shift for 8 hours one day. If you want to make more higher speed, we can produce 12 meter per minute glazed tile rolling machines.
- Long time to use: Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
- Accuracy: Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance. Zhongtuo rolling machines with the keynotes in the shaft.
- Safe when operate: Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
In the following part, we will take the Metal Step Tile Roll Forming Machine for Mexico market for an example, to show you how our machine is designed:

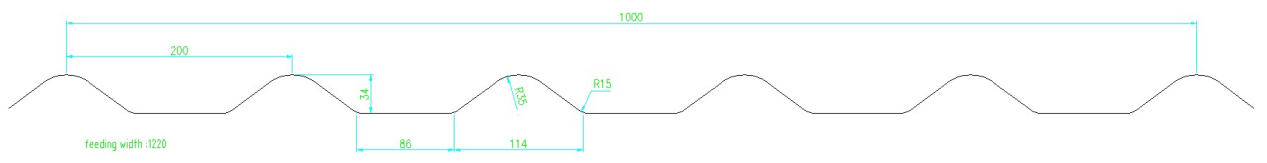

Drawing profile for your reference:

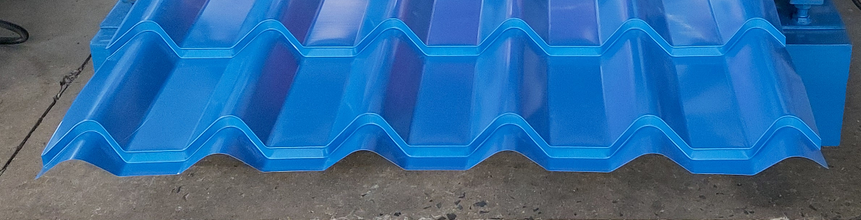

Finished product pictures:

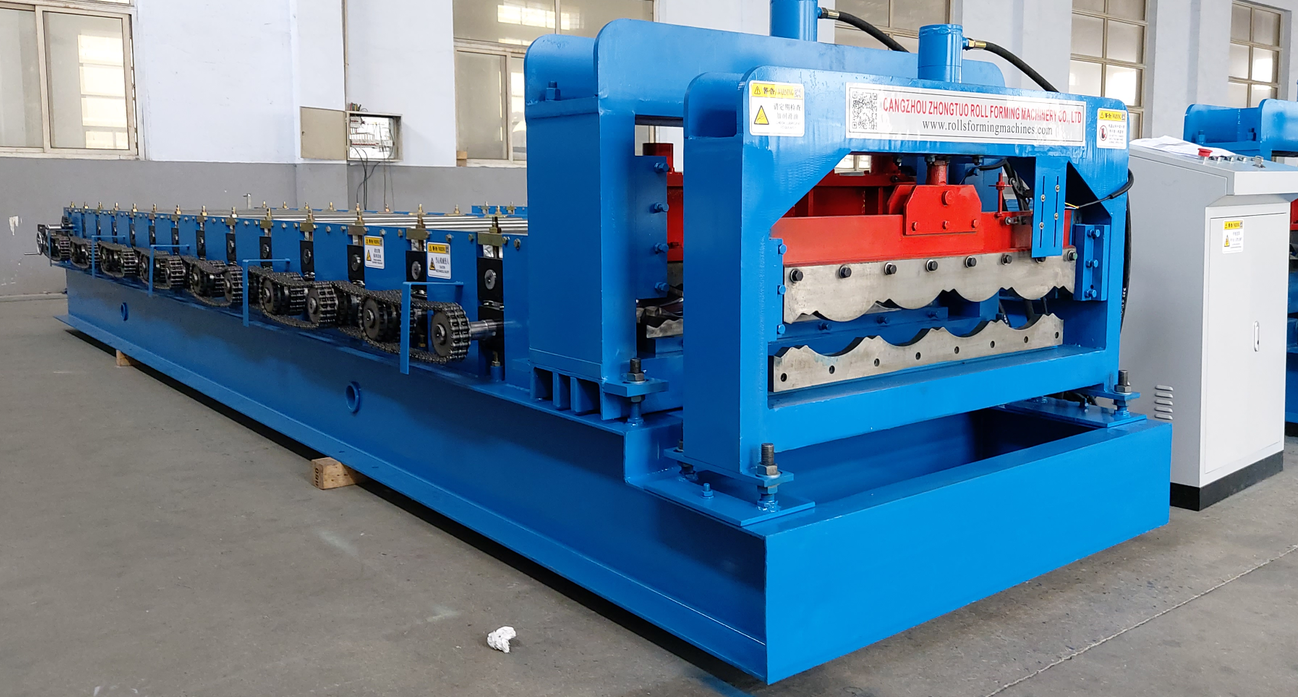

ZhongtuoMetal step tile roll forming machine:
ZhongtuoMetal step tile roll forming machine parameters for your reference:
Layout Drawing of Step Tile Roll Forming Machine
Technical Parameters of Metal step tile roll forming machine
Suitable material | PPGI coils & Aluminium coils ;0.5-0.6mm |
Working speed | About5- 6m/min |
Step distance | Adjustable according to requirement (>=250mm) |
Power Requirement | Main motor power: 5.5 Kw(Depend on final design) |
Hydraulic station power: 5.5Kw(Depend on finaldesign) | |
Material of rollers | No.45 steel, plated with chrome on surface. |
Material of cutter, | Cr12 mould steel with quench treatment, HRC58-60 |
Material of shaft | High quality 45# steel, Dia. is 72mm. Roller grinder milling. |
Shaft diameter | 72mm |
Controlling system | Mitsubishi PLC & converteror the brand you specify |
Total weight of machine | About 9500KGS |
Machine's size | About 18m×1.8m× 1.5m (Depend on final design) |

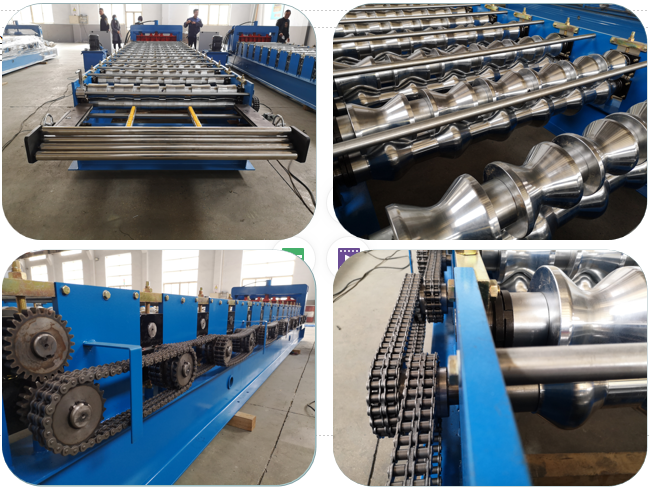

More details of Zhongtuo Metal step tile roll forming machine:
- Stainless leveling bar with the rubber rollers to protect the surface of the coil;
- Thick chroming to the rollers and space.
- Double chain for long time to use.
- Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.
- Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.
PLC Control System
- Button brand :Schneider / screen brand Schneider
- More buttons ----make control more clear
- With fans to cool control station
- Brand Mitsubishi or optional.
- Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
- Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Packaging Details:
1. One *40GP container for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
Here is the machine working video for your reference:
