Metal Decking Machine for Albania

Name: Metal Decking Machine for Albania
Rating: 5 (1 reviews)

Model NO.: ZTE-89
Price:: US $ 35000.00-50000.00 / set
Delivery: FOB Tianjin
Minimum order quantity: 1 set
Supply Ability: 10 set / Month
Stock Time: 50 Days

Quantity:

Product Description

Metal decking machine for Albania

In the following part, I will show you one type metal decking machine which we have delivered to Albania. If you have the needs like this, please contact us at any time. Here is the metal decking drawing profile for your reference:

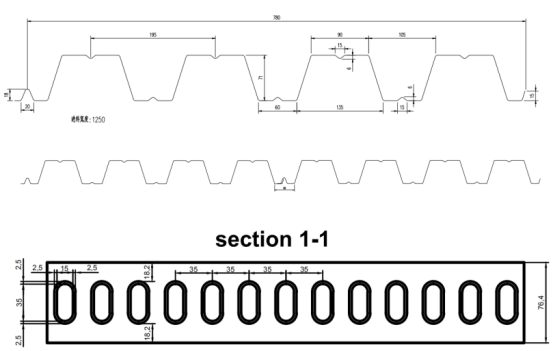

Customer drawing profile: material thickness Max to 1.2mm

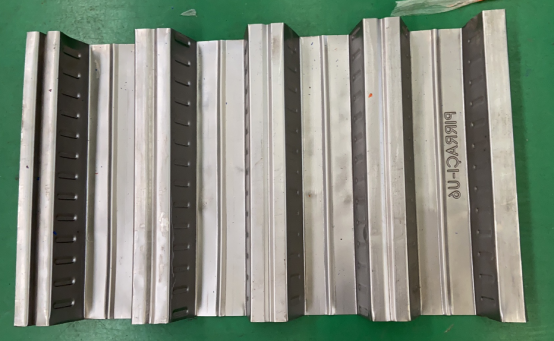

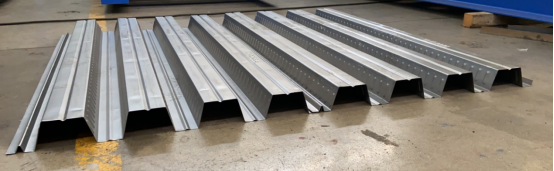

Here is the finished product pictures for your reference:

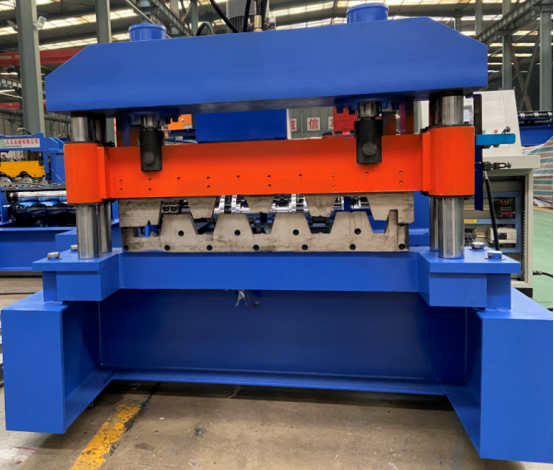

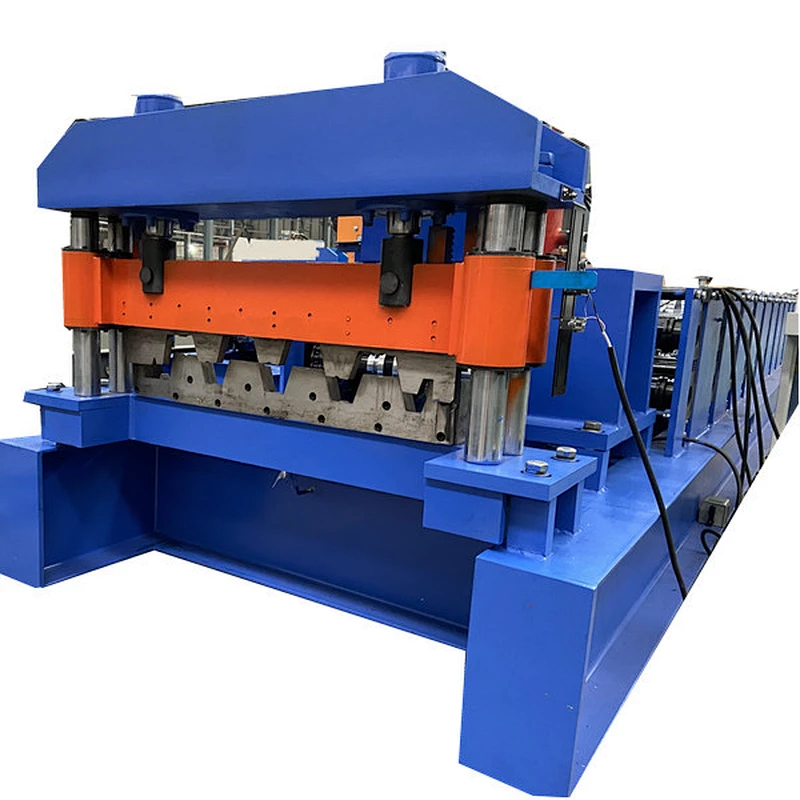

Metal decking machine for Albania pictures for your reference:

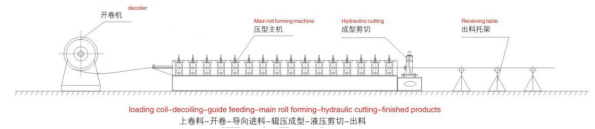

1. Processing flow diagram of machine
Manual decoiler→ → Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products

Technical Parameters

Main elements	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system, run out table
Material	Raw material	S350 & S450 grade steel or galvanized coil
	Thickness	0.5-1.2mm
HydraulicDecoiler	Inner Diameter:450-550mm	Expand by hydraulic
	Outer Diameter: max 1500mm
	Max Coil width:1250mm
	Capacity: 5T
Leveling beach With the embossing roller	For making coil neat and clean from decoiler, coil will be a little curve. Meanwhile for saving coil, we will give motor shearing system to cut coil at any part. The embossing roller shaft diameter=120mm.
Logo Punching	If you need we can add this function for you.
Main Forming machine	Forming steps	34 roller stations
	Rolling method: for rolling methods, we use the separated molds rolling forming.
	Shaft diameter	90mm, the embossing roller=120mm
	Diameter	90mm
	Design type	Middle plate welded
	Machine frame thickness	20mm
	Machine frame	400# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel adjusting the density
	Work speed including shearing	8-12m/min
	Transport	By chains of 1.25mm
	Power of main machine	18.5 kw two motors to give the power more evenly to the machine
Shearing system	Type of cutting power	Hydraulic
	Elements	Two hydraulic jacks for fast shearing speed
	Frame	Pillar pole type to make sure working steady
	Cuttingblade material	Gcr12,queening at 58 to 62 degree to make sure hardness and long time to use.
	Cutting tolerance	±1mm
	Cutter blade more pair	We will give one more as spare part
	Cutter quantity	2 set
	Working pressure	20 MPA
	Motor Brand	Siemens

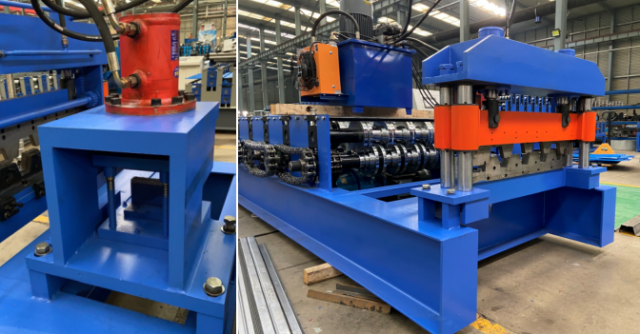

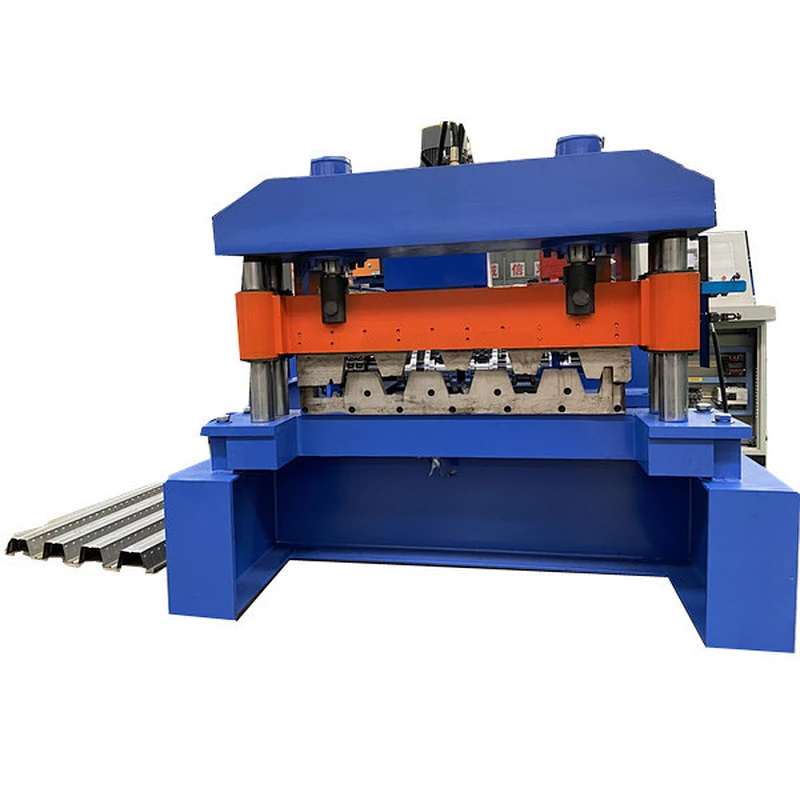

More details of the machine pictures for your reference:
We have installed the punching station on the machine, then it is quite easier for installation. We also added the punching logo this machine.

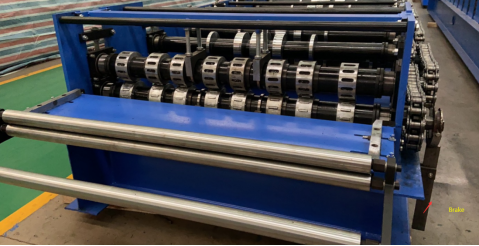

For the leveling part, we add the mold protector holder and the brake for easy to feed coil and also have the good embossing effect.

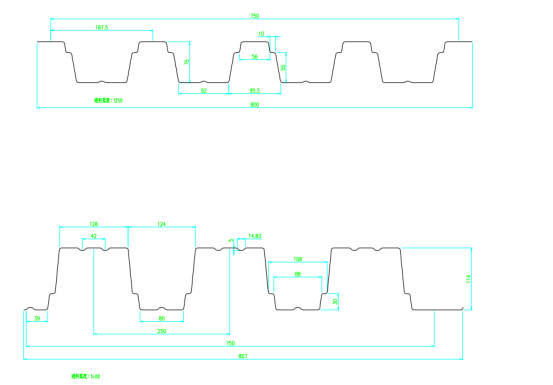

For the metal decking machine, we have made more types, here are more drawing profiles for your reference. If you need to know more information,please contact us at any time.
