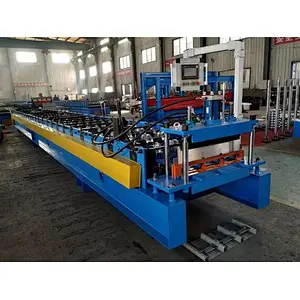

Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine

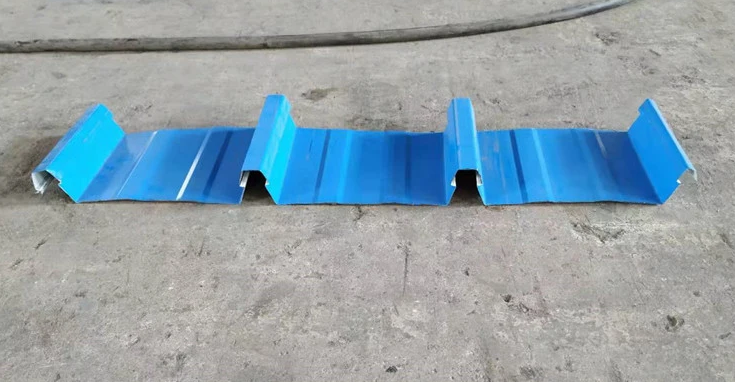

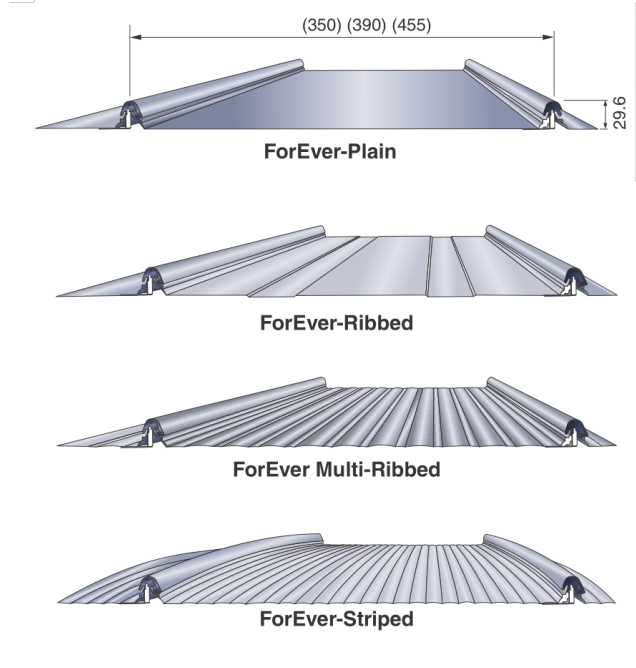

Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine is designed to make the concealed clip lock roofing sheet rolling machine. Here is one drawing to show you what is concealed clip lock roofing sheet.

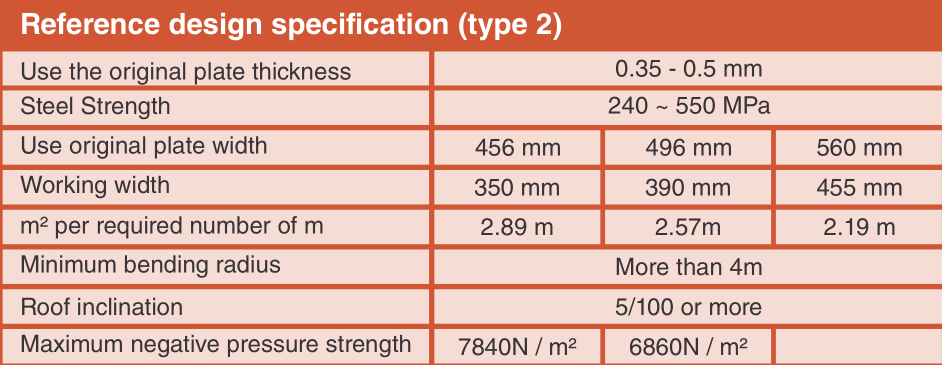

The drawing profile could be designed with different ribs:
For Zhongtuo rolling forming machine, we can design the ribs are adjustable. They will be designed with different embossing rollers, which one you need, simply down it, and the one you do not need, simple lift it.
Featuresof Japanese Design Concealed Clip Lock Roofing Sheet:
Lightweight roofing with special concealed clip fixing. No holes hence leak proof.
Special designed clip fixing System makes it strong roof to wind, rain and earthquakes.
It supports the arc roof, available in many architectural designs: FR Plain | FR Ribbed | FR Multiribbed | FR Stripes
Available in materials-colour coated galvanized, galvalume.
Variety of colouravailable
Any length upto 12 meters. available more than 12 meters.
Some reasons why we recommend this design:
1.Anti- earth quakes:A screw less roofing system fixed using concealed clip.Goby shape and compact integration of the childhanging and body makes it strong against wind, rain andearth quakes.
2.Lightweight, economical and suitable for curved roofs.
3. Smooth and Clean Look.

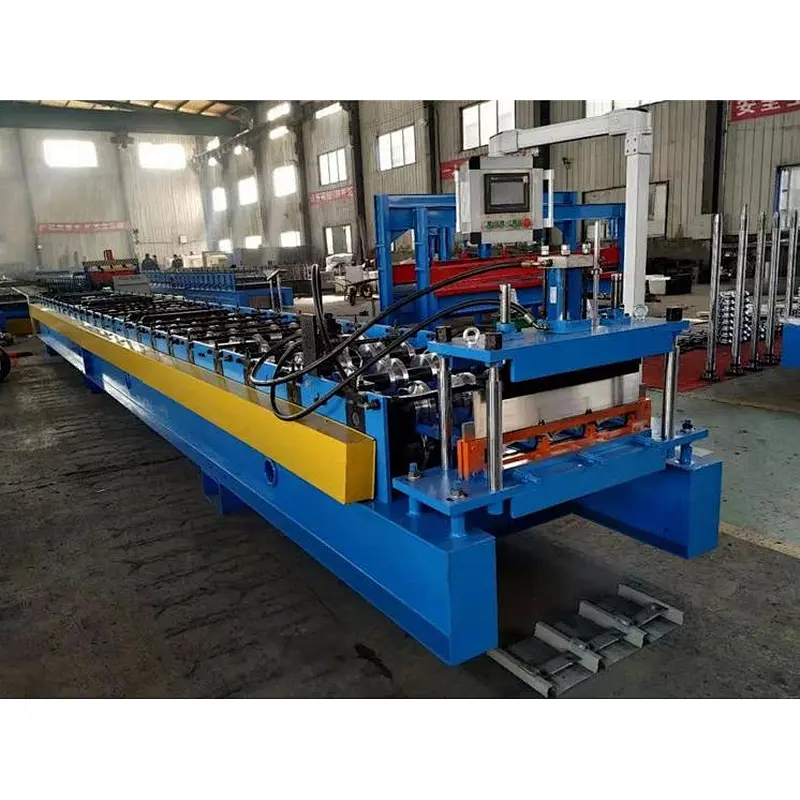

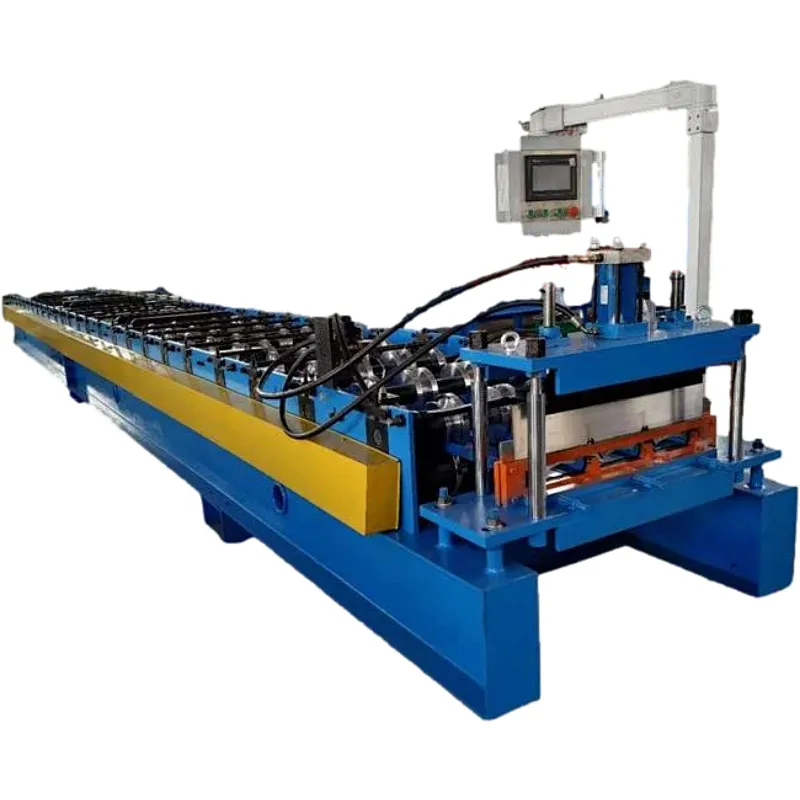

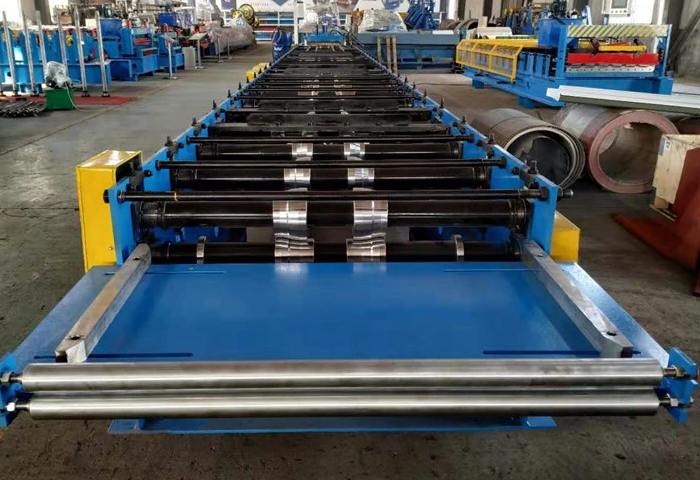

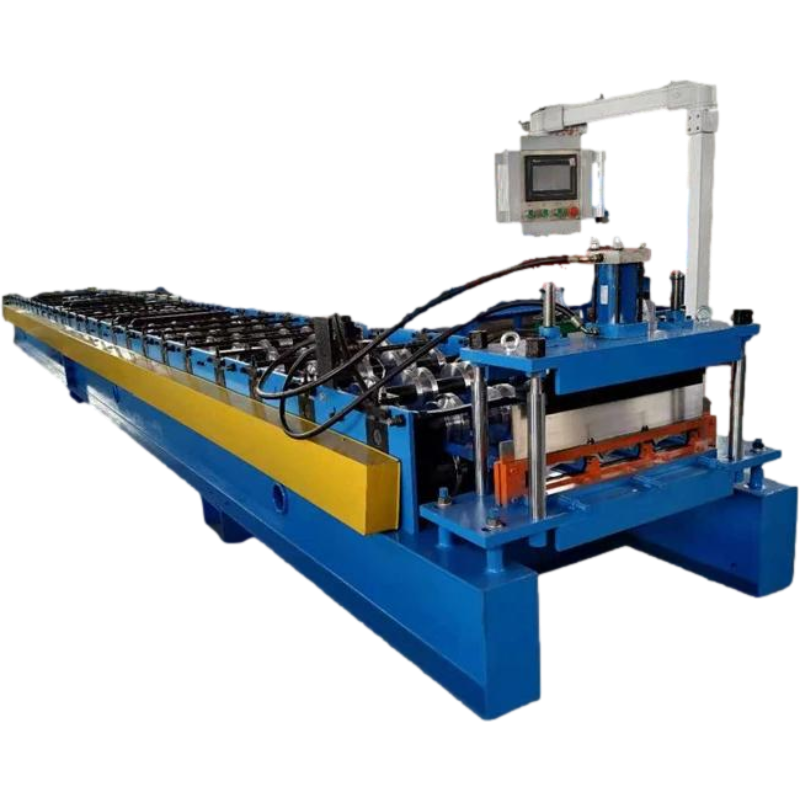

Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine

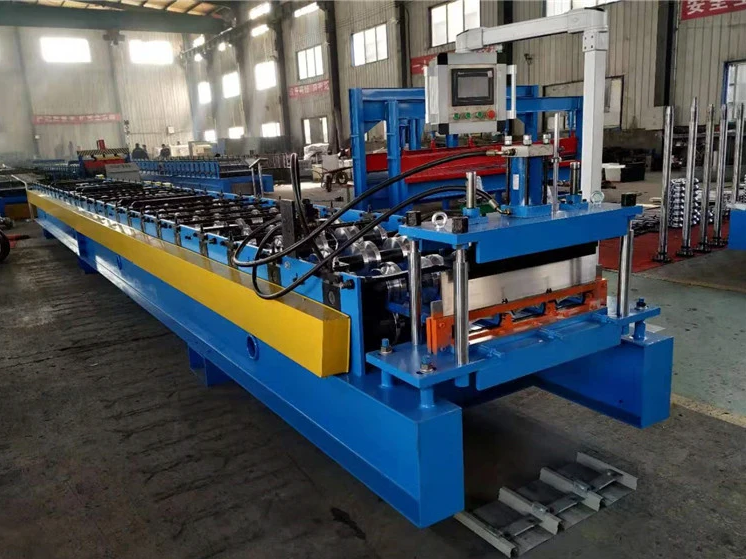

NO | Clip lock concealed roof roll former machine | |
1 | Suitable to process | Color alu-zinc steel coil |

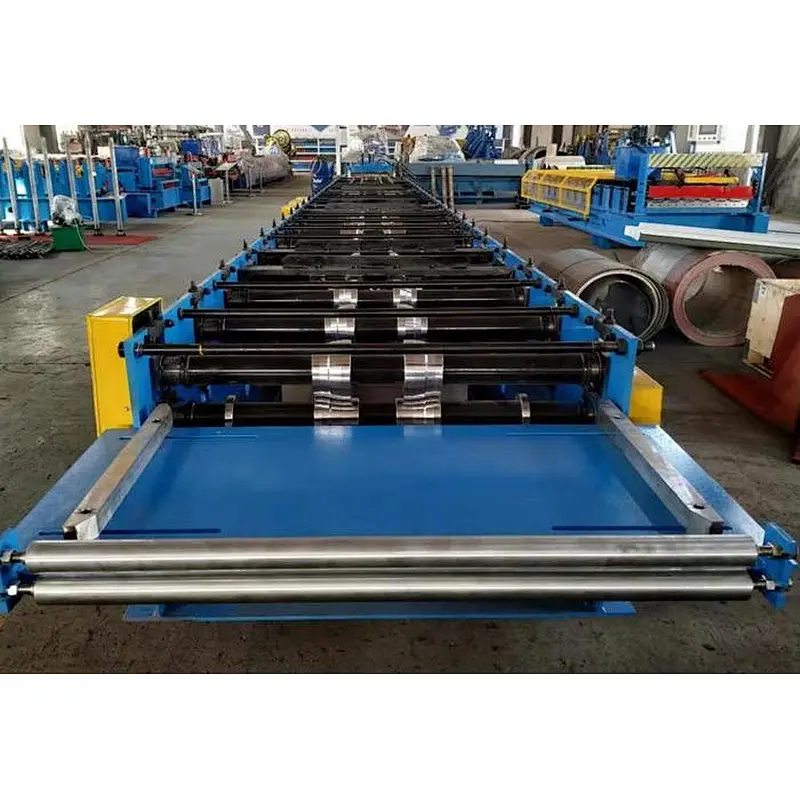

2 | Roller | 26 Rows |
3 | Dimensions | 18.2*1.65*1.7m |
4 | Motor Power | 7.5Kw |
5 | Pump Station Motor | 4Kw.Lichao Brand |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 10-15m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 5800kgs |
11 | Main structure of the machine | 400H beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer's need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Motor driver |
19 | Touch screen | Delta |
20 | Rolling materials | 45# forging steel with chromium plate |
21 | Length Tolerance | ±2mm |
The advantage of Clip lock concealed roof roll former machine:

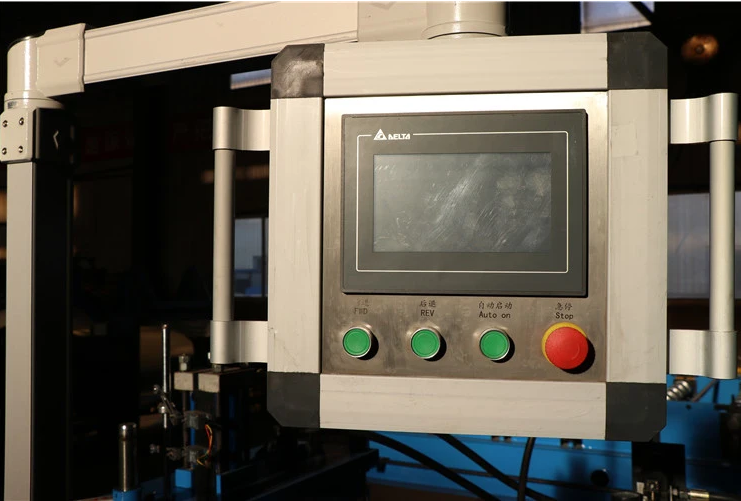

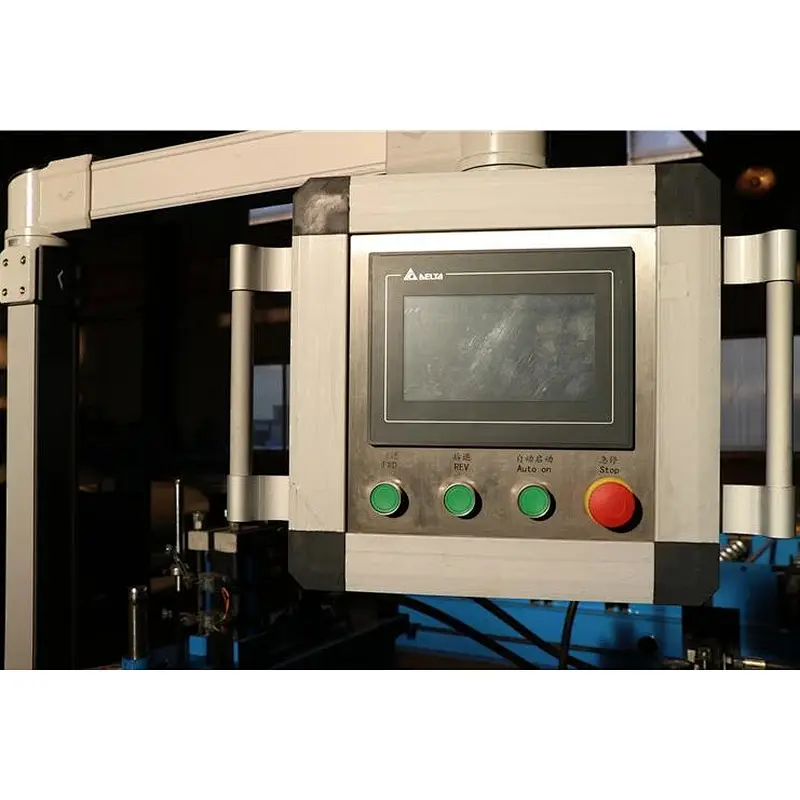

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
ForJapanese Design Concealed Clip Lock Roofing Sheet Rolling Machine, if you have any other questions, please let me know.
