IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT
Roofing sheets are an effective, modern solution for any roofing requirements. They can be used as a standalone roofing material or as cladding for an existing structure. Our expertise and dedication to providing you with a great product is apparent with our roofing sheets by our rolling forming machines. Here we will take some popular design of IBR for Egypt for your reference:

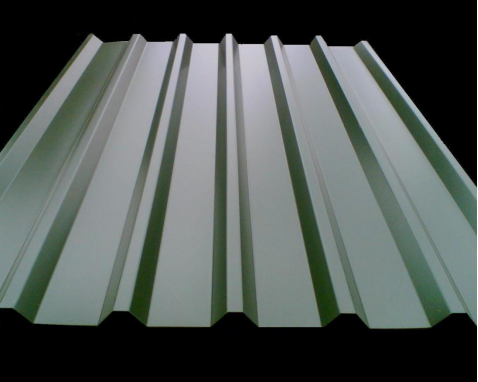

Finished products of metal roofing sheet:

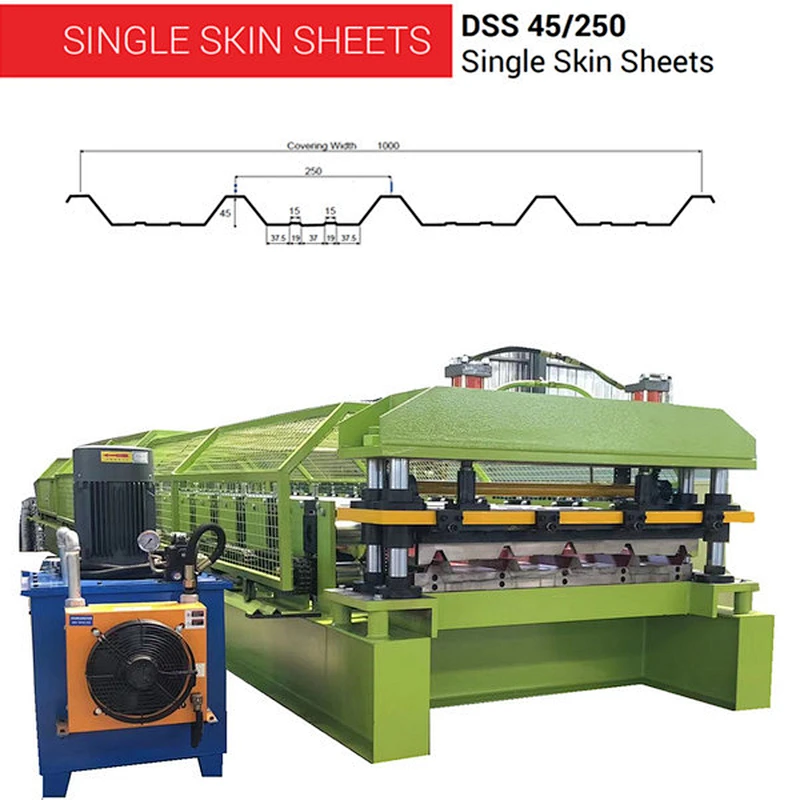

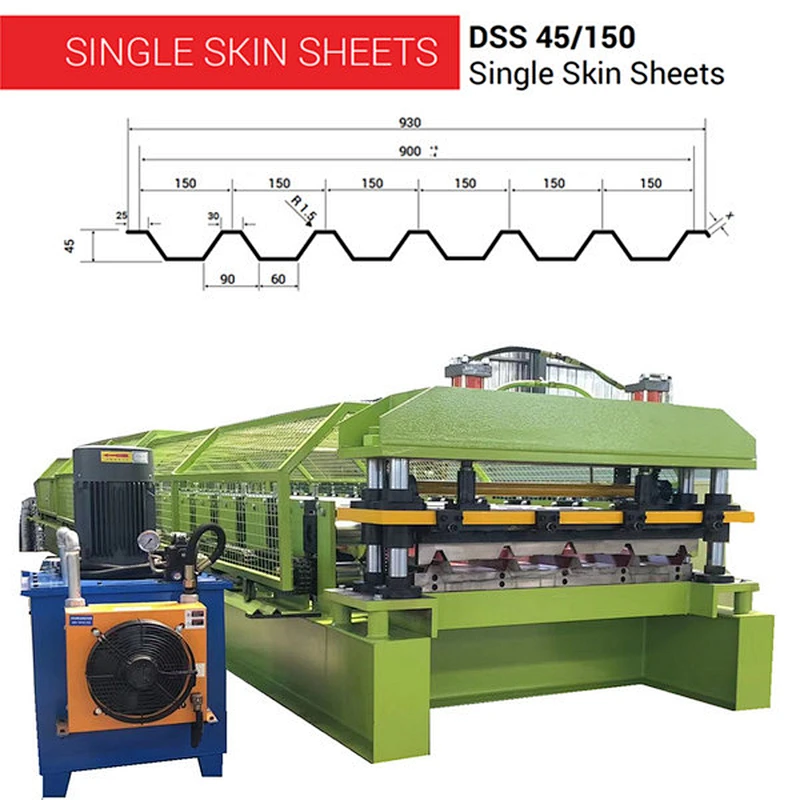

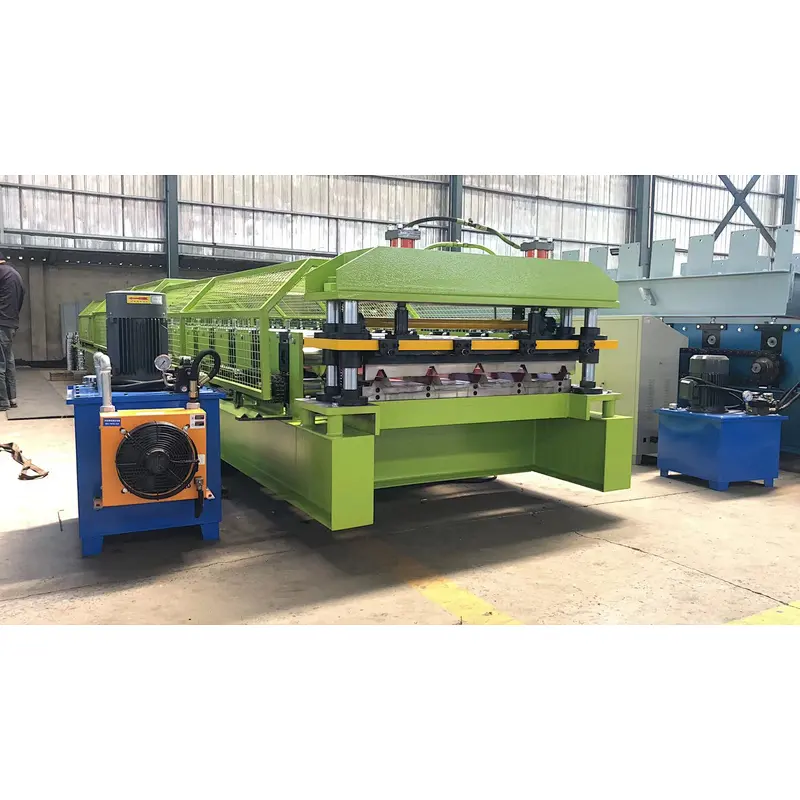

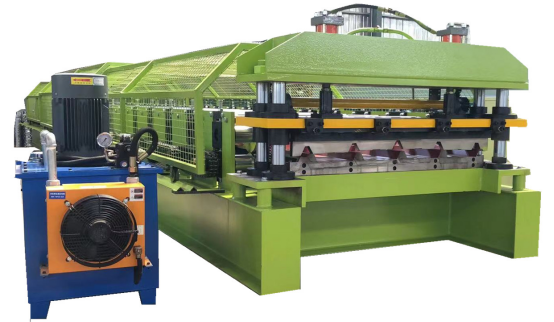

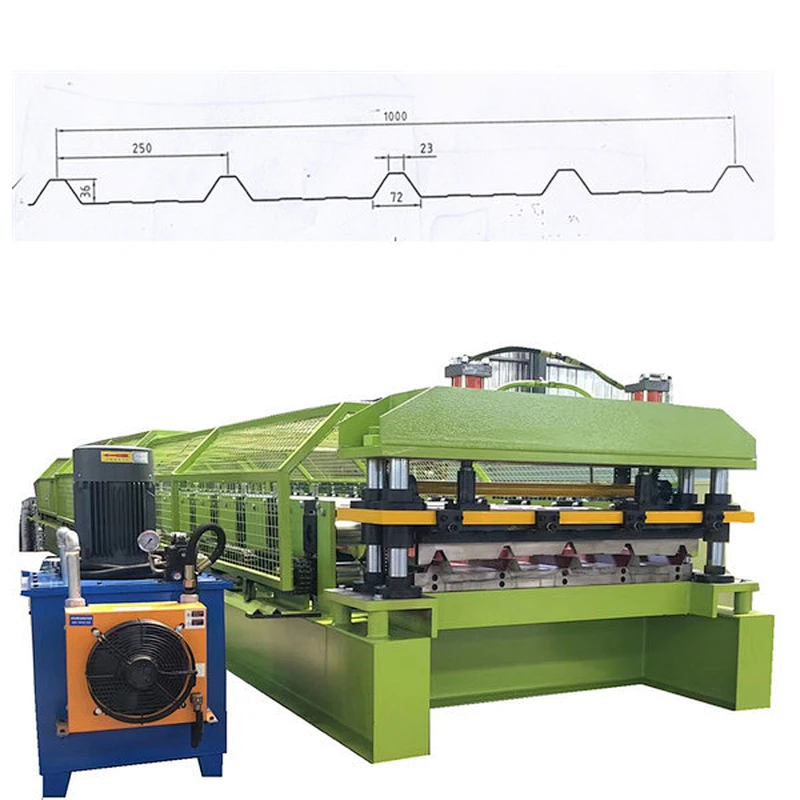

IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT machine design:
Here are some parameters of metal roofing for your reference:

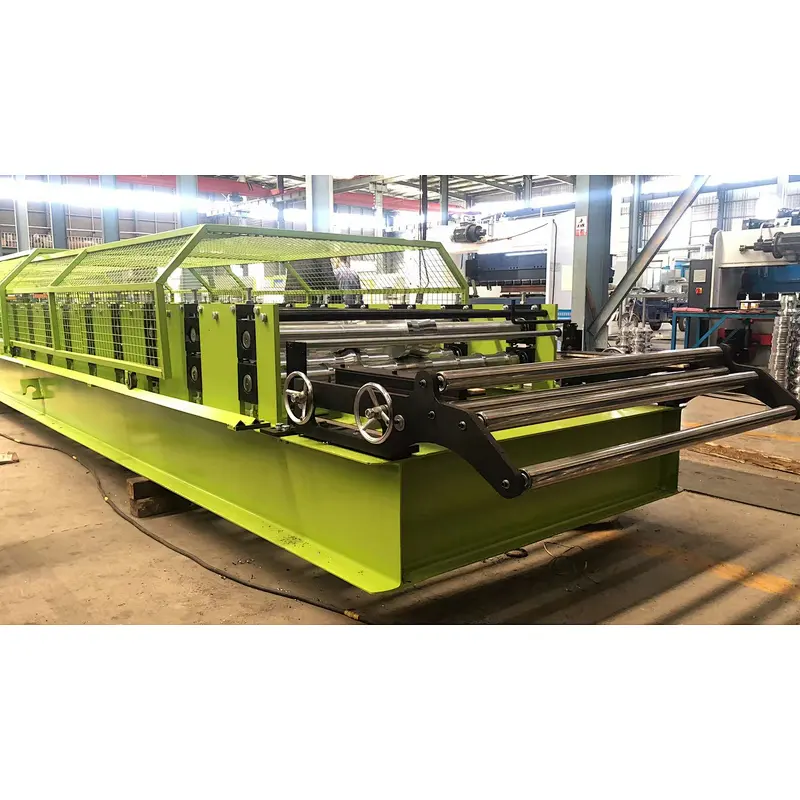

Roll Forming Machine | Feeding device | One set guiding roller |
| Steel plate welded platform to carry the sheet and feed into roll forming system | ||
| Feeding width is adjustable with the handle wheels | ||
Rolling shaft Roller | Shaft material:45# STEEL | |
| Shaft diameter: 75 mm | ||
| Tempering treatment to prevent deformed and improve hardness | ||
| 45# steel | ||
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||
| Rolling station | 20 rolling stations | |
| Work speed | 20 m/min | |
| Machine structure | Steel plate welded structure | |
| Machine basic frame | 350# H steel welded | |
| Work power | 5.5 kw | |
| Rolling spacer | Anti rusty treatment | |
| Pull rod | Anti rusty treatment | |
| Transmission | By Chains with cover | |
| Noted: please fill the lube in case the chains getting dry |

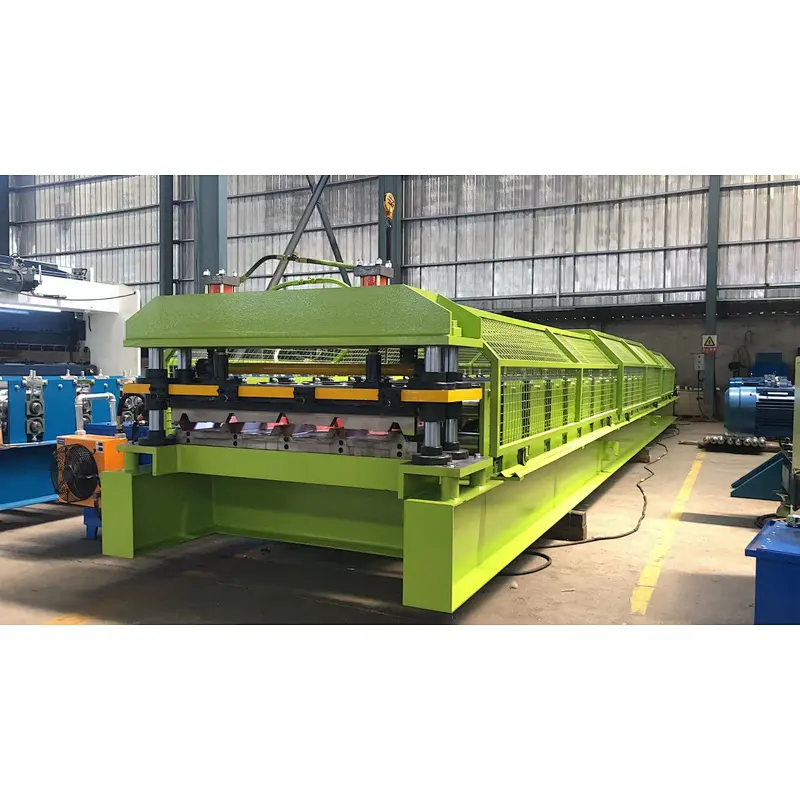

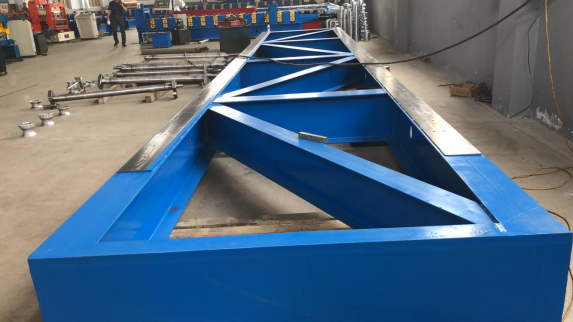

For making sure the machine quality, we use the strong base frame with slop.

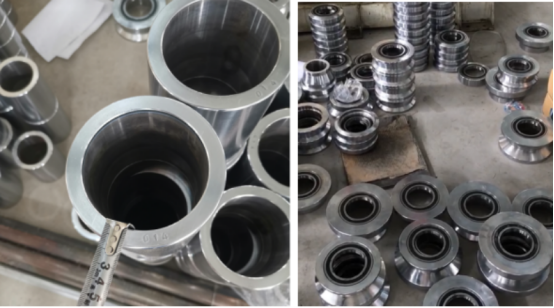

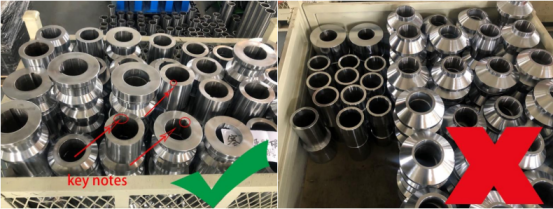

About the roller parts
Advantages: We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working.
HEREIBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT WORKING VIDEO FOR YOUR REFERENCE:

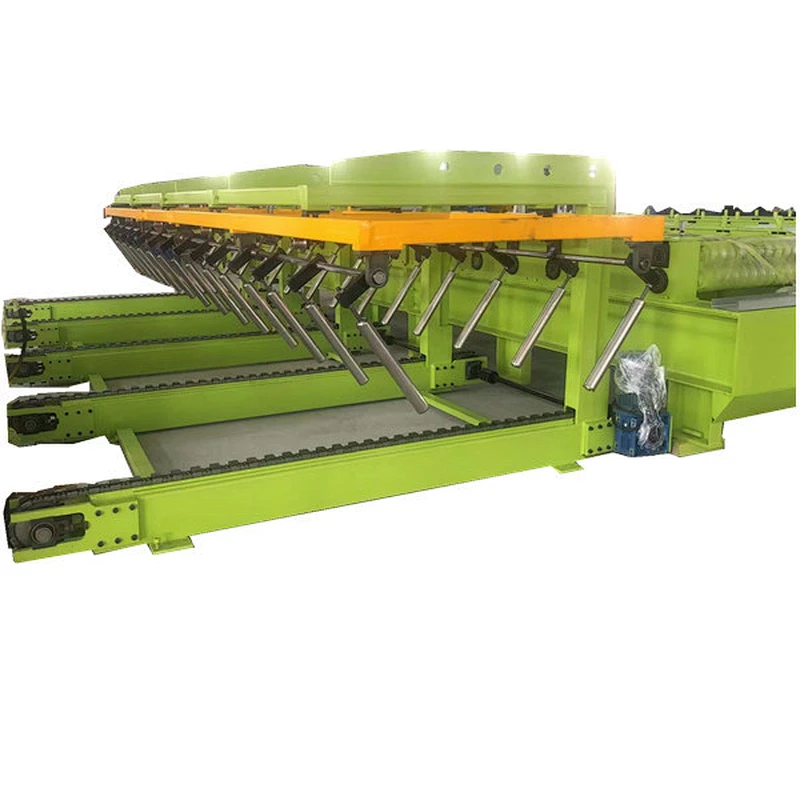

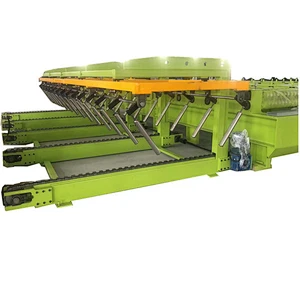

As to the decoiler, you can choose hydraulic 5 ton 7 ton or others, if you do not need, we can give you the manual one free. As to the stacker, you can choose 6 meter or 12 meter, if you do not need, we can also give you manual one free.

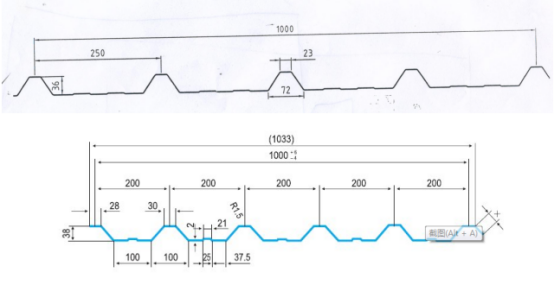

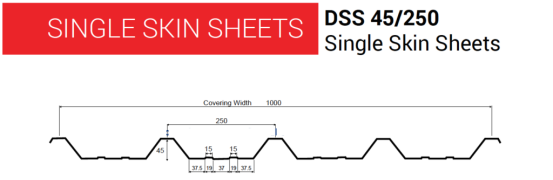

Here are more popular drawing profile for your reference:
