Galvanized Steel Drywall Framing Stud Roll Forming Machine

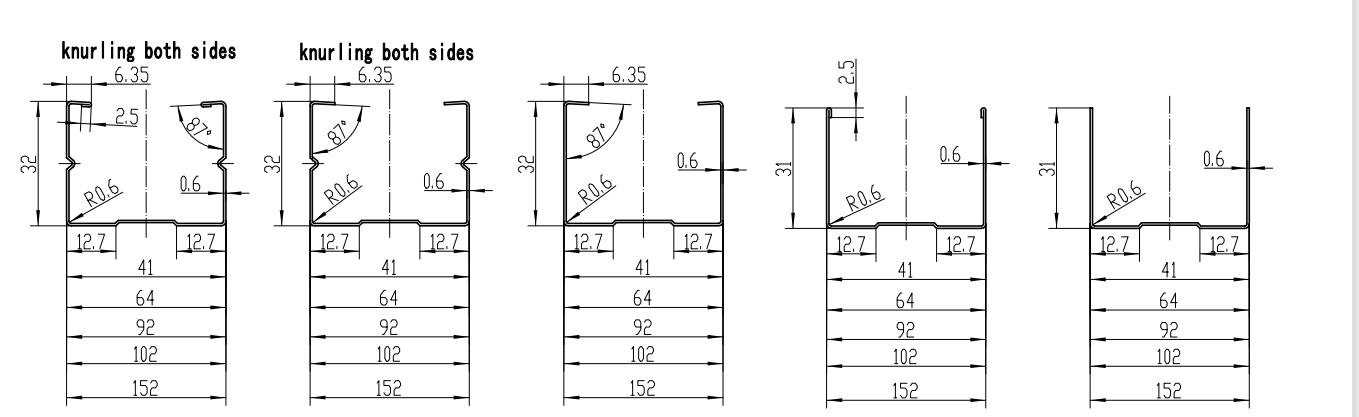

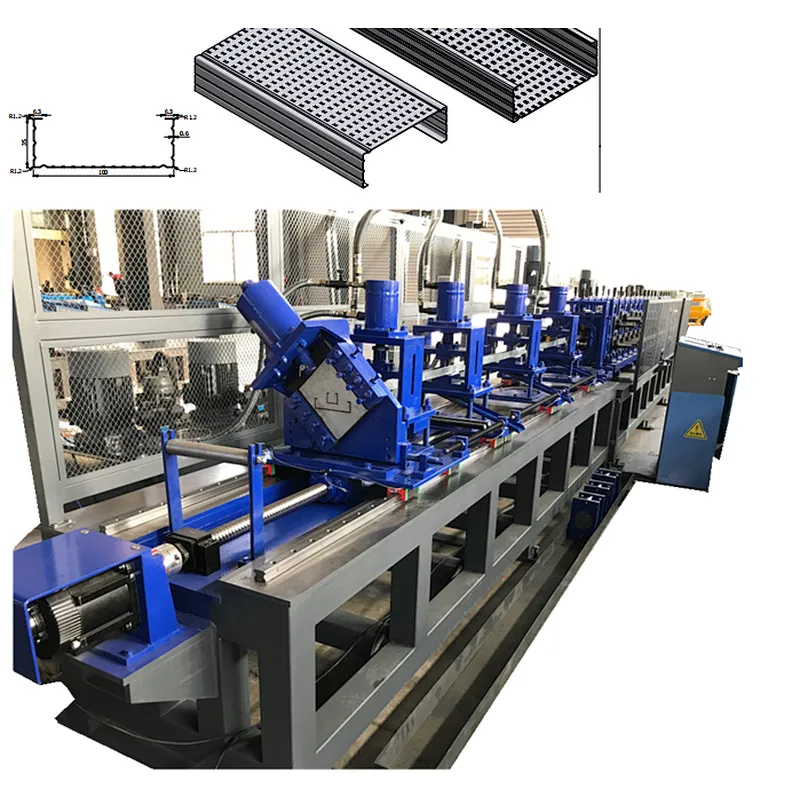

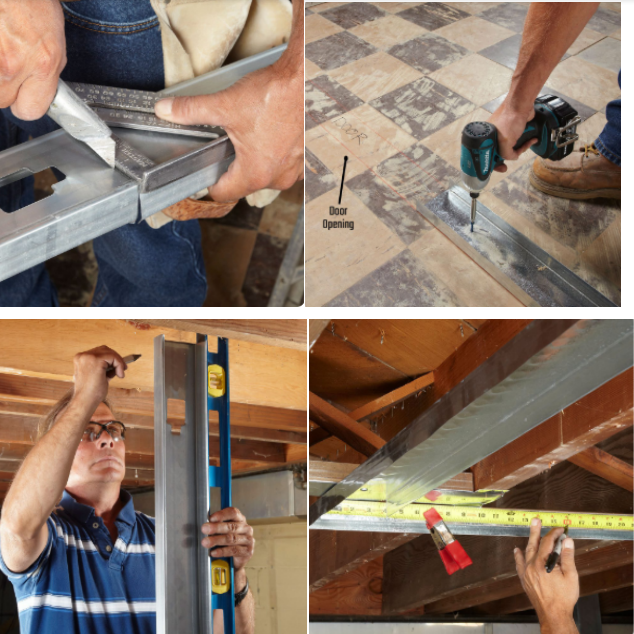

Galvanized Steel Drywall Framing Stud Roll Forming Machine manufactures a full line of drywall studs in 18, 27, 30 and 33 mil thicknesses (25-20ga.). These studs are available in standard 1-5/8", 2-1/2", 3-1/2", 3-5/8", 4", 5-1/2"and 6"member widths and have 1-1/4"flanges. Corresponding track comes with 1-1/4", 2"or 3"leg. We also manufacture custom studs and track on request. Those are quite popular sizes in USA with some kind of punching, here we will take a random drawing profile for example:

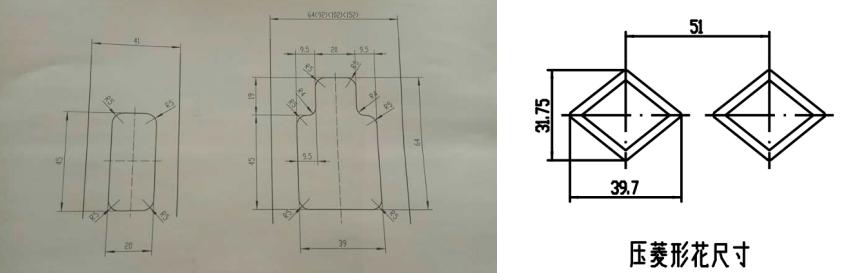

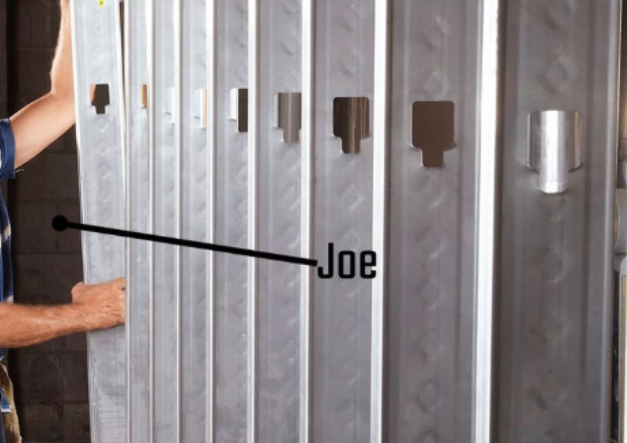

With some kind of punching hole and bottom embossing like this:

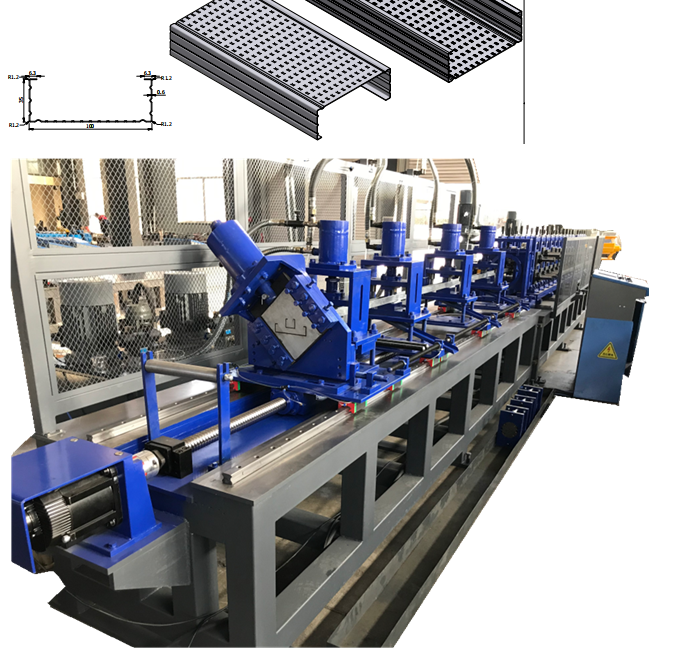

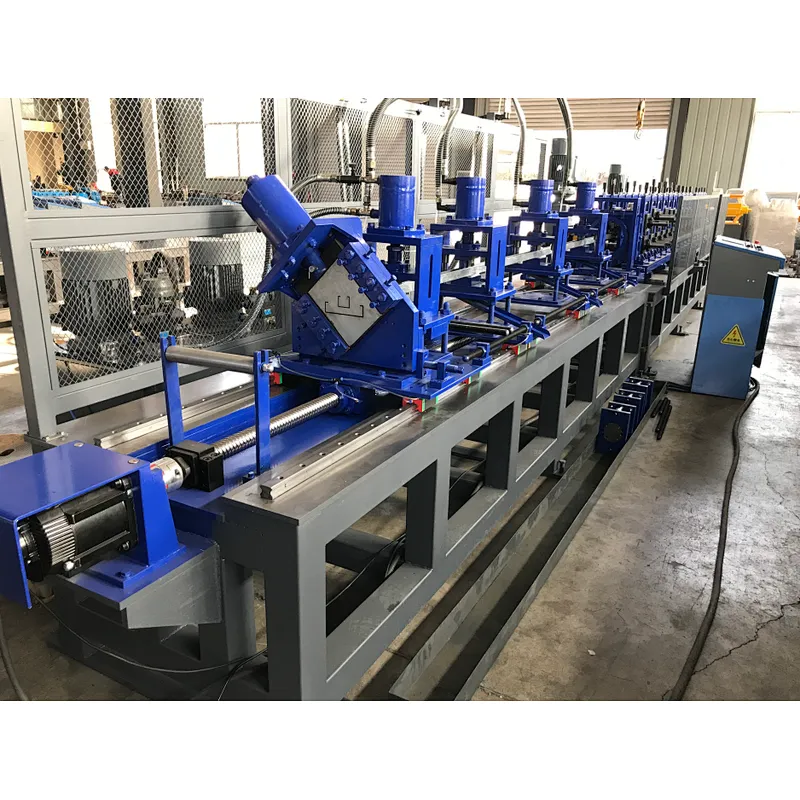

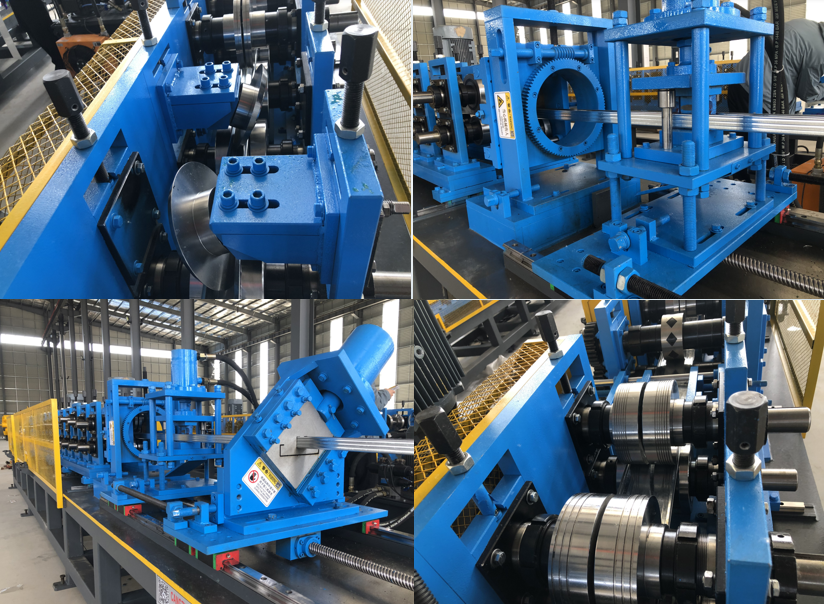

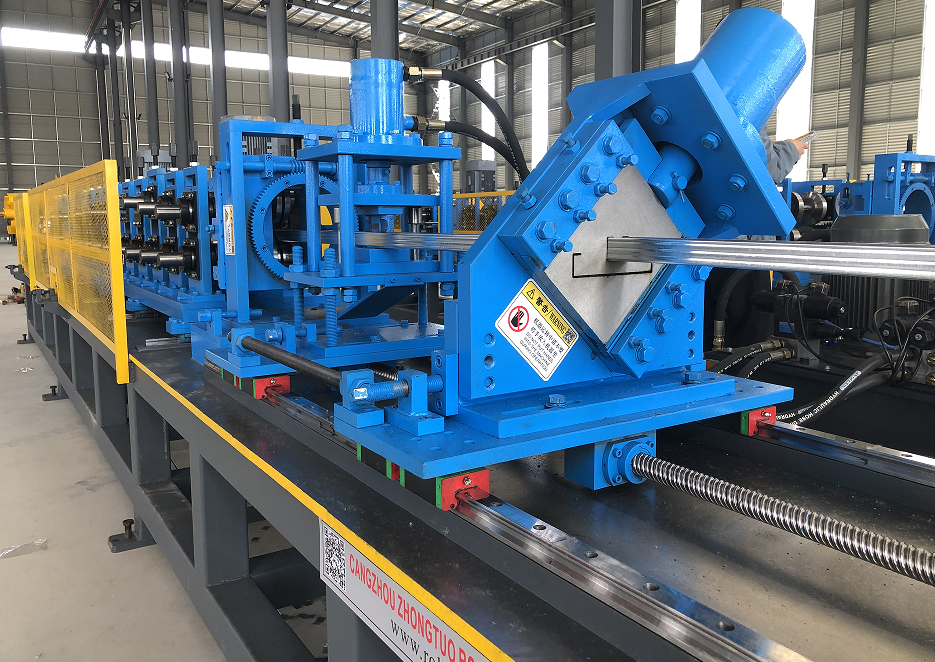

Galvanized Steel Drywall Framing Stud Roll Forming Machine design:
Galvanized Steel Wall Framing Stud Rolling Forming Machine Parameters:
| Main roll forming machine | ||
| Note: We use split rollers to realize one machine to produce C drywall products with different bottom widths. | ||
| Voltage | 380V ,50Hz, 3Phase (as customer request) | |
| Frame type | Memorial arch frame of thickness 30mm | |
| Drive mode | Heavy duty gearbox as transmission | |
| Material of rollers | GCr12mov | |
| Material of shafts | 45# steel with tempering | |
| Diameter of shafts | Φ70mm | |

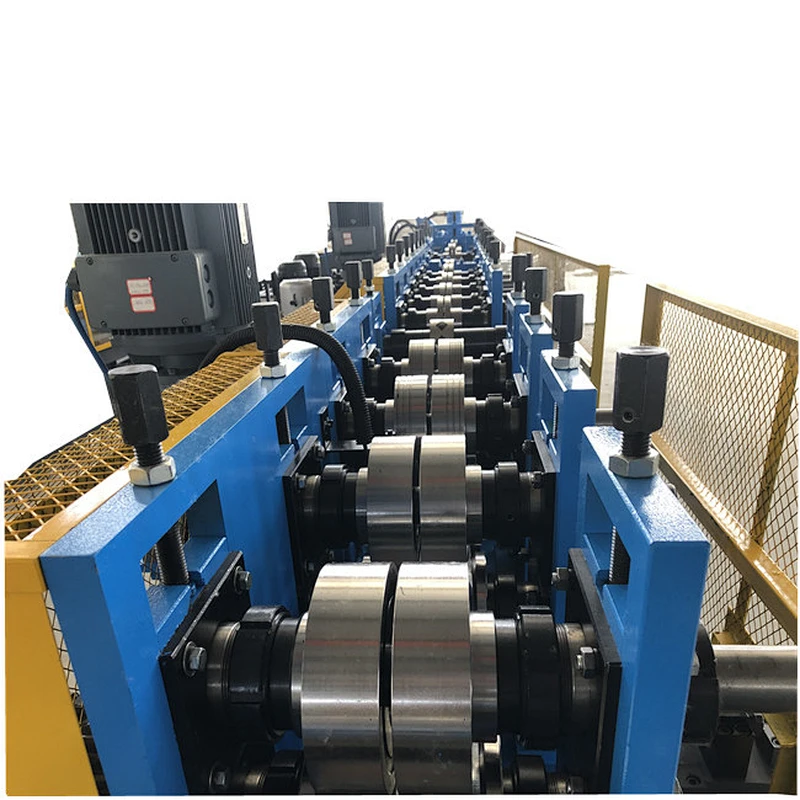

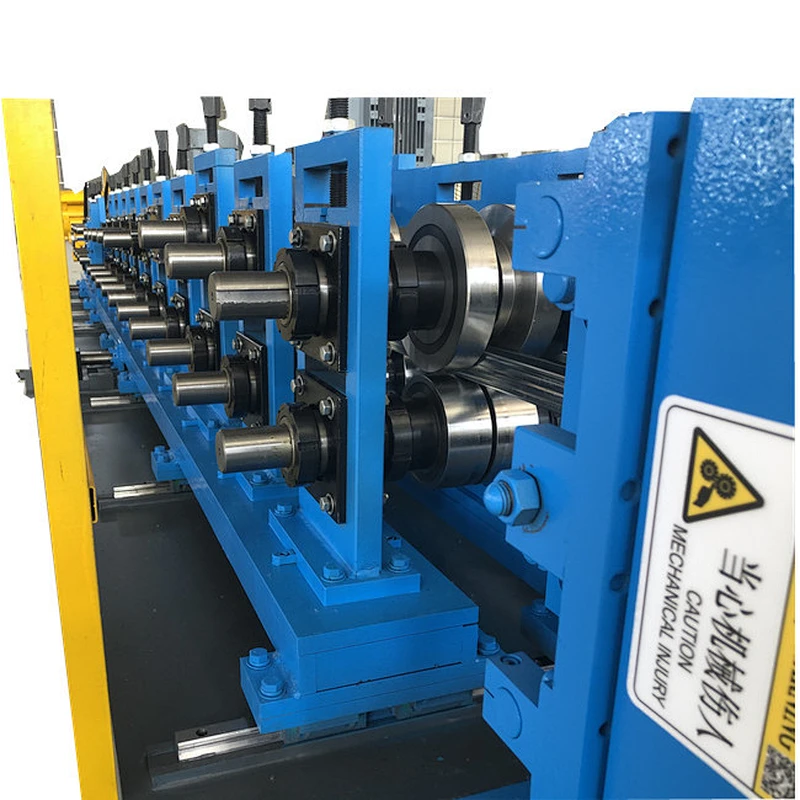

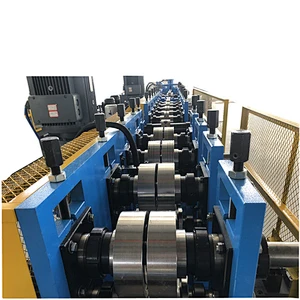

| Number of rollers | 15 rollers, with more rib roller one more station and 4 sets rib adjustable rollers | |
| Main power | 7.5 kw and with one more motors 11kw | |
| Raw Materials of the steel coil | Galvanized steel plate | |
| Material thickness | 0.5-1.5 mm | |
| Forming speed | 50 m per minute without punching hole | |
| Punching System | ||
| Before punching | After punching | |
| Material of the punching die | GCr 12 quenched | |
| Power supply | Hydraulic power | |
| Note: for the punching die, we wait your drawing and confirmation, and then update the quotation. | ||

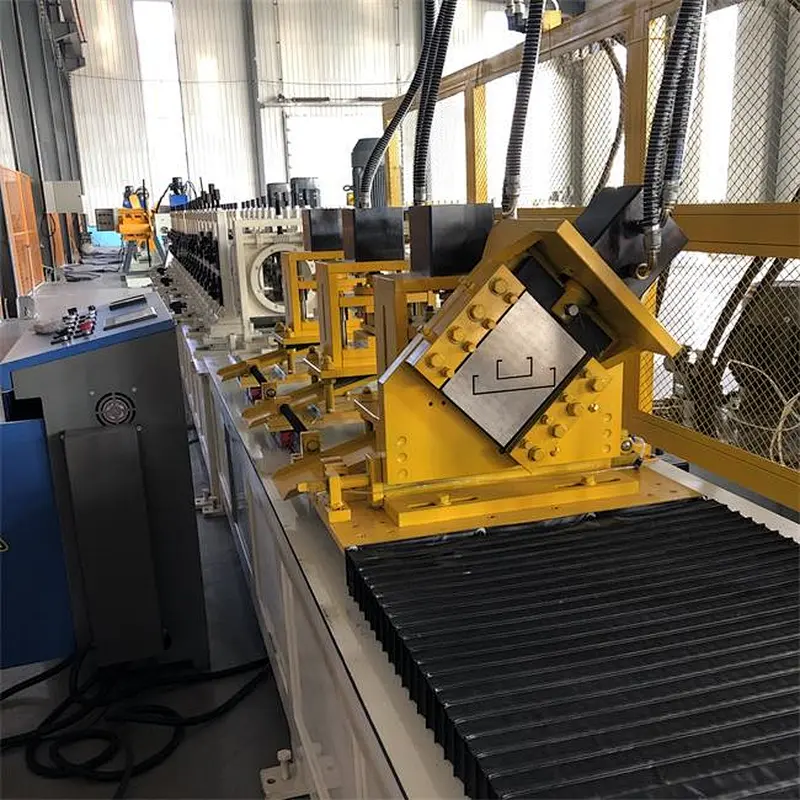

Galvanized Steel Drywall Framing Stud Roll Forming Machine Features:
- It has side rollers to trim the edge.
- It designed with the turkey head to make sure the stud and track straight.
- It use the separated rollers to make sure one machine can make a range of sizes stud and track profile.
- PLC control machine working fully automatic.
- Servo tracking shearing with the online punching.
- Speed could be ranged from 25 to 120 meter minute.
- Decoiler automatic type and the manual type optional.
- Package system, with manual option and fully automatic system.
