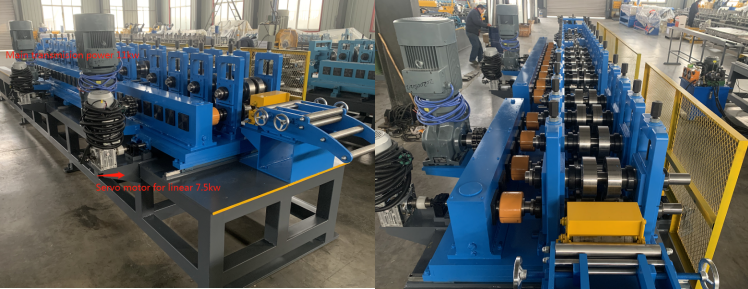

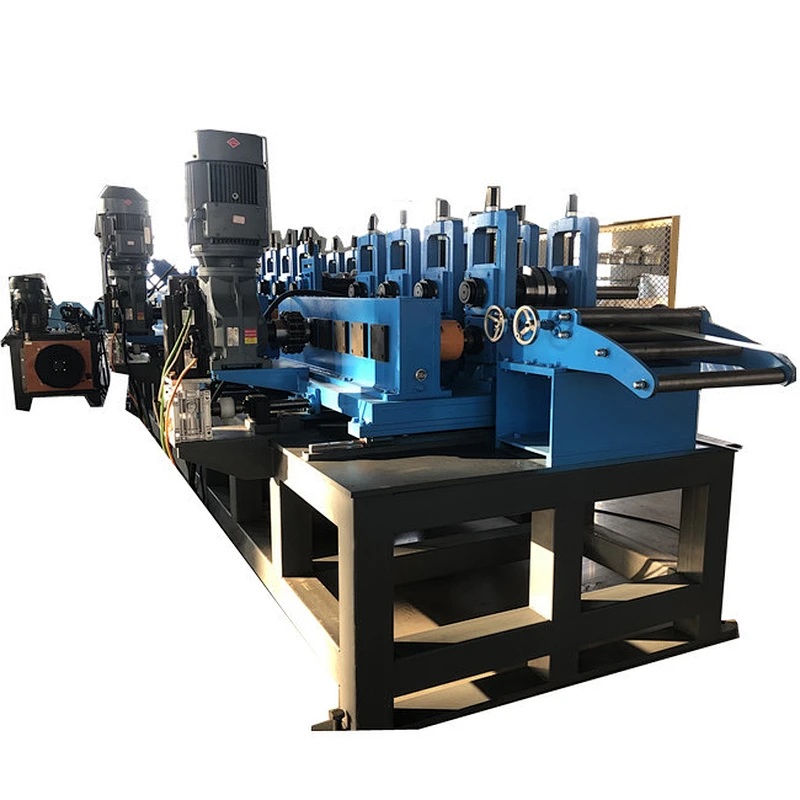

Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine

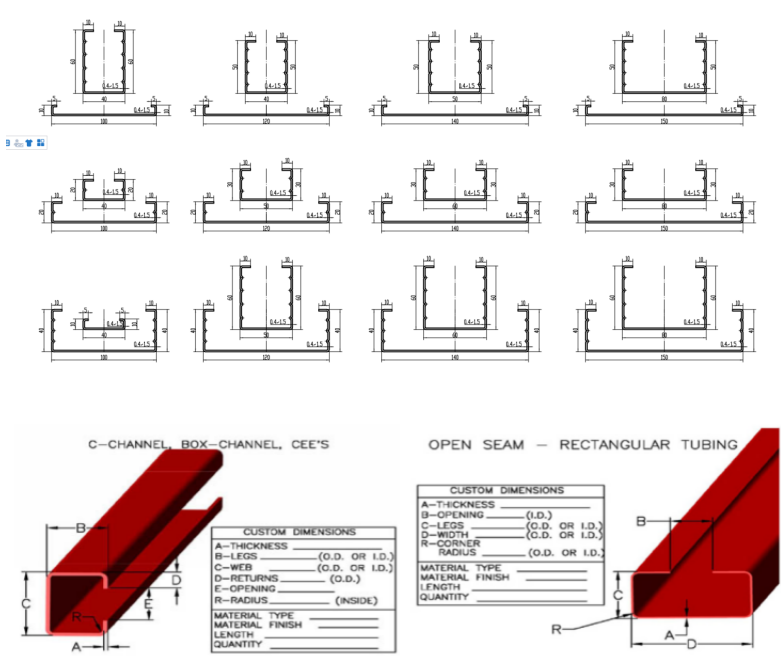

Automatic Multi size Adjustable C-Channels & Box Channels rolling forming machine is designed to make the many sizes C profiles by one machine. C Channel & Box Channel thicknesses vary from .003"thick to .150"thick. On 1/4 & 1/2 hard aluminum, Aluminum C Channel & Aluminum Box Channel thicknesses can reach up to .250"thick. Many different decorative pre-coated metals are generally not recommended when more than .030"thickness is required unless larger than normal corner radii can be used. Some coatings can be used, however, up to .125"thick such as a pre-finished hot dip galvanized coating. Box Channel & C-Channel lengths may be from 3"thru 40 feet long with close tolerances. Many different lengths can be put on one purchase order. Here are some sizes for your reference:
C Channels & Box Channels have many popular uses.
C Channels, Box Channels, Open Seam: Square and Rectangular Tubing are used in almost all industries for any possible application such as in this brief summary of other known terms:By this they can use two C channel instead of on metal tube.
Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine
C Channels & Box Channels have many popular uses.
C Channels, Box Channels, Open Seam: Square and Rectangular Tubing are used in almost all industries for any possible application such as in this brief summary of other known terms:By this they can use two C channel instead of on metal tube.
Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine
| Main roll forming machine | |
| Note: We use split rollers to realize one machine to produce C profileproducts with different bottom widths. | |
| Voltage | 380V,50Hz, 3Phase (as customer request) |
| Frame type | Memorial arch frame of thickness 30mm |
| Drive mode | Heavy duty gearbox as transmission |
| Material of rollers | GCr12mov |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | Φ70mm |
| Number of rollers | 15 rollers With more rib roller one more station and 4 sets rib adjustable rollers |
| Main power | 7.5 kw and with one more motors11kw |
| Raw Materials | Galvanized steel plate |
| Material thickness | 0.5-1.5 mm |
| Forming speed | 50 m per minute without punching hole |

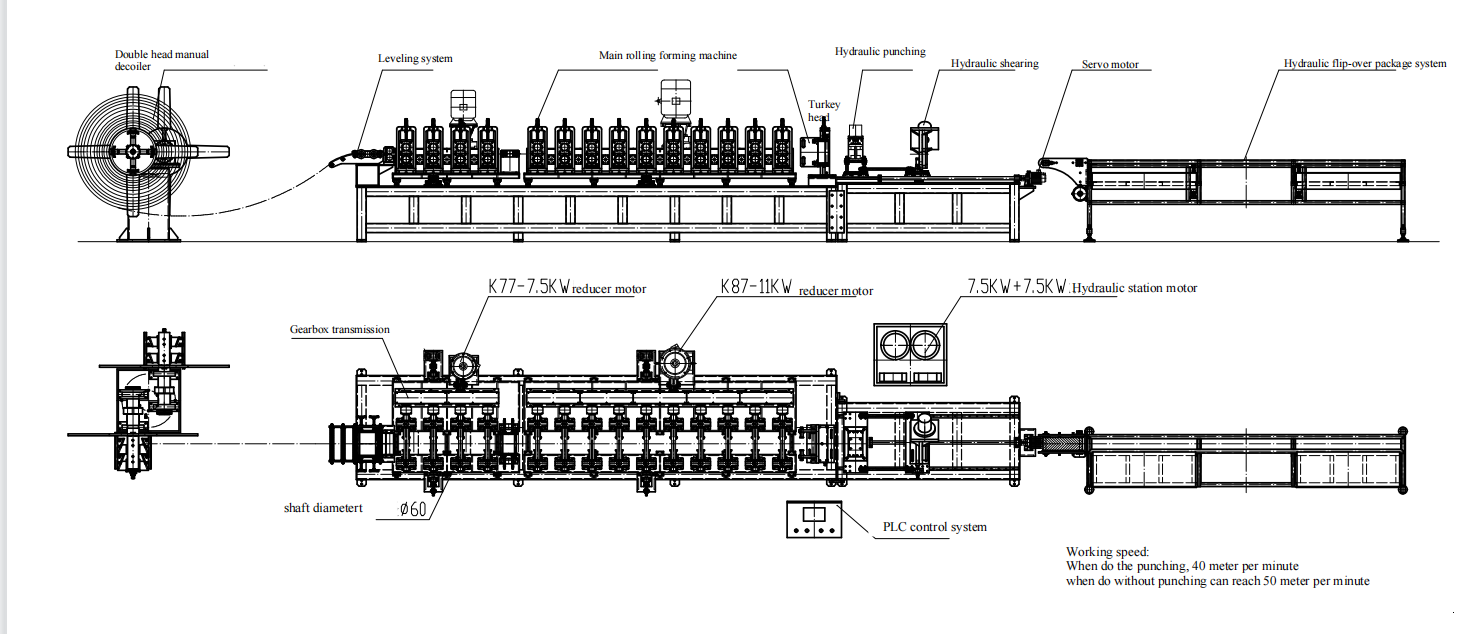

Machine working flow for your reference:

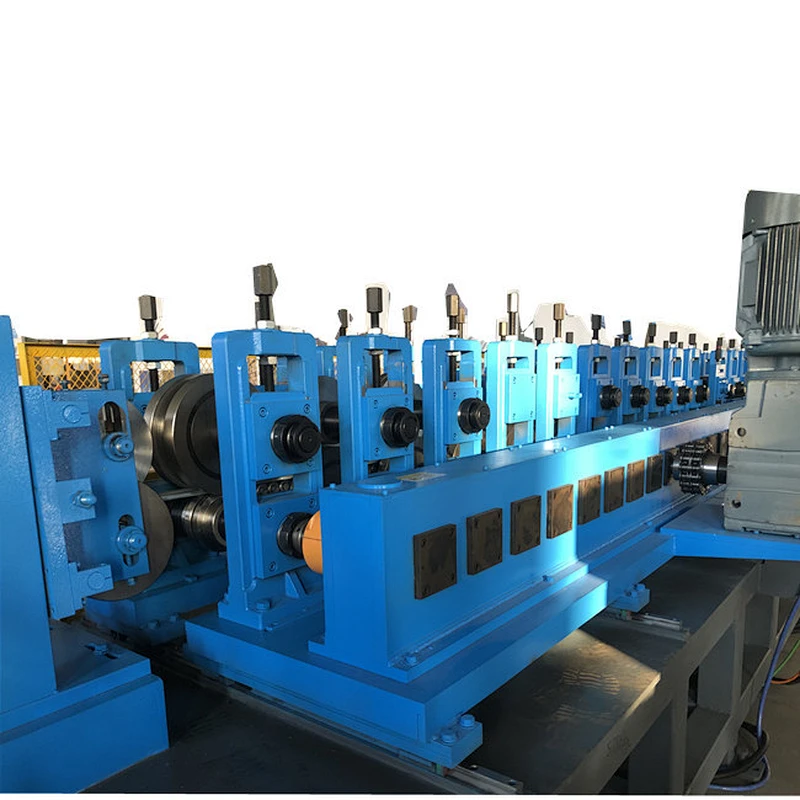

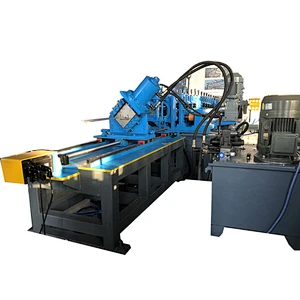

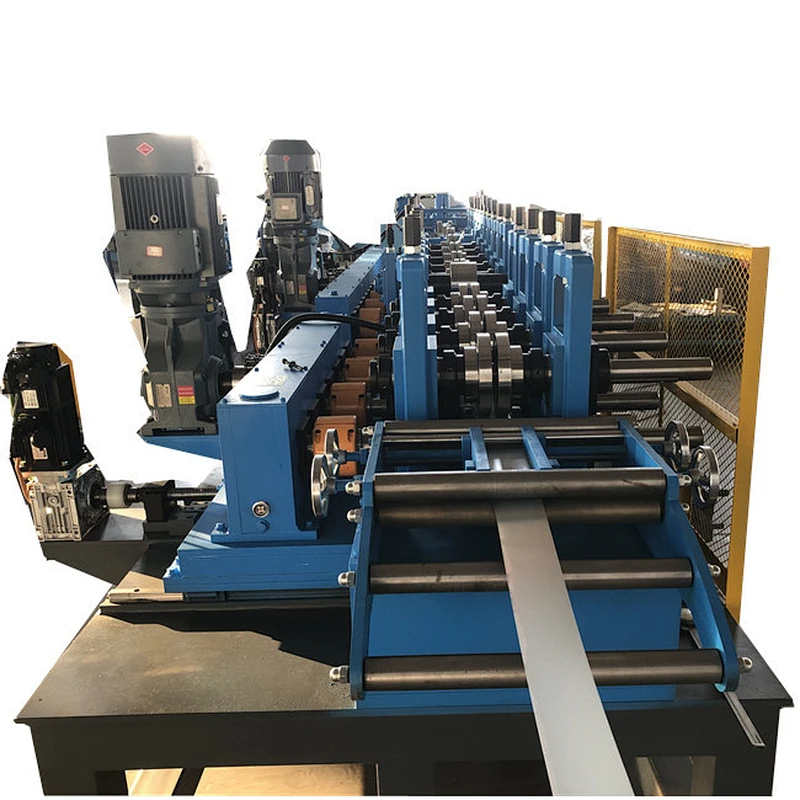

More details of the Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine:

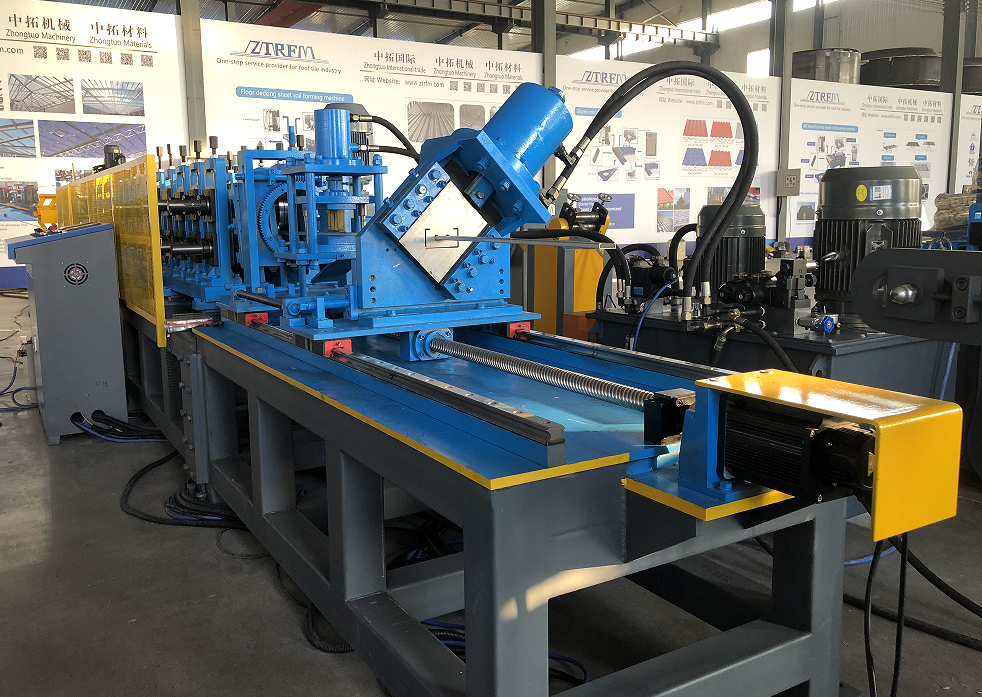

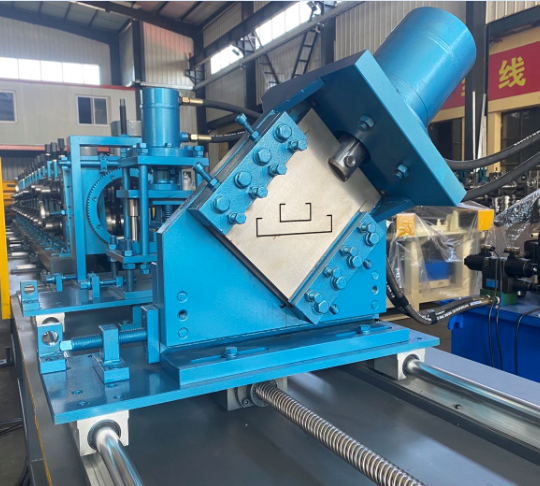

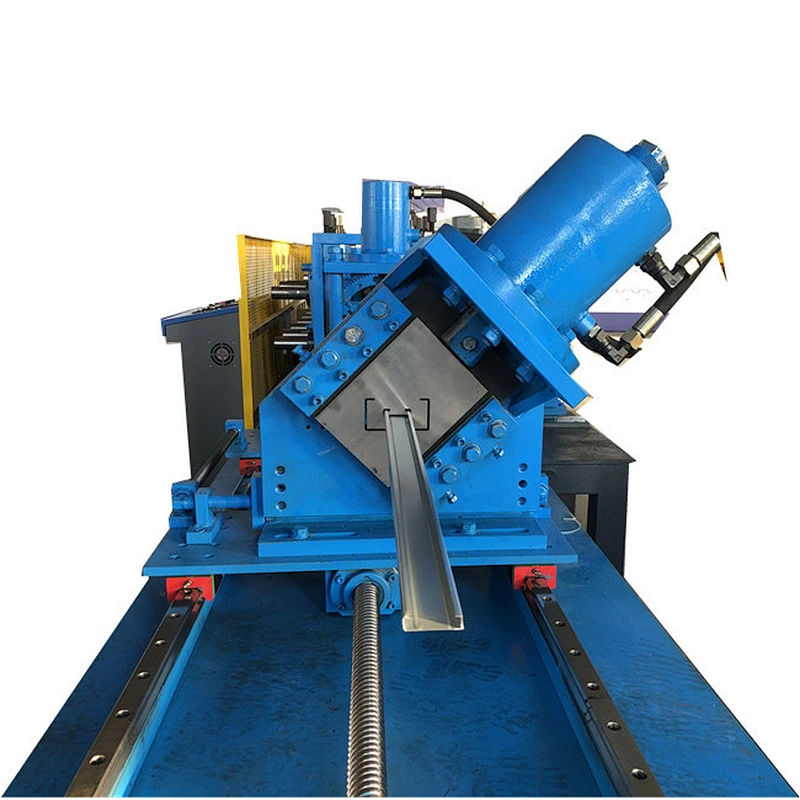

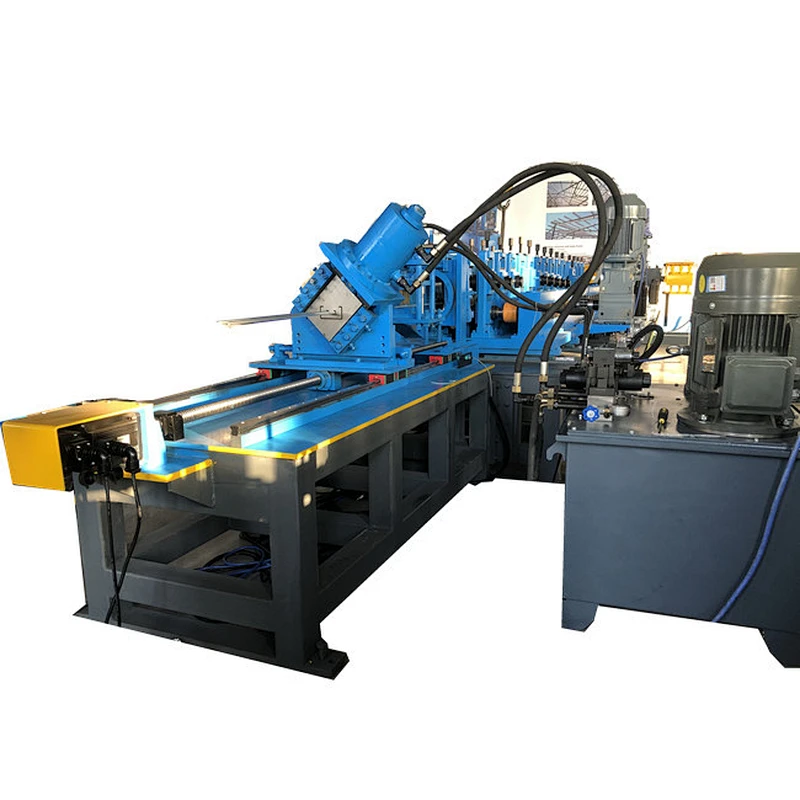

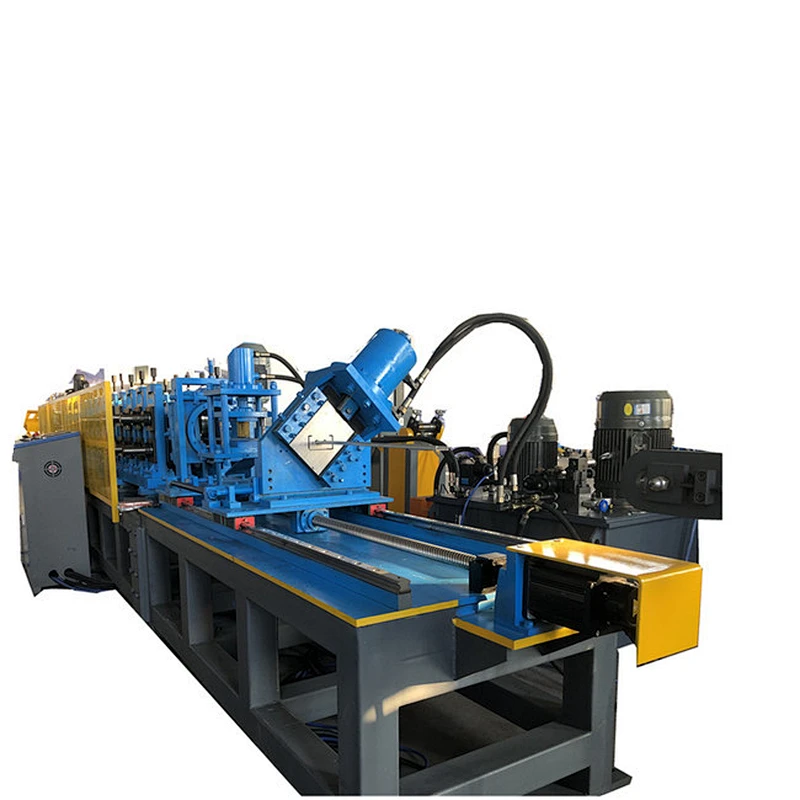

Shearing Mechanism Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine:
Advantages of Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine:
- Pressure roller material: Stainless steel and then it will not damage the coil and never go rusting.
- Split rollers to realize one machine to produce C drywall products with different bottom widths.
- Fully automatic PLC control.
- It supports both manual adjustment and PLC adjusting for different sizes.
- High speed to 50 meter per minute.
- It supports online punching
- Logo adding and others.
Automatic Multi size Adjustable C Channels & Box Channels rolling forming machine working videos for your reference:
