Logical wall structural wall stud and track rolling forming machine

 Logical wall structural wall stud and track rolling forming machine

Logical wall structural wall stud and track rolling forming machine is designed to make the structural wall stud and track in batch fully automatically.

What is the Logical wall structural wall?

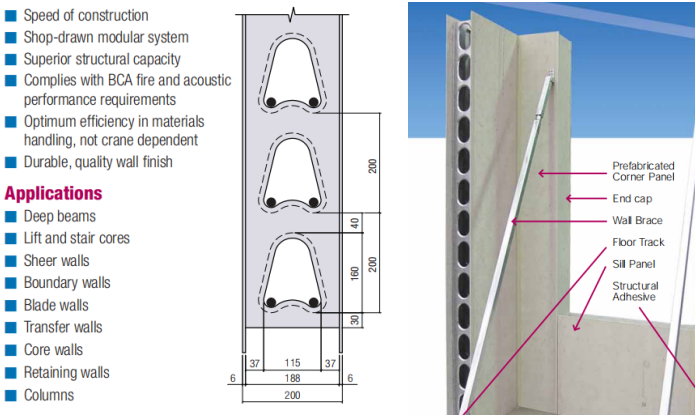

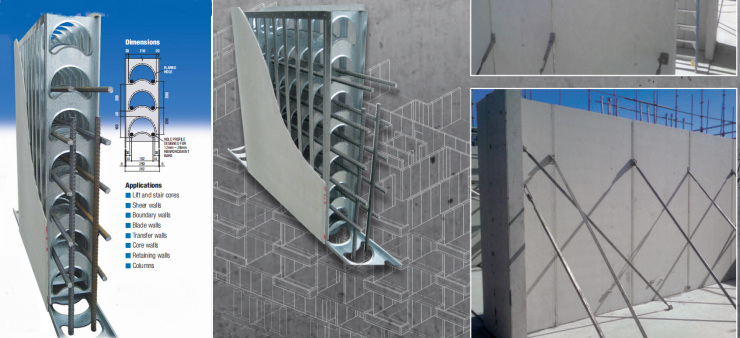

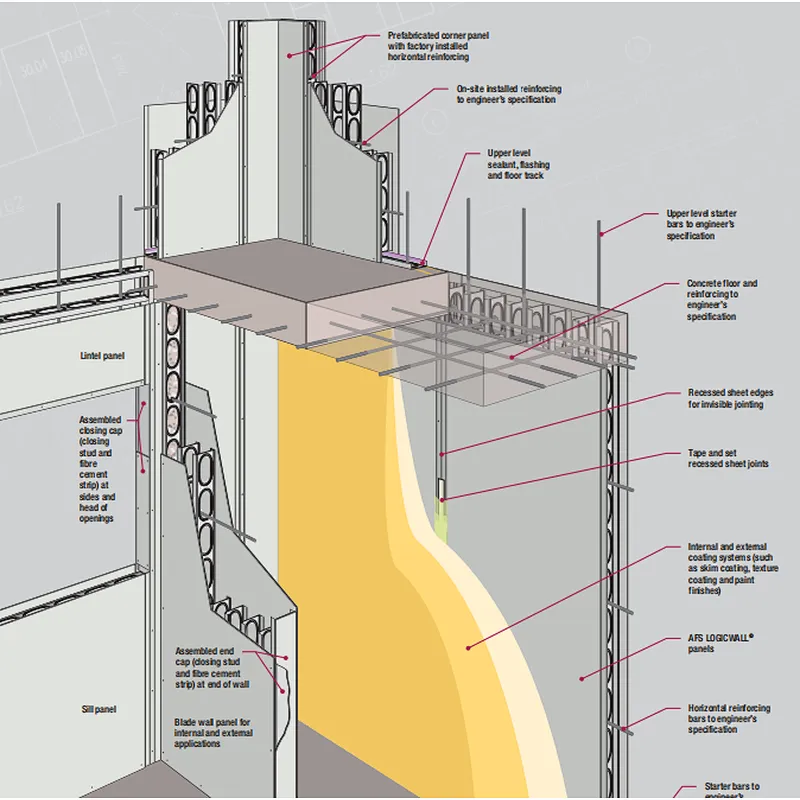

Structural Walling System is a kind of construction method of building wall in a fast way with the Double Reinforcement 200/260/ mm Wall Thickness or others. The two reinforcement layers of Logical wall and large stud openings provide the engineer with a greater choice when using walling for heavily loaded structural elements. Here are some some examples for you to understand more:

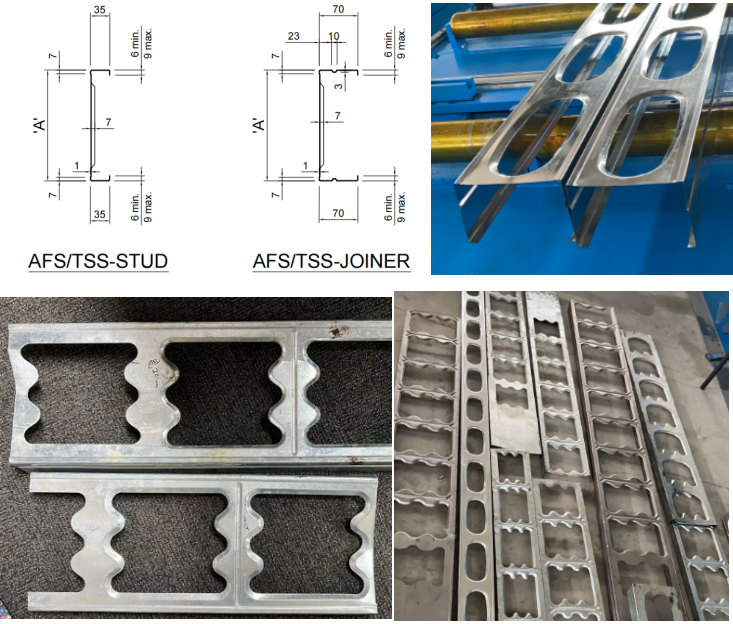

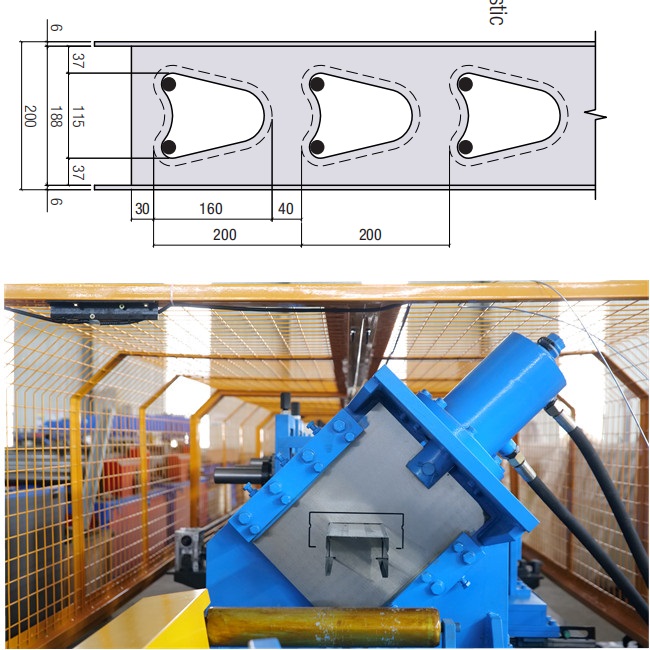

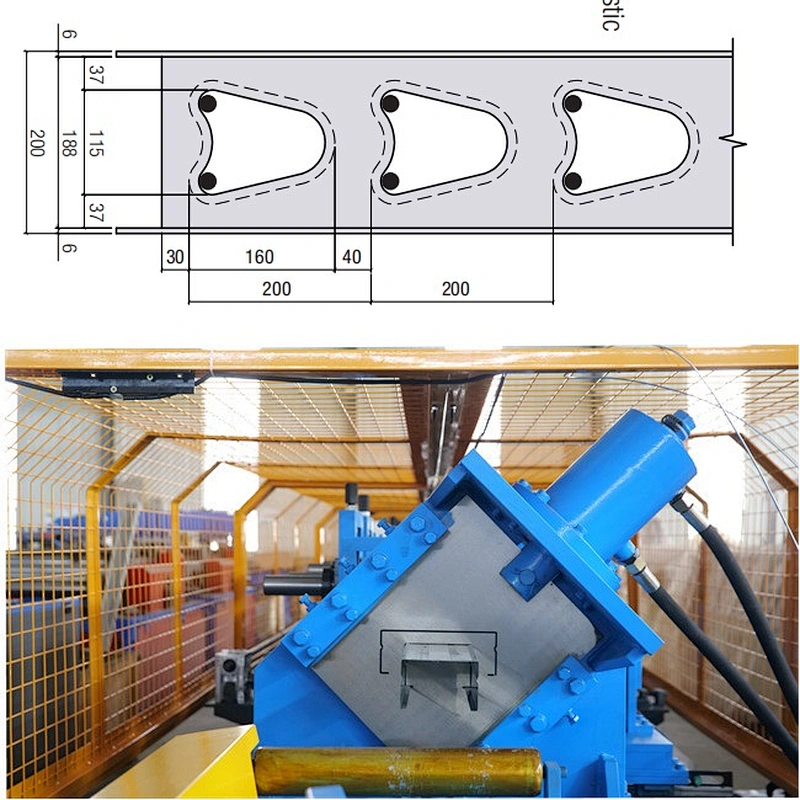

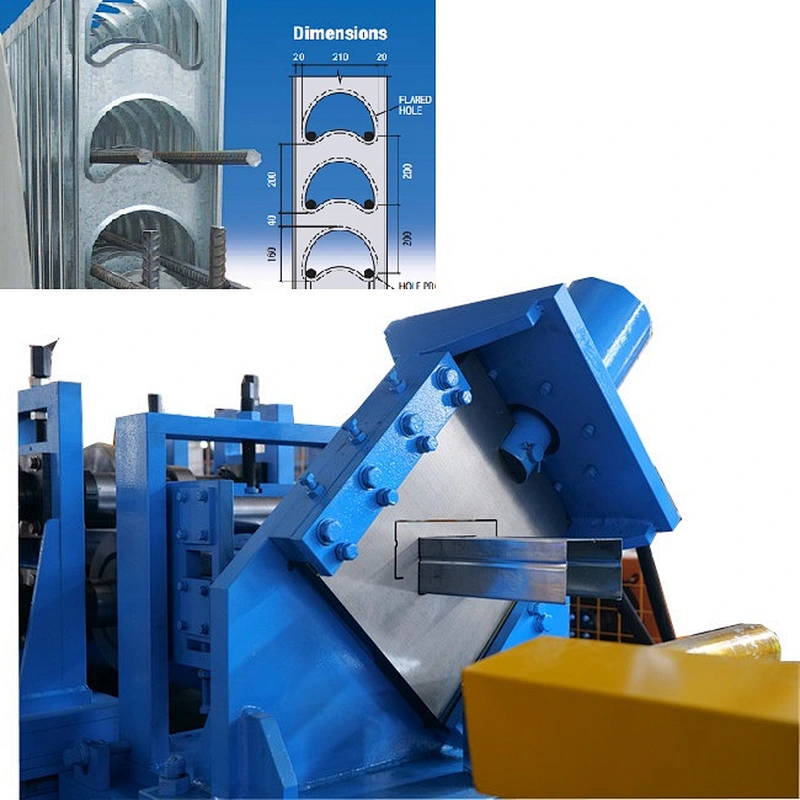

Logical wall structural wall stud and track drawing profiles for you to choose:

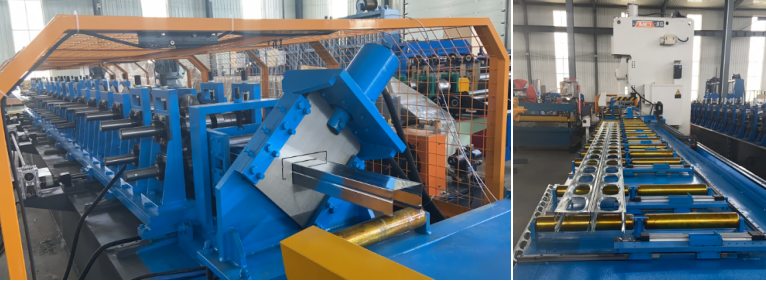

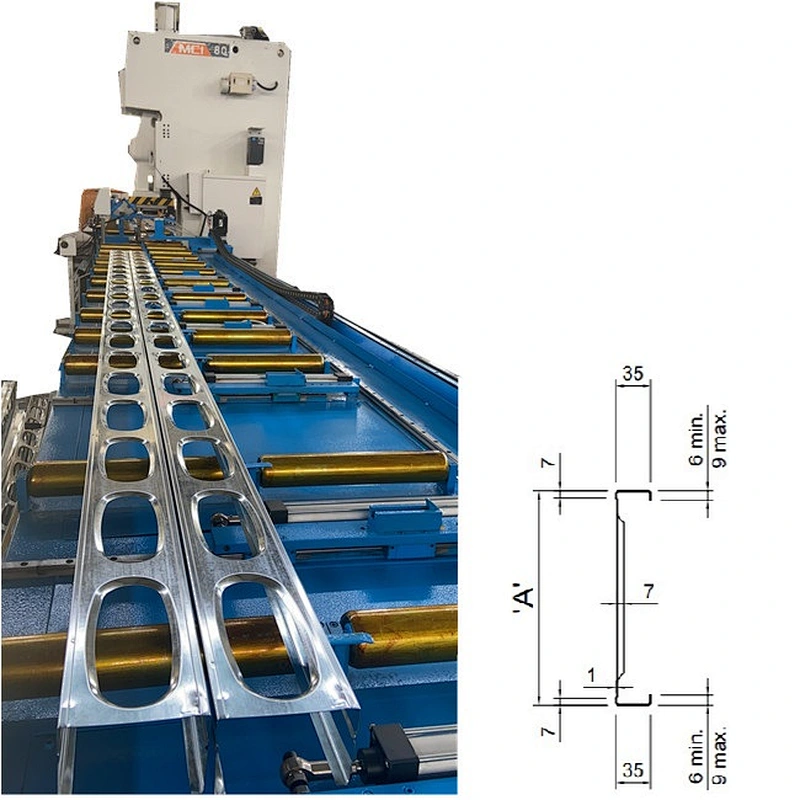

Logical wall structural wall stud and track rolling forming machine

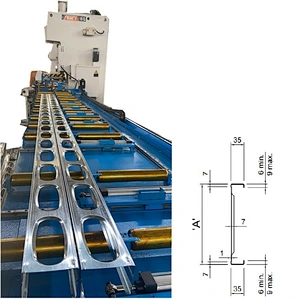

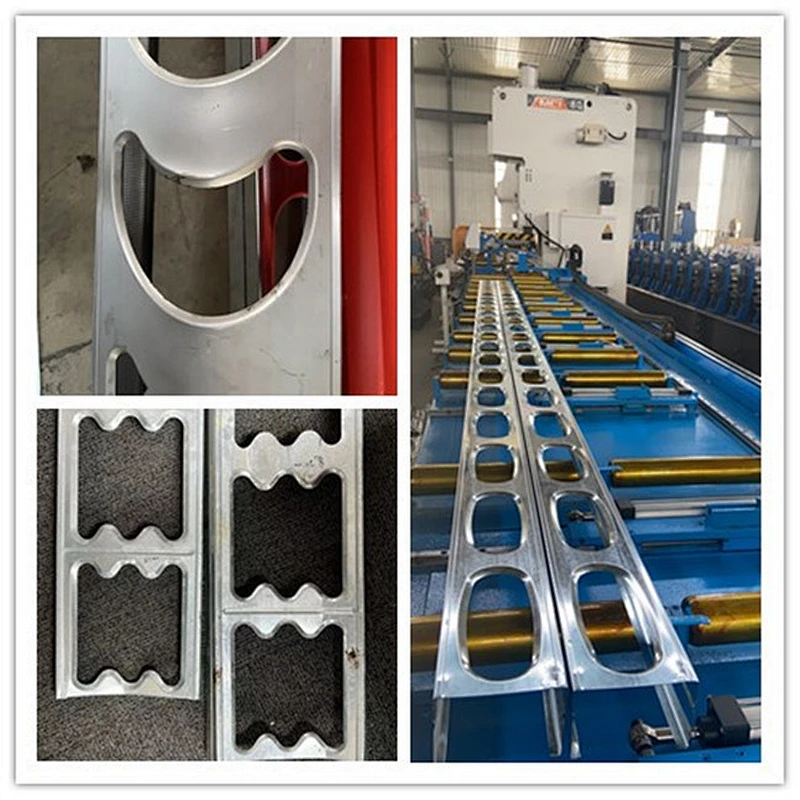

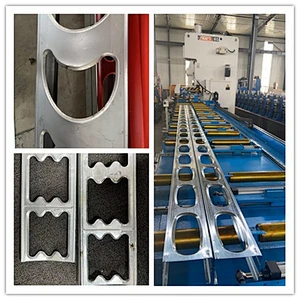

Production line process: uncoiling, forming, cutting, conveying, and robotic feeding, punching, and discharging (automatic operation throughout the line, no manual labor required)

Advantages of Logical wall structural wall stud and track rolling forming machine:

1. Fully automatic production line from decoiler to rolling forming, convey table and then punching and receiving table. Whole production line one worker then okay.
2. One machine for many sizes adjustable by PLC, for example the height 70 and 35mm also could be made by one machine.

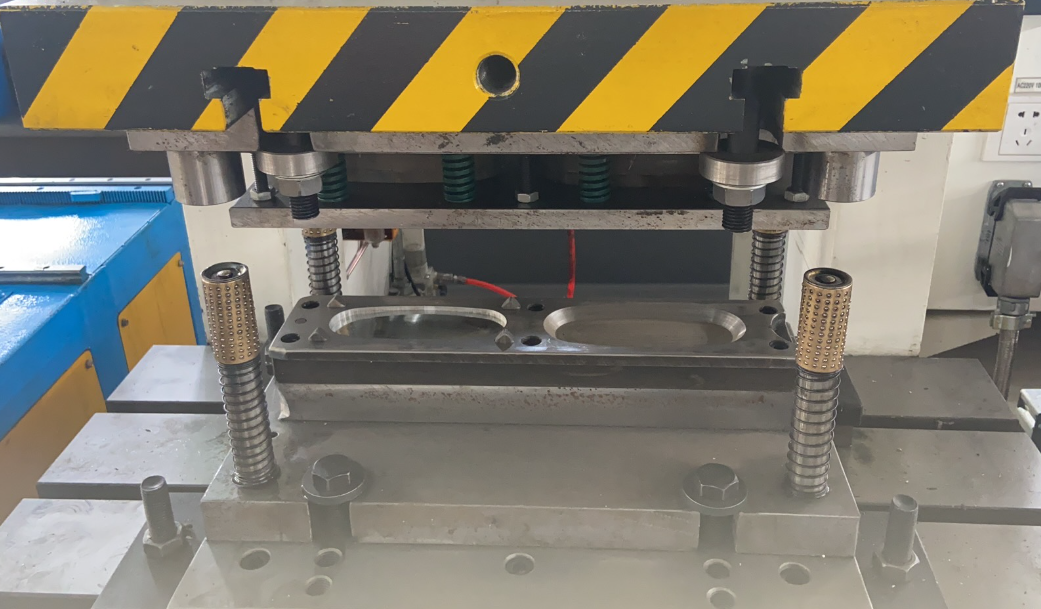

3. Punching mold adjustable, that means one machine could make many types punching design.
4. Whole like fast speed, high accuracy. Then high production rate.
5. Safety, with protection cover.

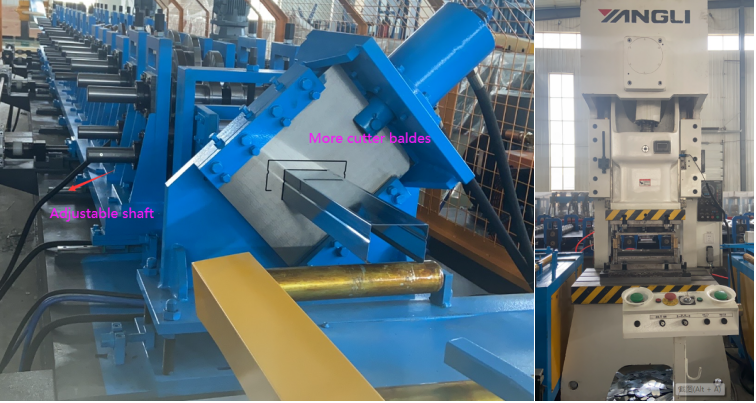

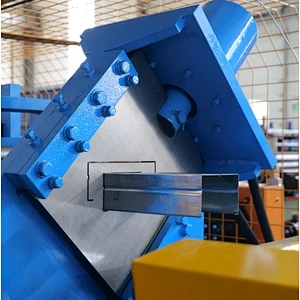

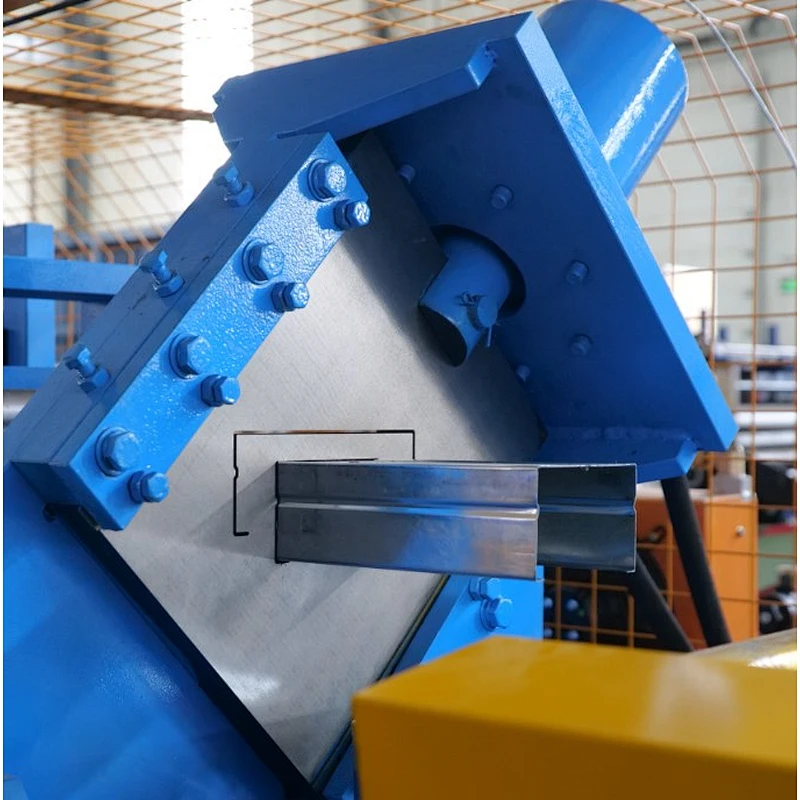

6. No need to change the cutting blade, the cutter design more easy to use.
7. Servo motor transmission with gearbox, lower noise and high accuracy.

Logical wall structural wall stud and track rolling forming machine working videos for your reference:
