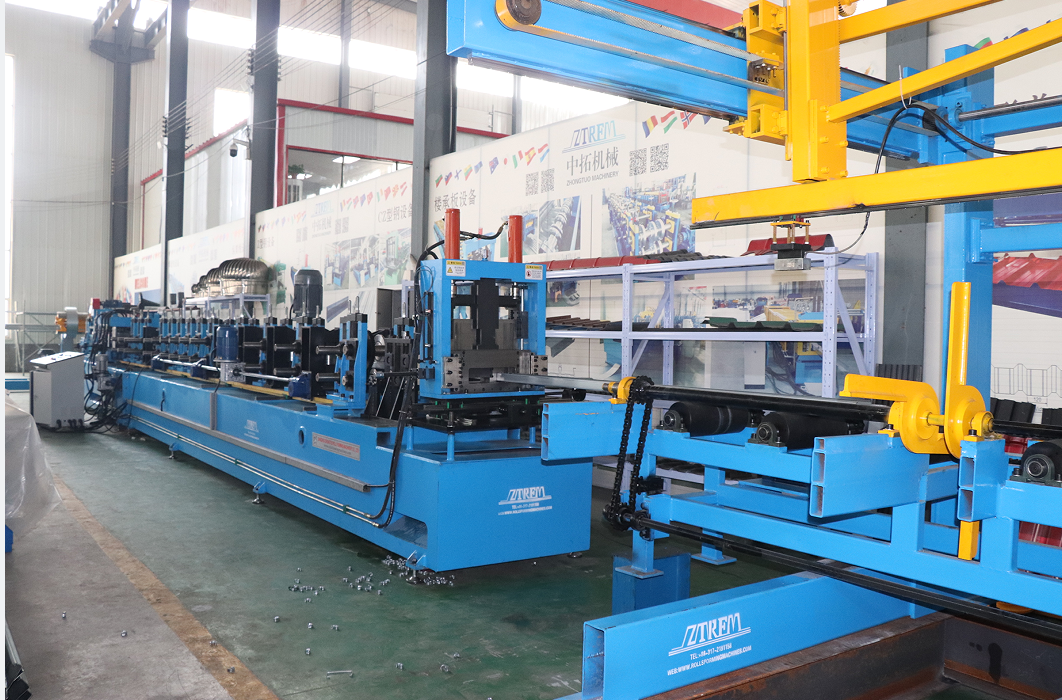

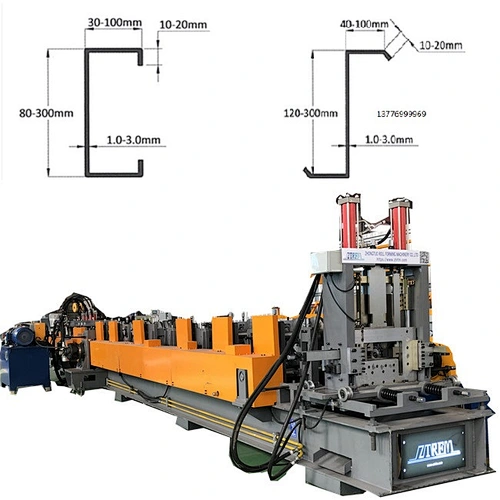

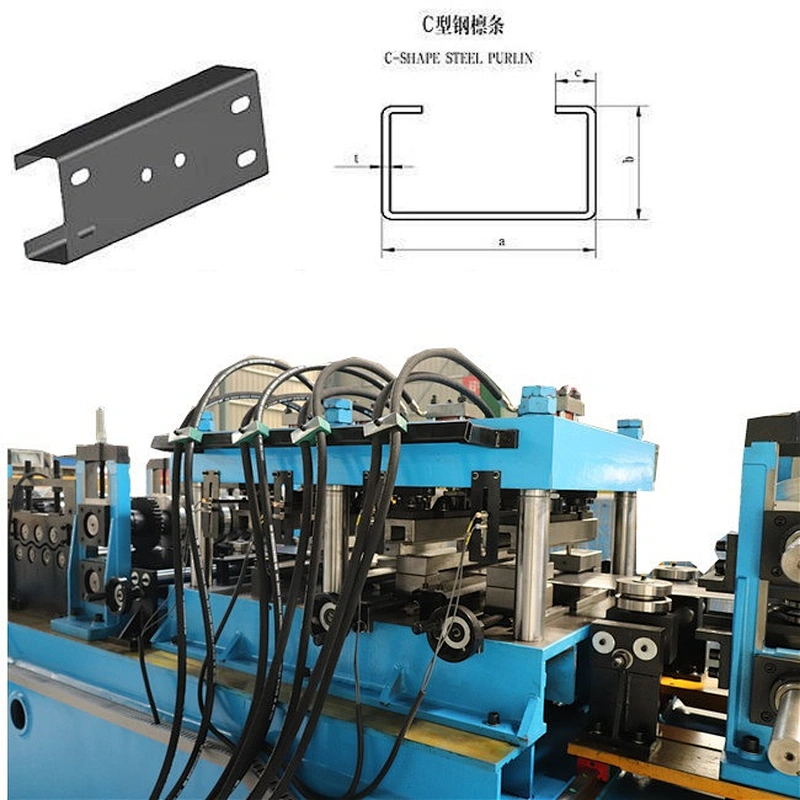

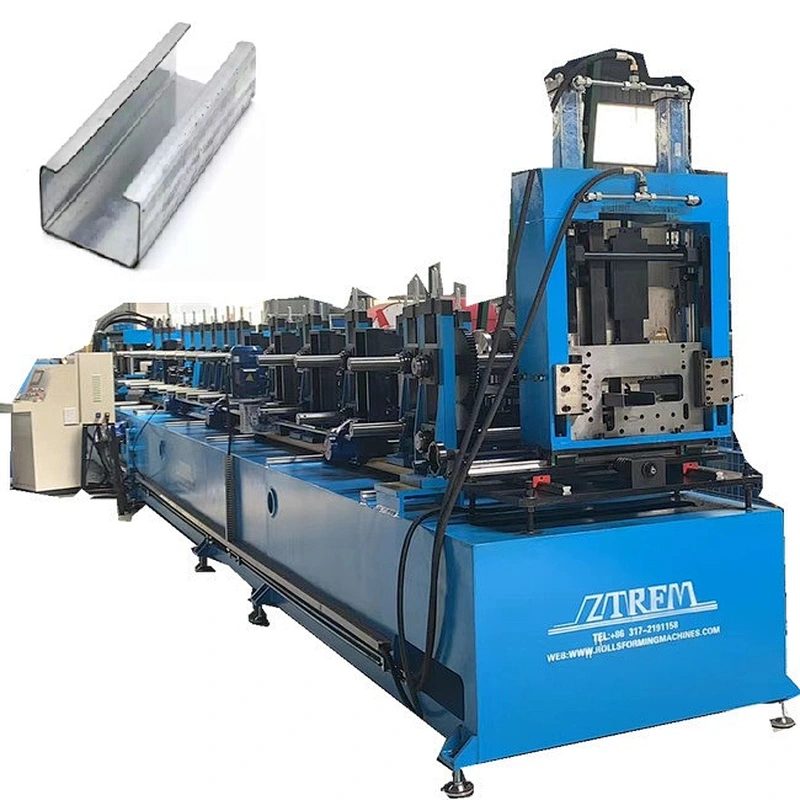

Fully automatic C purlin roll forming machine with stacker
Purlins carry the roof deck or sheathing loads and are supported by large rafters and building walls, steel beams, etc. In comparison to closely spaced rafters, the use of purlins is common in pre-engineered metal construction systems and both the ancient post-and-beam and newer pole construction methodologies for frame construction.
As the widely usages of C purlin in daily life, we design the fully automatic C purlin rolling machine, as to the automatic stacker it is optional;
Fully automatic C purlin roll forming machine with stacker:
| Standard - C purlin roll forming machine | |
| Specification | 13 m x 1.5 m x 1.7 m |
| Weight of machine | About 13-14 Tons |
| Total power | 32.5 KW |
| CZ transform adjustment | Manual |
| Purlin Size adjustment | Automatic adjustment |
| Frame | Arc frame |
| Transmission | Chains or gearbox |
| Speed | 20m/min or 45m/min |
| Pre-punching unit | Customize according to customer drawing profile |

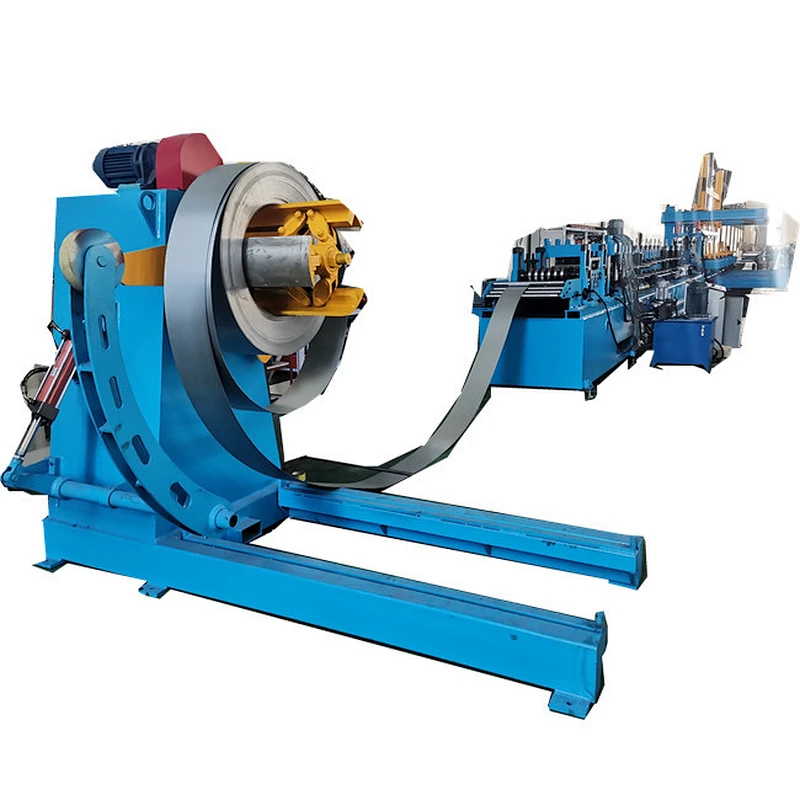

| Decoiler | Manual or hydraulic, optional |
| Receiving table | Manual or automatic like the following. |

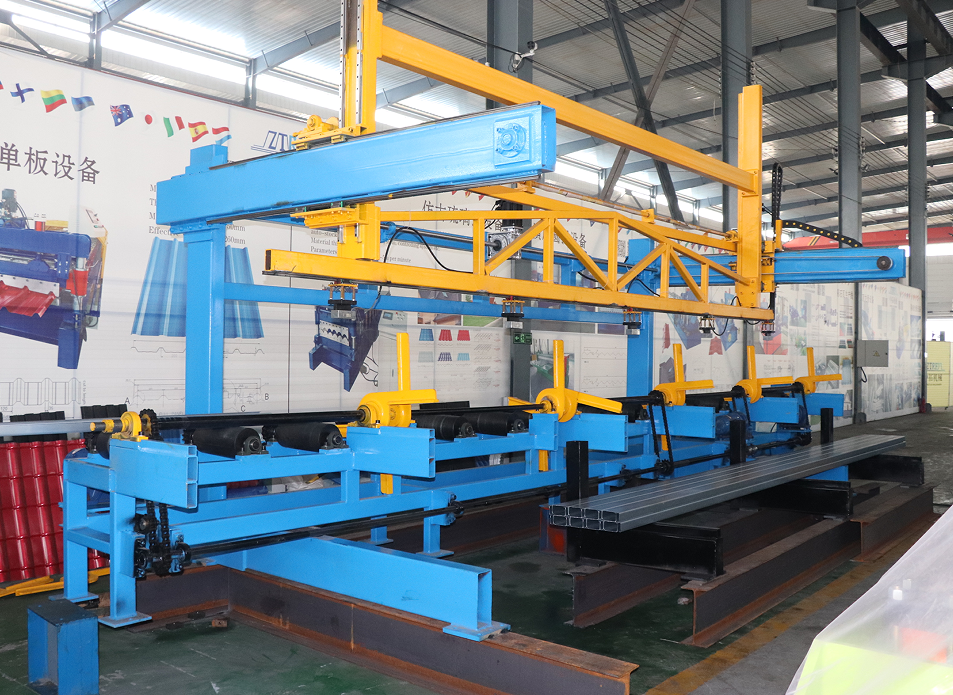

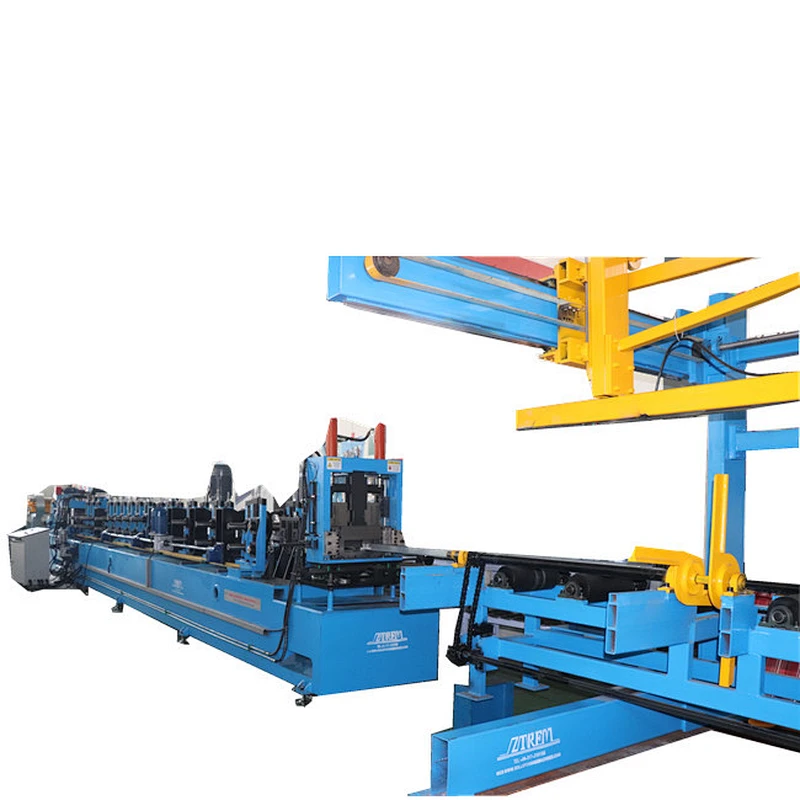

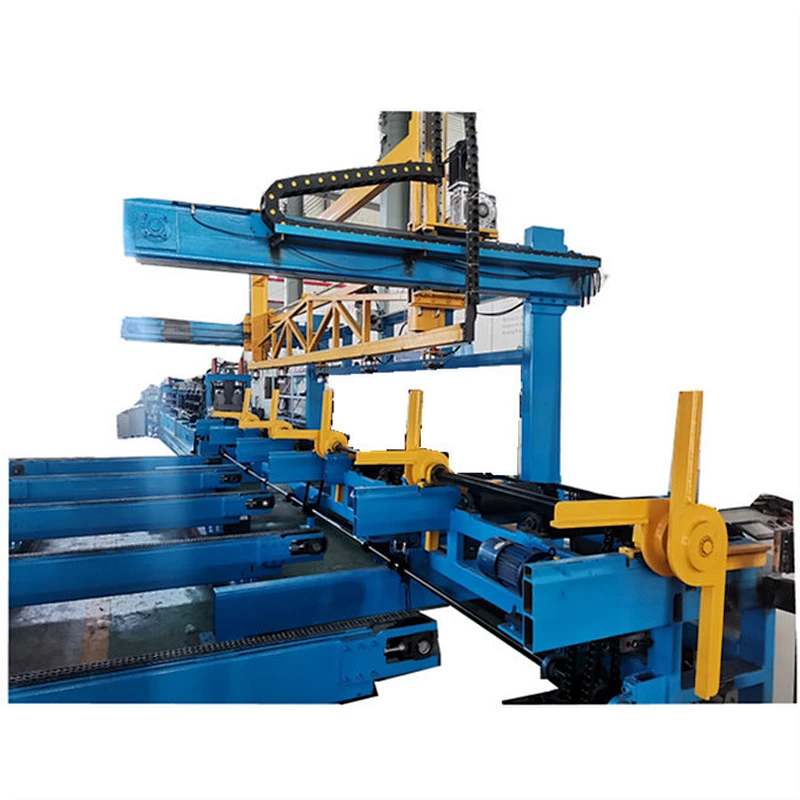

Why do you need the stacker?
- When planning to use the higher speed rolling forming machine, workers can not handle so higher speed.
- When you handling the thickness beyond 3.0mm, or mostly heavy duty work.
- When the worker salary is higher, the stacker can help you save workers one or two.
- When the production is so high, stacker can help you do the purline orderly.
| Technical parameter | ||
| No. | Details | Parameter |
| 1. | Applicable Specifications | Length: 8m With: 50-250 mm thickness:3 mm |
| 2. | Weight capacity | 120 Kg |
| 3. | Palletizing beat | 5pcs/min |
| 4. | Transmission Power | K series reducer motor , 1.5kw |
| 5. | Swing power | Helical gear reducer motor , 0.75kw |
| 6. | Palletizing power | Servo motor , 2.0kw *2 |
| 7. | Vertical stroke | 1.2m |
| 8. | Horizontal stroke | 1.8m |
| 9. | Palletizing method | Electromagnetic handling |
| 10. | counting method | Photoelectric sensor detection |
| 11. | PLC brand | Delta |
| 12. | Electrical components | Schneider |
Fully automatic C purlin roll forming machine with stacker machine working video for your reference:
