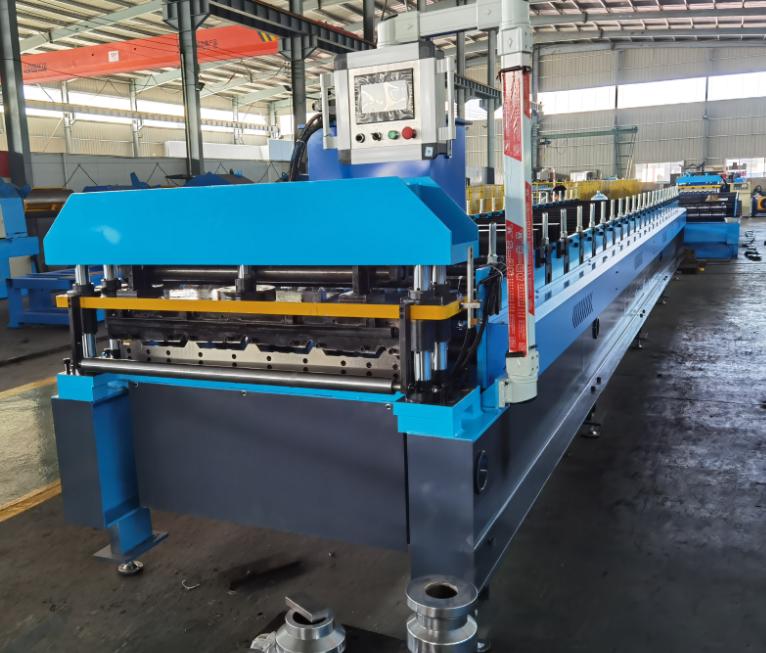

European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine

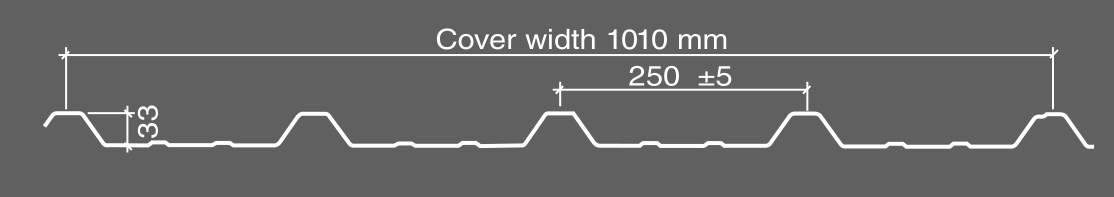

European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine is designed to make the metal roofing sheet in batch fully automatically. Here is the drawing profile for your reference:

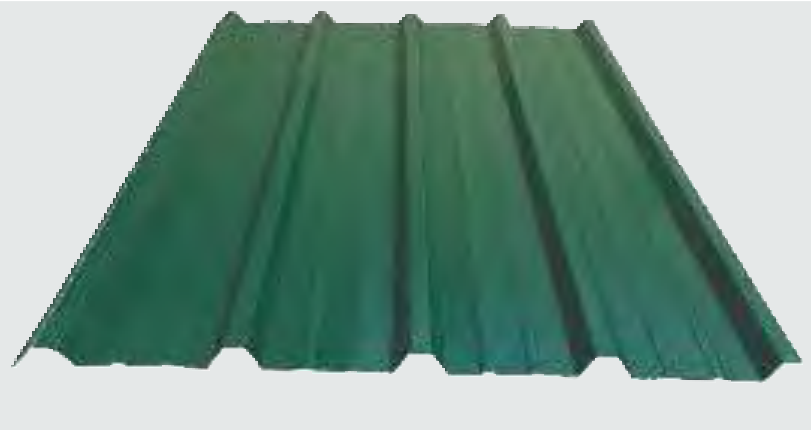

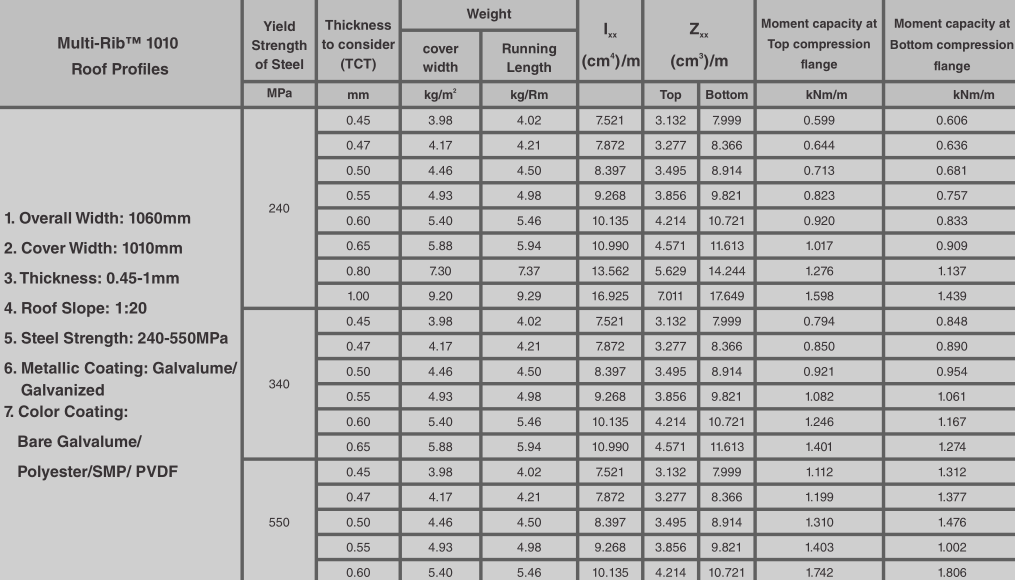

Detail information ofEuropean Style Strong Screw-down Trapezoidal Roofing Sheet:
Millions of square meters factories installed for projects like IndianTata Motors,,Defence services, Railways, Power Plantsin last 10 years, what it can benefit you?
- As it is Lightweight, Economical roof profile withexcellent design flexibility
- The wave height is 33mm height, 250 mm pitch with two stiffeningribs for easy water shedding.
- Cover width 1010mm & available upto 13m inlength
- Full side lap corrugation gives extra support atpanel overlap.
- Recommended roof-pitch 3°(1 in 20 or 5%)
- Matching light panels of FRP / Polycarbonateavailable.
- Optional: - Various kinds of under deck insulation

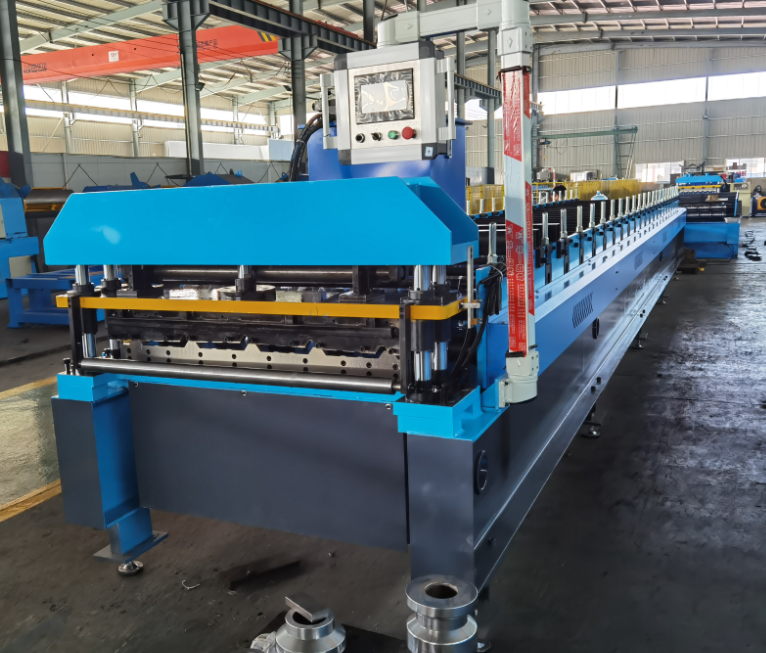

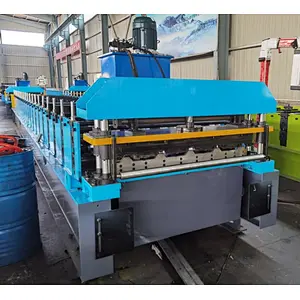

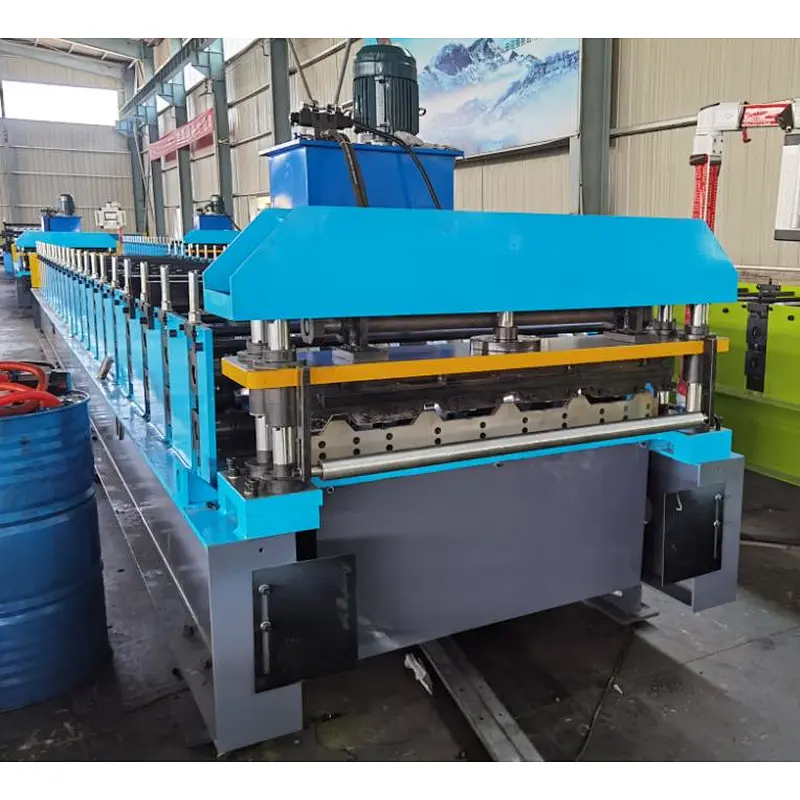

So Zhongtuo cold rolling forming machinery also make the machine of producing this European Style Strong Screw-down Trapezoidal Roofing Sheets, here are some machine pictures for your reference:
Some parameters of Trapezoidal Roofing Sheet Rolling Forming Machine:
Suitable material | Q235 color steel sheet;0.3-0.7mm, 1000&1250mm coil width |
Forming speed | about 20m/min |
Power Requirement | Main motor power: 7.5 Kw(Depend on final design) |
Hydraulic station power: 2.2Kw(Depend on final design) | |
Material of rollers | No.45 steel, plated with chrome on surface. |
Material of cutter | Cr12 mould steel with quench treatment, HRC58-60 |
Material of shaft | High quality 45# steel with heat treatment. Roller grinder milling. |
Shaft diameter | 80mm |
Controlling system | Mitsubishi PLC & converter |
Total weight of machine | About 8500KGS |
Machines size | about 15m,1.8m 1.5m (Depend on final design) |
Shipping | 1x40GP container can load one machine |

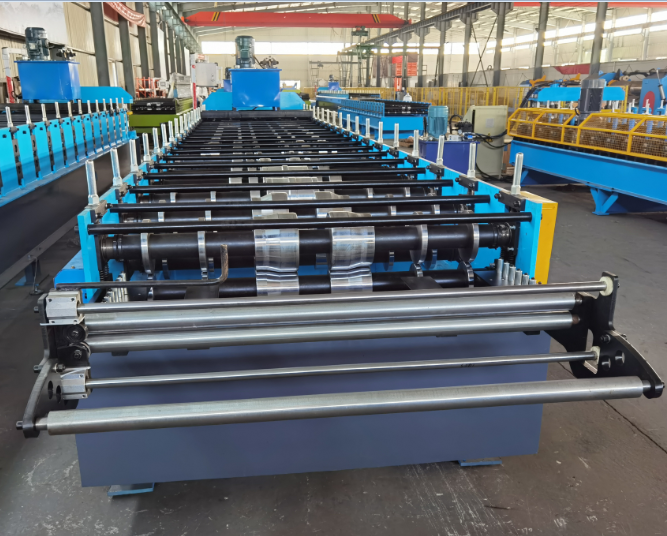

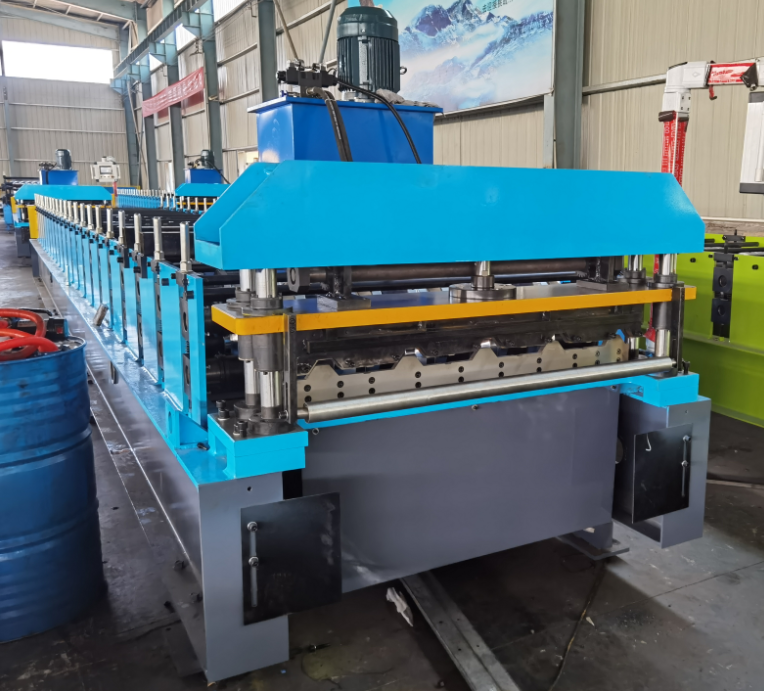

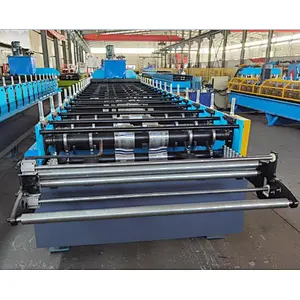

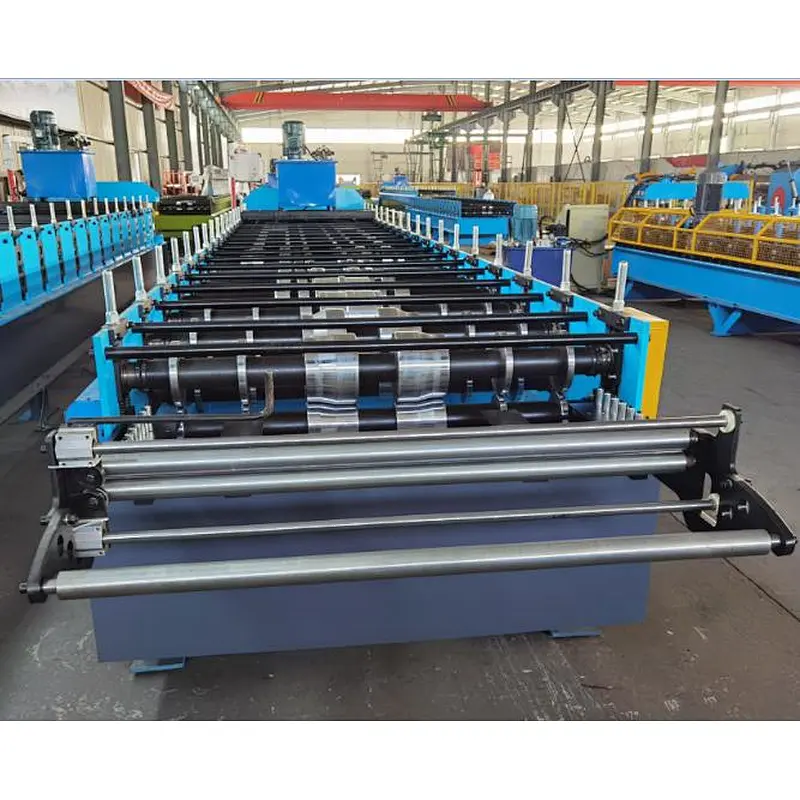

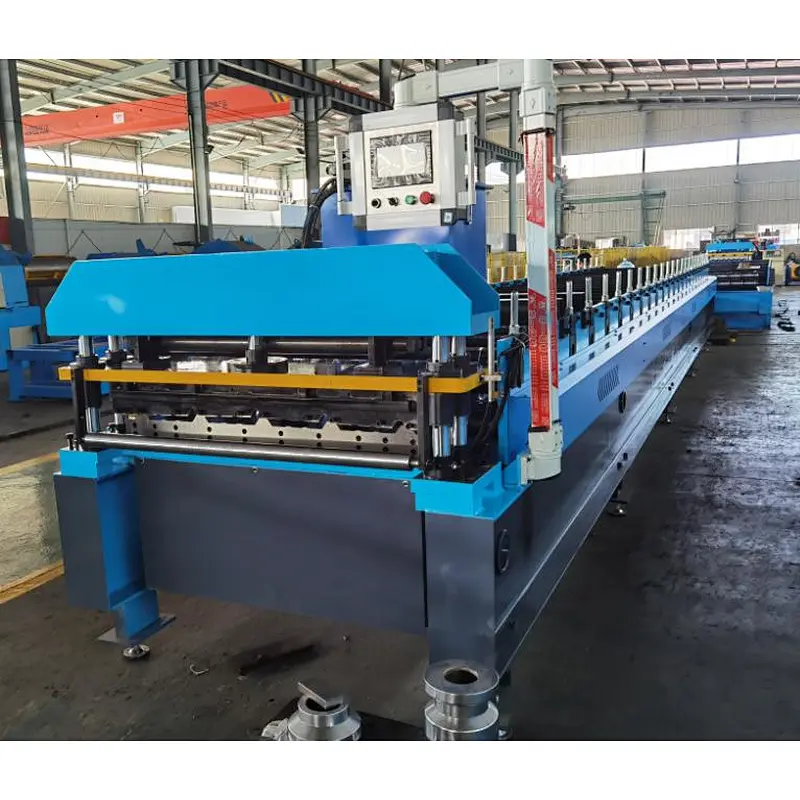

More details pictures of Trapezoidal Roofing Sheet Rolling Forming Machine:
Zhongtuo European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine features:
- For the machine design, we use the separated mold rolling forming. It can make sure the shape is good but not damage the surface of the raw material.
- It can do the rolling in the speed of 20 to 45 meter per minutes. Zhongtuo can design either slow speed or fast speed roofing sheet rolling forming machines.
- For machine, we design as easy installation. We will put all hydraulic station and electricity wire all together, when machine arrives, simple connection the main electricity within 5 minutes.
Here European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine working video for your reference:
