DTS Roofing Sheet Roll Forming Machine for Ghana
Deep Trough Roofing (DTS) is excellent for residential, industrial, commercial and agricultural applications.
Due to its large effective coverage, DTS is the recommended choice that offers beauty and elegance at a reduced cost.

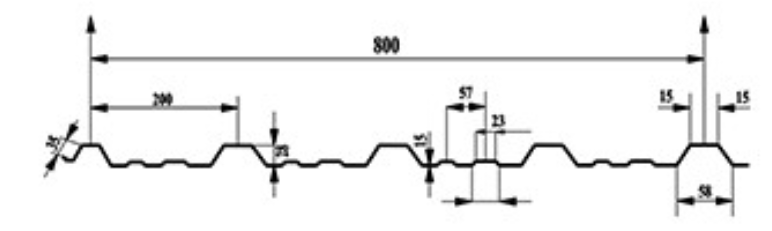

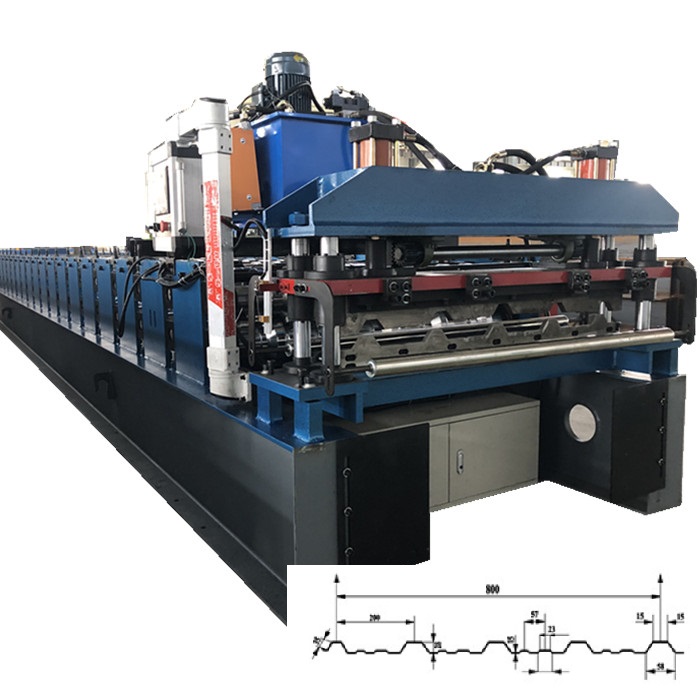

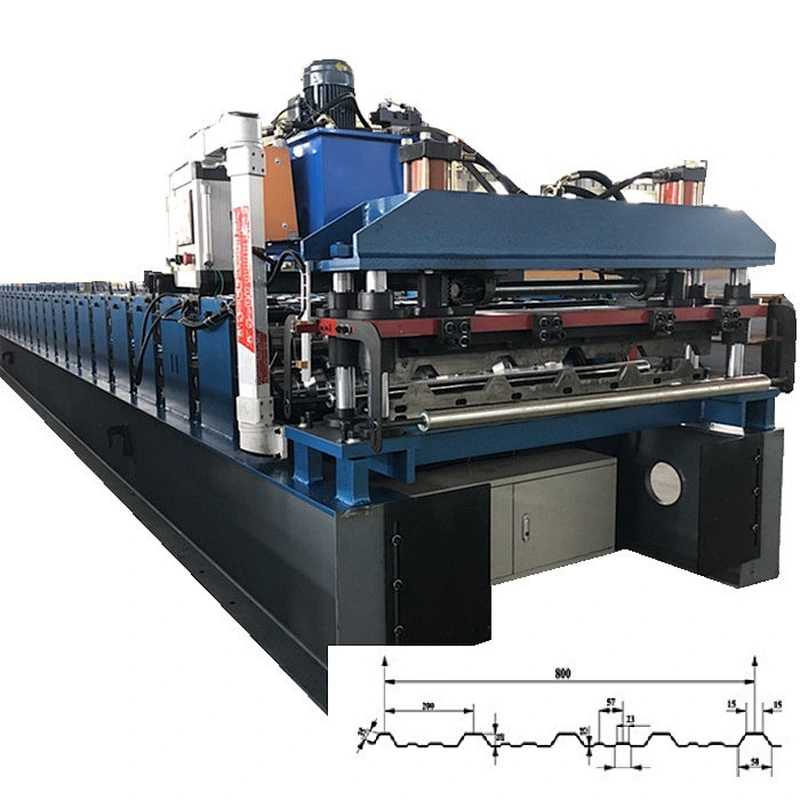

, it is popular type in Ghana market. The profile drawing as below.
Tecnnical Parameter
Series | Details | Parameter |
Product sheet | Raw material | Color coated/Galvanized mild steel |
Material thickness | 0.3-0.8 mm | |
Feeding width | 1000mm and 1200 mm | |
Effective width | 800mm and 1000 mm | |
Sheet cutting length | Adjustable |

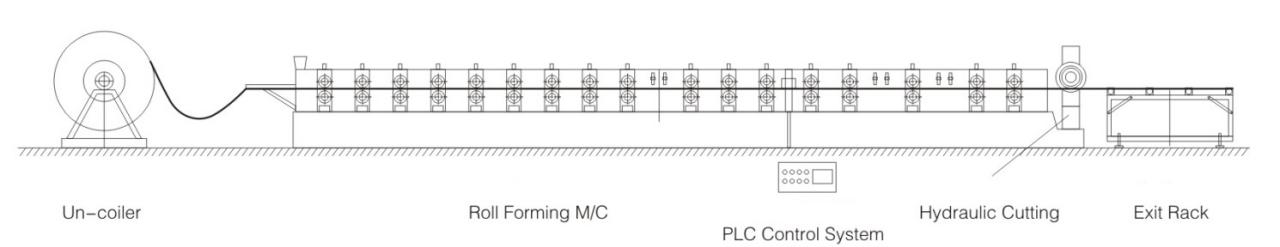

The Work Flow of the forming production line
Feature of DTS Roofing Sheet Roll Forming Machine
1.Control system support multi orders input.
2.Steady working condition and low failure rate to improve the production.
3.Simple installation and maintainence.

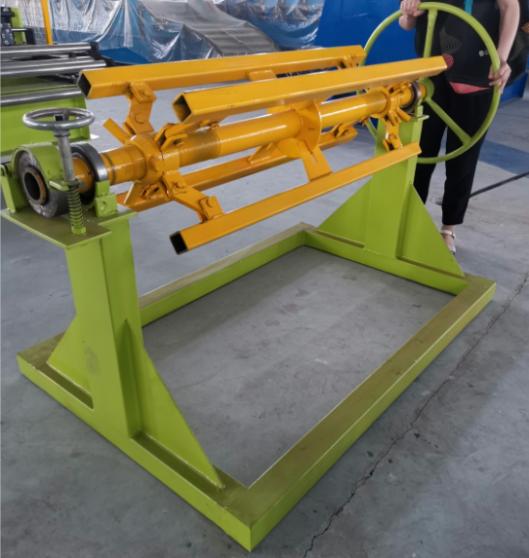

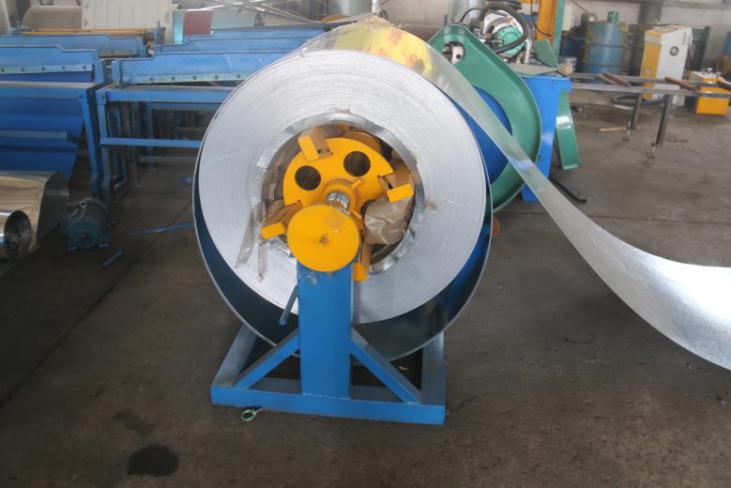

5T Decoiler
Decoiler | Work type: passive type |
Structure: Steel channel welded for the basic frame | |
usage:To support the coil and make the uncoiling | |
Loading capacity: 5 tons | |
Inner diameter: 450-550mm (manual adjustment) | |
Coil width: 1200mm | |
Brake system: manual brake |

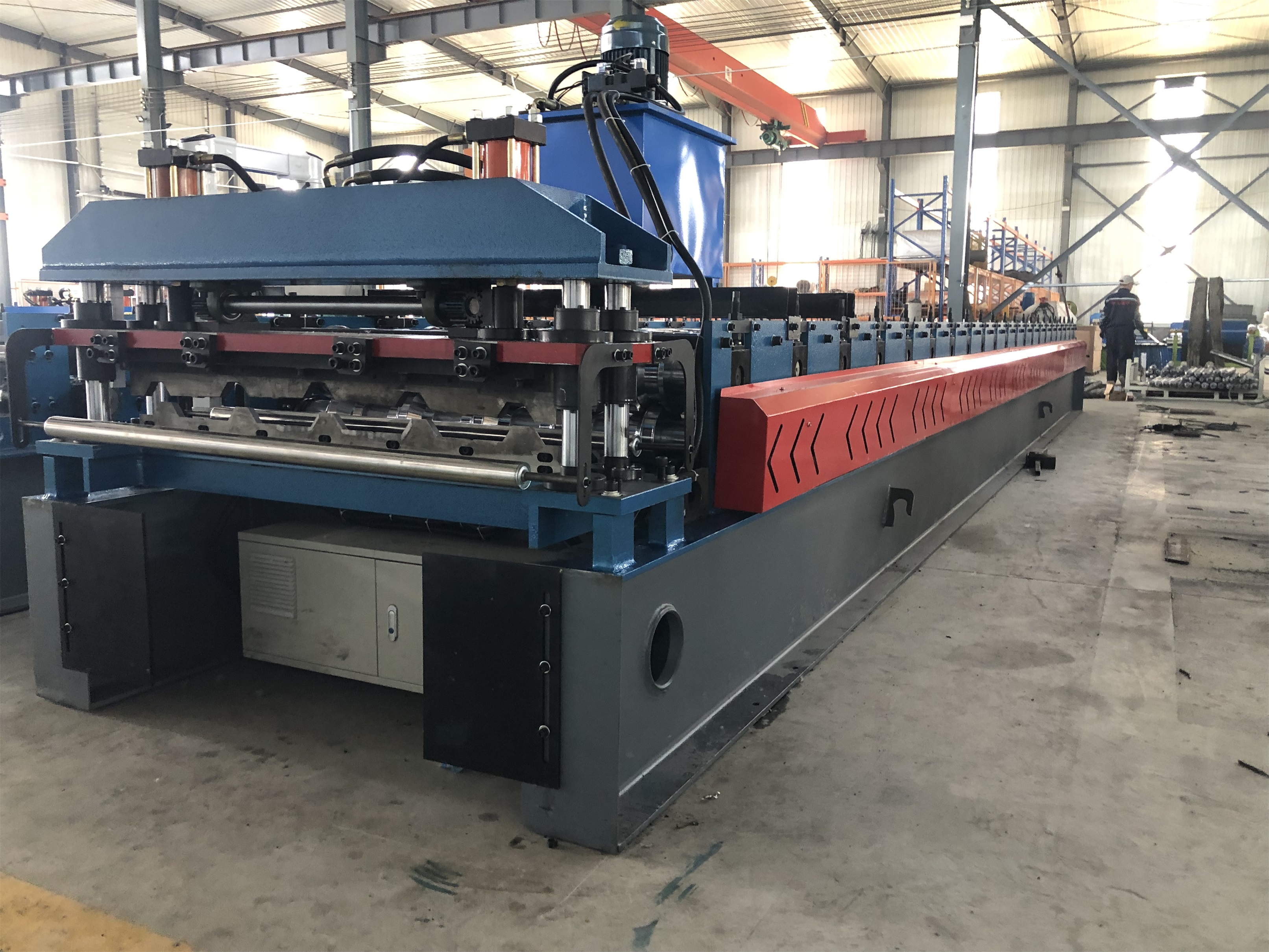

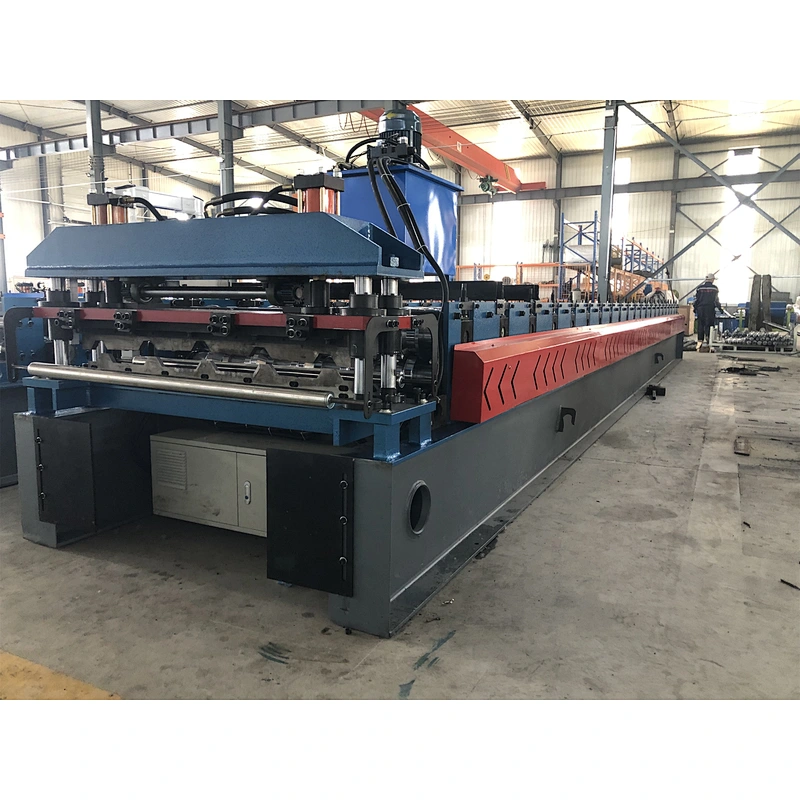

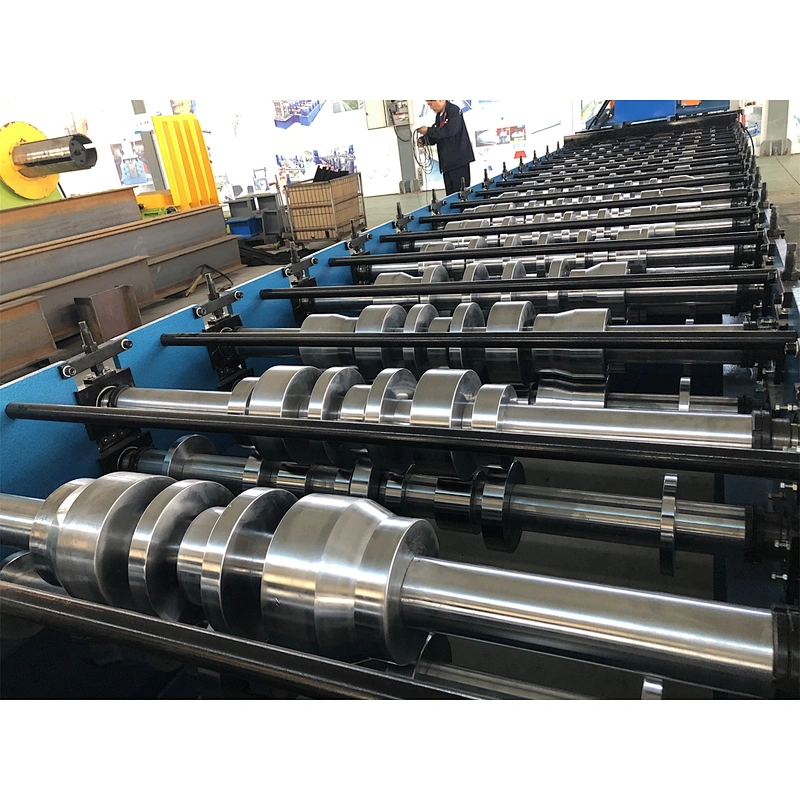

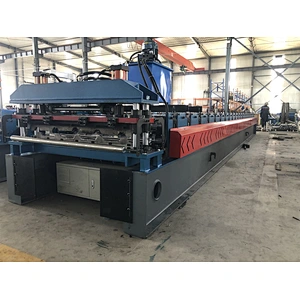

The Main Forming Machine
Roll forming machine | Feeding device | One set guiding roller |
Steel plate welded platform to carry the sheet and feed into roll forming system | ||
Feeding width is adjustable with the handle wheels | ||

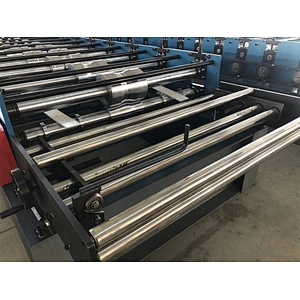

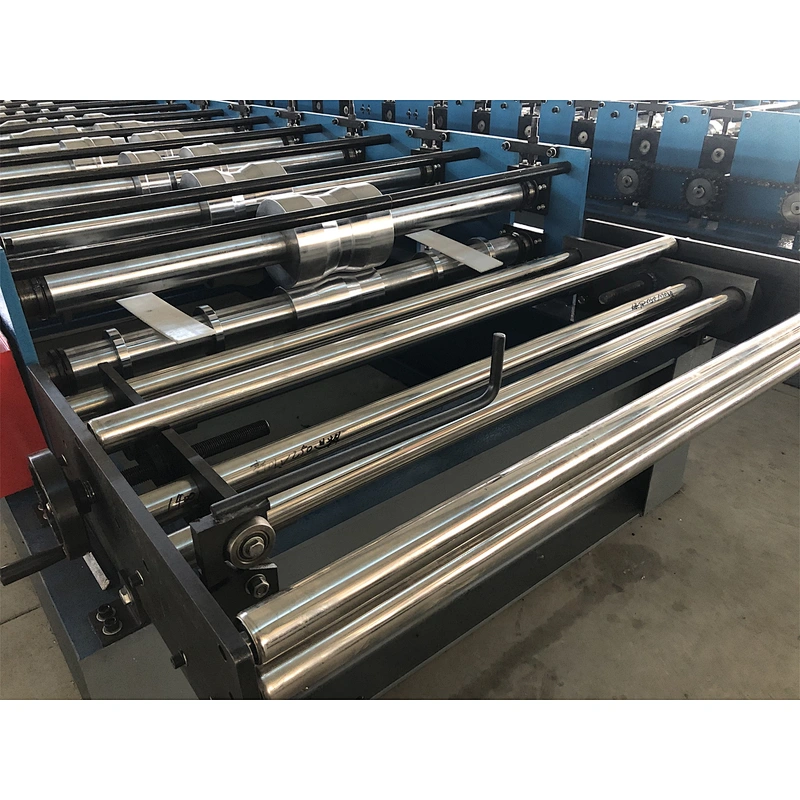

Rolling shaft | Shaft material:45# STEEL | |
Shaft diameter: 75 mm | ||
Tempering treatment to prevent deformed and improve hardness | ||
Roller | 45# steel | |
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||
Rolling station | 18 rolling stations | |
Work speed | 0-15 m/min | |
Machine structure | Steel plate welded structure | |
Machine basic frame | 350# H steel welded | |
Work power | 7.5 kw | |
Rolling spacer | Anti rusty treatment | |
Pull rod | Anti rusty treatment | |
Transmission | By Chains with cover | |
Noted: please fill the lube in case the chains getting dry |

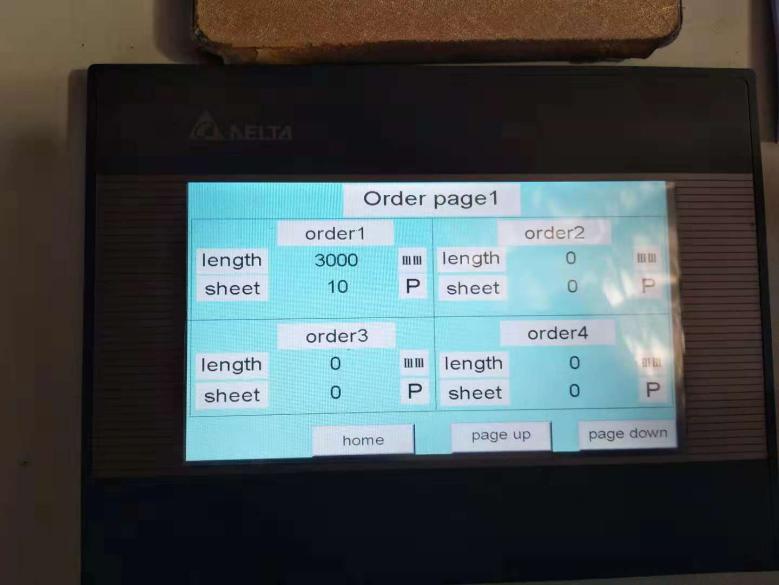

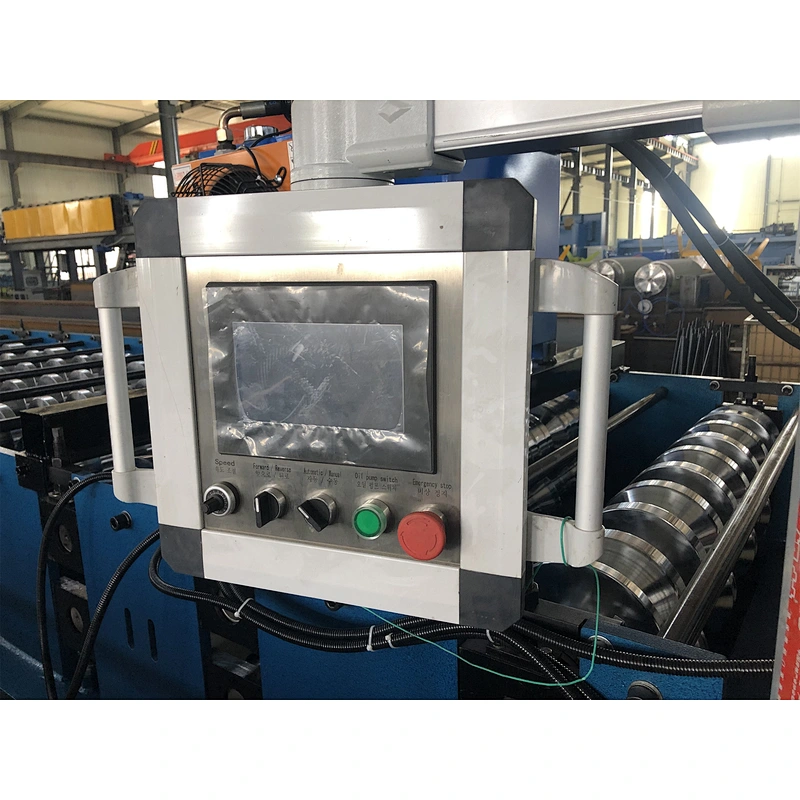

PLC Control System
Control system | Frequency brand | Delta (original) |
PLC brand | Delta (original) | |
Frequency brand | Delta (original) | |

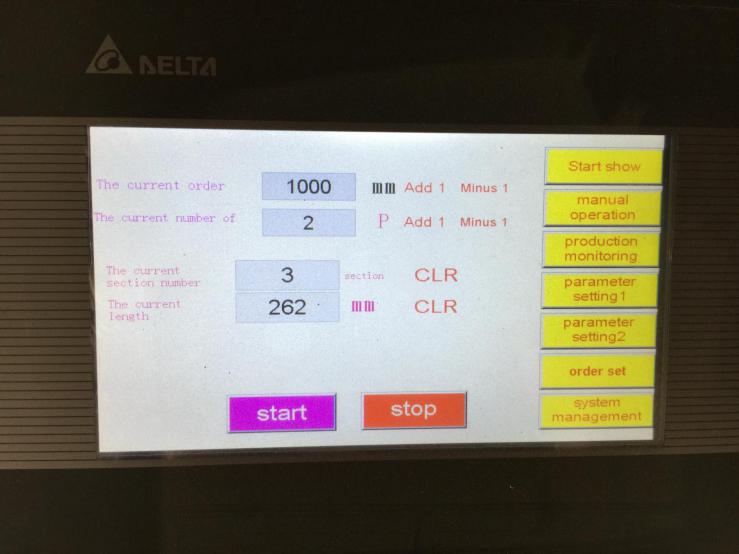

Screen type | Touch screen, also have buttons on the panel | |
Screen language | English/Chinese | |
Cut command | Yes | |
Profile length set-up | Yes | |
Batch quantity program | Yes | |
Low pressure electric part | Schneider brand | |
Encode | Omron brand | |
Tip | please do the waterproof and damp proof work well if the machine is not used for a long time | |
Please restart the machine and try all the functions each two weeks, to prevent the electrical parts getting aging | ||
Remark | Support multi orders input,ensure the machine can work continuously according to different request without stop | |
All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts. |

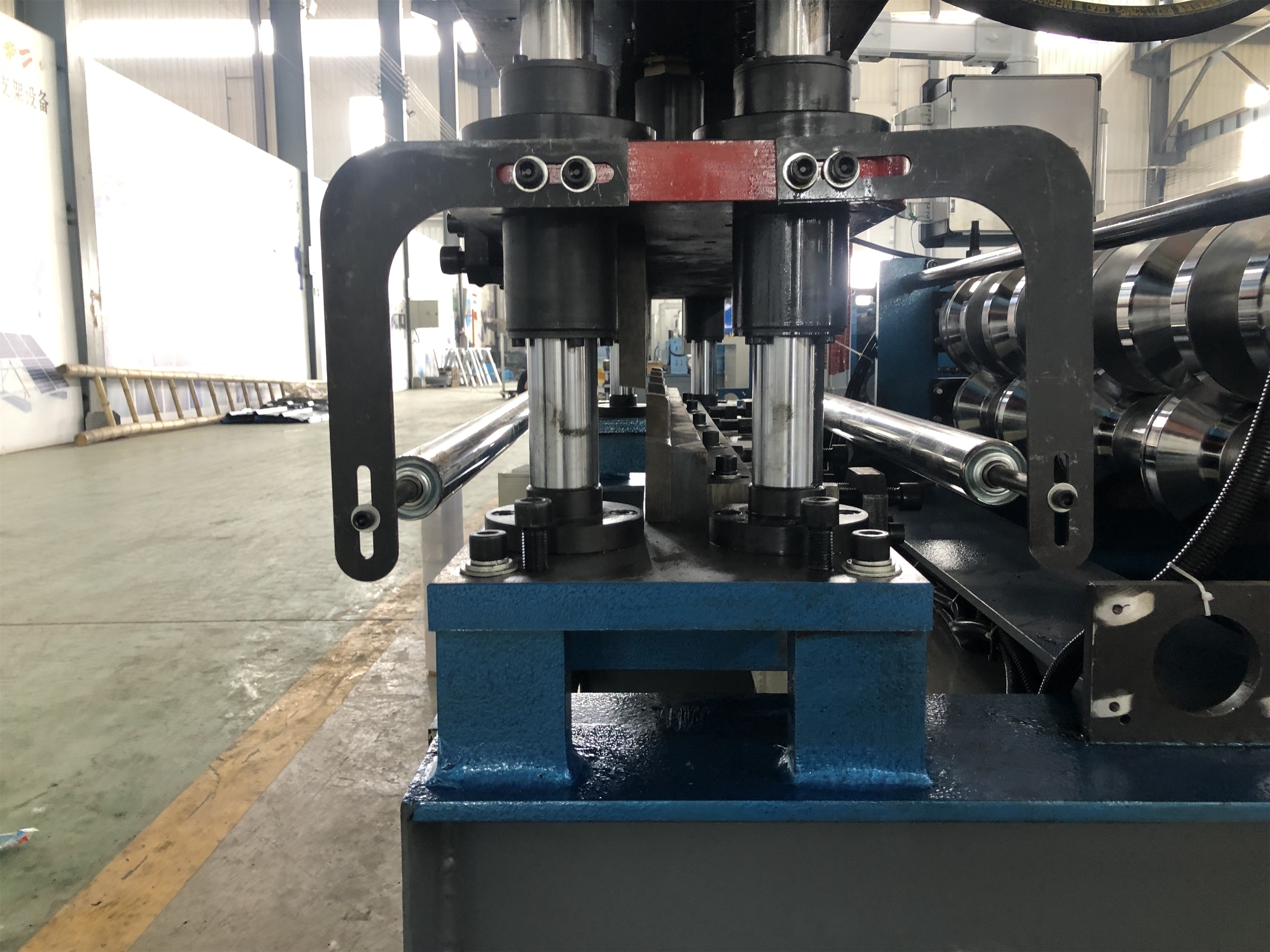

Hydraulic Cutting System
Cutting system | Work type | Hydraulic cutting |
Driving method | By pillar type Cylinder | |
Cutting device structure | Pillar type | |
Noted: please fill the lube before start the machine the first time | ||

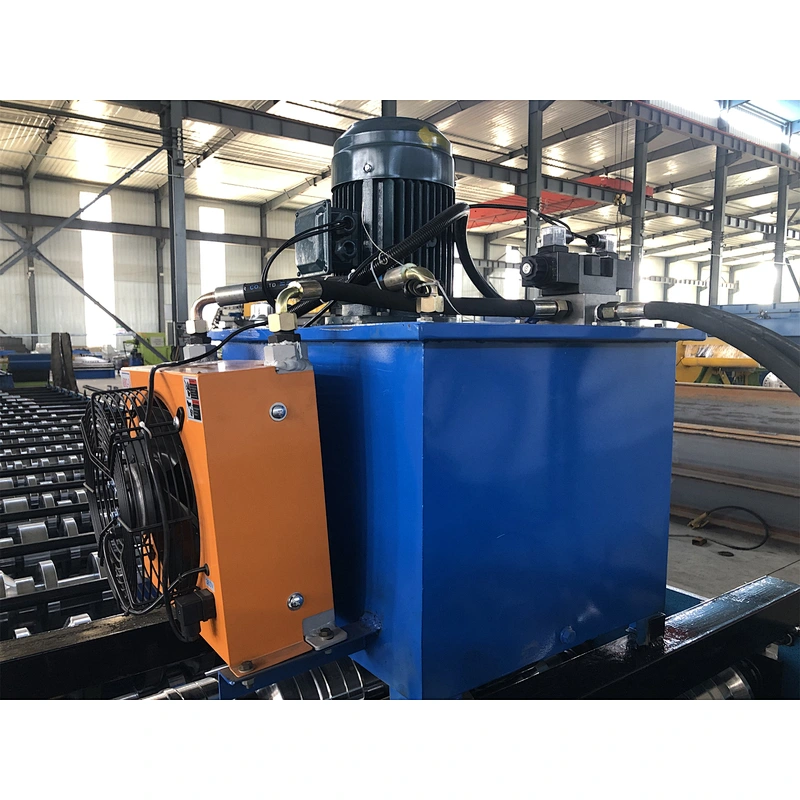

Hydraulic motor power | 4 kw | |
Hydraulic oil | Hydraulic oil number: 46# | |
Quantity: around 100 Litre | ||
Maintain: change the hydraulic oil every 2 years | ||
Cooling method | Equipped with fan on the tank, in case the oil temperature getting hot when the machine working for hours continuously, ensure the hydraulic oil in a constant temperature to have enough power for cutting device | |
Cutter material | GB-Cr12 with heat treatment | |
Cutting length tolerance | ±1mm/3m | |
Cutting feature | Steady and safe working condition | |
Oil tube and wires connection | All the tubes and wires will be marked by the numbers or letters, so that it will be very easy to connect for the new. | |
Remark | It’s better that stop the machine for 30minutes every 4-5 hours, if the temperature is high. If the weather is cold, please start the pump first for 5 minutes to heat the hydraulic oil, then do the cutting work. |

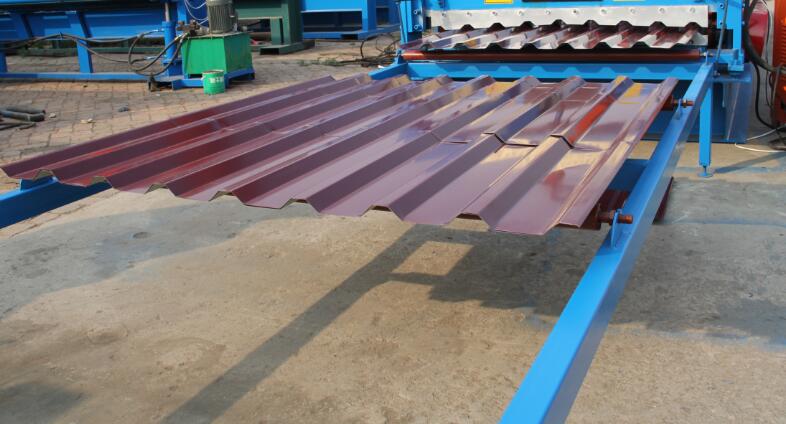

Receiving Table
Product table | Length | 3 meters |
Width | 1.25 meter | |
Material | Square pipe welded | |
The table will be put in front of the machine to receive the sheets. There are 6 passive rollers on the table, to convey the sheets when the sheets come out from machine after cutting Duo to the cutting length of the sheet, we will provide two sets table along with the machine, the customer can place the table in front of machine as production request | ||
Payment Term and Warranty
1.Payment terms:
-30% by TT for the advance payment at order
-70% by TT after inspection in China
2. Delivery: Max.45 working days after the advance payment.
3. Validity time: 15 days since the quote date.
4. After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
B: we will provide you the layout for installation in English.
