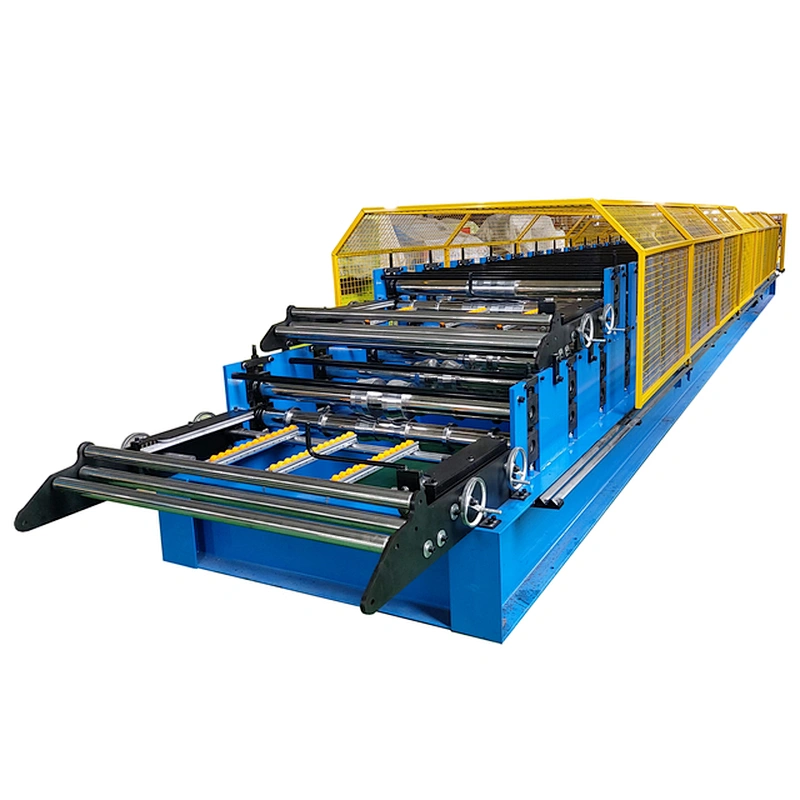

Double Layer Roll Forming Machine

Name: Double Layer Roll Forming Machine
Rating: 5 (1 reviews)

Model NO.: ZTE-85
Price:: US $ 19500.00-28000.00 / set
Delivery: FOB Tianjin
Minimum order quantity: 1 set
Supply Ability: 30 set / Month
Country of Origin: Cangzhou, Hebei Province, China
Stock Time: 45 Days

Quantity:

Product Description

Double Layer Roll Forming Machine

Double layer roll forming machine is designed to make the metal roofing sheet in the double layer forms, that means one machine can make two profiles by the rolling forming machine principle. In the following part, let us take the following drawing profile for example:

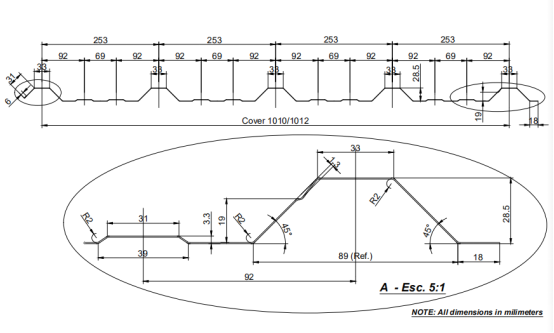

First IBR Layer:

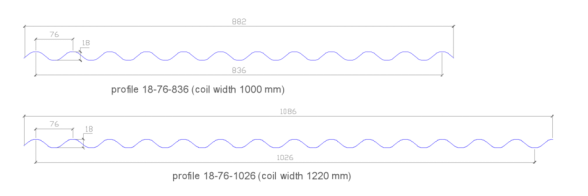

Second layer:

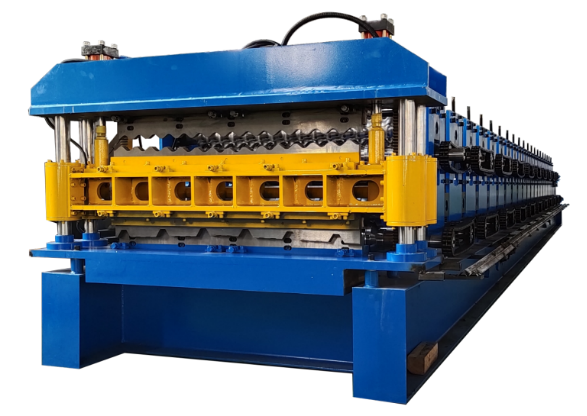

Double layer roll forming machine we design like this:

Requirements

1. Material:
a) Raw Material:-----------------------PPGI; PPGL; GI; GL (G350Mpa)
b) Feeding Width:---------------------1200mm for trapezoidal;
1000/1220mm for corrugated;
c) Feeding Thickness:------------------0.3-0.8mm

2. Product:
a) Effective Width:----------------------Corrugated - 836/998mm;
Trapezoidal - 1012mm;
b) Separation Distance of Wave:-------Corrugated - 76mm;
Trapezoidal - 253mm;

Description Of Goods: Double layer roll forming machine

Packing List:
Hydraulic Decoiler or manual decoiler ---------- 1 set;
Main Roll Forming Machine ------------------------ 1 set;
3M Simple Collecting Product Table --------------- 1 set;
Hydraulic Station -------------------------------------- 1 set;
PLC Control Cabinet ---------------------------------- 1 set;

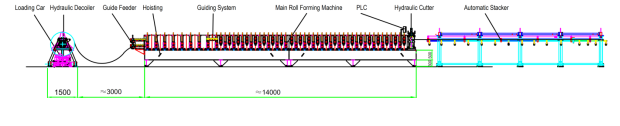

Double layer roll forming machine Production Line Layout And Process Flow:

No.	Item	Specification
Whole Line	Working Speed	0-20m/min
	Total Power	22kW; 380V-50Hz-3Phase
	Equipment Weight	8.5 Tons
	Equipment Dimension	8500mm1850mm1500mm
	Container	1*40”GP
	Equipment Color	Blue Or Customizable
	Equipment Package	Nude Package
	Protective Cover	Optional

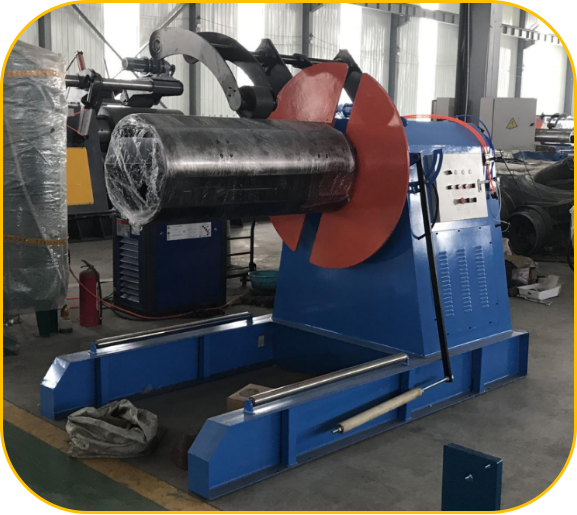

For the hydraulic decoiler 7 ton, 8 ton or 10 Ton decoiler, we make it like the following pictures:

No.	Item	Specification
Hydraulic Decoiler	Decoiling Type	Actively Uncoiling Type
	Loading Capacity	12 Tons
	Loading Width	Max. 1250mm
	Coil Inner Diameter	450-550mm
	Coil Outer Diameter	Max. 1500mm
	Motor	7.5kW+3kW

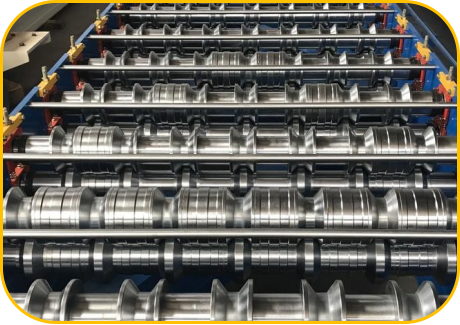

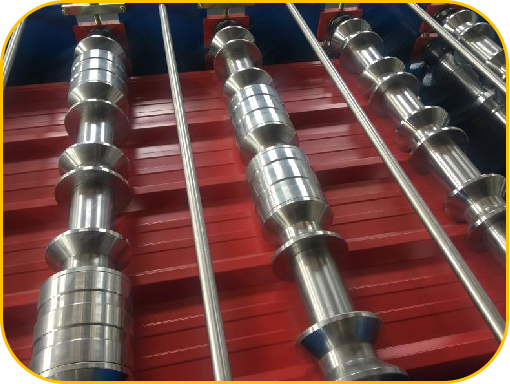

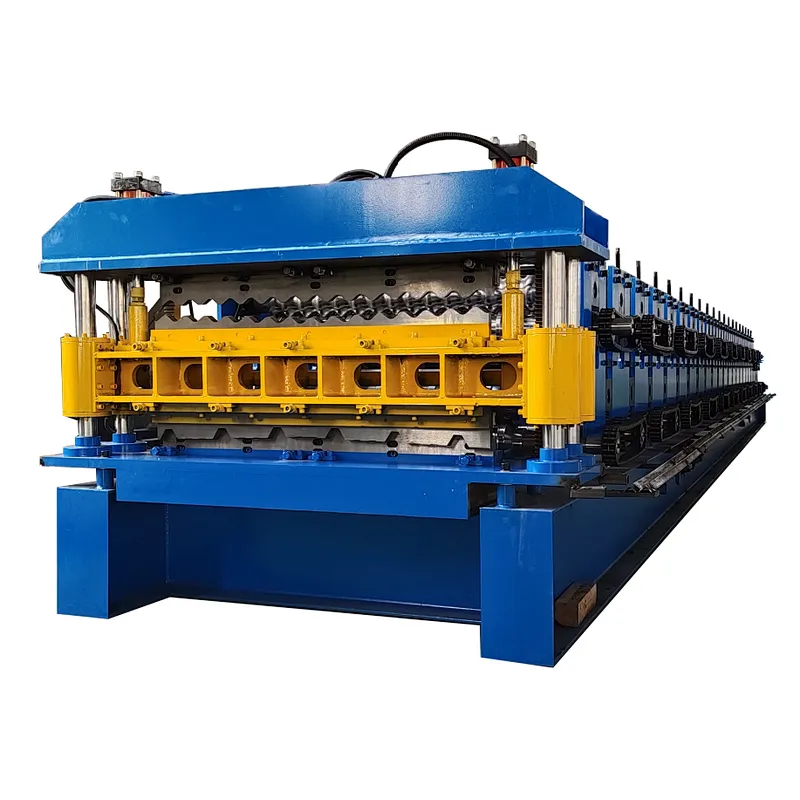

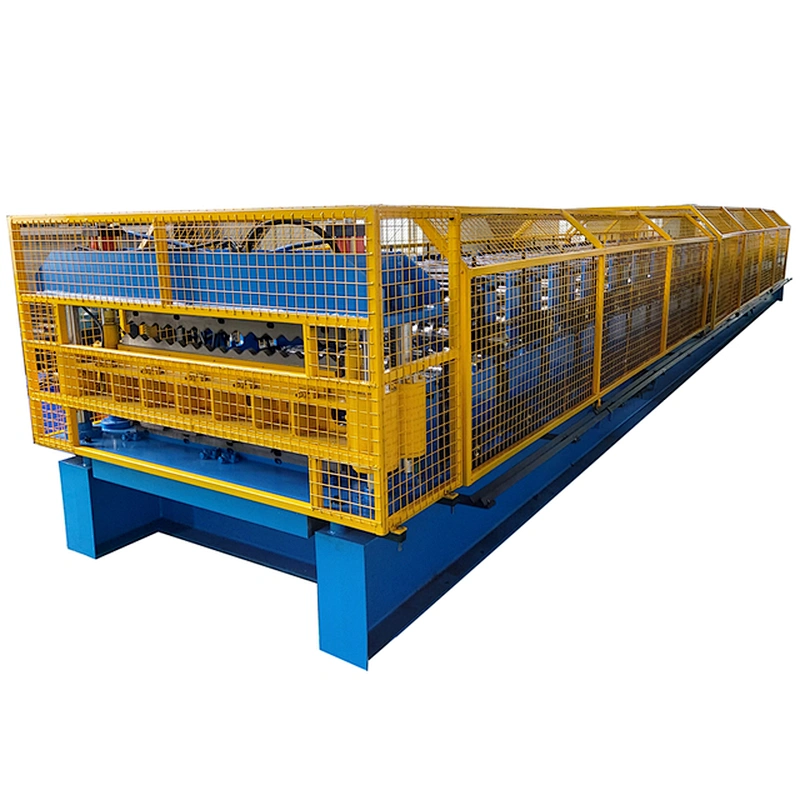

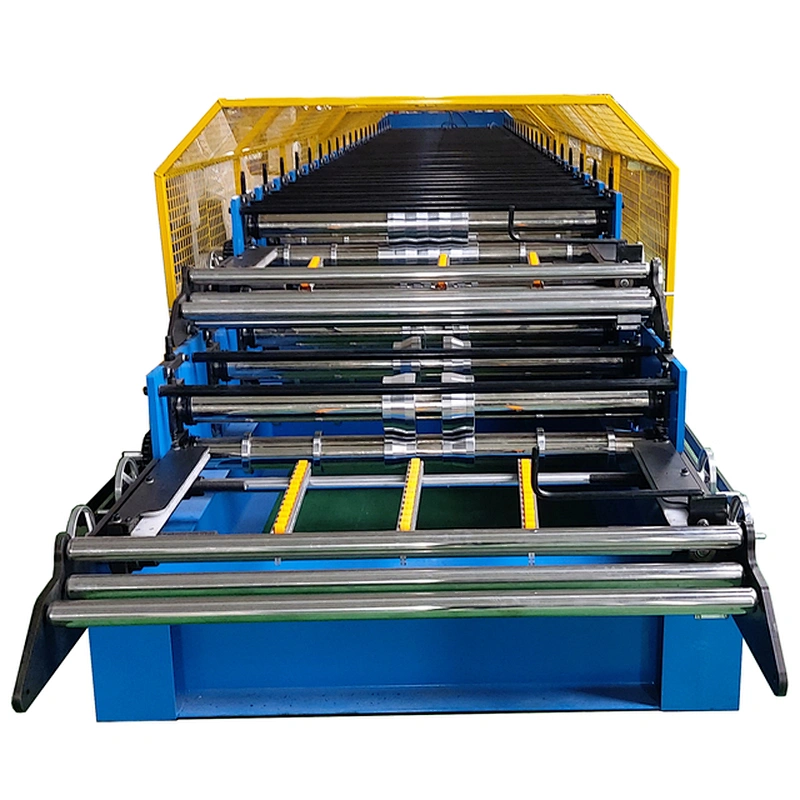

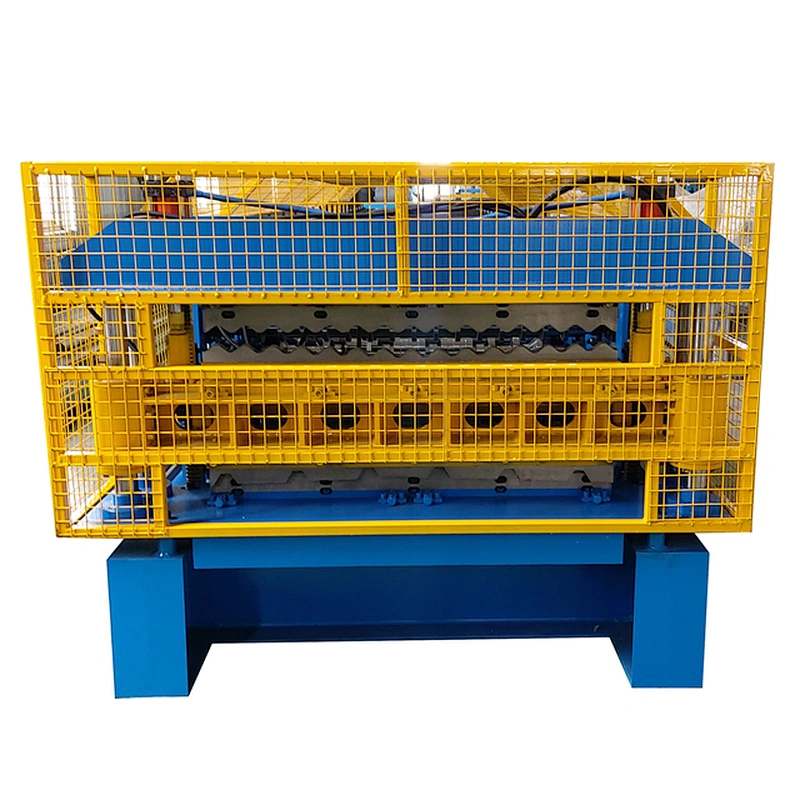

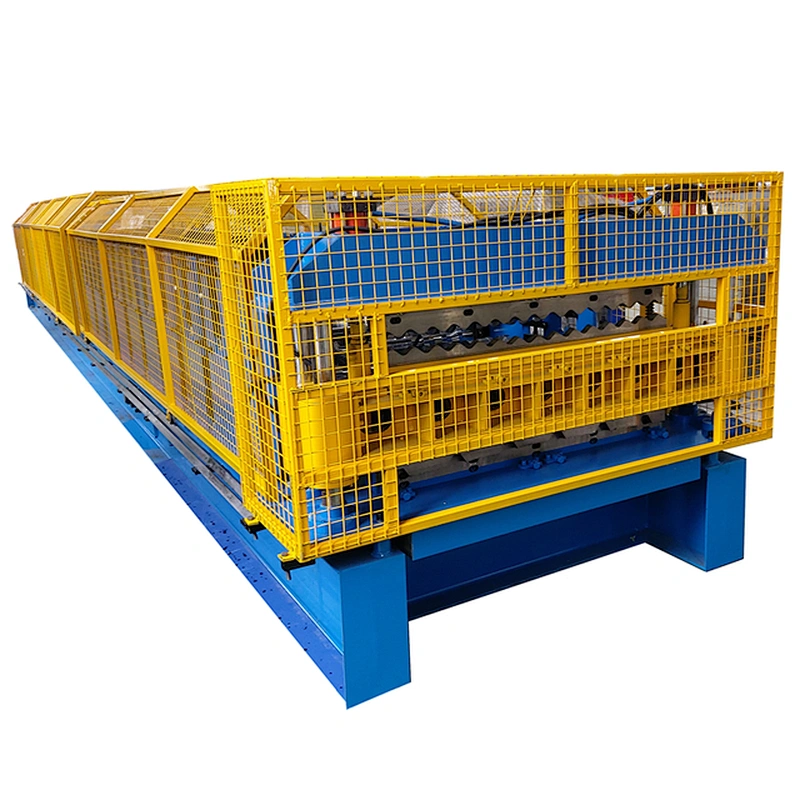

Double layer roll forming machine Images And Specifications

No.	Item	Specification
Main Roll Forming Machine	Main Forming Power	7.5 kW; 380V-50Hz-3Phase
	Speed	0-20m/min
	Drive Type	1'' Single Chain
	Machine Architecture	Midde-plate Construction; 20mm Thick
	Roller Station	18 Stations + 18 stations
	Roller Shaft	φ75mm Solid Shafts, with quenched
	Roller	45# Steel HRC58-62°; Surface Hard Chromium Plating
	Bearing	Chinese Famous Brand Harbin
	Main Frame	400# H-beam Steel Welded

For the double layer machine, it could be either two IBR profiles or one IBR with one step tile. For this type machine, if you want to know more information, please contact us at any time.
