Corrugated Roofing Sheet Forming Machine

Corrugated Roofing Sheet Roll Forming Machine

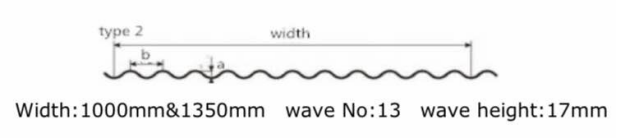

Profile of corrugated tile

Material thickness: 0.3-0.8mm

Material: Galvanized steel,Q235

Raw material width: 1000mm and 1350mm

Work Flow of roofing sheet forming machine

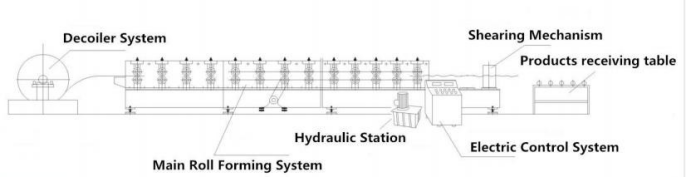

Decoiling→guide&manual pre-cutter→roll forming→cutting→run out table

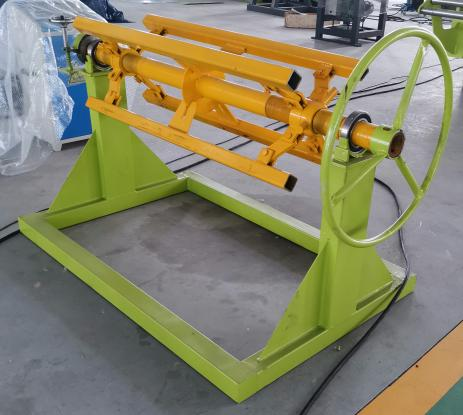

5T Manual Decoiler

Capacity:5ton

Coil diameter:450-550mm adjustable

Coil width:Max1350mm

Un-powered, passive feeding, manually control steel coil inner bore shrinkage and stop

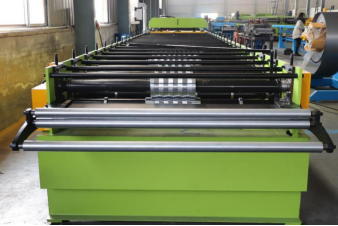

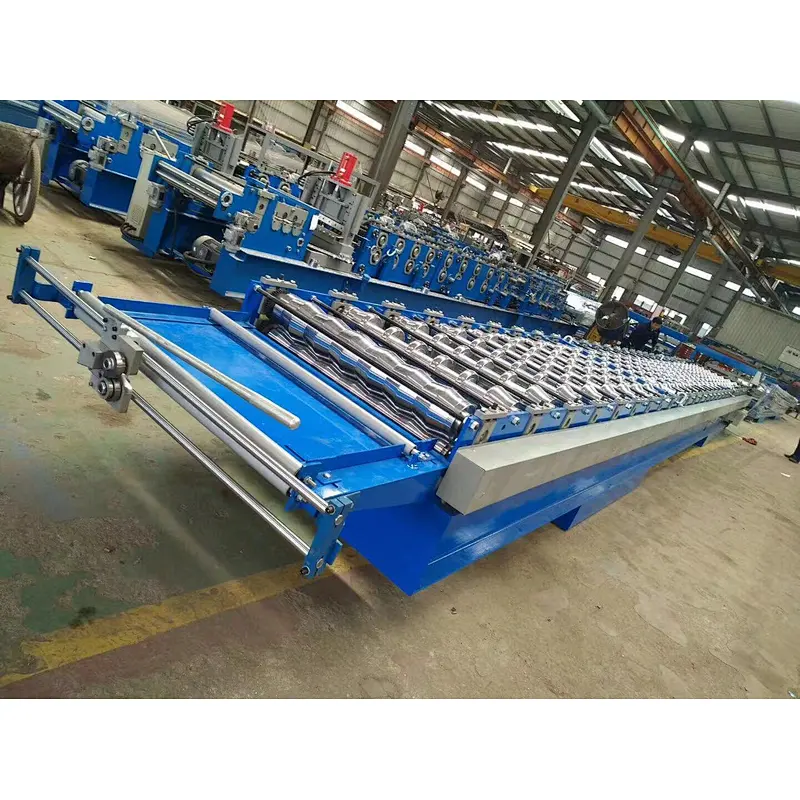

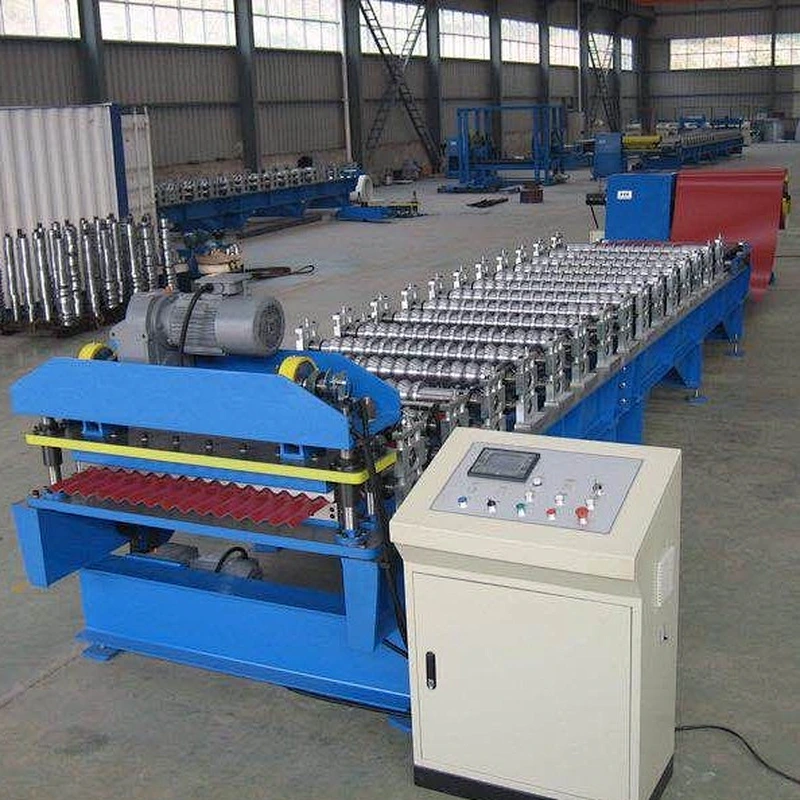

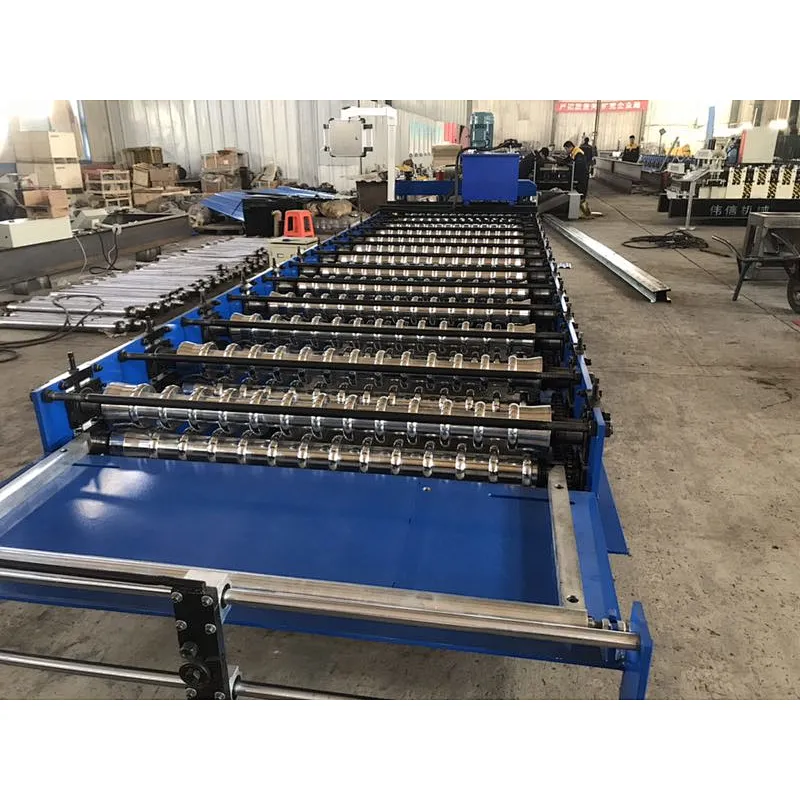

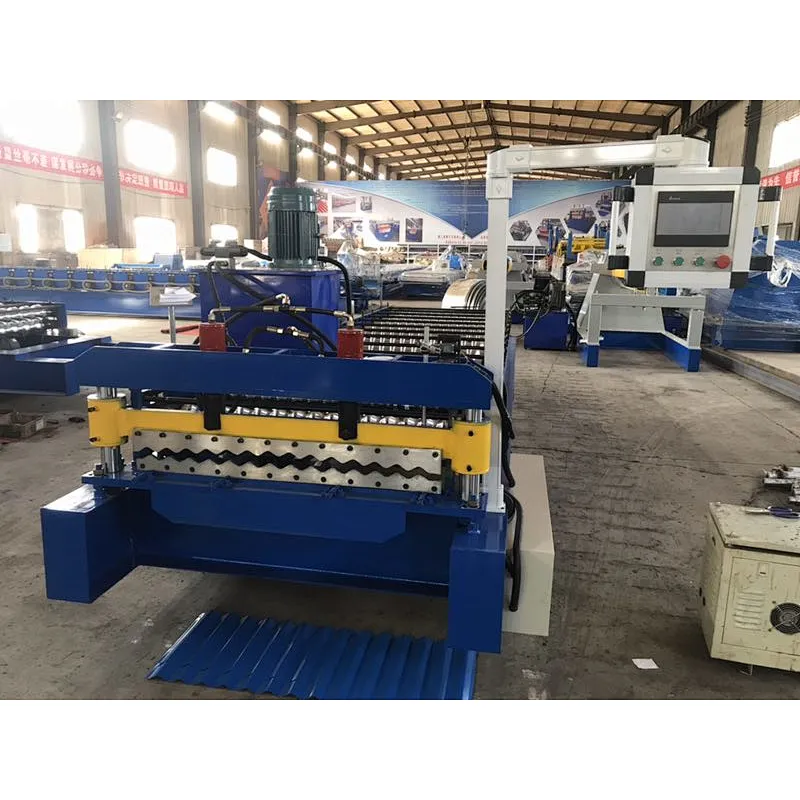

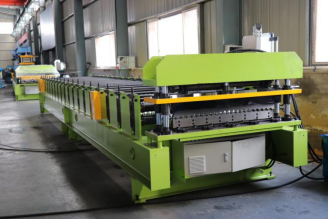

Main Forming Machine

1. Main frame: 400mm H beam structure, with 20mm thickness welded steel middle support plate.

2. Forming station: 24 stations

3. Roller material: High grade 45# steel,chromed treatment,which makes the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

4. Shaft material: High grade 45#, Tempering treatment, prevent deformed and improve the hardness

5. Shaft diameter: 80mm, solid

6. Motor power: 7.5kw

7. Speed: 0-20m/min

8. Voltage: 380V,50HZ,3P (Or customized according customer's requirement)

9.Transmission: By 1inch double chain,Chinese famous brand HRB

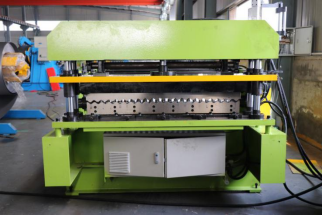

Hydraulic Cutting System

1. Blade material: Gcr12 quenched treatment

2. Length tolerance: 3m±1mm

3. Hydraulic power: 5.5kw

4. With air cooling system in the hydraulic station

5. Cutting feature: Steady and safe working condition and low sounds.

6. Oil tube and wires connection: All the tubes and wires will be marked by the numbers or letters, so that it will be easy to connect for the customers.

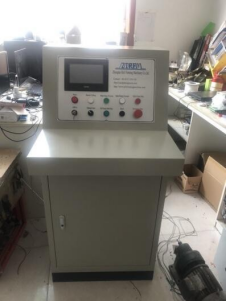

Control System

1. Frequency converter: Delta

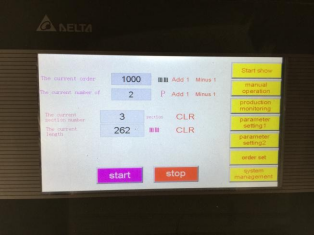

2. Screen: touch screen

3. PLC brand: Delta

4. Language: Chinese and English(Or as customers’ request)

5. Encoder: Omron

6. Feature: The control system support multi orders input, it can match different production needs

7. Functions: Cutting length control,cutting quantity control,and speed control

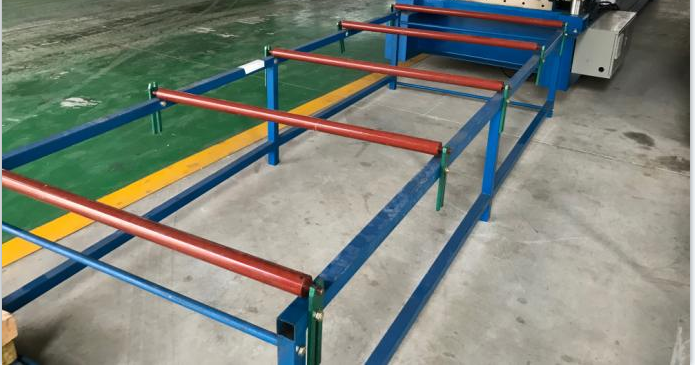

Receiving Table

1.Length: 3m

2.Quantity: 2sets

New Products

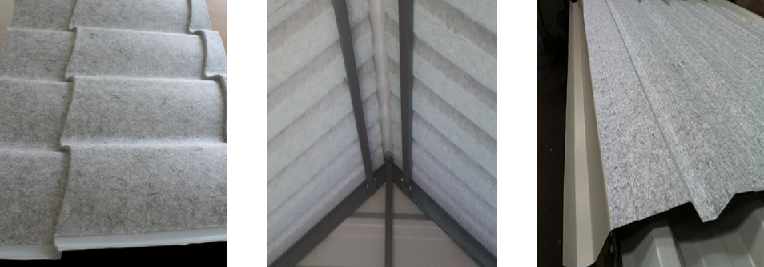

Our Zhongtuo machine also can combines condensation felt and metal materials through a special process to produce a new type of anti-condensation, heat insulation, noise reduction and corrosion resistance building materials, which can be applied to the construction of roofs and exterior walls. To a certain extent, it can replace thermal insulation materials, with a service life of 20 years, reducing engineering costs, and easy fire protection.

Feature of this product

Easy to install, cost-saving,

high water absorption

Product value-added, versatile

Easy to use

Good technical support

Effective corrosion Improved fire safety level

Avoid the growth of mold Save money:

Compared with traditional solutions,Up to 75%

Save construction time: no need to install under the color steel plate

Install thermal insulation materials, install and use directly at one time Easy handling
