Automatic C Purlin Machine C Profile C Channel Roll Forming Machine

Name: Automatic C Purlin Machine C Profile C Channel Roll Forming Machine
Rating: 5 (1 reviews)

Model NO.: ZT-107
Price:: US $ 20000.00-50000.00 / set
Delivery: FOB Tianjin
Minimum order quantity: 1 set
Supply Ability: 10 set / Month
Stock Time: 45 Days

Quantity:

Product Description

Automatic C Purlin Forming Machine

Automatic C Purlin machine with Multi-punching is designed to make the C purline machine in various sizes with many types of punching hole. In the market, there are many types C purline machine, like CZ purline machine, Z purline machine, either in the manual adjustment way or the fully automatic method. Here the machine I share we designed for France, Various type C purline with the Multi-punching, the size adjustment by button control and by PLC control both, no need the manual work.

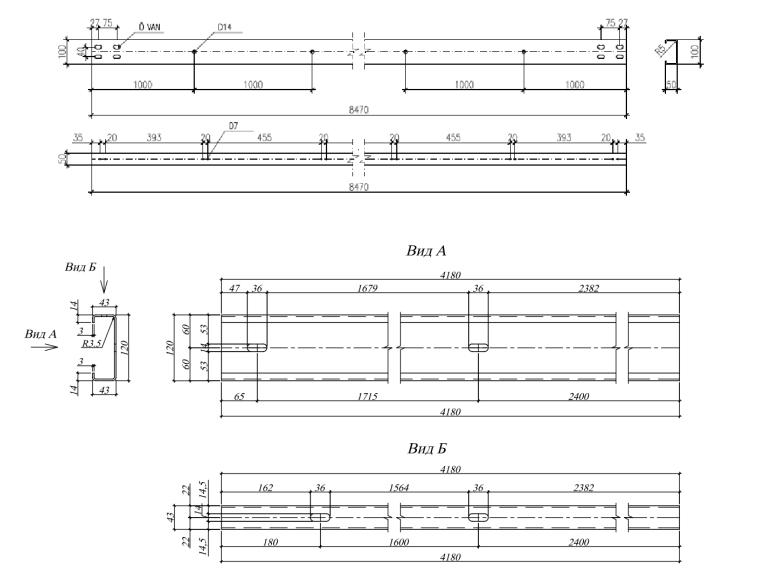

Take the following C purline drawing for your reference:

C Purline Finished Product:

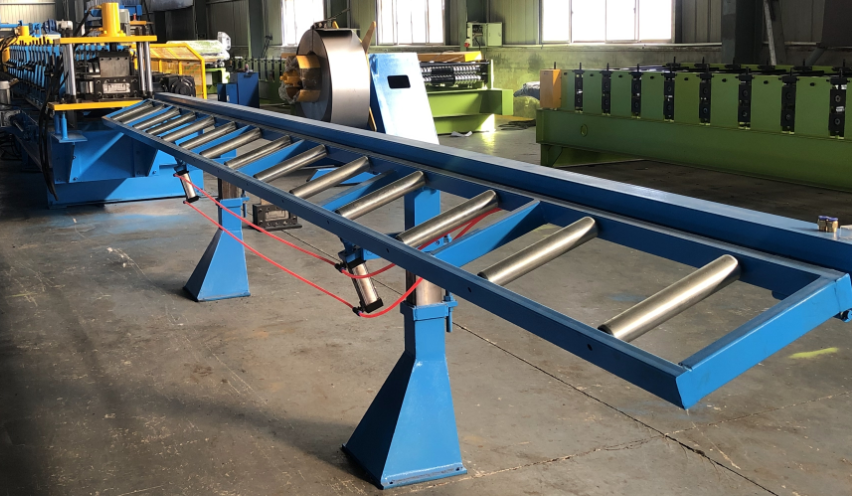

Automtaic C Purlin machine Design:

Features of Automatic C Purlin Machine:

Working speed is around 15 to 25 meter per minute.
Use the molding frame, the thickness of frame is around 35 to 45mm.
Use the gearbox as transmission.
Use the hydraulic shearing system.
Use the automatic stacker.
The punching are before punching.
The sizes are controlled by PLC or button control.

Automatic C Purlin machine Basic Parameters
Forming station	14 stations
Forming Rollers	GCr15, heat treatment and hard chrome-plated ,HRC55-58
Main shaft material	S45C, heat treatment HRC42 Φ80mm
Leveling roller	5 rollers
Pinching device	2 Steps of pinching
Punching hole	Punching before forming
Cutting sheet	Cutting after forming, stop to cutting
Forming speed	0-18m/min
Producing speed	0-12m/min
Main motor power	15KW, Chinese famous brand
Transmission system	1.0 double line chains
Control system	PLC Siemens brand
Dimension(L×W×H)	Approx.10000×1400×1600 mm
Weight	Approx.9500kg
