840 Box Profile Metal Roofing Sheet Machine

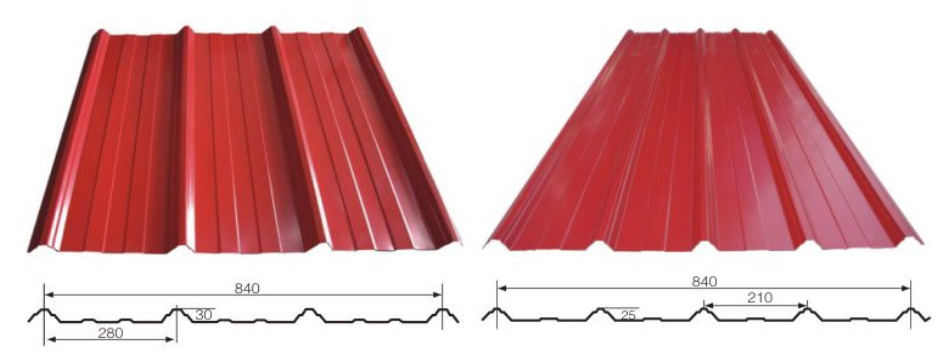

840 Box Profile Metal Roofing Sheet Machine is designed to make the standard 840 valid width and input coil width 1000mm metal roofing sheet. 840 IBR Trapezoidal Profile Metal Roofing Sheet Cold Roll Forming Machine working speed can reach 15 to 25 meter per minute. It is a type IBR metal roofing sheet, here are some drawing profiles for your reference:

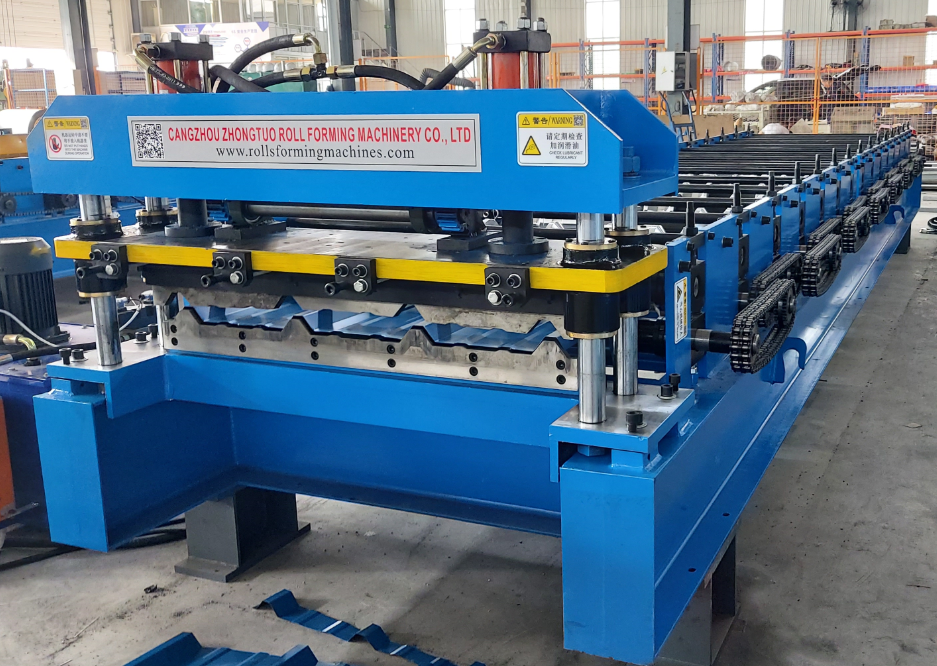

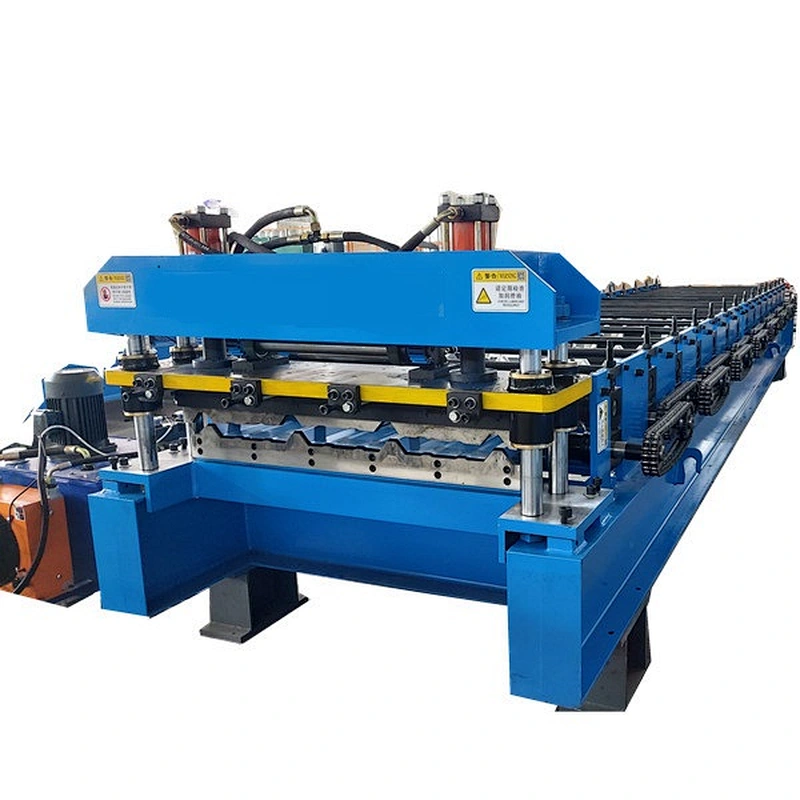

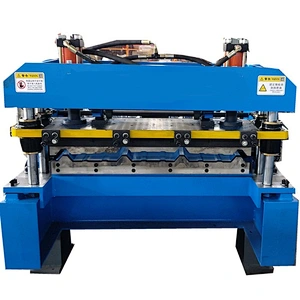

Compared with other IBR metal roofing sheet, 840 box profile sheet is more popular. We design the 840 Box Profile Metal Roofing Sheet Machine like the following pictures:
840 Box Profile Metal Roofing Sheet Machine parameters for your reference:
| Roofing Sheets Roll Forming Machine | ||
| No. | Item | Specifications |
| 1 | Coil Width | according to drawings |
| 2 | Diameter of shaft | 75mm |
| 3 | Forming Speed | 15 to 20 meters/min |
| 4 | Middle plate | 20 mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |
| 8 | Roller station | 16 stations |
| 9 | Cutting type | hydraulic -cutting |
| 10 | Main power | 5.5 kw+4.5kw |
| 11 | Main frame | 350H steel |
| 12 | Control system | PLC |
| 13 | Brand of electrical parts | Delta |
| 14 | Manual decoiler | 5 tons |
| 15 | Power | 3 Phase,380 Voltage,50Hz |
| 16 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 17 | Weight | about 5 tons |

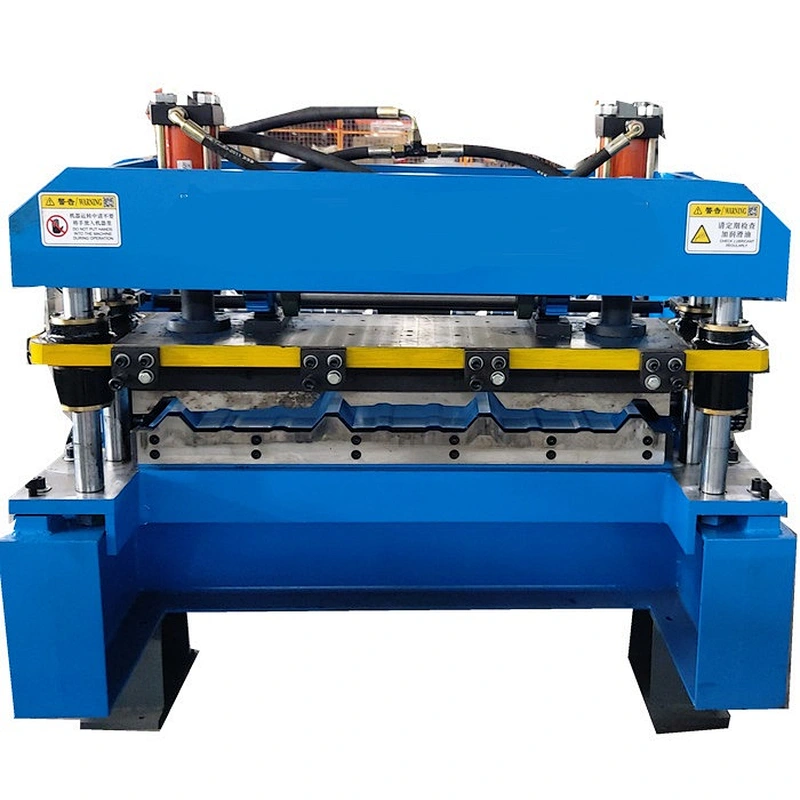

840 Box Profile Metal Roofing Sheet Machine
More details pictures for your reference:

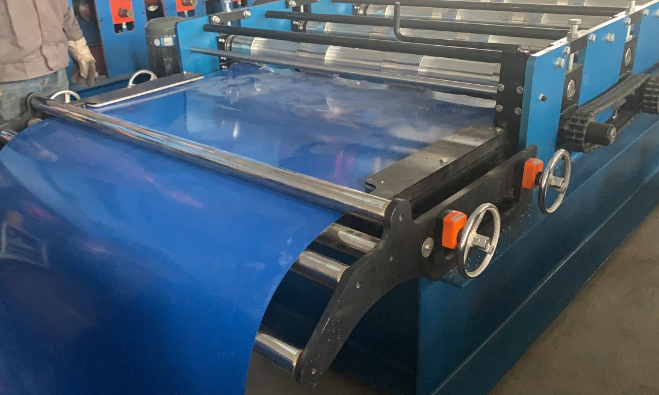

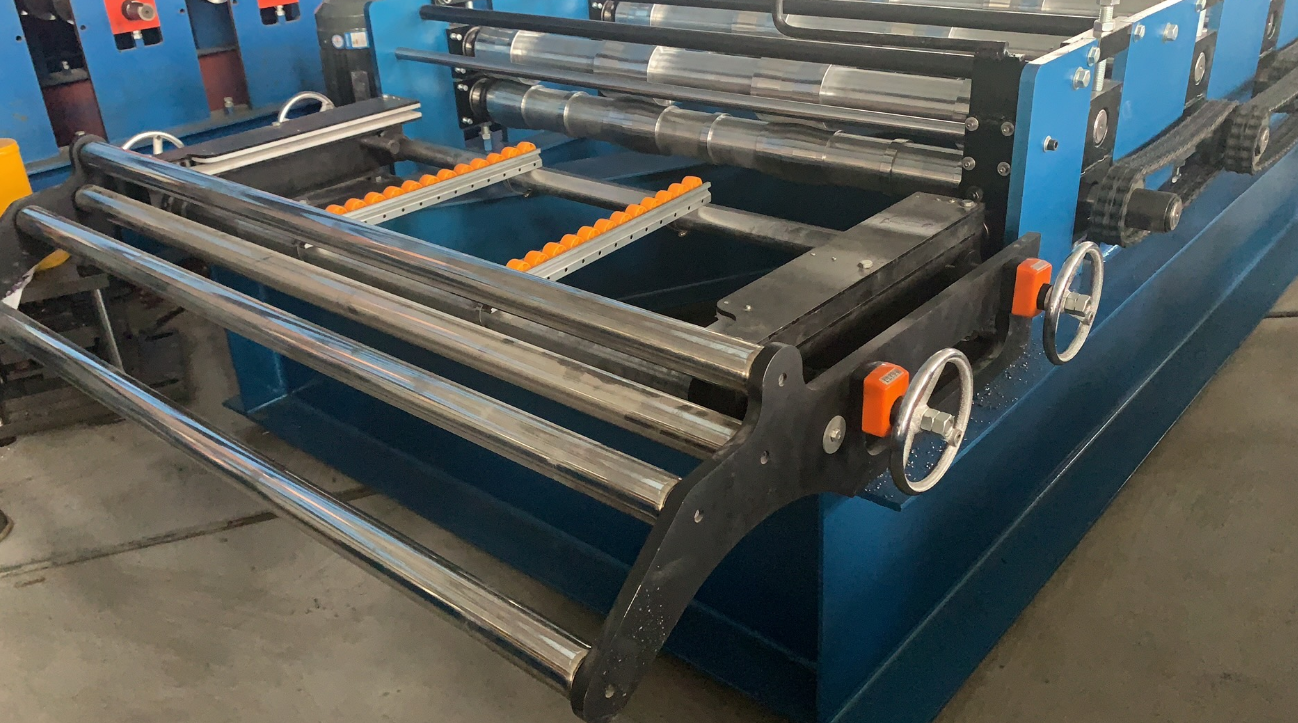

1. Leveling beach with plastic roller and handrails to protect the surface of the coil.
2. With the manual cutter to cut at any place. Or you can use it to remove the untidy part.

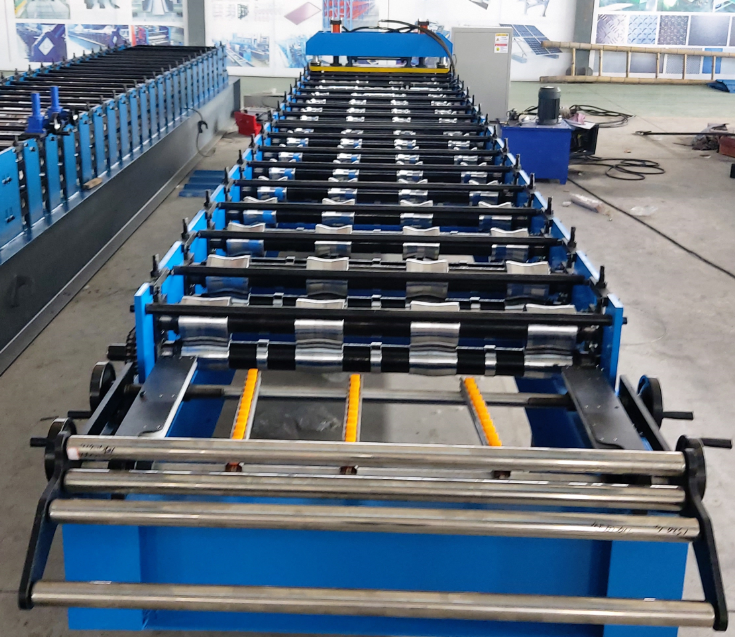

3. High quality roller to make sure the machine long time to use.

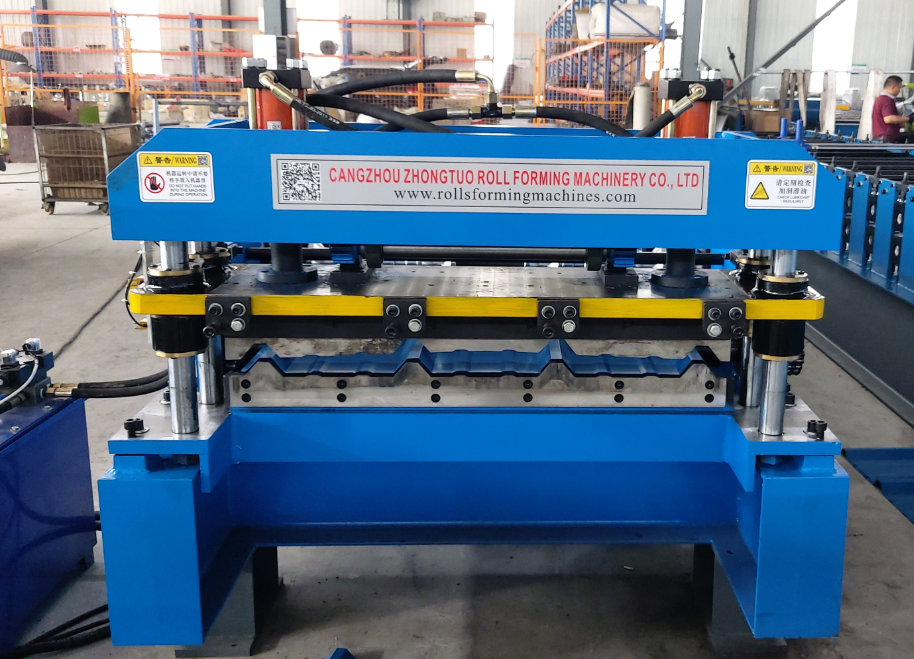

4. For the shearing part, we use the pillar pole shearing, it is either good in appearance also good in quality. And also for the transmission part, we use double chain for long time to use.
And for the box profile we have more types, if you are interested in, please contact us at any time. For the machine working speed , we have slow type and we also have the high speed type, if you like higher speed to 45 or 50 meter per minute, we can also make for you.

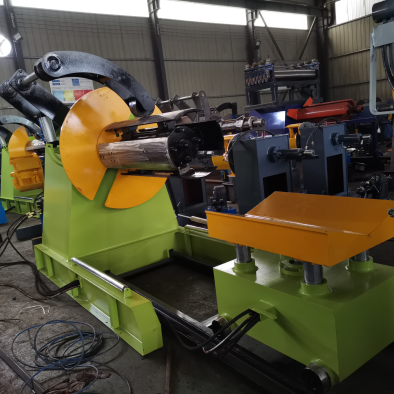

As to the decoiler, we have manual one and hydraulic one, we can design according to your requirements.
