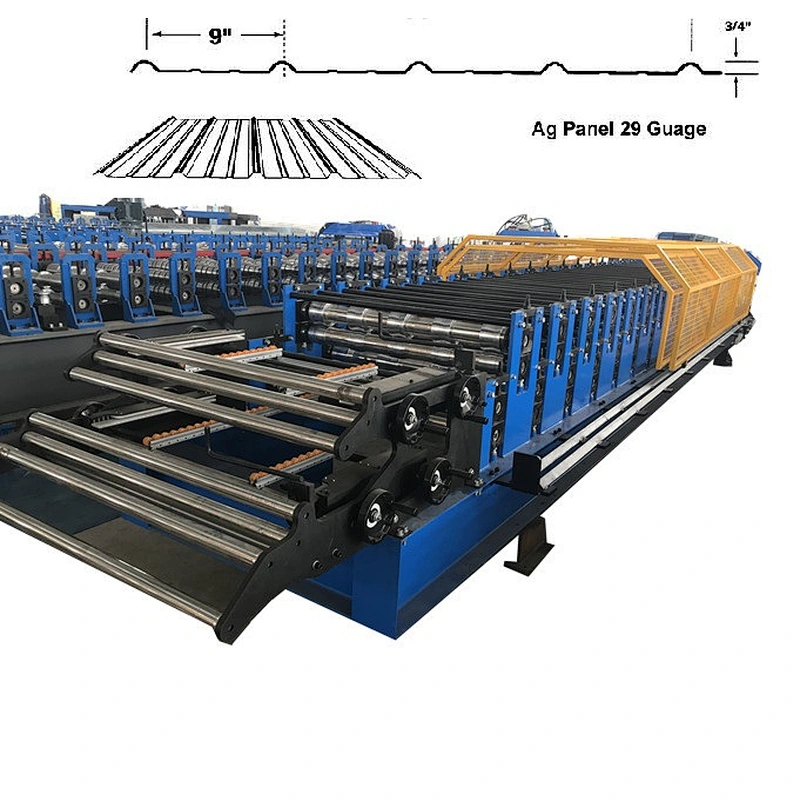

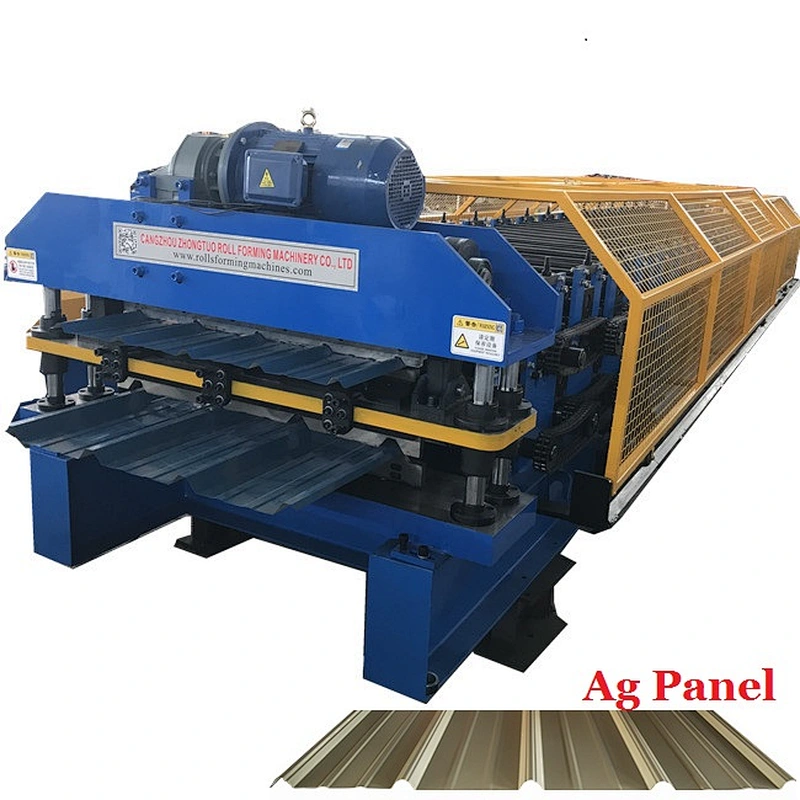

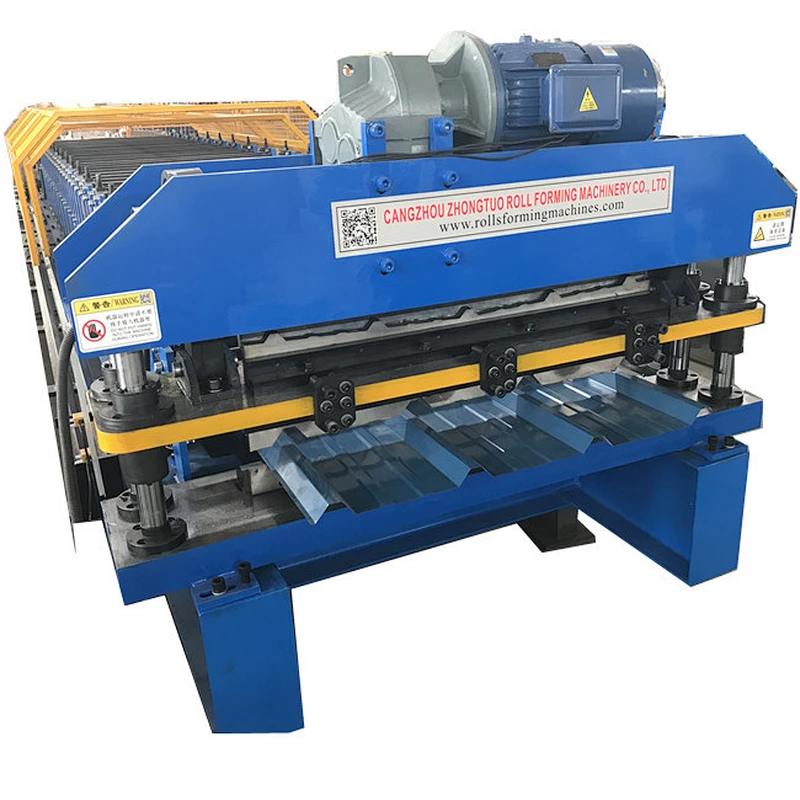

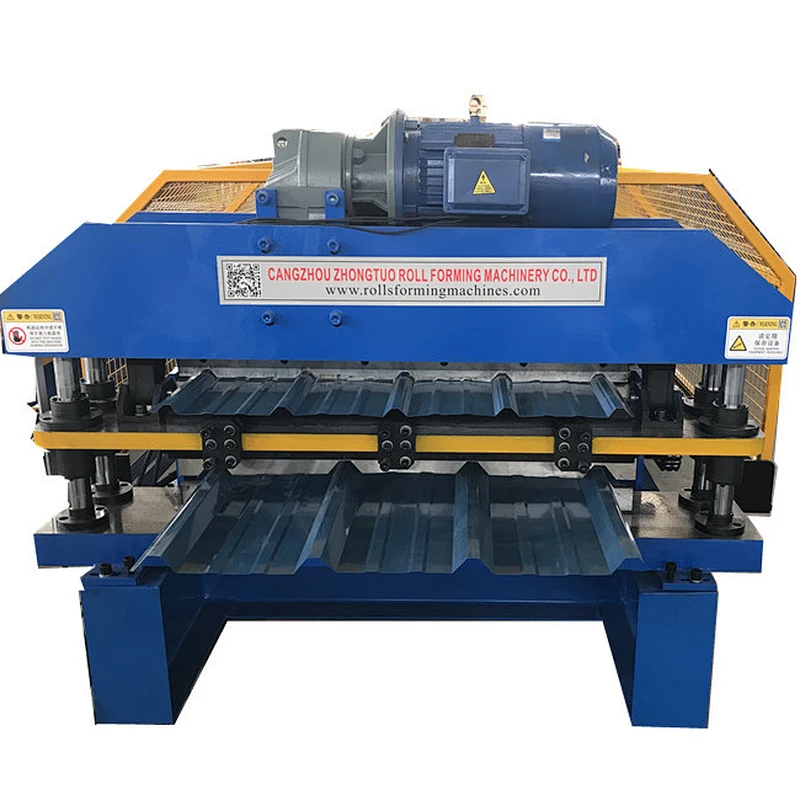

Motor Shearing Double Layer Roll Forming Machine for R panel and Ag panel sheets in United States
Motor shearing double layer roofing sheet machine for United States R panel and Ag panel sheets is designed specially for USA market. Different with other double layer machine, this one we use the motor shearing instead of hydraulic shearing. Compared with hydraulic shearing, motor shearing is more faster. Meanwhile the shearing is not effected by the temperature. Hydraulic shearing as the power comes from the hydraulic oil, when cold or hot and then the shearing is not so powerful.
But disadvantage of the motor shearing is not so powerful, it can not be used to handle quite thicker profiles. Here I will take a random popular drawing profile for your reference:

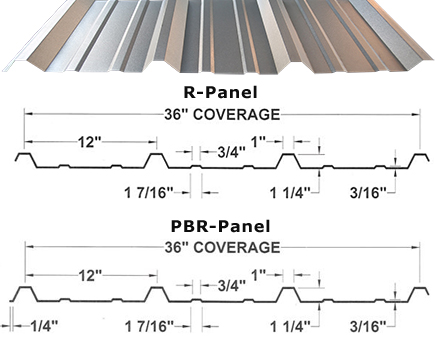

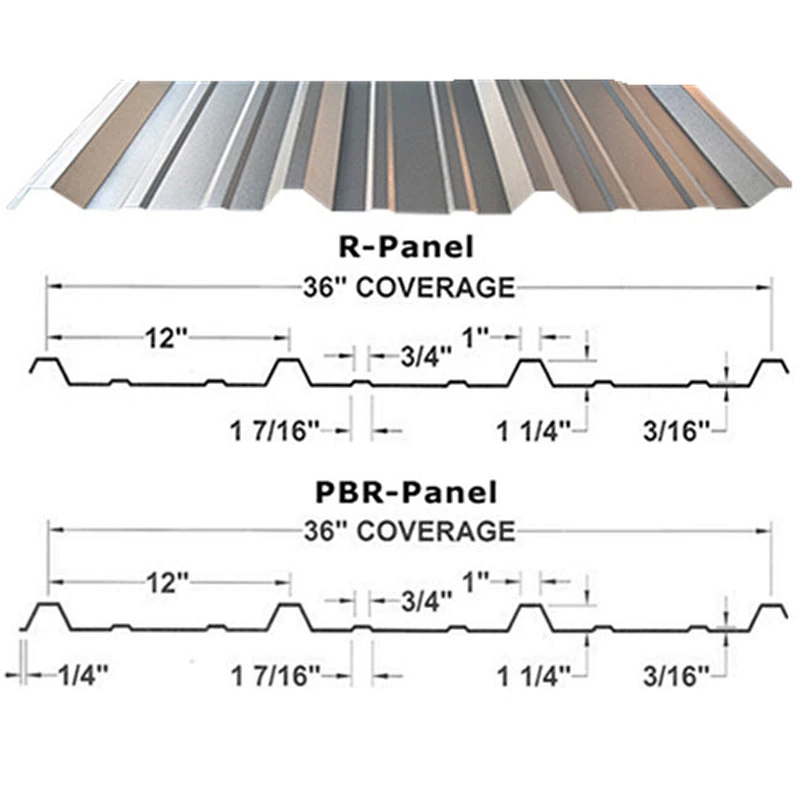

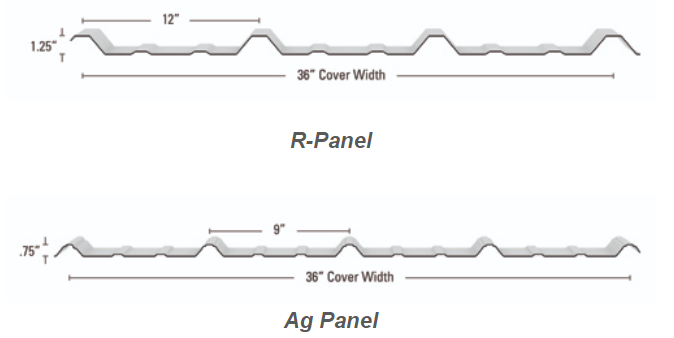

R-Panel major rib height is 1.25”while Ag Panel major rib height is .75”
R-Panel has major ribs 12” on center while Ag panel has major ribs 9” on center
R-Panel is a multi-use exposed fastener metal wall and roof panel that was originally designed for use in pre-engineered metal buildings. However, since its inception, the use of R-Panel has expanded into many other areas, such as residential metal roofing.

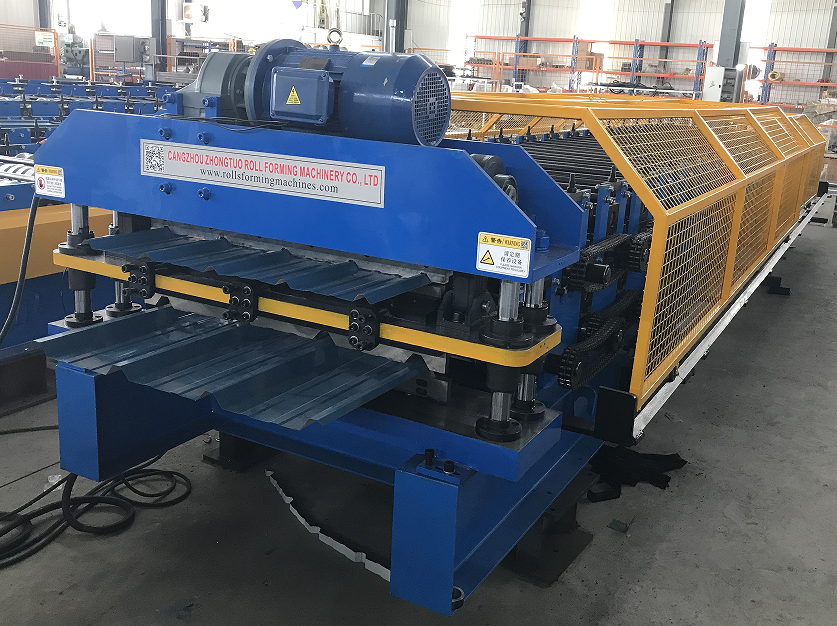

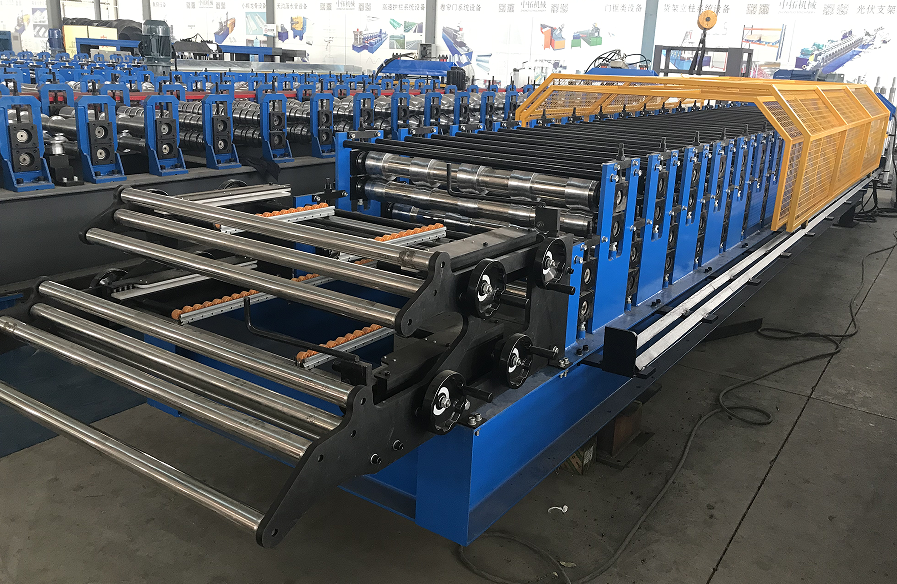

Motor shearing double layer roofing sheet machine design:
Motor shearing double layer roofing sheet machine features:

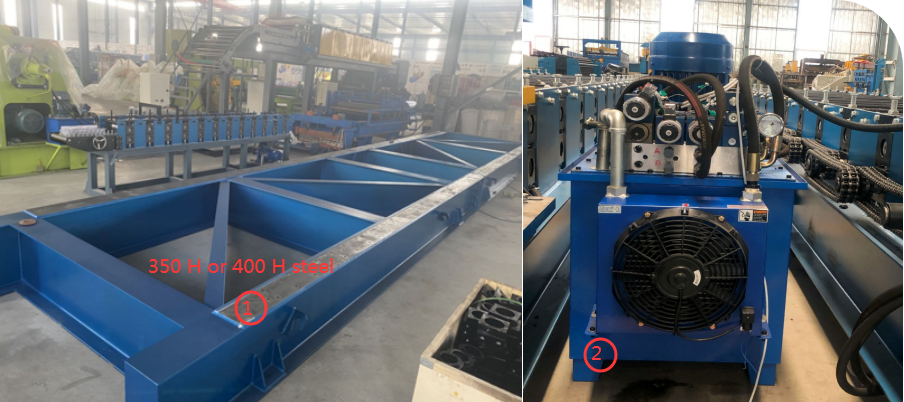

1. The machine frame use high quality 350 H or 400 H steel with lifting hook and lifting holes on it.
2. Driven by servo motor, the production speed can reach 35meter per minute.

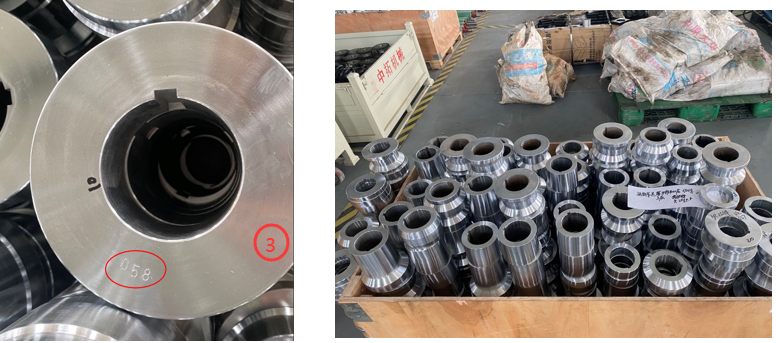

3. Each roller has number and with keynotes on it:

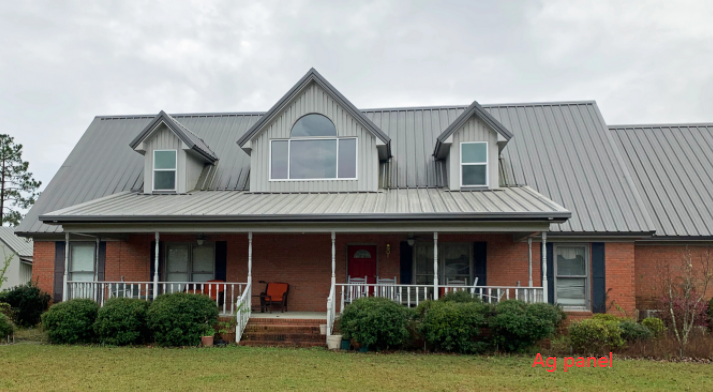

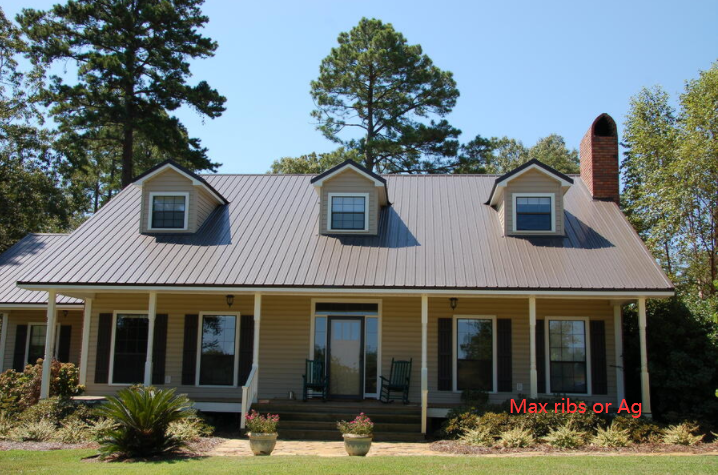

Take a look at the drawings above and imagine them side by side on a building. Aesthetically, the visual appearance of the panel profile is the difference between the two panel types, which is why the final decision often comes down to personal preference.
Here Motor shearing double layer roofing sheet machine working videos for your reference:
Customer gave the feedback about the machine working in U.S. A:

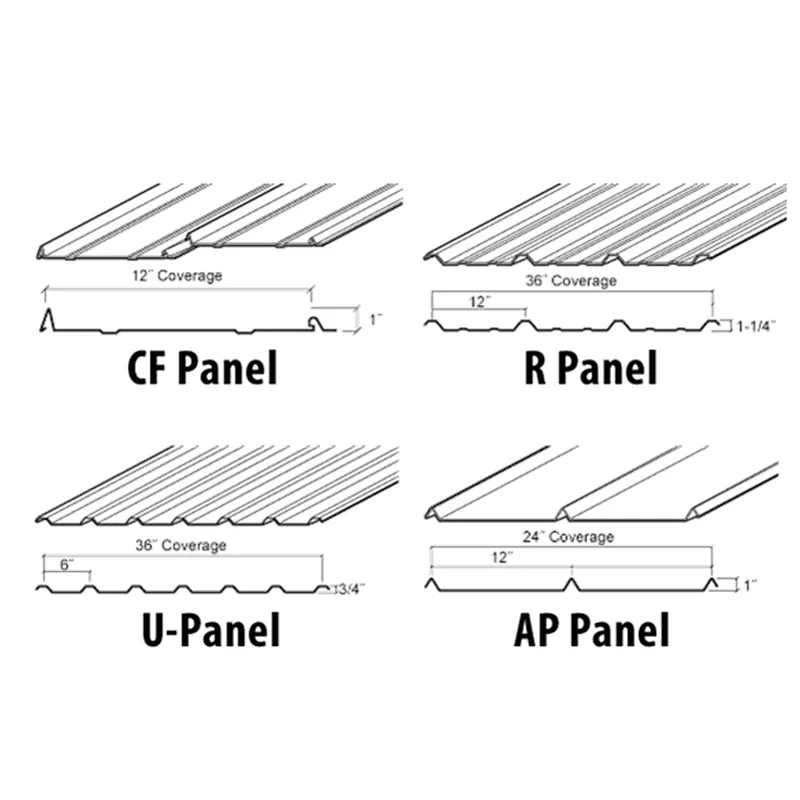

There are more types of popular drawing profiles for your reference:
