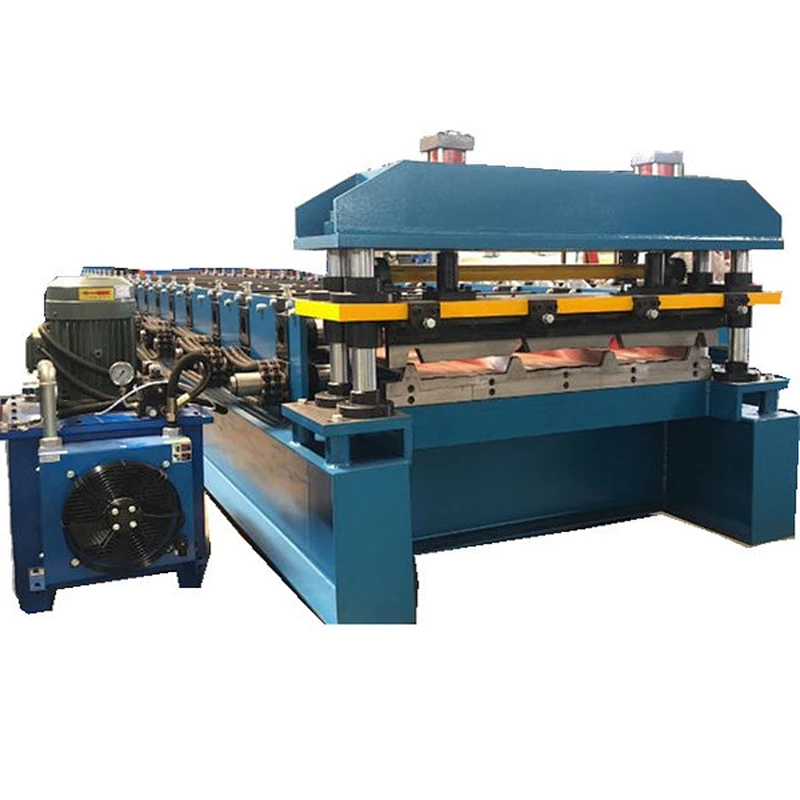

IBR SHEET ROLL FORMING MACHINE
IBR sheet roll forming machine is designed to make the IBR sheets in batch fully automatically. First let me introduce what is the IBR sheet and how it looks like:
Since it was first introduced to South Africa in 1958, IBR has enjoyed great popularity for use as side cladding or roofing material in commercial, industrial and residential buildings. IBR got its name from the abbreviation of “Inverted Box Rib”, which has become a household name in the South African building industry. Actually, IBR is a square fluted profile with an effective covering width of 686 mm or 890mm.
ZT have several kinds of design IBR Sheet Roll Forming Machine for IBR sheeting. and all are customized. Our IBR Sheet Machine is able to form G550 Mpa and thickness up to 0.8mm IBR sheets. And also Corrugated Sheets Roll Forming Machine for South African Customer.
Take the following popular drawing for example:

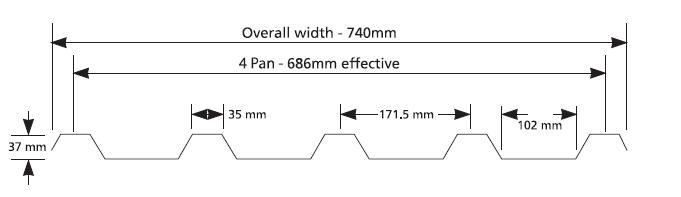

686 IBRPROFILE:
Profile drawing of 686 IBR sheeting

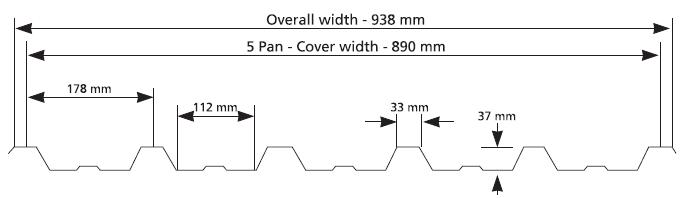

890 IBRPROFILE:
890 Type IBR Sheeting Design.

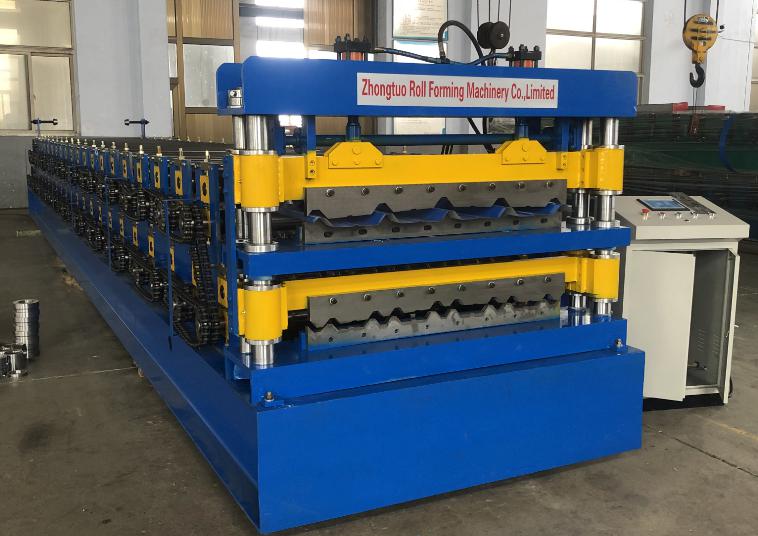

For those profiles, we have three options for your reference: first that you can make single IBR sheet by single machine, second you can choose two make double layer roofing sheet machine third you can choose to make triple layer machine. Here we will take the single layer machine for example:

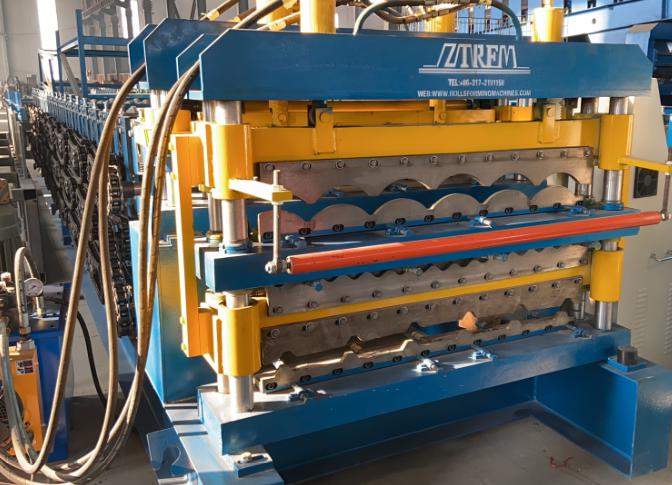

This is an example of three layers:

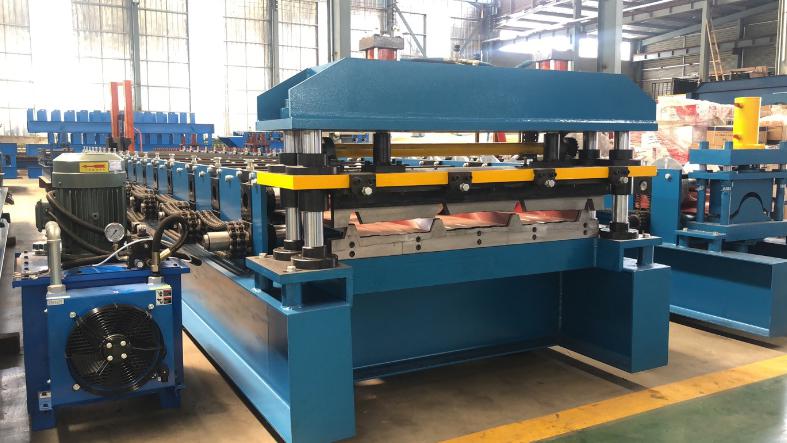

Similar to other roll forming machines,IBR sheet roll forming machine consists of decoiler, guiding device, roll former, hydraulic cutter controlled system and product output table. And Auto Stacker is an option.
Main Parameters of IBR sheet roll forming machine
The material it supports: GI coils, PPGI coils(as usual, our customers use full hard material, G550)
Coil Thickness: 0.3-0.8mm
Feeding Width: 925mm, 1219mm
Effective width: 686mm, 890mm
Forming Speed: 10-15m/min
Forming Stations: 24 stations
Diameter of Shafts: 76mm
Material of Shafts: high quality 45# steel
Material of Rollers: Cr40, chromed 0.05mm with hardness treatment.
Transmission: chain-sprocket transmission
Motor Power: 7.5KW
Cutting Type: hydraulic cutting, stop-cutting
Material of Cutting Blade: Cr12Mov, quenching and tempering HRC60-62
