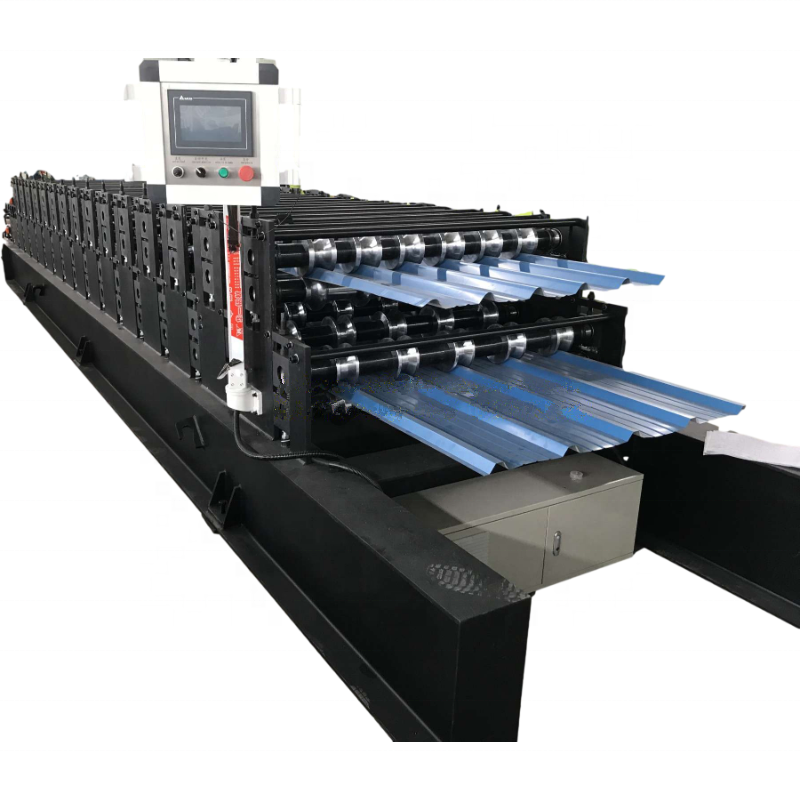

The Customize double metal corrugated corrugated board roofing tile roll forming machine for sale consists of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on. We have hundreds of profile models for this series roll forming machine,We can design different kinds of profile for machine, as aper customers requirement.
No. | Customize double metal corrugated corrugated board roofing tile roll forming machine for sale | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 1200mm/1220mm/1000mm or as you required |
3 | Thickness of material | 0.3-0.8mm or as your needs |
4 | Working speed | 0-15m/min |
5 | Electrical control system | PLC control system |
6 | Shaft diameter | 70mm |
7 | Dimension | 7500x1500x1910mm |
8 | Weight | About 7 T |
9 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
11 | Material of cutting | Cr12 mould steel with quenched treatment |
12 | Working time | Can be 24 hours |
13 | Workers | 1-2 only |
We can do the double layer and triple layer roll forming machine.
The advantage of our machine:
1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
