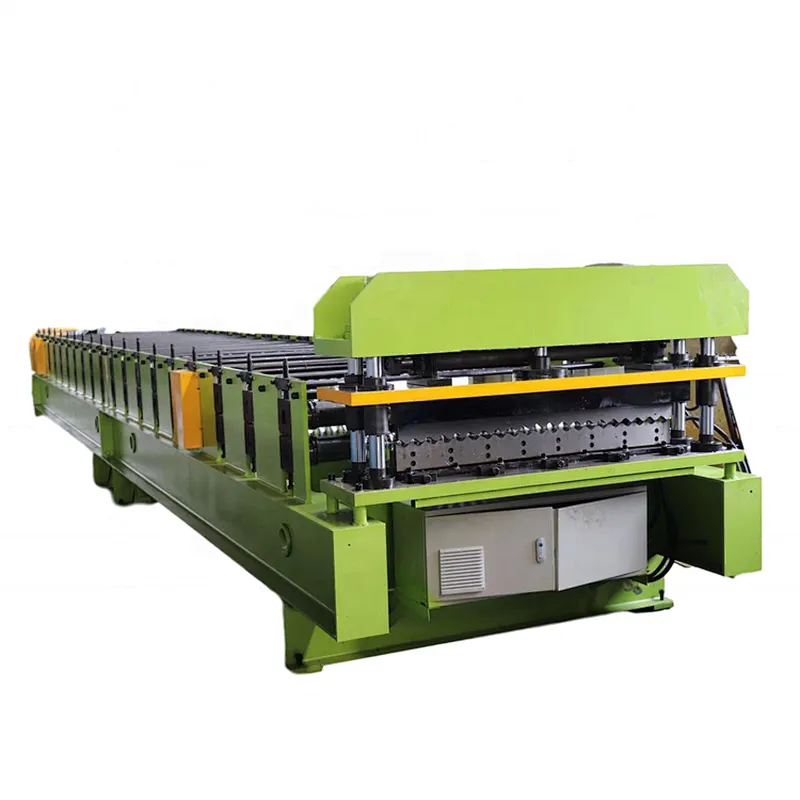

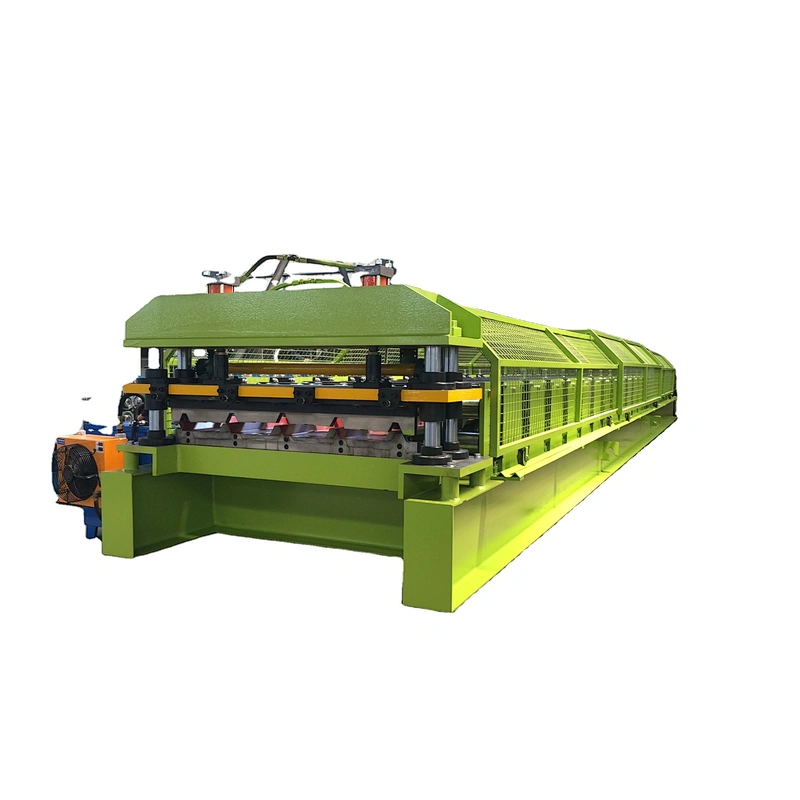

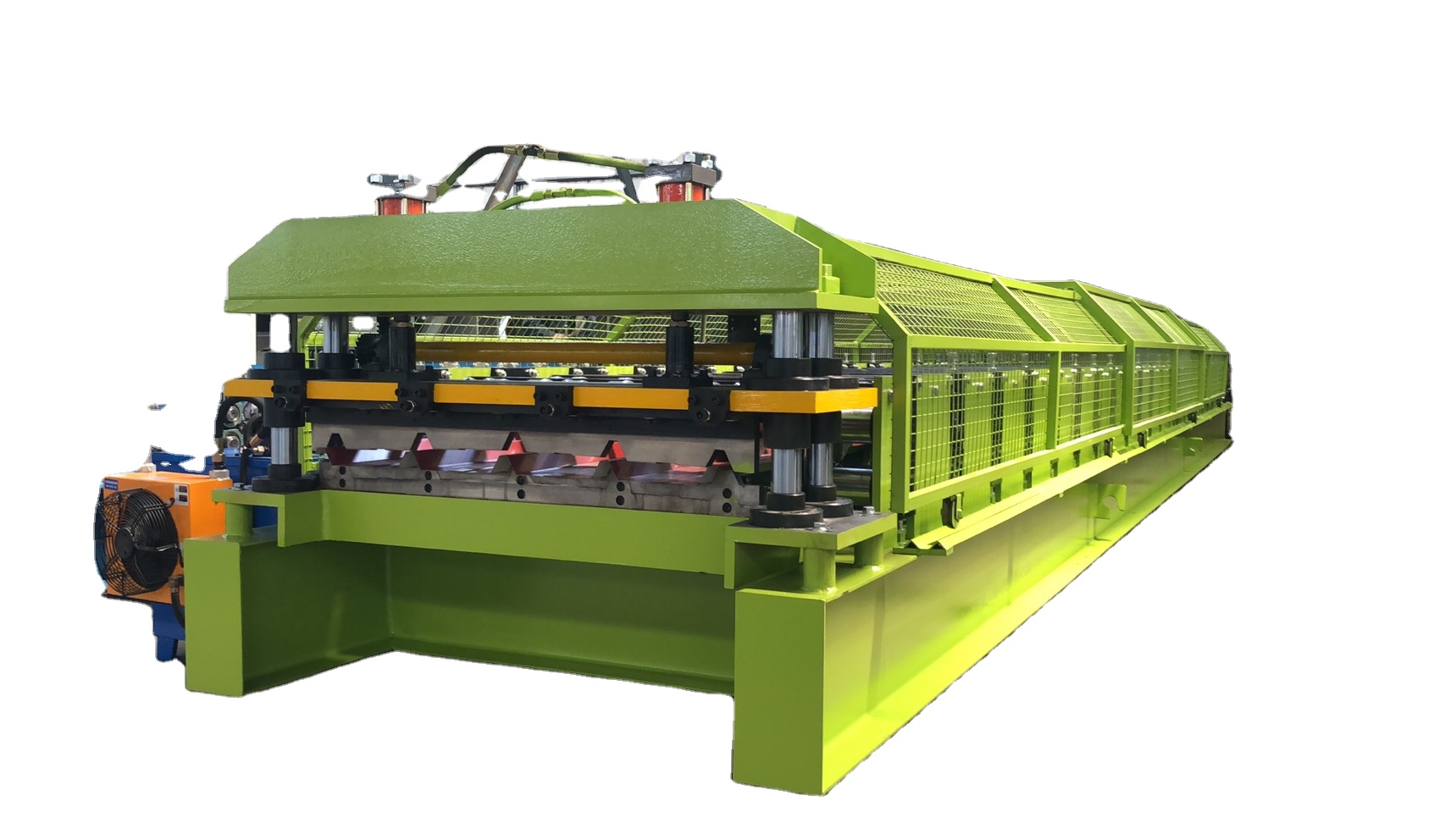

Corrugated Roofing Sheet Roll Forming Machine
What is the application of corrugated roofing sheet roll forming machine?

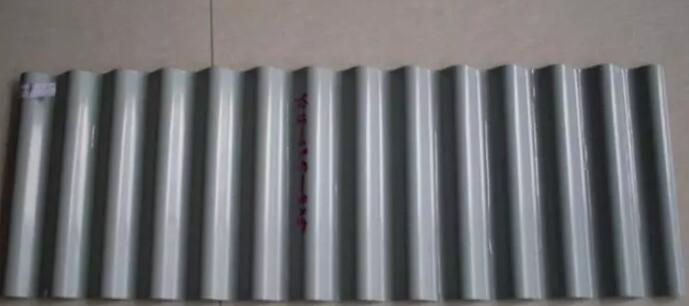

sheet metal forming machine is mainly producing steel roof/ wall sheet .The final products have teo types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
The advantage of corrugated roofing sheet roll forming machine
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.the surface of the final product is very smooth and beautiful without any scratch on the surface.

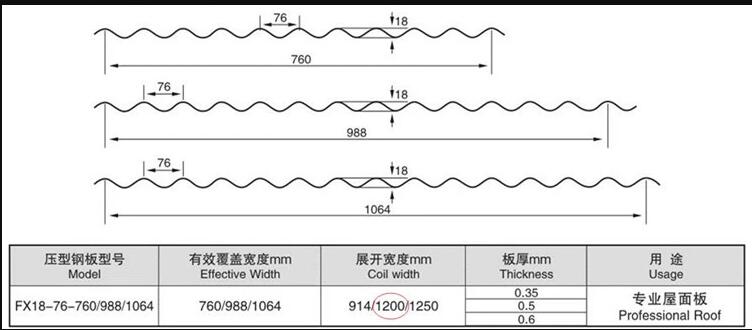

3.customized:design the machine according to your specification and profile drawing.(for your reference)
The specification of sheet metal forming machine
Item | Specification |
Name | sheet metal forming machine |
material | color steel,GI,PPGI |
Processing thickness | 0.3-0.8mm |
Diameter of shaft | Φ80mm |
Electric tension | as the customer's requirements |
Roller | 45# steel chrome plating chromium |
Processing precision | within 1mm |
Transmission | by chain link(1inch) |
Hydraulic cutting | controlled by PLC |
PLC | DELTA(TAIWAN) |
Material of blades | Cr12 quenched |
Switch | CHNT |
Roller station | to the finnal design |

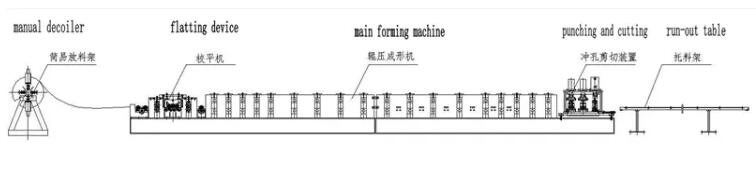

process flow diagram of sheet metal forming machine

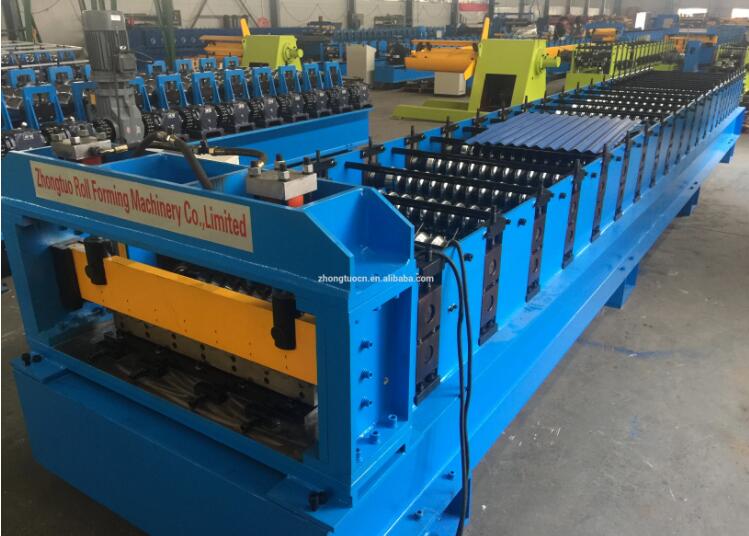

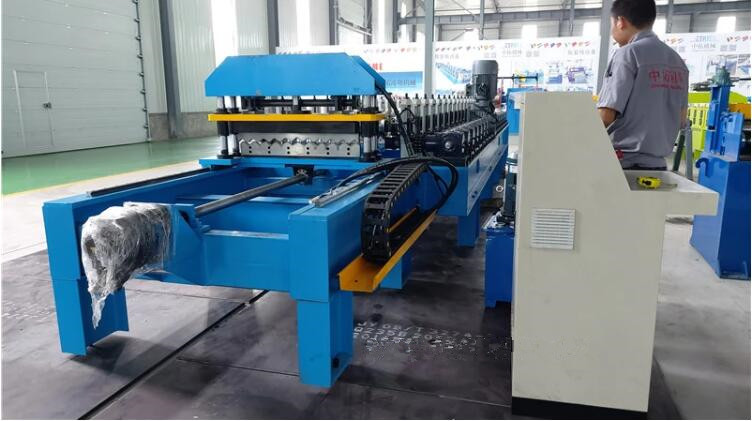

details of sheet metal forming machine
