Aluminium corrugated sheet tile making machinery

Aluminium corrugated sheet tile making machinery can produce corrugated tile or panel which also called wave panel sheets,it is widely used in constructions and buildings,it can be uesd to build roof and wall.This kind of material can be used in many places such as gyms, warehouses , factories, etc.

    Typically, the raw material for the corrugated roof sheet roll forming machine is PPGI, GI steel coils of thickness from 0.3-0.8mm and width 1000mm. The finished product has 7 waves of 35mm wave height and 130 wave distance. The final products from this BIG WAVE corrugated roofing roll forming machine doesn’t work just as the roofing, but also as the walls for commercial or residential metal building or houses.

    Unlike the traditional corrugated sheet roll forming machine, this BIG WAVE corrugated sheet roll forming machine has bigger shafts and more roll forming stations. As a result, this machine weighs heavier and extends longer. Besides, it has bigger power motor.

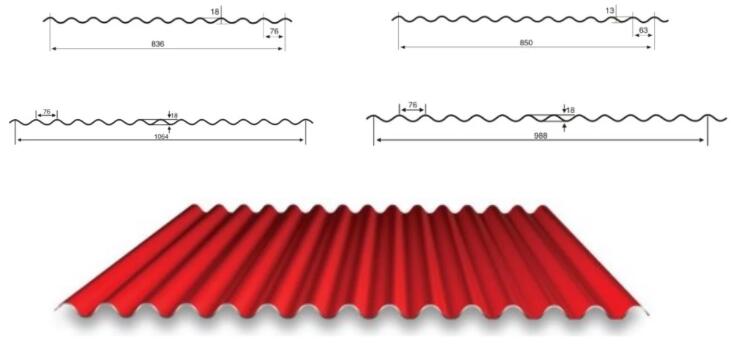

Here are some profile drawings for your reference:

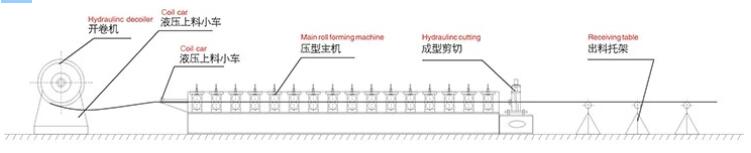

    Generally, the whole machine consists of manual decoiler, feeding guide, roll former, cutting unit, hydraulic oil pump, control cabinet and run-out table. Very simple as it is, all the client needs to do is to set required length and quantities on the touch screen, and the corrugated roof sheet roll forming machine will start automatic production accordingly.

    Work flow:Uncoiling→ Feeding material into machine →Roll forming → Auto shearing →Products receiving table

Main parameters of Aluminium corrugated sheet tile making machinery :

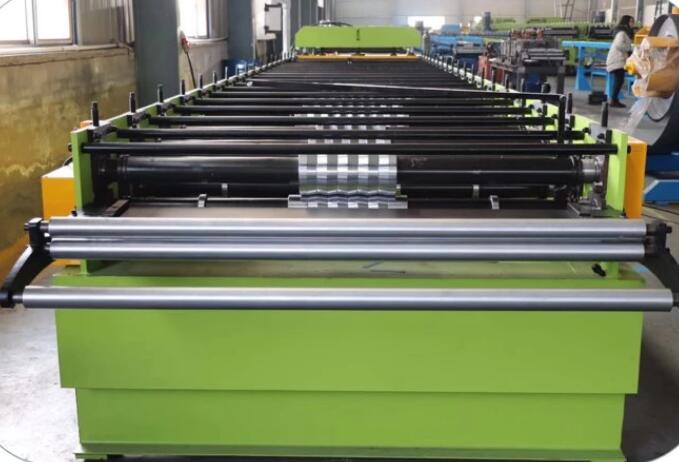

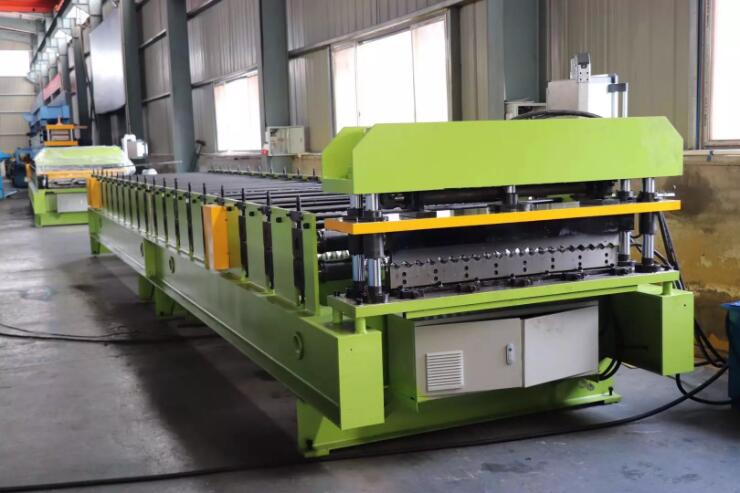

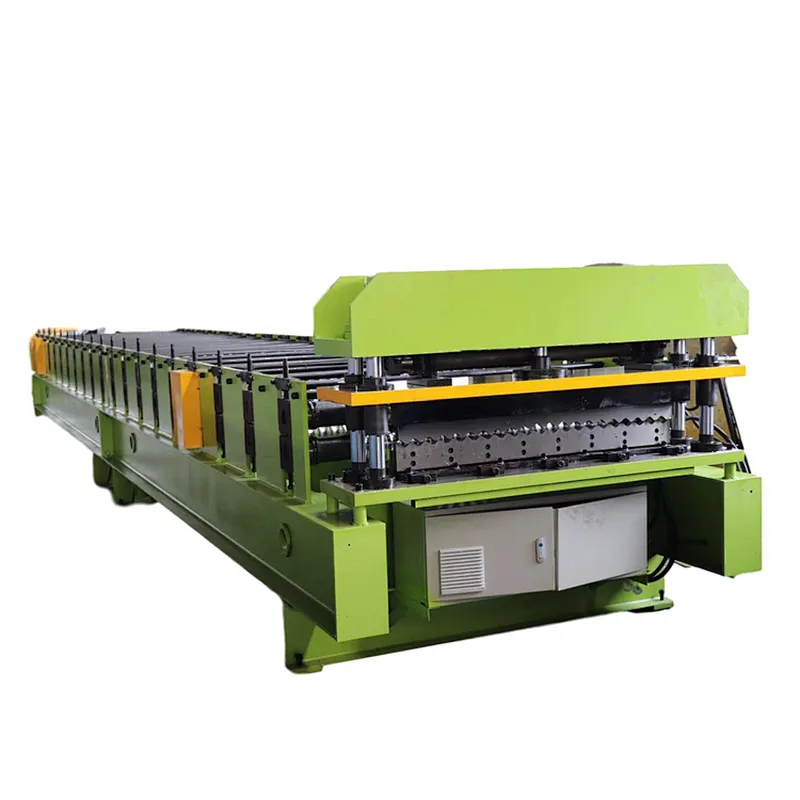

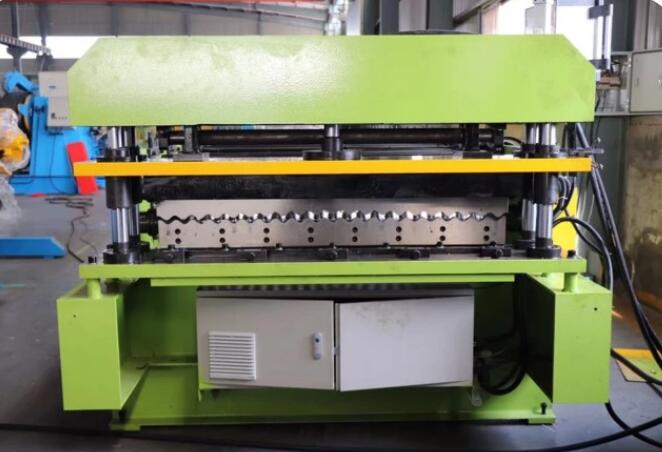

Main pictures of Aluminium corrugated sheet tile making machinery :

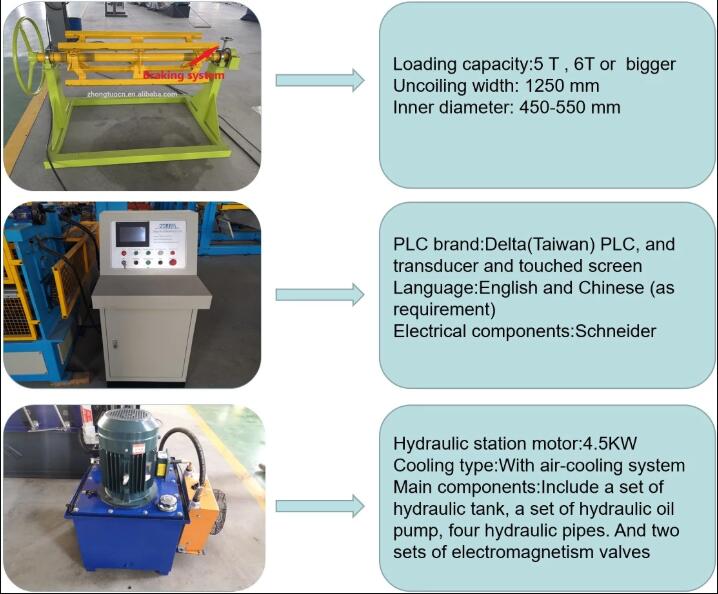

Main components of Aluminium corrugated sheet tile making machinery :

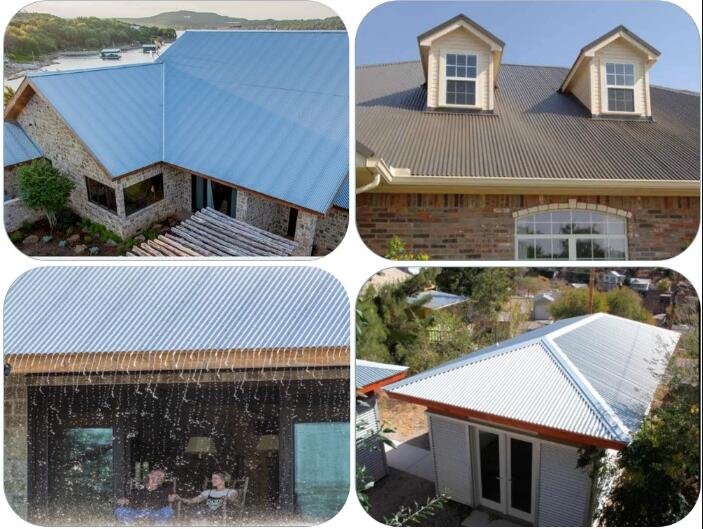

Corrugated tile/panel can be used in many scenes, here are some buildings that built with it ,which is really beautiful
