1100 tile water ripper glazed tile roll forming machine

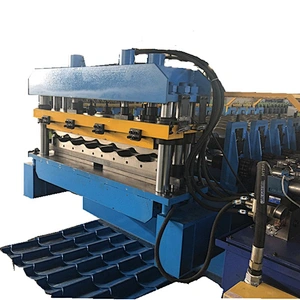

1100 tile water ripper glazed tile roll forming machine is used to make the step tile in batch fully automatically. And this step tile is quite popular in European. Compared with the tradtional glazed tile making machine, this one the speed is faster and it is more stonger than the normal roofing sheet machine.

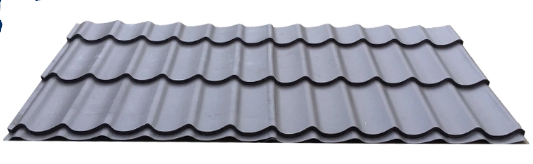

Take the 1100 tile water ripper glazed tile drawing profile for your reference:

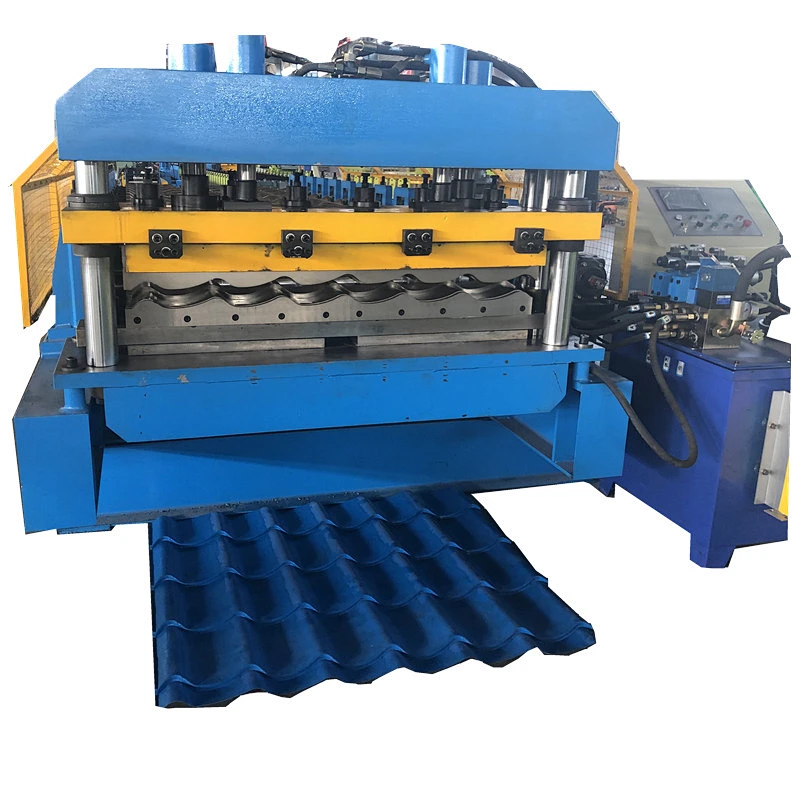

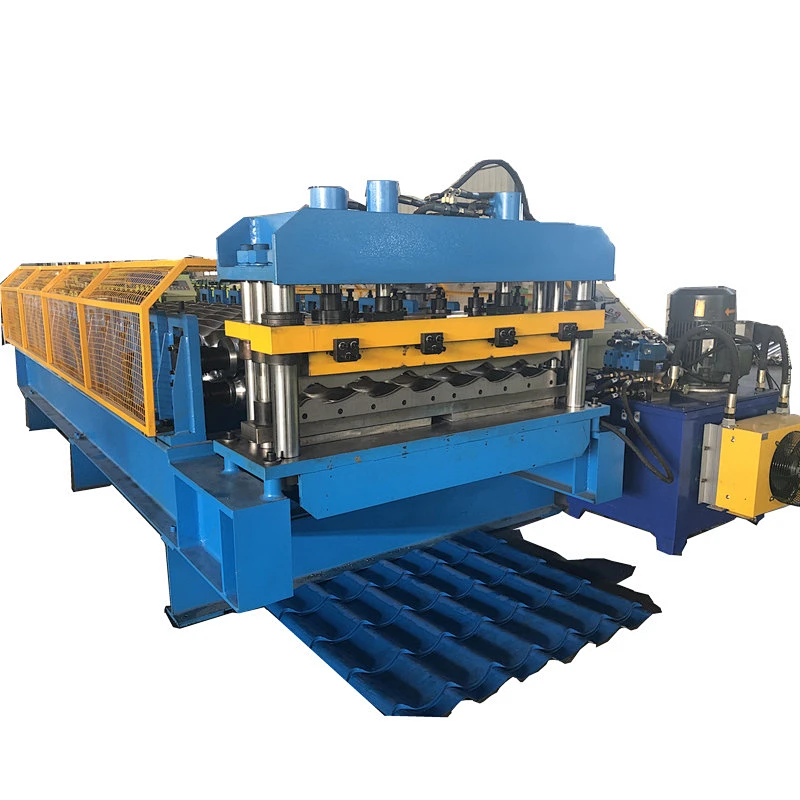

Based on the 1100 tile water ripper glazed tile, we design the machine like following:
1100 tile water ripper glazed tile roll forming machine parameters for your reference:
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- receiving table
Part details | Item Name | Specification |
Manual uncoiler | carrying capacity | 6 tons |
Stype | Manual | |
Raw coil | Coil material | steel |
Coil thickness | 0.3-0.8 mm | |
Machine body | Roller station | 17 station |
Roller material | Gcr15 quencing at 58 degree | |
Shaft material | Gcr15 quencing at 58 degree | |
Shaft diameter | 90 mm | |
Machine weight | About 6.5 tons | |
Machine size | 7.5*1.5*1.5 m | |
Speed | 5-8 m/min | |
Cutter | Operate | Hydraulic cutting |
Blade material | Cr12 | |
Power | Operate | Chain transmission |
Chain size | 1 inch chain | |
Control system | PLC brand | Taiwan delta |
Motor power | 7.5 kw | |
Hydraulic pump power | 4 kw | |
Voltage | 380V 50Hz 3phase | |
Machine color | As ur need | |
Machine language | Chinese and English |
Why this glazed tile roll forming machine can reach high speed?
- We use the molding frame of 45mm, to make sure when machine working high speed, it can also working long time.
- The transmission it uses gearbox to make sure the power given evenly and smoothly.
- The hydraulic power is big enough to make do the fast stepping and shearing.
- As to the machine it has electricity accumulator to make sure the non-stop working.
- The shearing and stepping, we use the whole molding design, by this way, the stepp and shearing can do at the same time to reduce the working time.

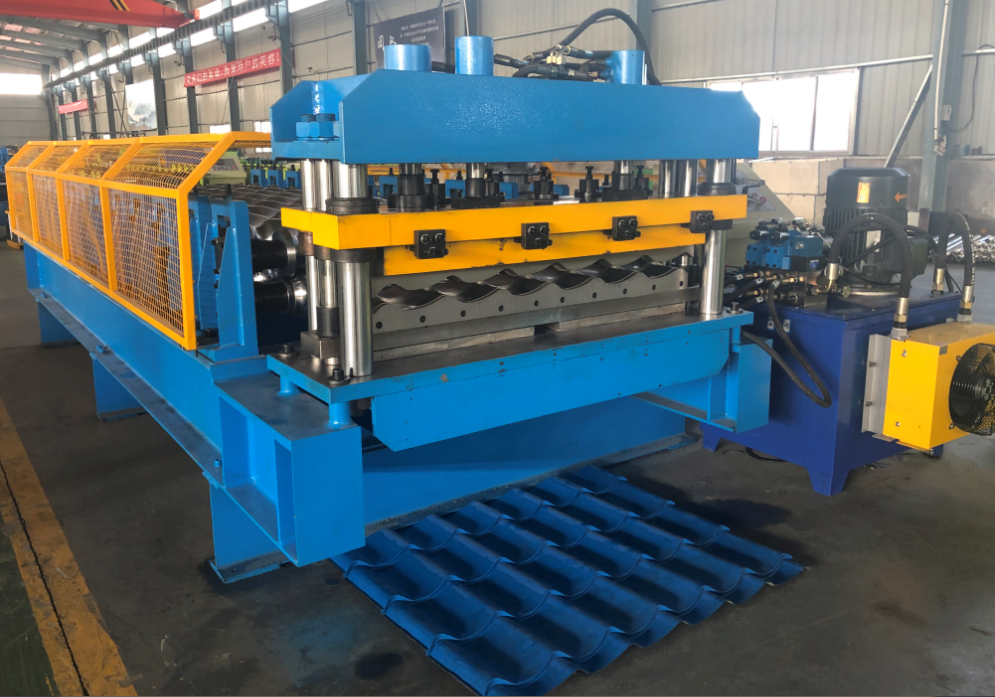

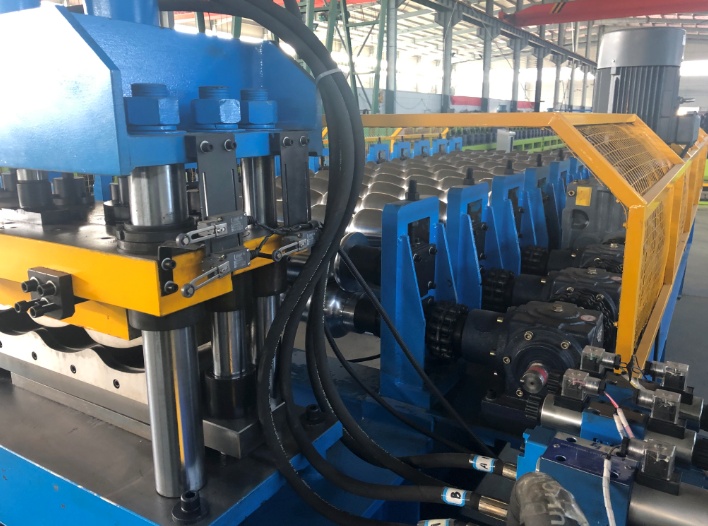

Here are more pictures for your reference:

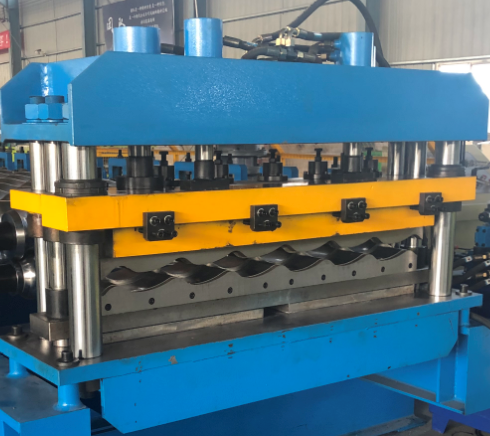

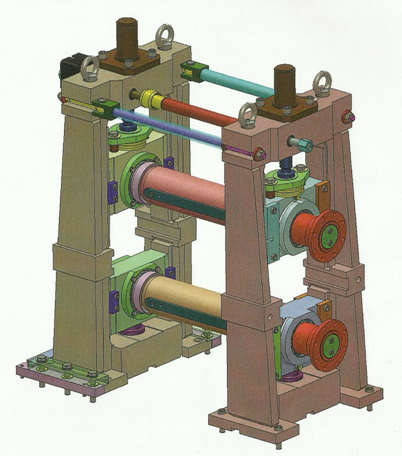

| HIGH DUTY STRUCTURE The sturcture we use for this machine has the higher duty mechanical behavior, Molding frame of thickness 45mm Europe strandard; |
ROLLERS The rollers processing by twice CNC machining and hard chromed, HRC 58-62; Shaft diameter is 76mm for standard; |
|

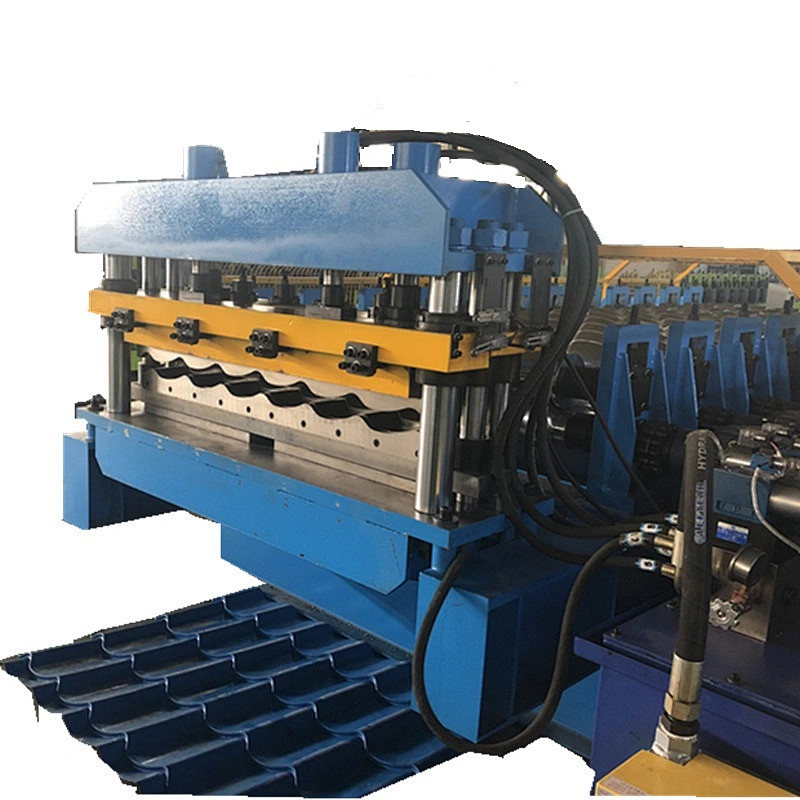

| CUTTING SYSTEM Cutting blade material CR12 MOV; Whole molding stepping and shearing system 4 pillar pole supporting system Big hydraulic jack and big valves |

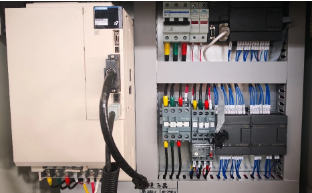

FAMOUS BRAND PLC 1. PLC controller -- Siemens 2. Transducer -- Yaskawa 3. Encoder -- KOYO 4. Other electronic component- Schneider |
|
| HYDRAULIC DECOILER AND COIL CART (optional) 5 tons hydraulic decoiler with coil cart; Automatic loading & unloading ; Expanding tight by hydraulic station; |
AUTO STACKER (optional) 4/6/8/10/12 meters long for choice; Single layer and double layer; Max stacking weight is about 4 tons; |
|
For this glazed step tile steel making roll forming machine， if you want to know more information, please contact me at any time.
