Hydraulic Decoiler for The Metal Slitting Line

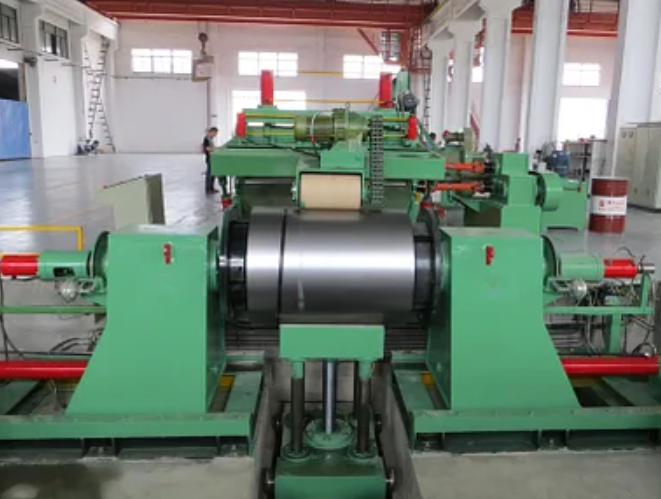

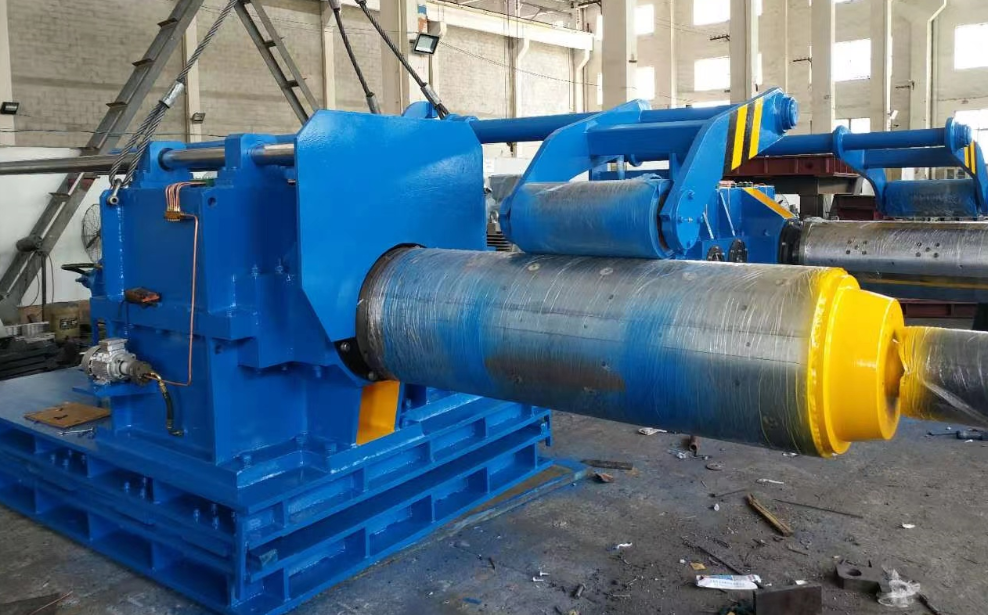

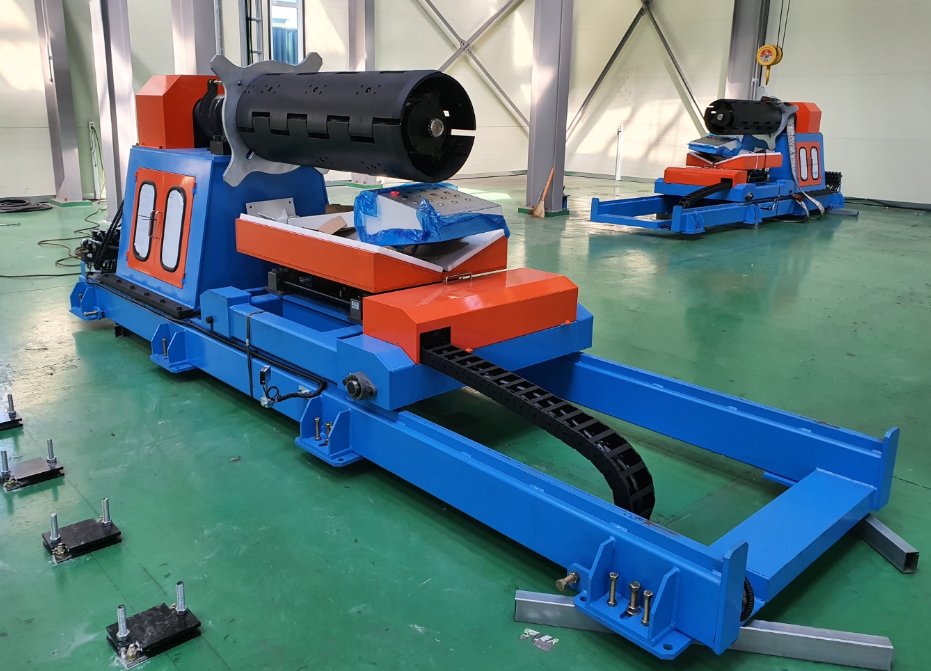

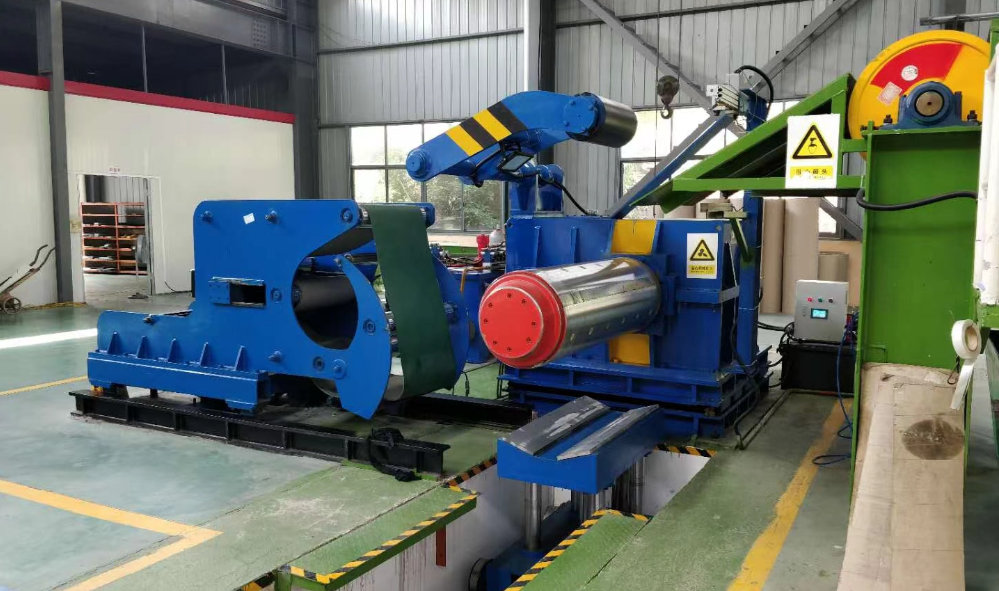

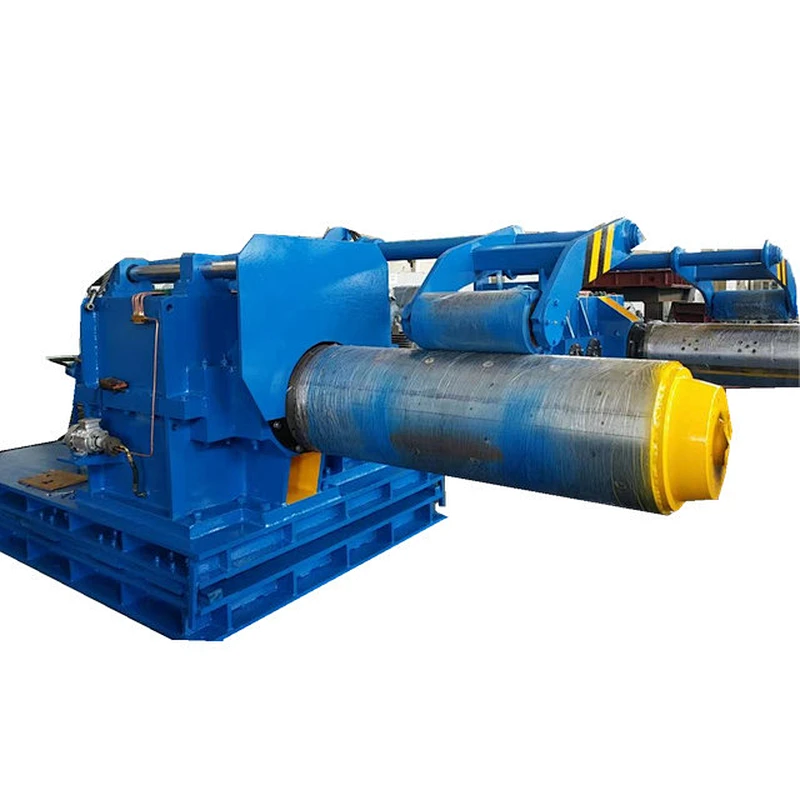

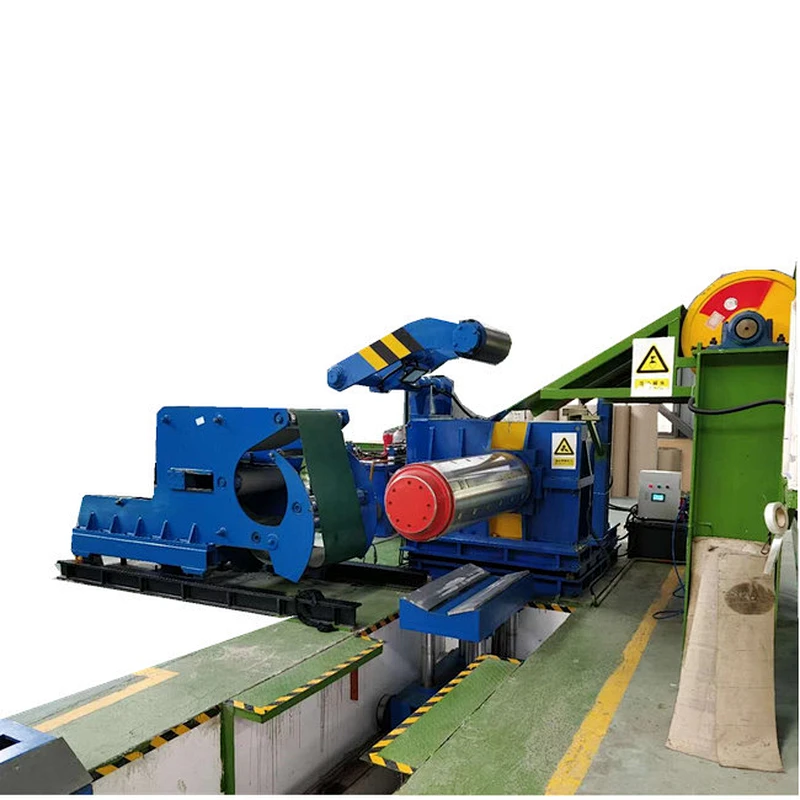

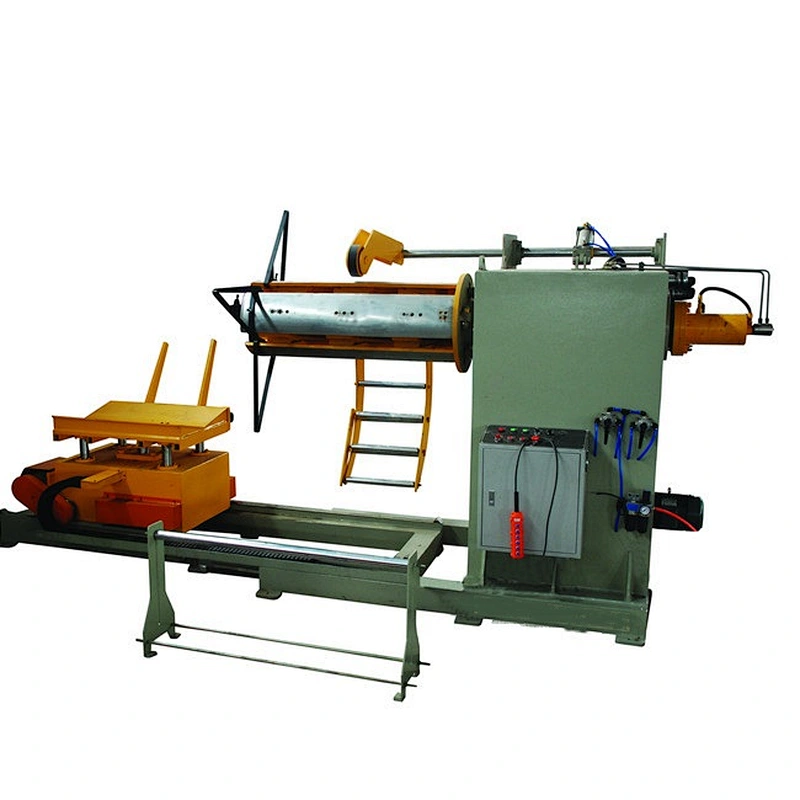

Hydraulic decoiler for the metal slitting line is designed to match lots of heavy duty metal processing tools. For the hydraulic decoiler we design with 5 ton, 7 ton, 8 ton, 10 ton, 25 ton and even to 30 ton double head decoiler. We can design hydraulic decoiler according to your requirements. Here are some hydraulic decoiler pictures for your reference:
Take the 10 Ton hydraulic decoiler with pressing arm for example to show you some parameters:
Supporting the coils and doing uncoiling. The capacity is 10Tons(max).
It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.
100N.m moment motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
The core can ensure the expand range φ508 of the coils inner diameter. It will provide the rubber band to ensure the 610mm diameter.
Structure: welding by the steel plates and profiled bar.
Power:
With the web alignments function for feeding coil and arrange the center to center easily.
Machine weight:4.5 ton
Power: 11kw
With the PLC control system, with the pressing arm.
For the heavy decoiler, there are following elements you can choose to add or not.

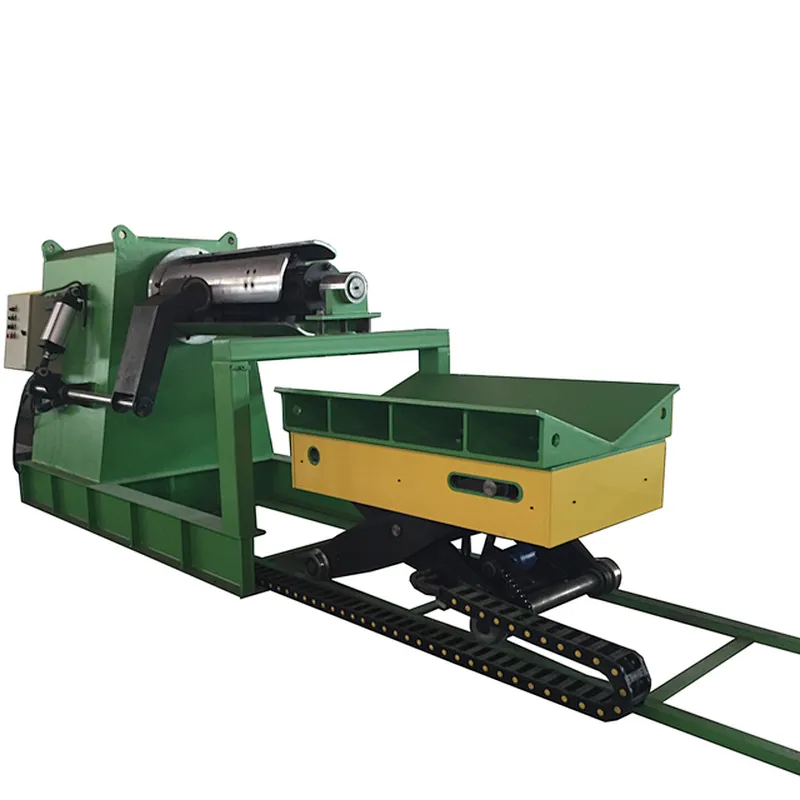

- You can choose to add the loading car or not.
- For the loading car you can choose to add the turning over function or not.
- For the pressing arm you can choose to add or not.
- For the supporting arm, you can choose to add or not.
- For the web alignments you can choose to add or not.
Where to use:
Heavy duty decoiler, normally it is used together with the heavy duty machine, like CZ purline machine, cut to length machine, metal slitting line and others.
We have more decoiler options for your reference:
For example, hydraulic decoiler for the metal roofing sheet machine.
Double head hydraulic decoiler:

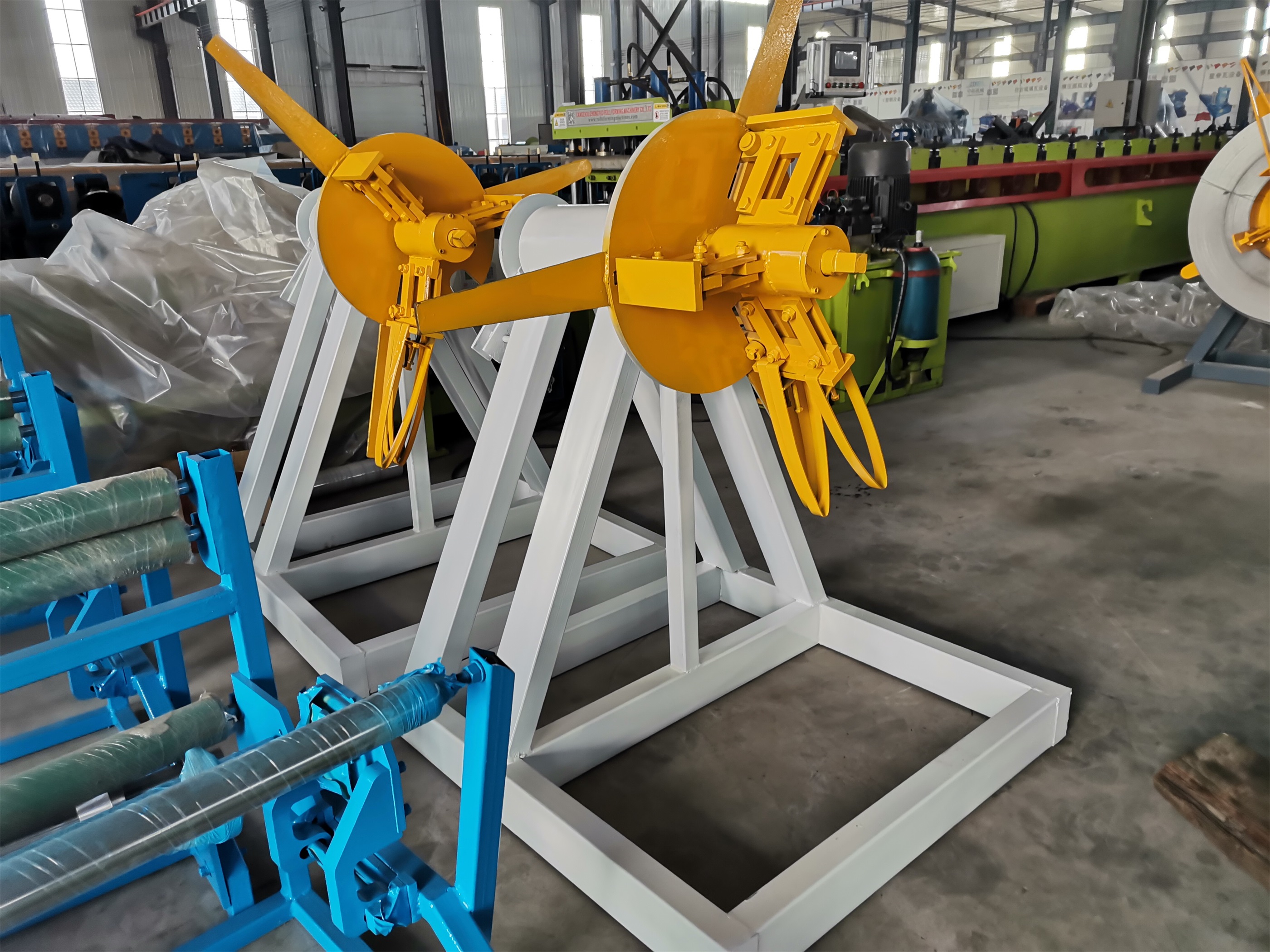

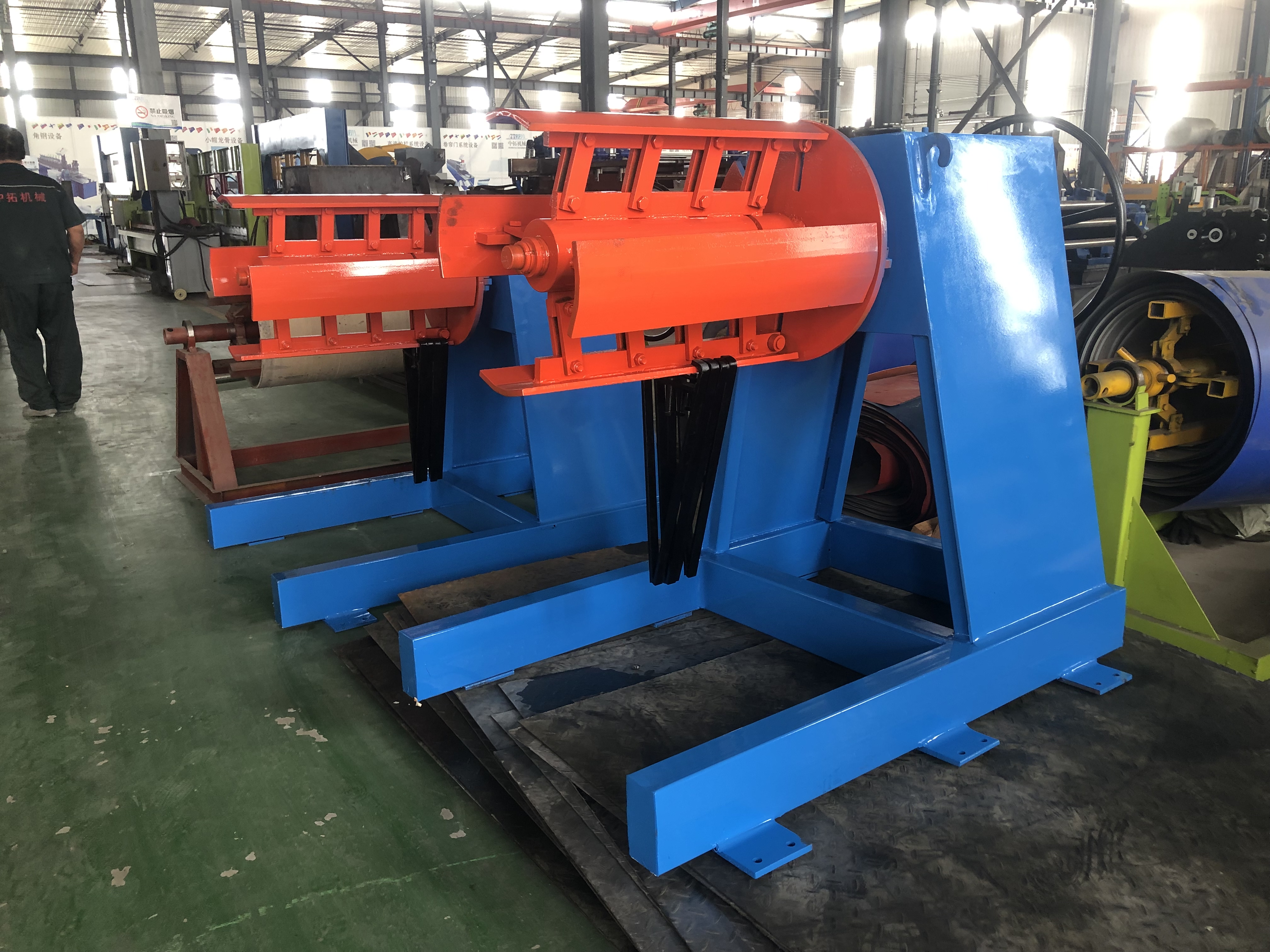

And also we have more type decoilers for light keel machine, stud and track machine and others.
If you need more, please contact us at any time.
