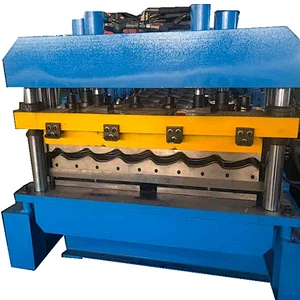

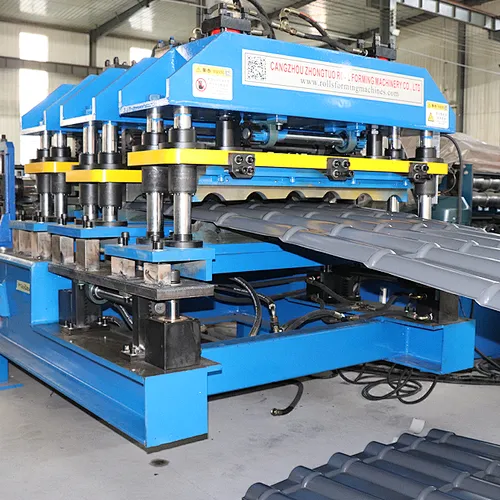

GLAZED TILE ROLL FORMING MACHINE

Glazed tile rolling forming machine is designed to make the step tile or glazed tiles in batch fully automatically. All the step tiles are made according to drawing profiles.

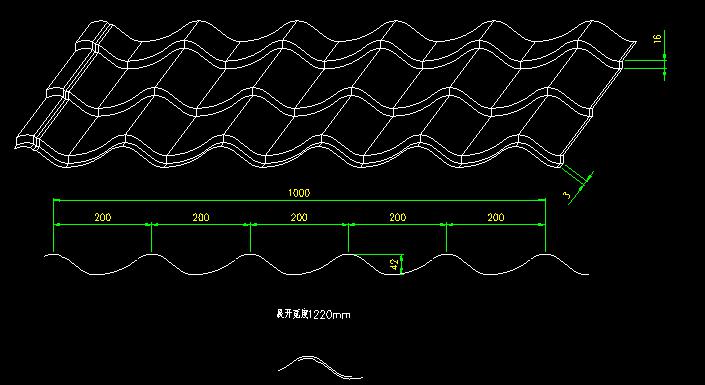

Take the following glazed tile for example:

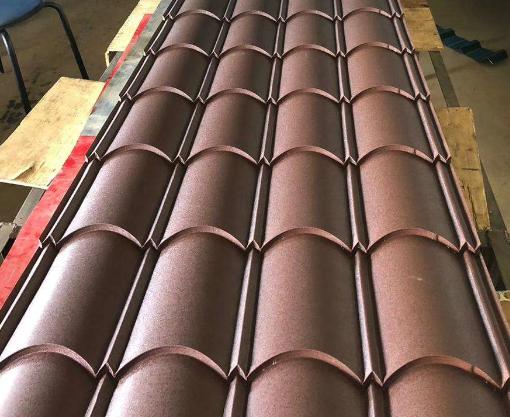

Here is some glazed tiles for your reference:

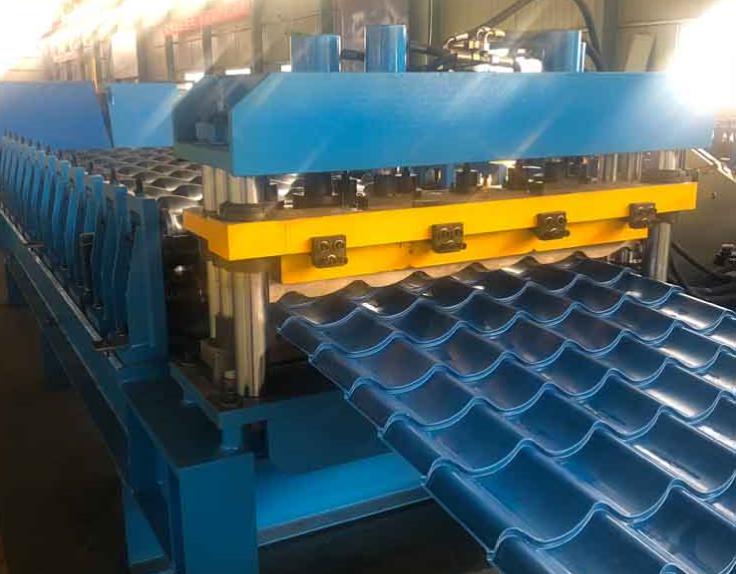

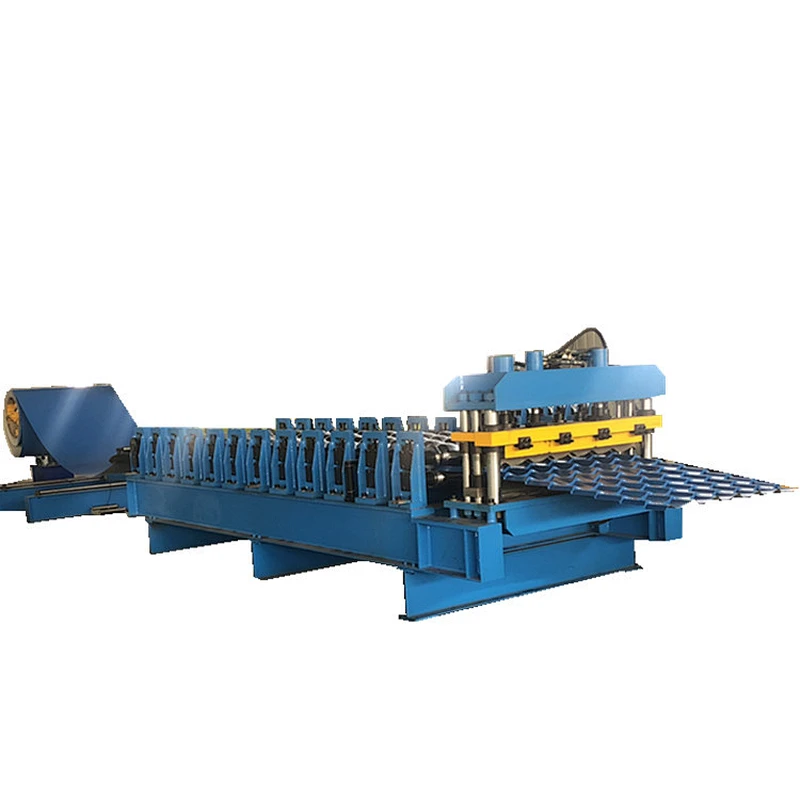

GLAZED TILE ROLL FORMING MACHINE

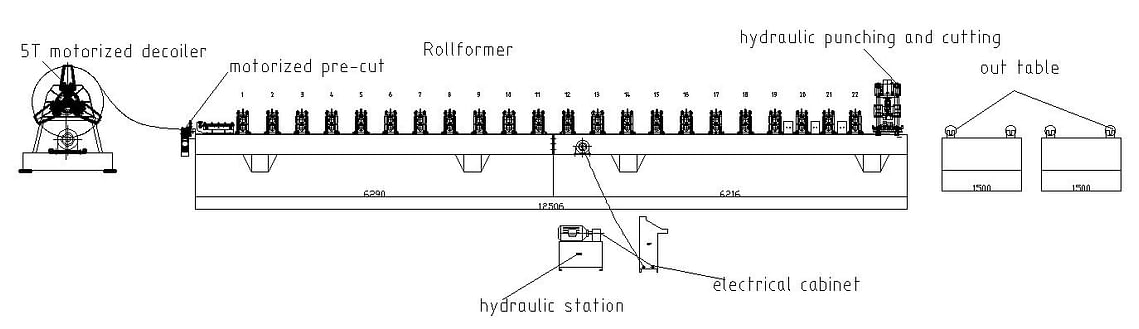

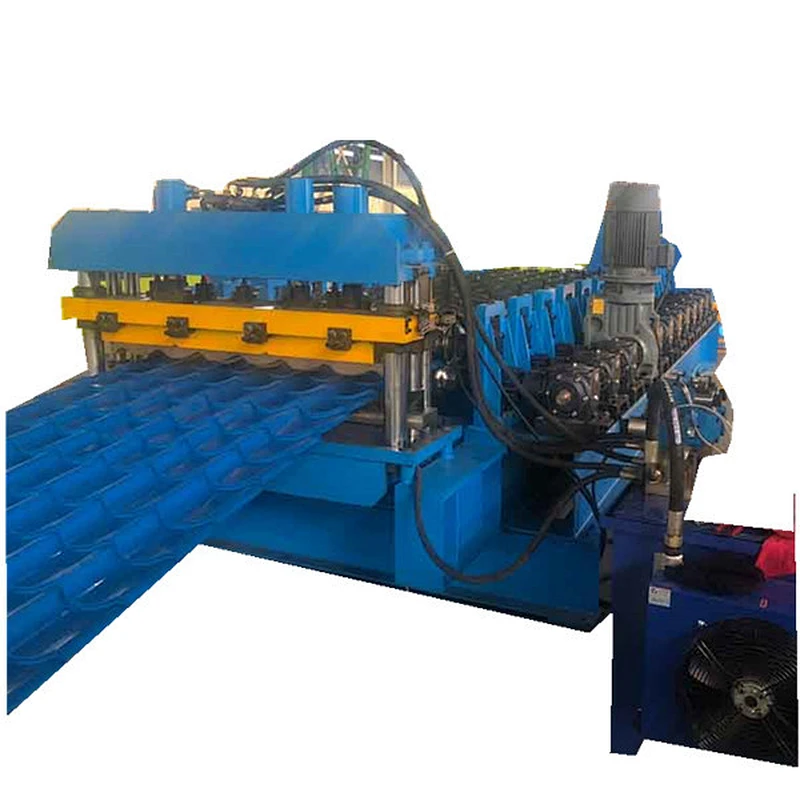

ZhongtuoGlazed tile rolling forming machine is composed by hydraulic Uncoiler, Guider and Feeder with pre-cutter, roll forming mill, one-body hydraulic punching and cutting device, collection Table, hydraulic station and controlled panel.

The production process of the metal glazed tile roll forming machine is: Uncoiling– Feeding&Guiding– Roll Forming– Punching– Cutting–Collecting

1. Machine Structure: H steel welded, Chromed stands as the support arm.
2. Profile steel thickness 0.3-0.6 mm carbon steel and stainless steel
3. Main motor power:  7.5 KW, AC motor,
4. Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase,
5. Roll station: 16stations
6. Roller material: ASTM1045, hardness and chrome plated surface
7. Shaft diameter: diameter 76 mm material: ASTM1045
8. Metal Tile Machine Speed: 6-8m/min
9. Transmission: by chain or gearbox.

How to just the glazed tile rolling forming machine quality?

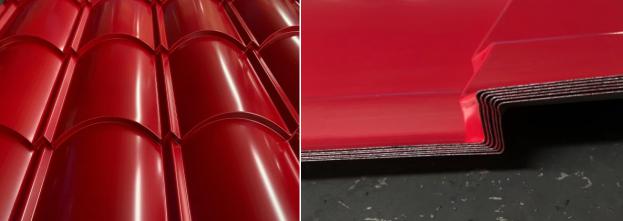

1. Checking from the profiles made by machine like the following pictures:



  On the surface there is no scratch that mean the rollers processing is very good. Second to the edge of the sheet, it is same, it says that the    machine working accurately.

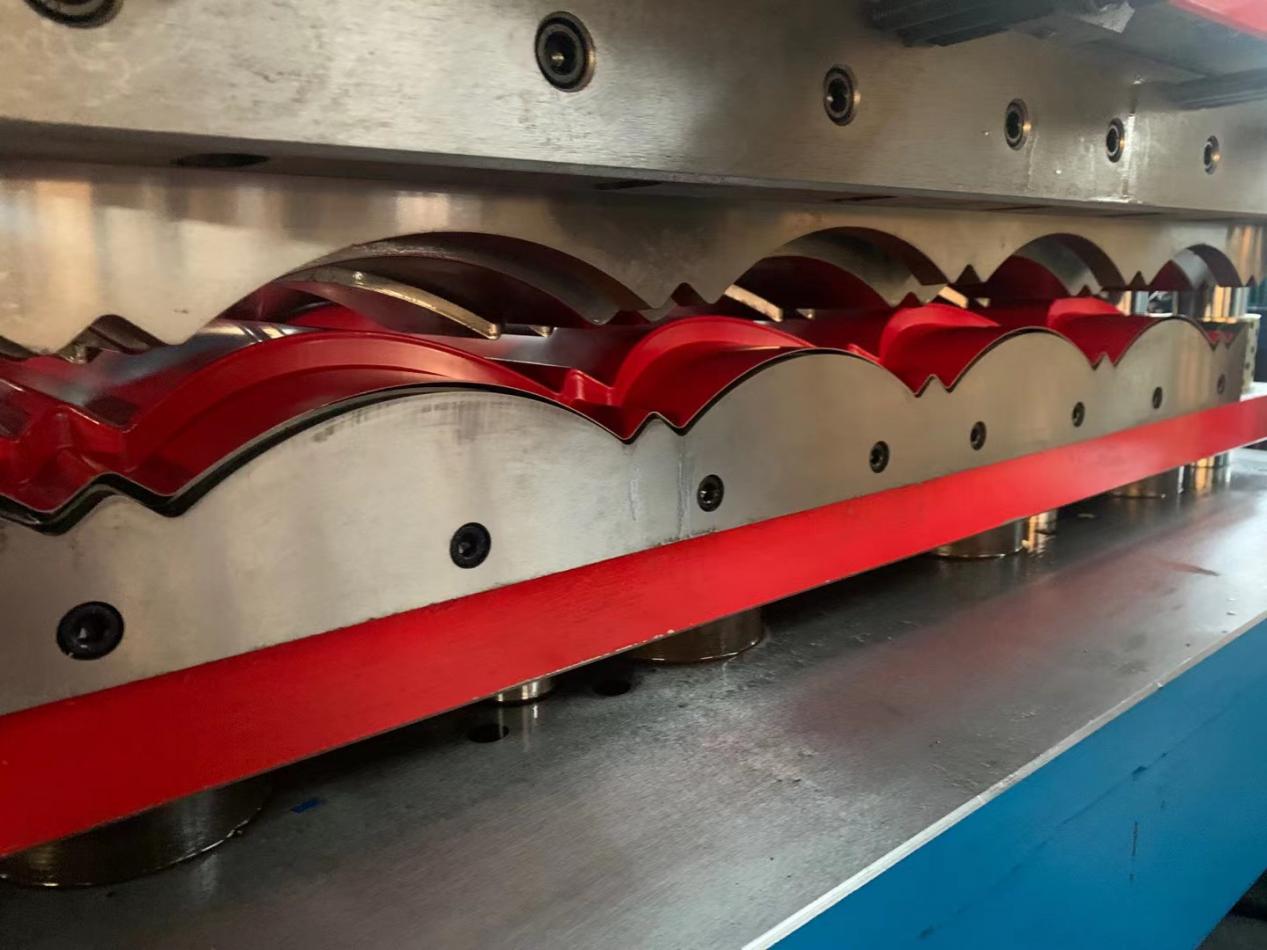

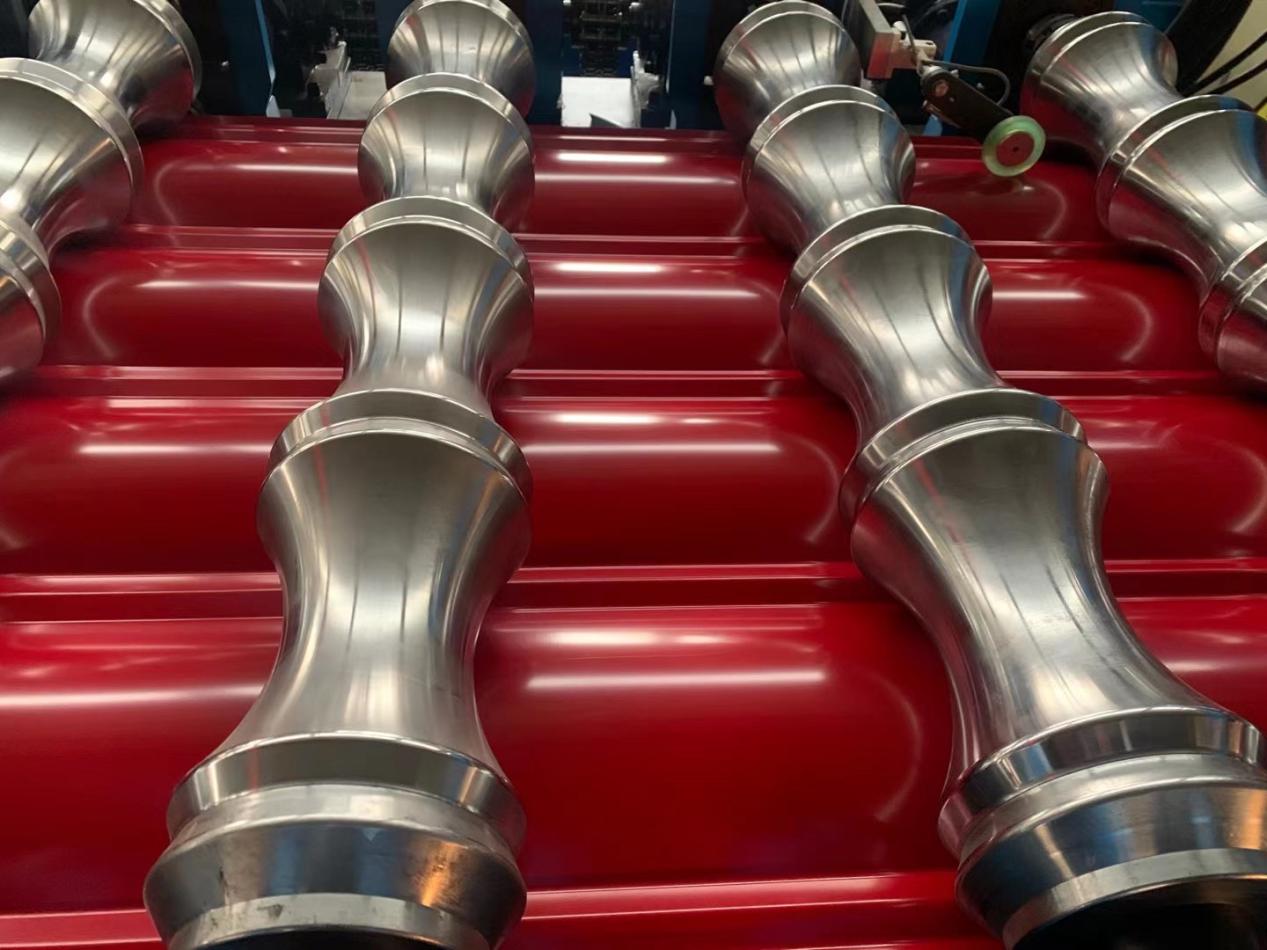

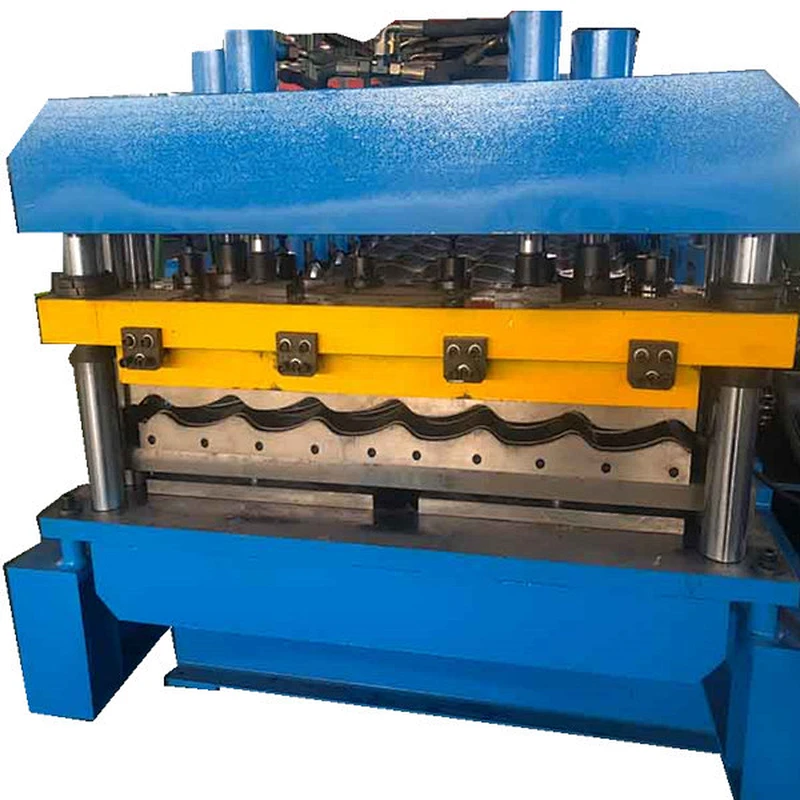

2. Checking the machine rollers quality and the shearing and stamping part, for the glazed tile machine, those details are quite important.

And now for the machine we have two types speed, slow one and high speed, if you want to know more information about those two types, please contact us.
