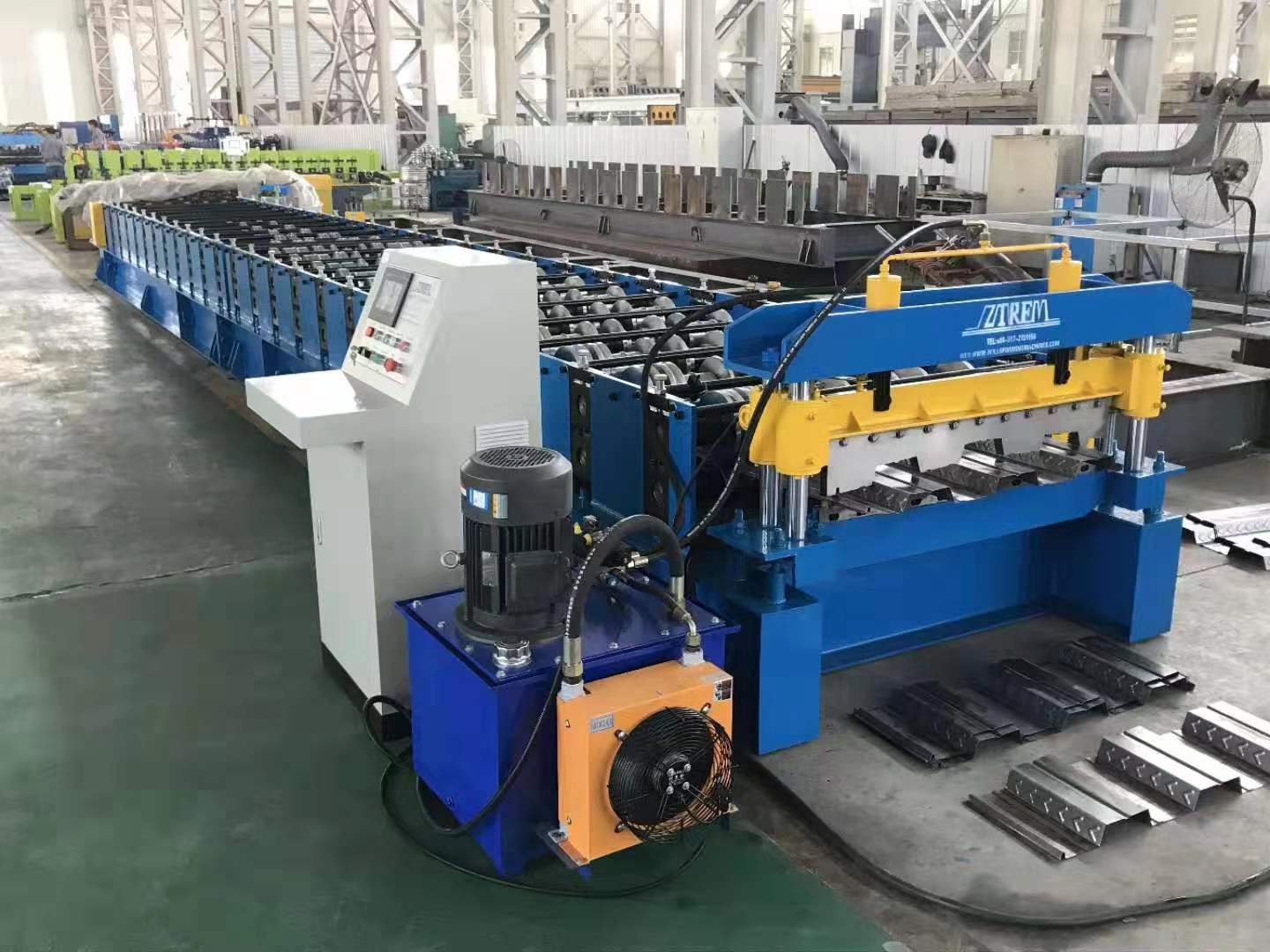

Floor Decking Forming Machine
Zhongtuo floor decking forming machine is designed to produced floor decking, which are widely used to produce mainly metal floor deck, and the most popular metal floor deck forming machines in the markets can be found here. Here we take a random popular design in United Arab Emirates for your reference:

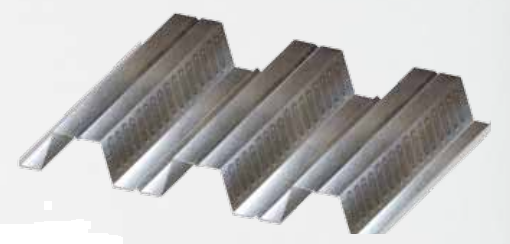

TSD 75/305 metal decking profile
Zhongtuo floor deck roll forming machine can produce most steel floor deck in the market. The production line is with fully automatic control system with PLC. The parameters of length, quantity is adjustable according to your requirement.
Here are some parameters for your reference:
|
Decoiler |
Drive model |
Passive drive |
|
Loading capacity |
7 tons |
|
|
Max loading width |
1220mm |
|
|
Coil inner diameter |
450-550mm |
|
Decking roll forming machine |
Two Motors drive |
15 KW * 2 |
|
Raw material thickness |
0.7-1.5mm |
|
|
Feeding width |
1220mm |
|
|
Effective width |
880m |
|
|
Raw material |
Galvanized steel |
|
|
Rollers quantity |
32 |
|
|
Roller material |
Gcr15 with tempering |
|
|
Shaft material |
Solid 45# steel with tempering |
|
|
Shaft diameter |
90mm |
|
|
Machine frame |
350# H steel welded |
|
|
Transmission |
By chain |
|
|
Voltage |
As request |
|
|

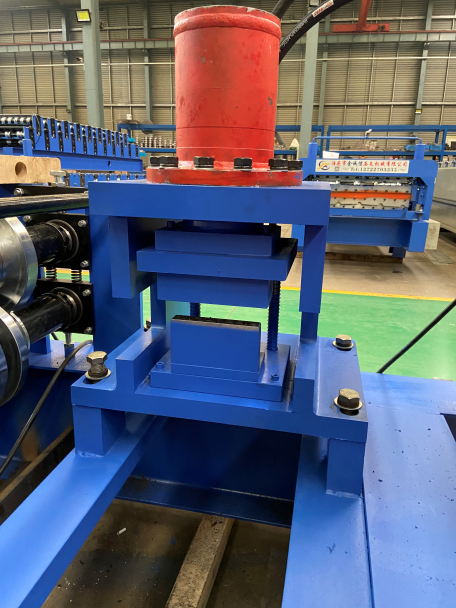

Blade material |
Cr12 with tempering |
|
|
Shear power |
Hydraulic method |
|
|
Speed |
15m/min |
|
|
Roller fixer |
20mm Middle plate |
|
|

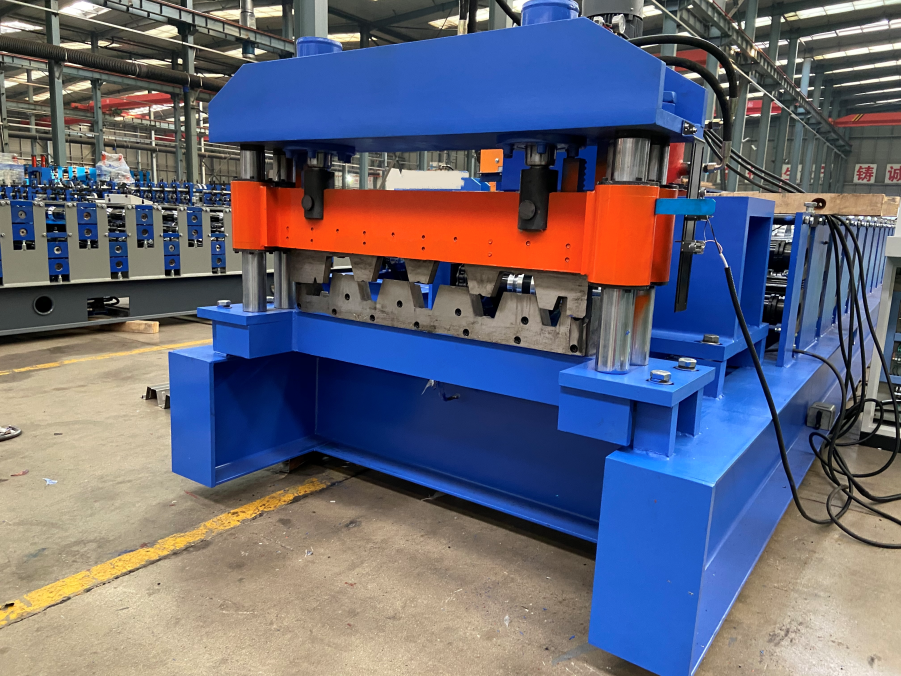

Behind Blade |
Material |
Cr12 with tempering |
|
Power model |
Hydraulic drive |
|
PLC control cabinet |
PLC brand |
Delta |
|
Low voltage apparauts |
Schneider |
|
|
Langue |
English (as request) |
|
|
Counter brand |
Omorn |
|
|
Screen type |
Touch screen |
|
|
Function |
To control speed, cutting length ,batch quantity |
|

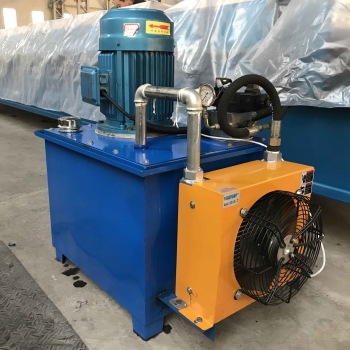

Hydraulic station |
Power |
5.5 kw |
|
Cool method |
By fans |
|
|
Cutting tolerance |
±1mm/3m |
|
Run-out table |
Length |
3m (as request) |
|
Material |
Square pipe welded |
Here are more details of the machine for your reference:

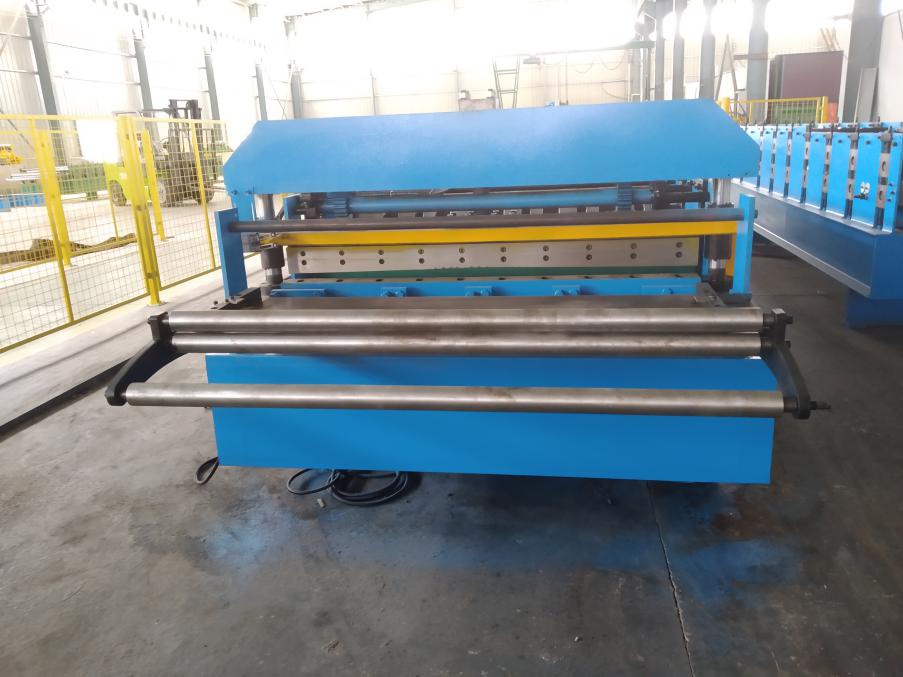

Diameter of embossing shaft: 120mm
Our machine can punch your logo on the products, better advertising effect.
