Zhongtuo Floor Decking Forming Machine
Zhongtuo floor decking forming machine is designed to produced floor decking, which are widely used to produce mainly metal floor deck, and the most popular metal floor deck forming machines in the markets can be found here. Here we take a random popular design in United Arab Emirates for your reference:

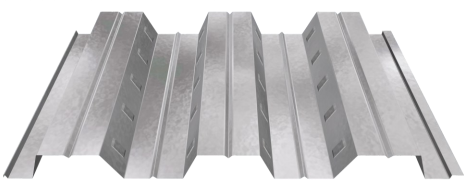

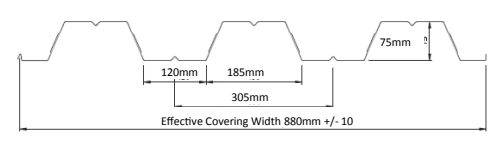

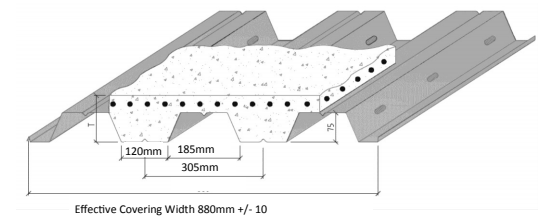

TS 75/300 floor deck profile

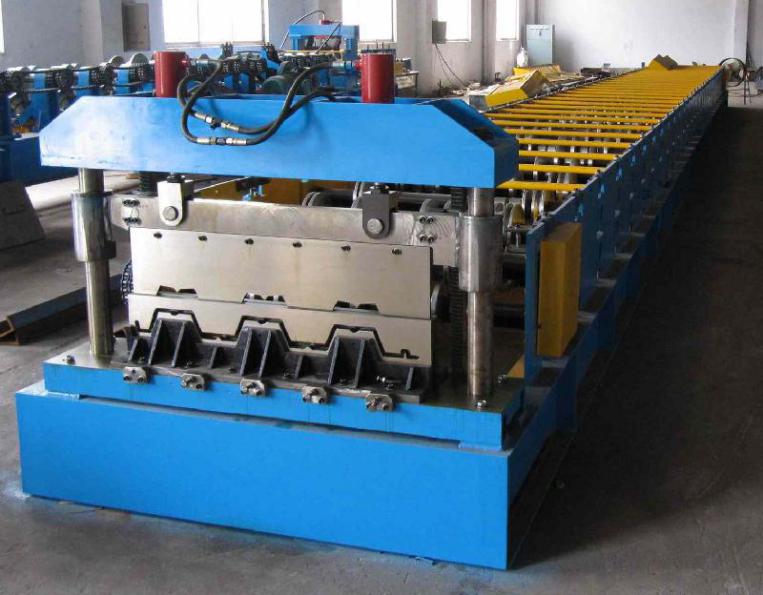

Zhongtuo floor deck roll forming machine can produce most steel floor deck in the market. The production line is with fully automatic control system with PLC. The parameters of length, quantity is adjustable according to your requirement.

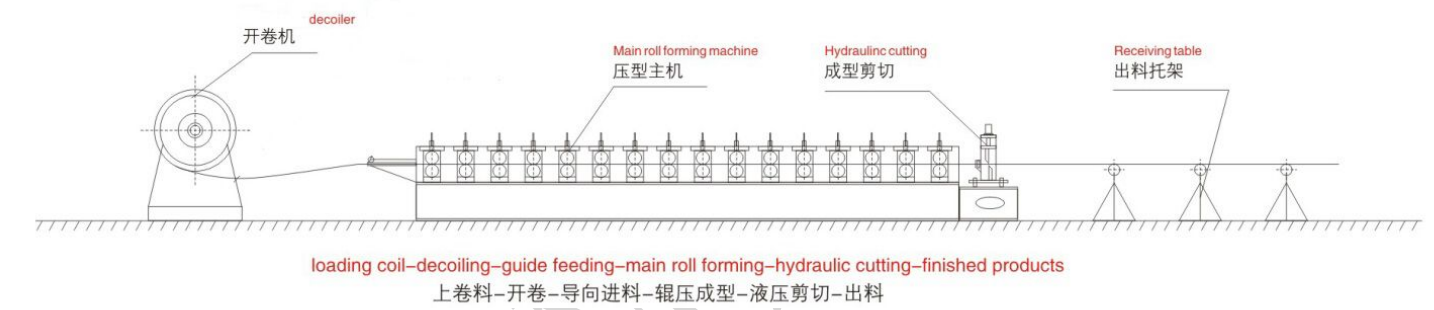

Processing flow diagram of machine
Manual decoiler→ → Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products
Technical Information
|
configurations |
manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table |
||
|
Material |
Raw material |
galvanized steel |
|
|
Thickness |
0.5-1.25mm |
||
|

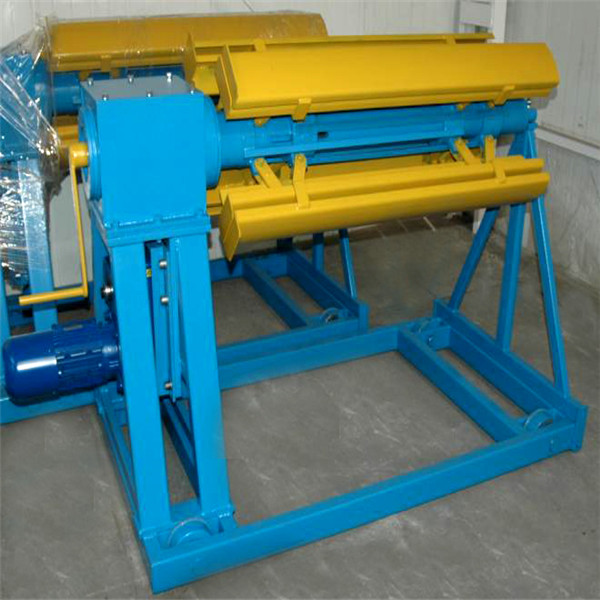

Manual decoiler |
Inner Diameter:450-550mm |
Expand by manual |
|
|
Outer Diameter: max 1500mm |
|||
|
Max Coil width:1250mm |
|||
|
Capacity: 5T |
|||
|
Leveing beach |
For making coil neat and clean from decoiler, coil will be a little cruve. Meanwhile for saving coil, we will give motor shearing system to cut coil at any part. |
||
|
Main Forming machine |

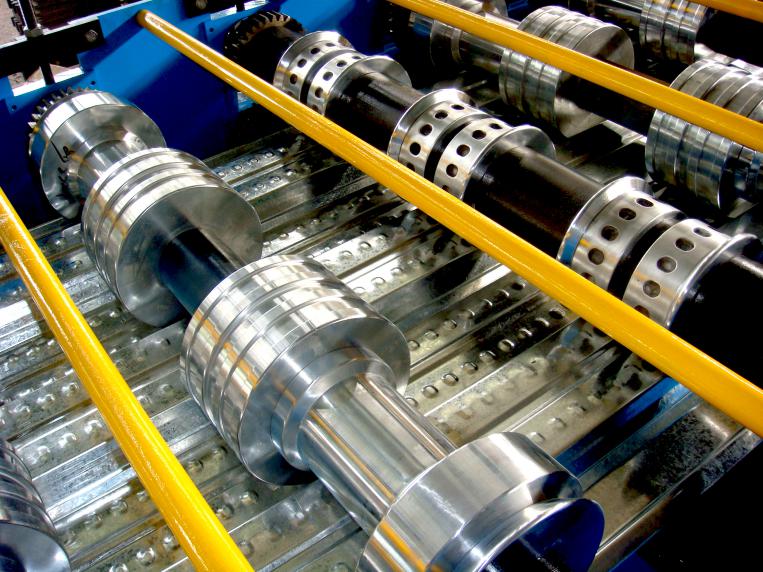

Forming steps |
32 steps |
|
|
Shaft diameter |
90mm |
||
|
Design type |
Middle plate welded |
||
|
Machine frame thickness |
20mm |
||
|
Machine frame |
400# H steel welded |
||
|
roller material |
45# steel, surface hard chromium plating. |
||
|
shaft material |
45# steel |
||
|
Work speed including shearing |
8-12m/min |
||
|
Transport |
By chains of 1.25mm |
||
|
Power of main machine |
15kw |
||
|
Shearing system |
Type of cutting power |
Hydraulic |
|
|
Elements |
Two hydraulic jacks for fast shearing speed |
||
|
Frame |
Pillar pole type to make sure working steady |
||
|
Cutting balde material |
Gcr12, quencing at 58 to 62 degree to make sure hardness and long time to use. |
||
|
Cutting tolerance |
±1mm |
||
|
Cutter blade more pair |
We will give one more as spare part |
||
|
Cutter quantity |
2 set |
||
|
Working pressure |
20 MPA |
||
|
Motor Brand |
Simens |
||
|
Hydraulic system |
Hydraulic oil |
46# |
|
|
Hydraulic power |
4kw |
||
|
Cutting length |
As required |
||
|
Brand |
Japan Youyan series |
||
|
No distorting or wasting. High level safety factor. |
|||
|

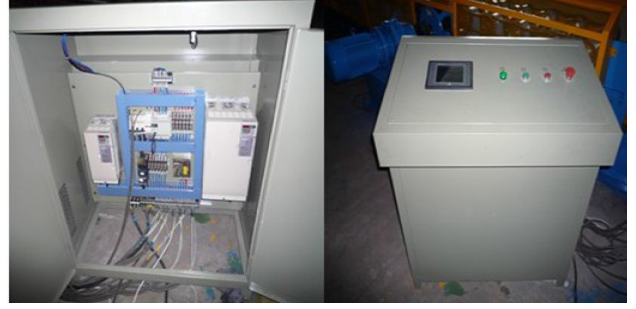

Control Device |
control |
By PLC |
|
|
PLC language |
English and or others (or as required) |
||
|
Touch screen |
4.7Inch Simens |
||
|
Function |
Automatic length and quantity measurement |
||
|
Brand |
Simens |
||
|
electrical element |
Schneider |
||
|
Other Spare part |
Weight |
About 11.5 ton |
|
|
Dimension |
12.5*1.85*1.5m |
||
|
Main body color |
Main body color blue or customize |
||
|
Voltage |
380v/50hz/3ph（or as required) |
||
|
Spare cutting blade |
One piece for profile |
||
|
Fuse |
2 pieces |
||
|
Relay |
2 pieces |
||
|
Travel switch |
2 pieces |
||
|
Solenoid valve |
1 pieces |
||
|
Terms of payment |
1. Terms of payment: 30% T/T, 70% balance payment against the BL copy. 2. Deliver time: 35 working days. |
||
|
Warranty and Training |
1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year. 2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the Technician USD100/day for salary. There need one technician. Training time will be one week. |
||

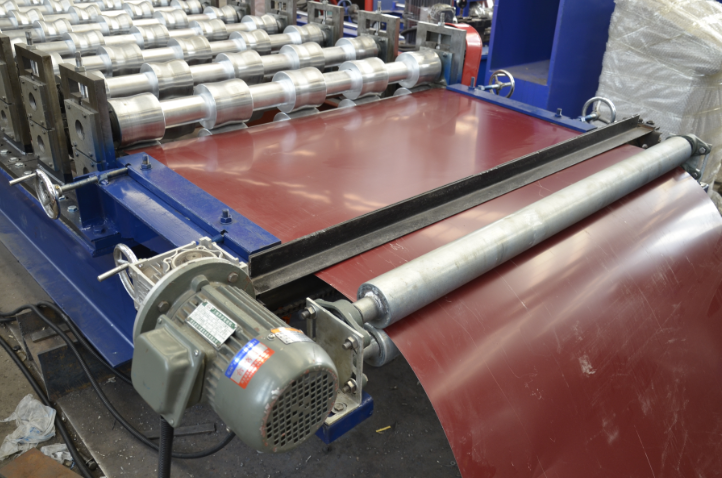

More details pictures (Pictures are only for reference )
