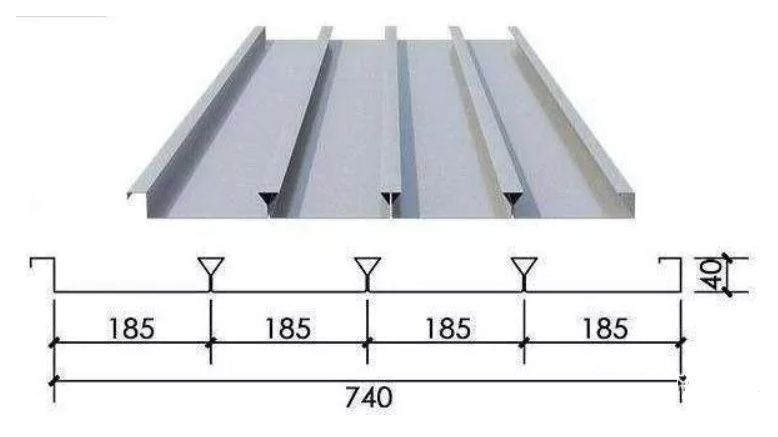

Zt40-185-740 is a kind of closed profiled steel sheet, which was first introduced by Taiwan expert profiled steel sheet company. This news shows how this profile is used in real construction building. Here is the drawing profile for your reference:
Due to the needs of the project, the steel plate manufacturer introduced this type of plate in 2015. At present, the processing thickness is 0.75-1.5mm.

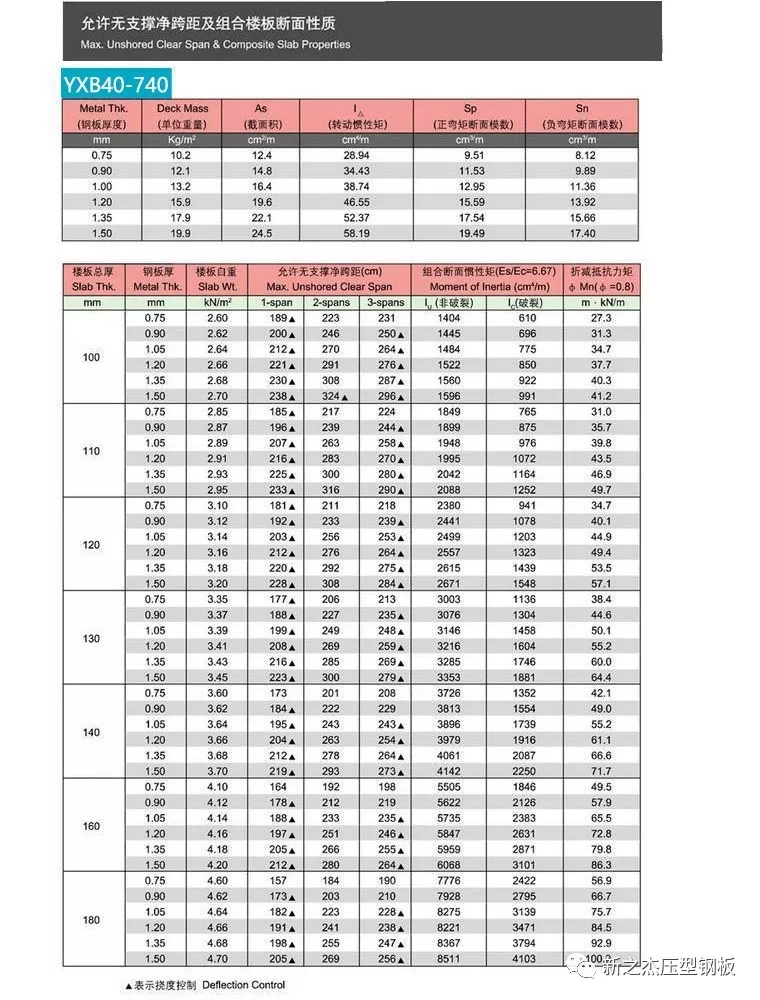

Here are some basic parameters for your reference:
Two reasons why zt40-185-740 is not recommended
As ztb40-185-740 closed profiled steel plate has low rib height and small unsupported span, it is not suitable for buildings with large beam spacing. It can be used in some projects with thin floors or high requirements for mezzanine floors.
However, the consumption of zt40-185-740 closed profiled steel plate is not very large in the market at present. As a manufacturer, we do not recommend this type of steel plate very much. The reasons are as follows:
The results are as follows: 1. The strength of zt40-185-740 closed profiled steel sheet is not very high, and its price is not superior to that of the same strength profiled steel sheet;
2. The loss is relatively large. Because the feeding width is 1200mm, there is basically no 1200mm coil in the market, so it can only be replaced by 1250mm. As a result, the 740 closed profiled steel plate must be separated by a slitter for 50mm in production, and the separated materials are basically useless.
Therefore, we suggest that if it is not strictly required by the drawing, other plate types can be considered. For example, zt42-215-645 closed profiled steel plate.
But in China, we have some building made by this profile like below in Shanghai, it has its own advatages.

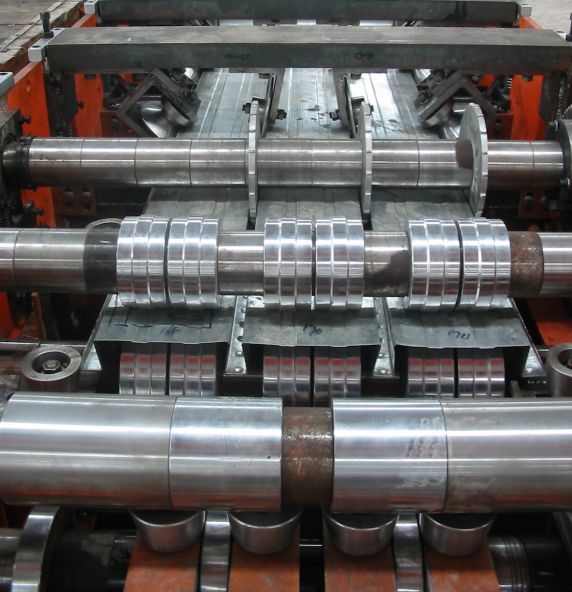

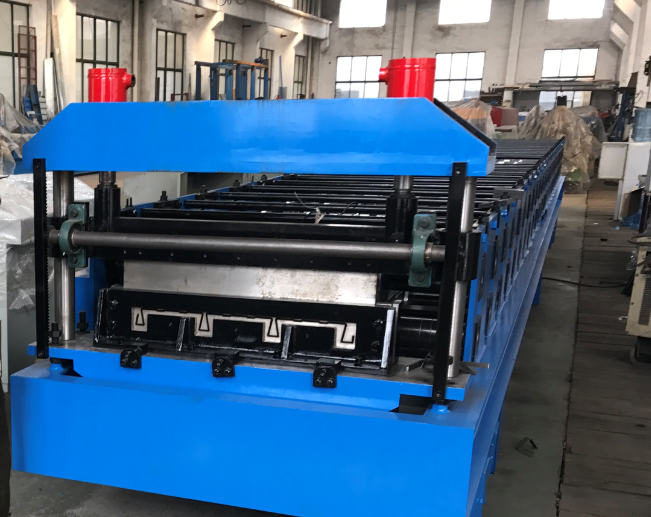

For this type, we made the machines like the following pictures:
